Abstract

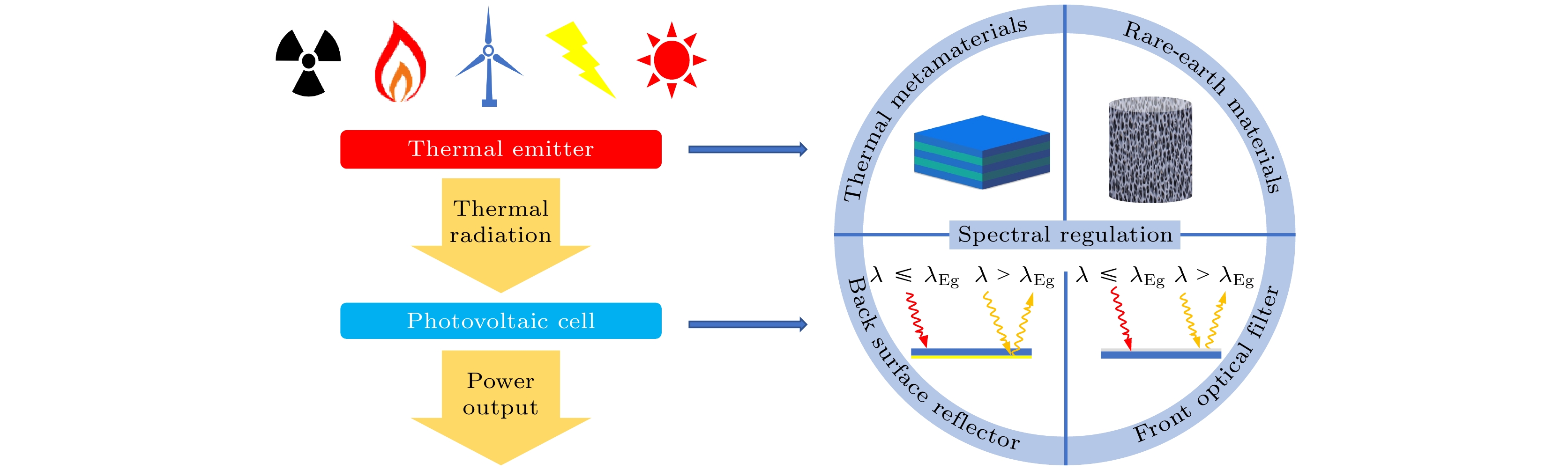

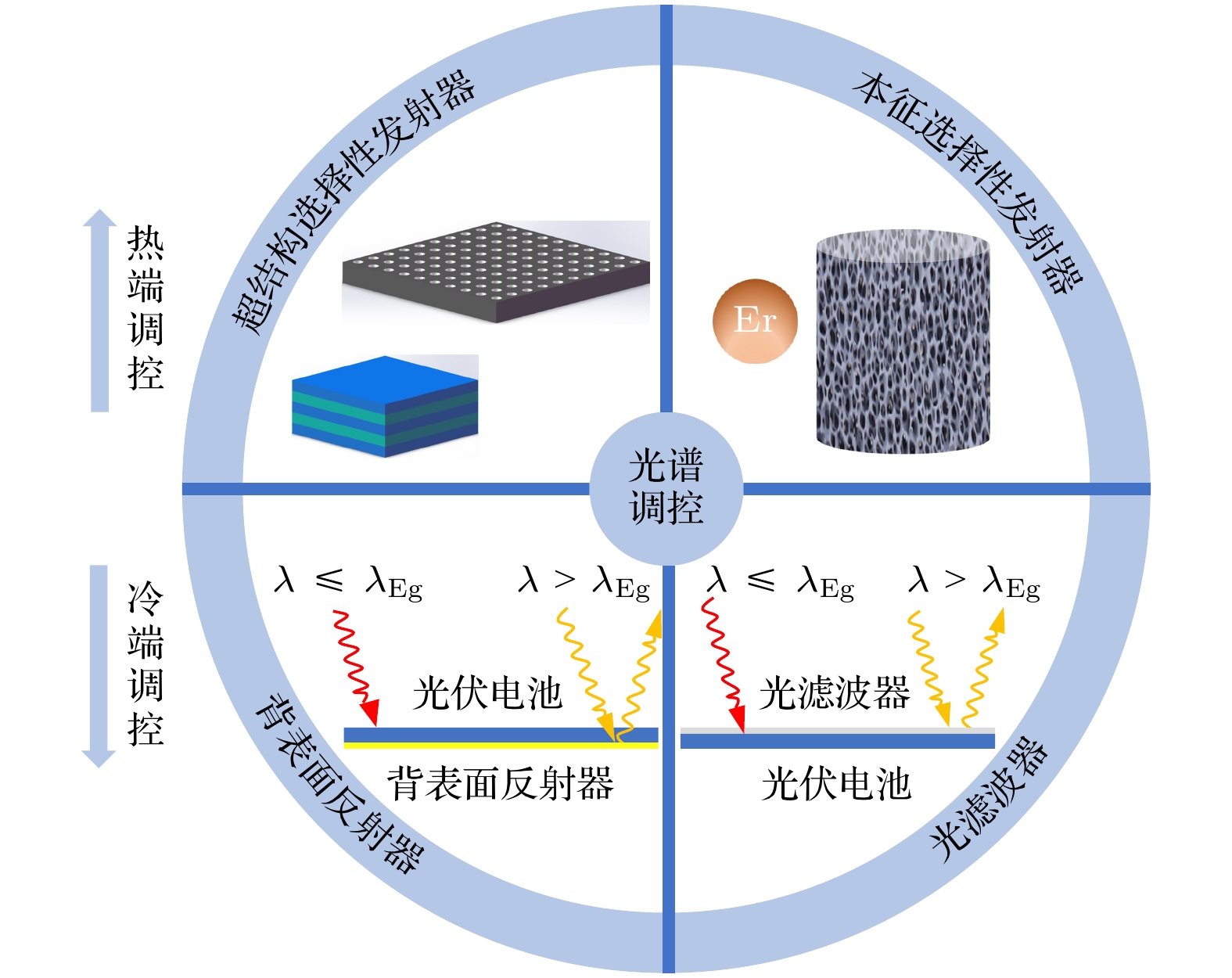

Thermophotovoltaic (TPV) device converts thermal radiation into electricity output through photovoltaic effect. High-efficiency TPV devices have extensive applications in grid-scale thermal storage, full-spectrum solar utilization, distributed thermal-electricity cogeneration, and waste heat recovery. The key to high-efficiency TPV devices lies in spectral regulation to achieve band-matching between thermal radiation of the emitters and electron transition of the photovoltaic cells. The latest advances in nanophotonics, materials science, and artificial intelligence have made milestone progress in spectral regulation and recording power conversion efficiency of up to 40% of TPV devices. Here we systematically review spectral regulation in TPV devices at the emitter end as well as the photovoltaic cell end. At the emitter end, spectral regulation is realized through thermal metamaterials and rare-earth intrinsic emitters to selectively enhance the in-band radiation and suppress the sub-bandgap radiation. At the photovoltaic cell end, spectral regulation mainly focuses on recycling the sub-bandgap thermal radiation through optical filters and back surface reflectors located at the front and back of the photovoltaic cells, respectively. We emphasize the light-matter interaction mechanisms and material systems of different spectral regulation strategies. We also discuss the spectral regulation strategies in near-field TPV devices. Finally, we look forward to potential development paths and prospects of spectral regulation to achieve scalable deployment of future TPV devices.

Keywords:

Authors and contacts

Corresponding author:Huang Zhe-Qun,huangzhequn@sjtu.edu.cn; Cui Ke-Hang,cuikehang@sjtu.edu.cn

Funds:Project supported by the National Natural Science Foundation of China (Grant No. 52371139), the Shanghai Sailing Program, China (Grant No. 21YF1419700), and the Shanghai Pujiang Program, China (Grant No. 19PJ1404600).

FullText HTML: translate this paragraph

References

[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
[12]
[13]
[14]
[15]
[16]
[17]
[18]
[19]
[20]
[21]
[22]
[23]
[24]
[25]
[26]
[27]
[28]
[29]
[30]
[31]
[32]
[33]
[34]
[35]
[36]
[37]
[38]
[39]
[40]
[41]
[42]
[43]
[44]
[45]
[46]
[47]
[48]
[49]
[50]
[51]
[52]
[53]
[54]
[55]
[56]
[57]
[58]
[59]
[60]
[61]
[62]
[63]
[64]
[65]
[66]
[67]
[68]
[69]
[70]
[71]
[72]
[73]
[74]
[75]
[76]
[77]
[78]
[79]
[80]
[81]
[82]

Cited By

DownLoad: Full-Size Img PowerPoint

参考文献	材料与结构	测试波长范围/μm	设计温度/K	测试温度	光伏电池带隙/eV	光谱效率/ %
[2]	1D Si/SiO₂	1.00—8.00	1293	工作温度	0.55	34.5
[39]	1D Si/SiO₂/W	0.40—8.00	1473	室温	0.73	65.6
[37]	1D W+SiO₂/TiO₂+合金	0.80—6.00	1373	工作温度	0.55	46.8
[35]	1D W/HfO₂	0.65—10.0	1273	室温	0.55	49.5
[45]	1D W/HfO₂	0.50—4.00	1673	室温	0.72	50.2
[48]	1D W/HfO₂	0.50—3.50	1673	室温	0.72	48.3
[57]	1D YSZ/W/YSZ	0.30—4.00	1640	室温	0.67	50.1
[38]	W+Al₂O₃+SiO₂/TiO₂+W–Al₂O₃	0.50—5.00	1696	模拟	0.73	57.3
[3]	1D多晶Ta	1.00—3.00	1327	室温	0.62	60.0
[22]	2D Ta + HfO₂涂覆	0.25—2.50	1000	室温	0.54	71.2
[49]	2D W + CNT	0.50—5.00	1273	室温	0.74	42.1
[27]	3D W反蛋白石结构	0.50—5.00	1673	室温	0.67	33.9
[54]	Yb₂O₃	0.80—45.0	1735	工作温度	0.69	18.9
[55]	Al₂O₃/EAG	1.00—9.00	1850	工作温度	0.72	36.0
[58]	NiO掺杂MgO	1.00—5.00	1473	工作温度	0.69	45.9
