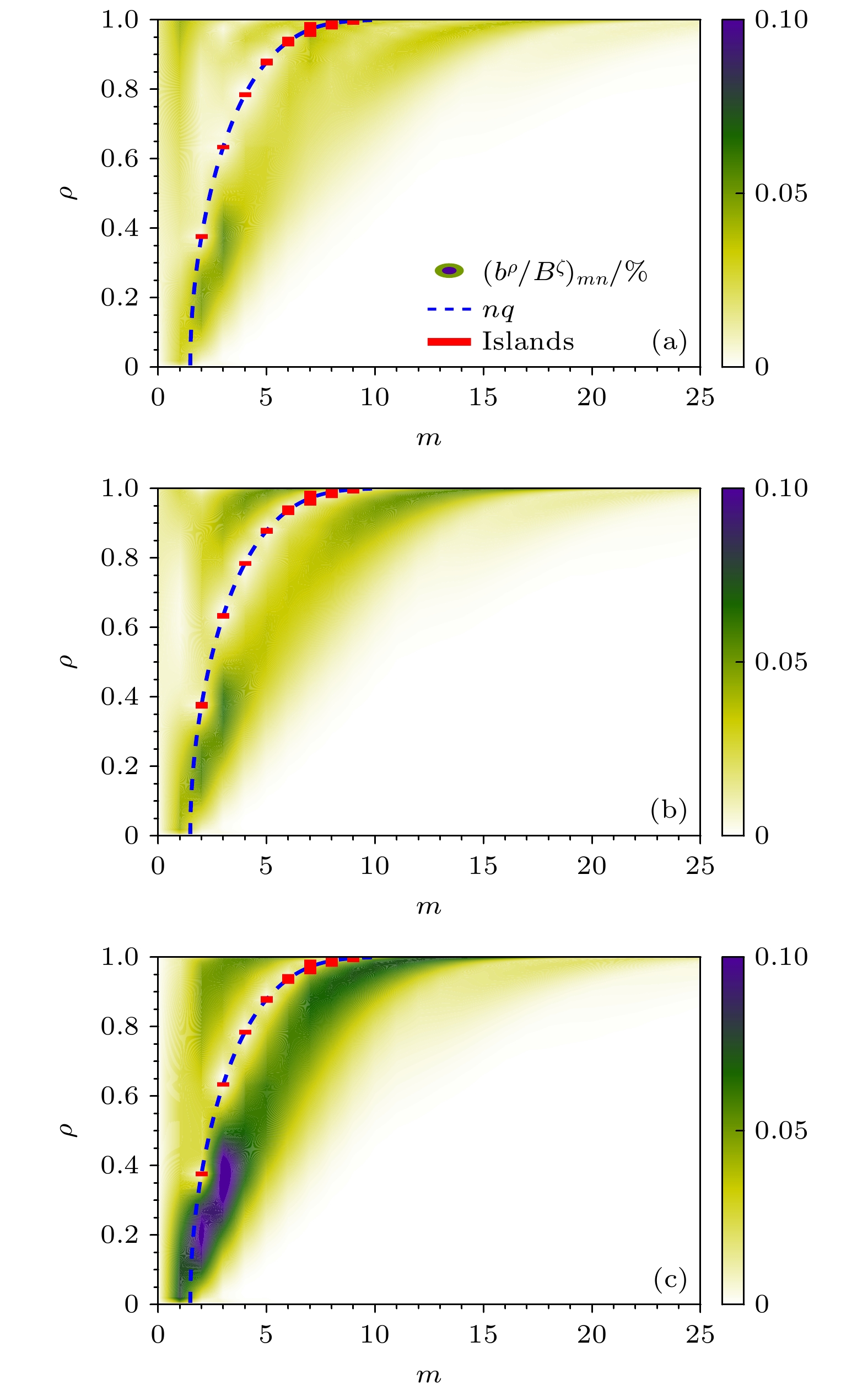

\begin{document}$ \Delta {\phi }_{{\rm{U}}{\rm{L}}}\left(^\circ\right)={\phi }_{{\rm{U}}}\left(^\circ\right)-{\phi }_{{\rm{L}}}\left(^\circ\right) $\end{document}) is a notable parameter of affecting sawtooth behavior. The experiments for scanning the phase difference \begin{document}$ \Delta {\phi }_{{\rm{U}}{\rm{L}}} $\end{document} are carried out. When the phase difference \begin{document}$ \Delta {\phi }_{{\rm{U}}{\rm{L}}} $\end{document} of RMP at n = 2 is changed, the sawtooth period and amplitude become subsequently different. The minimum sawtooth period and amplitude appear at \begin{document}$\Delta {\phi }_{{\rm{U}}{\rm{L}}}=270^\circ$\end{document}. At the same time, neutron yields measured by neutron diagnostic system have the same trend as sawtooth behavior during RMP phase difference scanning. The plasma response to RMP at n = 2 is analyzed by using the MARS-F code. The results show that the plasma responses much strongly at the \begin{document}$\Delta {\phi }_{{\rm{U}}{\rm{L}}}=270^\circ$\end{document}. The loss of fast ion, caused by RMP coils, is possibly stronger at the \begin{document}$\Delta {\phi }_{{\rm{U}}{\rm{L}}}=270^\circ$\end{document} than that at other phase difference \begin{document}$ \Delta {\phi }_{{\rm{U}}{\rm{L}}}. $\end{document} The loss of fast ion can reduces its stabilization effect on sawtooth behavior, which results in the reduction of the sawtooth period and amplitude. Further research is needed to optimize the sawtooth control method with RMP to make it compatible with plasma performance."> - 必威体育下载

Search

Article

x

留言板

姓名
邮箱
手机号码
标题
留言内容
验证码

downloadPDF
Citation:

Pan Shan-Shan, Duan Yan-Min, Xu Li-Qing, Chao Yan, Zhong Guo-Qiang, Sun You-Wen, Sheng Hui, Liu Hai-Qing, Chu Yu-Qi, Lü Bo, Jin Yi-Fei, Hu Li-Qun
PDF
HTML
Get Citation
Metrics
  • Abstract views:2565
  • PDF Downloads:99
  • Cited By:0
Publishing process
  • Received Date:08 March 2023
  • Accepted Date:04 May 2023
  • Available Online:05 May 2023
  • Published Online:05 July 2023
