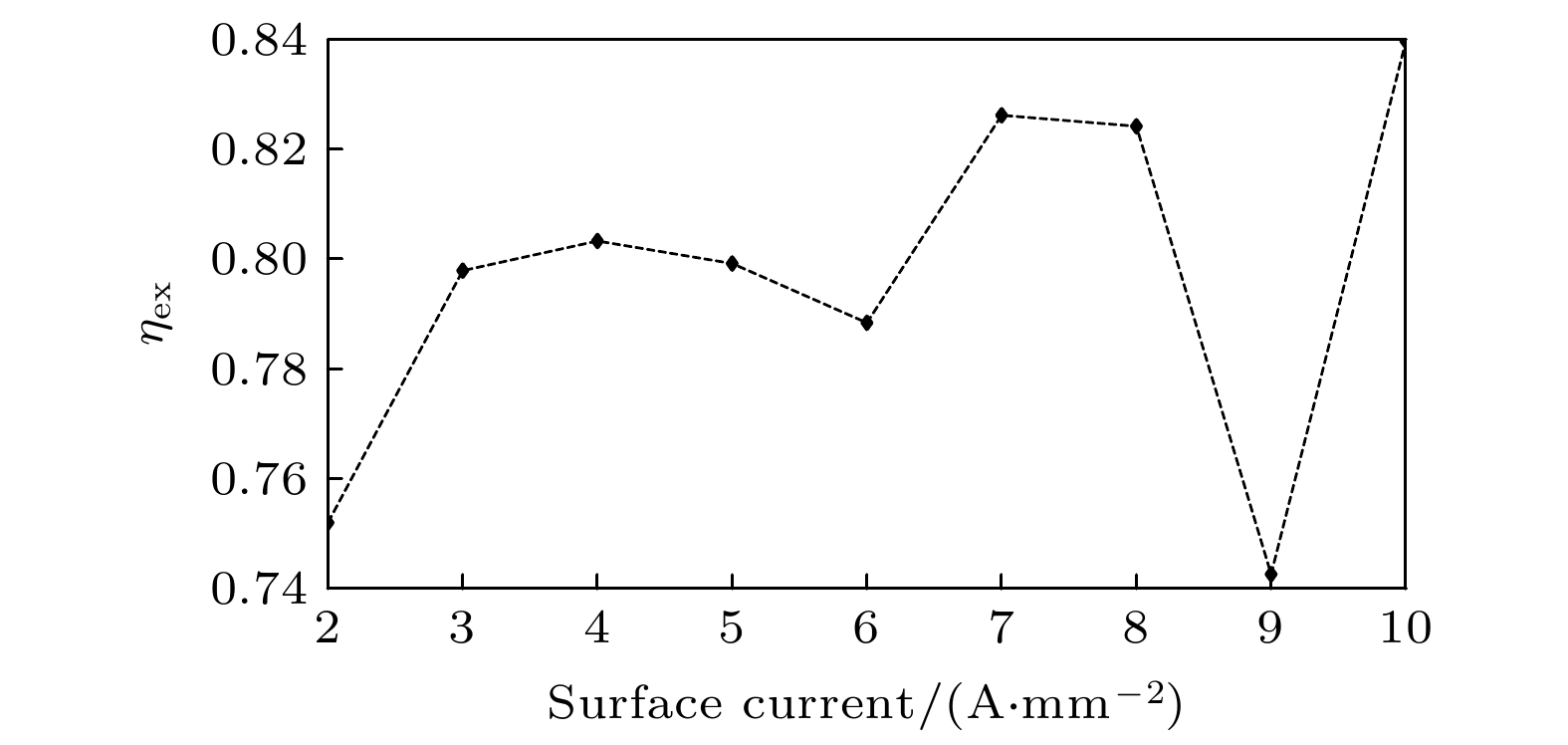

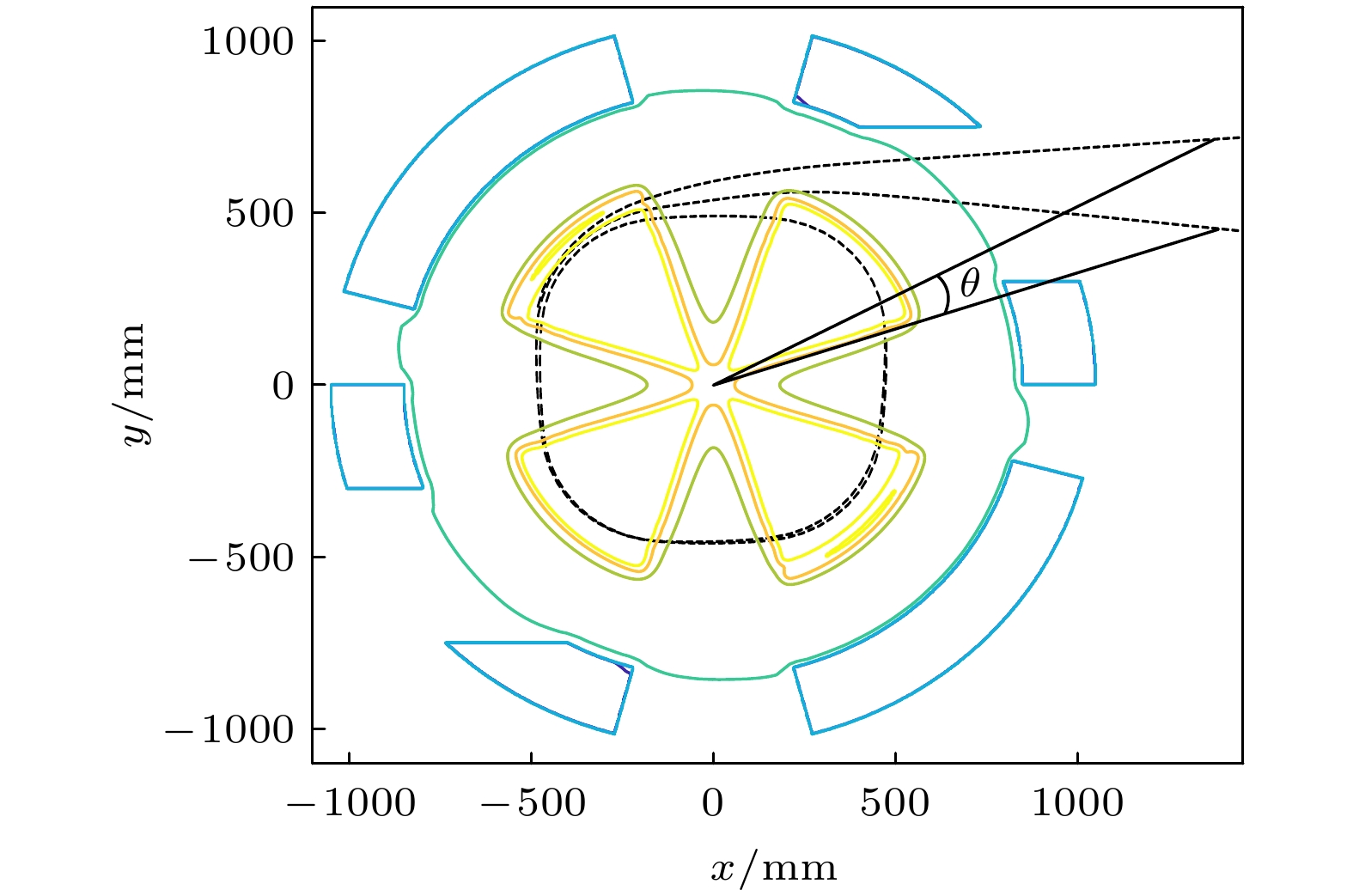

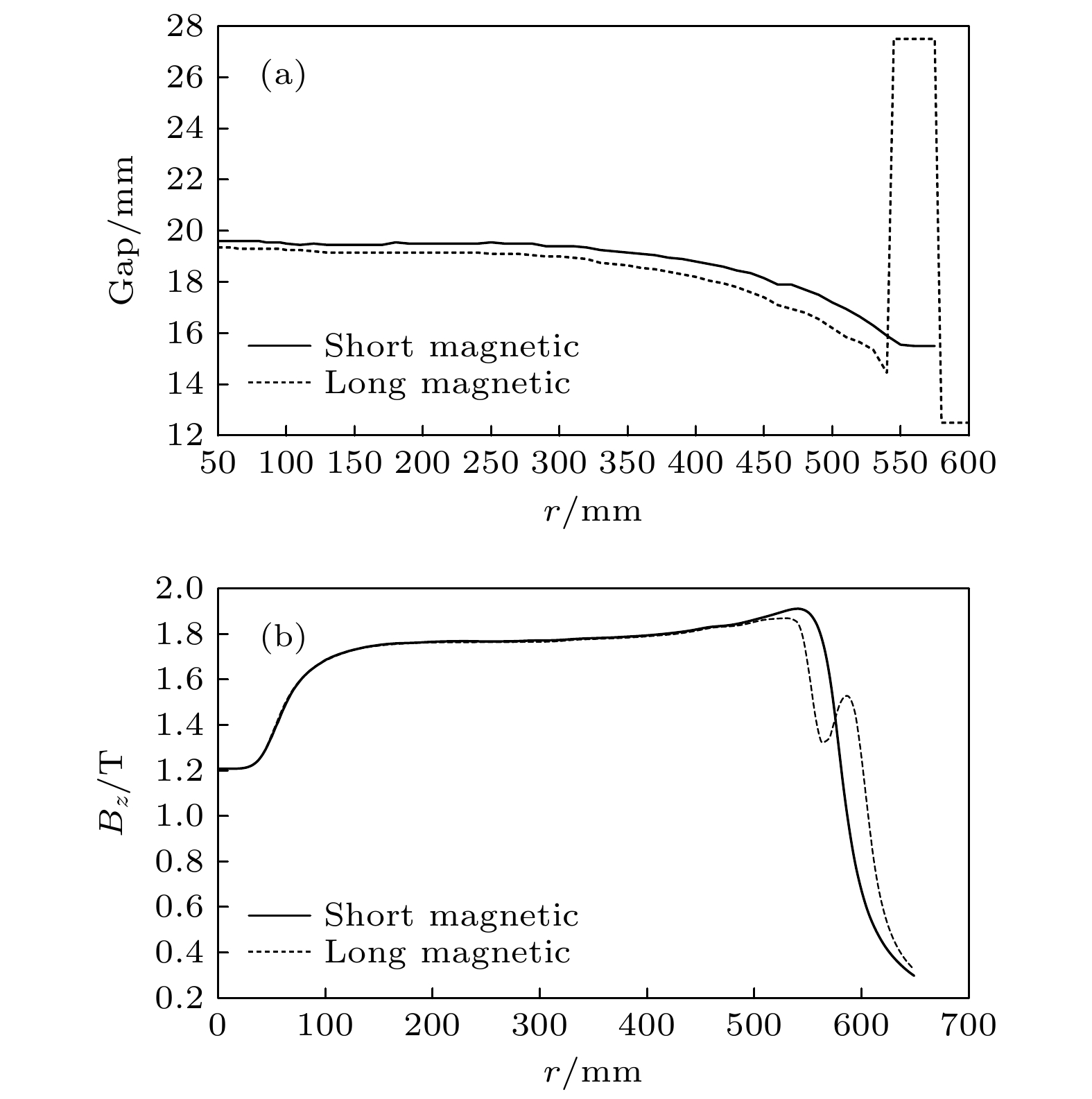

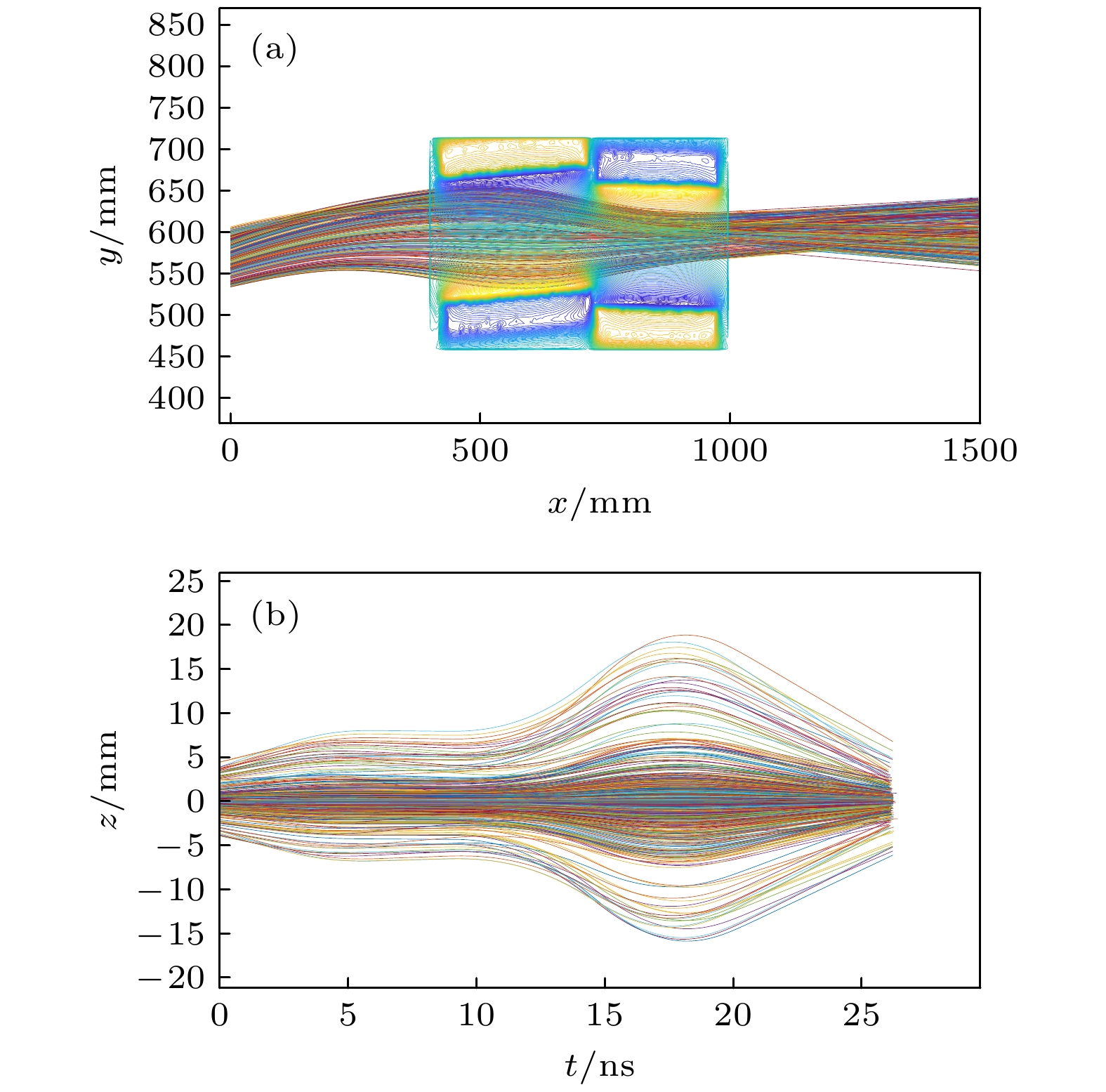

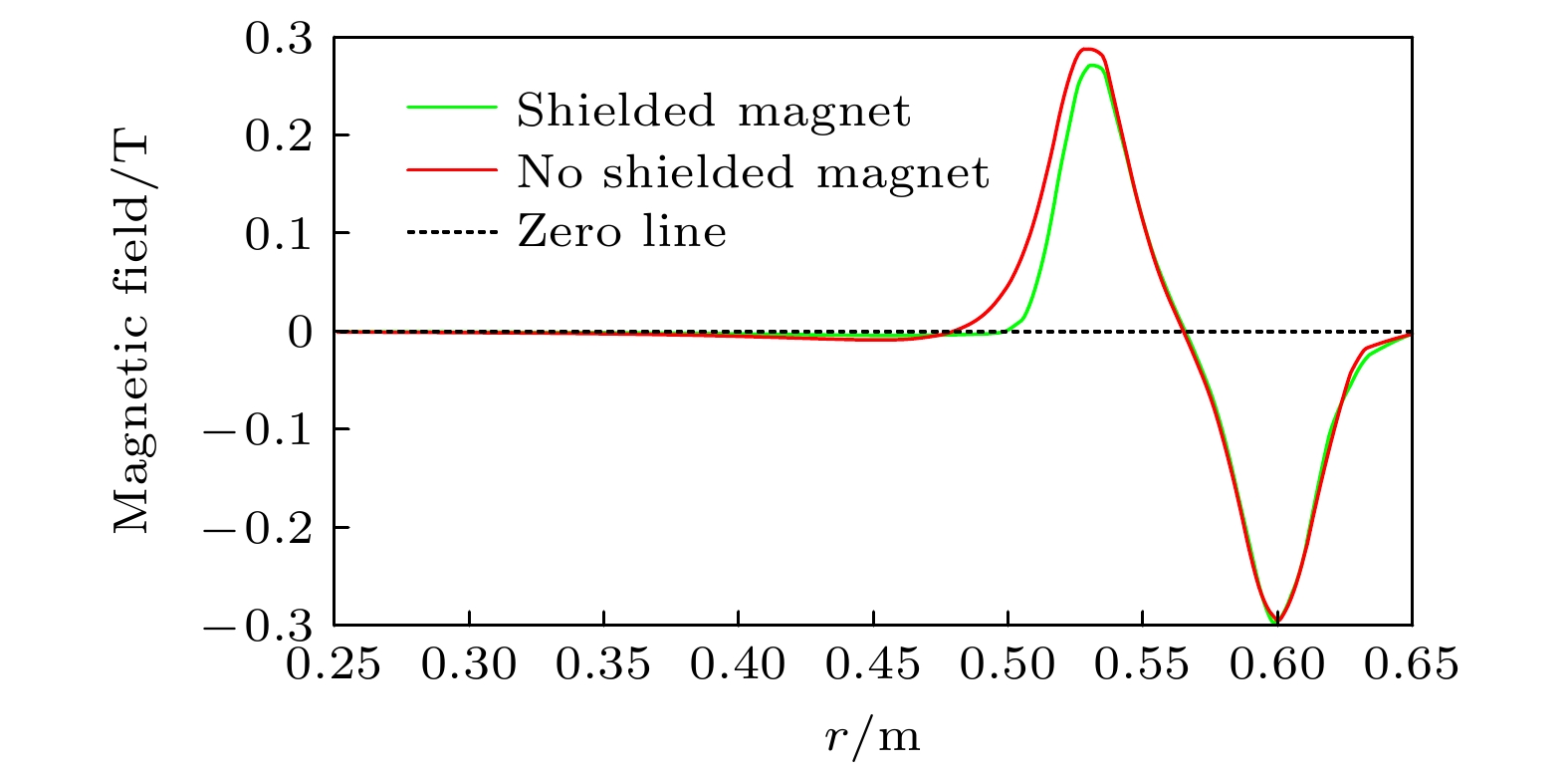

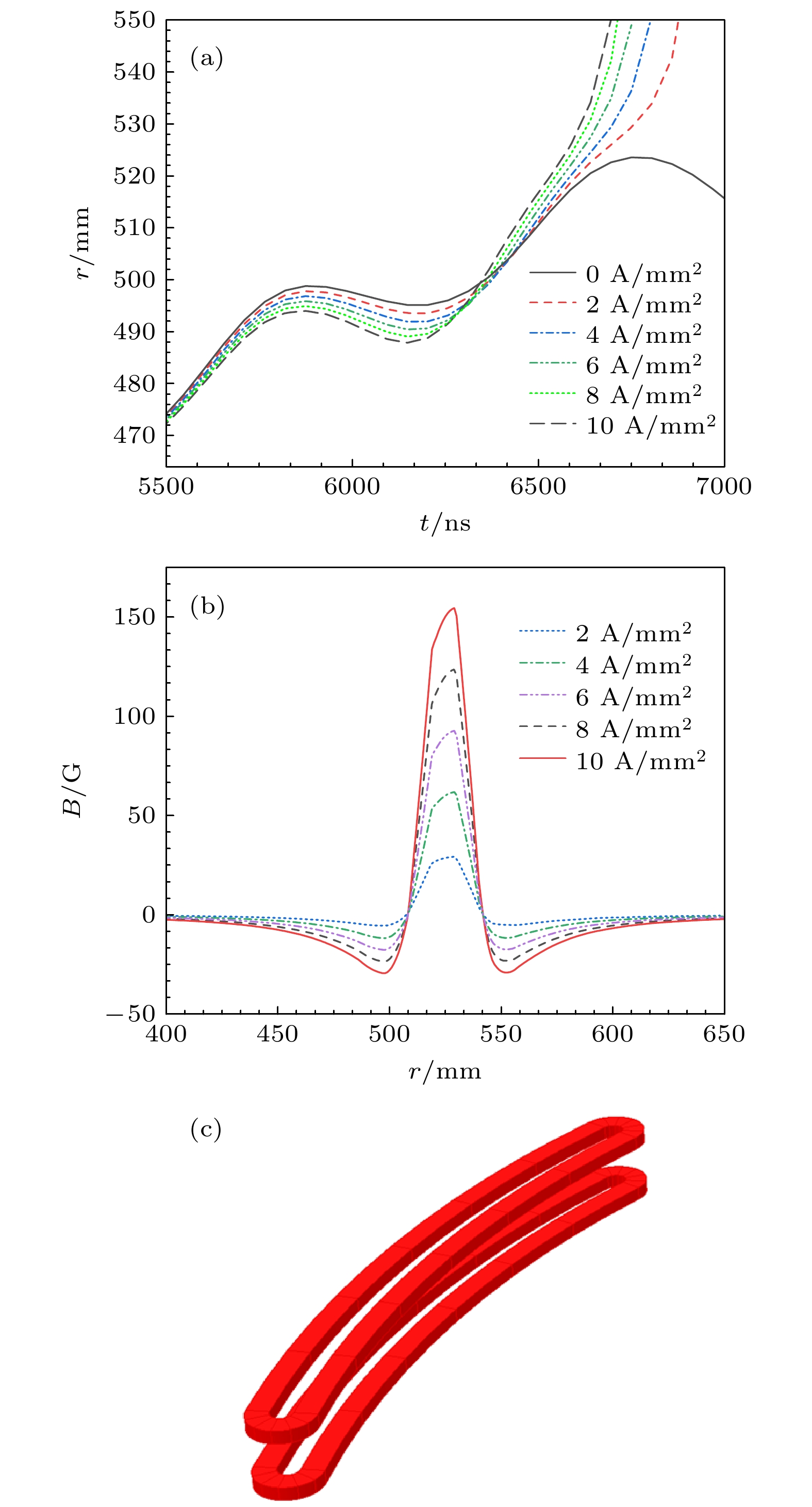

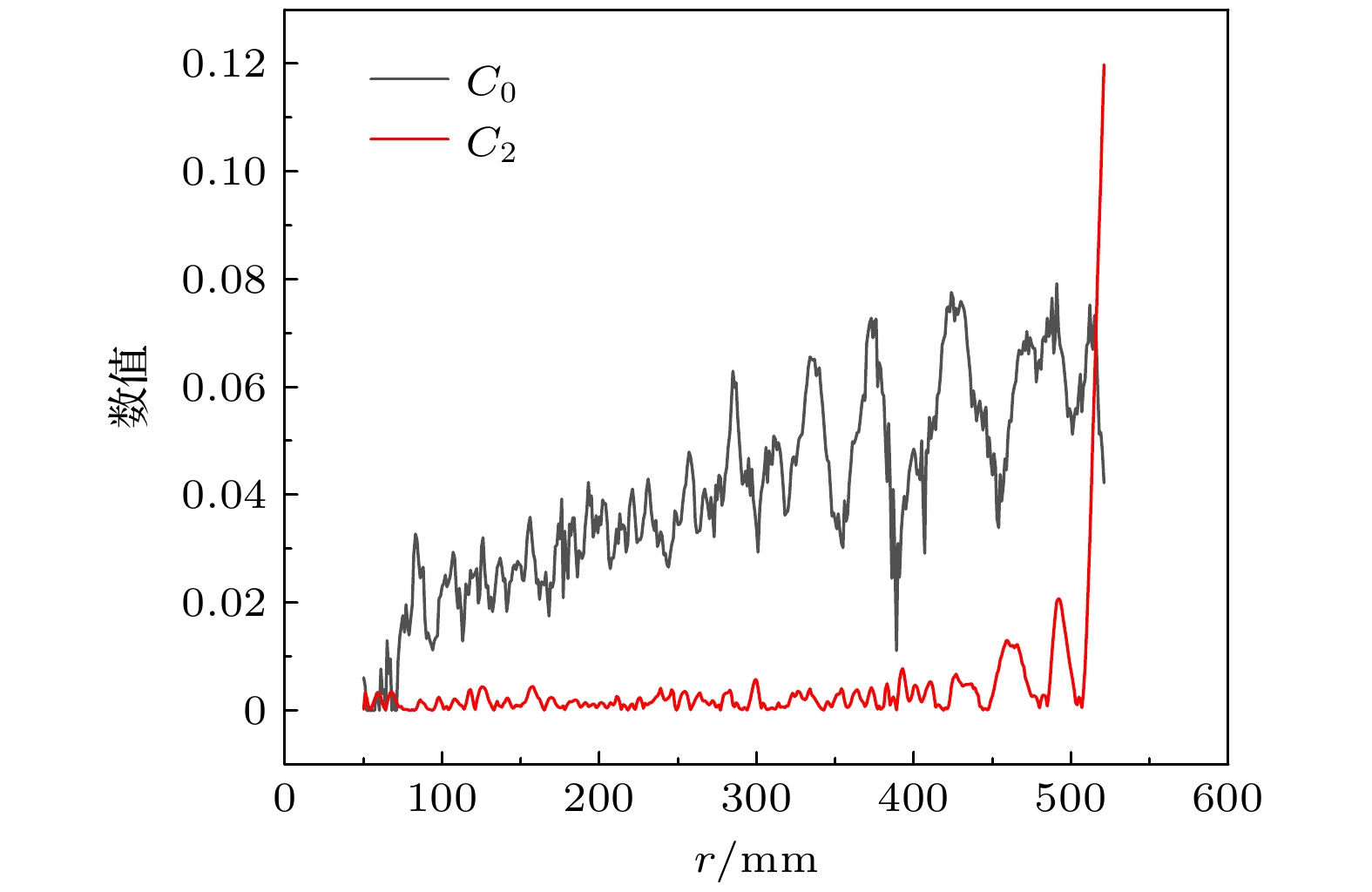

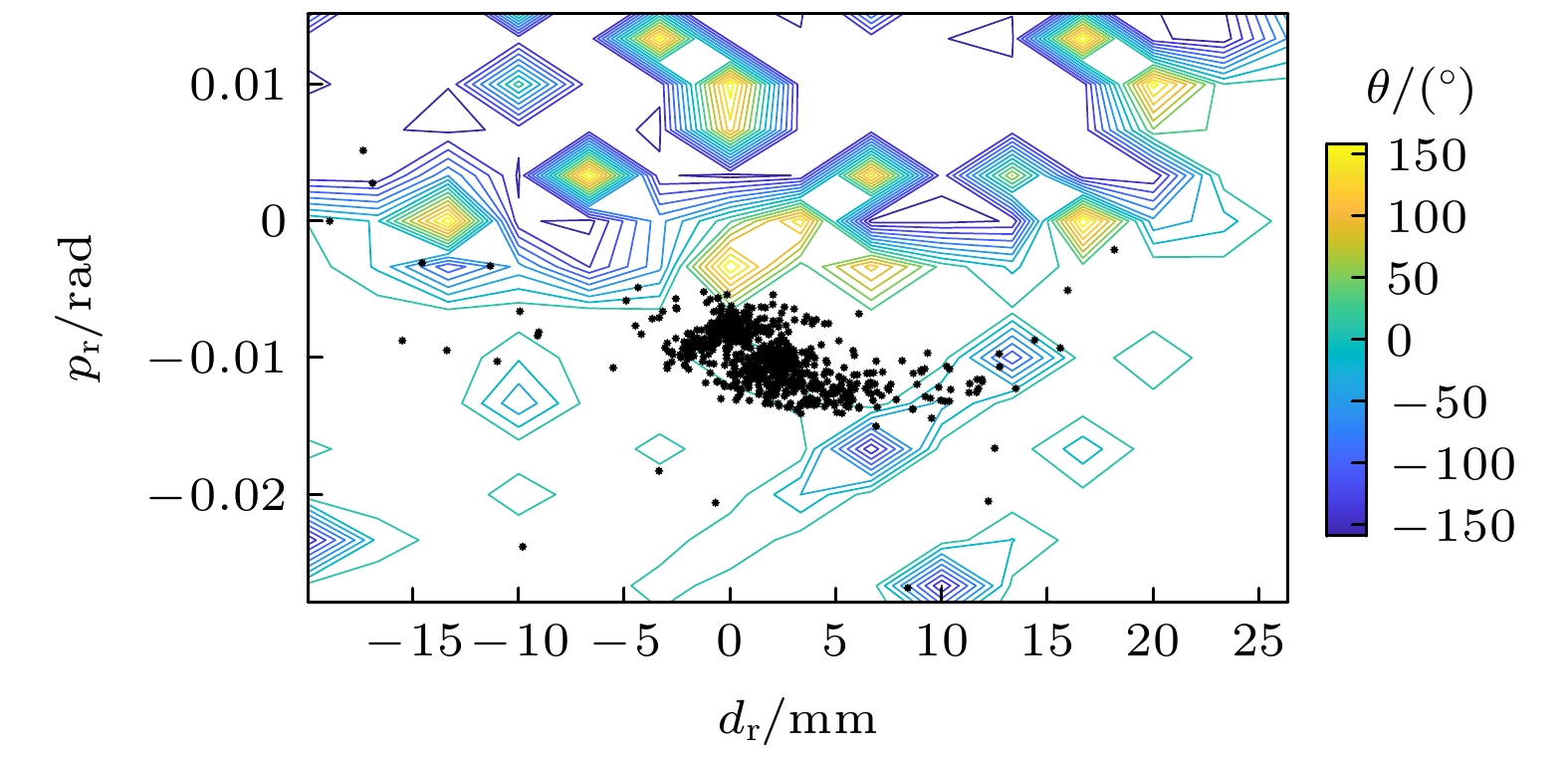

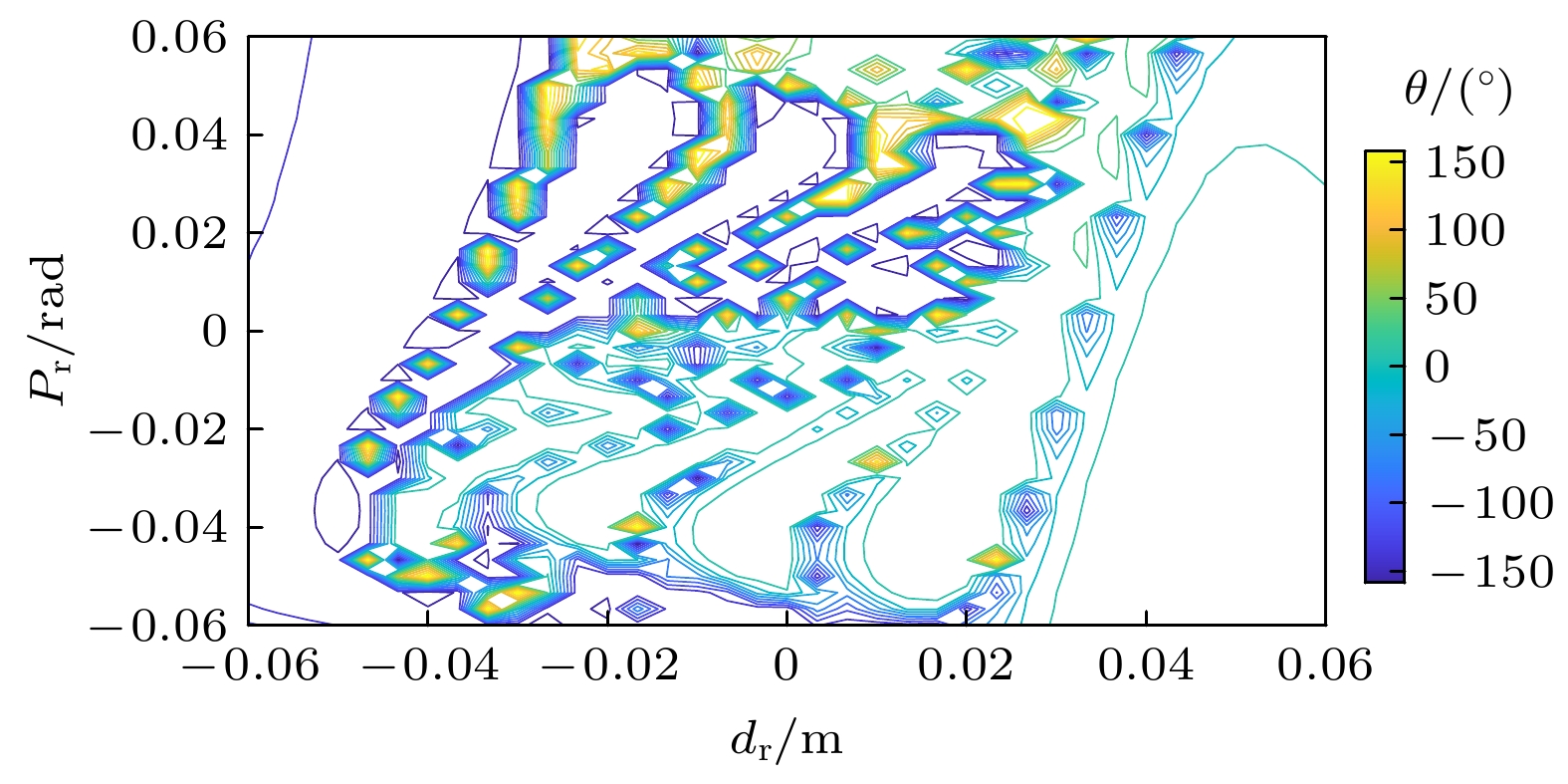

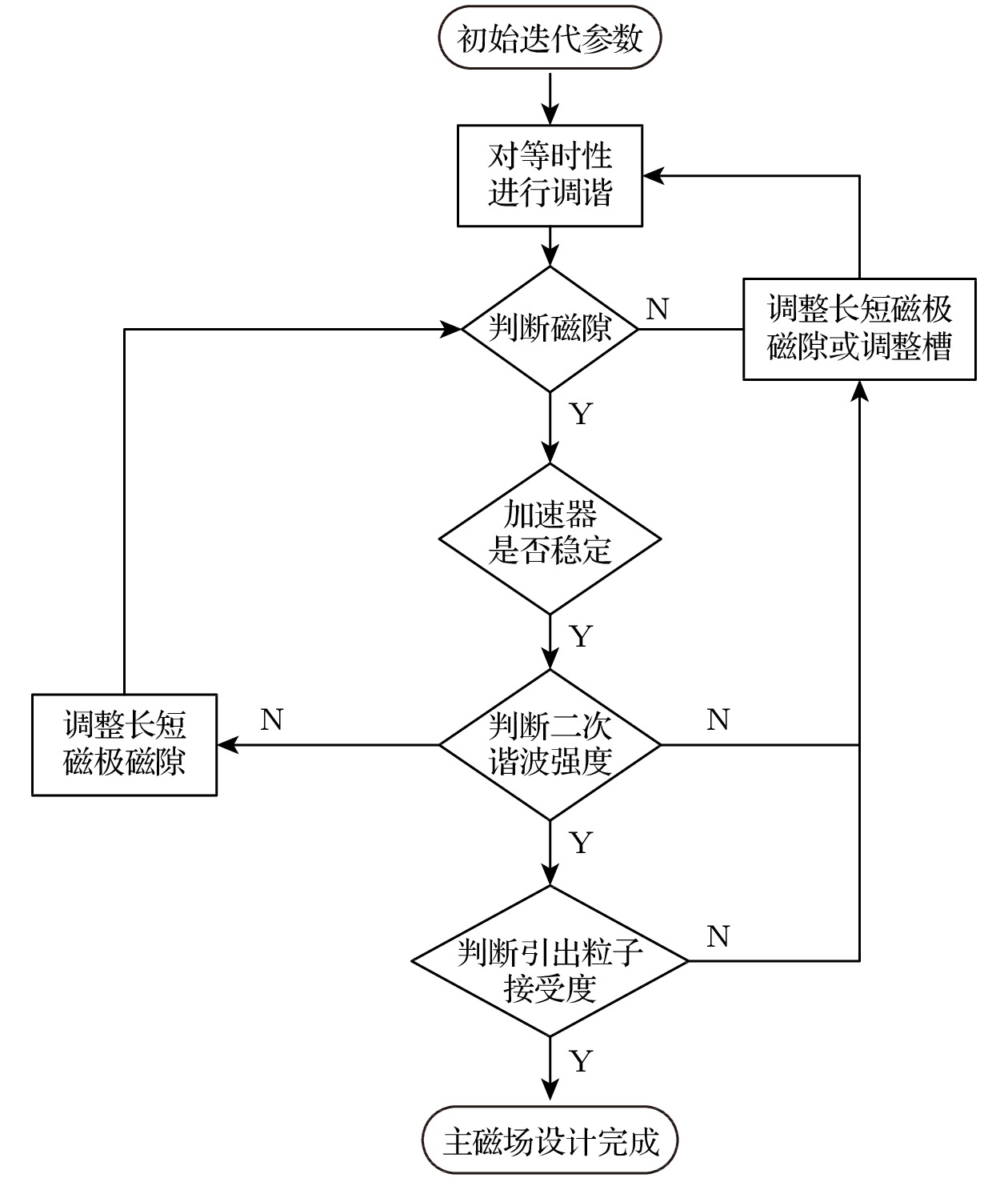

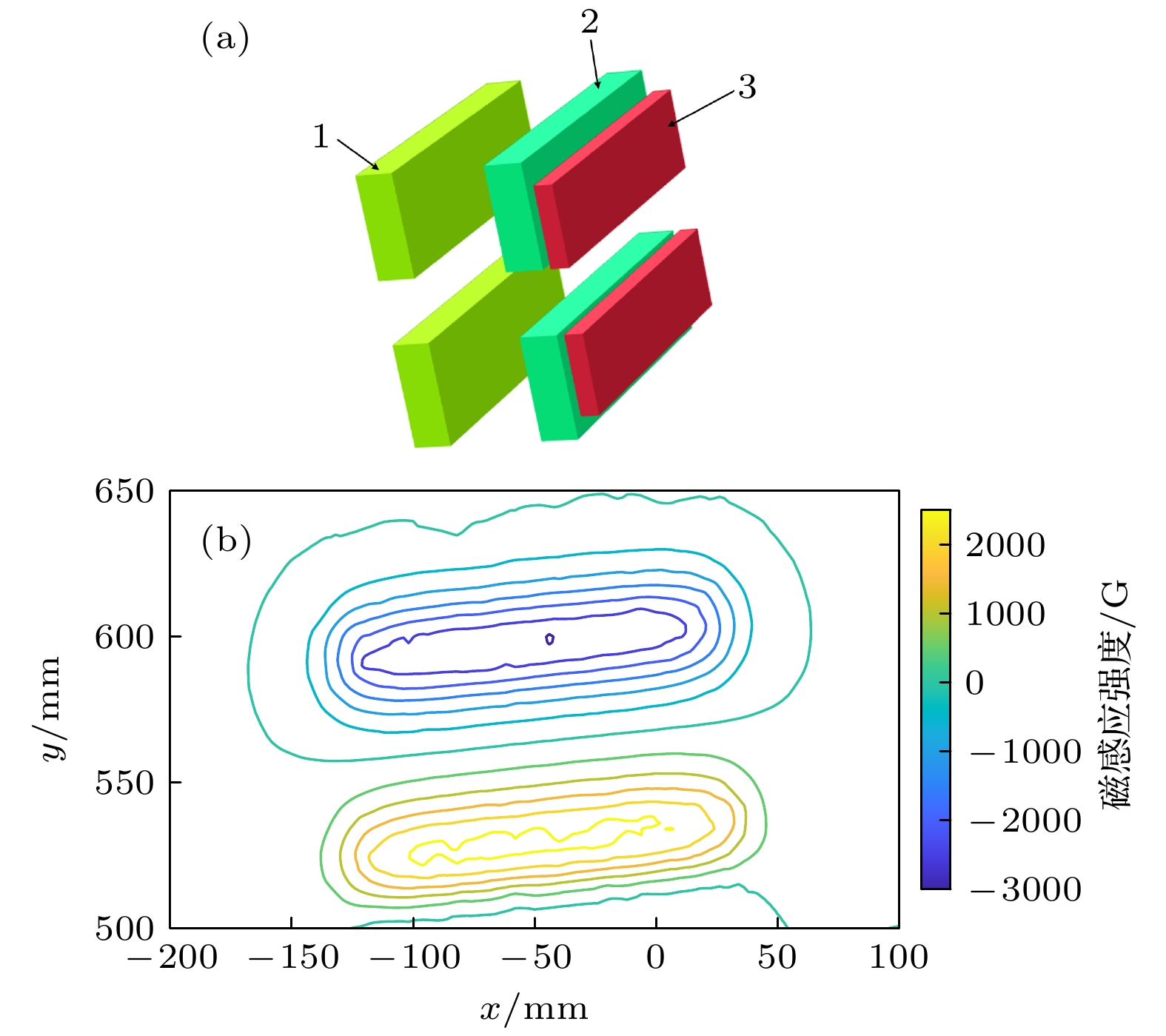

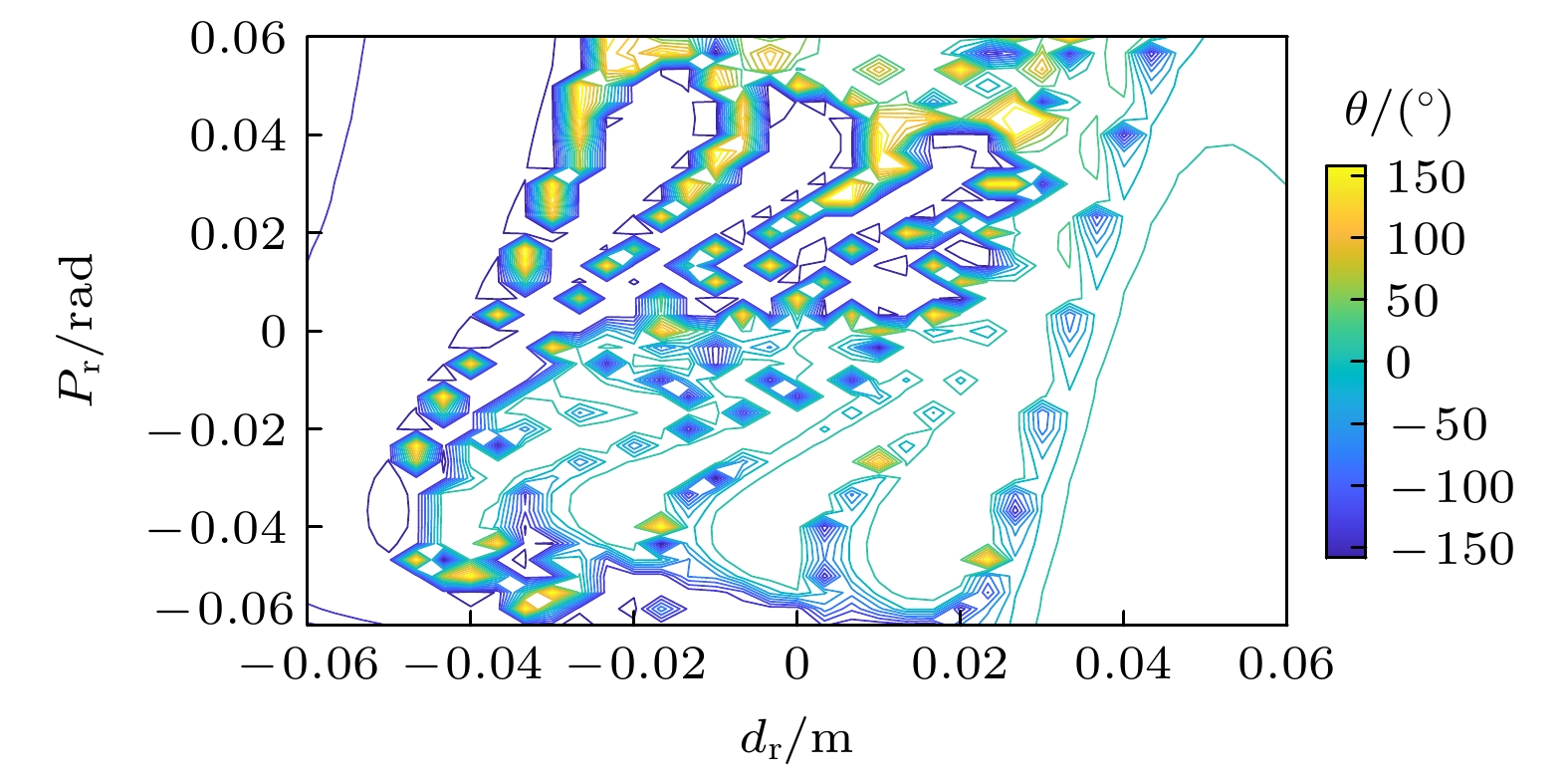

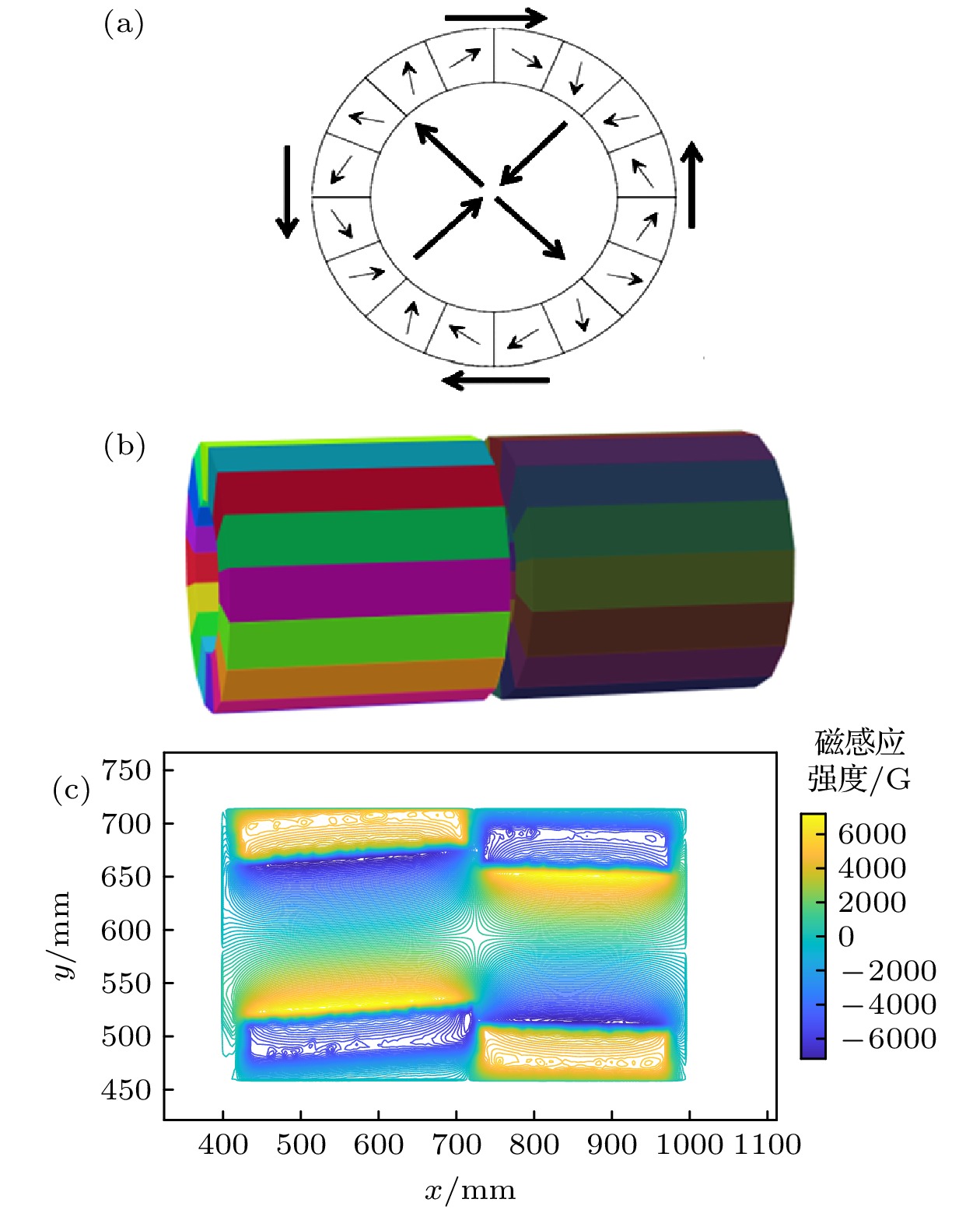

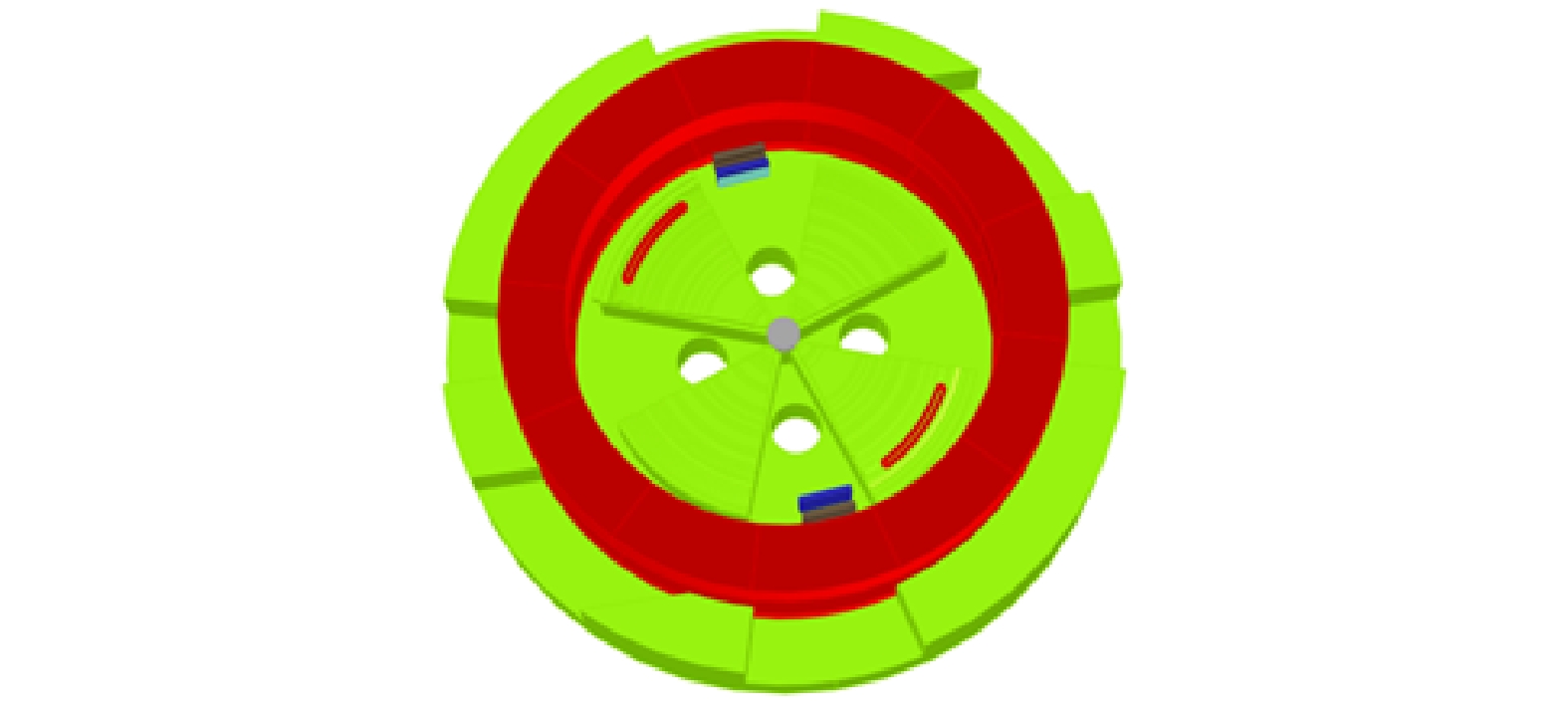

In this work, an 18 MeV self extraction high current cyclotron is designed, which provides a feasible design scheme for the self extraction system. For the main magnet, it is designed by restricting the parameter change of the main magnetic field through “three judgments”. For the self extraction system, the phase space suitable for particle extraction is scanned by injecting the phase space, and the gradient correction magnet is used to increase the acceptance of the extracted beam. For the harmonic coil, through the second harmonic change of the magnetic field, the beam characteristics are analyzed and the position of the harmonic coil is determined. Under the condition of scanning different harmonic coil surface currents, the extraction of the beam is obtained, and then the phase space of the beam is pushed to the acceptance. In order to match the radial dimension and the axial dimension of the target beam and obtain a stronger beam, the magnetic channel of the double structure is selected and the related design idea is given. The final beam size is 30.5 mm × 12.9 mm, the particles that can be extracted account for 82.62% of the successfully accelerated particles.
