Abstract

Ti ₂AlC and Ti ₃AlC formed by the reaction between C and TiAl alloy can improve the plasticity and strength of TiAl alloy respectively. Generally, the peritectic reaction of L + TiC→Ti ₂AlC (Ti ₃AlC) occurs in the process of liquid-phase sintering, but different formation mechanisms of Ti ₂AlC and Ti ₃AlC may exist in the solid-state sintering. In this work, multilayer graphene is employed to fabricate the reaction interface with TiAl alloy under 1100–1350 ℃, which is the common solid-state sintering temperature of TiAl alloy. According to the microstructure characterization and analysis, Ti ₂AlC and Ti ₃AlC are verified to contain no TiC. The interface energy values of TiC/TiAl, Ti ₂AlC/TiAl and Ti ₃AlC/TiAl are calculated to be about 1.2, 0.87 and 0.39 J·m ², respectively, indicating that Ti ₂AlC and Ti ₃AlC can be formed directly without TiC mesophase. Besides, only Ti ₂AlC is observed to be formed at 1150–1250 ℃, while the interface products at 1250–1350 ℃ change into Ti ₃AlC with a small amount of Ti ₂AlC. The mechanism that the sintering temperature affects the formation tendency of Ti ₂AlC and Ti ₃AlC can be ascribed to the content of α phase. The TiAl alloy matrix is composed of γ and a few α phases at 1150–1250℃, but almost completely transforms into α phase at 1250–1350 ℃, and the increase in the α content can promote the formation of Ti ₃AlC. The above results demonstrate the possibility of regulating the relative content of Ti ₂AlC and Ti ₃AlC through controlling the sintering temperature, which provides a promising method to improve the plasticity and strength of TiAl alloy.

Keywords:

Authors and contacts

Corresponding author:Mi Guang-Bao,guangbao.mi@biam.ac.cn

Funds:Project supported by the National Natural Science Foundation of China (Grant No. U2141222) and the Innovation Fund of AECC, China (Grant No. CXPT-2018-36).

FullText HTML: translate this paragraph

References

[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
[12]
[13]
[14]
[15]
[16]
[17]
[18]
[19]
[20]
[21]
[22]
[23]
[24]
[25]
[26]
[27]
[28]
[29]
[30]
[31]
[32]

Cited By

DownLoad: Full-Size Img PowerPoint

化合物	摩尔生成自由能 ${\varDelta _{\text{f} } }G_{\text{m} }$/(kJ·mol^–1)
TiAl₃	0.06522T– 289.37
TiAl	0.02224T– 91.078
Ti₃Al	0.01678T– 109.75
TiC	0.01522T– 189.07
Ti₂AlC	0.03045T– 387.13
Ti₃AlC	0.1208T– 583.45

DownLoad: CSV

摩尔反应自由能	温度/℃
摩尔反应自由能	1150	1250
$ \Delta {G_1} $	–3.72	–3.69
$ \Delta {G_2} $	–5.52	–5.50
$ \Delta {G_3} $	–6.88	–6.68

DownLoad: CSV

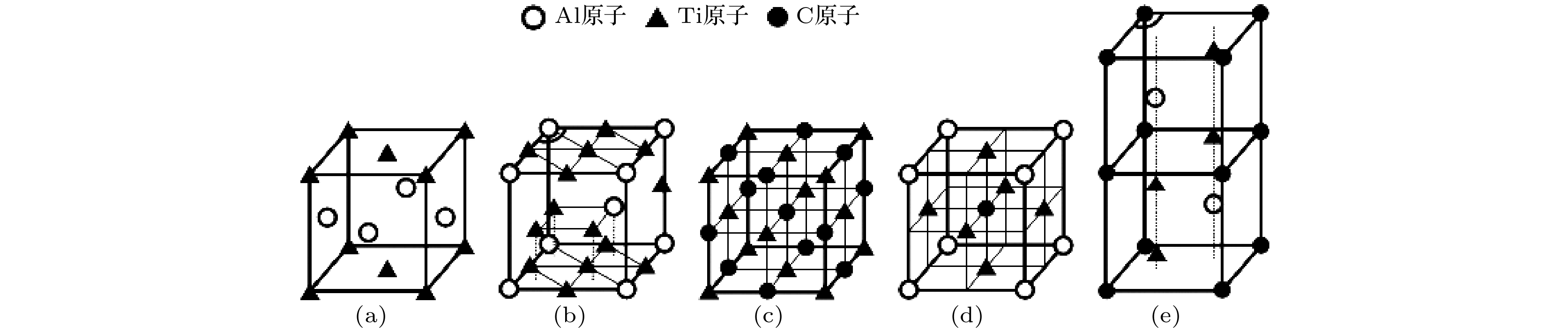

序号	晶体	空间群	晶格常数
a	TiAl	${ { {{Pm} }\bar 3 m} }$	a=b= 4.0051 Å,c= 4.0707 Å
b	Ti₃Al	${{P63/mmc} }$	a=b= 5.764 Å,c= 4.664 Å
c	TiC	${ { {{Fm} }\bar 3 m} }$	a=b=c= 4.328 Å
d	Ti₃AlC	${ { {{Pm} }\bar 3 m} }$	a=b=c= 4.156 Å
e	Ti₂AlC	${{P63/mmc} }$	a=b= 3.063 Å,c= 13.668 Å

DownLoad: CSV

相	TiAl	Ti₃Al	TiC	Ti₂AlC	Ti₃AlC
弹性模量 G/GPa	70	56	182	115	83
泊松比ν	0.23	0.28	0.228	0.164	0.25
线膨胀系数 α/10^–6	12—14.5	12—14.5	7.74	9.62	10.1

DownLoad: CSV

温度/ ℃	$ {\sigma _{{\text{γ /TiC}}}} $/ (J·m²)	$ {\sigma _{{\text{γ /H}}}} $/ (J·m²)	$ {\sigma _{{\text{α /H}}}} $/ (J·m²)	$ {\sigma _{{\text{γ /P}}}} $/ (J·m²)	$ {\sigma _{^{{\text{α /P}}}}} $/ (J·m²)
1150	1.243	0.879	0.831	0.396	0.308
1200	1.230	0.872	0.827	0.390	0.303
1250	1.223	0.868	0.821	0.385	0.288
1300	1.220	0.866	0.819	0.384	0.288
1350	1.217	0.864	0.819	0.383	0.287

DownLoad: CSV

界面反应产物	反应式	1150 ℃总能量变化$ \Delta E $/$ {\text{J}} $	1250 ℃总能量变化$ \Delta E $/$ {\text{J}} $
TiC	(1)	–2.477S	–2.467S
Ti₂AlC	(2)	–4.641S	–4.632S
Ti₃AlC	(3)	–6.572S	–6.392S

DownLoad: CSV
