Analysis and implementation of simple four-dimensional memristive chaotic system with infinite coexisting attractors

姓名
邮箱
手机号码
标题
留言内容
验证码

Abstract

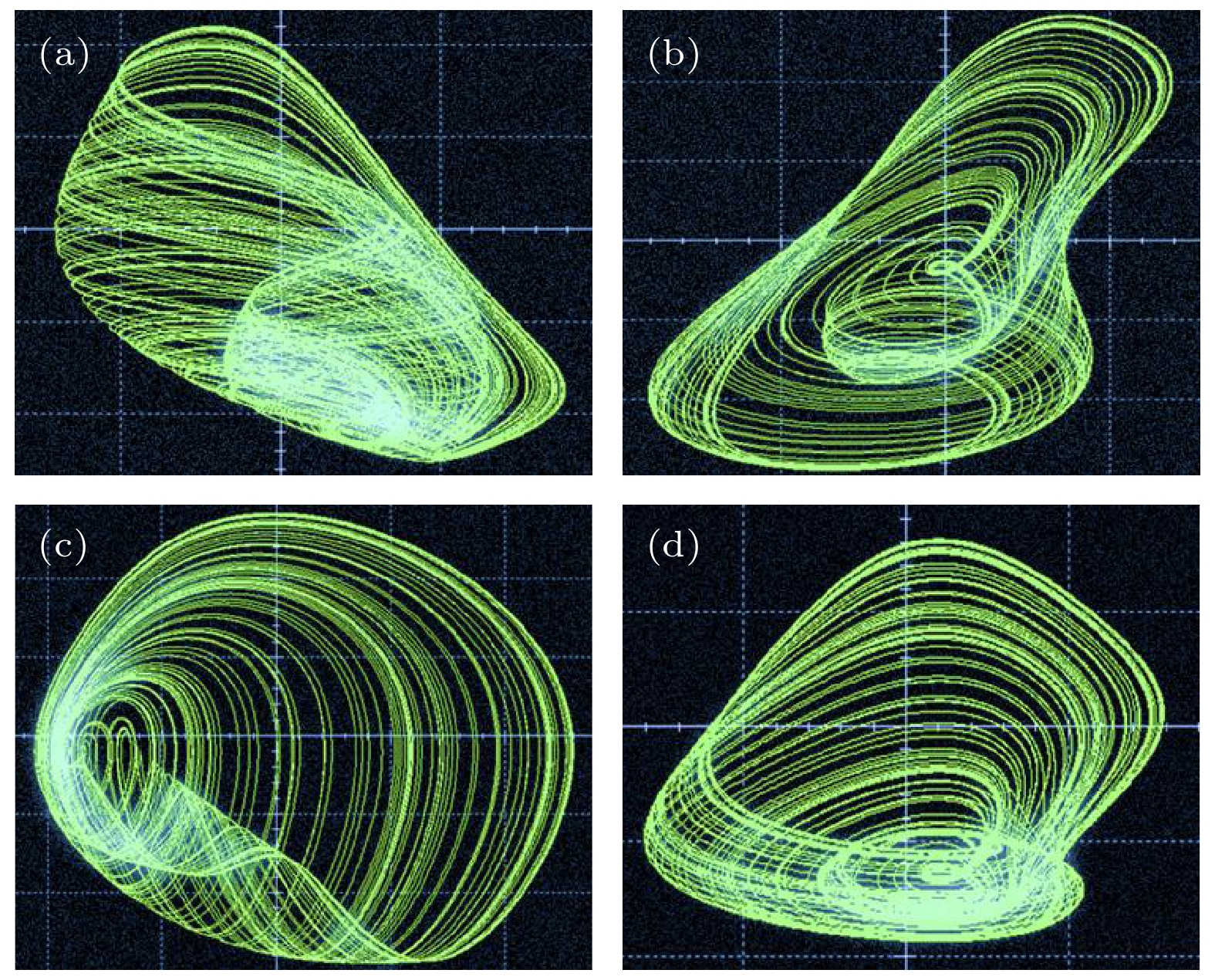

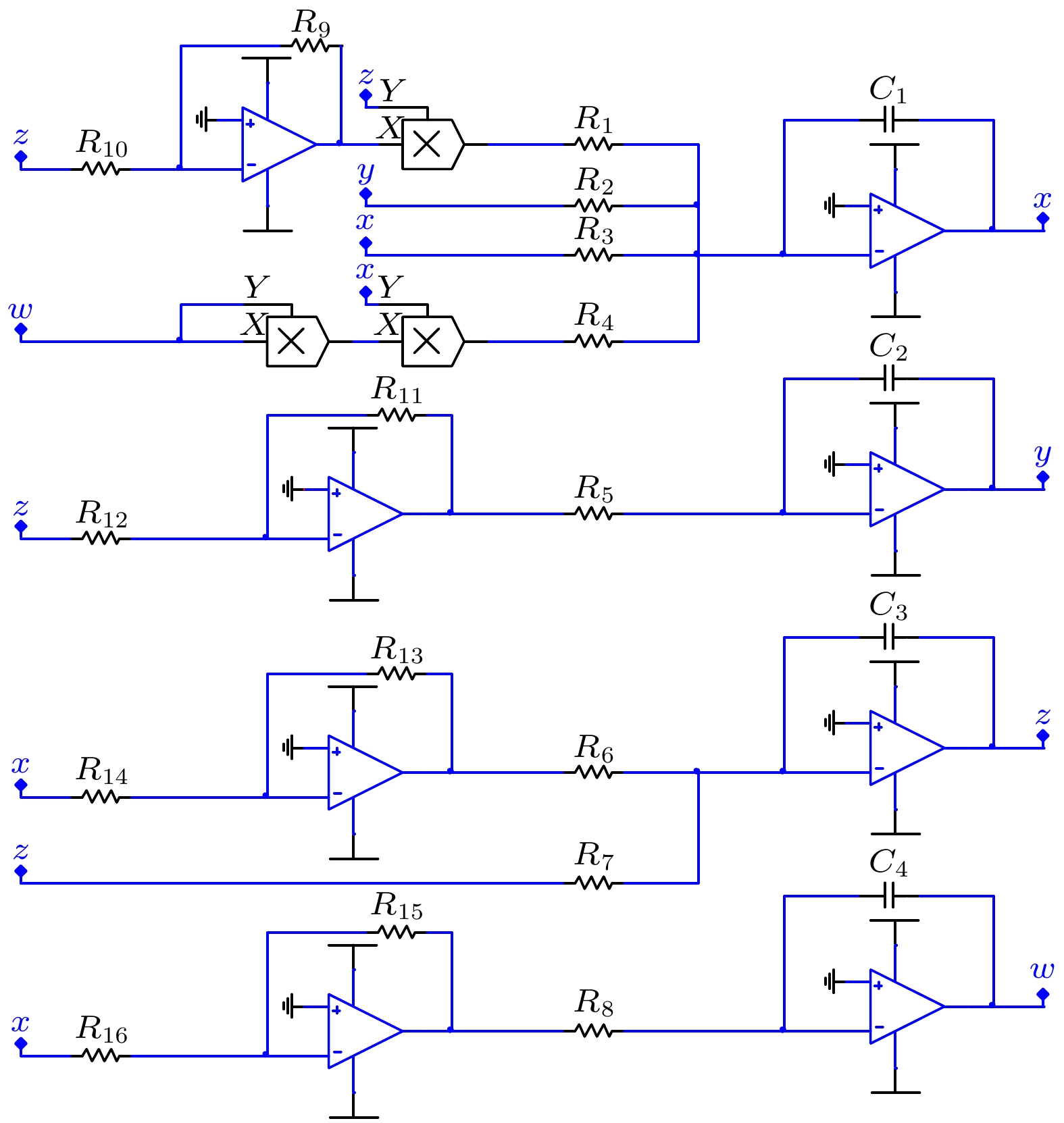

Using memristors to construct special chaotic systems is highly interesting and meaningful. A simple four-dimensional memristive chaotic system with an infinite number of coexisting attractors is proposed in this paper, which has a relatively simple form but demonstrates complex dynamical behavior. Here, we use digital simulations to further investigate the system and utilize the bifurcation diagrams to describe the evolution of the dynamical behavior of the system with the influence of parameters. We find that the system can generate an abundance of chaotic and periodic attractors under different parameters. The amplitudes of the oscillations of the state variables of the system are closely dependent on the initial values. In addition, the experimental results of the circuit are consistent with the digital simulations, proving the existence and feasibility of this memristive chaotic system.

Keywords:

Authors and contacts

Corresponding author:Lai Qiang,laiqiang87@126.com

Funds:Project supported by the National Natural Science Foundation of China (Grant No. 61961019), the Natural Science Foundation of Jiangxi Province, China (Grant No. 20202ACBL212003), and the Natural Science Foundation of Hubei Province, China (Grant No. 2020CFB546).

FullText HTML: translate this paragraph

References

[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
[12]
[13]
[14]
[15]
[16]
[17]
[18]
[19]
[20]
[21]
[22]
[23]
[24]
[25]
[26]
[27]

Cited By

DownLoad: Full-Size Img PowerPoint

系统	原系统编号	原系统中非线性项的个数	新系统的总项数	新系统中非线性项的个数	文献编号
系统A	VB2	1	6	4	[22]
系统B	VB18	2	7	5	[23]
系统C	VB5	3	8	8	[24]
本系统	VB3	1	7	2	—

DownLoad: CSV

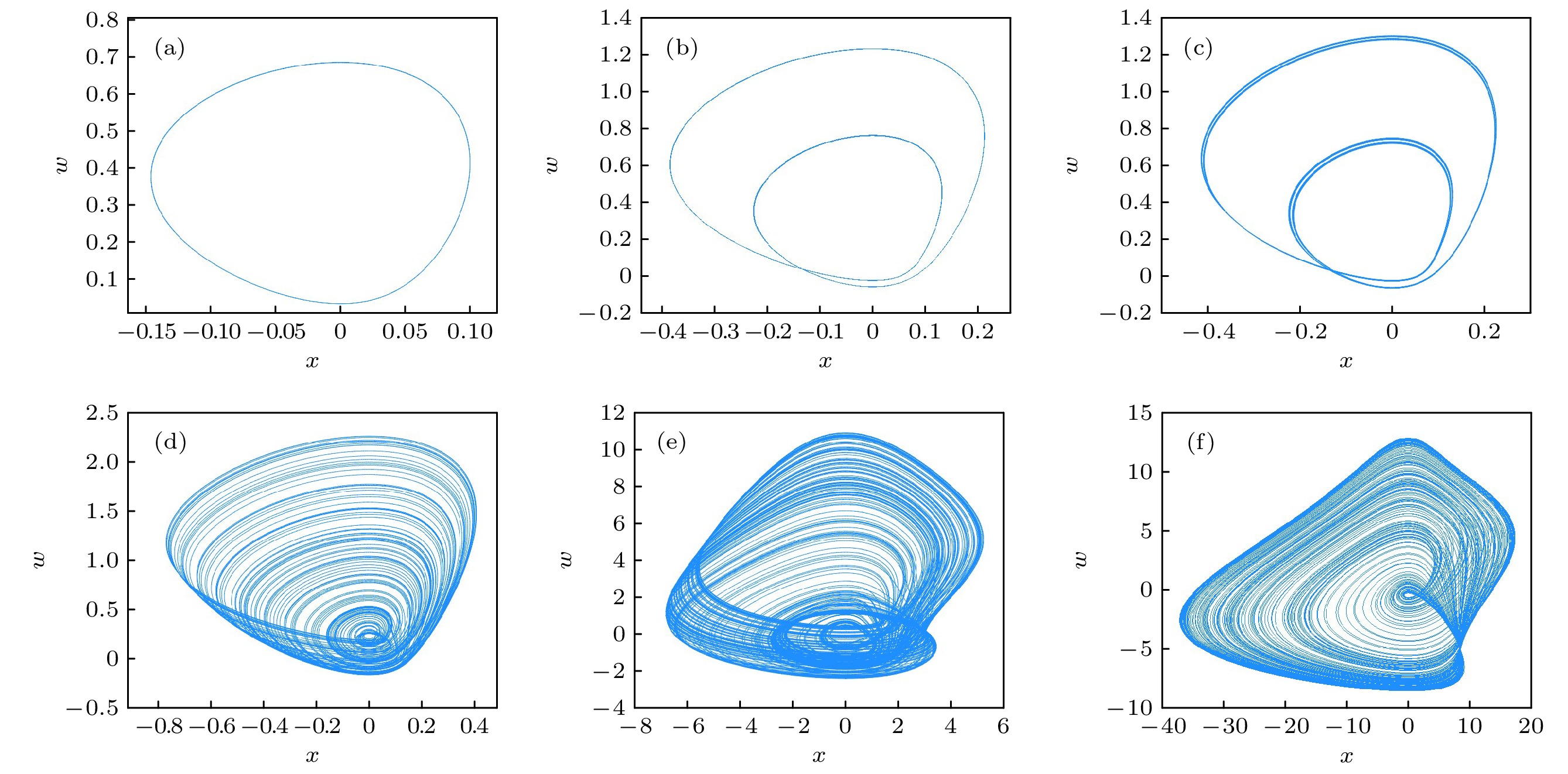

参数$ a $的取值	吸引子类型	图像编号
0.1	周期-1
0.15	周期–2	图4(a)—(c)
0.155	周期–4
0.2	混沌

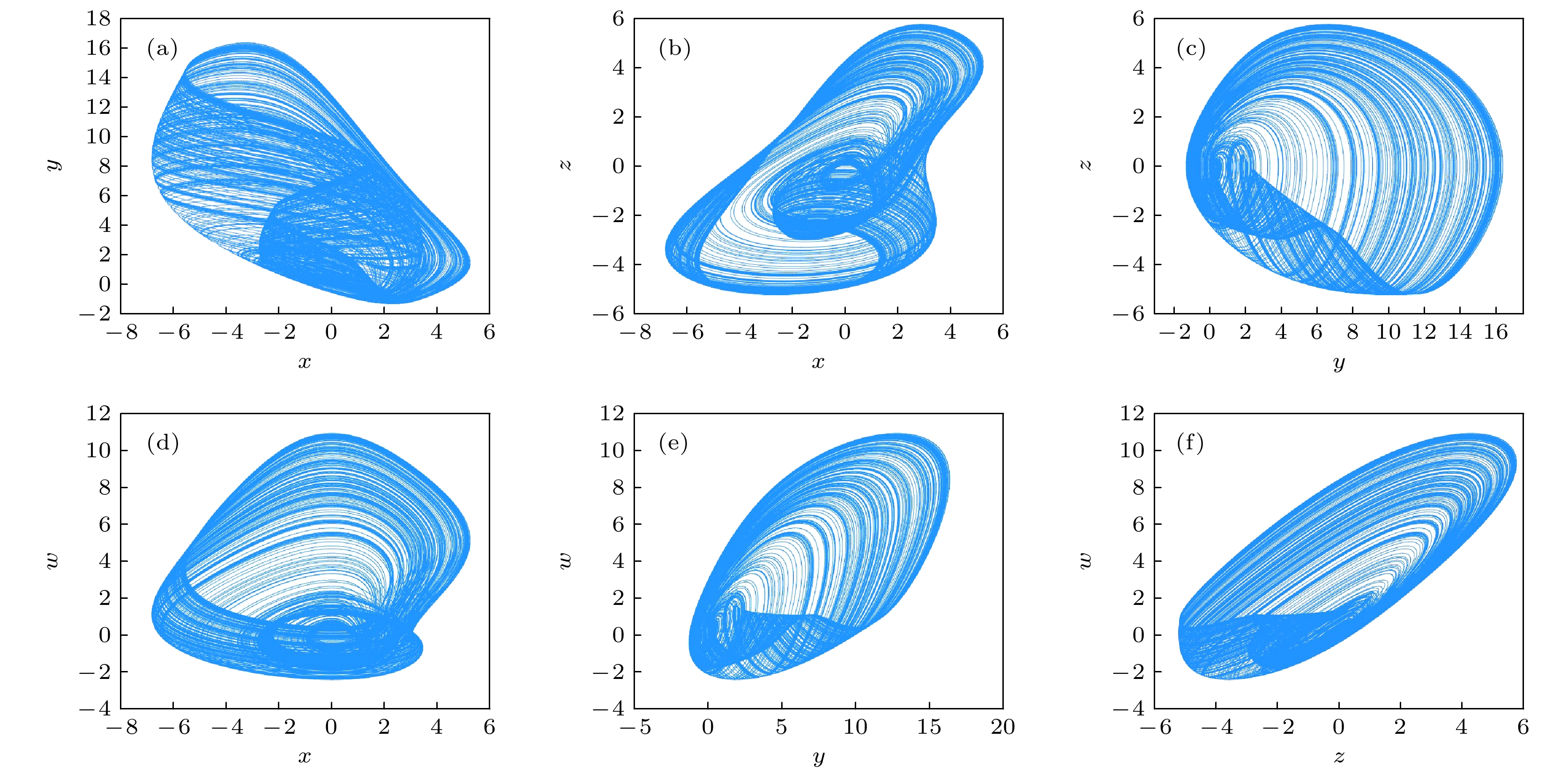

1.6	混沌	图4(d)—图4(f)
9.1	混沌

DownLoad: CSV

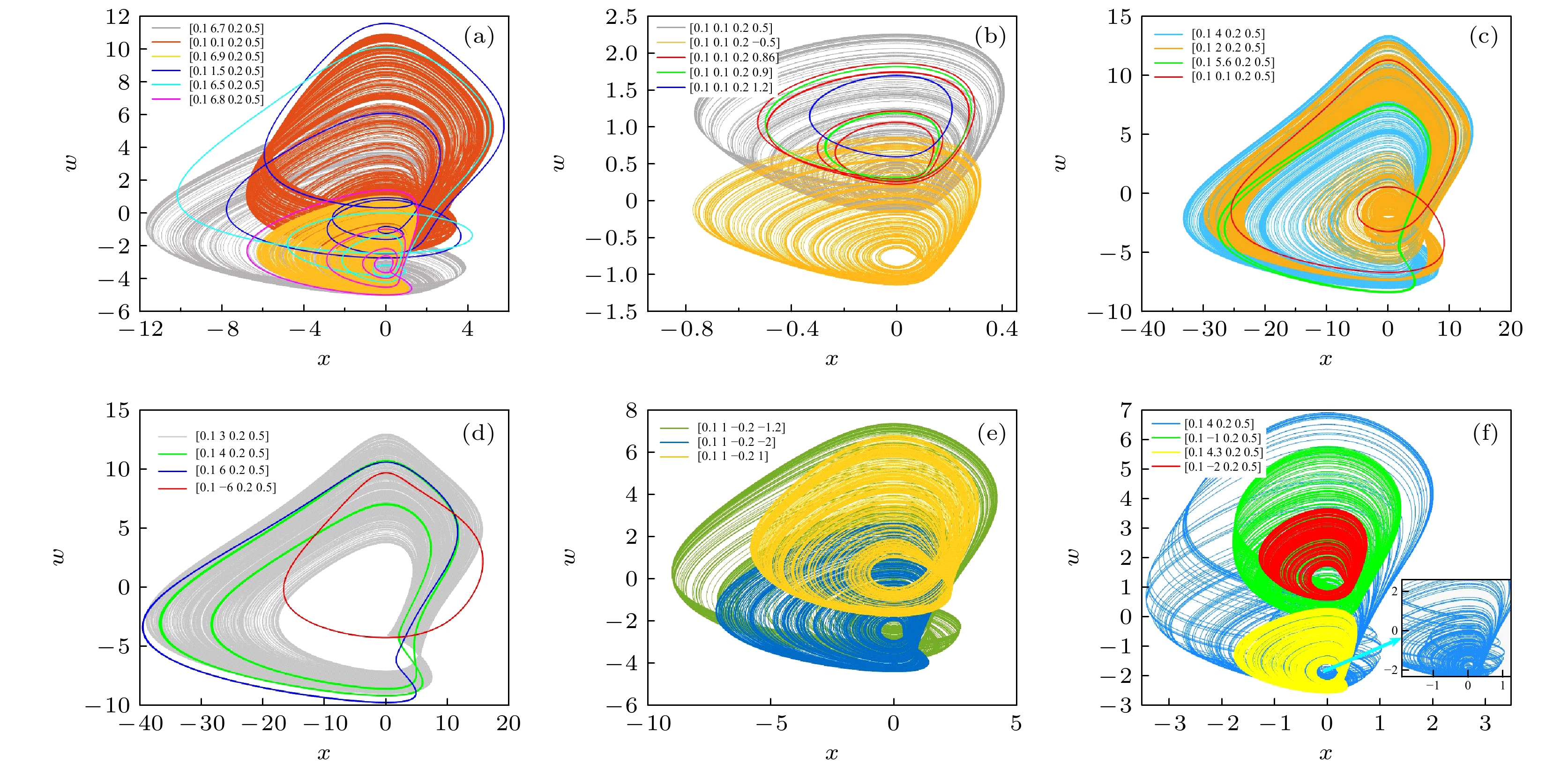

系统参数	初始值	吸引子类型	图像编号
a= 1.6,b= 0.5, p= 0.2,q= 0.1	[0.1 0.1 0.2 0.5], [0.1 6.7 0.2 0.5] [0.1 6.9 0.2 0.5], [0.1 1.5 0.2 0.5] [0.1 6.5 0.2 0.5], [0.1 6.8 0.2 0.5]	三个混沌吸引子与三个周期吸引子	图7(a)
a= 0.2,b= 0.5, p= 0.2,q= 0.1	[0.1 0.1 0.2 1.2], [0.1 0.1 0.2 –0.5] [0.1 0.1 0.2 0.86], [0.1 0.1 0.2 0.5] [0.1 0.1 0.2 0.9]	三个周期吸引子与两个混沌吸引子	图7(b)
a= 6,b= 0.5, p= 0.2,q= 0.1	[0.1 0.1 0.2 0.5], [0.1 5.6 0.2 0.5] [0.1 2 0.2 0.5], [0.1 4 0.2 0.5]	两个周期吸引子与两个混沌吸引子	图7(c)
a= 8,b= 0.5, p= 0.2,q= 0.1	[0.1 –6 0.2 0.5], [0.1 6 0.2 0.5] [0.1 4 0.2 0.5], [0.1 3 0.2 0.5]	三个周期吸引子与一个混沌吸引子	图7(d)
a= 2,b= 0.6, p= 0.5,q= 0.1	[0.1 1 –0.2 1], [0.1 1 –0.2 –2] [0.1 1 –0.2 –1.2]	三个混沌吸引子	图7(e)
a= 0.5,b= 0.5, p= 0.5,q= 0.1	[0.1, 4, 0.2, 0.5], [0.1, –1, 0.2, 0.5] [0.1, 4.3, 0.2, 0.5], [0.1, –2, 0.2, 0.5]	四个混沌吸引子	图7(f)

DownLoad: CSV
