Design of NbO<sub><i>x</i></sub> memristive neuron and its application in spiking neural networks

姓名
邮箱
手机号码
标题
留言内容
验证码

Abstract

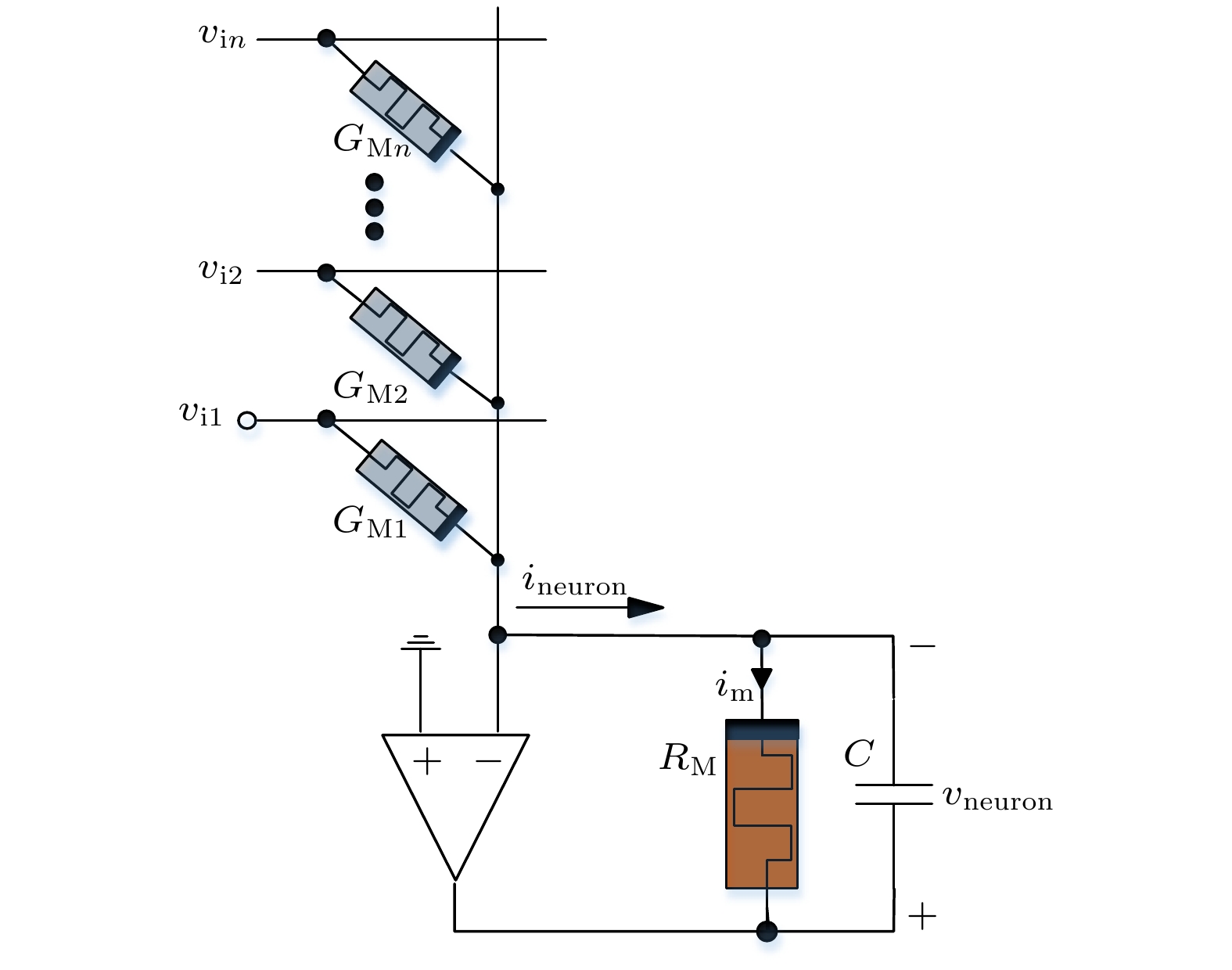

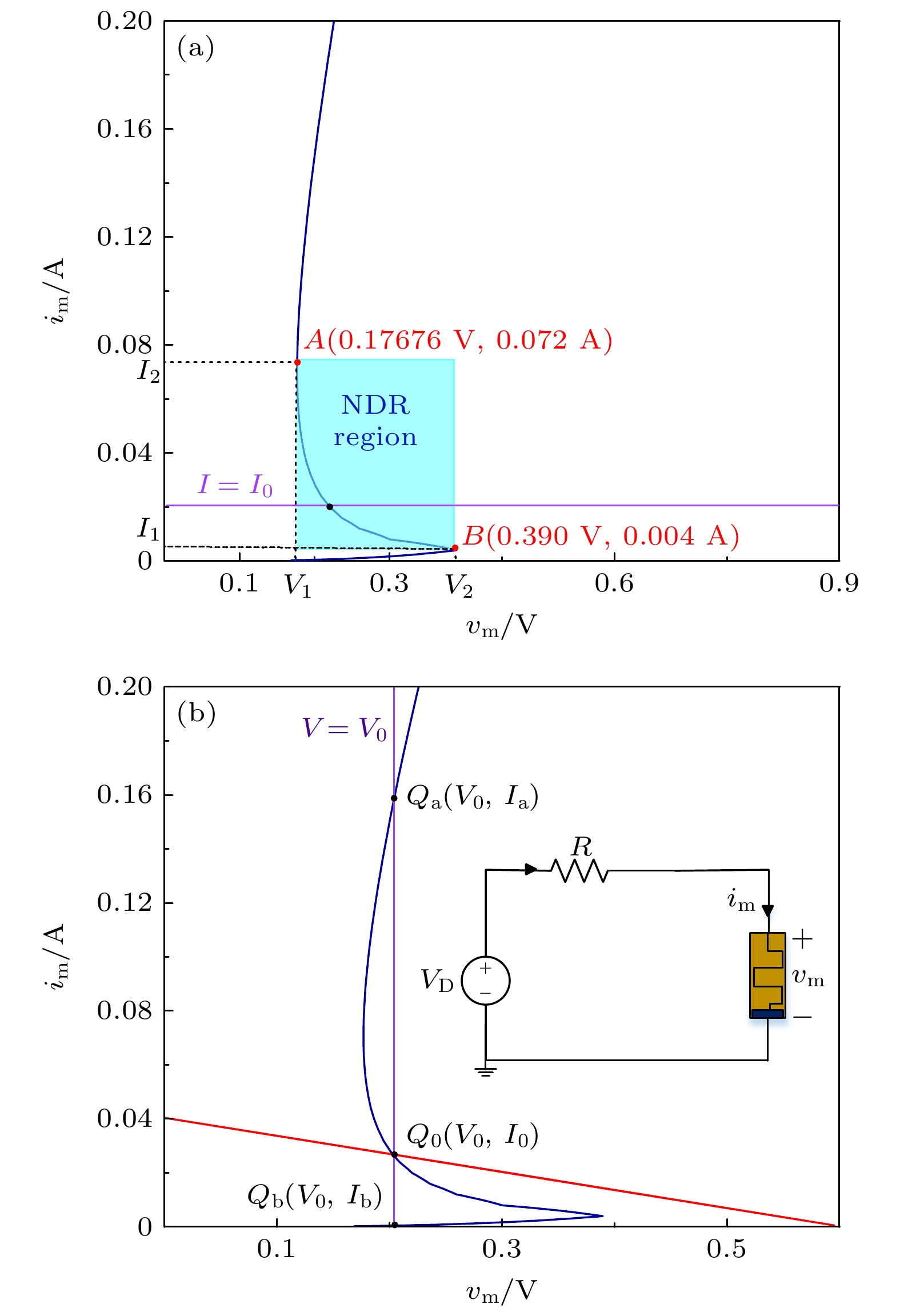

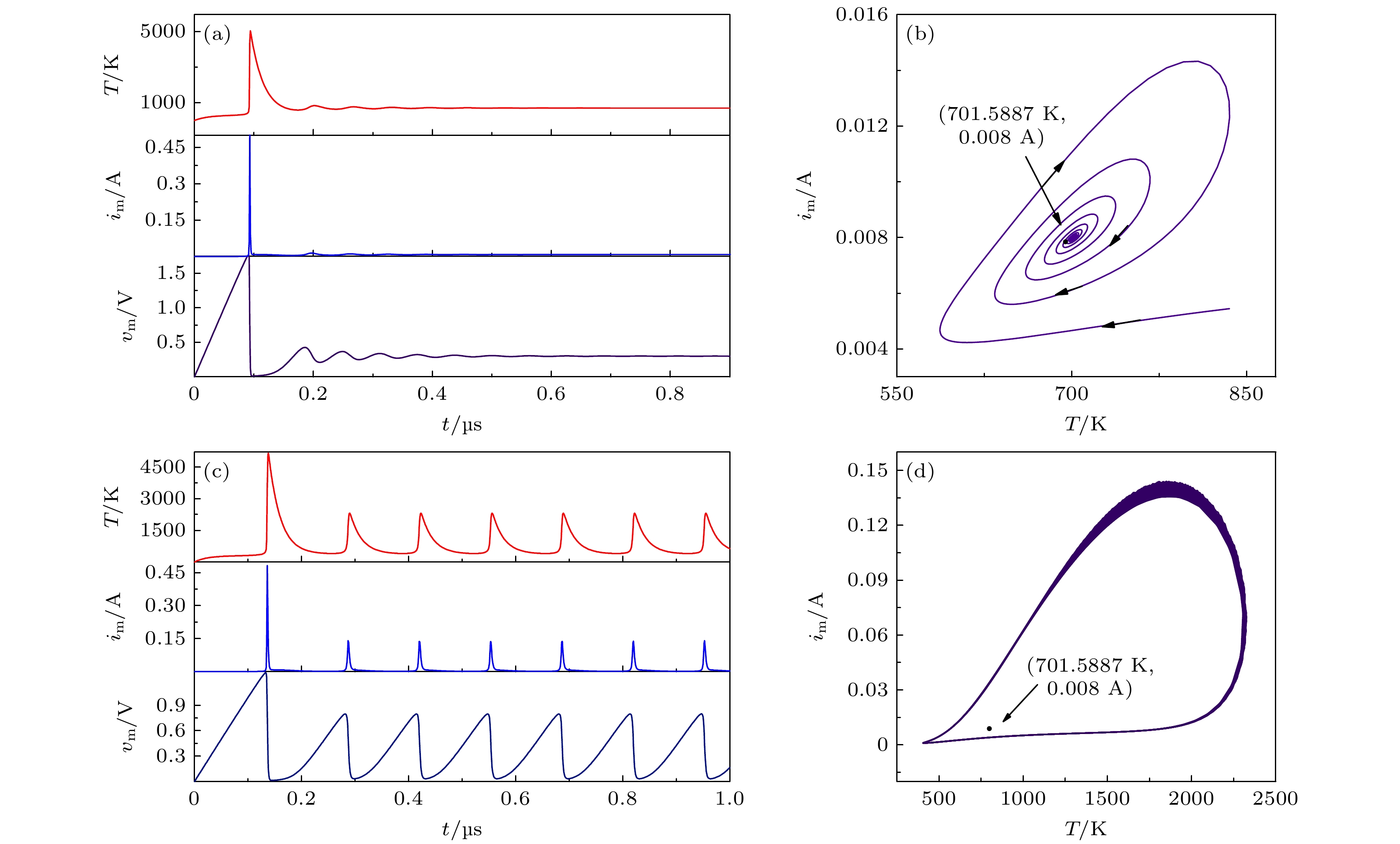

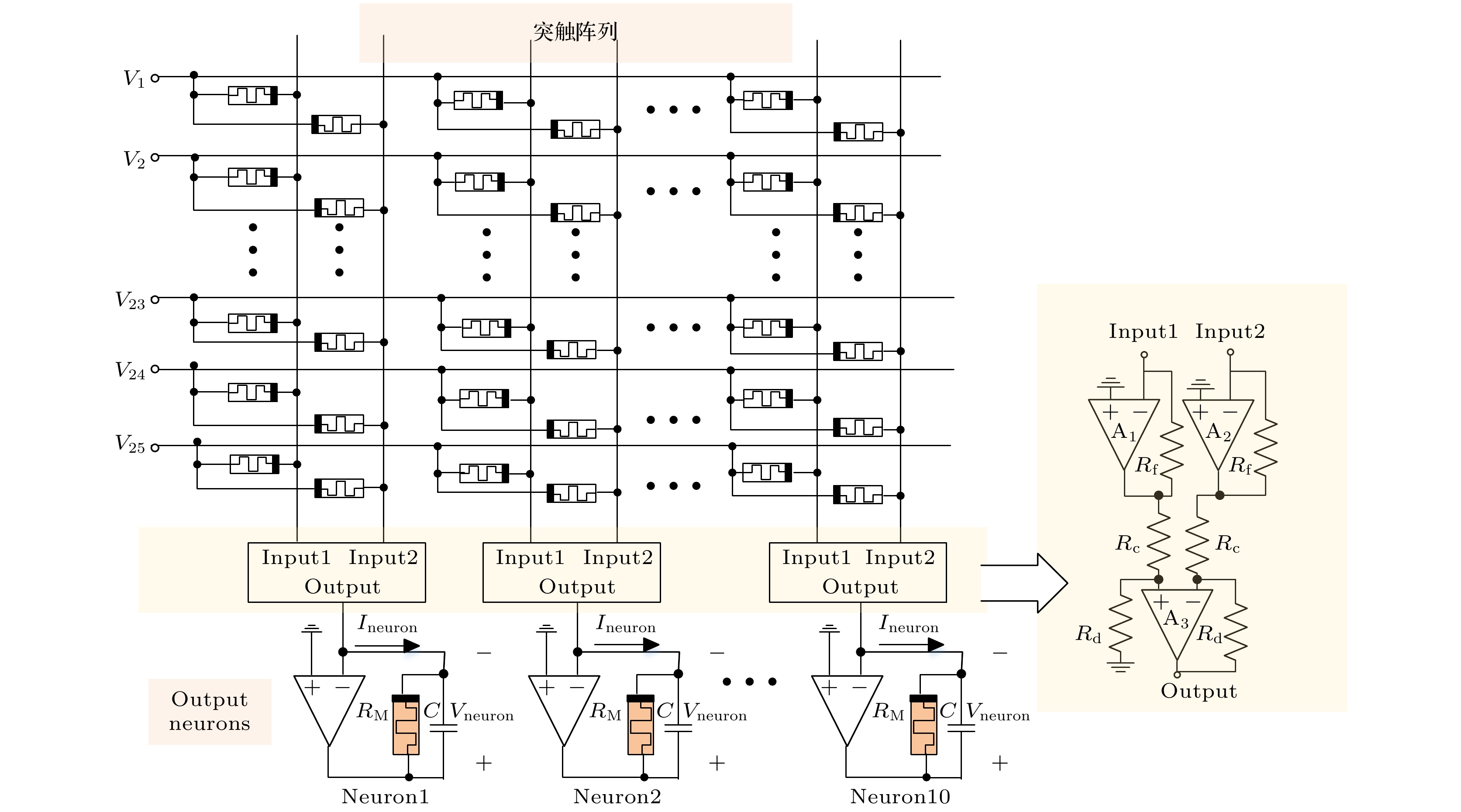

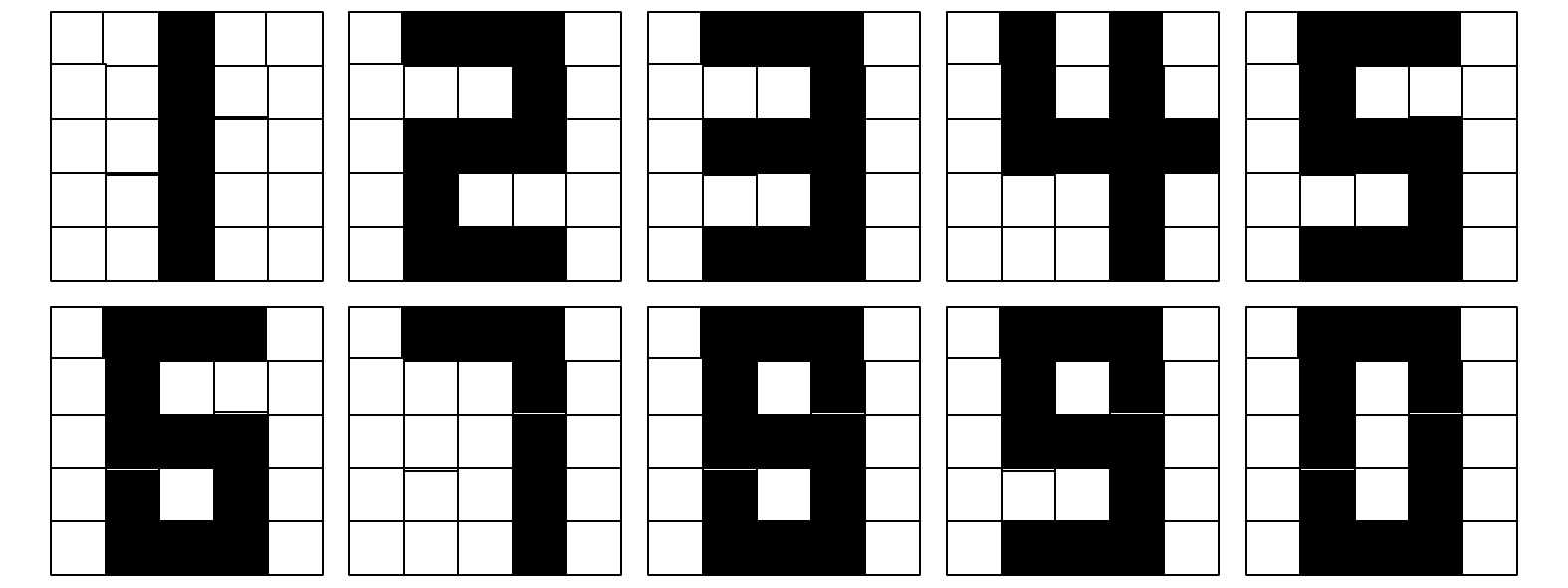

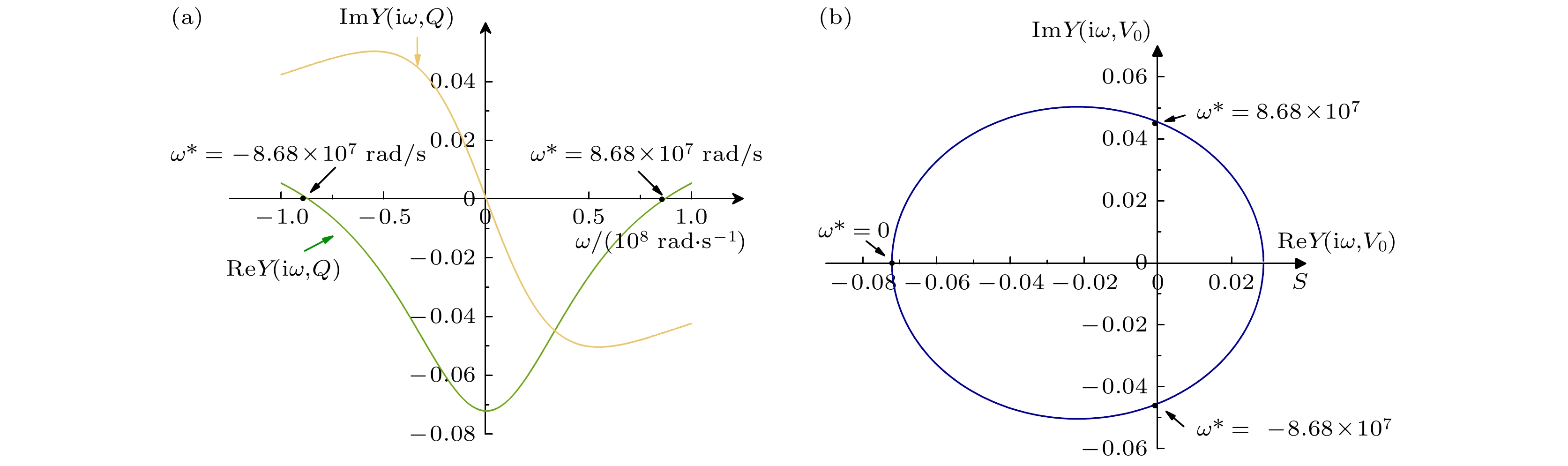

NbO _xmemristors show great application prospect in neuromorphic computing due to its nanoscale size, threshold switching, and locally active properties. The in-depth analysis and study of NbO _xmemristors’s dynamic properties are beneficial to the design and optimization of memristive neuron circuits. In this paper, based on the local active theory, the physical model of NbO _xmemristor is studied by using the small signal analysis method, and the region and conditions of the peak oscillation are quantitatively analyzed, and the quantitative relationship between the excitation signal amplitude and the peak frequency is determined. Based on the above theoretical analysis, NbO _xmemristor neurons are further designed and combined with the memristive synaptic crisscross array in order to construct a 25×10 spiking neural network (SNN). Finally, the recognitional function of digital 0 to 9 patterns is effectively realized by using frequency coding and time coding respectively.

Keywords:

Authors and contacts

Corresponding author:Liang Yan,liangyan@hdu.edu.cn

Funds:Project supported by the National Natural Science Foundation of China (Grant No. 62171173) and the Natural Science Foundation of Zhejiang Province, China (Grant No. LY20F010008).

FullText HTML: translate this paragraph
