Abstract

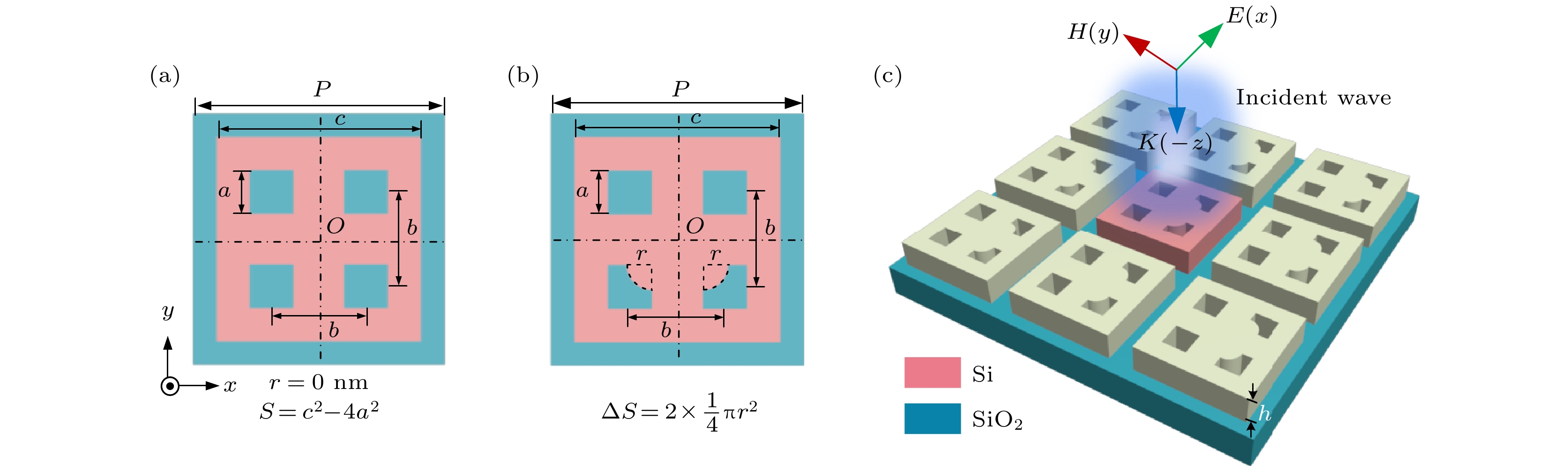

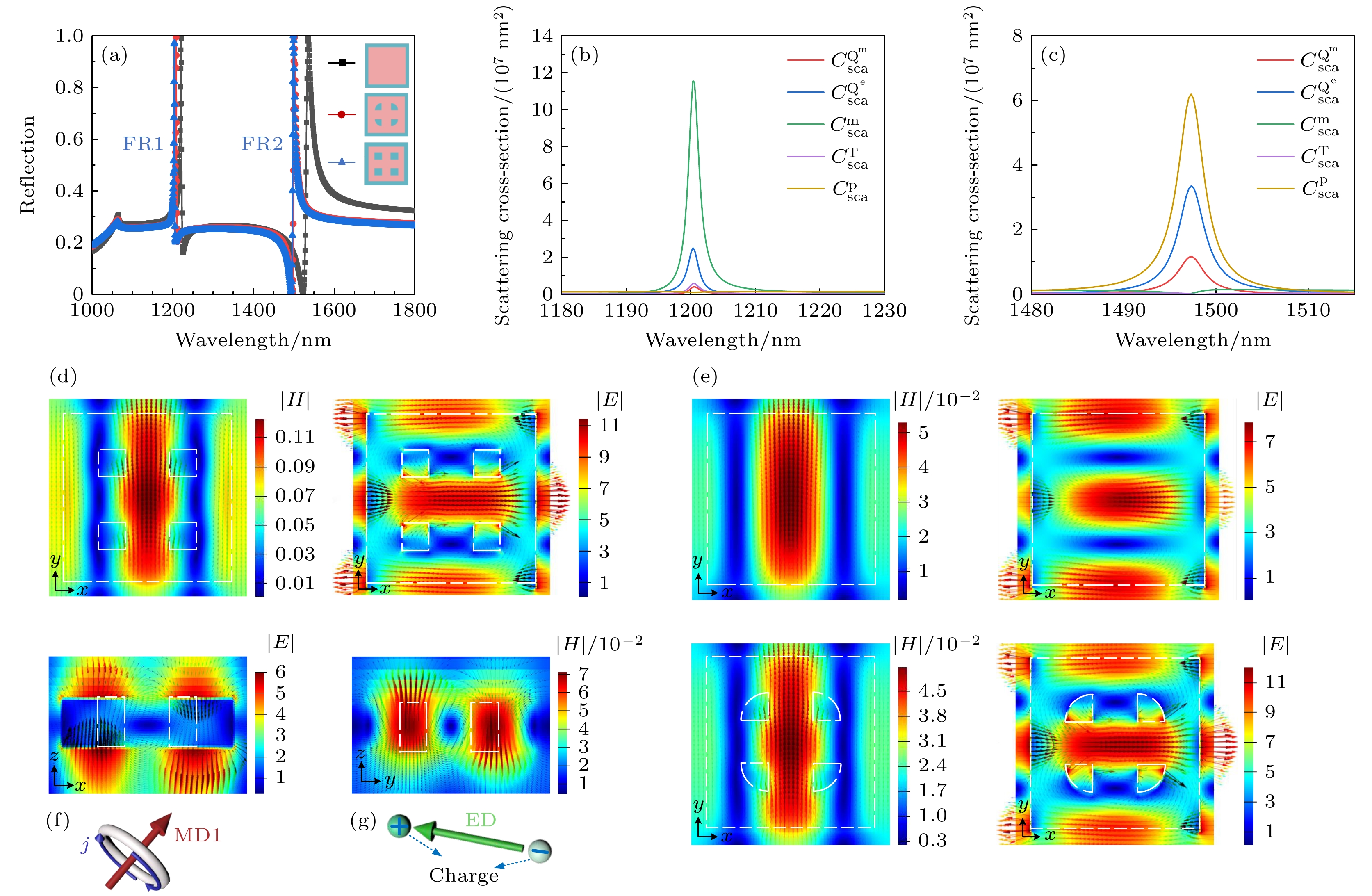

Based on the electromagnetic properties of all-dielectric optical metamaterial, an all-dielectric metasurface of lattice-perturbed nanohole array is proposed to excite a multiple Fano resonance in the near-infrared region. Combined with the group theory, the formation mechanism and evolution law of multiple Fano resonances in this structure when its unit cell is a square lattice configuration and the square lattice symmetry is broken are explored in depth. The results show that double degenerate mode directly excited by the normal incident plane wave is coupled to vertical free-space radiation continuum to form double Fano resonance when unit cell is symmetrical, while the uncoupled non-degenerate modes excited by the normal incident plane wave is coupled to vertical free-space radiation continuum to form triple Fano resonance with higher Qfactor when the symmetry is broken. Numerical simulation is used to explore the influences of x-polarized and y-polarized plane wave on the above Fano resonances, and the results show that the Fano resonance of double degenerate resonance is polarization independent, while the non-degenerate resonance is polarization dependent. The findings in this work can provide an effective theoretical reference for designing other square lattice metasurface to realize the excitation and evolution of multiple Fano resonances.

Keywords:

Authors and contacts

Corresponding author:Chen Ying,Chenying@ysu.edu.cn

Funds:Project supported by the National Natural Science Foundation of China (Grant No. 61201112), the Key Research and Development Project of Hebei Province, China (Grant Nos. 19273901D, 20373301D), the Natural Science Foundation of Hebei Province, China (Grant No. F2020203066), the China Postdoctoral Science Foundation (Grant No. 2018M630279), the Post-Doctoral Research Projects in Hebei Province, China (Grant No. D2018003028), the Scientific Research Foundation of the Higher Education Institutions of Hebei Province, China (Grant No. ZD2018243).

FullText HTML: translate this paragraph

References

[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
[12]
[13]
[14]
[15]
[16]
[17]
[18]
[19]
[20]
[21]
[22]
[23]
[24]
[25]
[26]
[27]

Cited By

DownLoad: Full-Size Img PowerPoint

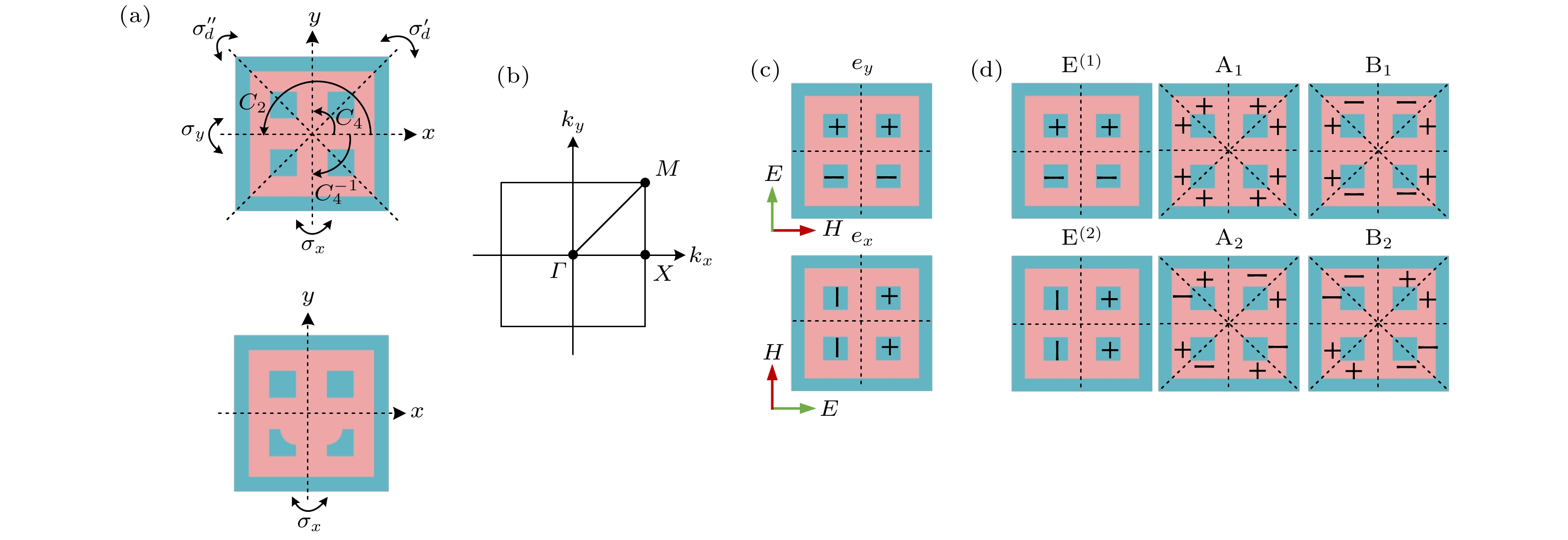

$ {C_{{\text{4 v}}}} $	E	$ 2{C_4} $	$ {C_2} $	$ 2{\sigma _{\text{v}}} $	$ {\text{2}}{\sigma _{\text{d}}} $
$ {A_1} $	1	1	1	1	1
$ {A_2} $	1	1	1	–1	–1
$ {B_1} $	1	–1	1	1	–1
$ {B_2} $	1	–1	1	–1	1
E	2	0	–2	0	0

DownLoad: CSV

Parameter	$ {\omega _{\text{0}}}/e{\text{V}} $	$ \Gamma /{\rm{nm}} $	F	q	Q

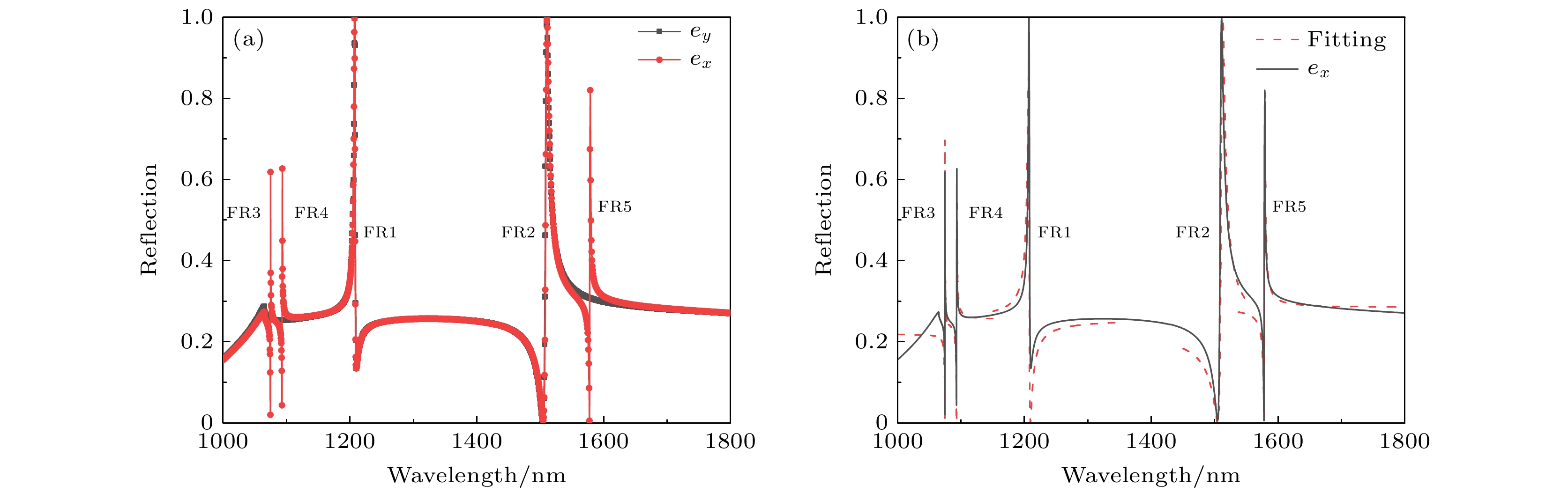

$ {\lambda _{\text{1}}}= 1207.13\;{\text{nm}} $	1.027	2.92	0.257	–1.550	413
$ {\lambda _{\text{2}}}= 1504.39\;{\text{nm}} $	0.824	6.57	0.234	1.910	229
$ {\lambda _{\text{3}}}= 1074.80\;{\text{nm}} $	1.154	0.26	0.221	1.536	4134
$ {\lambda _{\text{4}}} = 1093.35\;{\text{nm}} $	1.134	0.54	0.256	1.145	2025
$ {\lambda _{\text{5}}}= 1577.74\;{\text{nm}} $	0.786	1.11	0.285	1.413	1421

DownLoad: CSV
