Abstract

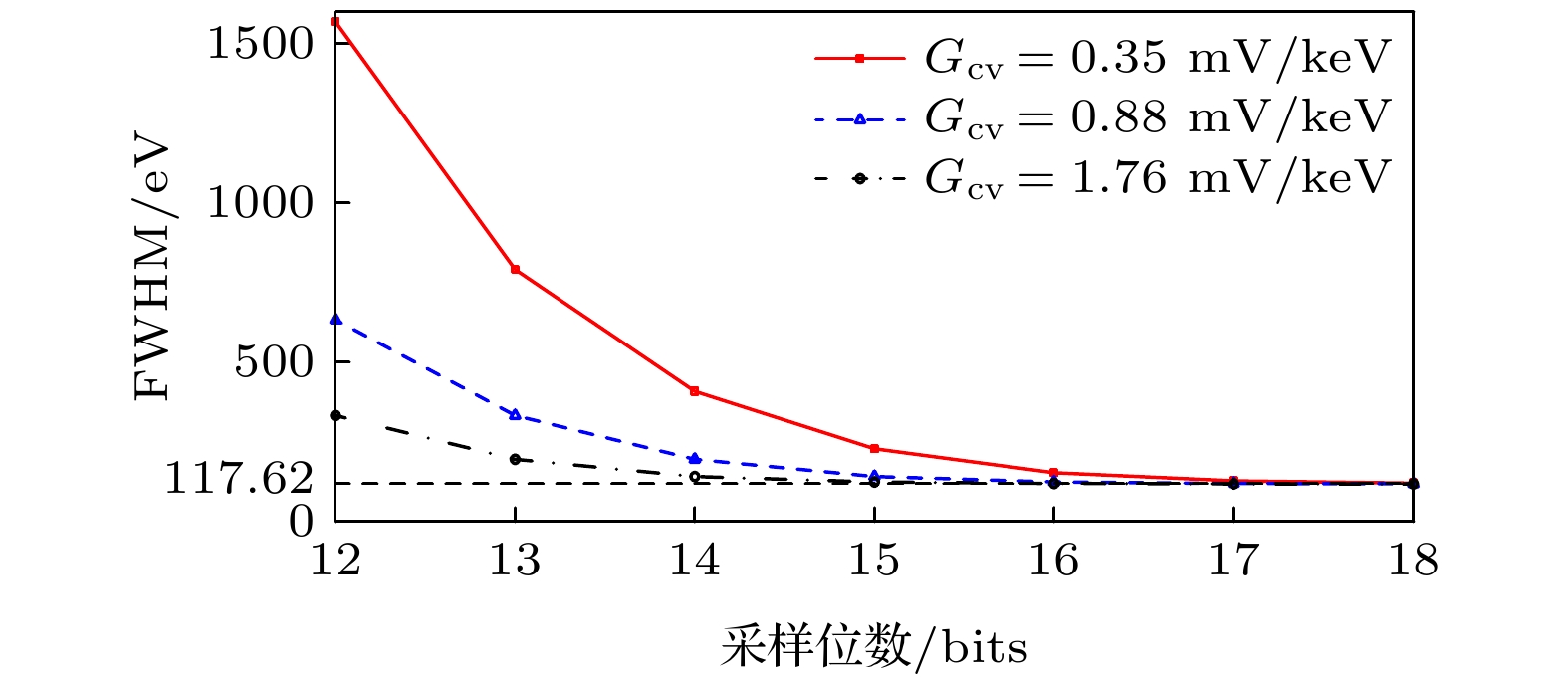

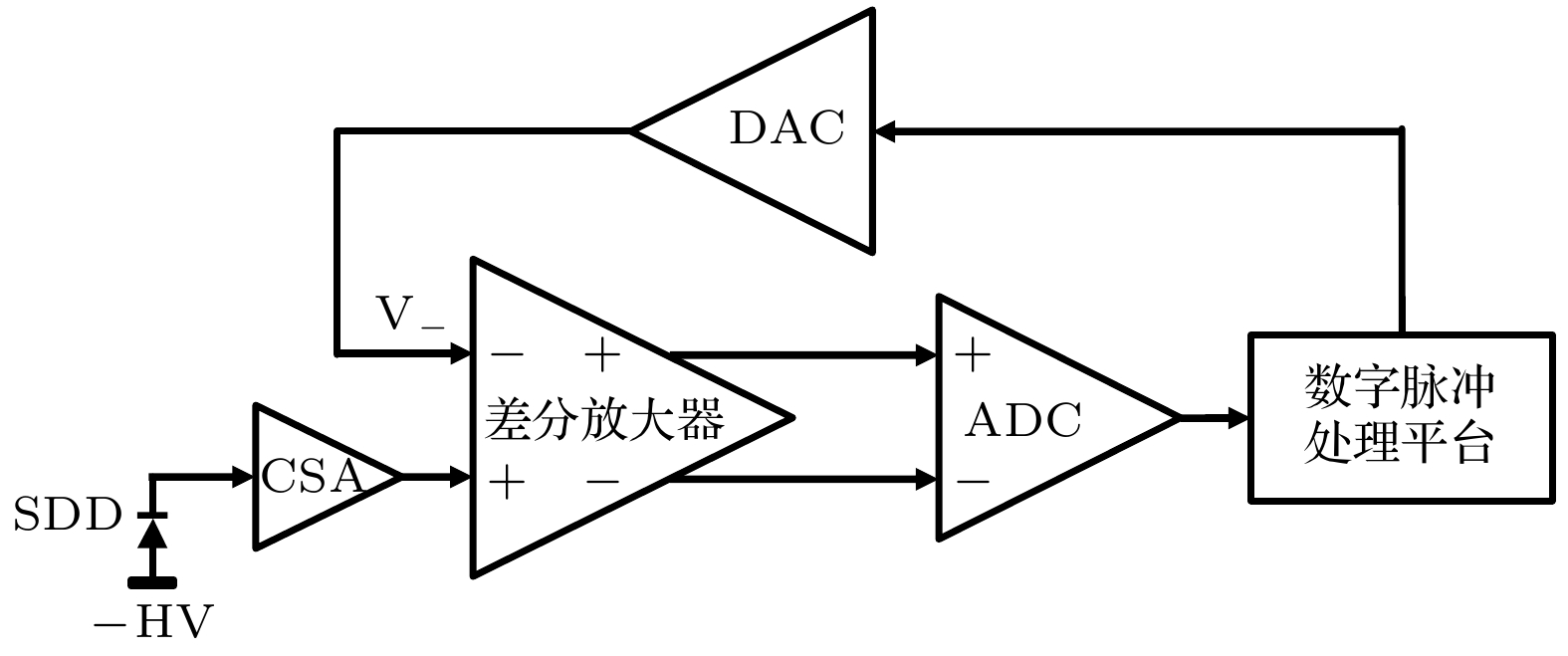

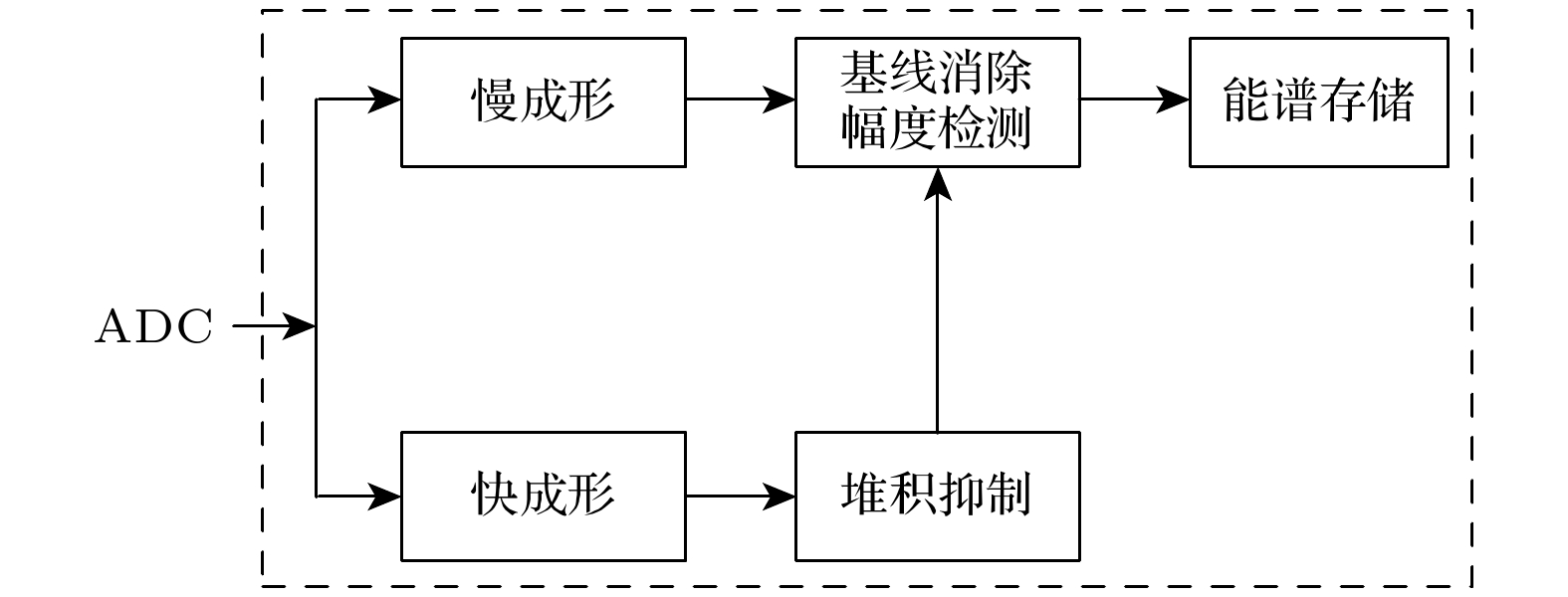

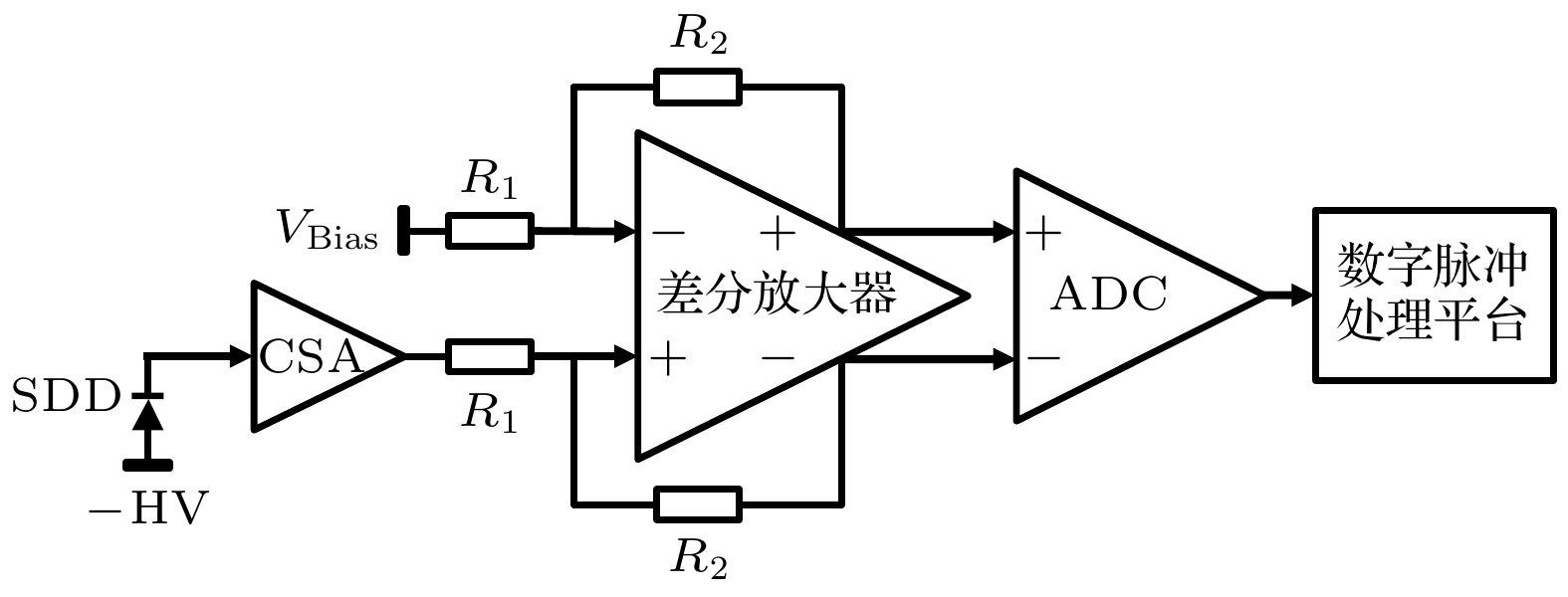

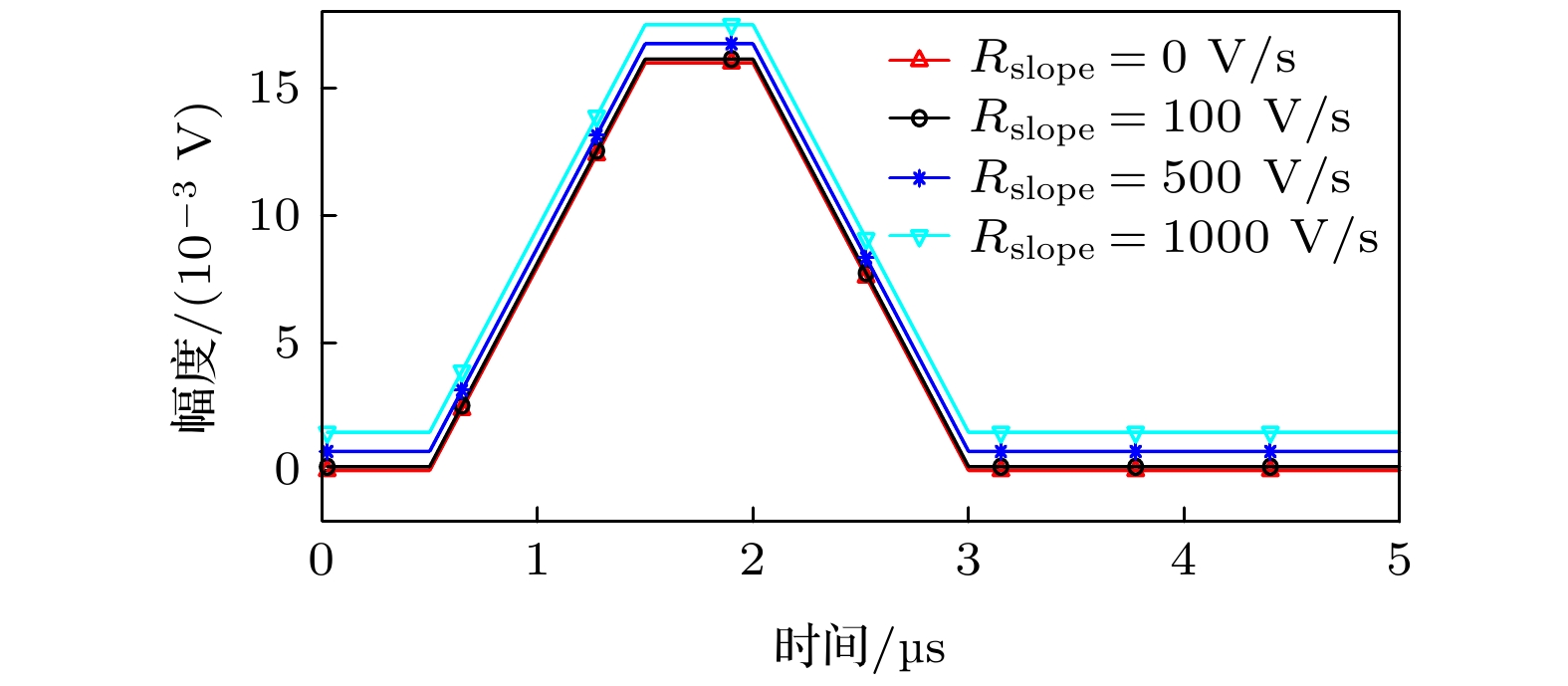

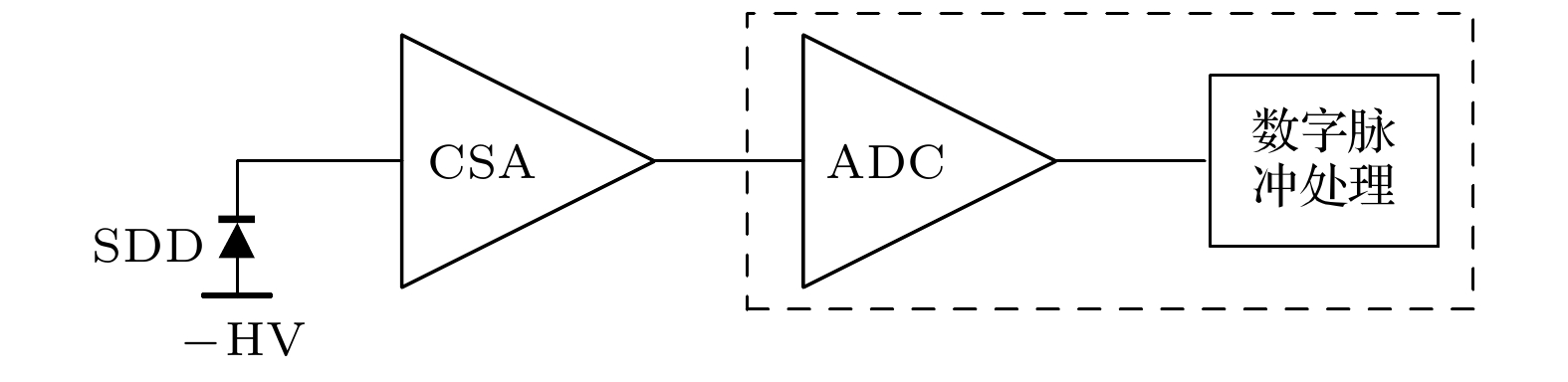

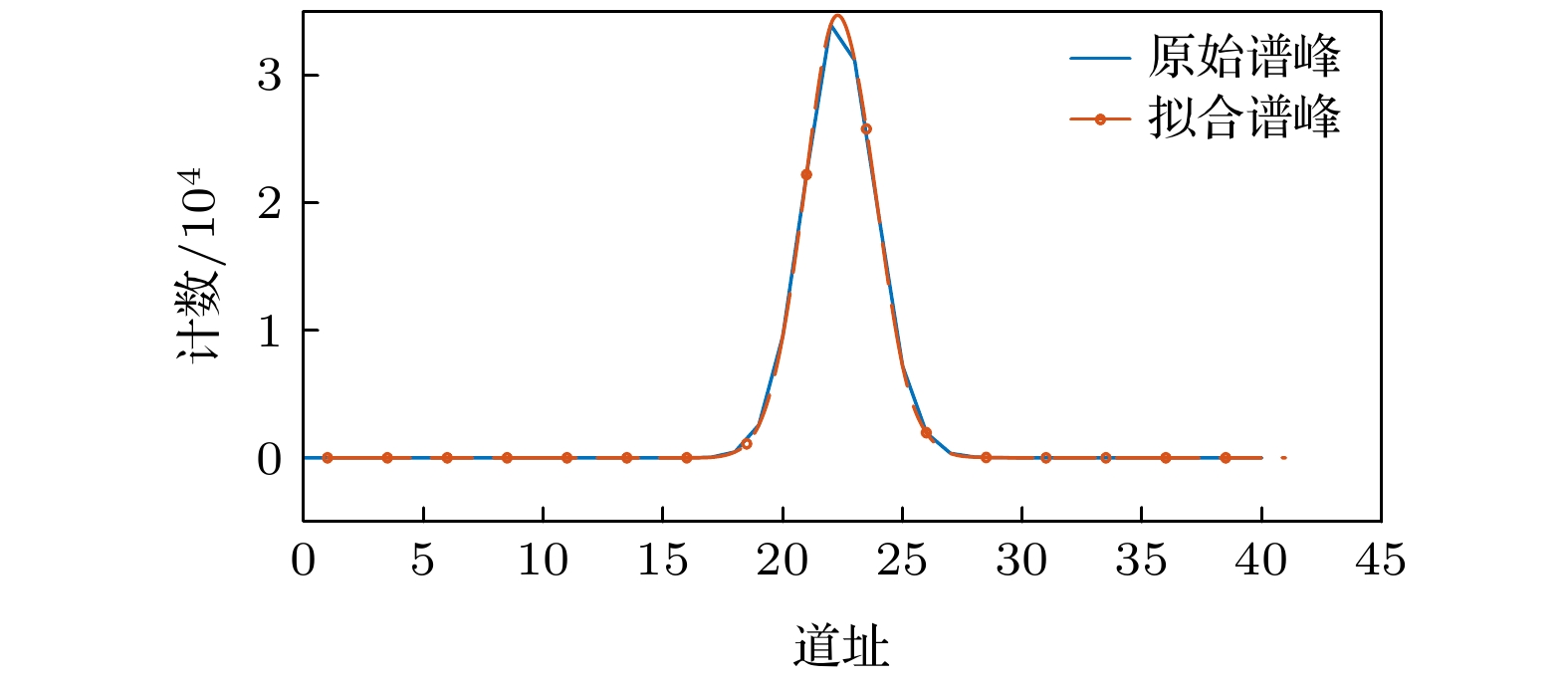

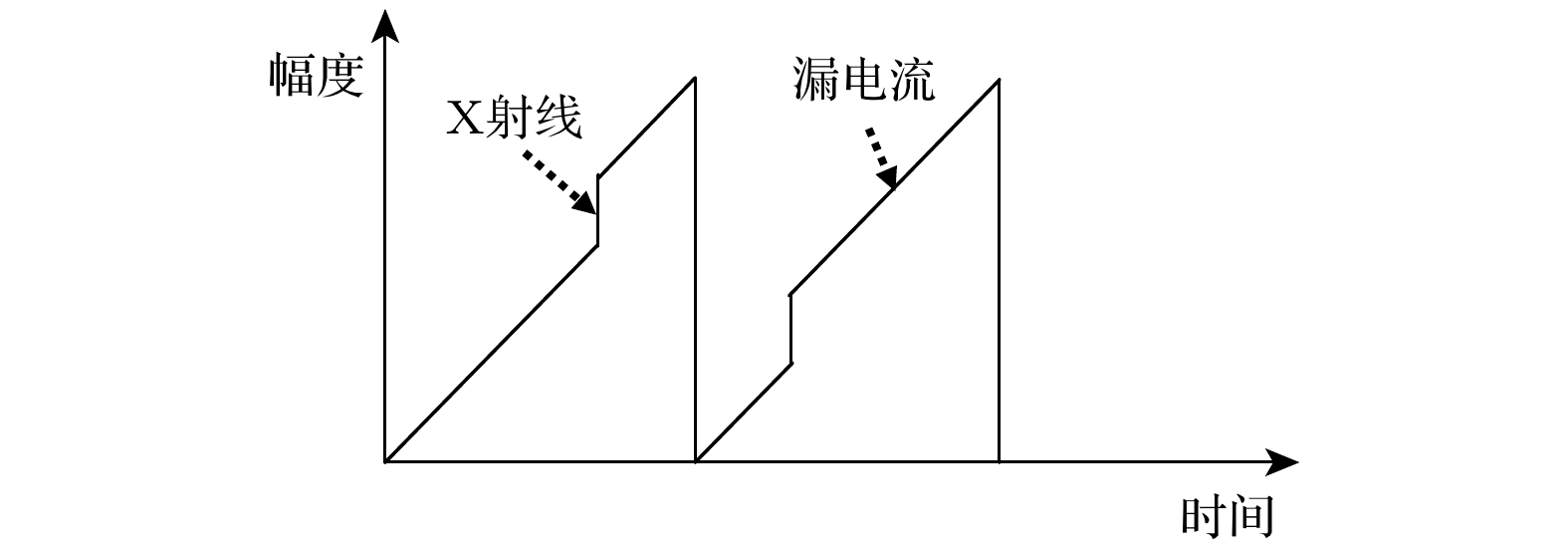

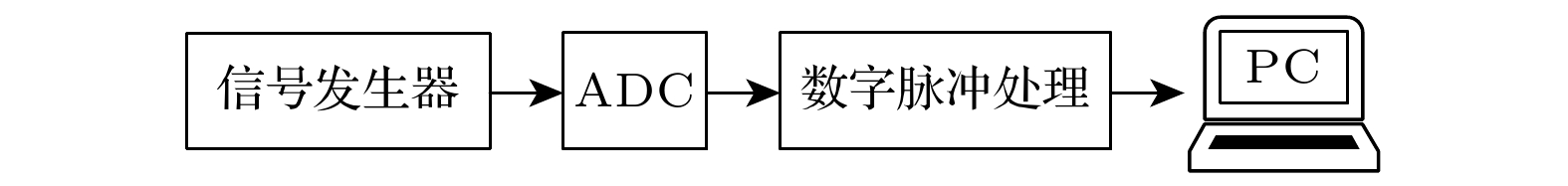

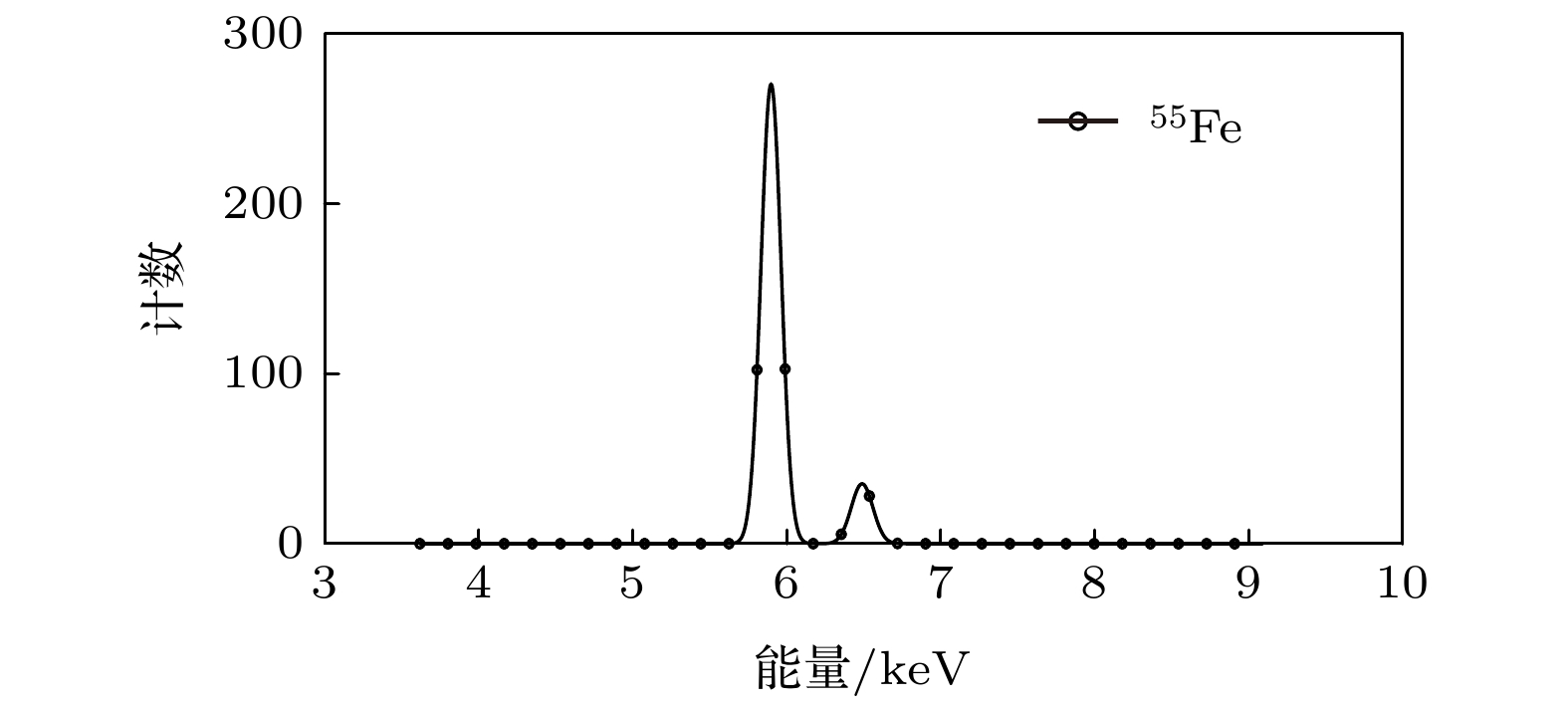

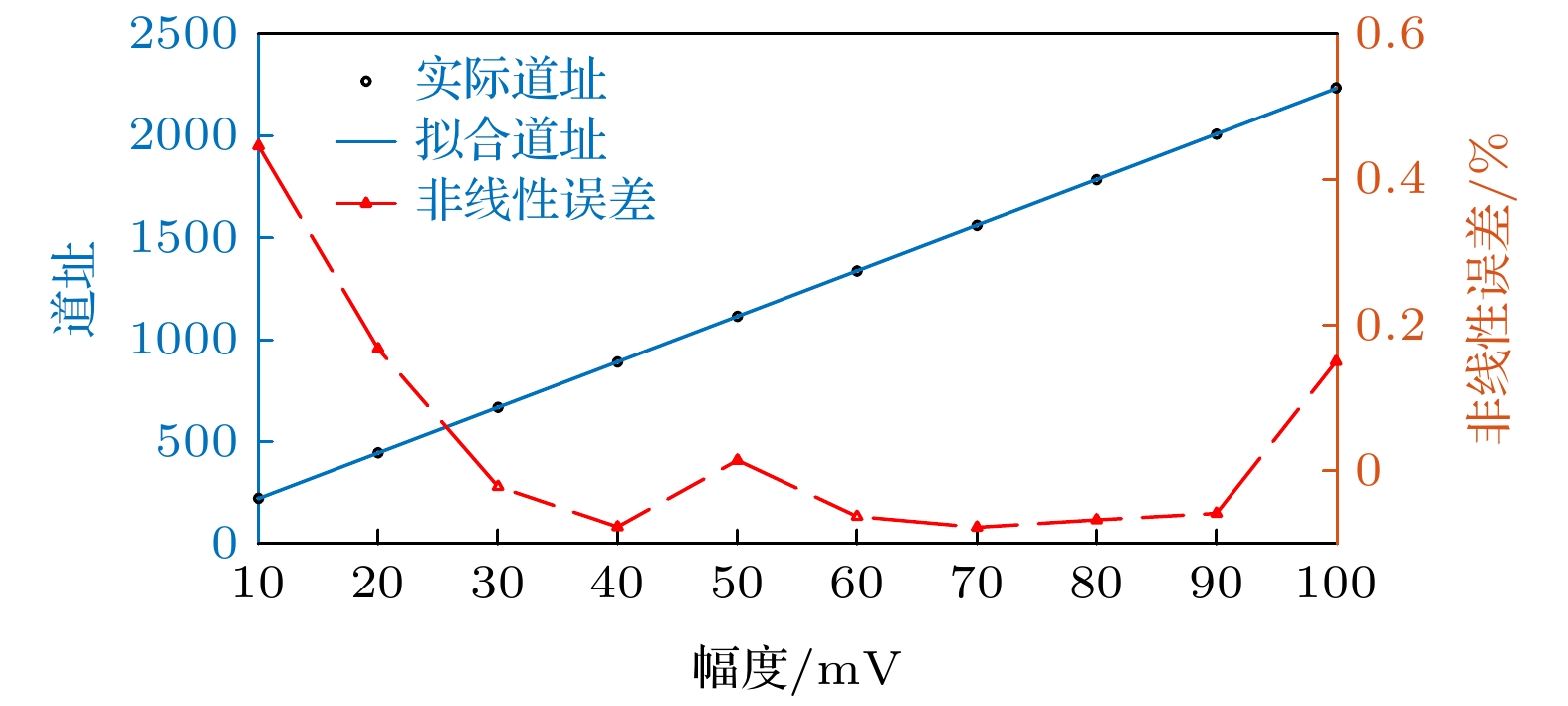

Silicon drift detector (SDD) is a kind of high performance X-ray detector, which is widely used. The ray detection system based on SDD is composed of SDD device, preamplifier and pulse processing system. The now available pulse processing system has the problems of poor pulse pile-up rejection performance and being vulnerable to the parameter fluctuations of front-end system, which degrades the performance of detection system. A digital pulse processing system is proposed. In this system, analog-to-digital converter (ADC) directly samples the output signal of preamplifier, and transmits the data to the digital pulse processing platform for processing. According to the signal characteristics of SDD device and preamplifier, the influence of ADC sampling bits and sampling frequency on system performance is analyzed. Two optimized ADC sampling circuits are proposed to reduce energy resolution degradation induced by insufficient ADC sampling bits. The pulse shaping algorithm in the digital pulse processing system is studied. The results show that the shaping signal will not be distorted due to the parameter fluctuations of the front-end system, which proves the robustness of the digital pulse processing system. The digital pulse processing system is implemented and tested, and the correctness of the system is verified.

Keywords:

Authors and contacts

Corresponding author:Wang Guan-Ying,wangguanying@ime.ac.cn

FullText HTML: translate this paragraph

References

[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
[12]
[13]
[14]
[15]
[16]
[17]
[18]
[19]
[20]
[21]
[22]
[23]
[24]
[25]
[26]
[27]
[28]
[29]

Cited By

DownLoad: Full-Size Img PowerPoint

序号	反馈电容/fF	转换增益/(mV·keV^-1)
1	≈ 125	≈ 0.35
2	≈ 50	≈ 0.88
3	≈ 25	≈ 1.76

DownLoad: CSV

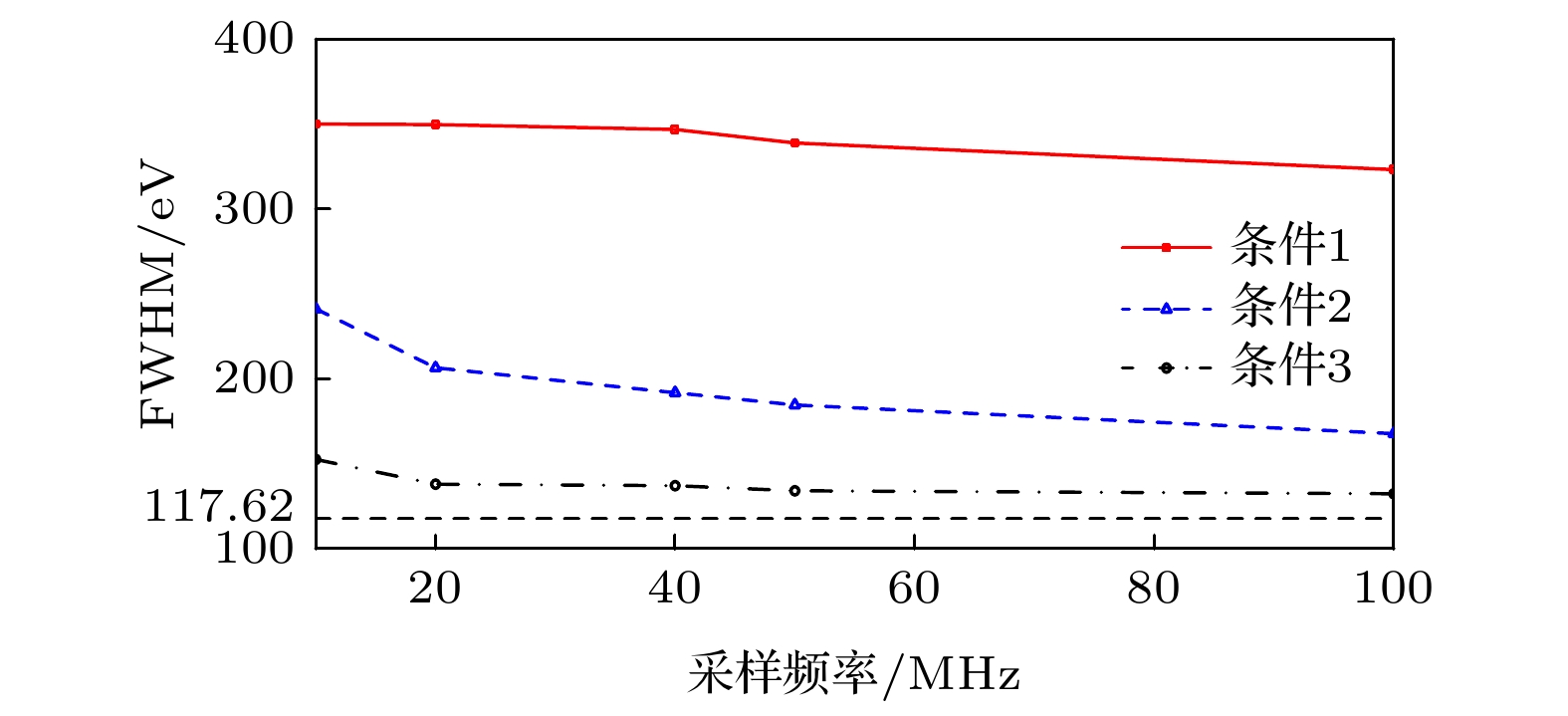

参数	$\sigma_{{\rm{s}}}/A_{{\rm{mp}}}$	$ \sigma_{ {\rm{p} }}/\sigma_{ {\rm{s} }} $	备注
条件1	2.65%	2%	串联与并联白噪声强度相近
条件2	2.65%	0.5%	串联白噪声占主导作用
条件3	0.53%	2%	串联与并联白噪声强度较小

DownLoad: CSV

影响因素	与成形时间的关联性
法诺效应	不相关
电荷收集效率	不相关
串联白噪声	随成形时间增大而减小
闪烁噪声	不相关
并联白噪声	随成形时间增大而增大

DownLoad: CSV
