Abstract

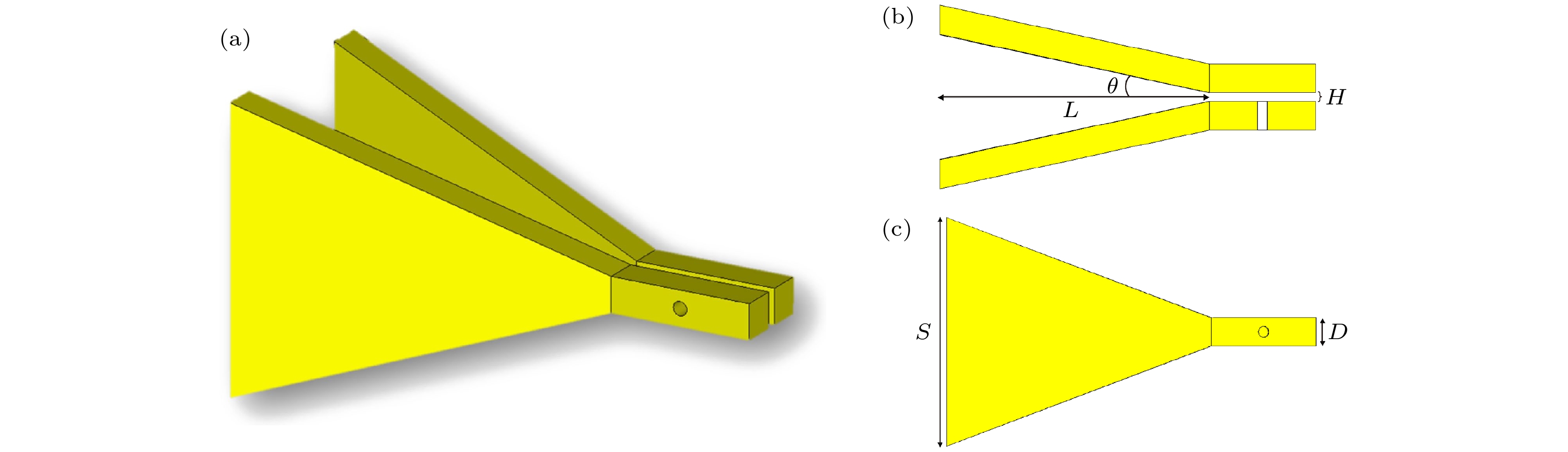

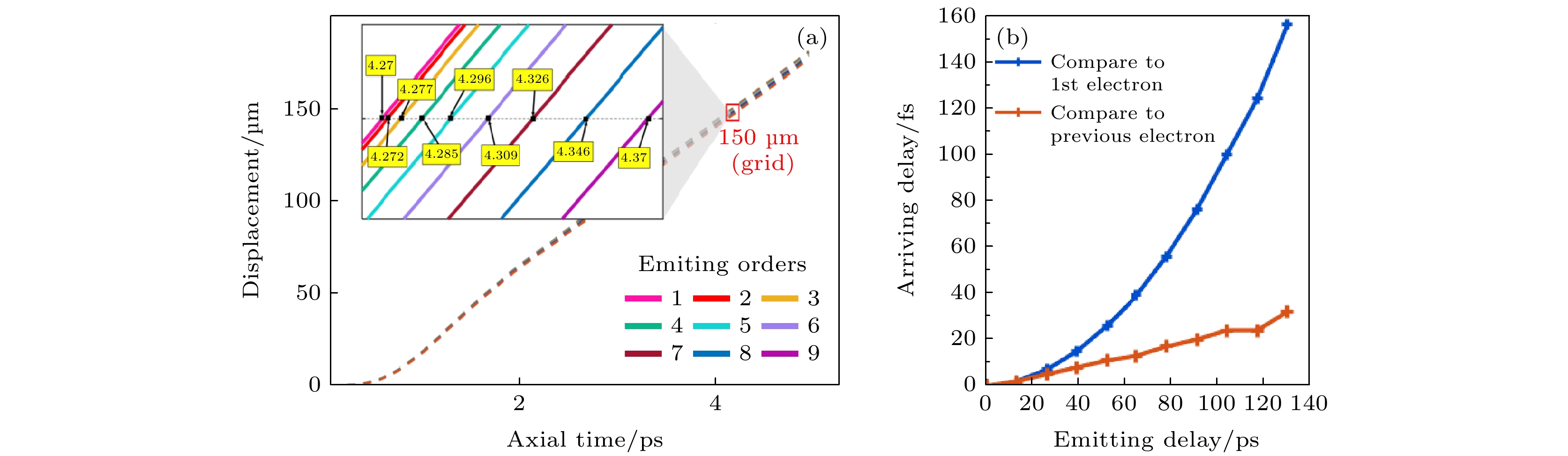

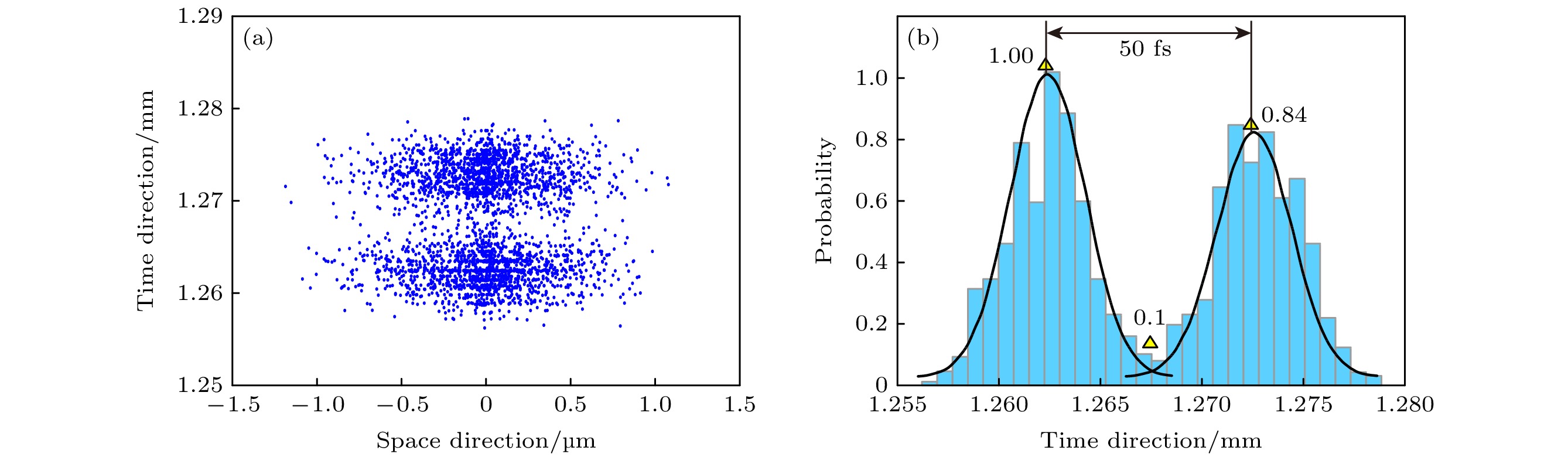

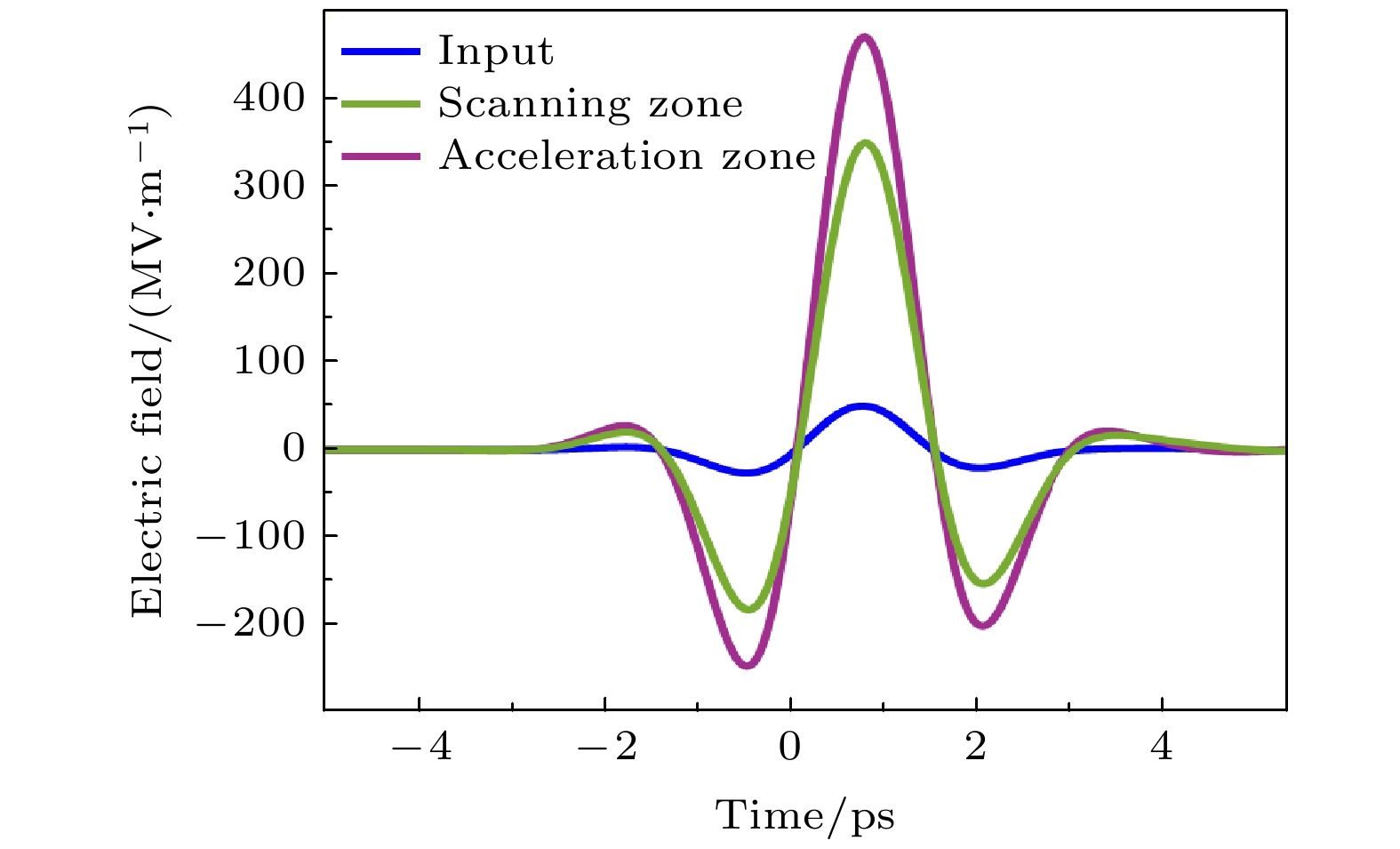

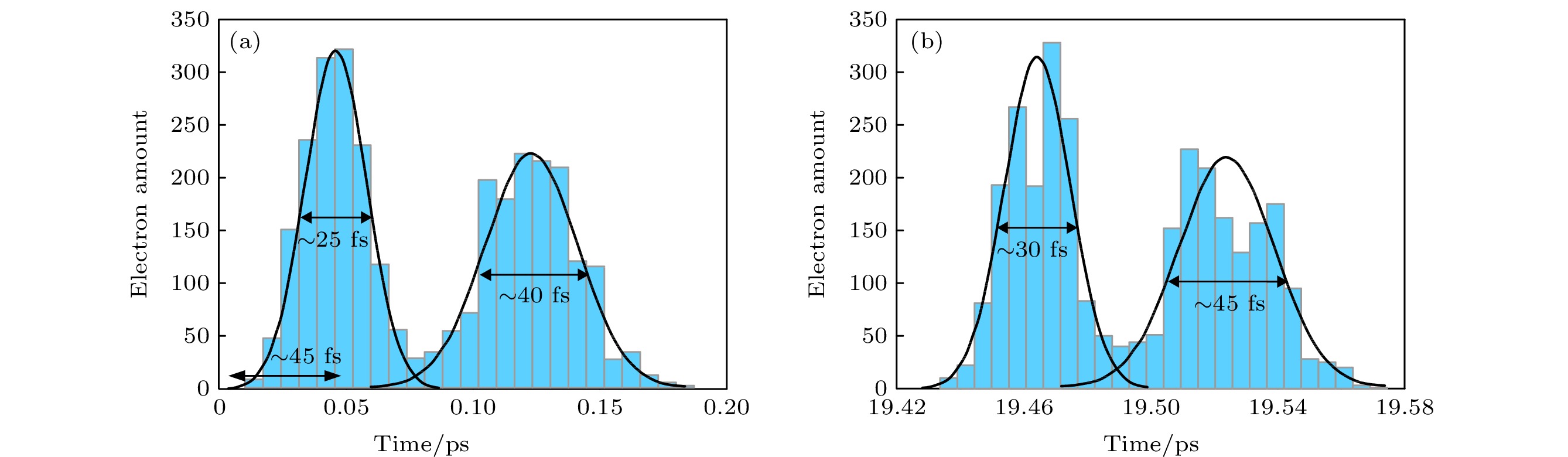

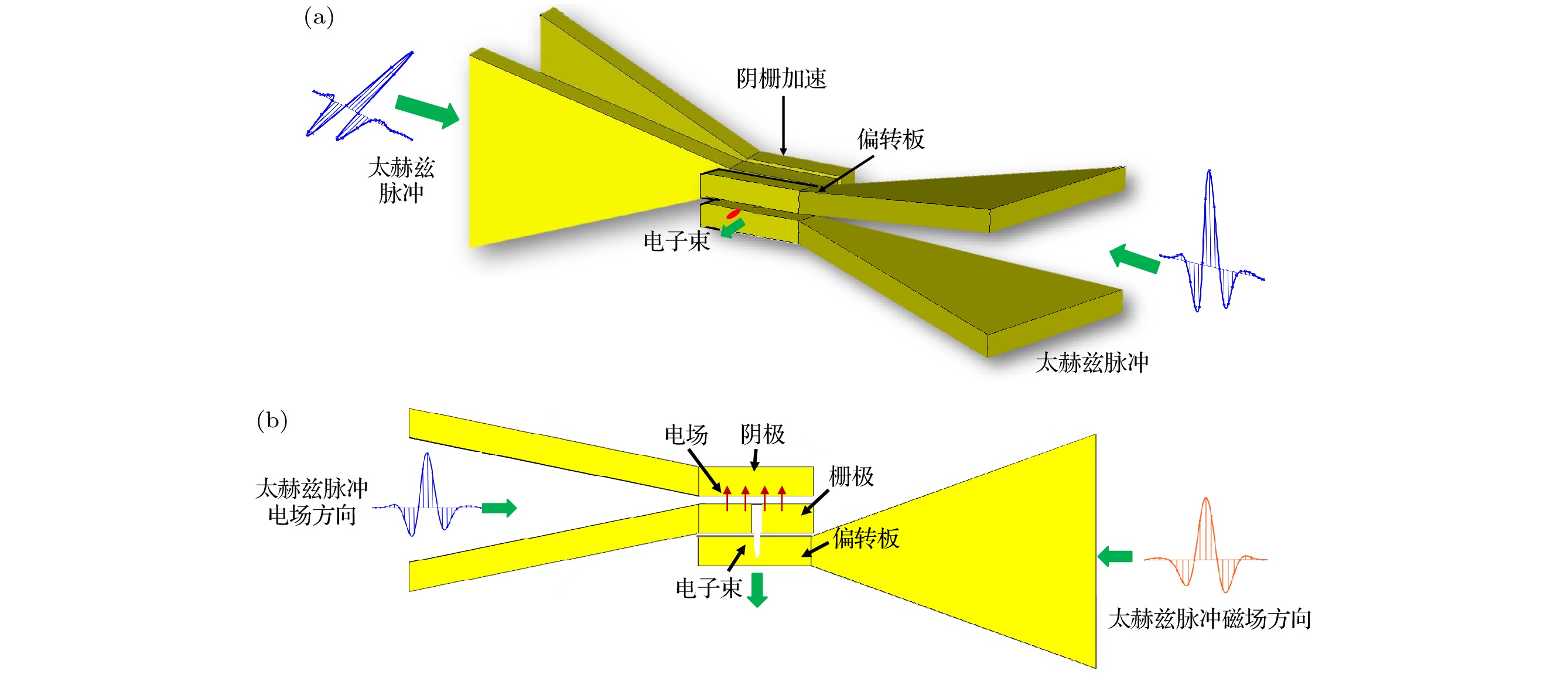

Terahertz pulses accelerating and scanning electron beam can break through the limitation of accelerating electric field between cathodes and grids in traditional streak tubes, thus reducing the time dispersion and enhancing the temporal resolution of time-scanning detectors. Based on this new technology, in this paper an ultra-small structured time-resolved detector with no focusing pole is designed. The terahertz pulse coupling/enhancing device suitable for acceleration zone and scanning zone is designed and optimized. The enhanced coefficient of the terahertz pulse electric field in the device reaches 9.39. In the paper, the relationship between time dispersion in acceleration zone and the moment of electrons emission is analyzed theoretically. We also analyze the influence of space charge effect on time dispersion. The electronic trajectory tracking is used to calculate and analyze the time dispersion of this detector, and finally the time resolution is better than 50fs.

Keywords:

Authors and contacts

Corresponding author:Chen Ping,chenping@opt.cn; Tian Jin-Shou,tianjs@opt.ac.cn;

Funds:Project supported by the National Natural Science Foundation of China (Grant Nos. 11805267, 12075311), the Youth Innovation Promotion Association, Chinese Academy of Scineces (Grant No. 2021402), the Scientific Instrument Developing Project of the Chinese Academy of Sciences, China (Grant No. GJJSTD20190004), the Strategic Priority Research Program of Chinese Academy of Sciences (Grant No. XDA25030900), the Enterprise Top Innovative Young Talents Support Plan and the Key Laboratory for Laser Plasmas (Ministry of Education), China
