Abstract

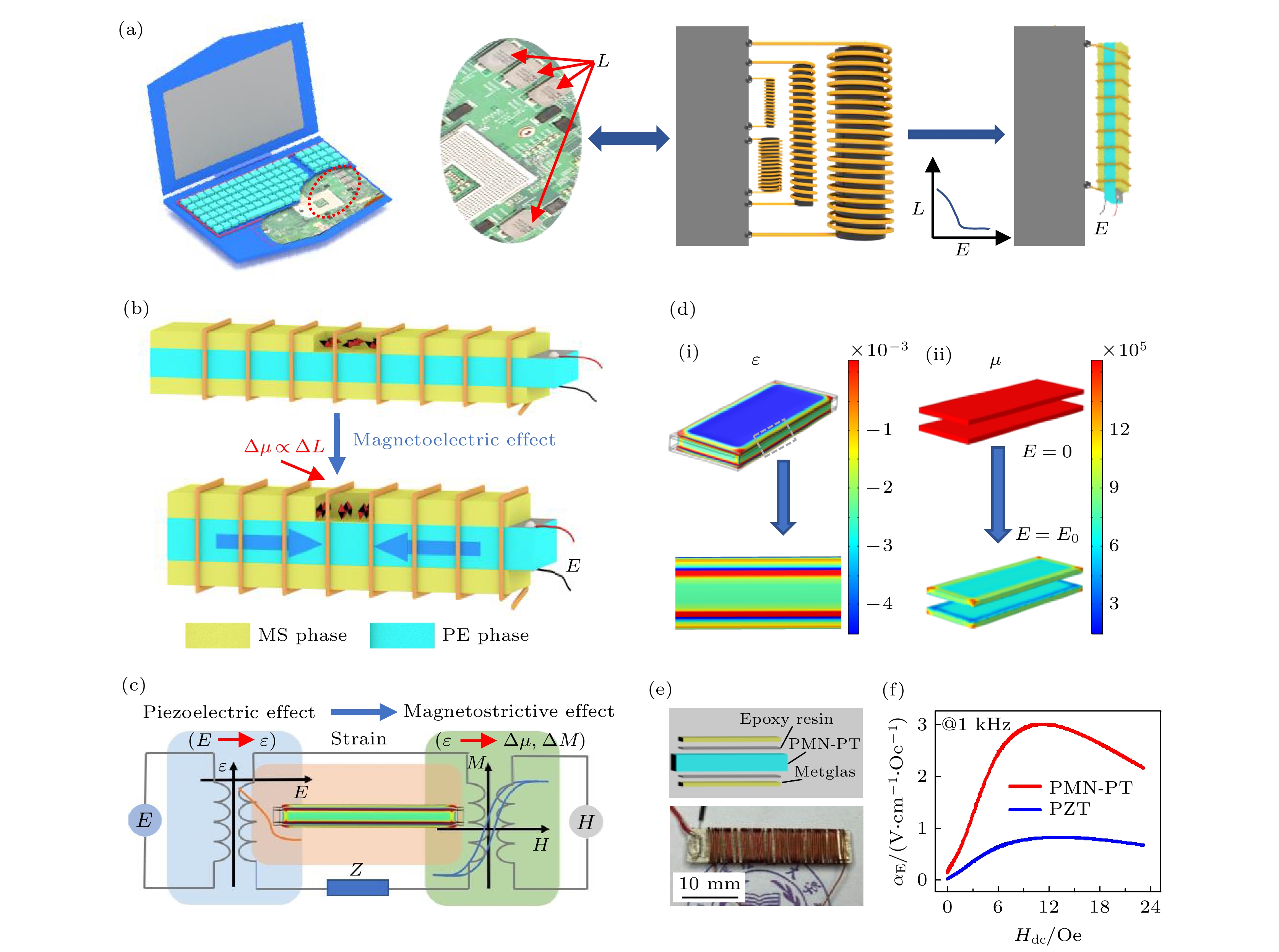

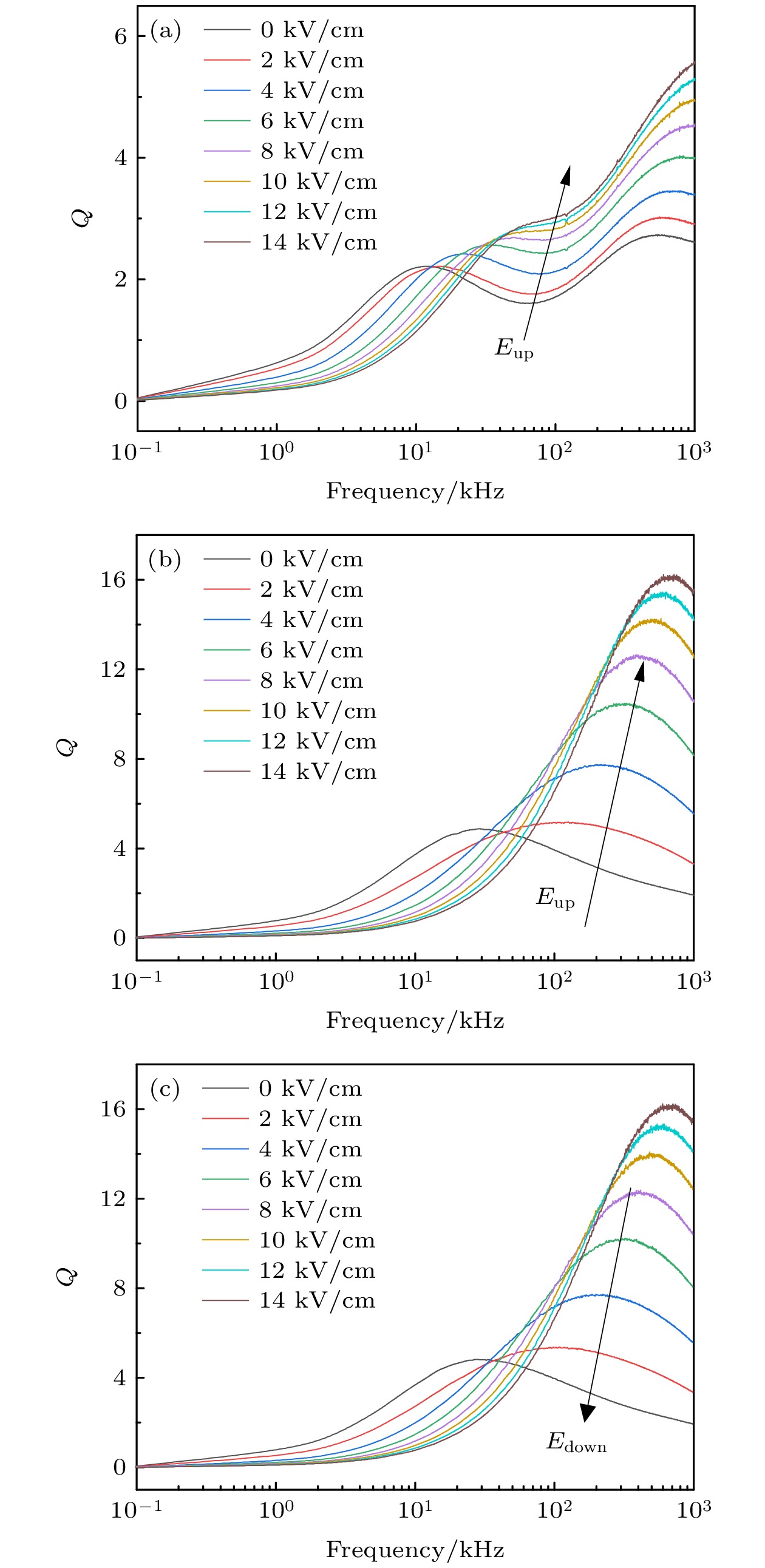

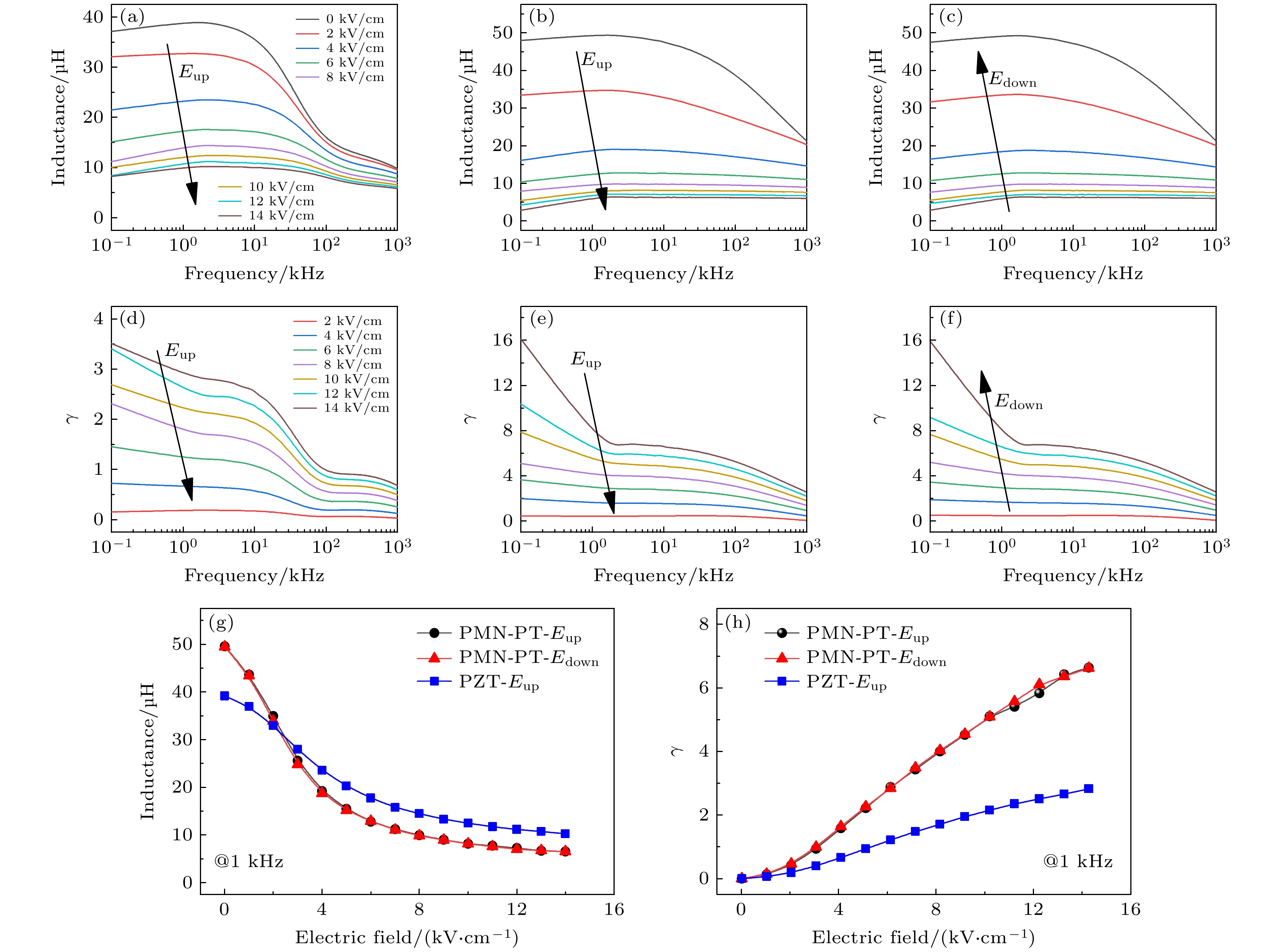

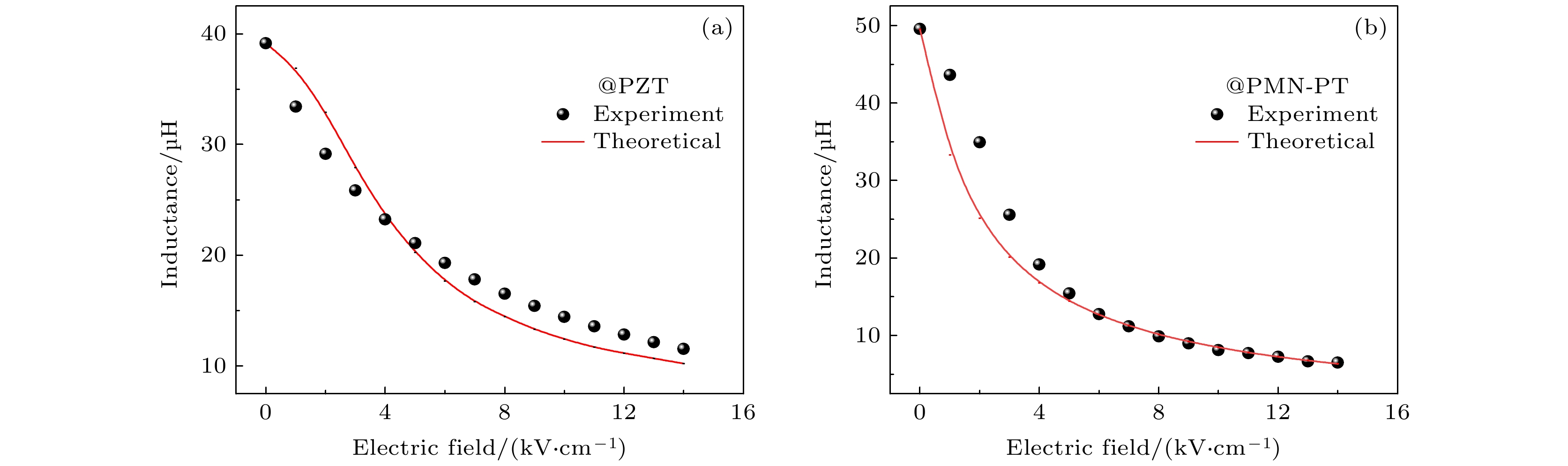

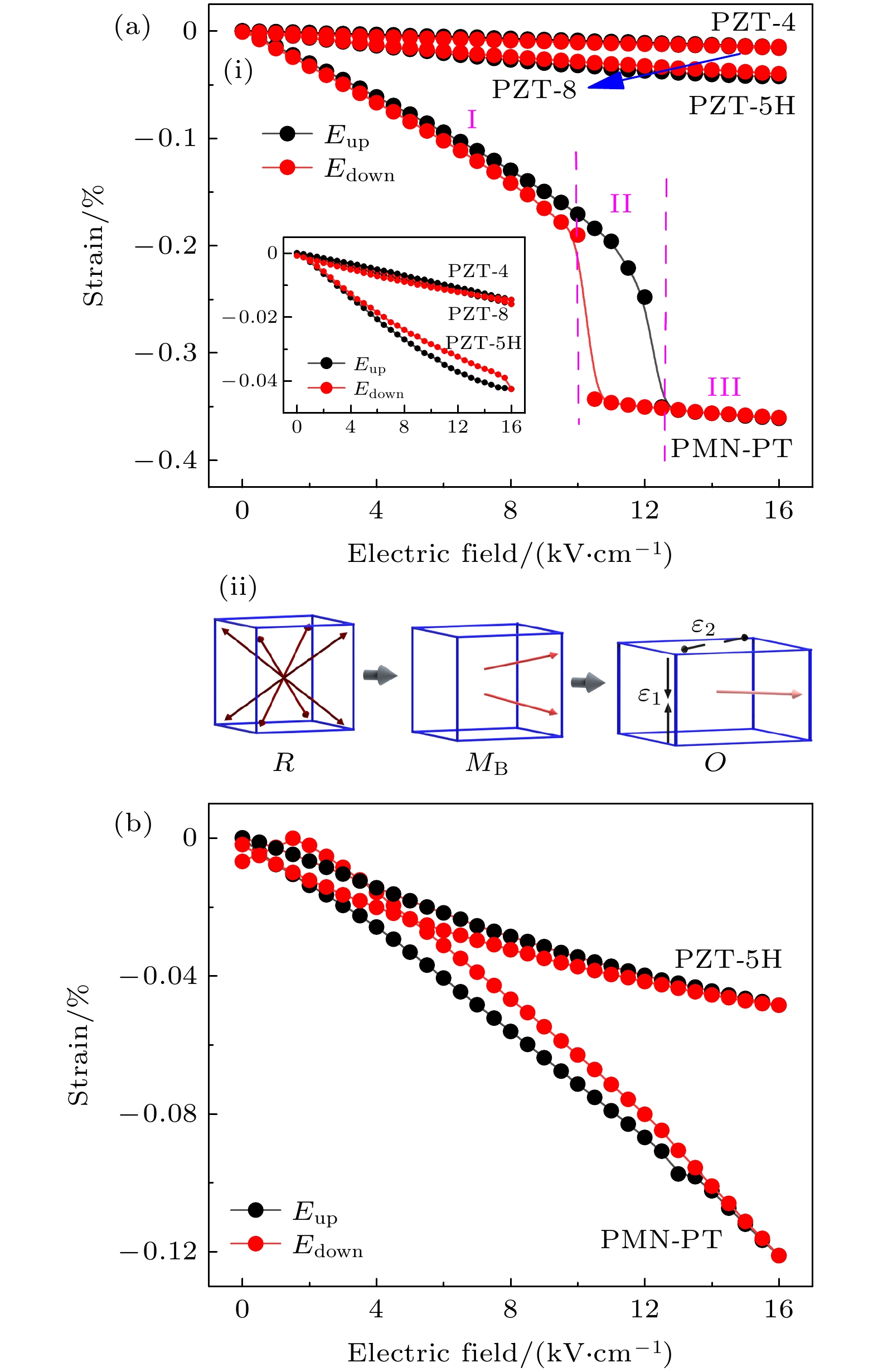

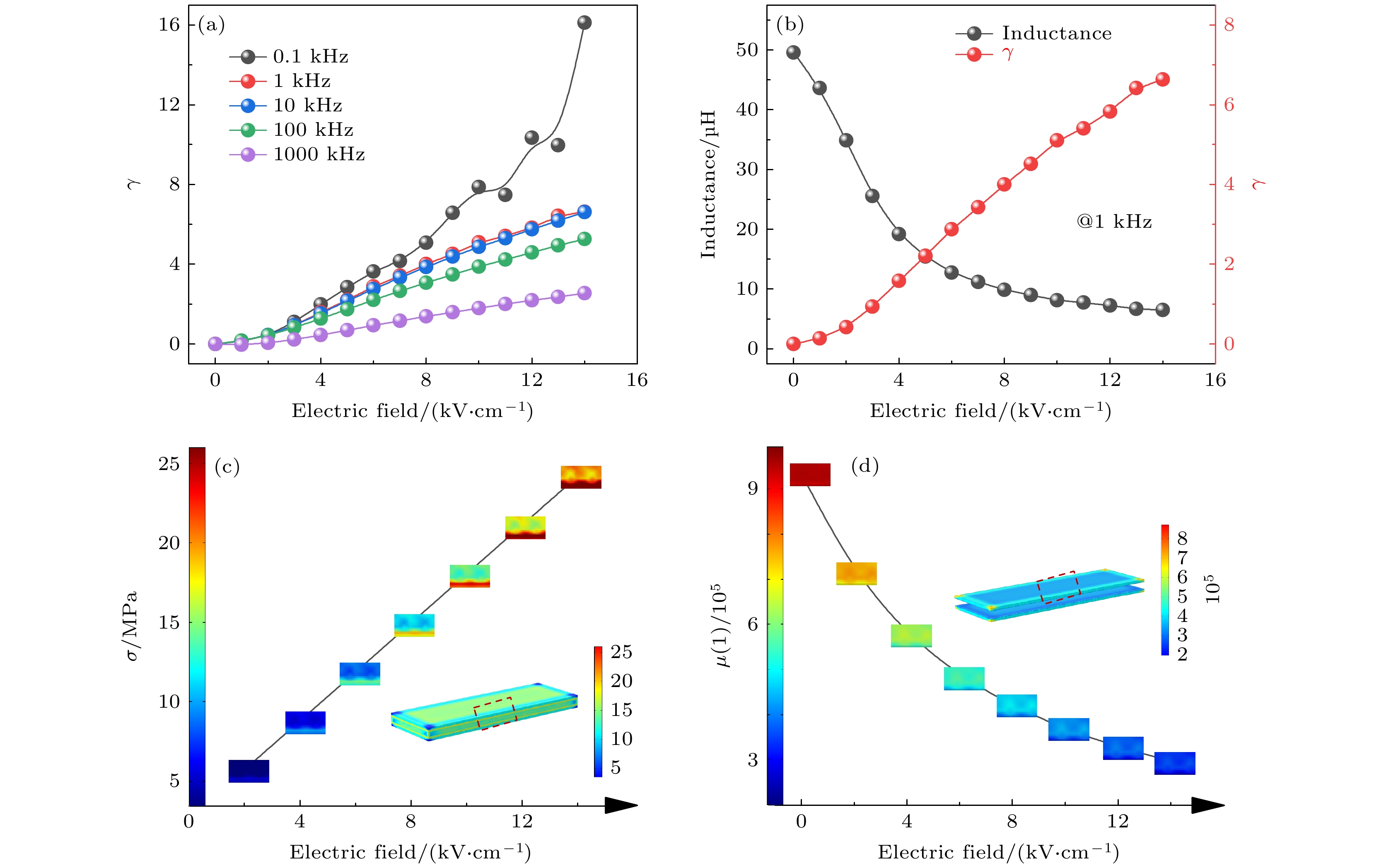

Magnetoelectric voltage tunable inductor (ME-VTI) realizes the modulation of electric field to inductance based on magnetoelectric effect. Compared with other adjustable inductors, it has the advantages of low energy consumption, small volume, large tunability and continuity. However, previous reports on ME-VTI mainly focused on structure and magnetostrictive materials, resulting in the complexity of inductor structure and slight improvement of tunability. This study focuses on the influence of field-induced strain in piezoelectric materials on inductance tunability by constructing a theoretical model. The magnetoelectric laminate of Metglas/ PMN-PT single crystal /Metglas is employed as a magnetic core to design ME-VTI. The tunability is as high as 680% at 1 kHz, which is over 2.4 times larger than that of the Metglas/PZT/Metglas magnetic core. The quality factor of the PMN-PT based ME laminate reaches 15.6, which is 2.8 times higher than that of the PZT-based one. The proposed PMN-PT based ME-VTI provides an alternative approach for developing the integrated and miniaturized devices, and has an important prospect of application in the field of power electronics.

Keywords:

Authors and contacts

Corresponding author:Wang Yao-Jin,yjwang@njust.edu.cn

Funds:Project supported by the National Natural Science Foundation of China (Grant Nos. 520721178, 51911530120, 51790492, 11874032), the Fundamental Research Funds for the Central Universities, China (Grant No. 30920041119), and the Russian Foundation for Basic Research (Grant No. 19-07-00391).
