- 必威体育下载

姓名
邮箱
手机号码
标题
留言内容
验证码

Abstract

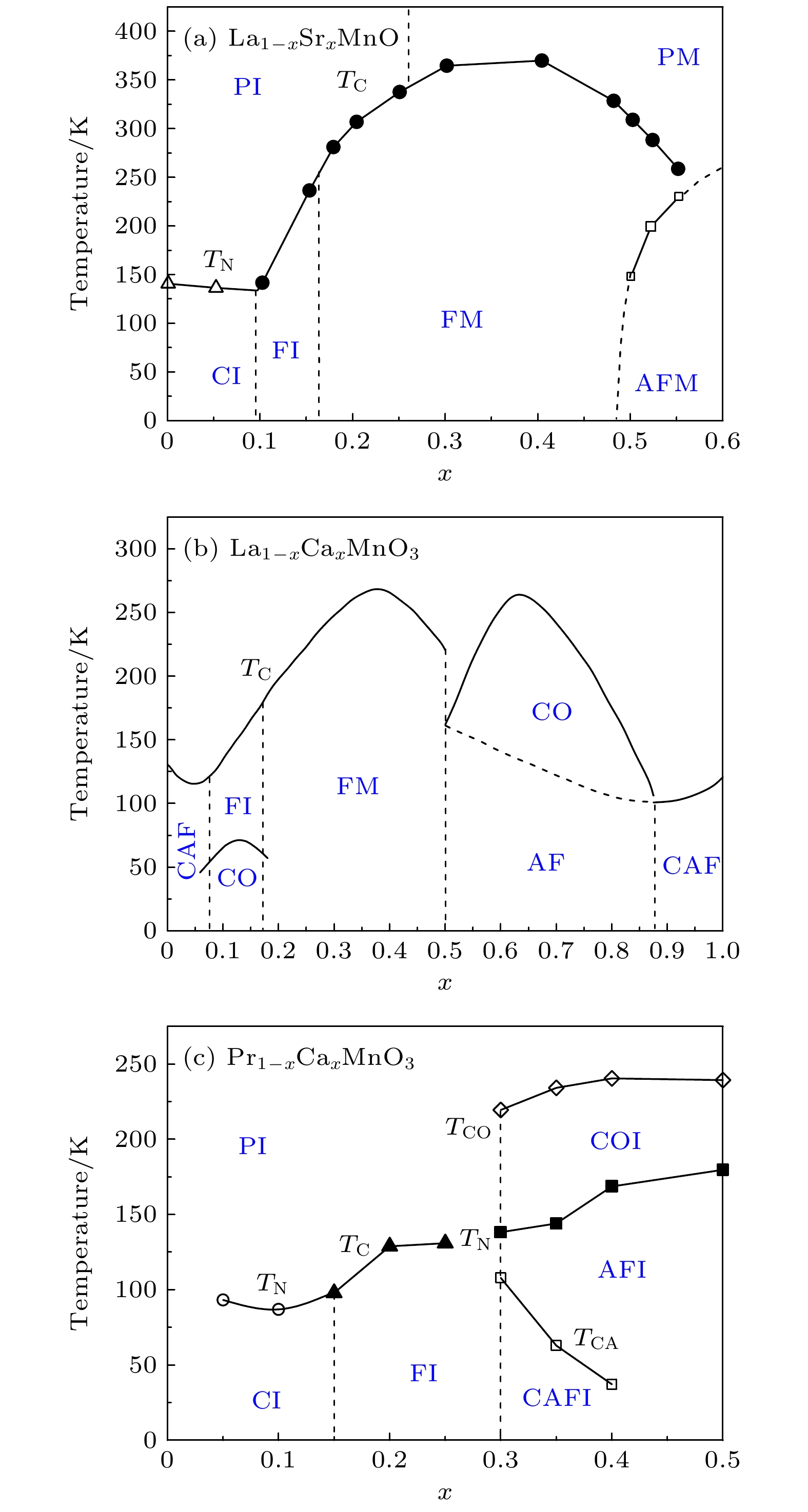

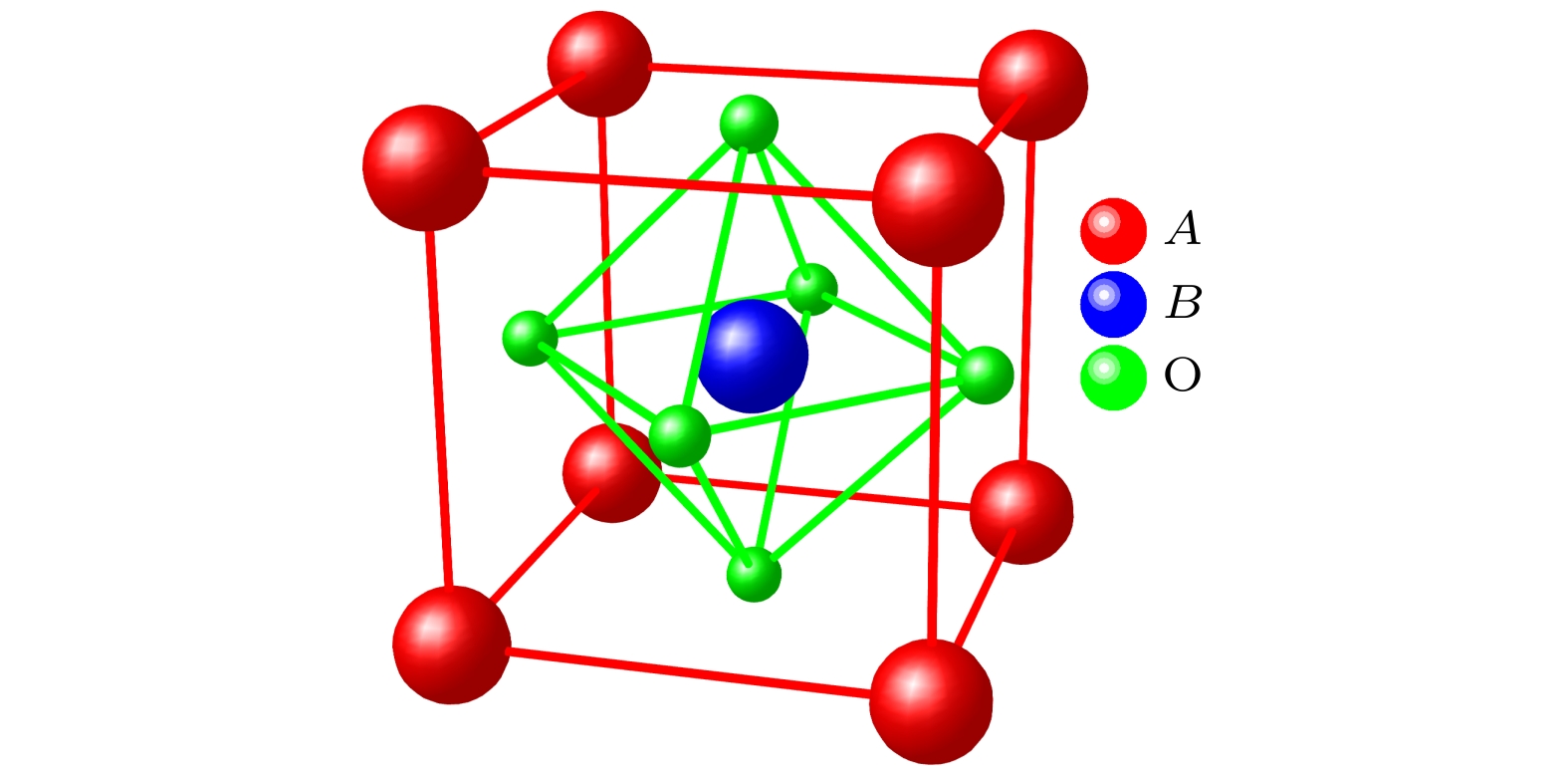

Hole-doped perovskite-type manganites have received intensive attention due to their intriguing physical phenomena such as giant magnetocaloric effect and magnetic-phase transitions. However, the mechanism of internal ferromagnetic interaction still needs to be further explored due to the complex natures of competing double-exchange (DE) and super-exchange (SE) interaction, Jahn-Teller (JT) polaron localization, charge ordering, and phase separation scenarios. Critical exponent analysis near magnetic phase transition is a powerful tool to investigate the details of the ferromagnetic interactions and has been used frequently in various magnetocaloric materials. In this article, the critical behavior analyses of perovskite manganites in recent years are comprehensively reviewed. A large number of studies have shown that even in single-phase materials with uniform structure and composition, the critical behavior can be affected by multiple factors such as grain boundary density and the degree of disorder, making them difficult to fully describe the intrinsic ferromagnetism. In this review, firstly, the critical behaviors of typical manganites with different bandwidths in single crystal and polycrystalline are discussed. In a double-exchange dominated system such as La-Sr-Mn-O, short-range 3D-Heisenberg model is basically in good accordance with optimally-doped single crystal sample. However, it would be replaced by long-range mean-field critical behavior in polycrystalline sample when the correlation length exceeds the crystallite size. In a typical intermediate bandwidth system such as La-Ca-Mn-O exhibiting a complex phase diagram described by competing SE/DE interactions, JT polaron localization/delocalization, and Griffith phase disorder, the critical exponent can vary from 3D-Heisenberg model to tricritical mean-field model, for the crossover from first to second order phase transition. Secondly, the studies of elements doping and different fabrication methods indicate that the critical behavior of manganites can be effectively modulated, and vary between different theoretical models including even nonuniversal exponent for highly disordered magnetic system. In the following part, the influence of magnetic field on the critical behavior and field induced crossover phenomena of La-Ca-Mn-O system near tricritical point is analyzed and discussed in detail. Furthermore, the magnetocaloric effects of materials near the tricritical point collected in many studies are listed and compared with each other. Excellent magnetocaloric properties with high magnetic entropy change and relative cooling power in plenty of researches indicate that ideal magnetocaloric material would be very likely to be found in the materials near the tricritical point, which lay at the borderline between first-order and second-order phase transition. Consequently, it is suggested that perovskite manganites are still quite promising in the potential magnetic refrigeration applications, and need to be further developed.

Keywords:

Authors and contacts

Corresponding author:Piao Hong-Guang,hgpiao@ctgu.edu.cn

Funds:Project supported by the Natural Science Foundation of Hubei Province, China (Grant No. ZRMS2018001866), the Doctoral Research Startup Fund of Hubei University of Technology, China (Grant No. BSQD13030), and the National Key R&D Program of China (Grant No. 2017YFB0903702)

FullText HTML: translate this paragraph

References

[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
[12]
[13]
[14]
[15]
[16]
[17]
[18]
[19]
[20]
[21]
[22]
[23]
[24]
[25]
[26]
[27]
[28]
[29]
[30]
[31]
[32]
[33]
[34]
[35]
[36]
[37]
[38]
[39]
[40]
[41]
[42]
[43]
[44]
[45]
[46]
[47]
[48]
[49]
[50]
[51]
[52]
[53]
[54]
[55]
[56]
[57]
[58]
[59]
[60]
[61]
[62]
[63]
[64]
[65]
[66]
[67]
[68]
[69]
[70]
[71]
[72]
[73]
[74]
[75]
[76]
[77]
[78]
[79]
[80]
[81]
[82]
[83]
[84]
[85]
[86]
[87]
[88]
[89]
[90]
[91]
[92]
[93]
[94]

Cited By

DownLoad: Full-Size Img PowerPoint

Model	β	γ	δ	Ref.
Mean-field	0.5	1.0	3.0	[23]

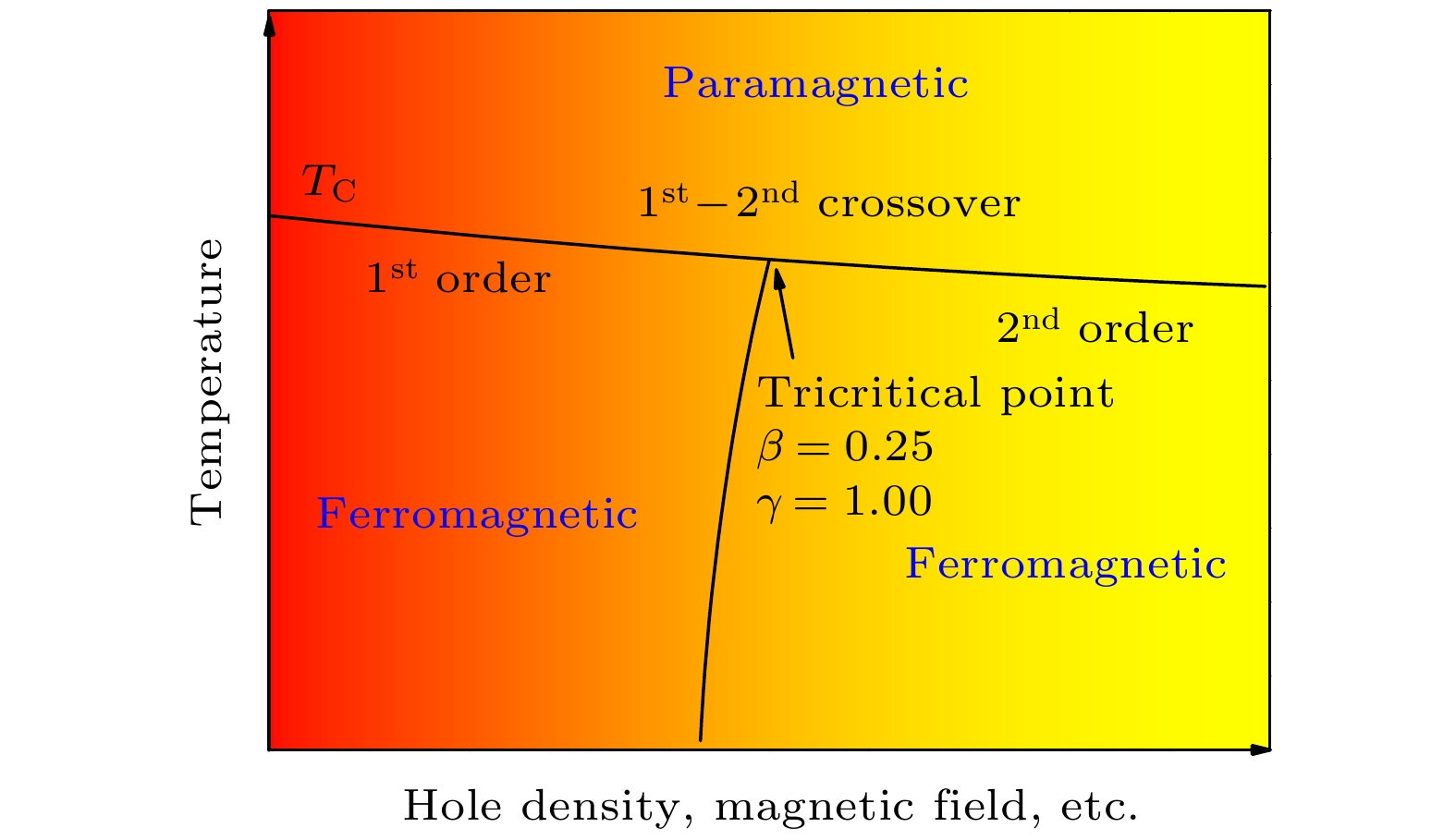

Tricritical-Mean-field	0.25	1.0	5.0	[23]
3D-Heisenberg	0.365	1.386	4.80	[24]
3D-Ising	0.325	1.241	4.82	[24]

DownLoad: CSV

Material	Technique	β	γ	δ	Model	Ref.
La_0.7Ba_0.3MnO₃^SC	MAP	0.35	1.41	5.5	3D-Heisenberg	[26]
La_0.7Ba_0.3MnO₃^PC	MAP	0.493	1.059	3.15	Mean-field	[27]
La_0.67Ba_0.33MnO₃^PC	MAP	0.464	1.29	3.78	Mean-field/3D-Heisenberg	[28]
La_0.7Sr_0.3MnO₃^SC	MAP	0.37	1.22	4.25	close to 3D-Heisenberg	[29]
La_0.75Sr_0.25MnO₃^SC	MAP	0.4	1.27	4.12	Mean-field/3D-Ising	[30]
La_0.8Sr_0.2MnO₃^PC	MAP	0.5	1.08	3.13	Mean-field	[31]
La_0.875Sr_0.125MnO₃^SC	MAP	0.37	1.38	4.72	3D-Heisenberg	[32]
La_0.6Ca_0.4MnO₃^PC	MAP	0.25	1.03	5	Tricritical-Mean-field	[33]
La_0.79Ca_0.21MnO₃^SC	MAP	0.09	1.71	20	nonuniversal	[34]
La_0.8Ca_0.2MnO₃^SC	MAP	0.374	1.382	4.779	3D-Heisenberg	[35]
La_0.82Ca_0.18MnO₃^SC	MAP	0.374	1.379	4.783	3D-Heisenberg	[35]
Nd_0.6Sr_0.4MnO₃^SC	KF	0.308	1.172	4.75	3D-Ising	[36]
Nd_0.6Sr_0.4MnO₃^PC	MAP	0.51	1.01	3.13	Mean-field	[37]
Nd_0.67Sr_0.33MnO₃^PC	MAP	0.23	1.05	5.13	Tricritical-Mean-field	[37]
Nd_0.7Sr_0.3MnO₃^PC	MAP	0.271	0.922	4.4	Tricritical-Mean-field	[38]
Pr_0.6Sr_0.4MnO₃^SC	KF	0.312	1.106	4.545	3D-Ising	[36]
Pr_0.6Sr_0.4MnO₃^SC	MAP	0.365	1.309	4.648	3D-Heisenberg	[39]
Pr_0.6Sr_0.4MnO₃^PC	MAP	0.276	0.918	4.325	Tricritical-Mean-field	[40]
Pr_0.6Sr_0.4MnO₃^PC	KF	0.273	1.001	4.325	Tricritical-Mean-field	[40]
Pr_0.71Ca_0.29MnO₃^SC	MAP	0.37	1.38	4.62	3D-Heisenberg	[41]
Pr_0.71Ca_0.29MnO₃^PC	MAP	0.521	0.912	2.71	Mean-field	[42]
Pr_0.73Ca_0.27MnO₃^SC	MAP	0.36	1.36	4.81	3D-Heisenberg	[41]
Pr_0.73Ca_0.27MnO₃^PC	MAP	0.362	1.132	4.09	3D-Heisenberg	[42]
注: SC表示单晶; PC表示多晶.

DownLoad: CSV

Material	Technique	β	γ	δ	Model	Ref.
La_0.67(Ca_0.5Ba_0.5)_0.33MnO₃	MAP	0.402	1.110	3.761	Mean-field/3D-Heisenberg	[28]
La_0.7Ca_0.15Ba_0.15MnO₃	MAP	0.438	1.032	3.360	Mean-field	[27]
La_0.7Ca_0.2Ba_0.1MnO₃	MAP	0.284	0.909	4.200	Tricritical-Mean-field/3D-Ising	[43]
La_0.7Ca_0.2Ba_0.1MnO₃	KF	0.297	0.925	4.110	Tricritical-Mean-field/3D-Ising	[43]
La_0.7Ca_0.15Sr_0.15MnO₃	MAP	0.491	1.054	3.150	Mean-field	[27]
La_0.7Ca_0.1Sr_0.2MnO₃	KF	0.360	1.220	4.400	3D-Heisenberg	[44]
La_0.7Ca_0.2Sr_0.1MnO₃	KF	0.260	1.060	5.100	Tricritical-Mean-field	[44]
La_0.69Dy_0.01Ca_0.3MnO₃	MAP	0.230	0.920	5.000	Tricritical-Mean-field	[45]
La_0.69Dy_0.01Ca_0.3MnO₃	KF	0.250	0.870	4.480	Tricritical-Mean-field	[45]
La_0.7Ca_0.28Sn_0.02MnO₃	KF	0.218	0.858	4.936	Tricritical-Mean-field	[46]
La_0.7Ca_0.26Sn_0.04MnO₃	KF	0.467	1.095	3.345	Mean-field	[46]
La_0.75Dy_0.05Sr_0.2MnO₃	MAP	0.266	0.920	4.460	Tricritical-Mean-field	[47]
La_0.75Dy_0.05Sr_0.2MnO₃	KF	0.272	0.931	4.420	Tricritical-Mean-field	[47]
La_0.1Nd_0.6Sr_0.3MnO₃	MAP	0.248	1.066	5.170	Tricritical-Mean-field	[48]
La_0.1Nd_0.6Sr_0.3MnO₃	KF	0.257	1.120	5.170	Tricritical-Mean-field	[48]
Pr_0.4Sm_0.15Sr_0.45MnO₃	KF	0.324	1.212	4.812	3D-Ising	[49]
Pr_0.3Sm_0.25Sr_0.45MnO₃	KF	0.255	0.957	5.105	Tricritical-Mean-field	[49]
La_0.57Nd_0.1Sr_0.33MnO₃	MAP	0.356	1.152	4.235	3D-Heisenberg	[50]
La_0.57Nd_0.1Sr_0.33MnO₃	KF	0.368	1.191	4.236	3D-Heisenberg	[50]
La_0.57Nd_0.1Sr_0.28□_0.05MnO₃	MAP	0.312	1.173	4.760	3D-Ising	[50]
La_0.57Nd_0.1Sr_0.28□_0.05MnO₃	KF	0.326	1.183	4.619	3D-Ising	[50]
Pr_0.6Sr_0.4MnO₃	MAP	0.276	0.918	4.325	Tricritical-Mean-field	[40]
Pr_0.6Sr_0.4MnO₃	KF	0.273	1.001	4.325	Tricritical-Mean-field	[40]
Pr_0.6Sr_0.3□_0.1MnO₃	MAP	0.253	0.987	4.890	Tricritical-Mean-field	[40]
Pr_0.6Sr_0.3□_0.1MnO₃	KF	0.242	0.945	4.890	Tricritical-Mean-field	[40]
Pr_0.5□_0.1Sr_0.4MnO₃	MAP	0.323	1.113	4.446	3D-Ising	[40]
Pr_0.5□_0.1Sr_0.4MnO₃	KF	0.325	1.092	4.446	3D-Ising	[40]
注: □表示离子空位.

DownLoad: CSV

Material	Technique	β	γ	δ	Model	Ref.
La_0.67Ba_0.33Mn_0.98Ti_0.02O₃	MAP	0.537	1.015	2.890	Mean-field	[51]
La_0.67Ba_0.33Mn_0.98Ti_0.02O₃	KF	0.551	1.020	2.851	Mean-field	[51]
La_0.67Ba_0.33Mn_0.95Fe_0.05O₃	KF	0.504	1.013	3.040	Mean-field	[52]
La_0.7Ba_0.3Mn_0.95Ti_0.05O₃	MAP	0.374	1.228	4.260	3D-Heisenberg	[53]
La_0.7Ba_0.3Mn_0.9Ti_0.1O₃	MAP	0.339	1.307	4.780	3D-Ising	[53]
La_0.8Ba_0.2Mn_0.8Fe_0.2O₃	MAP	0.365	1.227	4.362	3D-Heisenberg	[54]
La_0.8Ba_0.2Mn_0.8Fe_0.2O₃	KF	0.318	1.159	4.645	3D-Heisenberg	[54]
La_0.67Sr_0.33Mn_0.9Fe_0.1O₃	MAP	0.450	1.240	3.740	Mean-field/3D-Heisenberg	[55]
La_0.67Sr_0.33Mn_0.9Fe_0.1O₃	KF	0.538	1.330	3.470	Mean-field/3D-Heisenberg	[55]
La_0.7Sr_0.3Mn_0.95Al_0.05O₃	KF	0.458	1.001	3.185	Mean-field	[56]
La_0.7Sr_0.3Mn_0.95Ti_0.05O₃	KF	0.344	1.149	4.340	Mean-field/3D-Heisenberg	[56]
La_0.7Sr_0.3Mn_0.9Co_0.1O₃	KF	0.457	1.114	3.440	Mean-field/3D-Heisenberg	[57]
La_0.7Sr_0.3Mn_0.99Ni_0.01O₃	MAP	0.394	1.092	3.990	Mean-field/3D-Heisenberg	[58]
La_0.7Sr_0.3Mn_0.98Ni_0.02O₃	MAP	0.400	1.082	3.790	Mean-field/3D-Heisenberg	[58]
La_0.7Sr_0.3Mn_0.97Ni_0.03O₃	MAP	0.468	1.010	2.670	Mean-field	[58]
La_0.7Sr_0.3Mn_0.98Cu_0.02O₃	KF	0.464	1.162	3.546	close to Mean-field	[59]
La_0.7Sr_0.3Mn_0.96Cu_0.04O₃	KF	0.449	1.202	3.681	close to Mean-field	[59]
La_0.67Ca_0.33Mn_0.9Cr_0.1O₃	MAP	0.555	1.170	2.710	Mean-field	[60]
La_0.67Ca_0.33Mn_0.75Cr_0.25O₃	MAP	0.680	1.090	2.936	close to Mean-field	[60]
La_0.67Ca_0.33Mn_0.9Ga_0.1O₃	MAP	0.380	1.365	4.590	3D-Heisenberg	[61]
La_0.67Ca_0.33Mn_0.9Ga_0.1O₃	KF	0.387	1.362	4.520	3D-Heisenberg	[61]
La_0.7Ca_0.3Mn_0.95Ti_0.05O₃	KF	0.601	1.171	2.950	Mean-field	[62]
La_0.7Ca_0.3Mn_0.9Ti_0.1O₃	KF	0.389	1.403	4.400	3D-Heisenberg	[62]
La_0.7Ca_0.3Mn_0.91Ni_0.09O₃	MAP	0.171	0.976	6.700	Tricritical-Mean-field	[63]
La_0.7Ca_0.3Mn_0.88Ni_0.12O₃	MAP	0.262	0.978	4.700	Tricritical-Mean-field	[63]
La_0.7Ca_0.3Mn_0.85Ni_0.15O₃	MAP	0.320	0.990	4.100	3D-Ising	[63]
La_0.7Ca_0.3Mn_0.95Cu_0.05O₃	MAP	0.490	1.040	3.120	Mean-field	[64]
La_0.7Ca_0.3Mn_0.9Zn_0.1O₃	MAP	0.474	1.152	3.430	Mean-field	[65]
La_0.8Ca_0.2Mn_0.9Co_0.1O₃	MAP	0.204	1.969	11.983	nonuniversal	[66]
La_0.8Ca_0.2Mn_0.9Co_0.1O₃	KF	0.123	1.351	11.983	nonuniversal	[66]
La_0.8Ca_0.2Mn_0.8Co_0.2O₃	MAP	0.401	1.332	4.321	3D-Heisenberg	[66]
La_0.8Ca_0.2Mn_0.8Co_0.2O₃	KF	0.418	1.303	4.321	3D-Heisenberg	[66]
Nd_0.67Sr_0.33Mn_0.9Cr_0.1O₃	MAP	0.337	0.784	3.326	nonuniversal	[67]
Nd_0.67Sr_0.33Mn_0.9Fe_0.1O₃	MAP	0.436	0.94	3.156	Mean-field	[67]
Nd_0.67Sr_0.33Mn_0.9Co_0.1O₃	MAP	0.431	0.929	3.155	Mean-field	[67]
Pr_0.67Sr_0.33Mn_0.95Al_0.05O₃	MAP	0.381	1.323	4.635	3D-Heisenberg	[68]
Pr_0.67Sr_0.33Mn_0.95Al_0.05O₃	KF	0.381	1.320	4.635	3D-Heisenberg	[68]
Pr_0.67Sr_0.33Mn_0.9Al_0.1O₃	MAP	0.374	1.333	4.667	3D-Heisenberg	[68]
Pr_0.67Sr_0.33Mn_0.9Al_0.1O₃	KF	0.377	1.331	4.667	3D-Heisenberg	[68]

DownLoad: CSV

Material	Technique	β	γ	δ	Model	Ref.
La_0.6Sr_0.4MnO₃^{SG/800 ºC}	KF	0.560	1.140	3.035	close to Mean-field	[69]
La_0.6Sr_0.4MnO₃^{SG/1100 ºC}	KF	0.480	1.052	3.190	Mean-field	[69]
La_0.6Sr_0.4MnO₃^SS	KF	0.530	1.110	3.094	Mean-field	[69]
La_0.67Sr_0.33MnO₃^SS	MAP	0.333	1.325	4.978	3D-Heisenberg	[70]
La_0.67Sr_0.33MnO₃^SG	MAP	0.500	1.150	3.290	Mean-field	[55]
La_0.67Sr_0.33MnO₃^SG	KF	0.479	1.260	3.630	Mean-field	[55]
La_0.7Ba_0.1Ca_0.1Sr_0.1MnO₃^WM	MAP	0.448	1.148	3.563	Mean-field	[71]
La_0.7Ba_0.1Ca_0.1Sr_0.1MnO₃^WM	KF	0.476	1.029	3.096	Mean-field	[71]
La_0.7Ba_0.1Ca_0.1Sr_0.1MnO₃^SG	MAP	0.235	1.153	5.906	Tricritical-Mean-field	[71]
La_0.7Ba_0.1Ca_0.1Sr_0.1MnO₃^SG	KF	0.262	1.165	5.447	Tricritical-Mean-field	[71]
La_0.7Ca_0.2Ba_0.1MnO₃^BM	MAP	0.265	0.867	4.271	Tricritical-Mean-field	[72]
La_0.7Ca_0.2Ba_0.1MnO₃^BM	KF	0.261	0.988	4.386	Tricritical-Mean-field	[72]
La_0.7Ca_0.2Ba_0.1MnO₃^SS	MAP	0.284	0.909	4.200	Tricritical-Mean-field/3D-Ising	[43]
La_0.7Ca_0.2Ba_0.1MnO₃^SS	KF	0.297	0.925	4.110	Tricritical-Mean-field/3D-Ising	[43]
La_0.7Ca_0.2Sr_0.1MnO₃^BM	MAP	0.397	0.966	3.430	3D-Heisenberg	[73]
La_0.7Ca_0.2Sr_0.1MnO₃^SS	MAP	0.276	0.966	4.500	Tricritical-Mean-field	[74]
La_0.7Ca_0.2Sr_0.1MnO₃^SS	KF	0.315	0.954	4.028	Tricritical-Mean-field	[74]
La_0.7Ca_0.2Sr_0.1MnO₃^SG	MAP	0.484	1.037	3.143	Mean-field	[74]
La_0.7Ca_0.2Sr_0.1MnO₃^SG	KF	0.469	1.013	3.160	Mean-field	[74]
La_0.7Ca_0.3MnO₃^{BM/40 nm}	MAP	0.485	1.051	3.100	Mean-field	[75]
La_0.7Ca_0.3MnO₃^{BM/16 nm}	MAP	0.621	0.825	2.200	nonuniversal	[75]
La_0.7Ca_0.3MnO₃^SG	MAP	0.240	1.010	3.090	Tricritical-Mean-field	[76]
La_0.75Ca_0.25MnO₃^SG	MAP	0.521	0.94	2.804	Mean-field	[77]
La_0.75Ca_0.25MnO₃^SG	KF	0.529	0.939	2.775	Mean-field	[77]
La_0.8Ca_0.2MnO₃^SG	MAP	0.505	1.004	3.060	Mean-field	[78]
La_0.8Ca_0.2MnO₃^SG	KF	0.499	1.007	3.060	Mean-field	[78]
Nd_0.7Ca_0.15Sr_0.15MnO₃^{BM/4 h}	KF	0.243	0.907	4.540	Tricritical-Mean-field	[79]
Nd_0.7Ca_0.15Sr_0.15MnO₃^{BM/24 h}	KF	0.311	1.100	4.130	3D-Ising	[79]
Pr_0.6Ca_0.1Sr_0.3Mn_0.975Fe_0.025O₃^SS	MAP	0.644	1.075	2.763	Mean-field	[80]
Pr_0.6Ca_0.1Sr_0.3Mn_0.975Fe_0.025O₃^SS	KF	0.622	1.097	2.763	Mean-field	[80]
Pr_0.6Ca_0.1Sr_0.3Mn_0.975Fe_0.025O₃^SG	MAP	0.357	1.292	4.290	3D-Heisenberg	[80]
Pr_0.6Ca_0.1Sr_0.3Mn_0.975Fe_0.025O₃^SG	KF	0.370	1.220	4.290	3D-Heisenberg	[80]
Pr_0.8Sr_0.2MnO₃^SG	MAP	0.260	0.978	4.760	Tricritical-Mean-field	[81]
Pr_0.8Sr_0.2MnO₃^SG	KF	0.260	0.993	4.810	Tricritical-Mean-field	[81]
Pr_0.8Sr_0.2MnO₃^SS	MAP	0.318	1.260	4.960	3D-Ising	[82]
Pr_0.8Sr_0.2MnO₃^SS	KF	0.326	1.246	4.960	3D-Ising	[82]
注: SS表示固相反应法; SG表示溶胶凝胶法(附烧结温度工艺条件); WM表示湿混法; BM表示球磨法(附平均粒径尺寸或球磨时间等工艺条件).

DownLoad: CSV

Material	Field range	Technique	β	γ	δ	Model	Ref.
La_0.6Ca_0.4MnO₃	1—2 T	KF	0.249	1.008	5.043	Tricritical-Mean-field	[83]
	2—3 T	KF	0.255	0.857	4.359	crossover
	3—4 T	KF	0.262	0.833	4.18	crossover
	4—5 T	KF	0.267	0.797	3.983	crossover
	5—6 T	KF	0.263	0.776	3.954	close to Tricritical-Mean-field
La_0.8Ca_0.2MnO₃	1—2 T	KF	0.349	1.231	4.524	3D-Heisenberg/Ising	[83]
	2—3 T	KF	0.316	1.081	4.421	crossover
	3—4 T	KF	0.281	0.992	4.534	crossover
	4—5 T	KF	0.272	0.91	4.341	crossover
	5—6 T	KF	0.259	0.918	4.552	Tricritical-Mean-field
La_0.7Ca_0.275Ba_0.025MnO₃	2—3 T	MAP	0.209	—	—	Tricritical-Mean-field	[84]
	3—4 T	MAP	0.218	1.098	6.04
	4—5 T	MAP	0.227	1.06	5.67
La_0.7Ca_0.25Ba_0.05MnO₃	1—2 T	MAP	0.221	—	—	Tricritical-Mean-field	[84]
	2—3 T	MAP	0.225	1.052	5.68
	3—4 T	MAP	0.235	1.012	5.31
	4—5 T	MAP	0.249	1.022	5.1
La_0.7Ca_0.225Ba_0.075MnO₃	1—2 T	MAP	0.216	0.973	5.5	Tricritical-Mean-field	[84]
	2—3 T	MAP	0.224	0.982	5.38
	3—4 T	MAP	0.238	1.016	5.27
	4—5 T	MAP	0.253	0.992	4.92
La_0.7Ca_0.2Ba_0.1MnO₃	1—2 T	MAP	0.301	1.382	5.59	Tricritical-Mean-field/3D-Ising	[84]
	2—3 T	MAP	0.312	1.38	5.42	3D-Ising
	3—4 T	MAP	0.322	1.381	5.29	3D-Ising
	4—5 T	MAP	0.326	1.342	5.12	3D-Ising
La_0.7Ca_0.3MnO₃	10—14 T	MAP	0.252	1.005	—	Tricritical-Mean-field	[85]

DownLoad: CSV

Material	T_C/K	ΔH/ T	–ΔS_M/(J·kg^–1·K^–1)	RCP/(J·kg^–1)	Ref.
La_0.7Ba_0.2Ca_0.1MnO₃^SG	350	2	2.35	70	[87]
La_0.7Ba_0.2Ca_0.1MnO₃^SG	350	5	5.80	167	[87]
La_0.7Ba_0.2Ca_0.1Mn_0.95Al_0.05O₃^SG	321	2	2.12	85	[87]
La_0.7Ba_0.2Ca_0.1Mn_0.95Al_0.05O₃^SG	321	5	5.30	180	[87]
La_0.7Ba_0.2Ca_0.1Mn_0.9Al_0.1O₃^SG	300	2	1.86	96	[87]
La_0.7Ba_0.2Ca_0.1Mn_0.9Al_0.1O₃^SG	300	5	4.60	193	[87]
La_0.7Ca_0.3MnO₃^SS	255	1	4.52	45.2	[46]
La_0.7Ca_0.28Sn_0.02MnO₃^SS	200	1	2.79	55.8	[46]
La_0.7Ca_0.26Sn_0.04MnO₃^SS	167	1	1.58	69.5	[46]
La_0.69Dy_0.01Ca_0.3MnO₃^SS	246	5	14.94	100.24	[45]
La_0.6Ca_0.3Ag_0.1MnO₃^SS	256	2	3.89	55.51	[88]
La_0.6Ca_0.3Ag_0.1MnO₃^SS	256	5	6.95	179.78	[88]
La_0.6Ca_0.3Ag_0.1MnO₃^SG	270	2	5.55	84.46	[88]
La_0.6Ca_0.3Ag_0.1MnO₃^SG	270	5	8.67	230.35	[88]
La_0.6Ca_0.3Sr_0.1MnO₃^SG	304	2	2.89	98.17	[89]
La_0.6Ca_0.3Sr_0.1MnO₃^SG	304	5	5.26	262.53	[89]
La_0.7Ca_0.2Sr_0.1MnO₃^SS	284	3	4.30	150	[90]
La_0.7Ca_0.2Sr_0.1MnO₃^BM	297	1	1.47	54.4	[73]
La_0.7Ca_0.19Sr_0.11MnO₃^BM	301	1	1.42	52.5	[73]
La_0.7Ca_0.18Sr_0.12MnO₃^BM	309	1	1.38	44.2	[73]
La_0.7Ca_0.27Na_0.03MnO₃^SS	260	4	8.10	232	[91]
La_0.7Ca_0.24Na_0.06MnO₃^SS	263	4	7.00	234	[91]
La_0.7Ca_0.21Na_0.09MnO₃^SS	271	4	6.90	236	[91]
La_0.7Ba_0.1Ca_0.1Sr_0.1MnO₃^WM	315	2	1.34	102.51	[71]
La_0.7Ba_0.1Ca_0.1Sr_0.1MnO₃^WM	315	5	3.16	284.53	[71]
La_0.7Ba_0.1Ca_0.1Sr_0.1MnO₃^SG	330	2	2.58	74.92	[71]
La_0.7Ba_0.1Ca_0.1Sr_0.1MnO₃^SG	330	5	4.89	229.29	[71]
La_0.8Na_0.2Mn_0.97Bi_0.03O₃^SS	320	5	4.77	218	[92]
La_0.8Na_0.2Mn_0.97Bi_0.03O₃^SG	257	5	5.88	252	[92]
La_0.4Pr_0.3Ca_0.1Sr_0.2MnO₃^SS	289	2	3.08	83.3	[86]
La_0.6Gd_0.1Sr_0.3Mn_0.8Si_0.2O₃^SG	271	5	5.35	180	[93]
La_0.7Bi_0.05Sr_0.15Ca_0.1Mn_0.95In_0.05O₃^SG	310	5	6.00	258	[94]
注: 1) 表中符号含义如下:T_C为居里温度; ΔH为磁场变化范围; –ΔS_M为最大磁熵变值; RCP为相对制冷能力, 由磁熵变曲线的峰值与半峰宽数值相乘而得; 2) SS表示固相反应法; SG表示溶胶凝胶法; WM表示湿混法; BM表示球磨法.

DownLoad: CSV

[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
[12]
[13]
[14]
[15]
[16]
[17]
[18]
[19]
[20]
[21]
[22]
[23]
[24]
[25]
[26]
[27]
[28]
[29]
[30]
[31]
[32]
[33]
[34]
[35]
[36]
[37]
[38]
[39]
[40]
[41]
[42]
[43]
[44]
[45]
[46]
[47]
[48]
[49]
[50]
[51]
[52]
[53]
[54]
[55]
[56]
[57]
[58]
[59]
[60]
[61]
[62]
[63]
[64]
[65]
[66]
[67]
[68]
[69]
[70]
[71]
[72]
[73]
[74]
[75]
[76]
[77]
[78]
[79]
[80]
[81]
[82]
[83]
[84]
[85]
[86]
[87]
[88]
[89]
[90]
[91]
[92]
[93]
[94]

[1]	Lin Yuan, Hu Feng-Xia, Shen Bao-Gen.Phase transition regulation, magnetocaloric effect, and abnormal thermal expansion. Acta Physica Sinica, 2023, 72(23): 237501.doi:10.7498/aps.72.20231118
[2]	Peng Jia-Xin, Tang Ben-Zhen, Chen Qi-Xin, Li Dong-Mei, Guo Xiao-Long, Xia Lei, Yu Peng.Preparation and magnetocaloric properties of Gd₄₅Ni₃₀Al₁₅Co₁₀amorphous alloy. Acta Physica Sinica, 2022, 71(2): 026102.doi:10.7498/aps.70.20211530
[3]	Zhang Yan, Zong Shuo-Tong, Sun Zhi-Gang, Liu Hong-Xia, Chen Feng-Hua, Zhang Ke-Wei, Hu Ji-Fan, Zhao Tong-Yun, Shen Bao-Gen.Magnetic and anisotropic magnetocaloric effects of HoCoSi fast quenching ribbons. Acta Physica Sinica, 2022, 71(16): 167501.doi:10.7498/aps.71.20220683
[4]	Zhang Hu, Xing Cheng-Fen, Long Ke-Wen, Xiao Ya-Ning, Tao Kun, Wang Li-Chen, Long Yi.Linear dependence of magnetocaloric effect on magnetic field in Mn0.6Fe0.4NiSi0.5Ge0.5 and Ni50Mn34Co2Sn14 with first-order magnetostructural transformation. Acta Physica Sinica, 2018, 67(20): 207501.doi:10.7498/aps.67.20180927
[5]	Hao Zhi-Hong, Wang Hai-Ying, Zhang Quan, Mo Zhao-Jun.Magnetic and magnetocaloric effects of Eu_0.9M_0.1TiO₃(M=Ca, Sr, Ba, La, Ce, Sm) compounds. Acta Physica Sinica, 2018, 67(24): 247502.doi:10.7498/aps.67.20181750
[6]	Yang Jing-Jie, Zhao Jin-Liang, Xu Lei, Zhang Hong-Guo, Yue Ming, Liu Dan-Min, Jiang Yi-Jian.Influences of interstitial atoms H, B and C on magnetic properties and magnetocaloric effect in LaFe11.5Al1.5 compound. Acta Physica Sinica, 2018, 67(7): 077501.doi:10.7498/aps.67.20172250
[7]	Huo Jun-Tao, Sheng Wei, Wang Jun-Qiang.Magnetocaloric effects and magnetic regenerator performances in metallic glasses. Acta Physica Sinica, 2017, 66(17): 176409.doi:10.7498/aps.66.176409
[8]	Zheng Xin-Qi, Shen Jun, Hu Feng-Xia, Sun Ji-Rong, Shen Bao-Gen.Research progress in magnetocaloric effect materials. Acta Physica Sinica, 2016, 65(21): 217502.doi:10.7498/aps.65.217502
[9]	Wu Li-Qian, Qi Wei-Hua, Li Yu-Chen, Li Shi-Qiang, Li Zhuang-Zhi, Xue Li-Chao, Ge Xing-Shuo, Ding Li-Li.Influence of thermal treatment on the ionic valence and the magnetic structure of perovskite manganites La0.95Sr0.05MnO3. Acta Physica Sinica, 2016, 65(2): 027501.doi:10.7498/aps.65.027501
[10]	Wang Qiang.Electron spin resonance study on charge ordering and spin ordering in nanocrystalline Bi0.2Ca0.8MnO3. Acta Physica Sinica, 2015, 64(18): 187501.doi:10.7498/aps.64.187501
[11]	Wang Zhi-Guo, Xiang Jun-You, Xu Bao, Wan Su-Lei, Lu Yi, Zhang Xue-Feng, Zhao Jian-Jun.Magnetic and transport properties of perovskite manganites (La1-xGdx)4/3Sr5/3Mn2O7 (x=0, 0.025) polycrystalline samples. Acta Physica Sinica, 2015, 64(6): 067501.doi:10.7498/aps.64.067501
[12]	Yang Hong, Qi Wei-Hua, Ji Deng-Hui, Shang Zhi-Feng, Zhang Xiao-Yun, Xu Jing, Lang Li-Li, Tang Gui-De.Structure and magnetic properties of perovskite manganites La2/3Sr1/3FexMn1-xO 3. Acta Physica Sinica, 2014, 63(8): 087503.doi:10.7498/aps.63.087503
[13]	Wang Fang, Yuan Feng-Ying, Wang Jin-Zhi.Magnetic properties and magnetocaloric effect in Mn42Al50-xFe8+x alloys. Acta Physica Sinica, 2013, 62(16): 167501.doi:10.7498/aps.62.167501
[14]	Chen Hui, Zhang Guo-Ying, Yang Dan, Gao Jiao.A method of determining the highest temperature attained by magnetic material in the adiabatic magnetization. Acta Physica Sinica, 2012, 61(9): 097501.doi:10.7498/aps.61.097501
[15]	Wang Qiang.Charge order and phase separation in Bi0.5Ca0.5Mn1-xCoxO3 system. Acta Physica Sinica, 2010, 59(9): 6569-6574.doi:10.7498/aps.59.6569
[16]	Li Xiao-Juan, Wang Qiang.Grain size effect of charge ordering of Bi0.2Ca0.8MnO3. Acta Physica Sinica, 2009, 58(9): 6482-6486.doi:10.7498/aps.58.6482
[17]	Zhang Hao-Lei, Li Zhe, Qiao Yan-Fei, Cao Shi-Xun, Zhang Jin-Cang, Jing Chao.Martensitic transformation and magnetocaloric effect in Ni-Co-Mn-Sn Heusler alloy. Acta Physica Sinica, 2009, 58(11): 7857-7863.doi:10.7498/aps.58.7857
[18]	Zhao Hua-Ying, Yang Huan, Ma Ji-Yun, Fang Xu, M. Kamran, Dai Yao-Min, Li Ming, Zhao Bai-Ru, Qiu Xiang-Gang.Stress-induced effects in epitaxial La0.33Pr0.34Ca0.33MnO3 films. Acta Physica Sinica, 2008, 57(11): 7168-7172.doi:10.7498/aps.57.7168
[19]	Jing Chao, Chen Ji-Ping, Li Zhe, Cao Shi-Xun, Zhang Jin-Cang.Martensitic transformation and magnetocaloric effect in Ni50Mn35In15 Heusler alloy. Acta Physica Sinica, 2008, 57(7): 4450-4455.doi:10.7498/aps.57.4450
[20]	CHEN WEI, ZHONG WEI, PAN CHENG, CHANG HONG, DU YOU-WEI.CURIE TEMPERATURE AND MAGNETOCALORIC EFFECT OF POLYCRYSTALLINE La0.8-xCa0.2MnO3. Acta Physica Sinica, 2001, 50(2): 319-323.doi:10.7498/aps.50.319

Catalog

Vol. 70, Issue 15 - 2021-08-05

Metrics

Abstract views:8697
PDF Downloads:229
Cited By:0

Search

Article
