Abstract

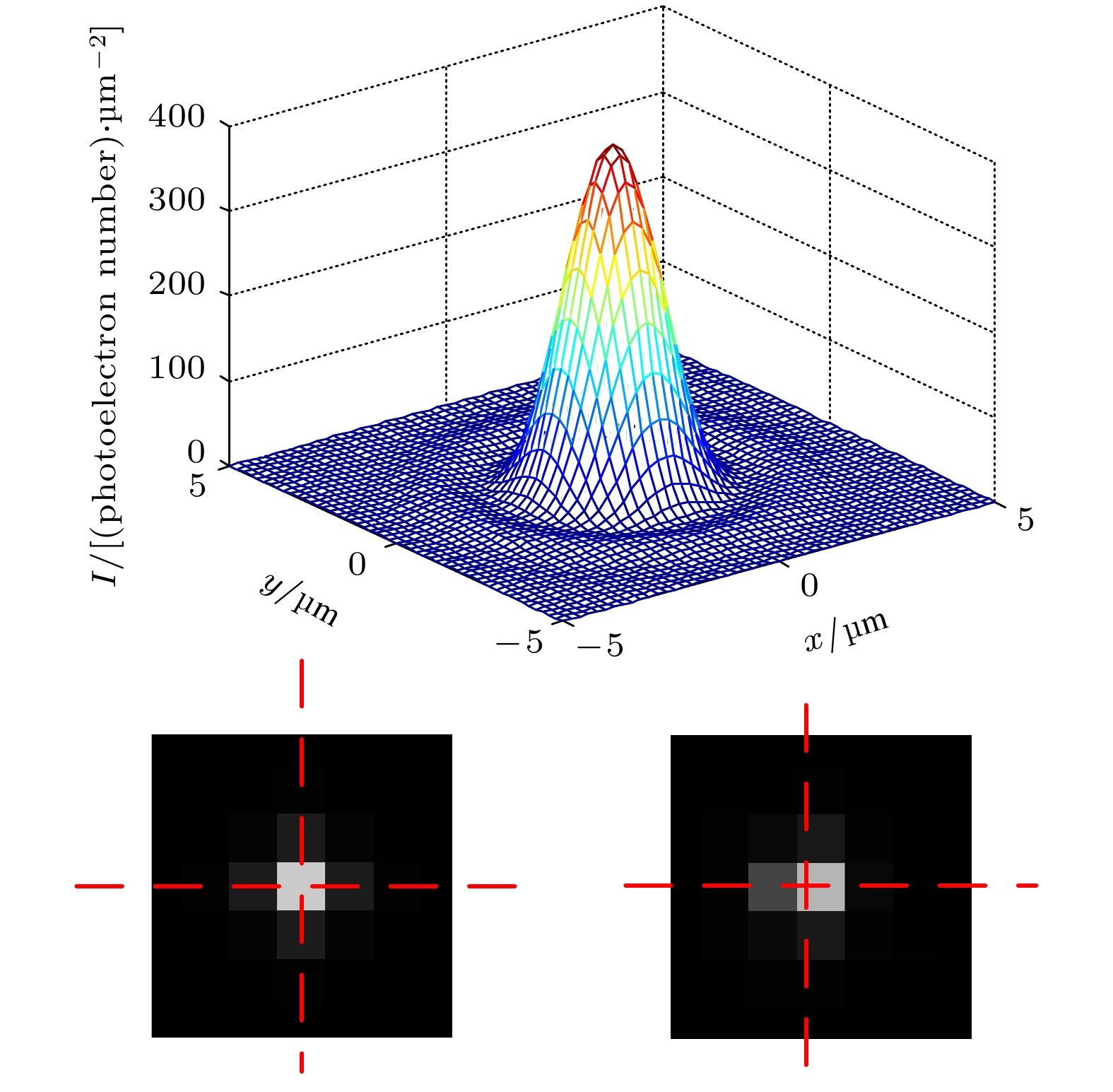

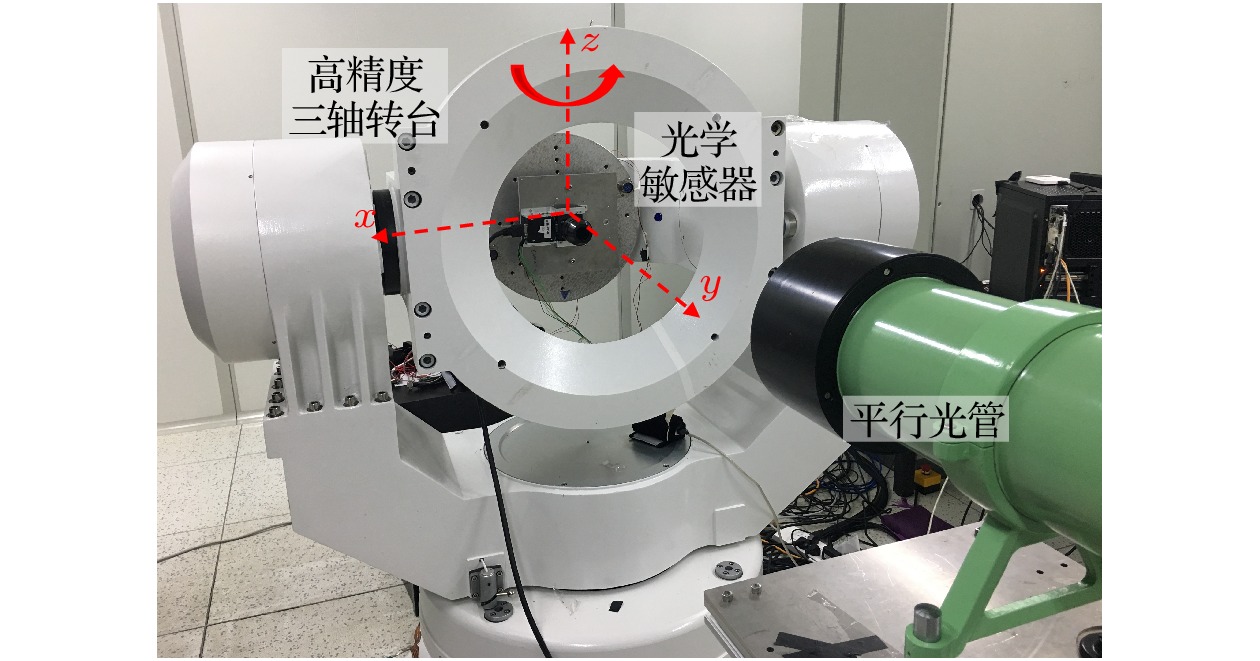

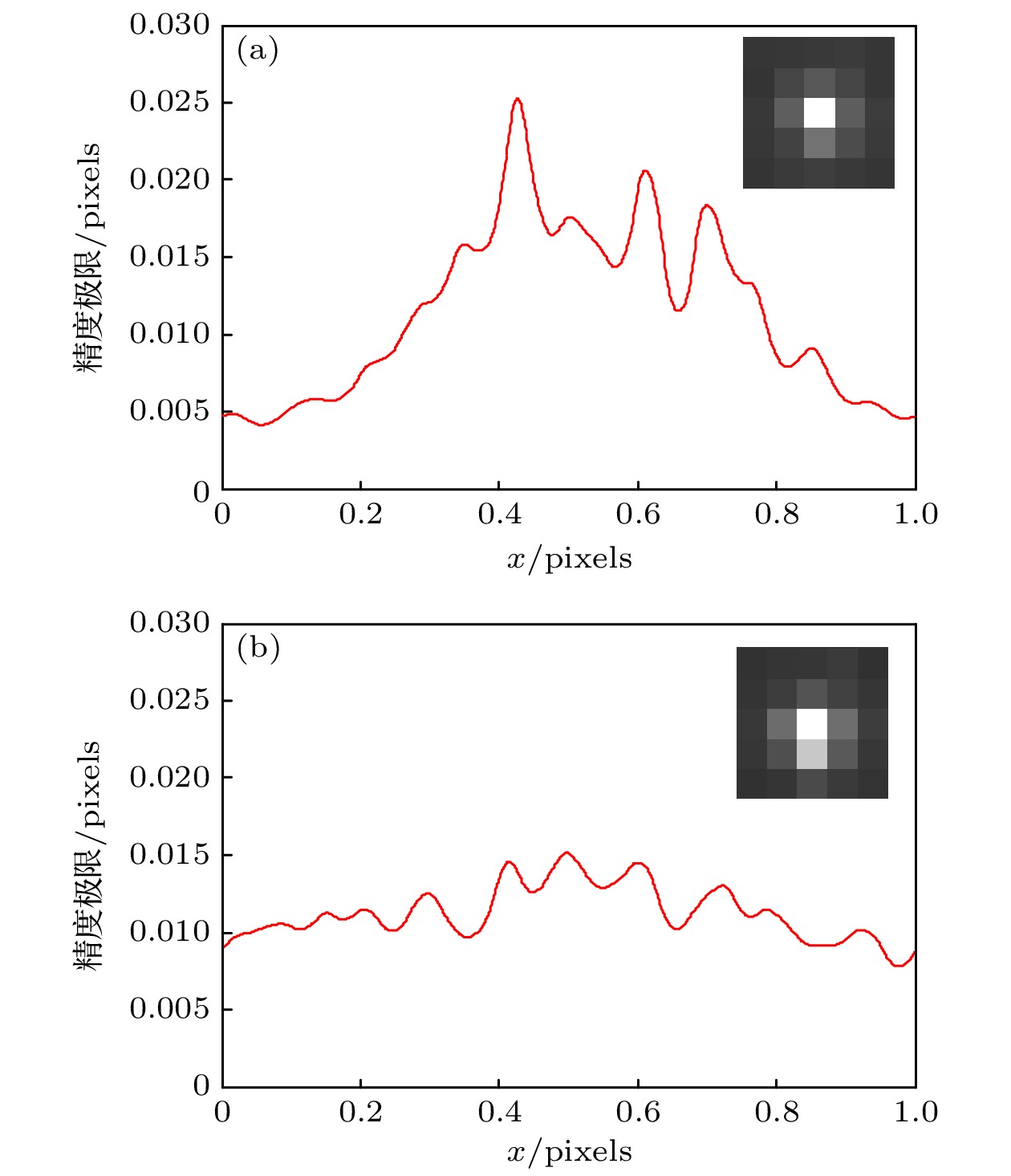

Measurement technology with nanometer scale or higher level precision is the basis and guarantee for developing atomic and close-to-atomic scale manufacturing. Optical measurement has the advantages of high precision, wide range and real-time measurement. The precision of localizing a single imaging spot’s center is not limited by the diffraction limit and could reach nanometer scale. However, the shot noise of light and the dark current noise of the detector bring about a precision limit for optical measurement. Based on the Cramer-Rao lower bound theory, a precision limit estimation method for general imaging profiles is developed in this paper. Taking the typical Airy spot for example, the influences of the parameters such as signal-to-noise ratio, energy concentration and processing method on the positioning precision limit are analyzed, and suggestions and conclusions for improving the measurement precision are given. The precision limit of a laboratory imaging spot is calculated, which verifies that the conclusions are also suitable for the imaging profiles similar to the Airy spot. The research provides the analytical method and theoretical guidance for the application and optimization of optical measurement in atomic and close-to-atomic scale manufacturing.

Keywords:

atomic and close-to-atomic scale manufacturing/
optical measurement/
precision limit

Authors and contacts

Corresponding author:Xing Fei,xingfei@mail.tsinghua.edu.cn

Funds:Project supported by the National Key Research and Development Program of China (Grant No. 2016YFB0501201) and the National Project for Research and Development of Major Scientific Instruments (Grant No. 51827806)

FullText HTML: translate this paragraph

References

[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
[12]
[13]
[14]
[15]
[16]
[17]
[18]
[19]
[20]
[21]
[22]
[23]
[24]

Cited By

DownLoad: Full-Size Img PowerPoint

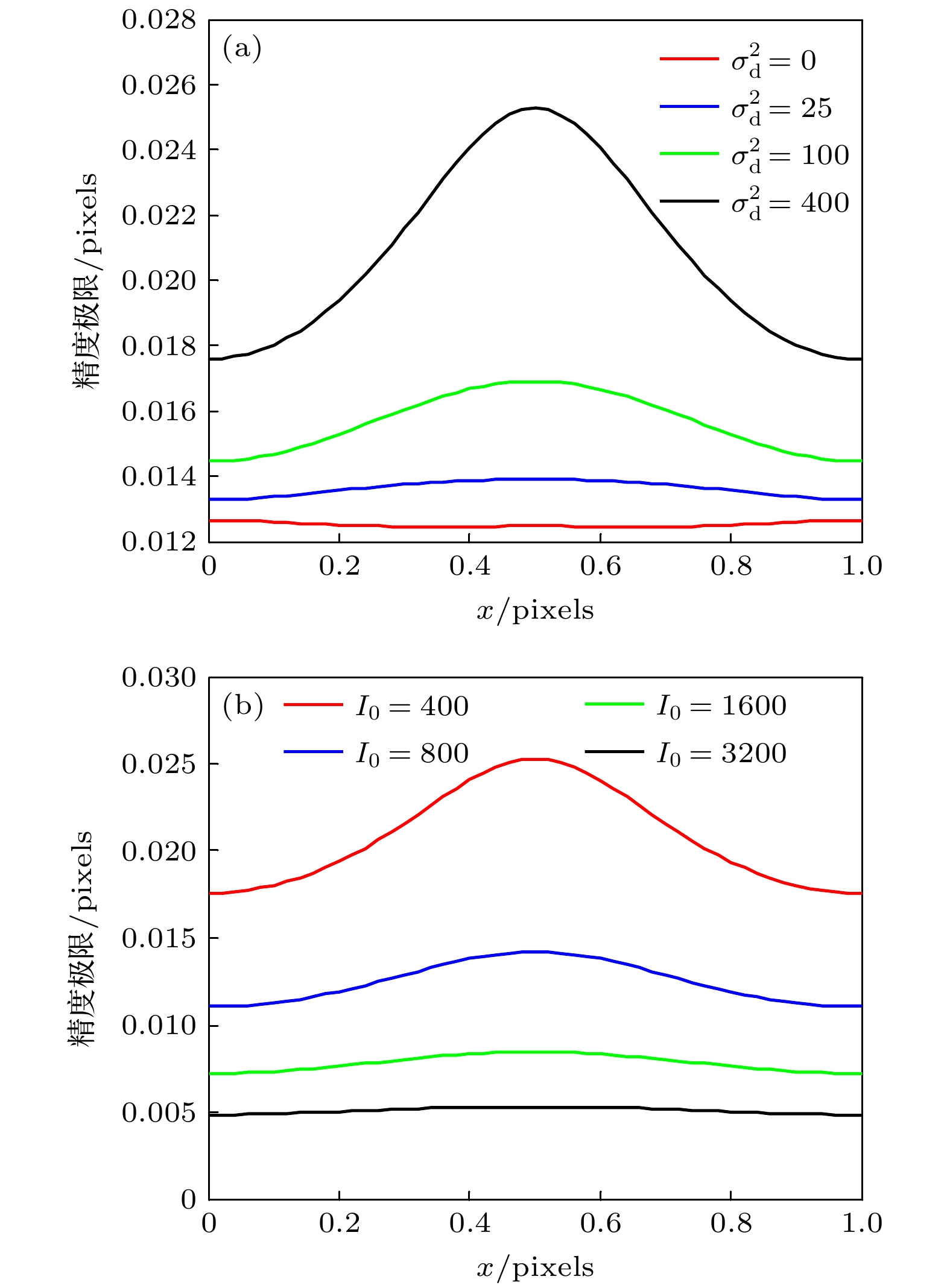

	σ_all(Δ_std)/pixels
	$\sigma _{\rm{d}}^{\rm{2}}$ = 0	$\sigma _{\rm{d}}^{\rm{2}}$ = 25	$\sigma _{\rm{d}}^{\rm{2}}$ = 100	$\sigma _{\rm{d}}^{\rm{2}}$ = 400
${I_{\rm{0}}} = {\rm{400}}$	0.0125 (0.0001)	0.0136 (0.0003)	0.0157 (0.0011)	0.0217 (0.0033)
${I_{\rm{0}}} = {\rm{800}}$	0.0088 (0.0001)	0.0093 (0.0001)	0.0102 (0.0004)	0.0127 (0.0014)
${I_{\rm{0}}} = {\rm{1600}}$	0.0062 (0.0001)	0.0064 (0.0000)	0.0068 (0.0001)	0.0079 (0.0006)
${I_{\rm{0}}} = {\rm{3200}}$	0.0044 (0.0000)	0.0045 (0.0000)	0.0046 (0.0000)	0.0051 (0.0002)

DownLoad: CSV

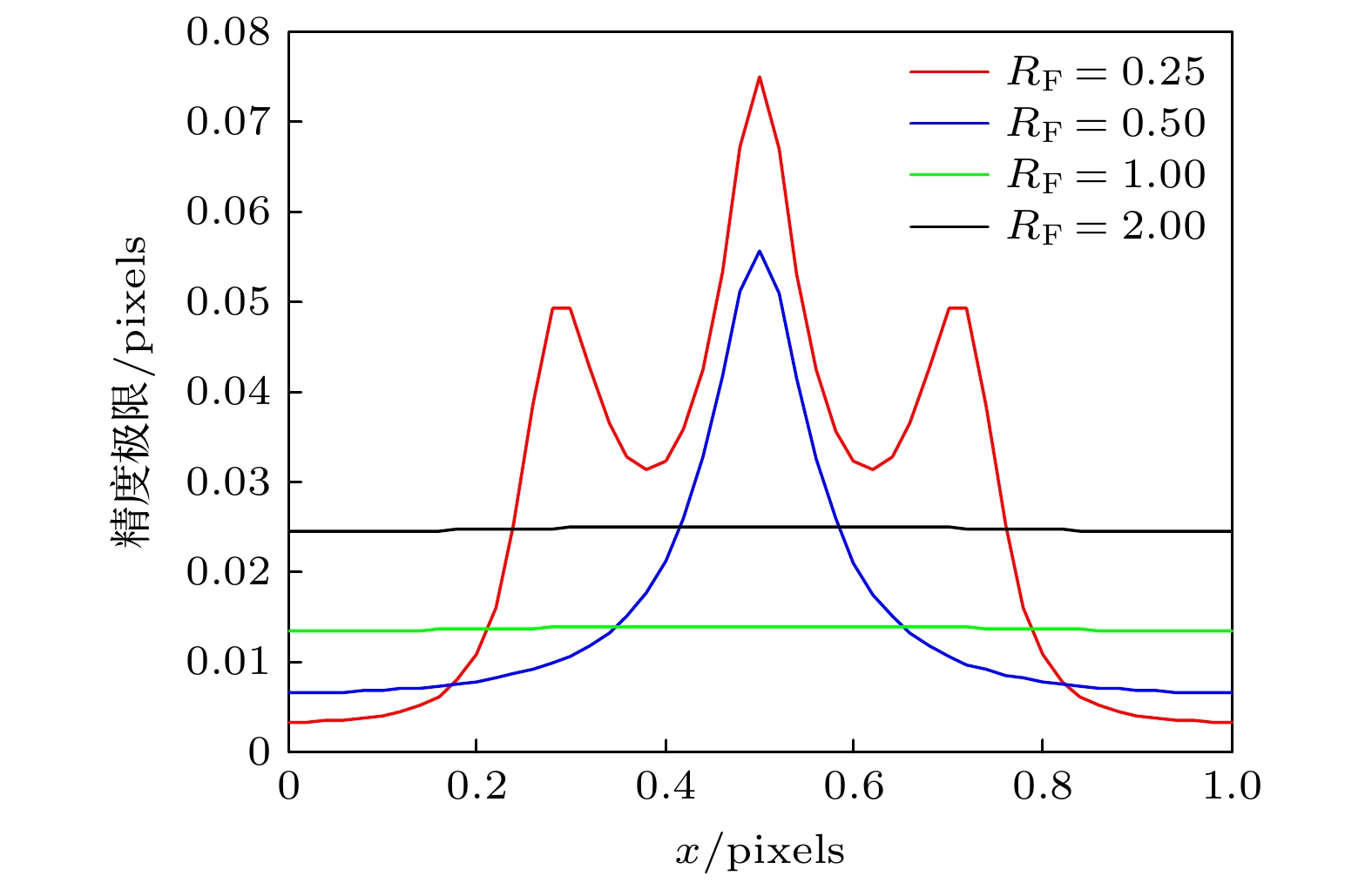

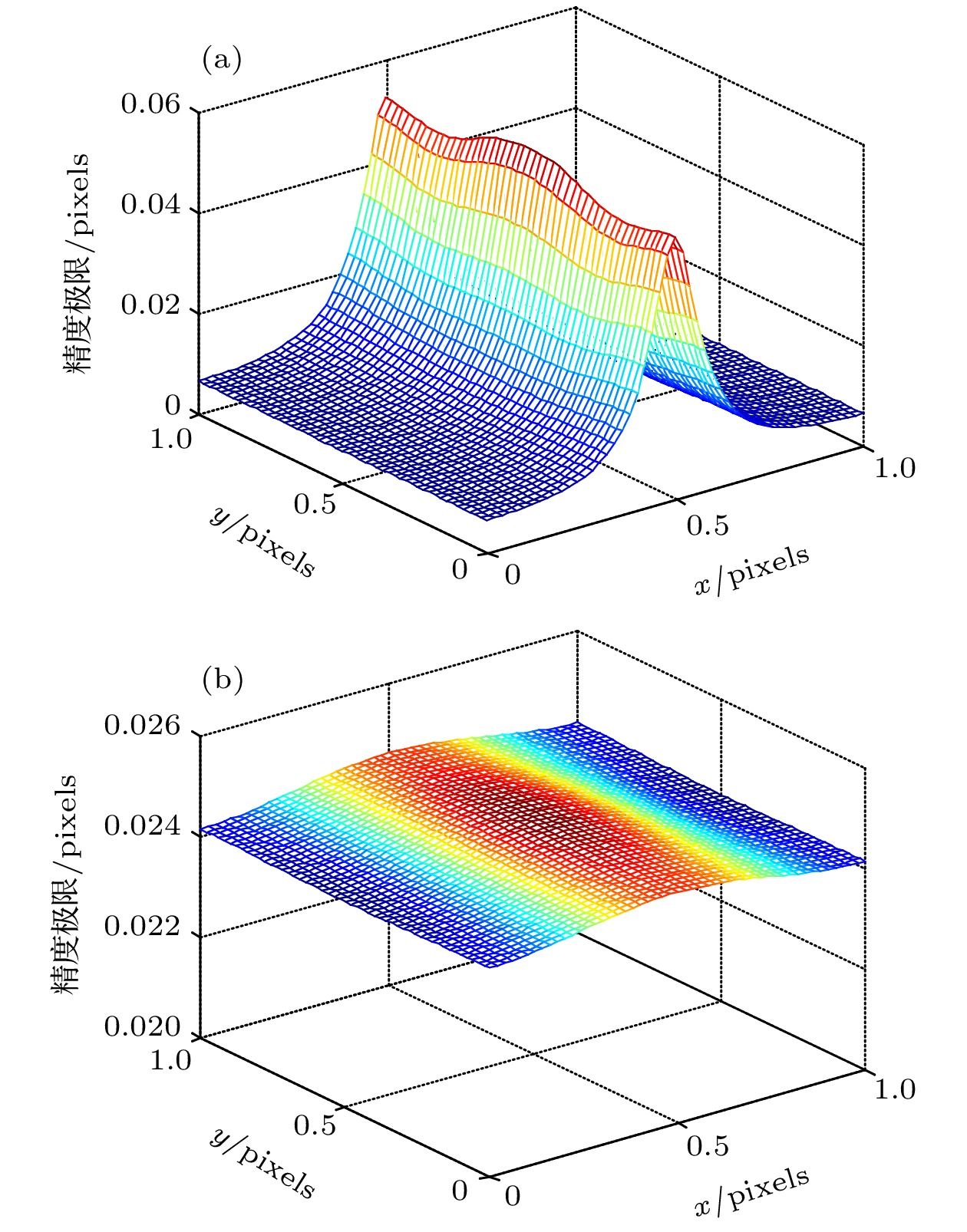

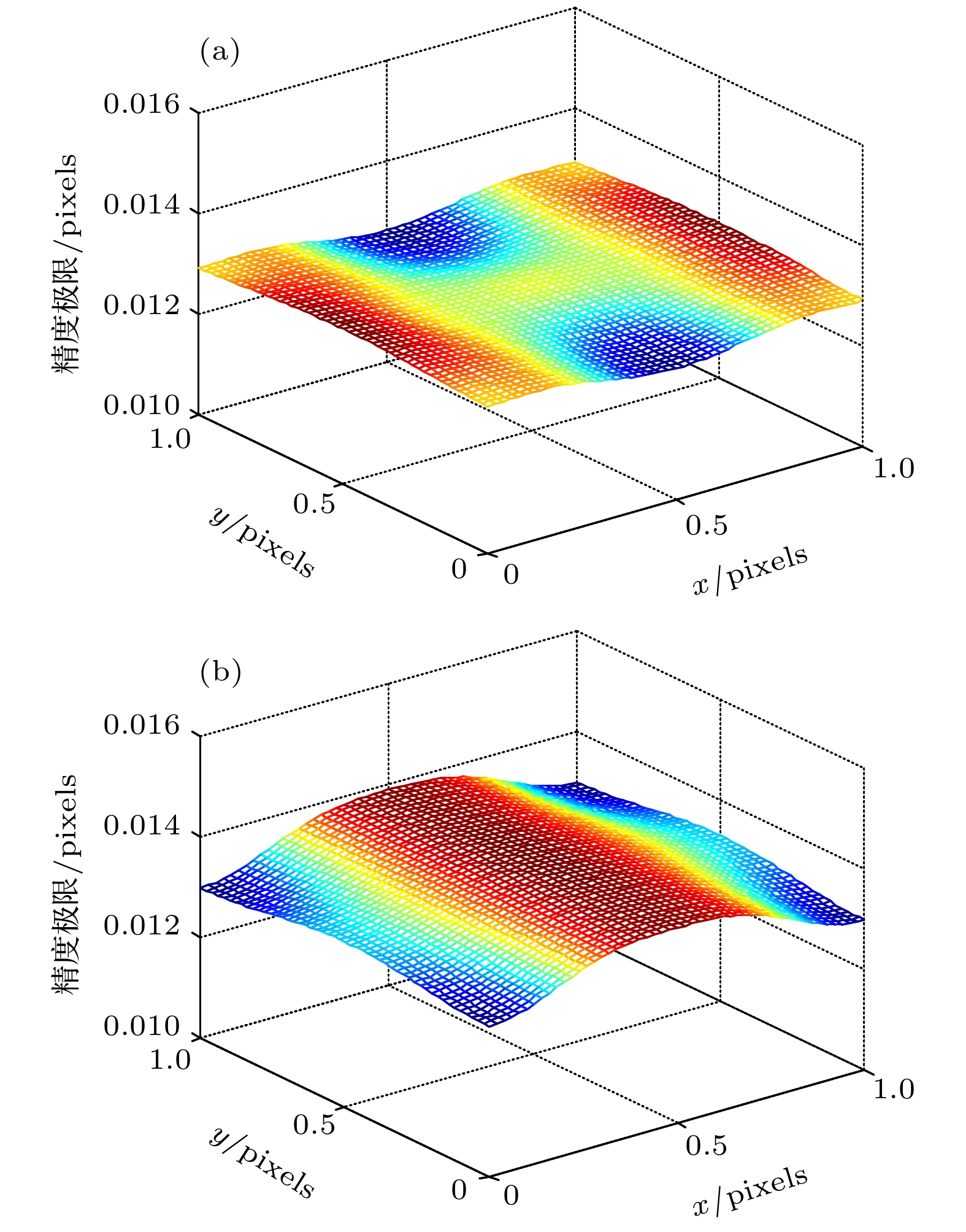

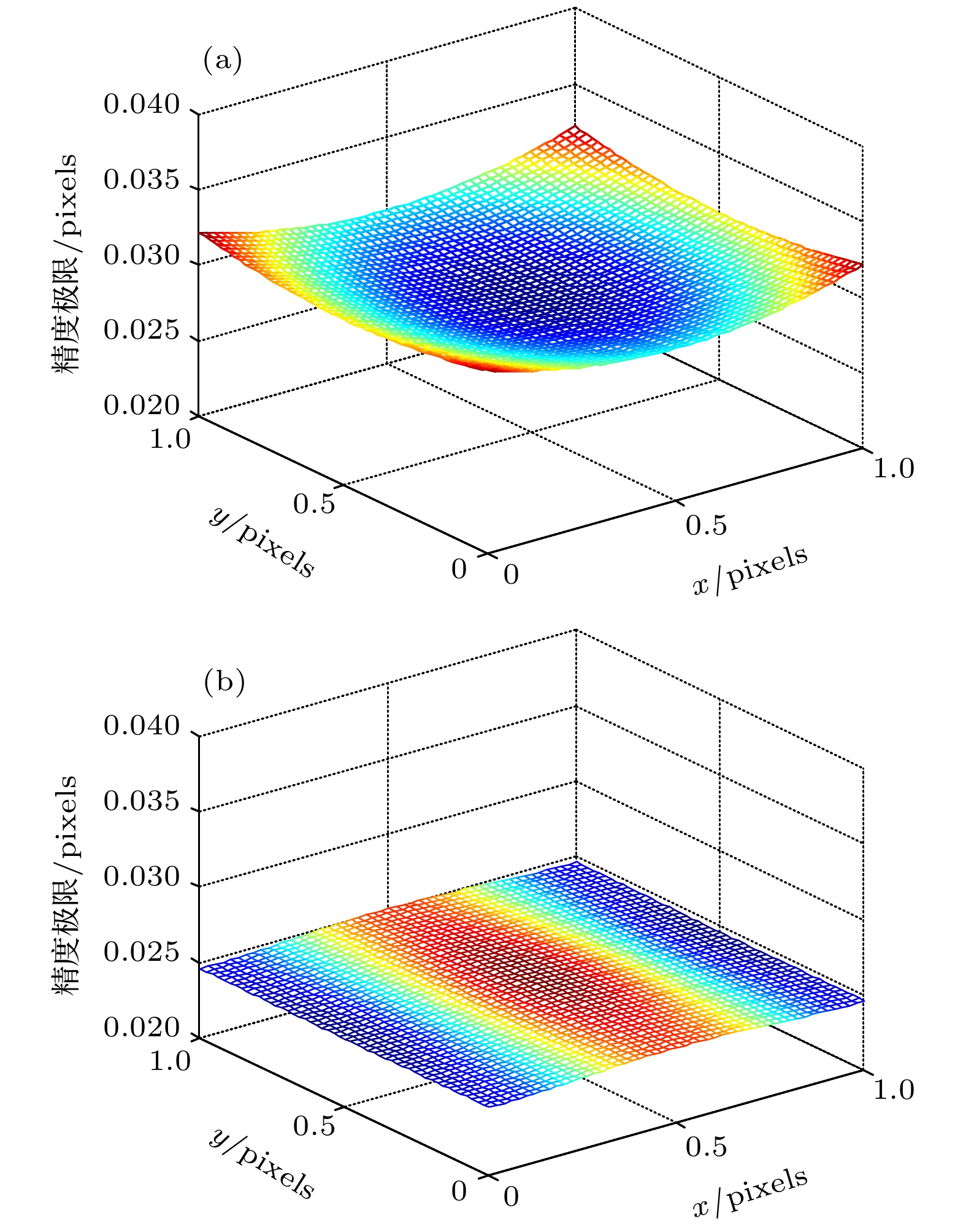

	R_F= 0.25	R_F= 0.50	R_F= 1.00	R_F= 2.00
σ_all/pixels	0.0335	0.0192	0.0136	0.0247
Δ_std/pixels	0.0211	0.0122	0.0003	0.0002
最优精度/pixels	0.0033 (边缘)	0.0065 (边缘)	0.0130 (边缘)	0.0244 (边缘)
最差精度/pixels	0.0803 (中心)	0.0566 (中心)	0.0139 (中心)	0.0250 (中心)
衍射极限/pixels	0.3050	0.6100	1.2200	2.4400

DownLoad: CSV

[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
[12]
[13]
[14]
[15]
[16]
[17]
[18]
[19]
[20]
[21]
[22]
[23]
[24]

[1]	Liu Tian-Yao, Liu Can, Liu Kai-Hui.Atomic-scale manufacture of metre-sized two-dimensional single crystals by interfacial modulation. Acta Physica Sinica, 2022, 71(10): 108103.doi:10.7498/aps.71.20212399
[2]	GAO Hong-Jun.Preface to the special topic—Toward making functional devices at an atomic scale: Fundamentals and frontiers. Acta Physica Sinica, 2021, 70(2): 020101.doi:10.7498/aps.70.020101
[3]	Ji Jian-Wei, Kazuya Yamamura, Deng Hui.Plasma-assisted polishing for atomic surface fabrication of single crystal SiC. Acta Physica Sinica, 2021, 70(6): 068102.doi:10.7498/aps.70.20202014
[4]	Liu Zi-Yuan, Pan Jin-Bo, Zhang Yu-Yang, Du Shi-Xuan.First principles calculation of two-dimensional materials at an atomic scale. Acta Physica Sinica, 2021, 70(2): 027301.doi:10.7498/aps.70.20201636
[5]	Zhong Xiao-Yan, Li Zhuo.Atomic scale characterization of three-dimensional structure, magnetic properties and dynamic evolutions of materials by transmission electron microscopy. Acta Physica Sinica, 2021, 70(6): 066801.doi:10.7498/aps.70.20202072
[6]	Dai Li-Zhi, Hu Xiao-Xue, Liu Peng, Tian Ye.DNA origami mediated precise fabrication of nanostructures in multi scales. Acta Physica Sinica, 2021, 70(6): 068201.doi:10.7498/aps.70.20201689
[7]	Guo Qin-Min, Qin Zhi-Hui.Development and application of vapor deposition technology in atomic manufacturing. Acta Physica Sinica, 2021, 70(2): 028101.doi:10.7498/aps.70.20201436
[8]	Li Sheng-Kai, Hao Qing, Peng Tian-Huan, Chen Zhuo, Tan Wei-Hong.Nucleic acid-metal complex and its application in atomic-scale manufacturing. Acta Physica Sinica, 2021, 70(2): 028102.doi:10.7498/aps.70.20201430
[9]	Yang Bei, Li Qian, Liu Hua-Jie, Fan Chun-Hai.Recent progress of frame nucleic acids studies towards atomic fabrications. Acta Physica Sinica, 2021, 70(2): 026201.doi:10.7498/aps.70.20201437
[10]	Wu Bin, Cheng Bing, Fu Zhi-Jie, Zhu Dong, Wu Li-Ming, Wang Kai-Nan, Wang He-Lin, Wang Zhao-Ying, Wang Xiao-Long, Lin Qiang.Influence of Raman laser sidebands effect on the measurement accuracy of cold atom gravimeter. Acta Physica Sinica, 2019, 68(19): 194205.doi:10.7498/aps.68.20190581
[11]	Tey Meng-Khoon, You Li.Generation of twin-Fock states for precision measurement beyond the standard quantum limit. Acta Physica Sinica, 2018, 67(16): 160303.doi:10.7498/aps.67.20181029
[12]	Cui Li-Hong, Zhao Wei-Ning, Yan Chang-Xiang.Analysis and alignment of the light path of Gauss beam matched to the fundamental mode ofan optical resonator. Acta Physica Sinica, 2015, 64(22): 224211.doi:10.7498/aps.64.224211
[13]	Cui Li-Hong, Yan Chang-Xiang, Zhao Wei-Ning, Zhang Xin-Jie, Hu Chun-Hui.Analysis of the positional accuracy of the self-conjugate ray in a misalignment multiple-mirror optical ring cavity. Acta Physica Sinica, 2015, 64(22): 224210.doi:10.7498/aps.64.224210
[14]	Hua Shi-Qun, Luo Yin.Measurement of refractive index of luminescent photoelastic coating. Acta Physica Sinica, 2013, 62(5): 057801.doi:10.7498/aps.62.057801
[15]	Li Yan-Chao, Zhang Liang, Yang Yan-Ling, Gao Long, Xu Bo, Wang Chun-Hui.The method for multi-beam laser heterodyne high-precision measurement of the glass thickness. Acta Physica Sinica, 2009, 58(8): 5473-5478.doi:10.7498/aps.58.5473
[16]	Zheng Sen-Lin, Chen Jun, Lin Qiang.Improvement of the measuring precision by changing the pulse sequence in the three-level atom gravimeter. Acta Physica Sinica, 2005, 54(8): 3535-3541.doi:10.7498/aps.54.3535
[17]	HUANG XIANG-YOU.ANALYSIS OF WAVE FUNCTIONS FOR HYDROGEN ATOMS IN CLASSICAL LIMIT. Acta Physica Sinica, 1991, 40(10): 1553-1561.doi:10.7498/aps.40.1553
[18]	XIE JIAN-PING, QIU YAN-HUI, MING HAI, LI CHUAN-QI, NIU YA-PING, XI LI-FENG, S. OZONO.THE INFLUENCE OF METAL OPTICAL PROPERTY ON THE POLARIZATION EFFECT IN MEASUREMENTS OF THIN WIRE DIAMETER WITH HIGH ACCURACY. Acta Physica Sinica, 1990, 39(11): 1830-1834.doi:10.7498/aps.39.1830
[19]	XIE JIAN-PING, XING XIAO-ZHENG, LI CHUAN-QI, ZHU MAO-SHENG, S. OZONO.THE EFFECT OF LIGHT POLARIZATION ON HIGH ACCURACY MEASUREMENTS OF THIN WIRE DIAMETER. Acta Physica Sinica, 1989, 38(3): 399-406.doi:10.7498/aps.38.399
[20]	WANG ZHAO-SHEN, CAO YONG-JUN.THE THEORETICAL LIMIT OF ISOLATION DEGREE OF A QUASI-OPTICAL RECEIVING SYSTEM. Acta Physica Sinica, 1983, 32(10): 1323-1327.doi:10.7498/aps.32.1323
