A reliable and efficient lithium-ion battery model is the basis of state estimation and fault diagnosis in the battery management system (BMS). The pseudo-two-dimensional (P2D) mechanism model represented by using partial differential equations has many parameters and high accuracy, but its calculation is time-consuming. The model order should be reduced for the on-board BMS. Here in this work, by using the same model parameters, the P2D model and the order-reduced models including the single particle model (SPM) and the lumped particle model (LPM) are built and their voltage accuracies and operation time are compared with each other. Based on the porous electrode model, the concentrated solution theory, and the assumption of uniform current of the battery, the current density is redistributed by the volume ratio of the solid phase to the liquid phase of the electrode. Furthermore, the overpotential and ohmic resistance caused by the lithium-ion concentration distribution in the liquid phase is deduced to offset the battery voltage bias under a large discharge rate. An unconstrained convex optimization method is established to optimize the concentration difference overpotential of the liquid phase of the P2D model battery, the optimized results of which are used to compensate for the LPM voltage.Under the conditions of the constant current discharge (CCD) of 0.1C — 4C at the ambient temperature, pulse discharge and dynamic stress test (DST), the electrical performance and the operation time of both the LPM and the SPM are compared to those of the P2D model. Some results are validated and given by the model simulation. Firstly, the accuracy of LPM is over 30% higher than those of the SPM at the CCD rates of 0.1 C, 0.5 C and 1 C, and about 30% worse than those of the SPM at the CCD rates of 2 C, 3 C, and 4 C. Secondly, the optimized LPM can produce a voltage in good approximation to the voltage of the P2D model with an absolute relative error of the model voltage below 1.5% whether it is caused by the CCD or the DST. Thirdly, the optimized LPM can run efficiently and the needed calculation time cuts down by 85% and 65% for the P2D and the SPM, respectively. For the real-time applications of lithium-ion batteries, the proposed compensation method by adding the overpotential in the liquid phase can make the LPM produce reliable voltage with shorter operation time than either the SPM or the P2D model.
[1] [2] [3] [4] [5] [6] [7] [8] [9] [10] [11] [12] [13] [14] [15] [16] [17] [18] [19] [20] [21] [22] [23] -

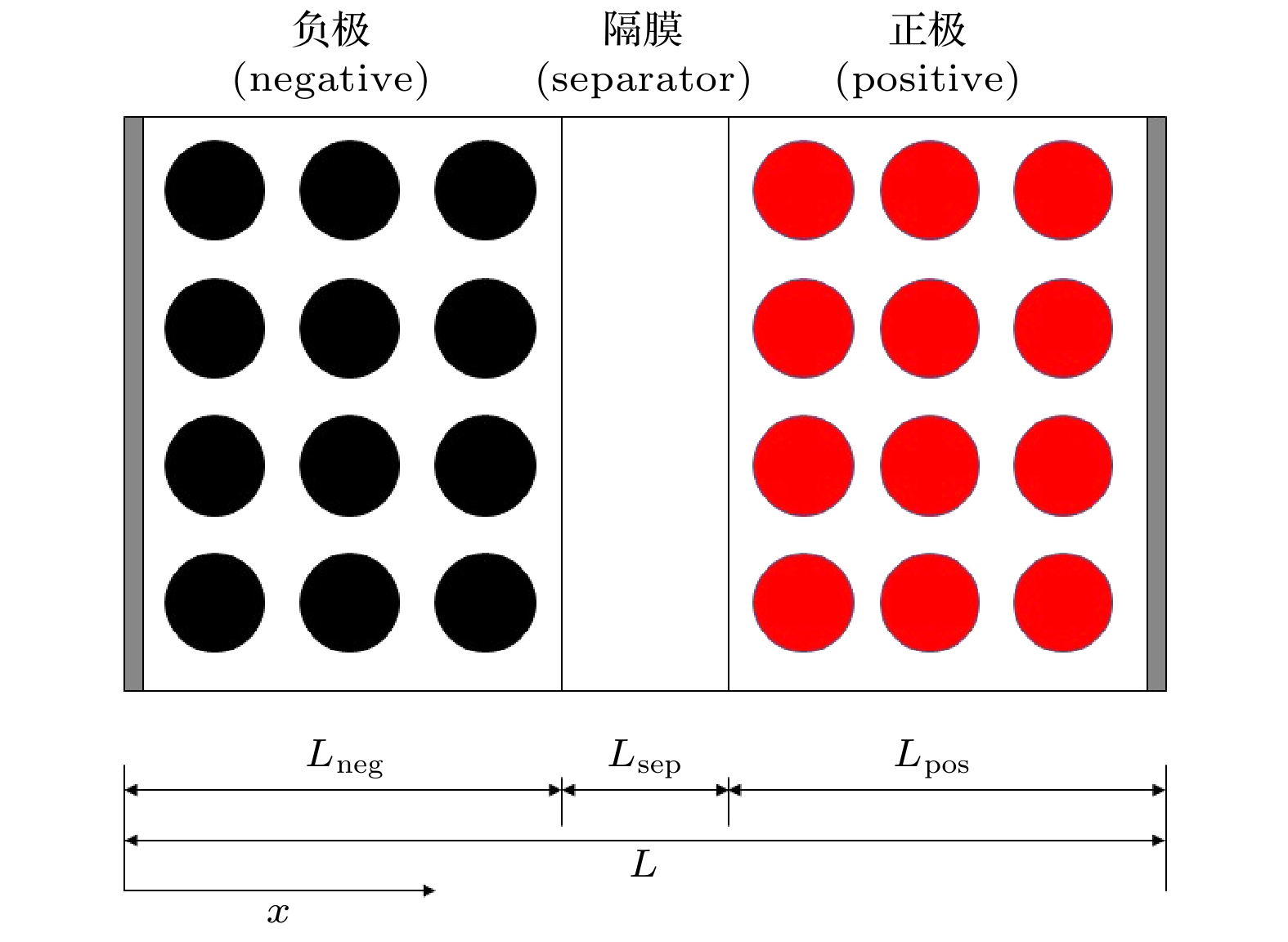

符号 物理量 单位 $c_{\rm{s}}^i$ 多孔电极固相锂离子浓度 ${\rm{mol}} \cdot {{\rm{m}}^{ - 3}}$ $c_{\rm{e}}^i$ 多孔电极液相锂离子浓度 ${\rm{mol}} \cdot {{\rm{m}}^{ - 3}}$ $c_{\rm{e}}^{{\rm{sep}}}$ 隔膜液相锂离子浓度 ${\rm{mol}} \cdot {{\rm{m}}^{ - 3}}$ $c_{{\rm{s, 0}}}^i$ 多孔电极固相锂离子初始浓度 ${\rm{mol}} \cdot {{\rm{m}}^{ - 3}}$ ${c_{{\rm{e, 0}}}}$ 液相锂离子初始浓度 ${\rm{mol}} \cdot {{\rm{m}}^{ - 3}}$ $c_{{\rm{s, max}}}^i$ 多孔电极固相粒子最大
锂离子浓度${\rm{mol}} \cdot {{\rm{m}}^{ - 3}}$ $c_{{\rm{s, surf}}}^i$ 多孔电极固相粒子表面
锂离子浓度${\rm{mol}} \cdot {{\rm{m}}^{ - 3}}$ $D_{\rm{s}}^i$ 多孔电极固相锂离子扩散系数 $ { {\rm{m} }^{2} } \cdot { {\rm{s} }^{ - 1} } $ $D_{\rm{e}}^{}$ 液相锂离子扩散系数 $ { {\rm{m} }^{2} } \cdot { {\rm{s} }^{ - 1} } $ $D_{{\rm{e, eff}}}^i$ 多孔电极液相锂离子
有效扩散系数$ { {\rm{m} }^{2} } \cdot { {\rm{s} }^{ - 1} } $ $D_{{\rm{e, eff}}}^{{\rm{sep}}}$ 隔膜液相锂离子有效扩散系数 $ { {\rm{m} }^{2} } \cdot { {\rm{s} }^{ - 1} } $ $j_{\rm{n}}^i$ 多孔电极锂离子孔壁通量 ${\rm{mol}} \cdot {{\rm{s}}^{ - 1}} \cdot {{\rm{m}}^{ - 2}}$ $j_{}^i$ 多孔电极电流密度 ${\rm{A}} \cdot {{\rm{m}}^{ - 3}}$ ${R^i}$ 多孔电极球形粒子半径 m $\varepsilon _{\rm{e}}^i$ 多孔电极液相体积分数 — $\varepsilon _s^i$ 多孔电极固相体积分数 — $\varepsilon _{\rm{e}}^{{\rm{sep}}}$ 隔膜液相体积分数 — ${t_{ + }}$ 锂离子迁移系数 — ${f_ \pm }$ 液相平均摩尔活度系数 — $a_{\rm{s}}^i$ 多孔电极球形粒子的比表面积 ${{\rm{m}}^{ - 1}}$ $\sigma _{\rm{s}}^i$ 多孔电极固相电导率 ${\rm{S}} \cdot {{\rm{m}}^{ - 1}}$ $\sigma _{{\rm{s, eff}}}^i$ 多孔电极固相有效电导率 ${\rm{S}} \cdot {{\rm{m}}^{ - 1}}$ $\kappa $ 液相离子电导率 ${\rm{S}} \cdot {{\rm{m}}^{ - 1}}$ $\kappa _{{\rm{eff}}}^i$ 液相有效离子电导率 ${\rm{S}} \cdot {{\rm{m}}^{ - 1}}$ ${\kappa _{{\rm{D}}, i}}$ 有效液相离子扩散导电系数 ${\rm{A}} \cdot {{\rm{m}}^2} \cdot {\rm{mo}}{{\rm{l}}^{ - 1}}$ $\phi _{\rm{s}}^i$ 多孔电极固相电势 V $\phi _{\rm{e}}^{}$ 液相电势 V ${I_{\rm{b}}}$ 电池电流 A $ j_0^i $ 多孔电极参考交换电流密度 ${\rm{A}} \cdot {{\rm{m}}^{ - 2}}$ ${\eta ^i}$ 电极过电势 V ${\alpha _{{\rm{a, i}}}}$/${\alpha _{{\rm{c, i}}}}$ 电极氧化还原反应电荷传递系数, 为0.5 — ${k^i}$ 电极反应常数 ${{\rm{m}}^{2.5}} \cdot {\rm{mo}}{{\rm{l}}^{ - 0.5}} \cdot {{\rm{s}}^{ - 1}}$ $U_{}^i$ 电极平衡电势 V $R_{{\rm{SEI}}}^i$ SEI膜电阻 $\Omega \cdot {{\rm{m}}^{ - 2}}$ ${V_{{\rm{P2 D}}}}$ P2D模型端电压 V A 电池横截面积 ${{\rm{m}}^2}$ Brug Bruggman系数, 取值1.5 — F 法拉第常数 ${\rm{C}} \cdot {\rm{mo}}{{\rm{l}}^{ - 1}}$ R 普适气体常数 ${\rm{J}} \cdot {\rm{mo}}{{\rm{l}}^{ - 1}} \cdot {{\rm{K}}^{ - 1}}$ T 温度 K
DownLoad:
CSV
符号 物理量 单位 $c_{{\rm{s, avg}}}^i$ 多孔电极粒子平均锂离子浓度 ${\rm{mol}} \cdot {{\rm{m}}^{ - 3}}$ $c_{{\rm{s, max}}}^i$ 多孔电极最大粒子锂离子浓度 ${\rm{mol}} \cdot {{\rm{m}}^{ - 3}}$ ${c_{\rm{e}}}$ 液相锂离子浓度 ${\rm{mol}} \cdot {{\rm{m}}^{ - 3}}$ ${\overline j ^i}$ 平均交换电流密度 ${\rm{A}} \cdot {{\rm{m}}^{ - 2}}$ $\phi _{{\rm{SP}}}^i$ 电池电极电势 V ${V_{{\rm{SP}}}}$ 电池端电压 V DownLoad:
CSV
符号 物理量 单位 c LPM粒子内锂离子浓度 ${\rm{mol}} \cdot {{\rm{m}}^{ - 3}}$ ${c_{\max }}$ LPM最大锂离子浓度 ${\rm{mol}} \cdot {{\rm{m}}^{ - 3}}$ ${\eta _{{\rm{ohm}}}}$ 欧姆过电压 V ${\eta _{{\rm{act}}}}$ 活化过电压 V ${\eta _{{\rm{conc}}}}$ 浓度过电压 V ${c_{{\rm{surf}}}}$ 粒子表面锂离子浓度 ${\rm{mol}} \cdot {{\rm{m}}^{ - 3}}$ ${c_{{\rm{avg}}}}$ 粒子平均锂离子浓度 ${\rm{mol}} \cdot {{\rm{m}}^{ - 3}}$ ${\eta _{{\rm{ohm, 1 C}}}}$ 1 C欧姆过电压 V ${I_{{\rm{1 C}}}}$ 1 C电流 A ${J_0}$ 无量纲交换电流密度 1 $\tau $ 等效扩散系数 s ${Q_{{\rm{cell}}}}$ 电池容量 ${\rm{Ah} }$ X 归一化粒子半径 — DownLoad:
CSV
中文参数名 负极 隔膜 正极 单位 厚度 10 25 100 μm 粒子半径 10 — 10 μm 锂离子扩散系数 $3.9 \times 1{0^{ - 14}}$ — $1 \times 1{0^{ - 13}}$ $ { {\rm{m} }^{2} } \cdot { {\rm{s} }^{ - 1} } $ 初始固相浓度 19624 — 20046 ${\rm{mol}} \cdot {{\rm{m}}^{ - 3}}$ 最大锂离子浓度 24983 — 51228 ${\rm{mol}} \cdot {{\rm{m}}^{ - 3}}$ 电导率 100 $\kappa $ 10 S·m–1 初始电解液浓度 1000 1000 1000 $ { {\rm{m} }^{2} } \cdot { {\rm{s} }^{ - 1} } $ 电解液扩散系数 $2.7877 \times 1{0^{ - 10}}$ $2.7877 \times 1{0^{ - 10}}$ $2.7877 \times 1{0^{ - 10}}$ $ { {\rm{m} }^{2} } \cdot { {\rm{s} }^{ - 1} } $ 传递数 0.4 0.4 0.4 — 电解液体积分数 0.3 1 0.3 — SEI膜电阻 $0$ — $0$ ${\rm{m}}\Omega $ 反应速率常数 $9.6487 \times 1{0^{ - 6}}$ — $2.89461 \times 1{0^{ - 6}}$ ${\rm{mo}}{{\rm{l}}^{2.5}} \cdot {{\rm{m}}^{ - 0.5}} \cdot {{\rm{s}}^{ - 1}}$ 活性材料体积分数 0.6 — 0.5 — 填料体积分数 0.1 — 0.2 — 电极横截面积 0.1 — — ${{\rm{m}}^2}$ 1 C电流 30 — — A 放电截止电压 3.4 — — V 充电截止电压 4.2 — V 容量 30 — — Ah 温度 298 — — K 普适气体常数 8.314 — — ${\rm{J}} \cdot {\rm{mo}}{{\rm{l}}^{ - 1}} \cdot {{\rm{K}}^{ - 1}}$ 法拉第常数 96487 — — ${\rm{C}} \cdot {\rm{mo}}{{\rm{l}}^{ - 1}}$ DownLoad:
CSV

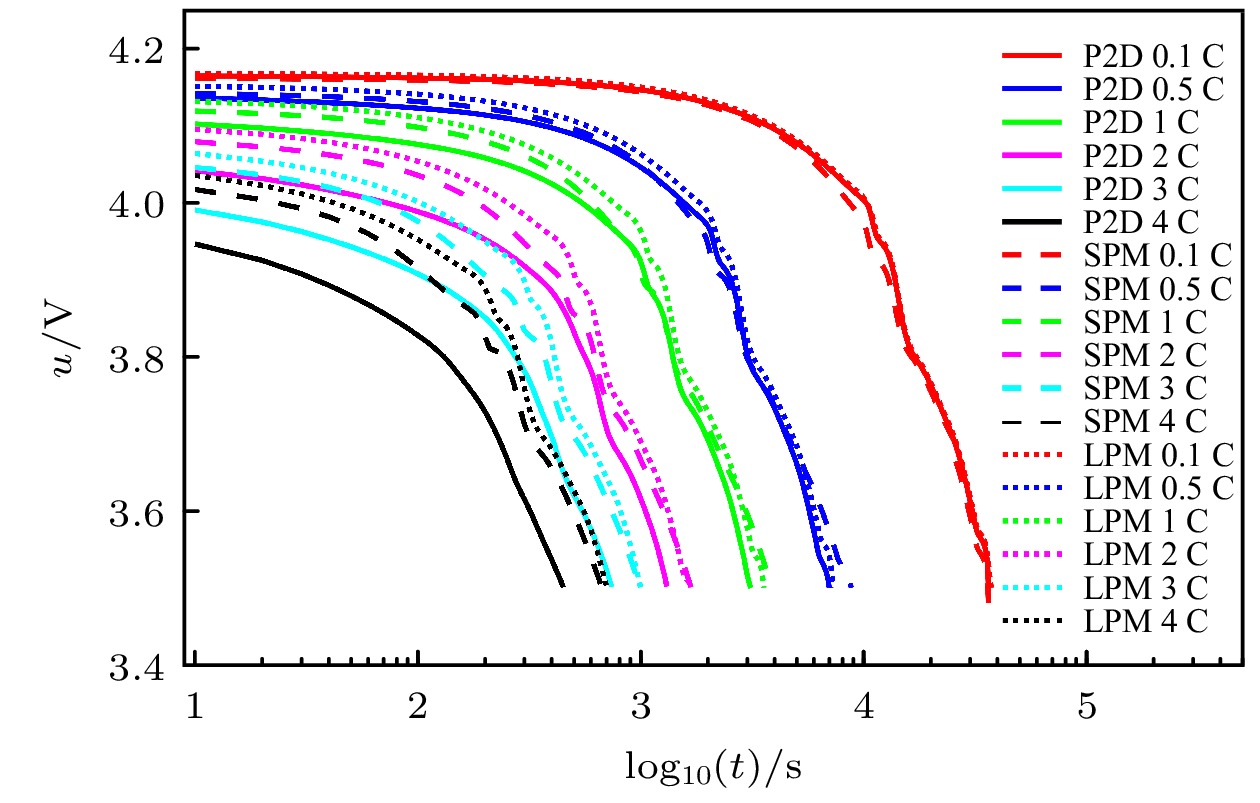

倍率/C SPM绝对
误差/mVSPM相对
误差/%LPM绝对
误差/mVLPM相对
误差/%0.1 –44.50 –1.28 30.03 0.87 0.5 74.20 2.12 42.30 1.21 1 83.70 2.39 60.70 1.72 2 88.00 2.51 103.40 2.95 3 98.50 2.81 129.30 3.66 4 125.50 3.58 173.20 4.75 DownLoad:
CSV

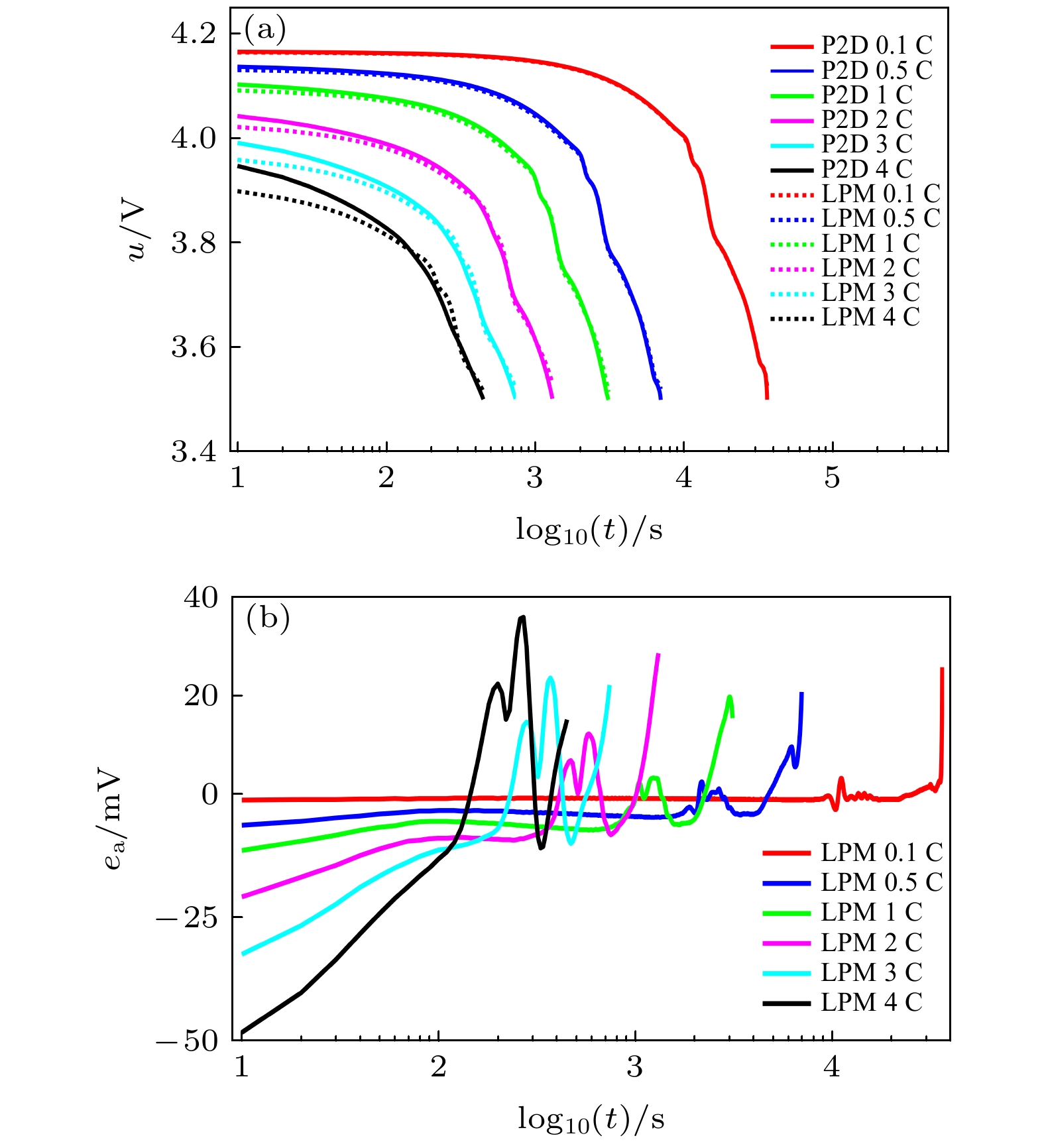

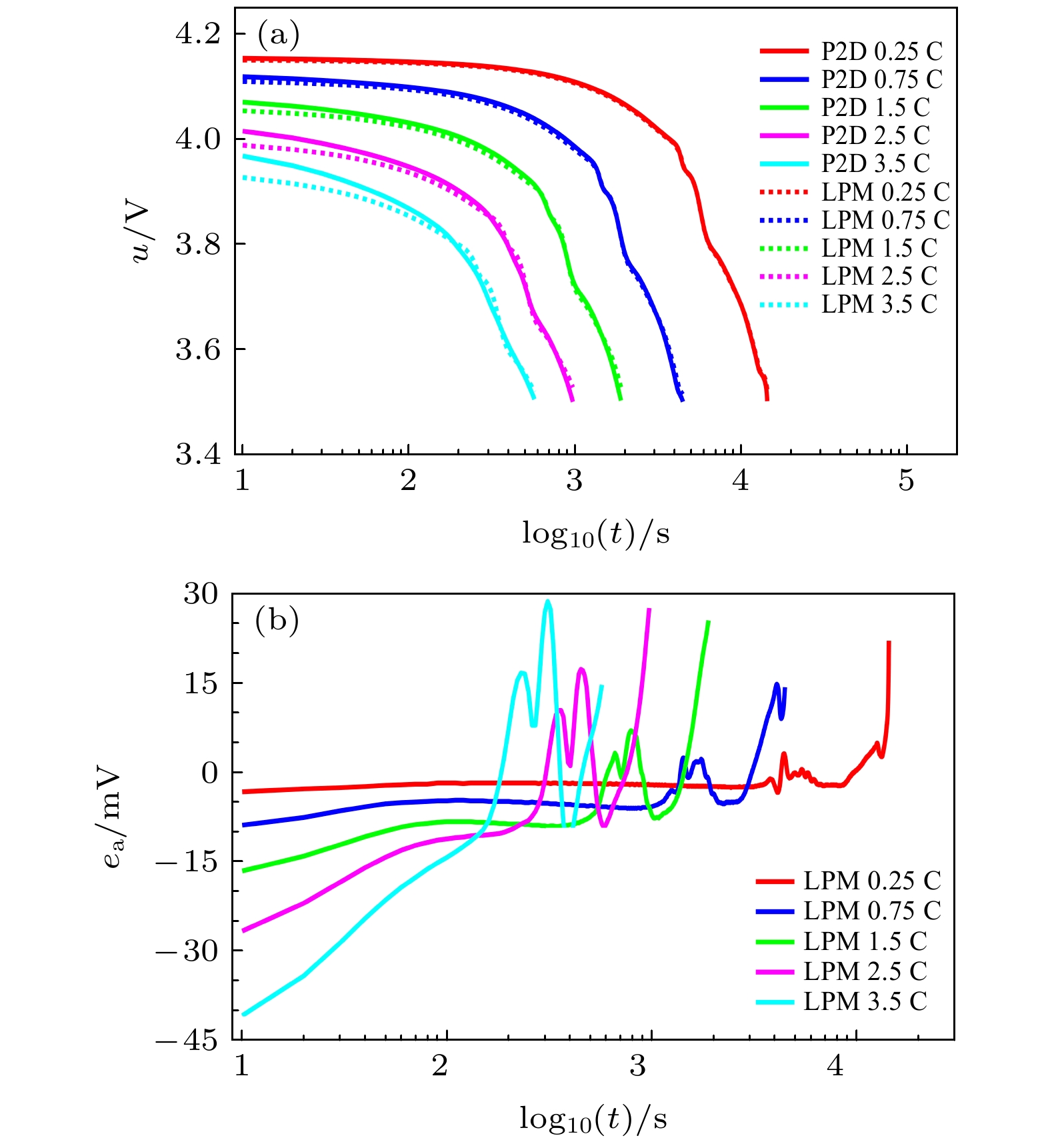

倍率/C 绝对误
差/mV相对误
差/%倍率/C 绝对误
差/mV相对误

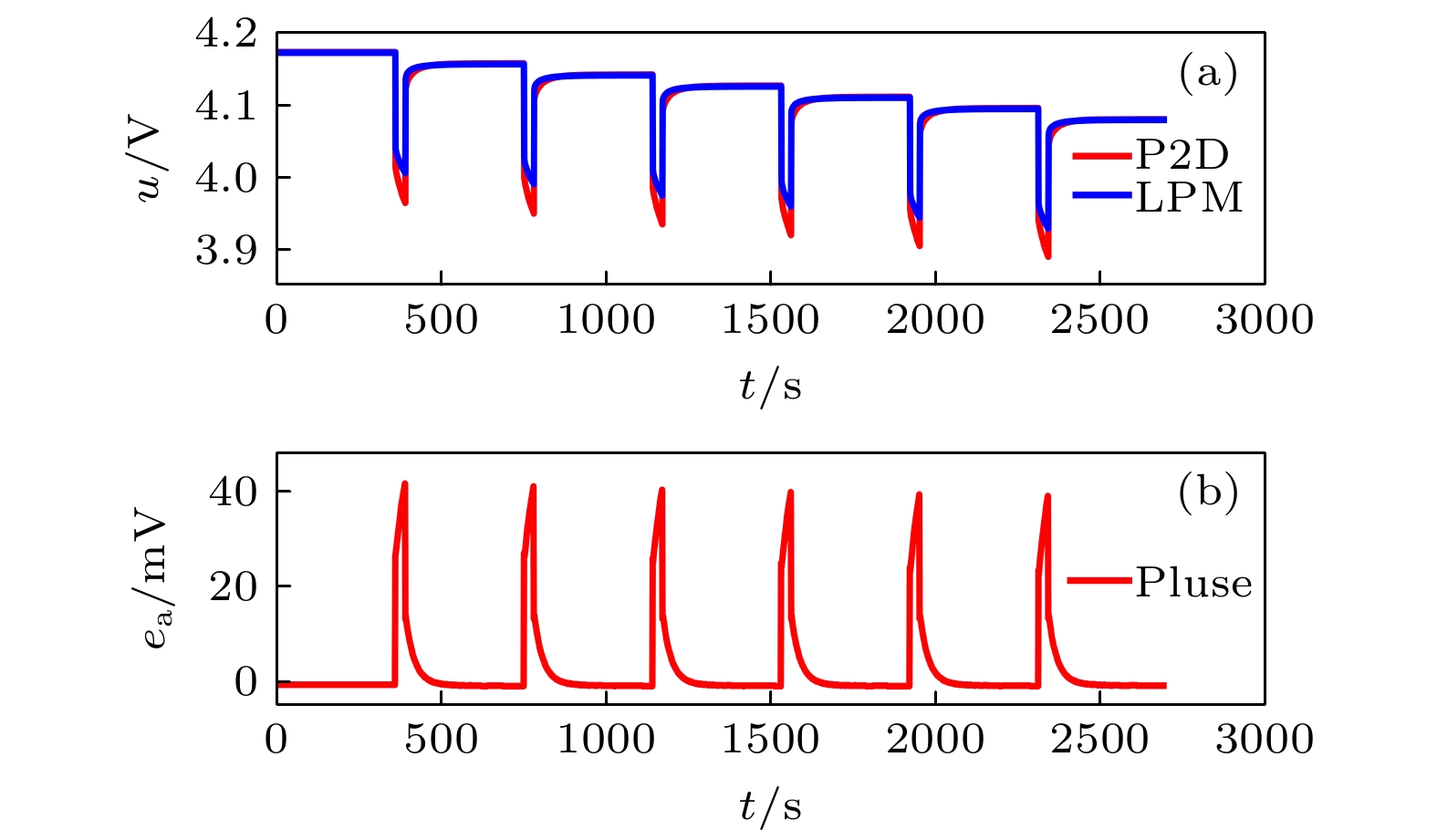

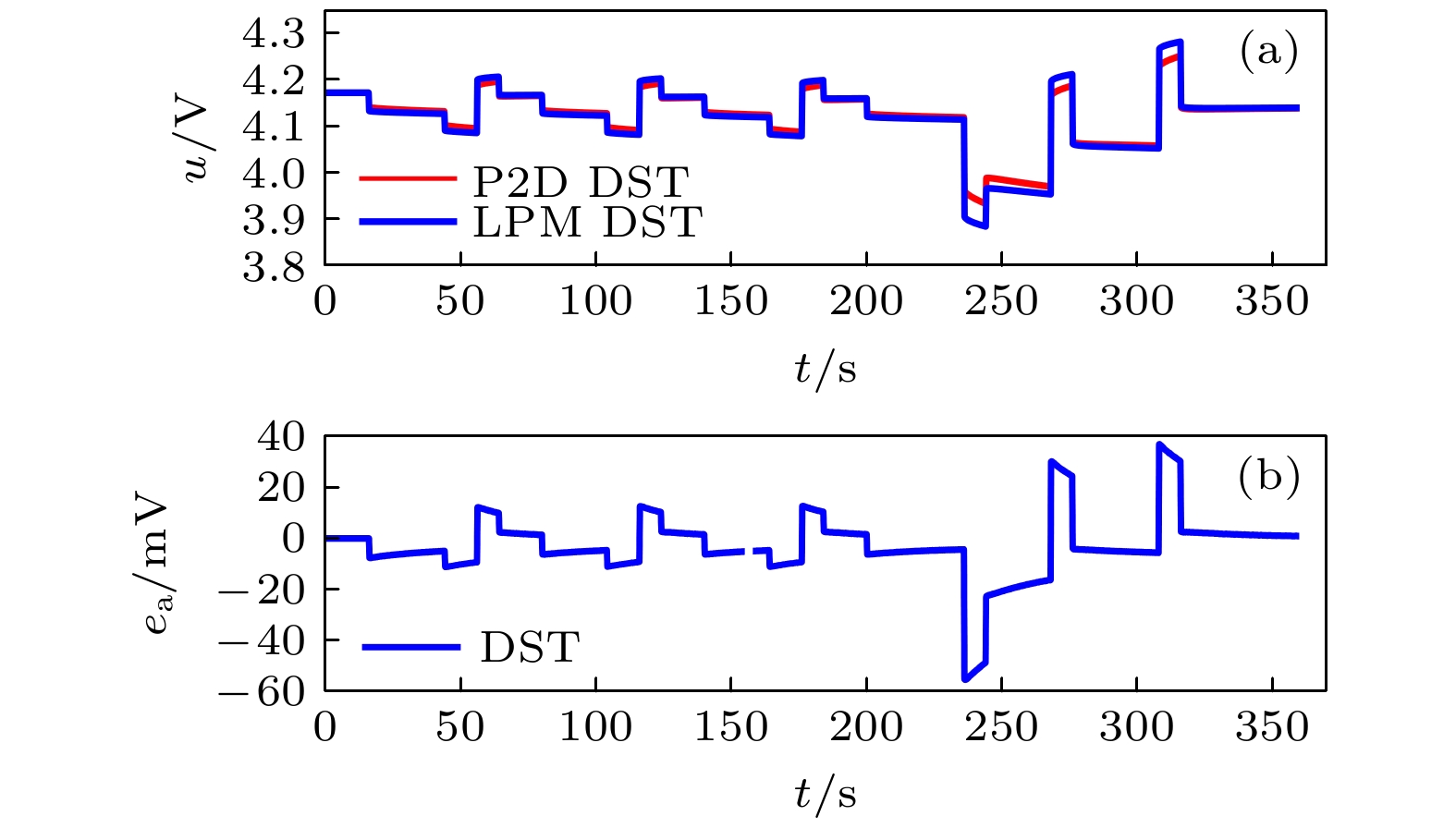

差/%0.1 25.7 0.73 0.25 22.1 0.63 0.5 20.7 0.59 0.75 14.8 0.42 1 19.7 0.56 1.5 25.5 0.73 2 28.5 0.81 2.5 –32.7 –0.81 3 –39.9 –0.99 3.5 –49.2 –1.23 4 –57.6 –1.45 DST –55.4 –1.40 脉冲
放电41.5 1.05 DownLoad:
CSV
测试集
用时/s验证集
用时/s脉冲放
电用时/sDST工况
用时/sLPM 24 14 8 11 P2D 169 92 85 108 占比 14.2% 15.22% 9.41% 10.19% DownLoad:
CSV
-
