Abstract

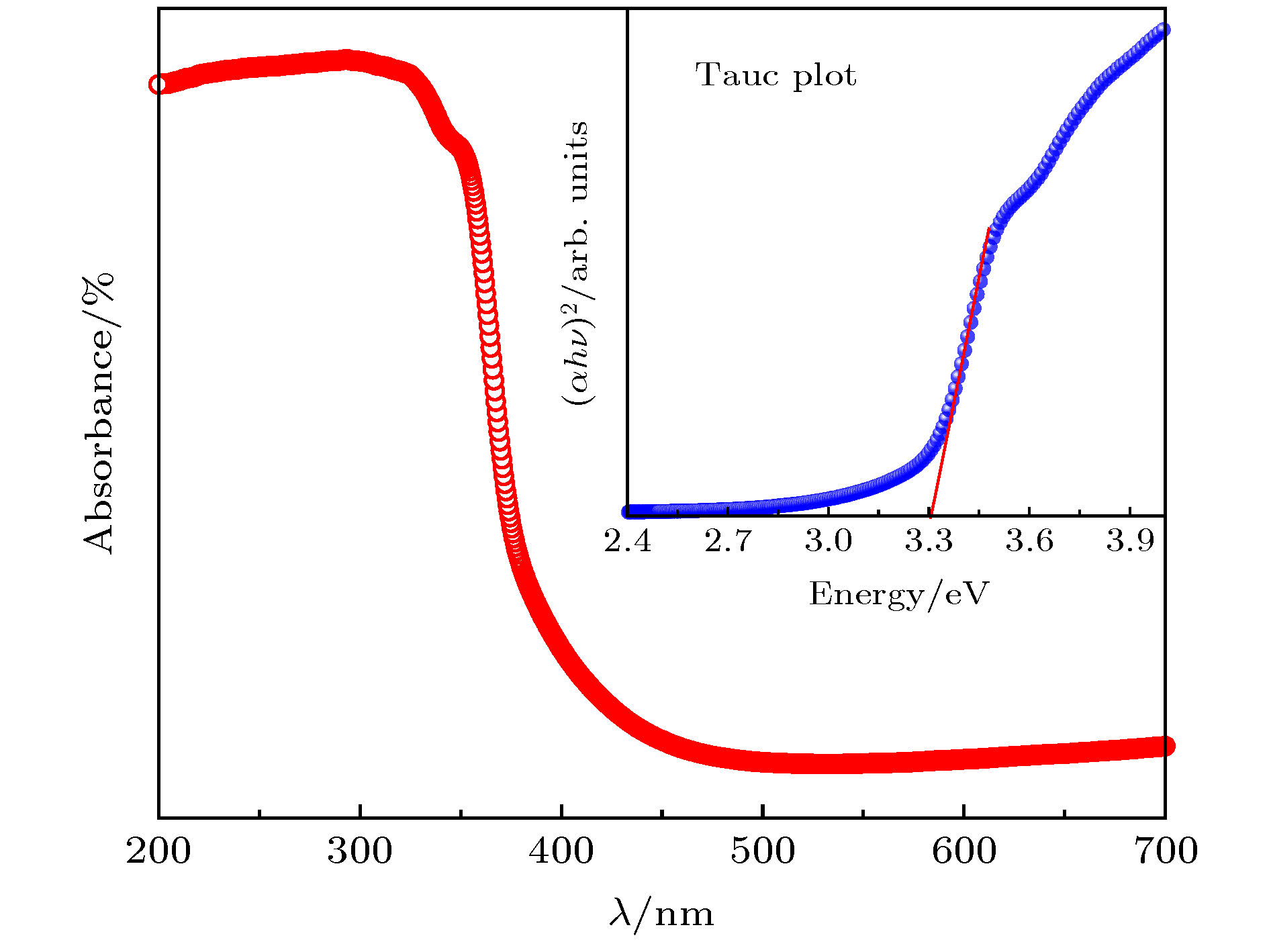

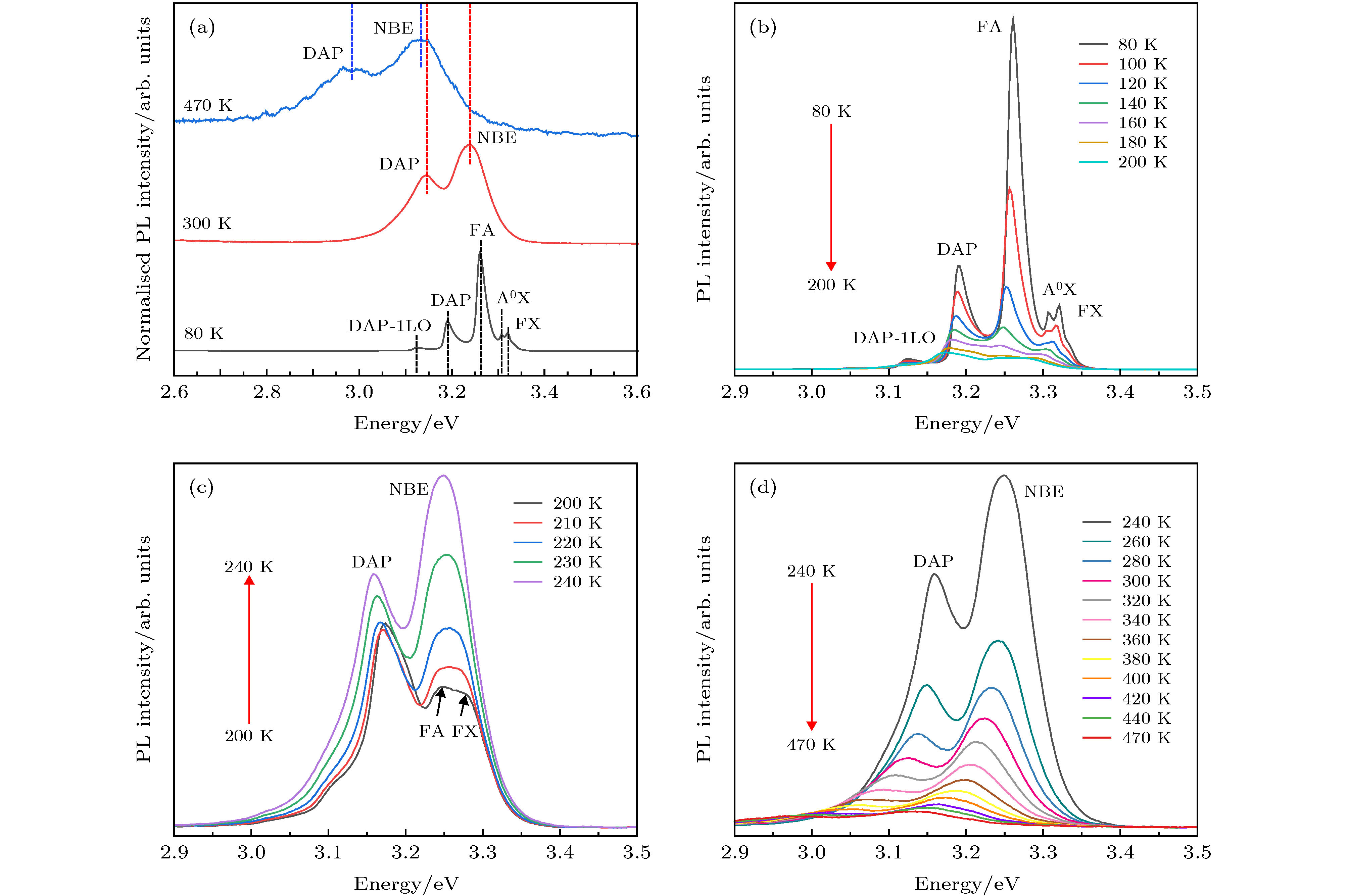

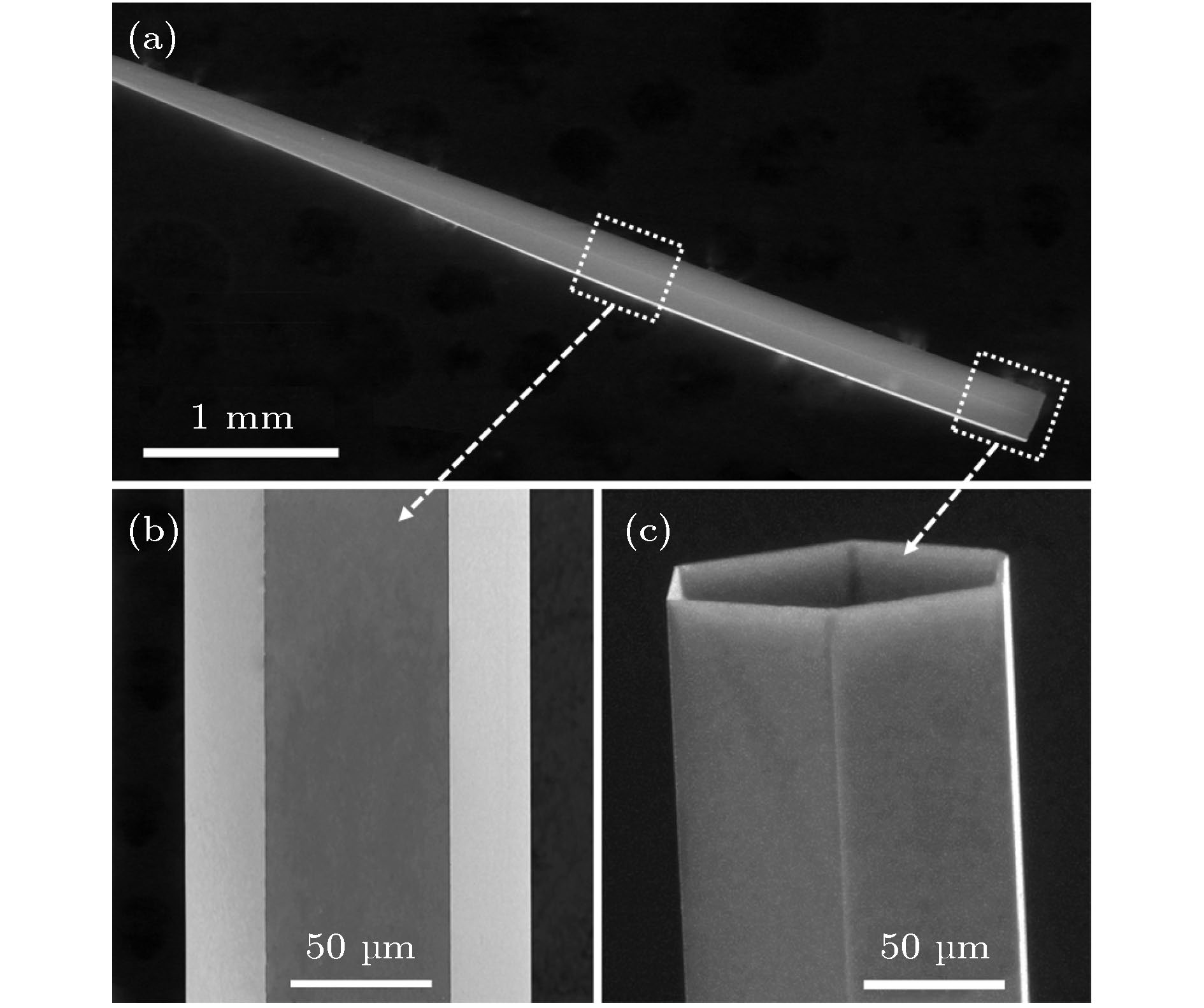

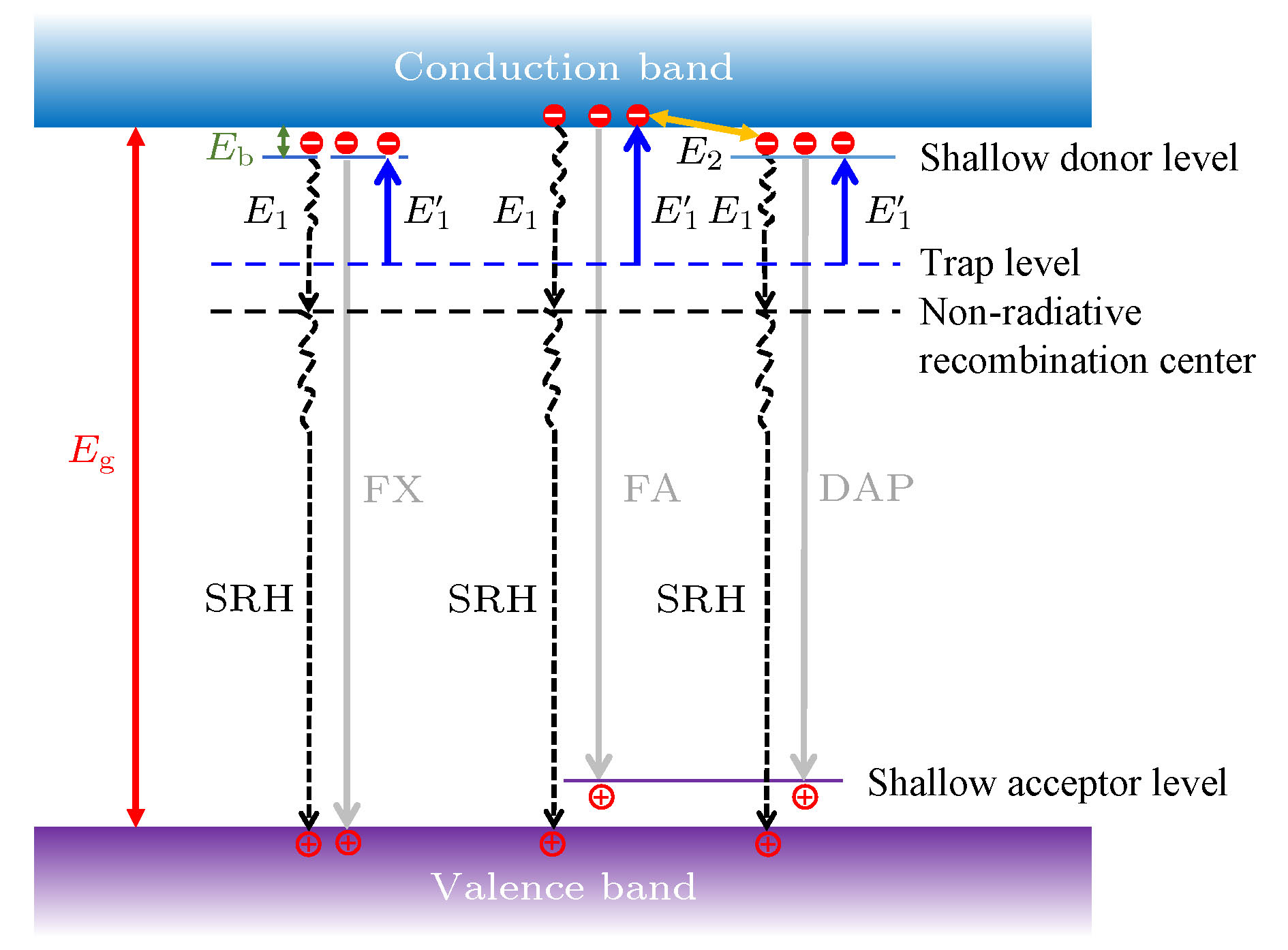

Thermal effect is one of the most important factors limiting the photoluminescence performances of semiconductor devices. With the increase of temperature, the PL intensity decreases gradually due to the effect of thermal quenching. However, the abnormal negative thermal quenching effect has been found in many semiconductor materials in recent years, e.g. ZnO, BiFeO ₃, InPBi, etc. This effect is generally considered as the sign of the existence for middle/local energy state in the electron-hole recombination process, which usually needs to be confirmed by the temperature-dependent PL spectra. Here, we report the thermal regulation mechanism of photoluminescence in intrinsic acceptor-rich ZnO (A-ZnO) microtubes grown by the optical vapour supersaturated precipitation method. The grown A-ZnO microtube with a length of 5 mm and diameter of 100 μm has regular hexagonal cross-section morphology. Its optical band gap at room temperature is about 3.30 eV. With the increase of temperature, the PL intensity of A-ZnO microtube exhibits an abnormal behavior from the thermal quenching to the negative thermal quenching and then to the thermal quenching. The thermal quenching effect at 80–200 K is associated with regurgitation/ionization of shallow donor, thermal ionization of free exciton, and conversion of neutral acceptor bound exciton. The negative thermal quenching effect at 200–240 K is associated with thermal excitation of electrons in a deep level trap of 488 meV below the conduction band minimum (CBM). The thermal quenching effect at 240–470 K is related to Shockley-Read-Hall recombination based on the non-radiative recombination center of 628 meV below the CBM. The non-radiative recombination center and trap level are far from the acceptor level of A-ZnO microtube, which may be related to the deep-level defect of oxygen vacancy in the intrinsic A-ZnO microtube. This work establishes the temperature-dependent transition model of photo-generated carriers and reveals the thermal regulation mechanism of PL for the A-ZnO microtubes. It provides a novel platform for designing the high-temperature and high-efficiency ZnO-based photoelectric devices.

Keywords:

Authors and contacts

Corresponding author:Jiang Yi-Jian,jiangyijian@bipt.edu.cn

Funds:Project supported by the National Natural Science Foundation of China (Grant No. 11674018), the Beijing Nova Program, China (Grant No. Z171100001117101), and the Science and Technology Innovation Project of Beijing Institute of Petrochemical Technology, China (Grant No.15031862005/298)

FullText HTML: translate this paragraph

References

[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
[12]
[13]
[14]
[15]
[16]
[17]
[18]
[19]
[20]
[21]
[22]
[23]
[24]
[25]
[26]
[27]
[28]
[29]

Cited By

DownLoad: Full-Size Img PowerPoint

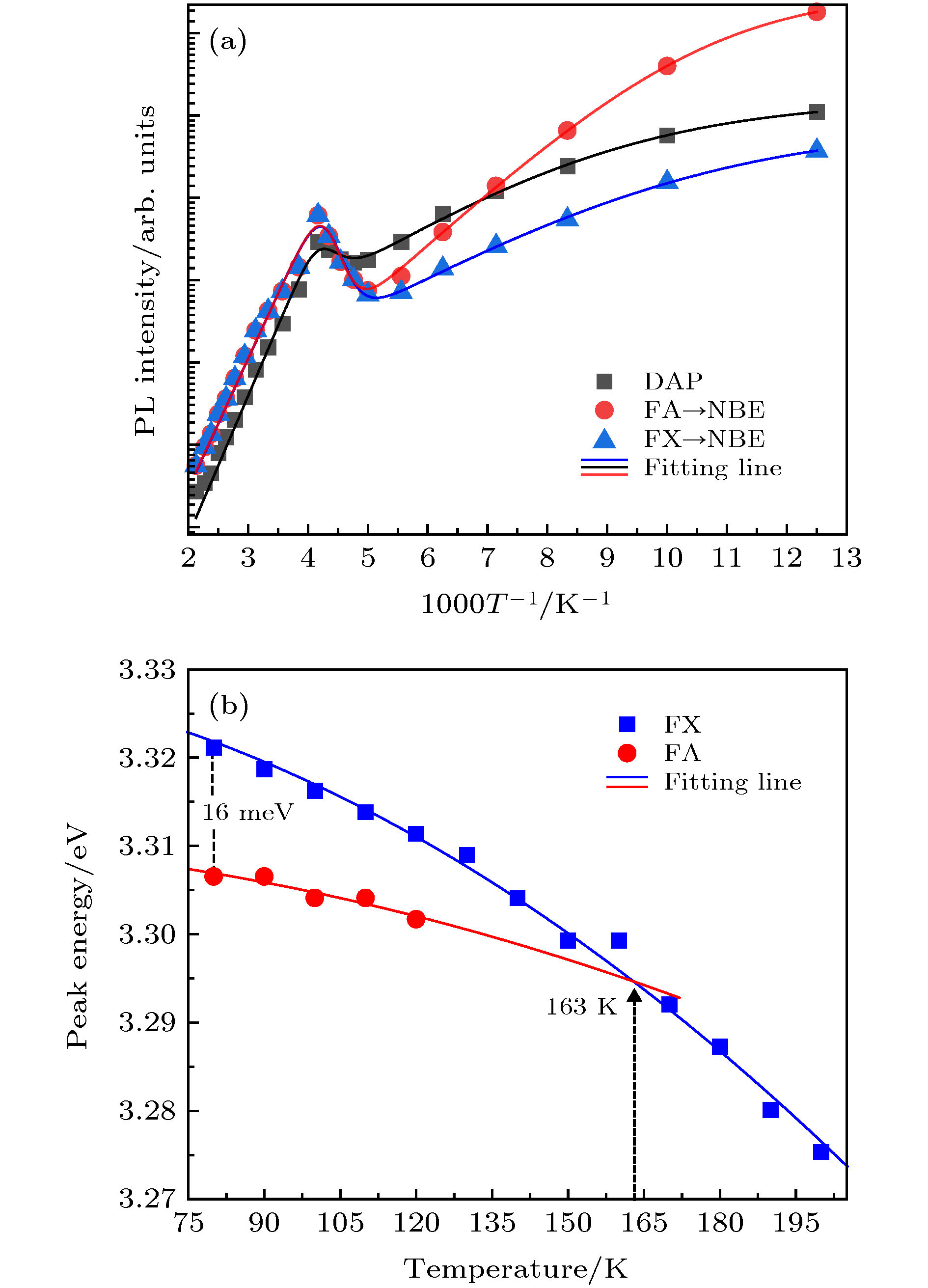

发光特性	$ {E}_{1}' $ / meV	E₁/ meV	E₂/ meV
FA→NBE	488	628	57
FX→NBE	431	572	39
DAP	424	570	55

DownLoad: CSV

[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
[12]
[13]
[14]
[15]
[16]
[17]
[18]
[19]
[20]
[21]
[22]
[23]
[24]
[25]
[26]
[27]
[28]
[29]

[1]	Chen Long, Chen Cheng-Ke, Li Xiao, Hu Xiao-Jun.Effects of oxidation on silicon vacancy photoluminescence and microstructure of separated domain formed nanodiamond films. Acta Physica Sinica, 2019, 68(16): 168101.doi:10.7498/aps.68.20190422
[2]	Zhang Jian-Hui, Han Ji-Gang.Tuning the photoluminescence, magnetism and cytotoxicity of ZnO by tailoring the nanostructures. Acta Physica Sinica, 2015, 64(9): 097702.doi:10.7498/aps.64.097702
[3]	Zhou Xiao-Dong, Zhang Shao-Feng, Zhou Si-Hua.Enhancement and quenching of photoluminescence from Au nanoparticles and CdTe quantum dot composite system. Acta Physica Sinica, 2015, 64(16): 167301.doi:10.7498/aps.64.167301
[4]	Wang Li, Zhang Xiao-Dan, Yang Xu, Wei Chang-Chun, Zhang De-Kun, Wang Guang-Cai, Sun Jian, Zhao Ying.Study of boron-doped zinc oxide film serving as front contact with high haze used in amorphous silicon thin film solar cells. Acta Physica Sinica, 2014, 63(2): 028801.doi:10.7498/aps.63.028801
[5]	Zhu Shun-Ming, Gu Ran, Huang Shi-Min, Yao Zheng-Grong, Zhang Yang, Chen Bin, Mao Hao-Yuan, Gu Shu-Lin, Ye Jian-Dong, Zheng You-Dou.Influence and mechanism of H2 in the epitaxial growth of ZnO using metal-organic chemical vapor deposition method. Acta Physica Sinica, 2014, 63(11): 118103.doi:10.7498/aps.63.118103
[6]	Ren Yan-Dong, Hao Shu-Juan, Qiu Zhong-Yang.Enhancement of emission from ZnO nanobelts via surface plasmons. Acta Physica Sinica, 2013, 62(14): 147302.doi:10.7498/aps.62.147302
[7]	Li Lin-Na, Chen Xin-Liang, Wang Fei, Sun Jian, Zhang De-Kun, Geng Xin-Hua, Zhao Ying.Effects of hydrogen flux on aluminum doped zinc thin films by pulsed magnetron sputtering. Acta Physica Sinica, 2011, 60(6): 067304.doi:10.7498/aps.60.067304
[8]	Wang Xing-He, Zhou Yan-Huai.Photoluminescence properties of Ge-doped silica glass. Acta Physica Sinica, 2009, 58(6): 4239-4242.doi:10.7498/aps.58.4239
[9]	Liu Chun-Ming, Fang Li-Mei, Zu Xiao-Tao.Photoluminescence and magnetic properties of cobalt doped SnO2 nano-powder. Acta Physica Sinica, 2009, 58(2): 936-940.doi:10.7498/aps.58.936
[10]	Yang Yi-Fa, Li Yu-Hua, Long Hua, Lu Pei-Xiang, Yang Guang, Zheng Qi-Guang.Effect of oxygen pressure on the optical properties of ZnO/Si(100) thin films deposited by femtosecond pulse laser. Acta Physica Sinica, 2009, 58(4): 2785-2791.doi:10.7498/aps.58.2785
[11]	Liao Guo-Jin, Yan Shao-Feng, Ba De-Chun.The blue luminescence of cerium doped aluminum oxide thin film. Acta Physica Sinica, 2008, 57(11): 7327-7332.doi:10.7498/aps.57.7327
[12]	Xiao Jing, Bai Xin, Zhang Geng-Min.Field emission properties of well-ordered ZnO nanoneedle arrays. Acta Physica Sinica, 2008, 57(11): 7057-7062.doi:10.7498/aps.57.7057
[13]	Ma Hai-Lin, Su Qing, Lan Wei, Liu Xue-Qin.Influence of oxygen pressure on the structure and photoluminescence of β-Ga2O3 nano-material prepared by thermal evaporation. Acta Physica Sinica, 2008, 57(11): 7322-7326.doi:10.7498/aps.57.7322
[14]	Yao Zhi-Tao, Sun Xin-Rui, Xu Hai-Jun, Jiang Wei-Fen, Xiao Shun-Hua, Li Xin-Jian.The structure and photoluminescence properties of ZnO/silicon nanoporous pillar array. Acta Physica Sinica, 2007, 56(10): 6098-6103.doi:10.7498/aps.56.6098
[15]	Ni Sai-Li, Chang Yong-Qin, Long Yi, Ye Rong-Chang.Field emission from ZnO nanorods. Acta Physica Sinica, 2006, 55(10): 5409-5412.doi:10.7498/aps.55.5409
[16]	Qin Li, Zhang Xi-Tian, Liang Yao, Zhang E, Gao Hong, Zhang Zhi-Guo.Resonant Raman scattering and “negative thermal quenching” of ZnO microflowers. Acta Physica Sinica, 2006, 55(6): 3119-3123.doi:10.7498/aps.55.3119
[17]	Xin Xian-Shuang, Zhou Bai-Bin, Lü Shu-Chen, Su Wen-Hui.Preparation and luminescence characteristics of Eu-doped nanocrystalline zinc o xide. Acta Physica Sinica, 2005, 54(4): 1859-1862.doi:10.7498/aps.54.1859
[18]	Ma Zhong-Yuan, Huang Xin-Fan, Zhu Da, Li Wei, Chen Kun-Ji, Feng Duan.Photoluminescence from a-Si:H/SiO2 multilayers fabricated using in situ layer by layer plasma oxidation. Acta Physica Sinica, 2004, 53(8): 2746-2750.doi:10.7498/aps.53.2746
[19]	YUAN FANG-CHENG, RAN GUANG-ZHAO, CHAN YUAN, ZHANG BO-RUI, QIAO YONG-PING, FU JI-SHI, QIN GUO-GANG, MA ZHEN-CHANG, ZONG WAN-HUA.ROOM-TEMPERATURE 1.54μm Er3+ PHOTOLUMINESCENCE FROM Er-DOPED SILICON-RICH SILICON OXIDE FILM GROWN BY MAGNETRON SPUTTERING. Acta Physica Sinica, 2001, 50(12): 2487-2491.doi:10.7498/aps.50.2487
[20]	MA SHU-YI, QIN GUO-GANG, YOU LI-PING, WANG YIN-YUE.COMPARATIVE STUDY ON PHOTOLUMINESCENCE FROM Si-CONTAINING SILICON OXIDE FILMS AND Ge-CONTAINING SILICON OXIDE FILMS. Acta Physica Sinica, 2001, 50(8): 1580-1584.doi:10.7498/aps.50.1580
