Simulation and architectural design for Schottky structure perovskite solar cells

姓名
邮箱
手机号码
标题
留言内容
验证码

Abstract

The wx-AMPS simulation software is used to model and simulate the Schottky perovskite thin film solar cells. The front and back electrodes with different work functions are applied to the Schottky perovskite solar cells to study the effect of band structure on the performance of solar cells. The results show that in a range from 3.8 to 4.4 eV, as the work function of the front electrode decreases, the conversion efficiency of the Schottky solar cells gradually increases. When the work function of the front electrode is low, the electric field strength is large, which facilitates the transport of carriers in the light-absorbing layer of the perovskite and reduces the carrier recombination rate of the perovskite layer. In addition, the recombination ratio of the light absorbing layer is reduced due to the increase of the electric field strength, and the parallel resistance is increased to a certain extent thereby increasing the FF and improving the output efficiency of the battery. At the same time, when the current electrode work function is maintained at 3.8 eV, in a range from 4.3 to 5.5 eV, the higher the work function of the back electrode, the greater the conversion efficiency of the Schottky solar cell is. This conduces to the band alignment in contact between perovskite and back electrode. Under the premise that the common electrode Au is used as a back electrode, the work function of the front electrode is 3.8 eV and the conversion efficiency of the Schottky perovskite solar cell is 17.93%. In addition, by using the optimized front and rear contact electrodes, the quality of the perovskite layer material, thus the performance of the solar cell can be further improved. Doping till a certain concentration and removing the defects of the perovskite layer, the conversion efficiency of the solar cell with a thickness of 500 nm can be increased from 17.93% to 20.1%. The simulation results show that the Schottky perovskite thin film solar cells can obtain excellent performance with simple device structure and have great potential applications.

Keywords:

Authors and contacts

Corresponding author:Cai Hong-Kun,caihongkun@nankai.edu.cn

FullText HTML: translate this paragraph

References

[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
[12]
[13]
[14]
[15]
[16]
[17]
[18]
[19]
[20]
[21]
[22]
[23]
[24]
[25]
[26]
[27]
[28]
[29]
[30]
[31]
[32]

Cited By

DownLoad: Full-Size Img PowerPoint

参数	SnO₂^[20,21]	Perovskite^[20,22]	Spiro-OMeTAD^[23-25]
介电常数	9	20	3
电子亲和势/eV	3.5	1.55	3
禁带宽度/eV	4.3	3.75	2.2

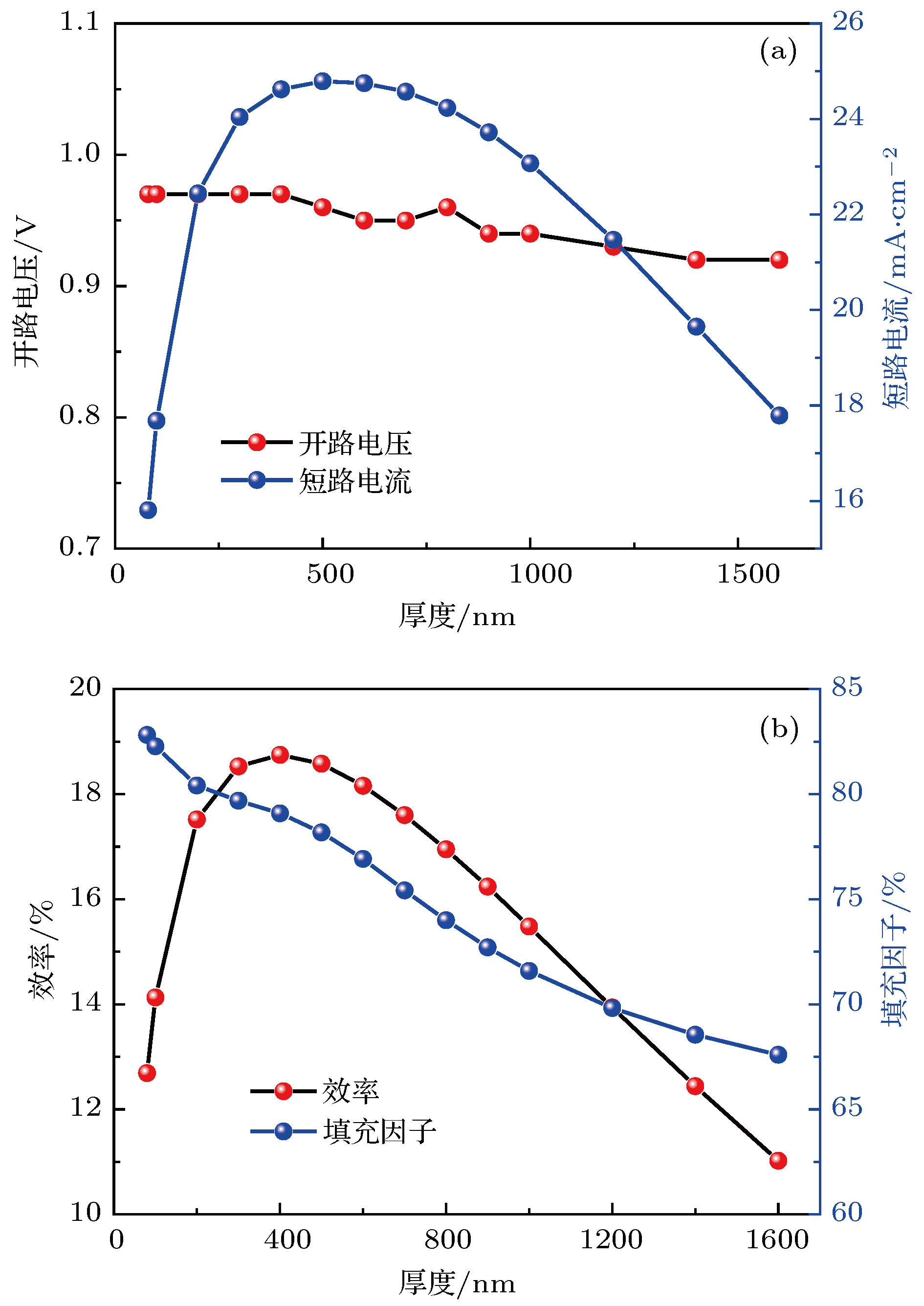

厚度/nm	50	500	250
电子/空穴迁移率/cm²·V^–1·s^–1	20/10	50/50	0.0002/0.0002
受主掺杂浓度/cm^–3	0	0	2×10¹⁸
施主掺杂浓度/cm^–3	1×10¹⁶	0	0
导带有效状态密度/cm^–3	2.2×10¹⁸	2.2×10¹⁸	2.2×10¹⁸
价带有效状态密度/cm^–3	1.8×10¹⁹	1.8×10¹⁹	1.8×10¹⁹

DownLoad: CSV

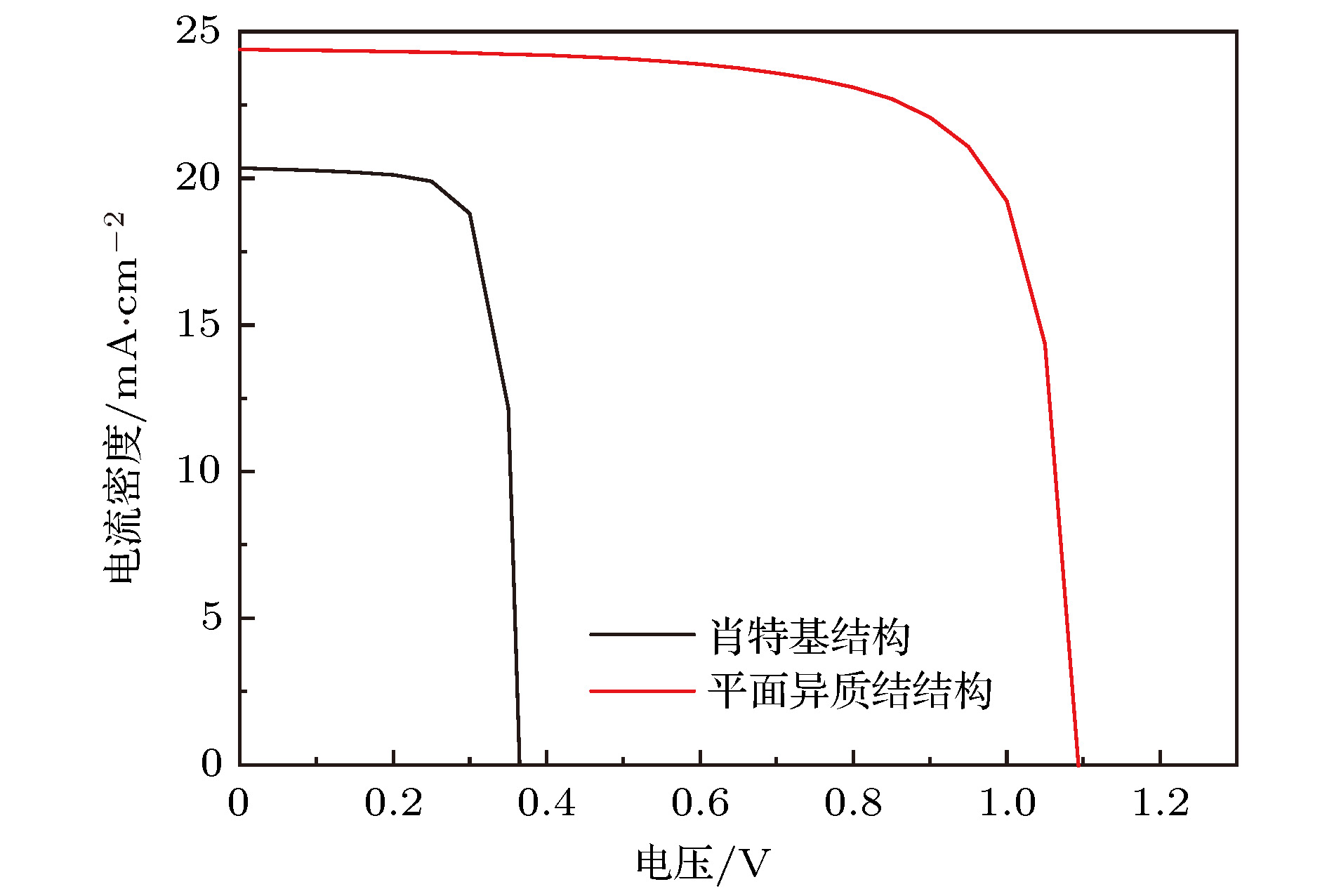

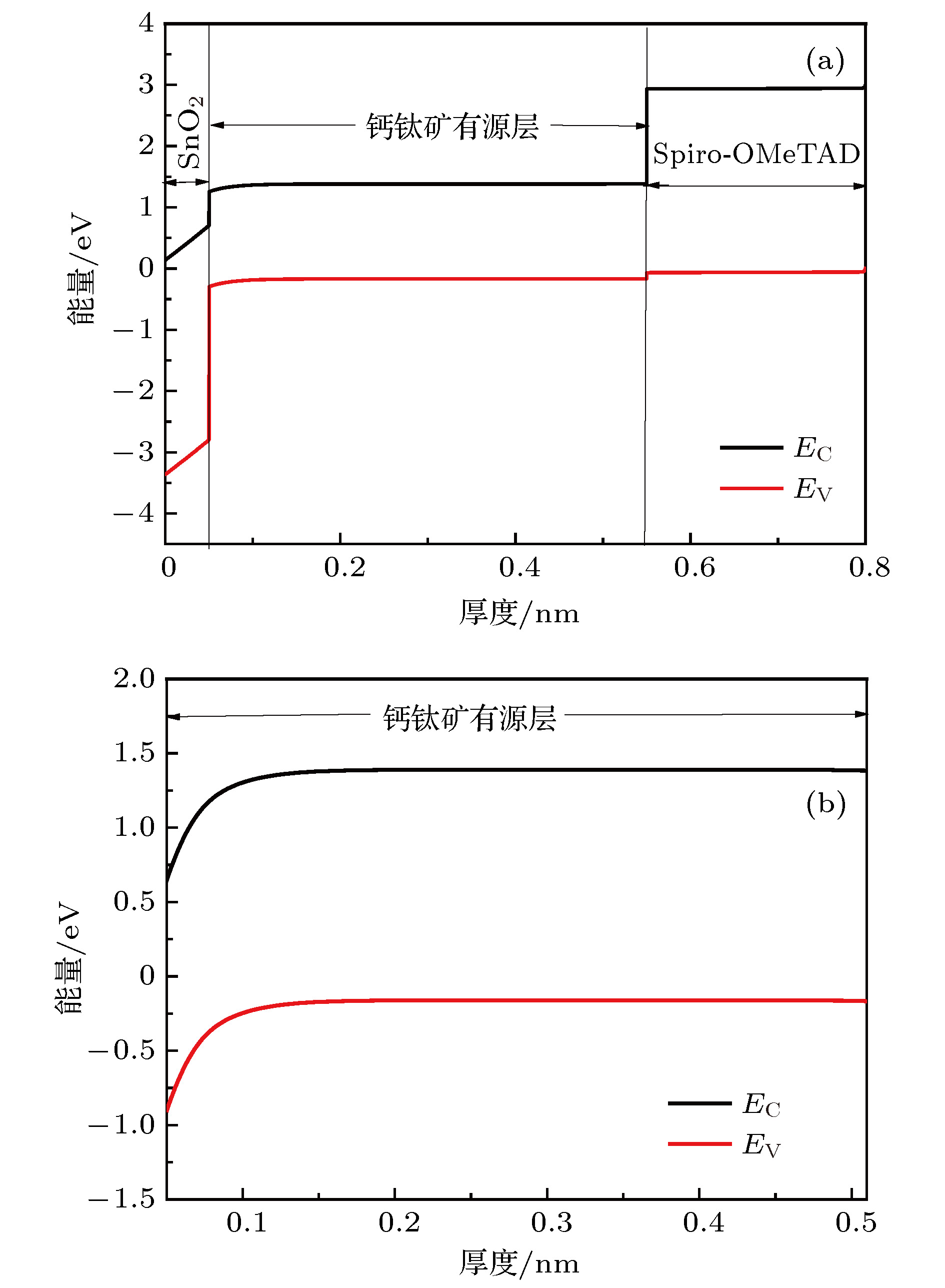

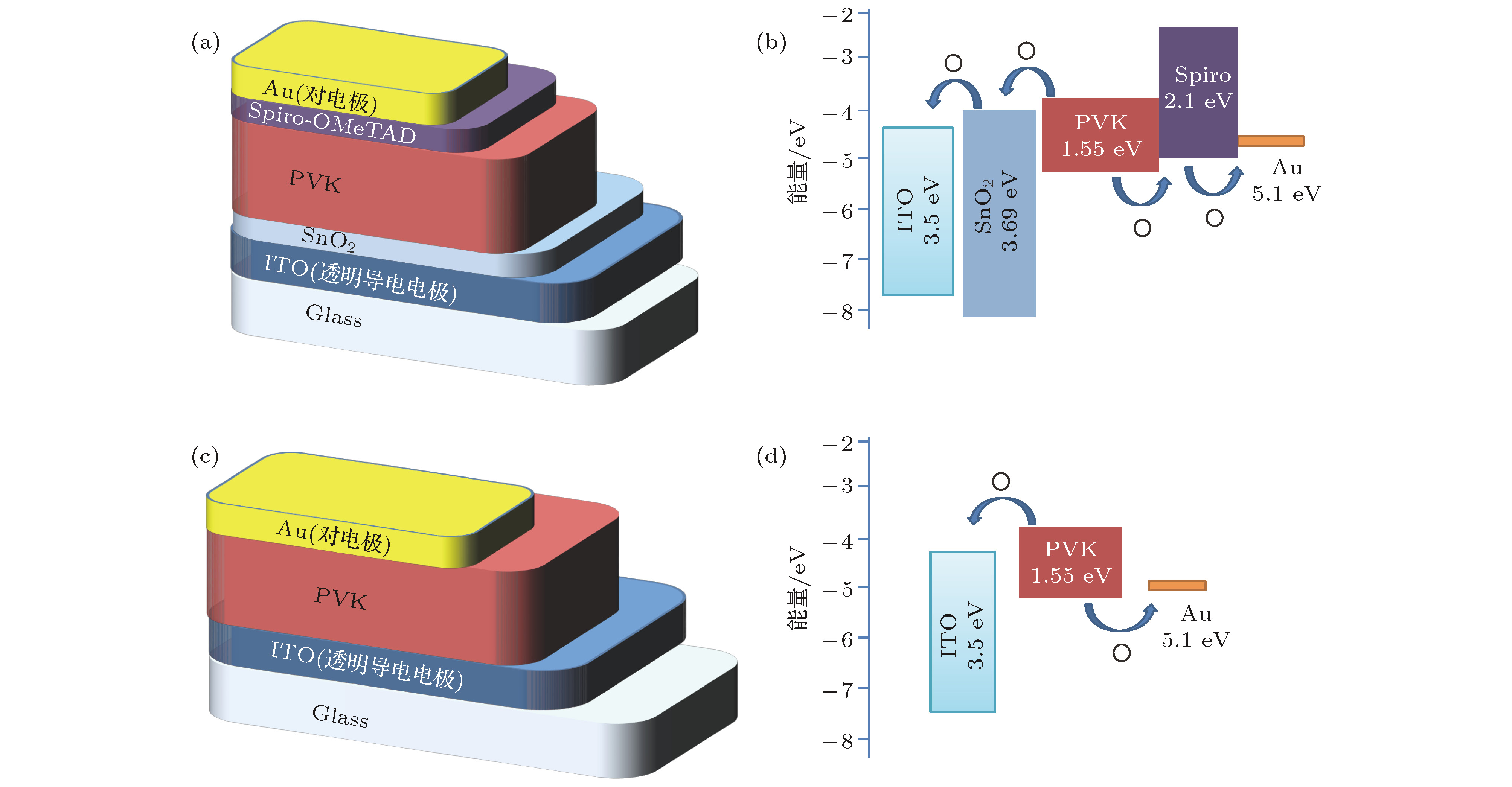

结构	J_sc/mA·cm^–2	V_oc/V	填充因子FF/%	转换效率/%
平面异质结结构	24.38	1.09	74.99	20.01
肖特基结构	20.35	0.36	75.93	5.64

DownLoad: CSV

材料	功函数/eV
In₂O₃:F(FTO)	4.6^[28]
In₂O₃:Sn(ITO)	4.4^[28]
ITO/PEIE	4.0^[27]
FTO/PEIE	3.8^[28]

DownLoad: CSV

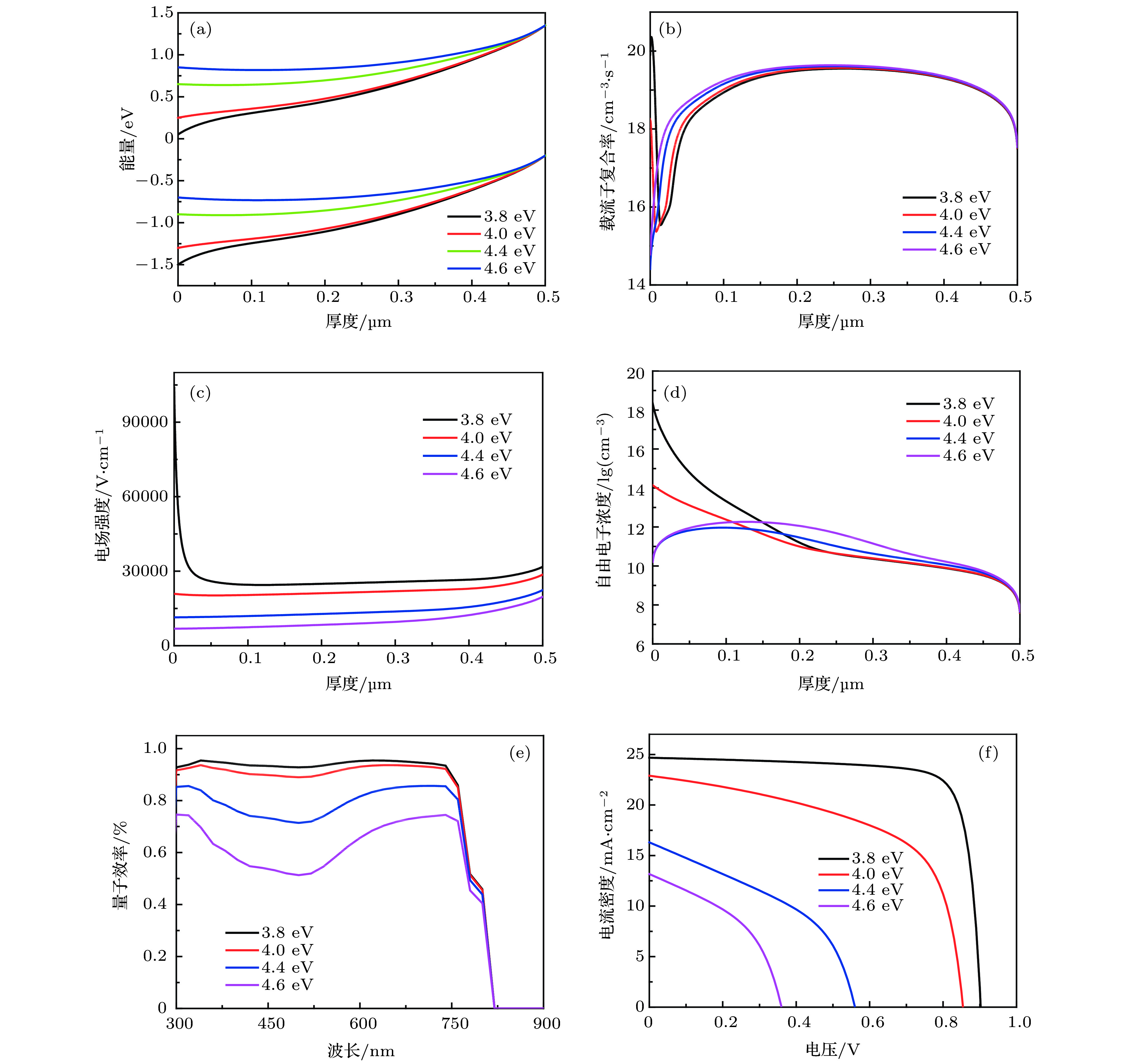

功函数/eV	J_sc/mA·cm^–2	V_oc/V	FF/%	转换效率/%
3.8	24.43	0.87	84.00	17.93
4.0	24.38	0.78	83.22	15.86
4.4	24.21	0.38	73.44	6.80
4.6	24.05	0.18	57.00	2.50

DownLoad: CSV

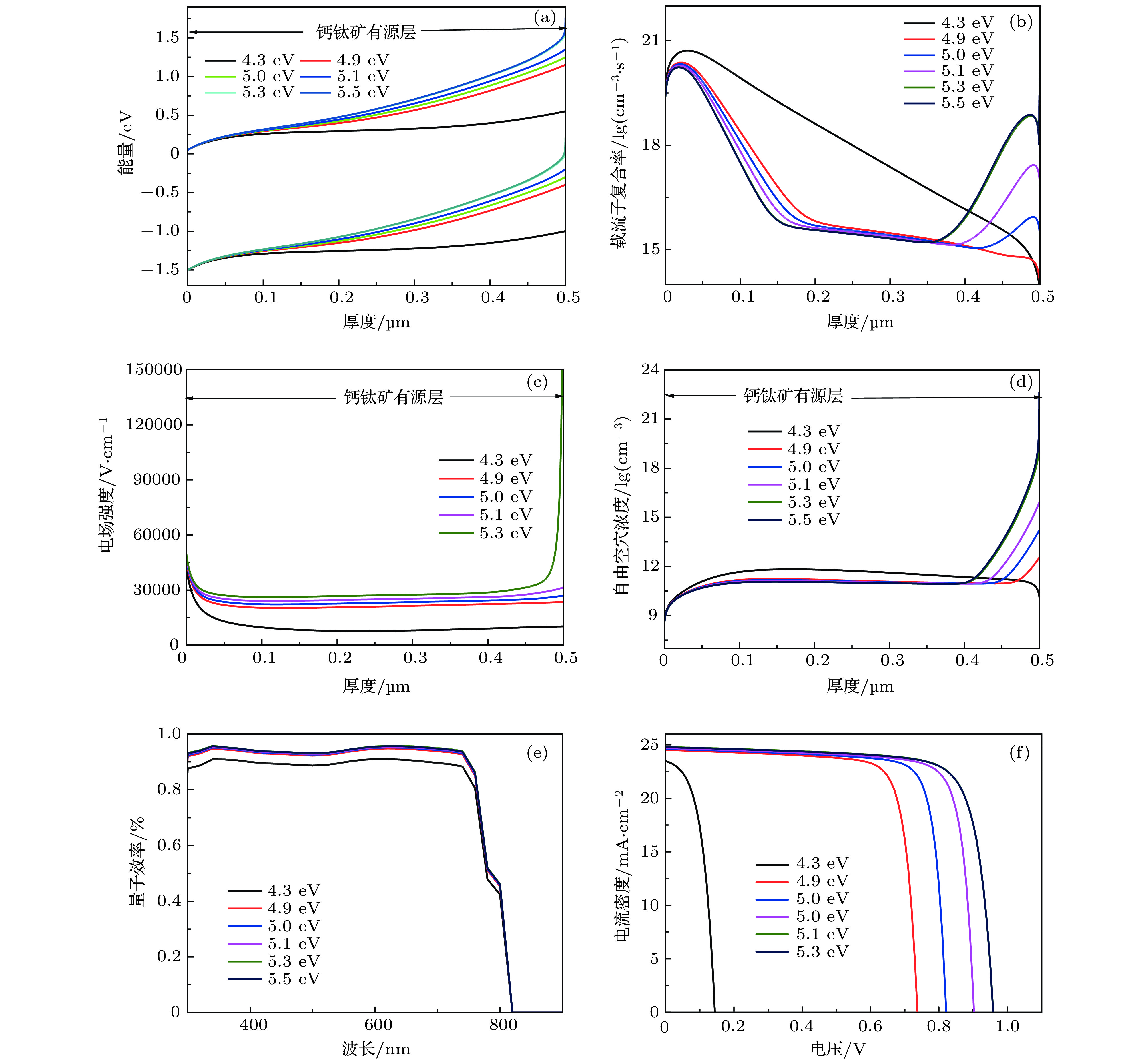

功函数/eV	J_sc/mA·cm²	V_oc/V	FF/%	转换效率/%
4.3	23.48	0.14	51.64	1.73
4.9	24.50	0.74	79.62	14.38
5.0	24.60	0.82	80.98	16.35
5.1	24.68	0.90	80.51	17.39
5.3	24.79	0.95	78.17	18.58
5.5	24.76	0.96	78.19	18.75

DownLoad: CSV

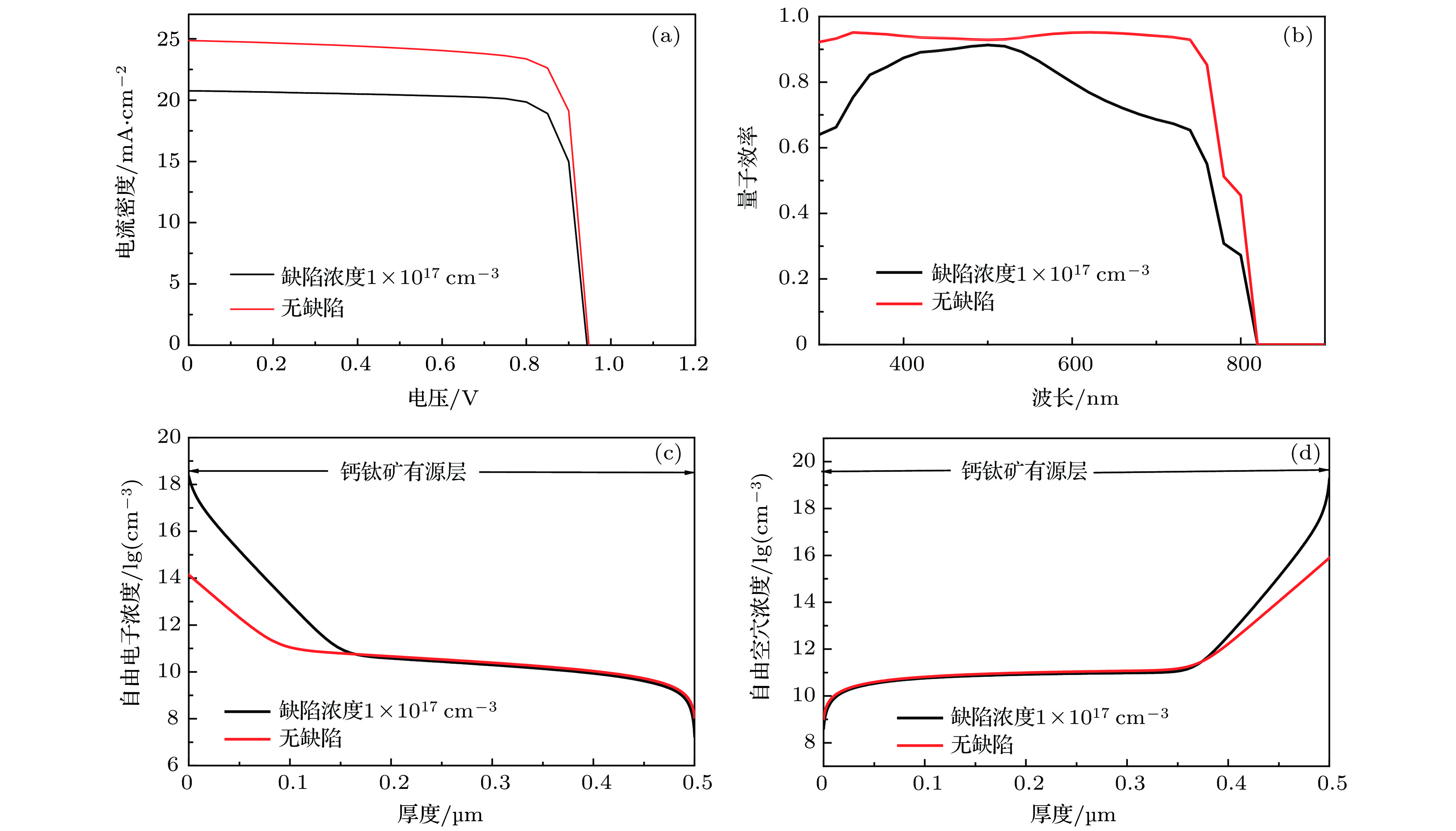

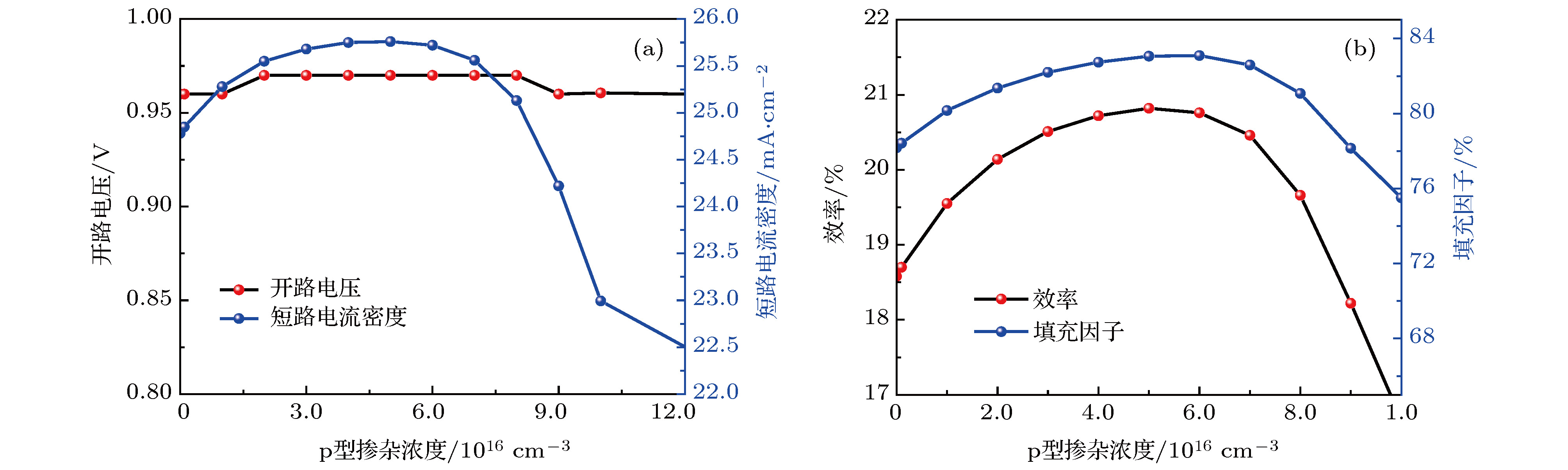

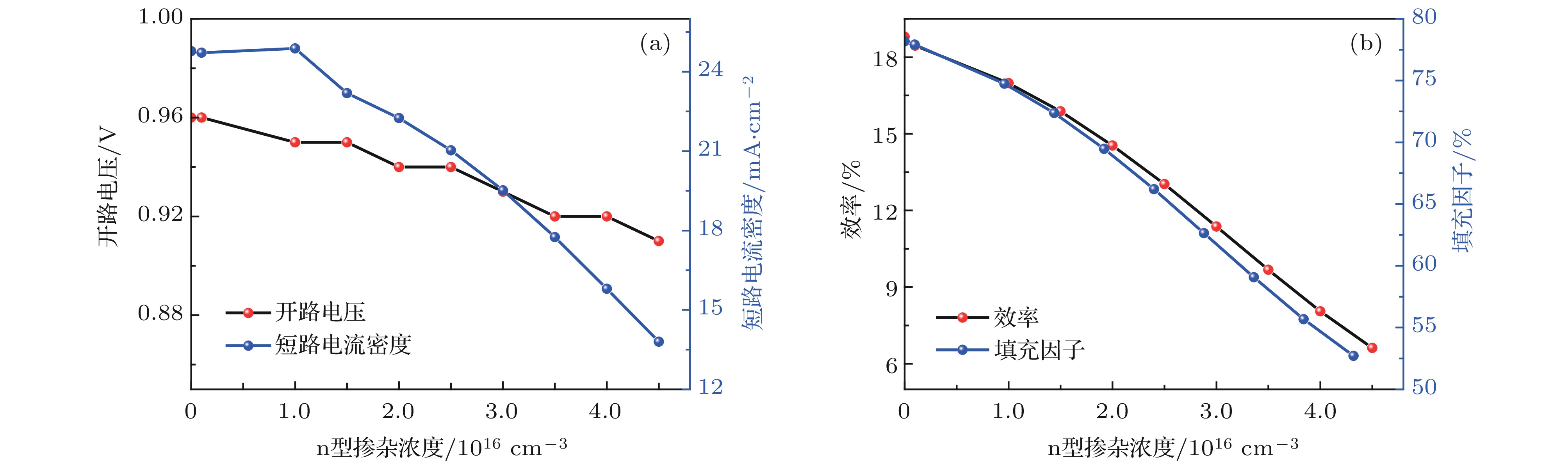

	J_sc/mA·cm²	V_oc/V	FF/%	转换效率/%
有缺陷	20.76	0.94	81.97	16.06
无缺陷	24.38	0.9482	81.54	19.22

DownLoad: CSV
