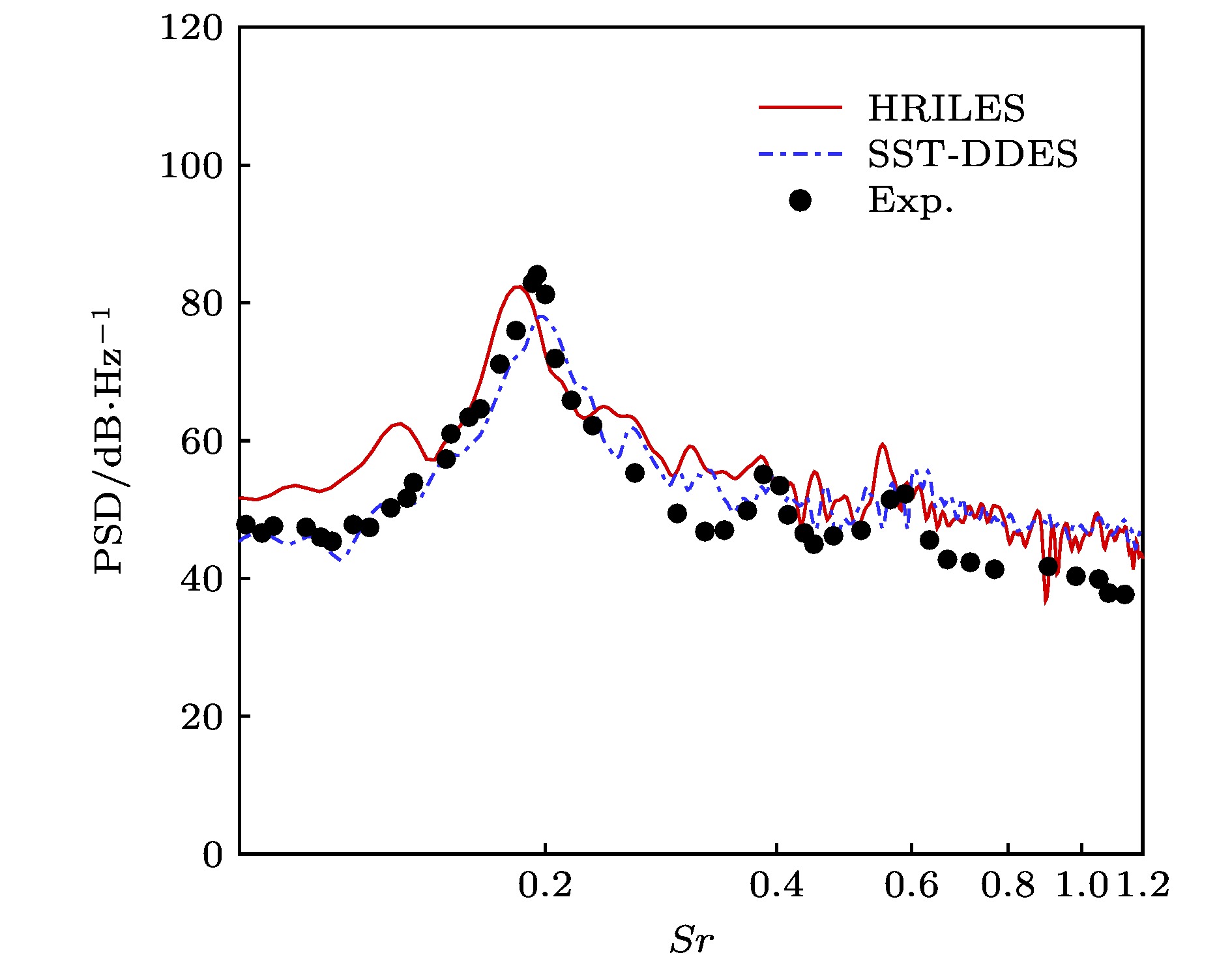

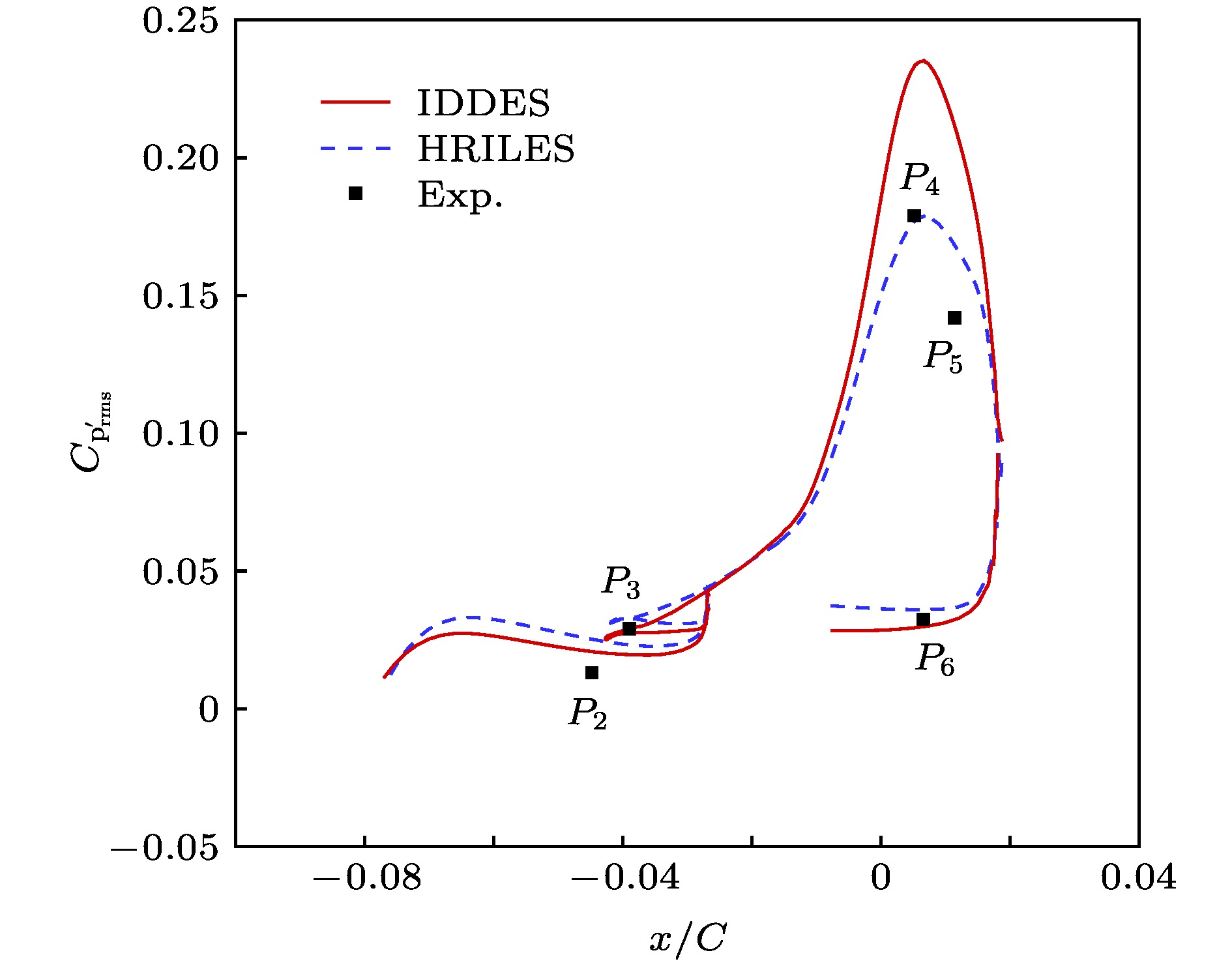

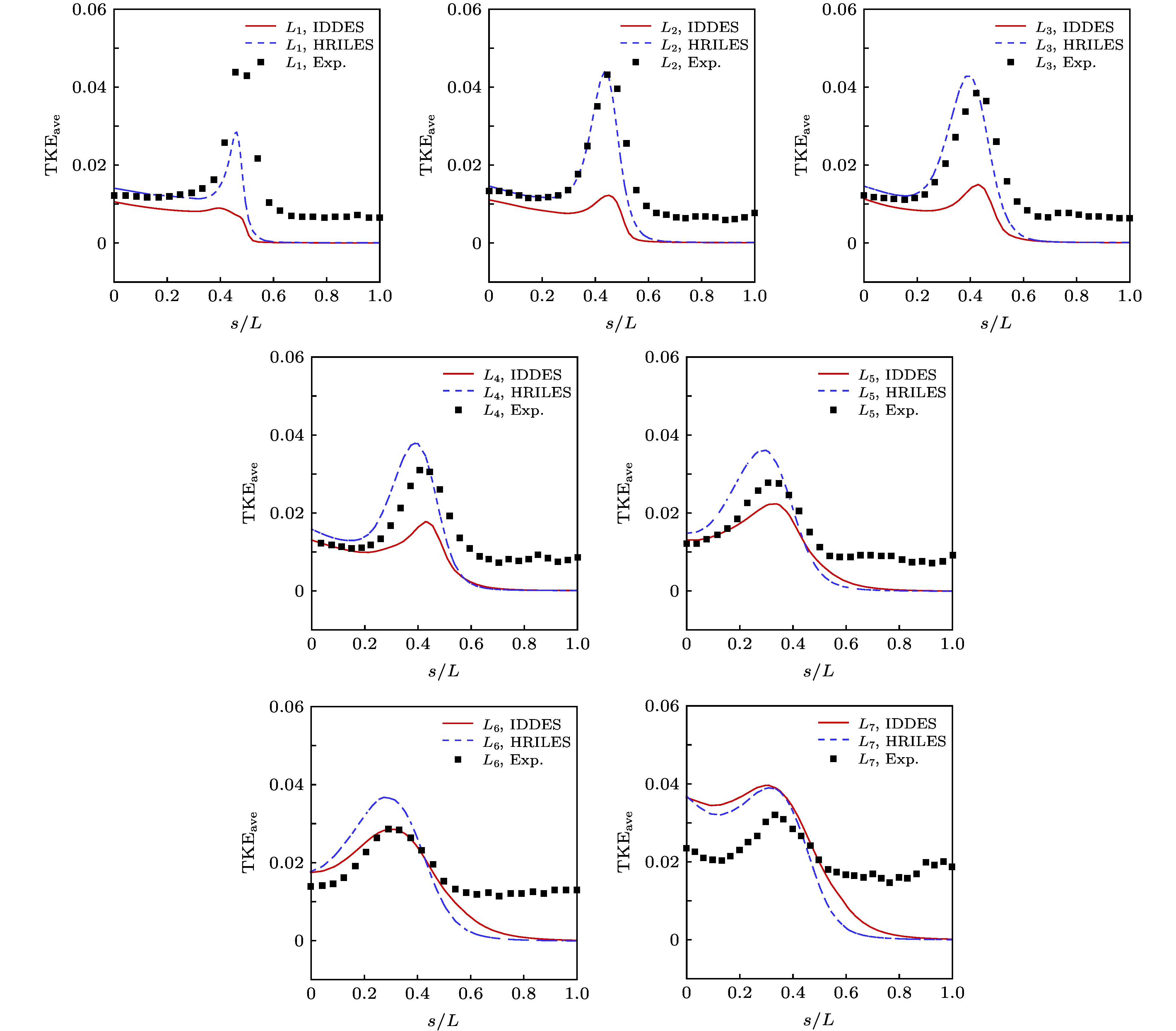

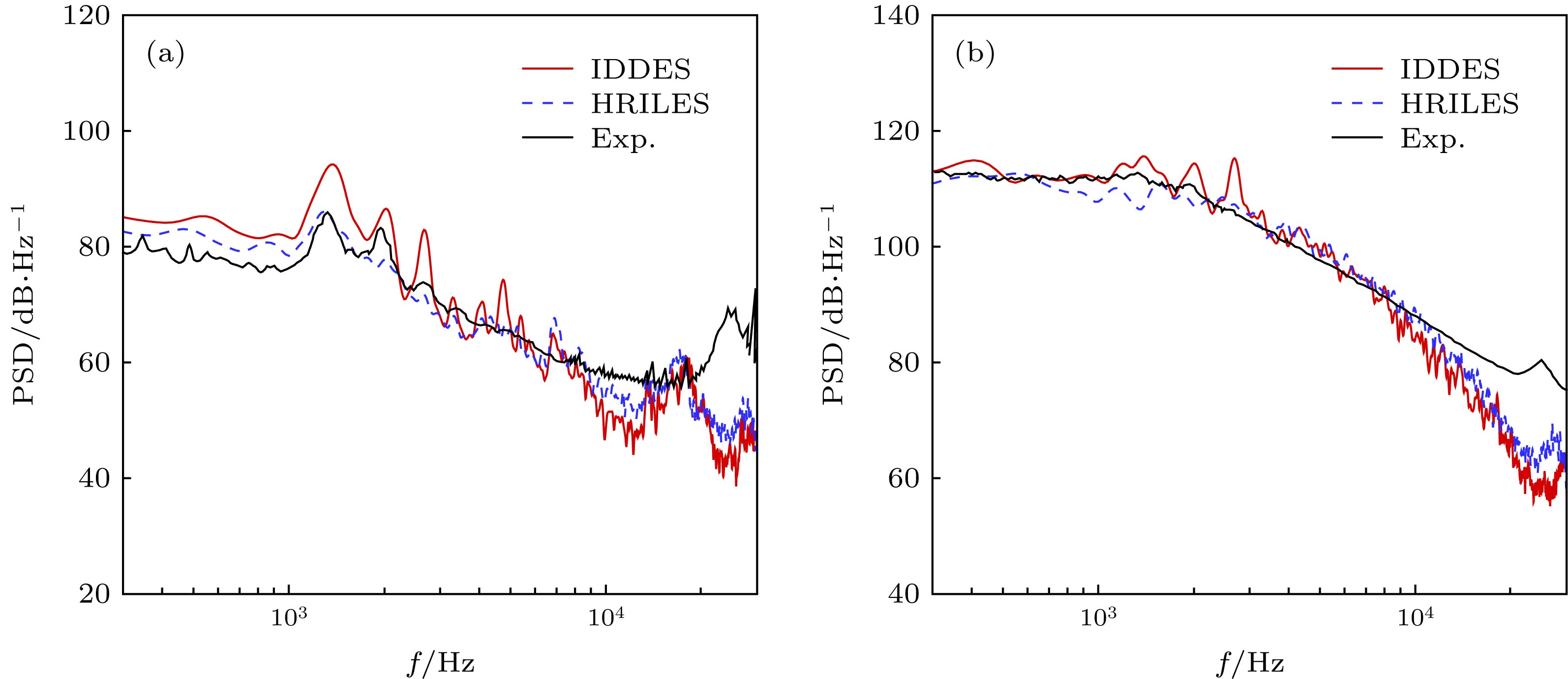

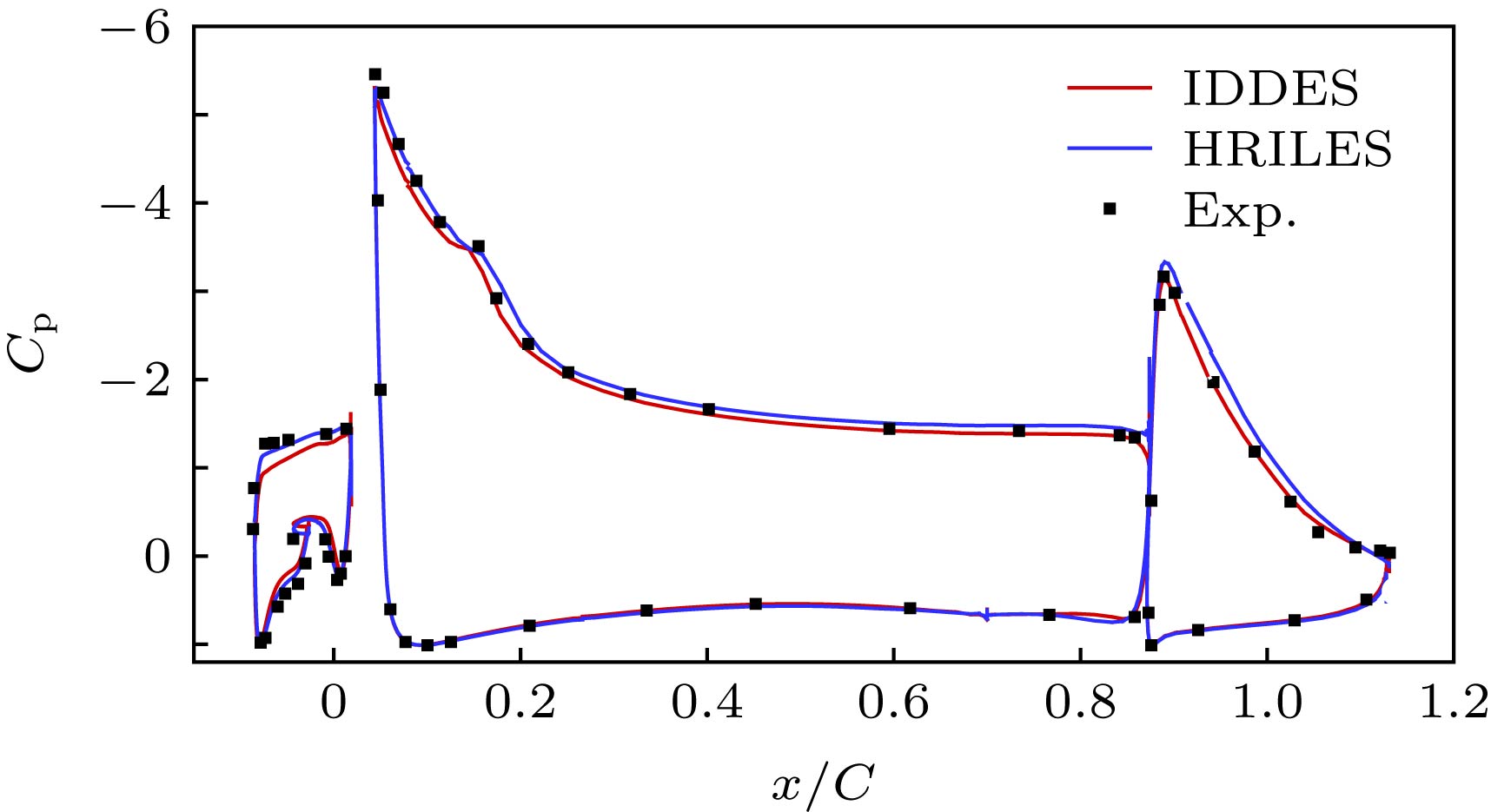

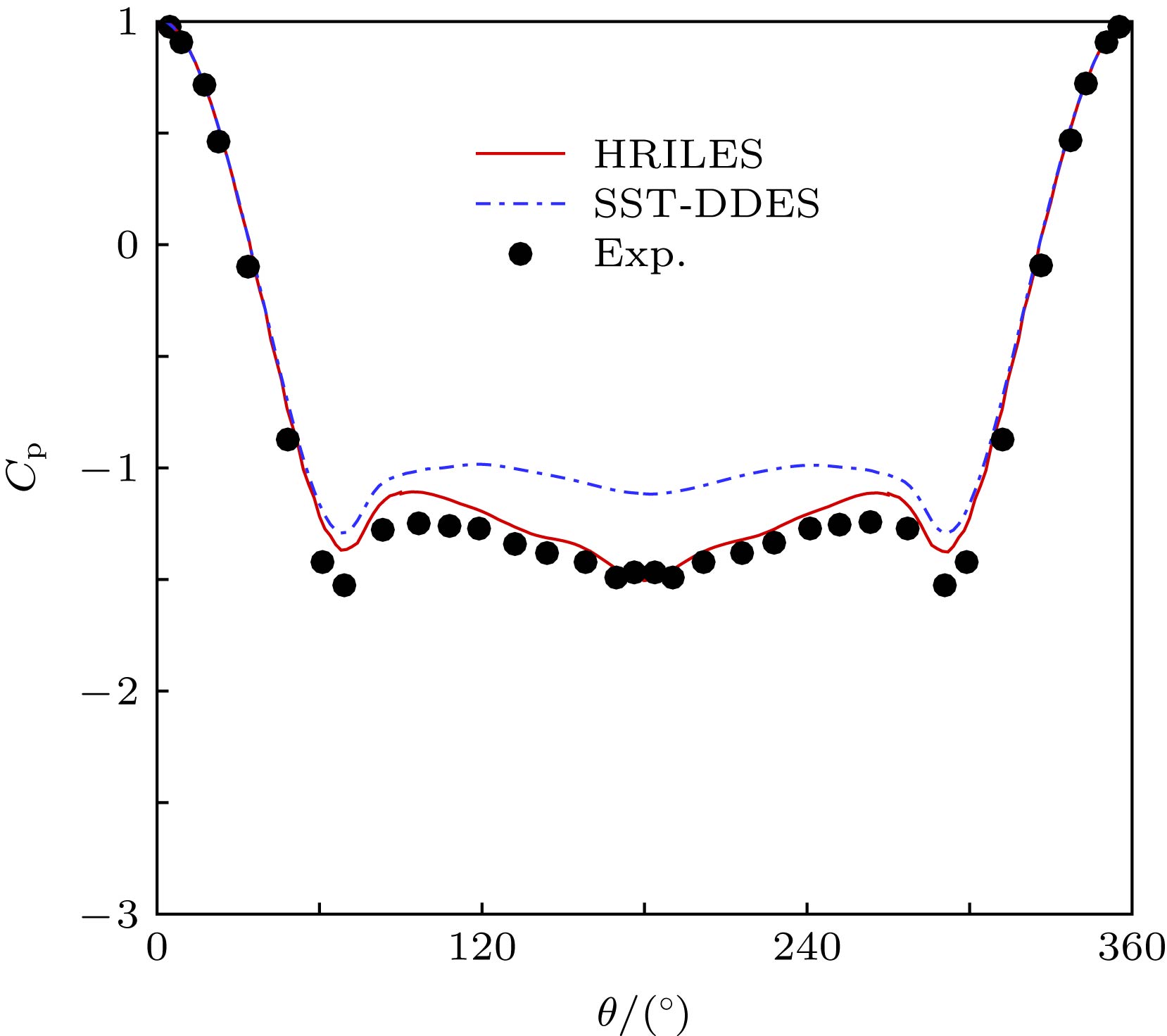

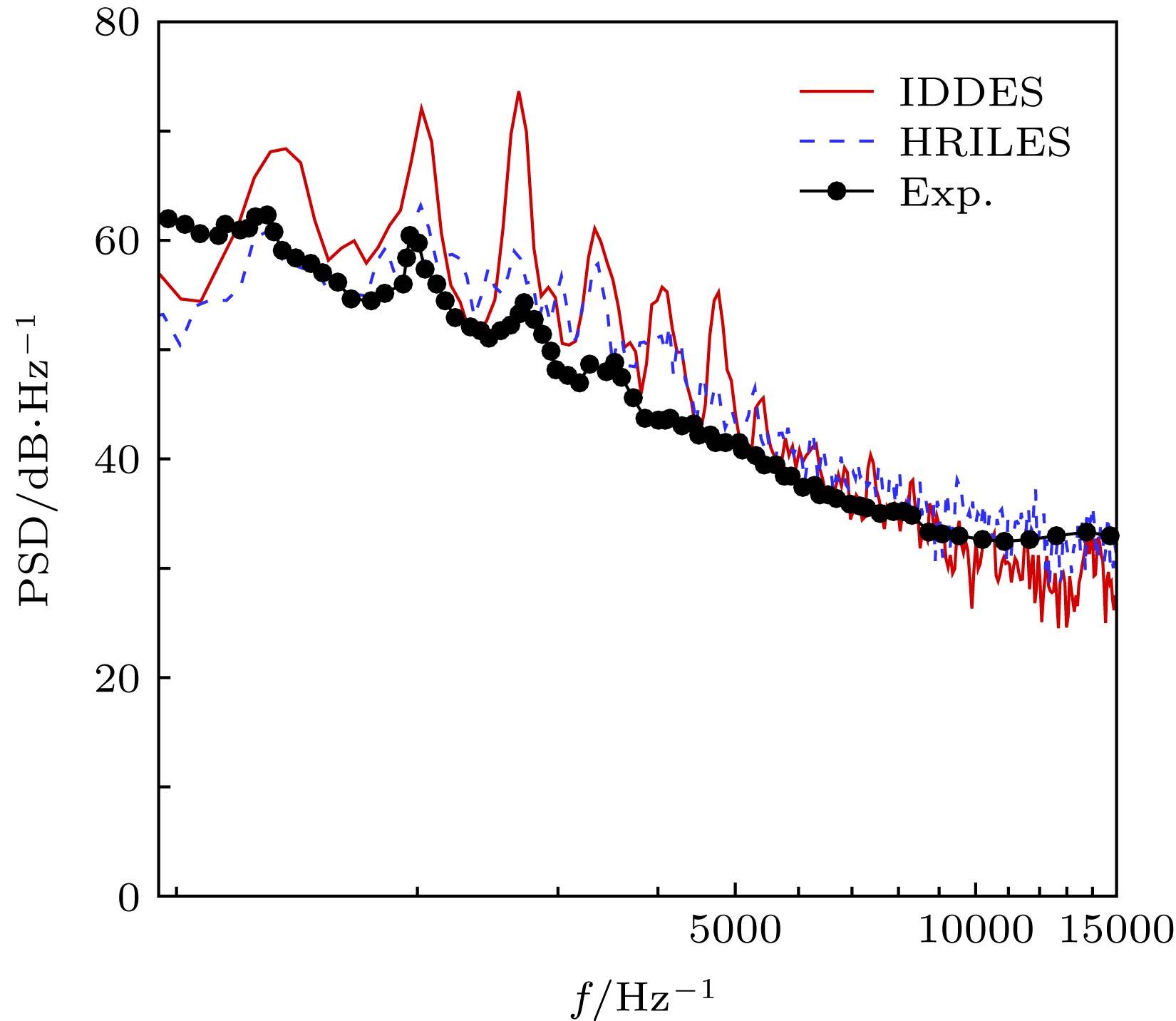

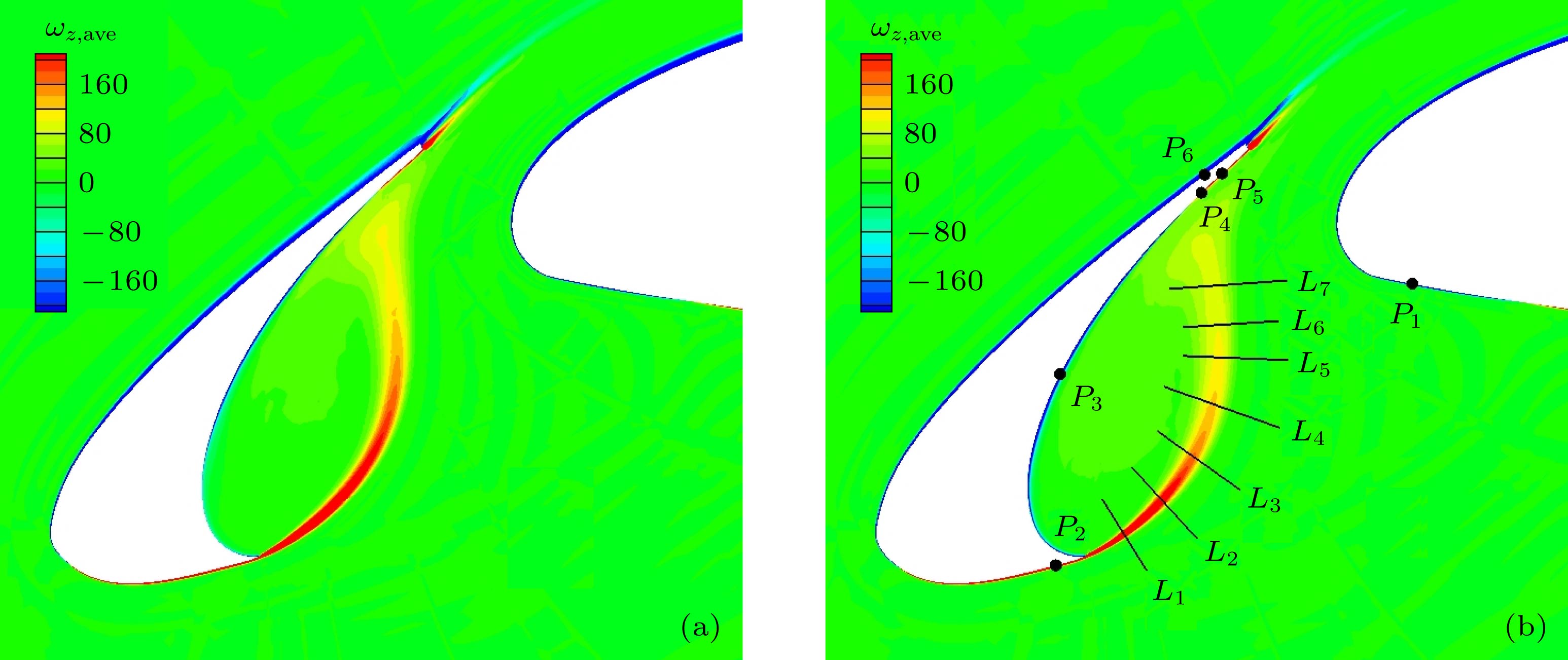

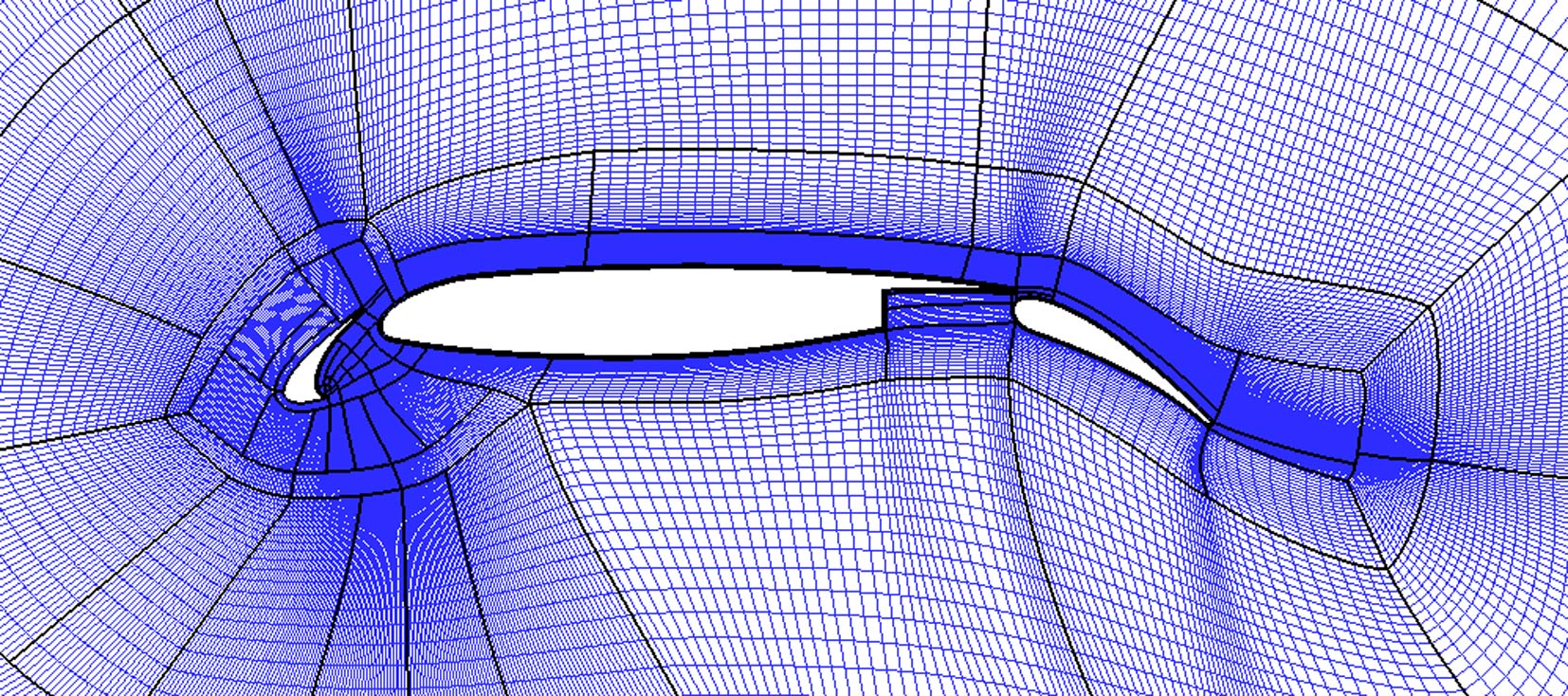

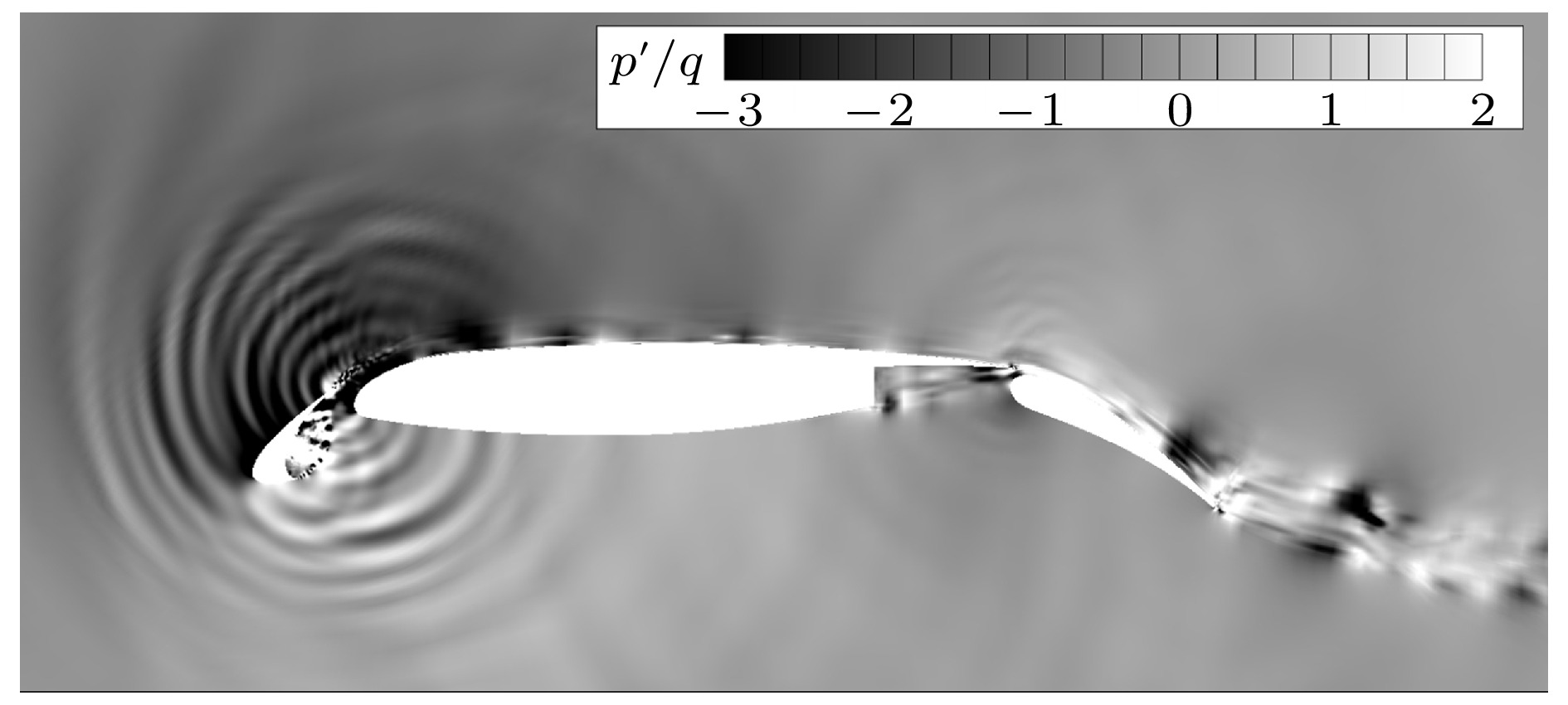

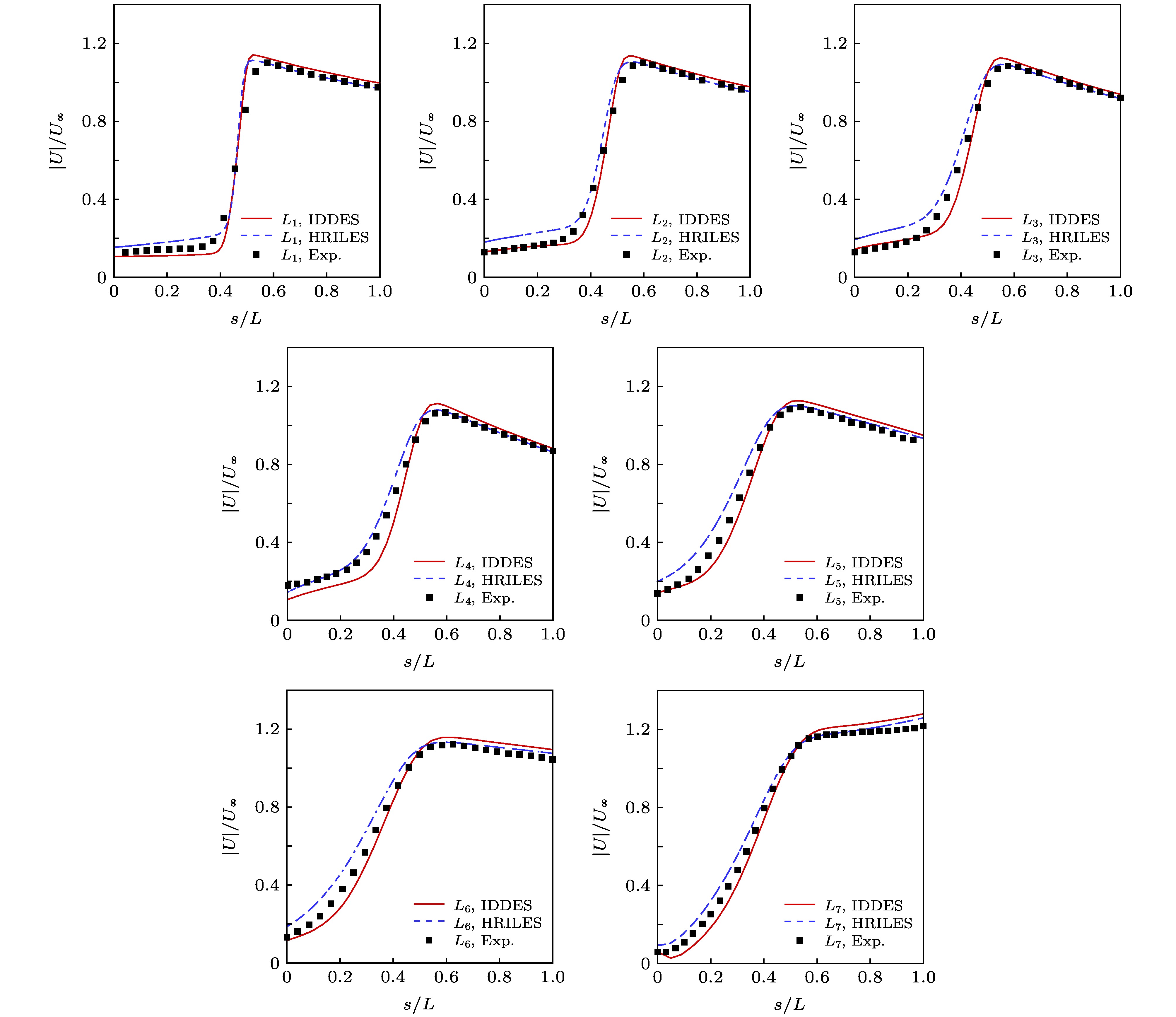

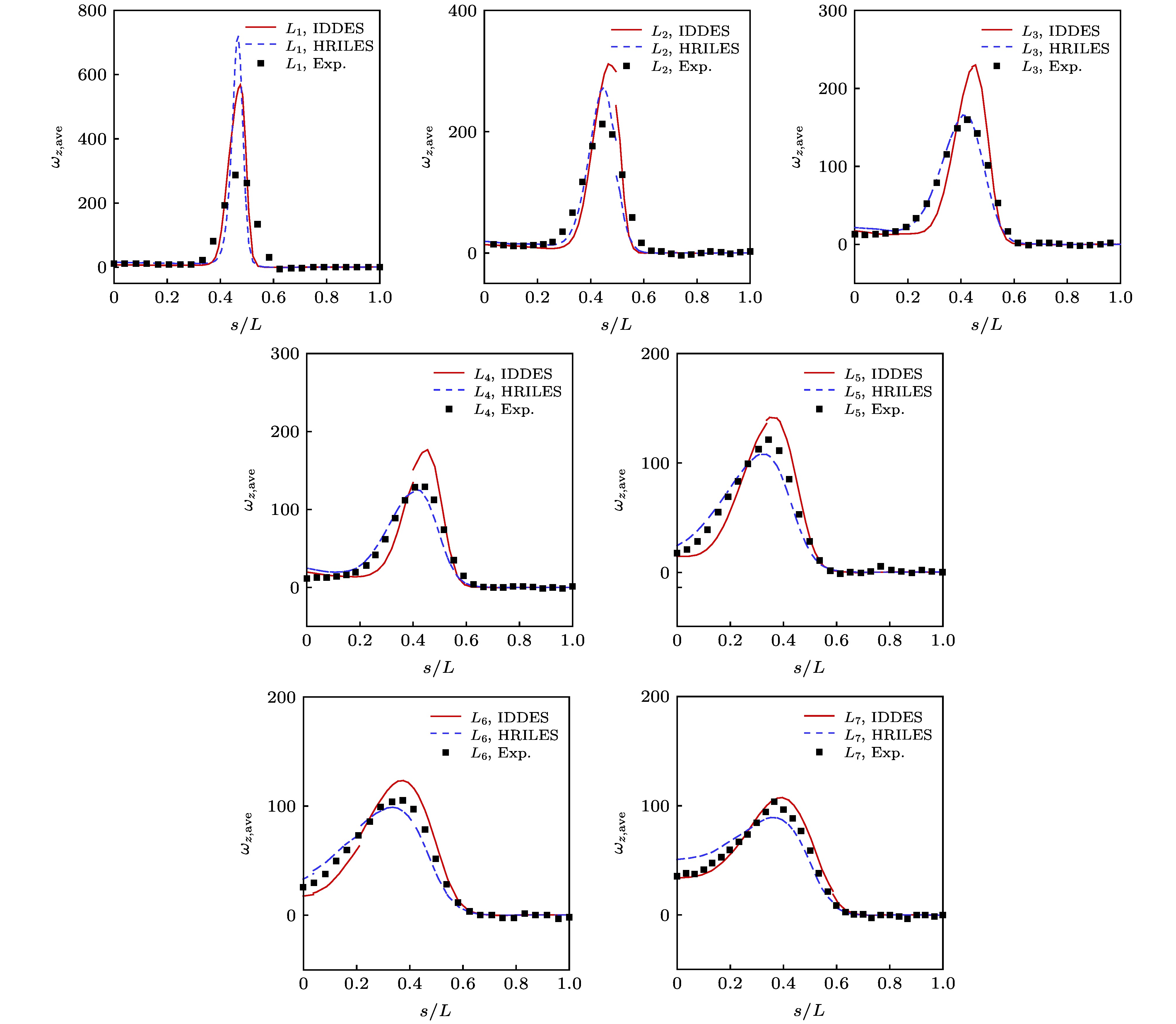

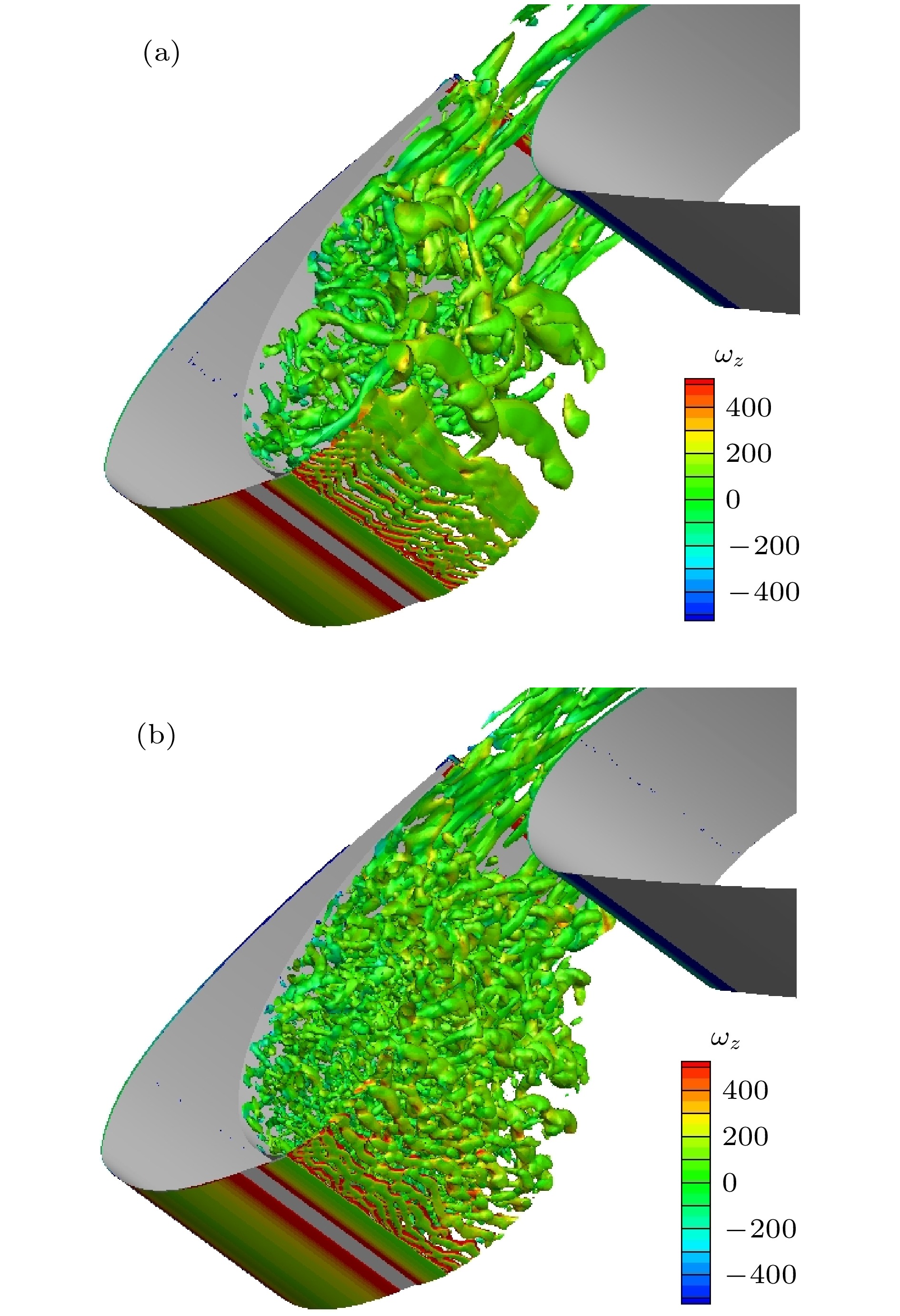

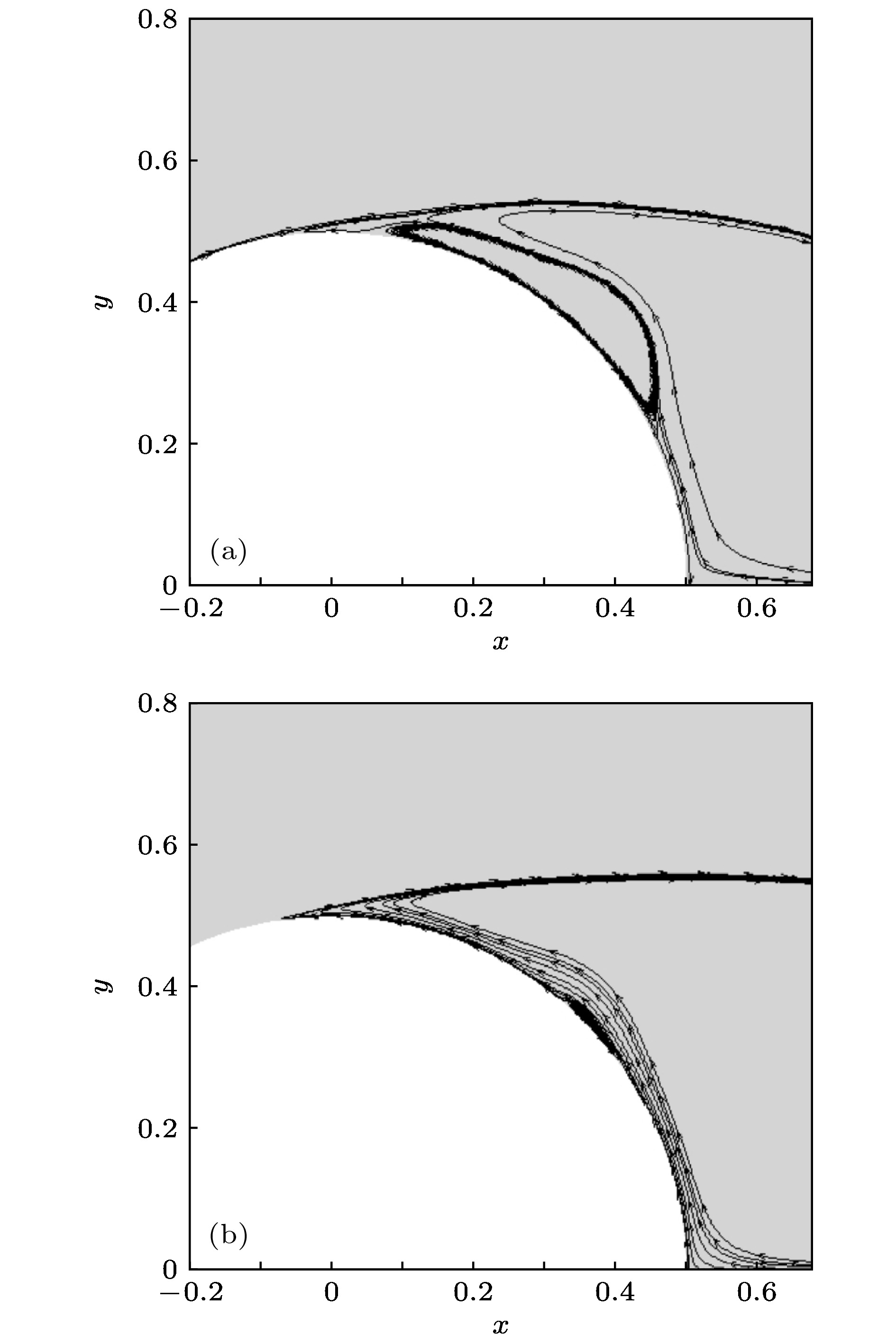

\begin{document}$Re_{{d}}=4.3\times10^4$\end{document}. The HRILES method is able to predict the transition phenomenon and the small-scale separation bubble in the sub-critical wake region while the DDES can't and get a better mean wall pressure distribution than DDES. The amplitude and frequency spectrum of the far-field sound pressure level are in good agreement with the experimental data. In the simulation of 30P30N high-lift airfoil, the famous IDDES model is also used for comparison, both results are compared with experimental measurements. The computational mesh is provided by Japan Aerospace Exploration Agency (JAXA) in the Workshop on Benchmark problems for Airframe Noise Computations (BANC). The HRILES method obtains quantitative agreement with experimental data in terms of mean wall pressure coefficient, frequency spectrum of pressure fluctuations on the slat surface, and the mean flow statistics in the slat cusp shear layer. The IDDES model slightly underestimate the suction effect on the upper surface of the slat, and delays the instabilities in the slat cusp shear layer. The near-field noise spectra are compared with measurements obtained in JAXA low-speed Wind Tunnel. Narrow band peaks present are well recovered by both methods, while IDDES model overestimate the broadband noise. Far-field noise directivity results of every components, filtered in the band [256Hz–10KHz], are compared with each other, and the slat cove is confirmed to dominate the sound noise levels. The slat and flap noises show a typical dipole distribution, while the main wing noise's directivity is not apparent. Computational results show that the HRILES method, as one kind of generalized Hybrid RANS/LES method, HRILES can smoothly switch between the SST model and the HILES method. HRILES has the high-resolution simulation capability of the HILES in the LES region, and can reduce the requirements of the HILES method on the near-wall grid distribution by using the SST model in the inner boundary layer. As a result, the HRILES method has advantages in simulations at high reynolds numbers and aeroacoustic problems. Further research will be carried out in the applications at higher reynolds number flows with complex geometry in the future."> - 必威体育下载
