- 必威体育下载

姓名
邮箱
手机号码
标题
留言内容
验证码

Abstract

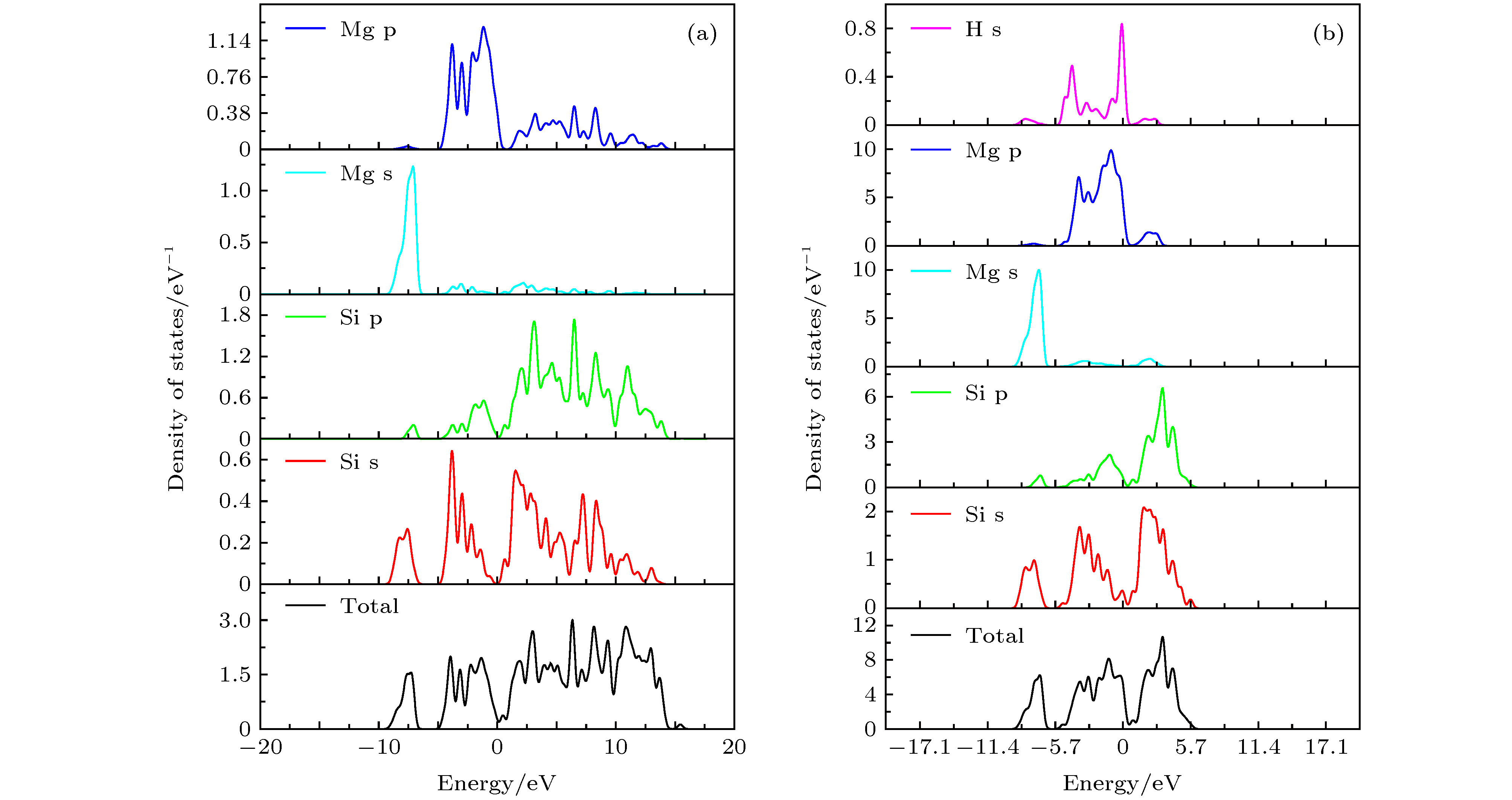

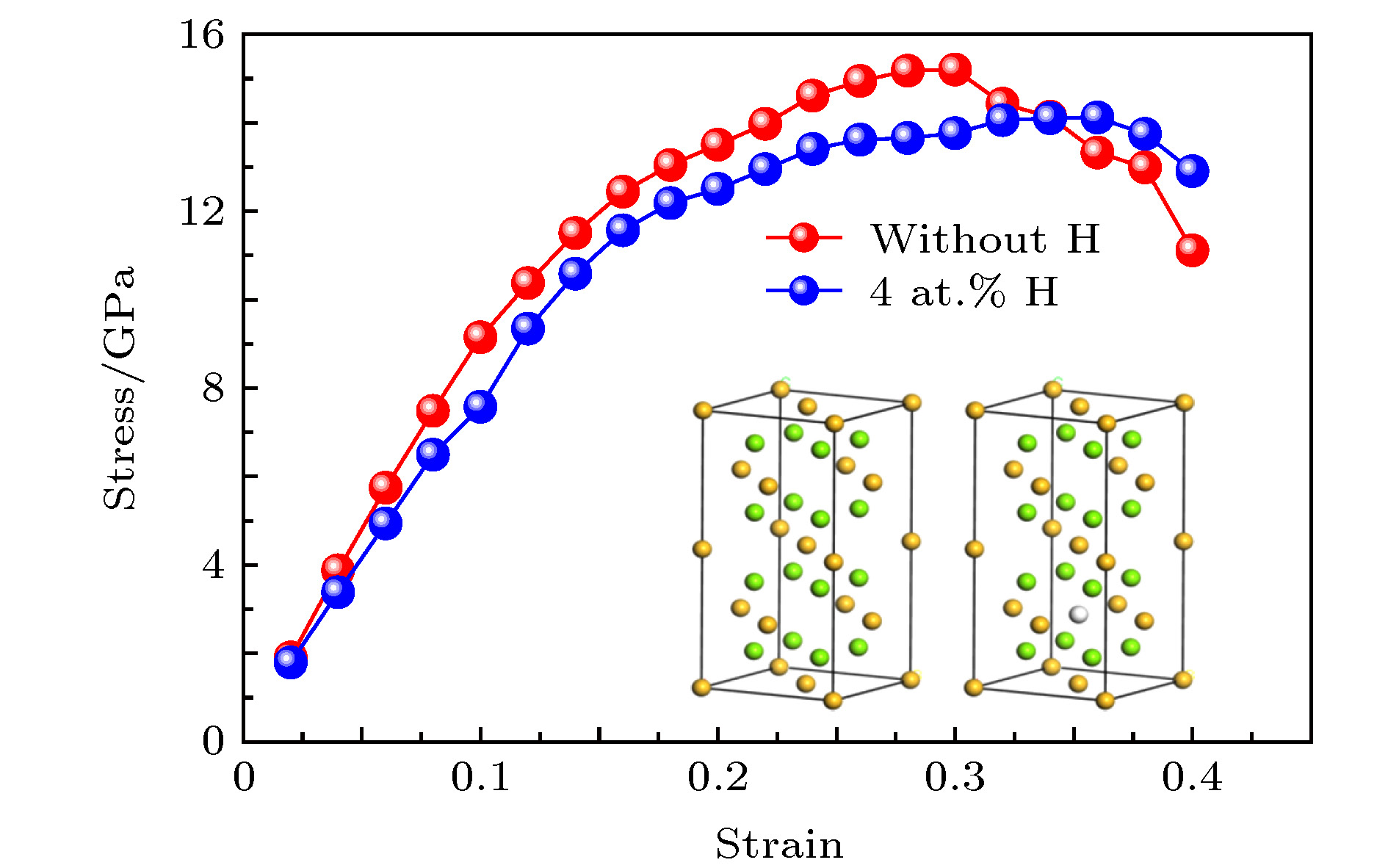

The mechanical properties of Al-Mg-Si-type aluminum alloys may degenerate due to the hydrogen damage during servicing in hydrogen environment. The Mg ₂Si is the main strengthening phases in Al-Mg-Si-type aluminum alloys. Therefore, the mechanical properties of Mg ₂Si directly determine the strengths of Al-Mg-Si-type aluminum alloys. In this work, the effects of hydrogen atoms on the mechanical properties of Mg ₂Si are investigated by first principle calculation, which is based on the density function theory. First of all, we calculate the single crystal elasticity constants of C ₁₁, C ₁₂and C ₄₄. Then the elasticity modulus, Poisson’s ratio and hardness of polycrystalline are calculated by using the crystal elasticity constants. Furthermore, we also calculate the tensile properties of Mg ₂Si with and without H atoms. The difference between the densities of states with and without H atoms is used to investigate the change of Mg ₂Si induced by H atoms. The results show that hydrogen atoms significantly reduce the shear modulus and elastic modulus of Mg ₂Si, resulting in the strength and hardness decreasing, but the toughness increasing. The calculations of tensile properties indicate that H atoms reduce the fracture strength but enhance the fracture elongation of Mg ₂Si. The analysis of density of states indicates that hydrogen atoms will induce the properties of Mg ₂Si to transform from semiconductor to metal properties. The calculated results in this paper can provide a reference basis for revealing the mechanism of strength reduction of Mg ₂Si materials in a hydrogen environment.

Keywords:

Authors and contacts

Corresponding author:Gou Guo-Qing,gouguoqing1001@163.com

Funds:Project supported by the Doctoral Innovation Fund Program of Southwest Jiaotong University, China (Grant No. D-CX201831) and the National Key Research and Development Program of China (Grant No. 2016YFB1200602-16).

FullText HTML: translate this paragraph

References

[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
[12]
[13]
[14]
[15]
[16]
[17]
[18]
[19]
[20]
[21]
[22]
[23]
[24]
[25]
[26]

Cited By

DownLoad: Full-Size Img PowerPoint

Phase	Source	Elastic constants/GPa
Phase	Source	C₁₁	C₁₂	C₄₄	C'	C₁₂–C₄₄

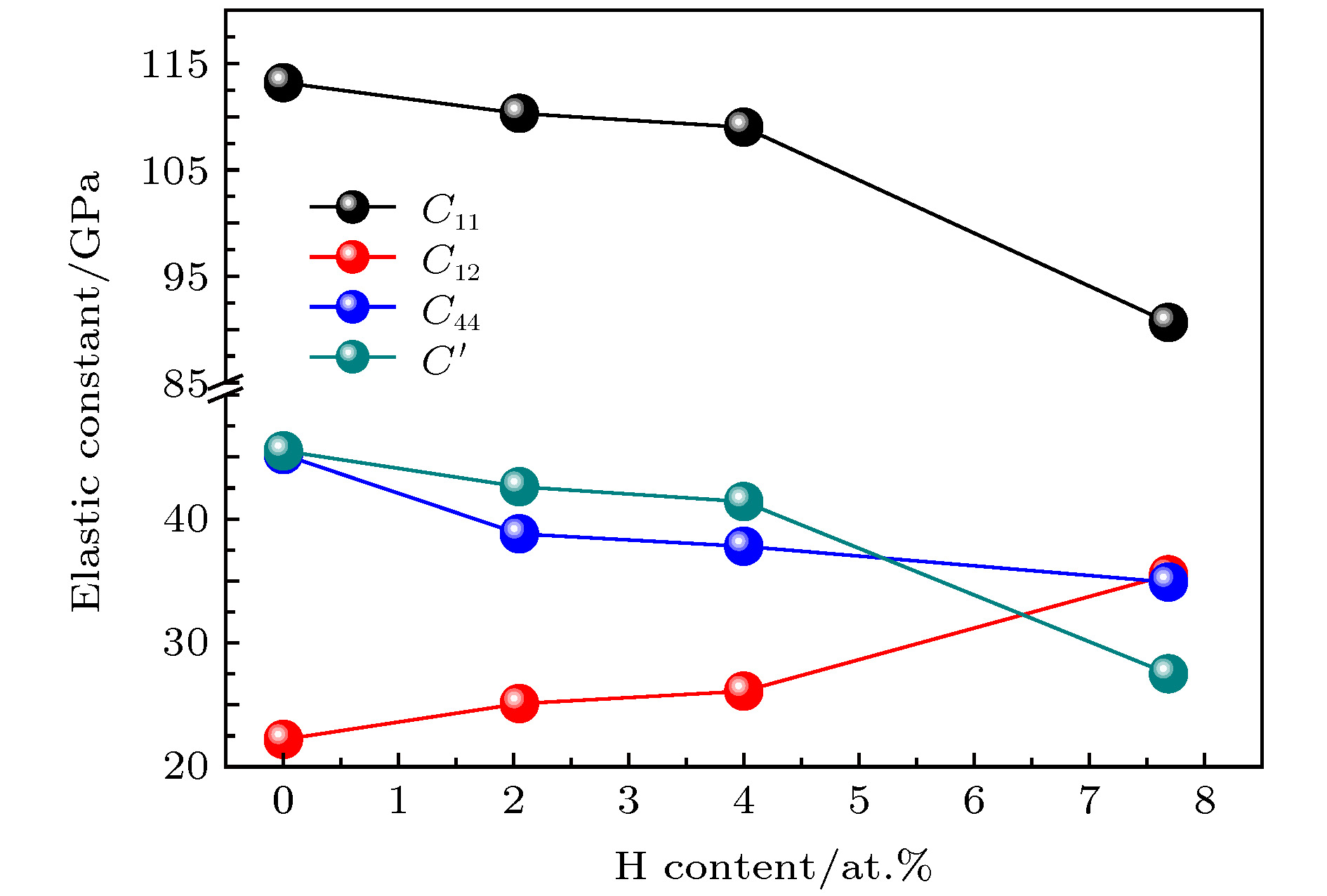

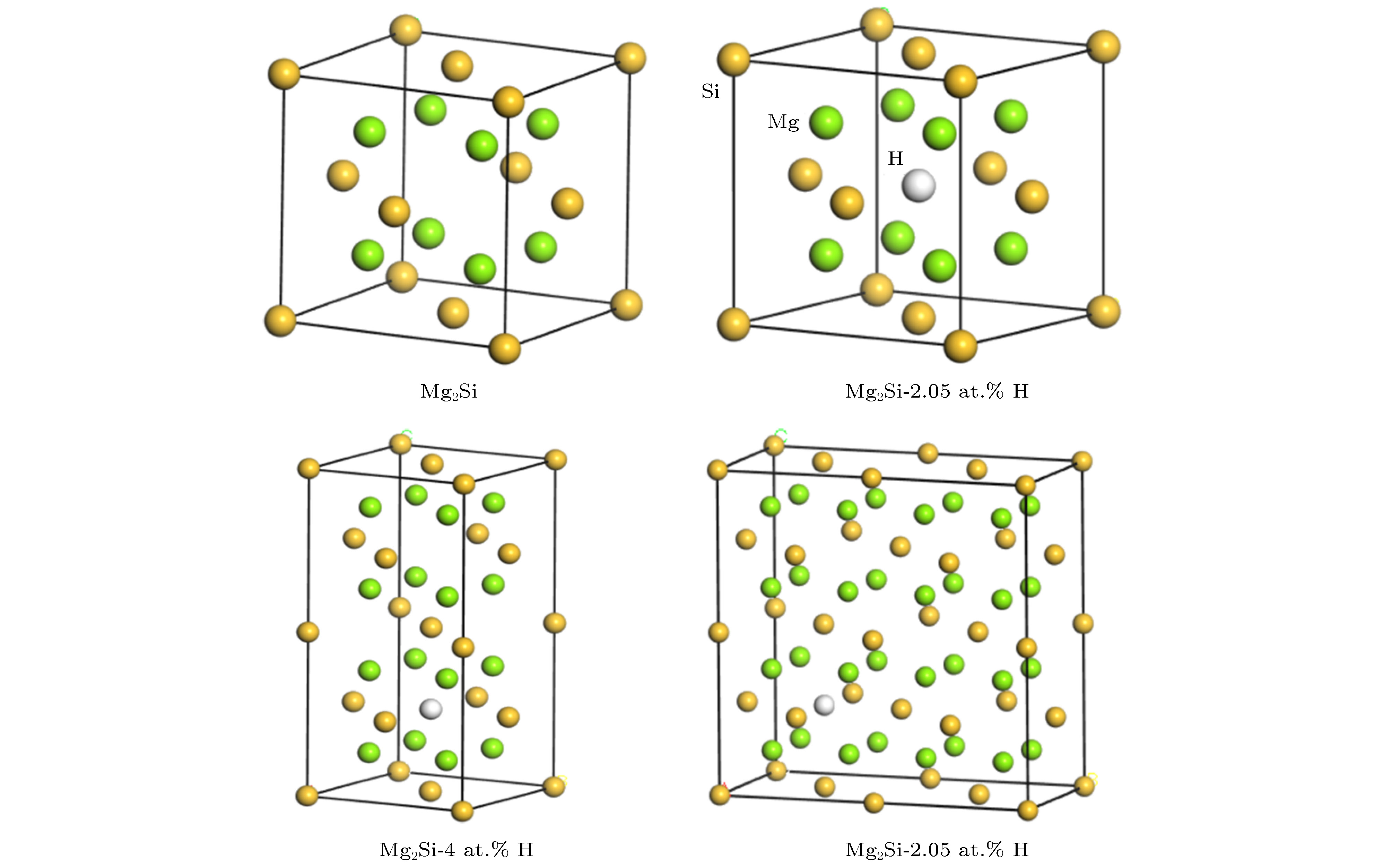

Mg₂Si	This work	113.2	22.2	45.2	45.5	–23.0
	Calculated^[20]	113.7	22.8	43.5
	Calculated^[6]	114.5	21.5	45.6
	Experimental^[21]	126.0	26.0	48.5
Mg₂Si-2.05 at.%H	This work	110.3	25.1	38.8	42.6	–13.7
Mg₂Si-4 at.%H	This work	109.0	26.1	37.8	41.4	–11.7
Mg₂Si-7.69 at.%H	This work	90.6	35.5	34.9	27.5	0.6

DownLoad: CSV

Phase	Source	Modulus
Phase	Source	G_H/GPa	B_H/GPa	E/GPa	ν	B_H/G_H	H/GPa

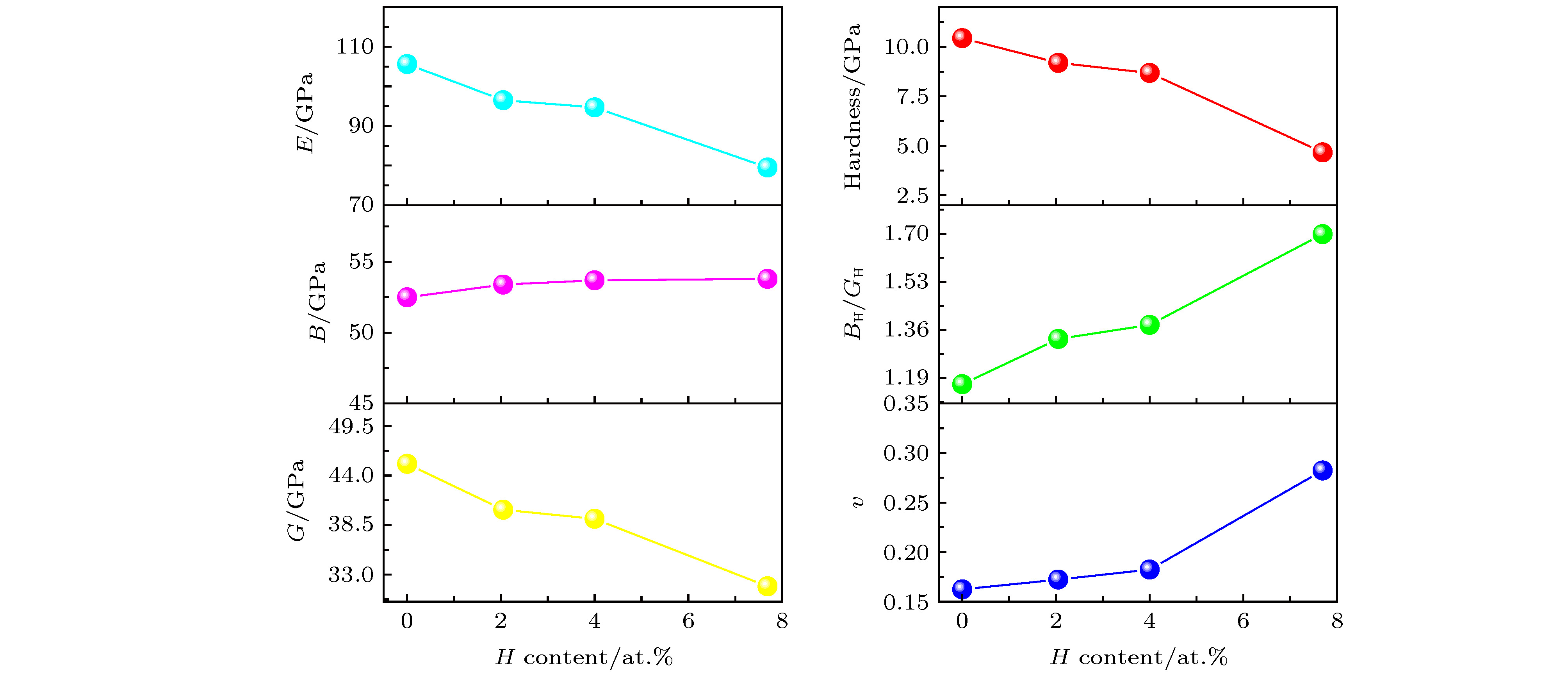

Mg₂Si	This work	45.3	52.5	105.6	0.16	1.16	10.31
	Calculated [20]	46.2	52.5	107.1	0.16	—	—
	Calculated [6]	44.3	53.4	104.1	0.17	—	—
	Experimental [21]	—	59.0	120.0	—	—	—
Mg₂Si-2.05 at.%H	This work	40.2	53.4	96.5	0.17	1.32	9.07
Mg₂Si-4 at.%H	This work	39.2	53.7	94.7	0.18	1.37	8.56
Mg₂Si-7.69 at.%H	This work	31.7	53.8	79.5	0.28	1.69	4.55

DownLoad: CSV

[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
[12]
[13]
[14]
[15]
[16]
[17]
[18]
[19]
[20]
[21]
[22]
[23]
[24]
[25]
[26]

[1]	Fu Xian-Kai, Chen Wan-Qi, Jiang Zhong-Sheng, Yang Bo, Zhao Xiang, Zuo Liang.First-principles investigation on elastic, electronic, and optical properties of Ti₃O₅. Acta Physica Sinica, 2019, 68(20): 207301.doi:10.7498/aps.68.20190664
[2]	Lin Qiao-Lu, Li Gong-Ping, Xu Nan-Nan, Liu Huan, Wang Cang-Long.A first-principles study on magnetic properties of the intrinsic defects in rutile TiO2. Acta Physica Sinica, 2017, 66(3): 037101.doi:10.7498/aps.66.037101
[3]	Hu Jie-Qiong, Xie Ming, Chen Jia-Lin, Liu Man-Men, Chen Yong-Tai, Wang Song, Wang Sai-Bei, Li Ai-Kun.First principles study of electronic and elastic properties of Ti3AC2 (A = Si, Sn, Al, Ge) phases. Acta Physica Sinica, 2017, 66(5): 057102.doi:10.7498/aps.66.057102
[4]	Liu Bo, Wang Xuan-Jun, Bu Xiao-Yu.First principles investigations of structural, electronic and elastic properties of ammonium perchlorate under high pressures. Acta Physica Sinica, 2016, 65(12): 126102.doi:10.7498/aps.65.126102
[5]	Shi Yu, Bai Yang, Mo Li-Bin, Xiang Qing-Yun, Huang Ya-Li, Cao Jiang-Li.First-principles calculation for hydrogen-doped hematite. Acta Physica Sinica, 2015, 64(11): 116301.doi:10.7498/aps.64.116301
[6]	Hu Jie-Qiong, Xie Ming, Zhang Ji-Ming, Liu Man-Men, Yang You-Cai, Chen Yong-Tai.First principles study of Au-Sn intermetallic compounds. Acta Physica Sinica, 2013, 62(24): 247102.doi:10.7498/aps.62.247102
[7]	Zhao Li-Kai, Zhao Er-Jun, Wu Zhi-Jian.First-principles calculations of structural thermodynamic and mechanical properties of 5d transitional metal diborides. Acta Physica Sinica, 2013, 62(4): 046201.doi:10.7498/aps.62.046201
[8]	Yan Xiao-Zhen, Kuang Xiao-Yu, Mao Ai-Jie, Kuang Fang-Guang, Wang Zhen-Hua, Sheng Xiao-Wei.First-principles study on the elastic, electronic and thermodynamic properties of ErNi2B2C under high pressure. Acta Physica Sinica, 2013, 62(10): 107402.doi:10.7498/aps.62.107402
[9]	Fan Kai-Min, Yang Li, Sun Qing-Qiang, Dai Yun-Ya, Peng Shu-Ming, Long Xing-Gui, Zhou Xiao-Song, Zu Xiao-Tao.First-principles study on elastic properties of hexagonal phase ErAx (A=H, He). Acta Physica Sinica, 2013, 62(11): 116201.doi:10.7498/aps.62.116201
[10]	Zhou Ping, Wang Xin-Qiang, Zhou Mu, Xia Chuan-Hui, Shi Ling-Na, Hu Cheng-Hua.First-principles study of pressure induced phase transition, electronic structure and elastic properties of CdS. Acta Physica Sinica, 2013, 62(8): 087104.doi:10.7498/aps.62.087104
[11]	Duan Yong-Hua, Sun Yong.Electronic structure and optical properties of (α, β, γ)-Nb5Si3. Acta Physica Sinica, 2012, 61(21): 217101.doi:10.7498/aps.61.217101
[12]	Zhao Rong-Da, Zhu Jing-Chuan, Liu Yong, Lai Zhong-Hong.First-principles study of FeAl(B2) microalloyed with La, Ac, Sc and Y. Acta Physica Sinica, 2012, 61(13): 137102.doi:10.7498/aps.61.137102
[13]	Wang Bin, Liu Ying, Ye Jin-Wen.First-principle calculations of elastic, electronic and thermodynamic properties of TiC under high pressure. Acta Physica Sinica, 2012, 61(18): 186501.doi:10.7498/aps.61.186501
[14]	Lu Yao, Wang Pei-Ji, Zhang Chang-Wen, Feng Xian-Yang, Jiang Lei, Zhang Guo-Lian.First-principles calculation on electronic structure and optical properties of iron-doped SnO2. Acta Physica Sinica, 2011, 60(11): 113101.doi:10.7498/aps.60.113101
[15]	Jiang Lei, Wang Pei-Ji, Zhang Chang-Wen, Feng Xian-Yang, Lu Yao, Zhang Guo-Lian.Electronic structure and optical properties of Cr doped SnO2 superlattice. Acta Physica Sinica, 2011, 60(9): 093101.doi:10.7498/aps.60.093101
[16]	Yang Li-Jun, Chen Hai-Chuan.First-principles calculations of electronic structure, optical and elastic properties of LiGaX2(X=S, Se, Te). Acta Physica Sinica, 2011, 60(1): 014207.doi:10.7498/aps.60.014207
[17]	Hu Yu-Ping, Ping Kai-Bin, Yan Zhi-Jie, Yang Wen, Gong Chang-Wei.First-principles calculations of structure and magnetic properties of -Fe(Si)phase precipitated in the Finemet alloy. Acta Physica Sinica, 2011, 60(10): 107504.doi:10.7498/aps.60.107504
[18]	Yu Ben-Hai, Liu Mo-Lin, Chen Dong.First principles study of structural, electronic and elastic properties of Mg2 Si polymorphs. Acta Physica Sinica, 2011, 60(8): 087105.doi:10.7498/aps.60.087105
[19]	Yu Feng, Wang Pei-Ji, Zhang Chang-Wen.First-principles study of optical and electronic properties of N-doped SnO2. Acta Physica Sinica, 2010, 59(10): 7285-7290.doi:10.7498/aps.59.7285
[20]	Xu Hong-Bin, Wang Yuan-Xu.First-principles study of low-compressibility of transition-metal Tc and its nitrides TcN,TcN2,TcN3 and TcN4. Acta Physica Sinica, 2009, 58(8): 5645-5652.doi:10.7498/aps.58.5645

Catalog

Vol. 68, Issue 17 - 2019-09-05

Metrics

Abstract views:8829
PDF Downloads:95
Cited By:0

Search

Article
