Abstract

In recent years, amorphous InGaZnO thin-film transistor (InGaZnO TFT) has attracted intensive attention. Due to its high mobility, low off-state current, and excellent uniformity over large fabrication area, the InGaZnO TFTs promise to replace silicon-based TFTs in flat panel displays, optical image sensors, touch sensing and fingerprint sensing area. The on-state performances of InGaZnO TFT are used in thin film transistor liquid crystal display, active-matrix organic light emitting display, etc. Consequently, numerous on-current models have been proposed previously. However, for lots of the emerging sensing applications such as optical image sensors, the leakage current of InGaZnO TFTs is critical. Previous literature has shown that the leakage current generation mechanisms in TFTs include trap-assisted thermal emission, trap-assisted field emission, inter-band tunneling, and auxiliary thermal electron field emission containing Poole-Frenkel effect. However, up to now, there has been few reports on the leakage current model of InGaZnO TFT, which hinders further the development of emerging applications in InGaZnO TFTs for sensor and imagers integrated in display panels. In this paper, the leakage current model of InGaZnO TFT is established on the basis of carrier generation recombination rate. The feasibility of the proposed model is proved by comparing the TCAD simulations with the measured results. In addition, the influences of geometrical parameters on the leakage current of InGaZnO TFT, i.e. the channel width, the active layer thickness, and the gate dielectric thickness, are analyzed in detail. This research gives insightful results for designing the sensors and circuits by using the InGaZnO TFTs.

Keywords:

Authors and contacts

Corresponding author:Liao Cong-Wei,289114489@qq.com

Funds:Project supported by the National Key Research and Development Program of China (Grant No. 2017YFA0204600), the National Natural Science Foundation of China (Grant No. 61404002), and the Fundamental Research Funds for the Central Universities of Central South University, China (Grant No. 2018zzts344).

FullText HTML: translate this paragraph

References

[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
[12]
[13]
[14]
[15]
[16]
[17]
[18]
[19]
[20]
[21]
[22]
[23]
[24]
[25]
[26]
[27]
[28]
[29]

Cited By

DownLoad: Full-Size Img PowerPoint

参数	数值

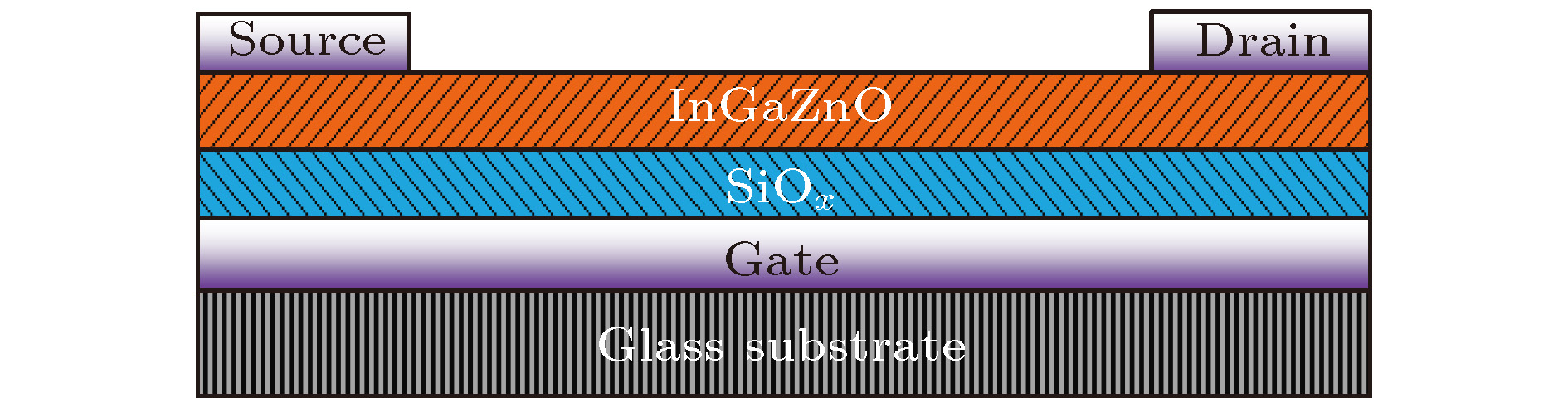

栅介质层厚度/nm	150
a-InGaZnO半导体层厚度/nm	40
沟道宽度/${\text{μ}}{\rm{m}}$	300
沟道长度/${\text{μ}}{\rm{m}}$	50

DownLoad: CSV

参数	描述	数值	单位
nta	导带尾类受主能态密度	1.04 × 10¹⁹	cm^–3·eV^–1
ntd	价带尾类施主能态密度	5.0 × 10²⁰	cm^–3·eV^–1
wta	类受主态特征能量	0.04	eV
wtd	类施主态特征能量	0.1	eV
nga	高斯分布的受主态密度	0	cm^–3·eV^–1
ngd	高斯分布的施主态密度	2.0 × 10¹⁶	cm^–3·eV^–1
egd	高斯分布施主能态峰值能量	2.9	eV
wgd	高斯分布施主能态特征能量	0.1	eV

DownLoad: CSV
