如何对复杂功率超声换能器耦合振动系统的声波进行调控, 设计高性能的换能器系统, 一直都是功率超声领域亟待解决的难题. 研究发现, 在换能器系统内部引入各种缺陷, 可以在一定程度上改善换能器耦合振动系统的性能. 但损耗大、频带窄、对结构参数敏感等缺点限制了缺陷型声子晶体换能器耦合振动系统的进一步实际应用. 为了改善缺陷型声子晶体换能器耦合振动系统的局限, 有效降低能量损耗, 提高能量传输的效率, 本文在换能器耦合振动系统内引入既具有能量局域化效应的拓扑缺陷结构, 又具有高能量传输效率的声表面结构. 通过灵活设计声表面结构和拓扑缺陷的几何尺寸参数, 可以对换能器耦合振动系统的振动进行有效调控, 从而满足换能器耦合振动系统功能方面的不同需求. 但表面结构和拓扑缺陷结构的设计参数过多, 会成倍地增加设计的复杂度, 大幅降低设计成功率, 为此, 利用数据分析技术建立了系统性能预测模型, 不仅可以提高设计效率和成功率, 还能够为换能器耦合振动系统性能的调控提出客观和准确的依据.

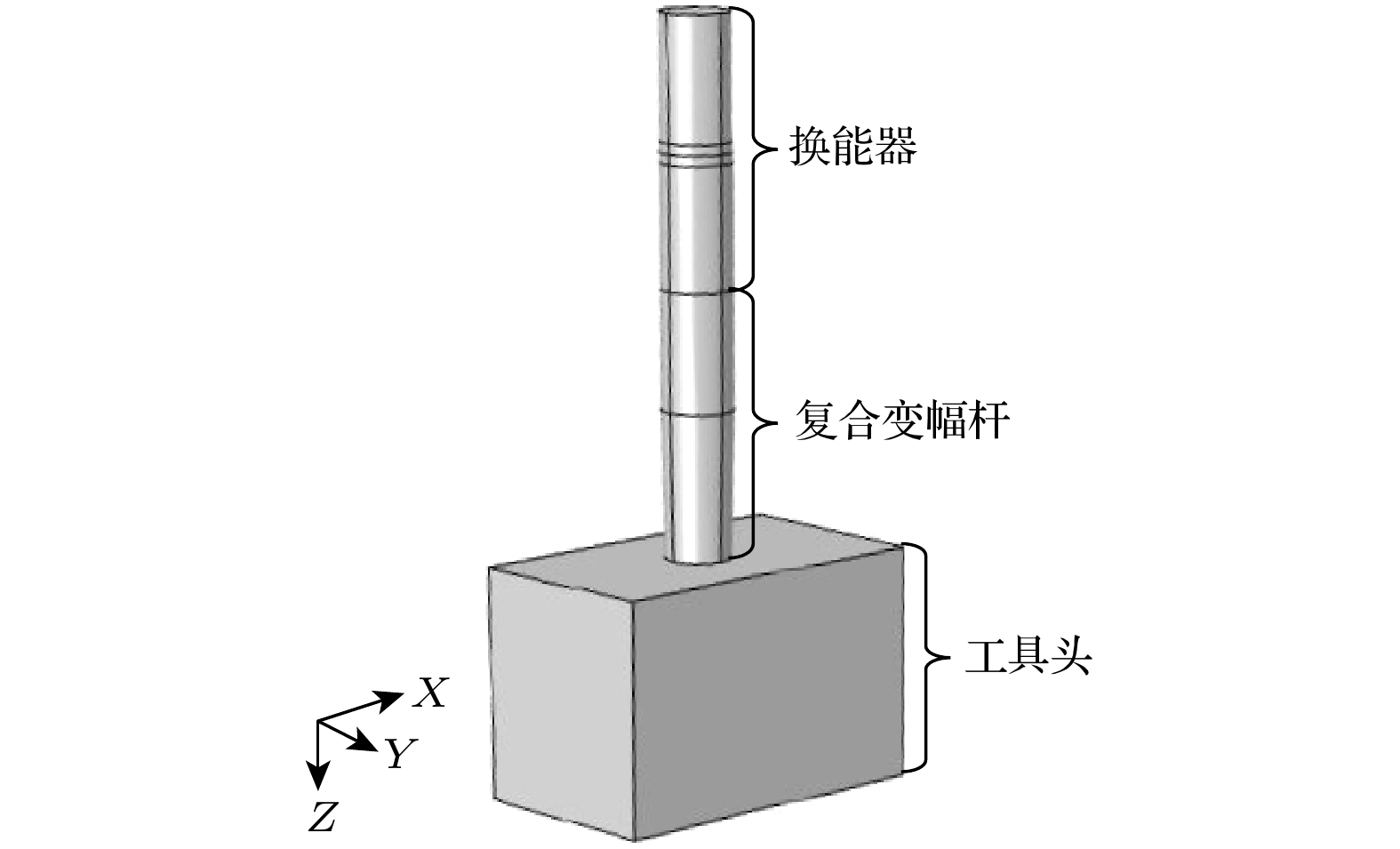

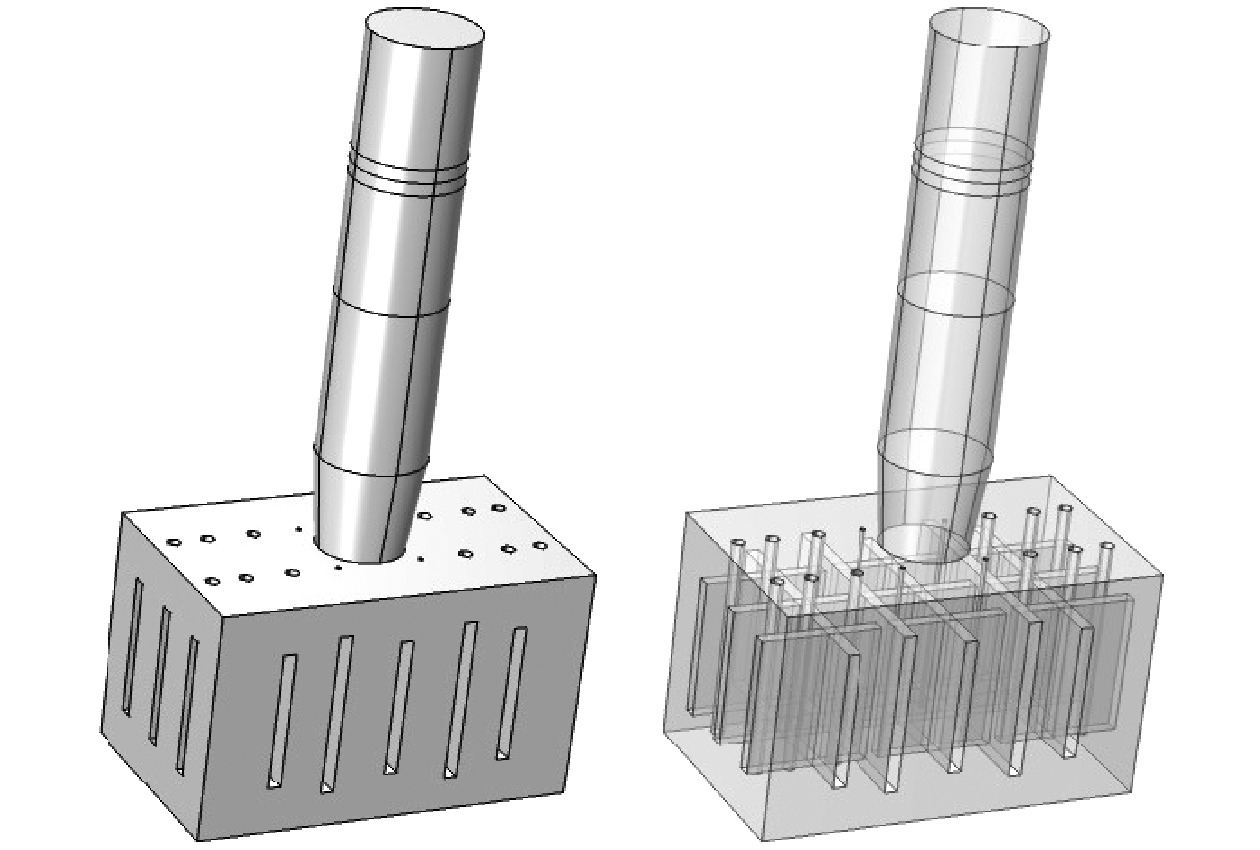

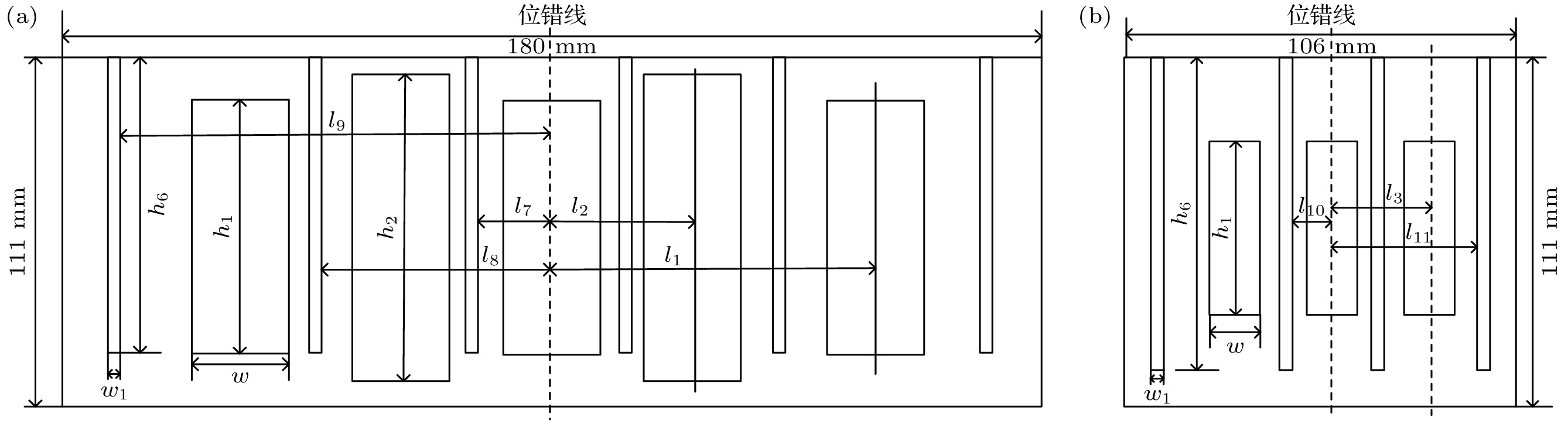

How to regulate the sound waves in the coupled vibration system of complex power ultrasonic transducers and design high-performance transducer systems has always been an urgent problem in the field of power ultrasound. Research has found that introducing various defects within the transducer system can improve the performance of the transducer coupled vibration system to a certain extent. However, the drawbacks of high loss, narrow frequency band, and sensitivity to structural parameters limit the further practical application of defect type phononic crystal transducer coupled vibration systems. In order to improve the limitations of the coupled vibration system of defect-type phononic crystal transducers, effectively reduce energy loss, and enhance the efficiency of energy transmission, this paper introduces a topological defect structure with energy localization effect and a sound surface structure with high energy transmission efficiency into the coupled vibration system of the transducer. In this study, the acoustic surface structure and topological defect structure are used to excite defect states with energy localization effects and high energy transmission efficiency surface states, effectively regulating the vibration of the transducer coupled vibration system, and constructing a transducer coupled vibration system with high quality factor, low loss, and high energy transmission efficiency. By flexibly designing the geometric size parameters of the acoustic surface structure and defects, the vibration of the transducer coupled vibration system can be effectively controlled, thereby meeting the different functional requirements of the transducer coupled vibration system. However, due to the excessive design parameters of surface structure and topological defect structure, the complexity of the design will be multiplied, greatly reducing the success rate of the design. Therefore, this study uses data analysis technology to establish a performance prediction model for the transducer coupled vibration system, in order to achieve the accurate prediction of system performance and change the shortcomings of low design efficiency and low success rate brought by traditional empirical trial and error methods. In order to verify the effectiveness of the research, the coupled vibration system of the transducer is studied in simulation and experiment in this work. The simulation and experimental results indicate that the acoustic surface structure and topological defect structure can effectively regulate sound waves to improve the performance of the transducer coupled vibration system. -
Keywords:
- acoustic surface structure /
- topological defect structure /
- transducer coupled vibration system /
- acoustic wave control
[1] [2] [3] [4] [5] [6] [7] [8] [9] [10] [11] [12] [13] [14] [15] [16] [17] [18] [19] [20] [21] [22] [23] [24] [25] [26] [27] [28] [29] [30] [31] [32] [33] [34] [35] [36] [37] [38] -

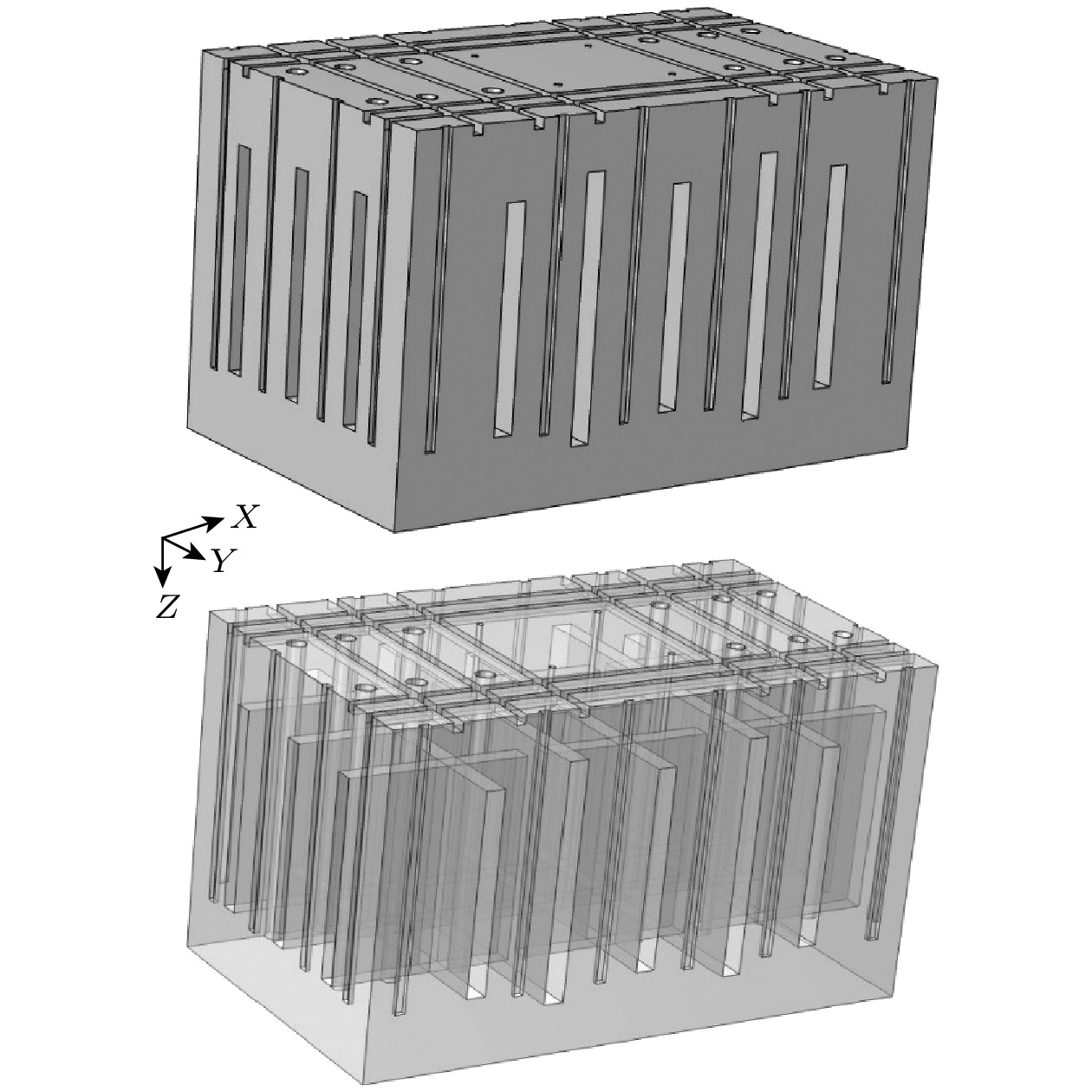

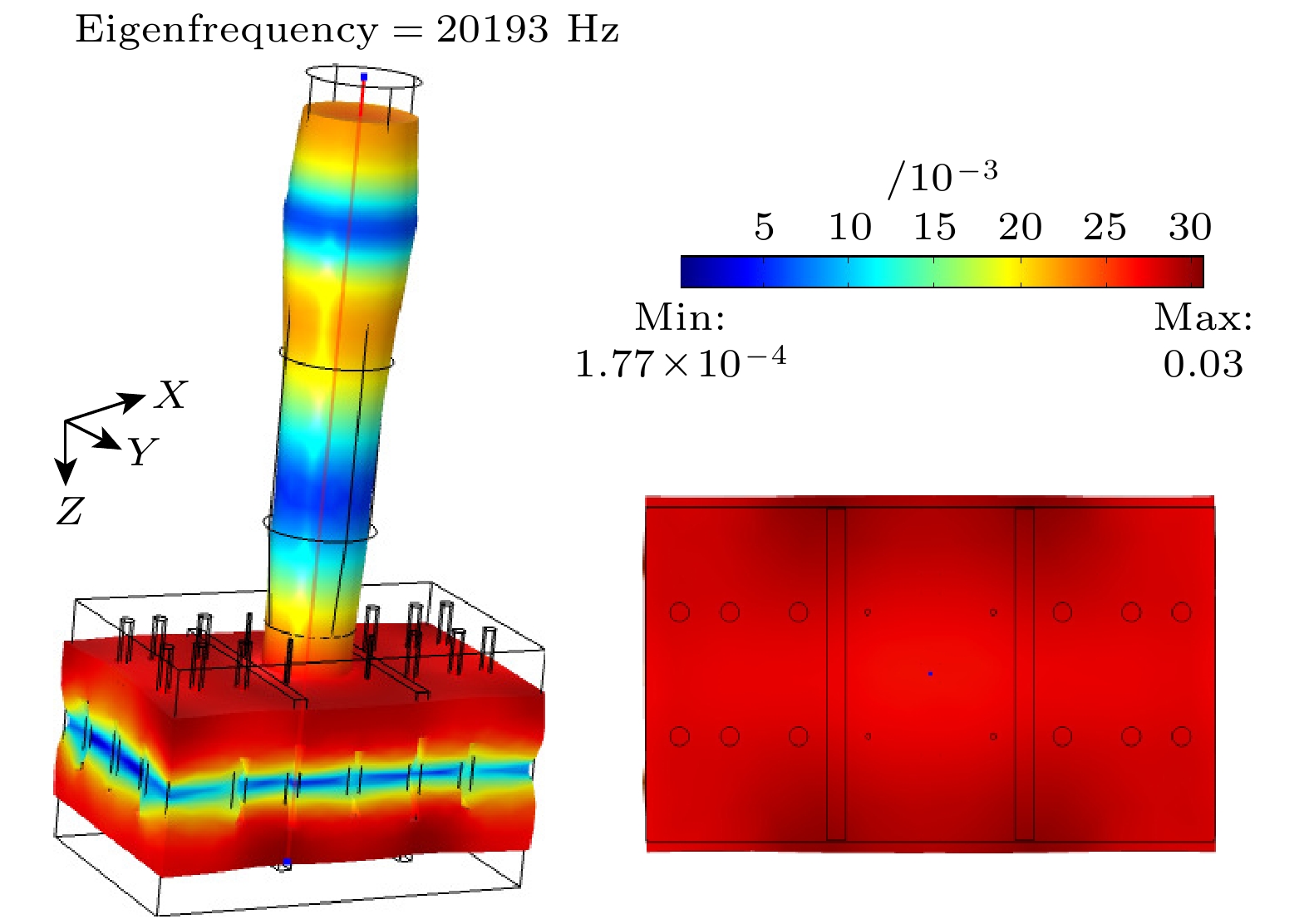

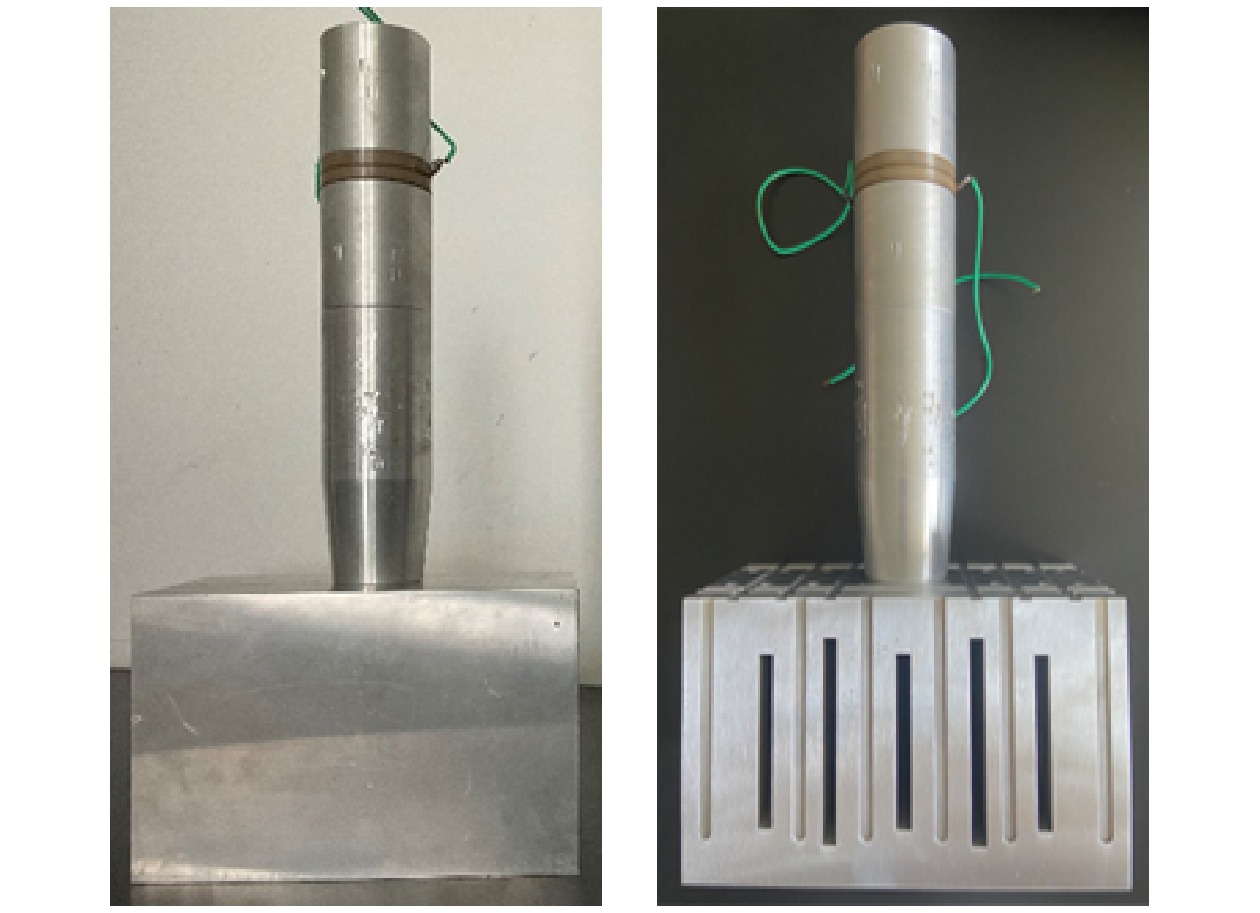

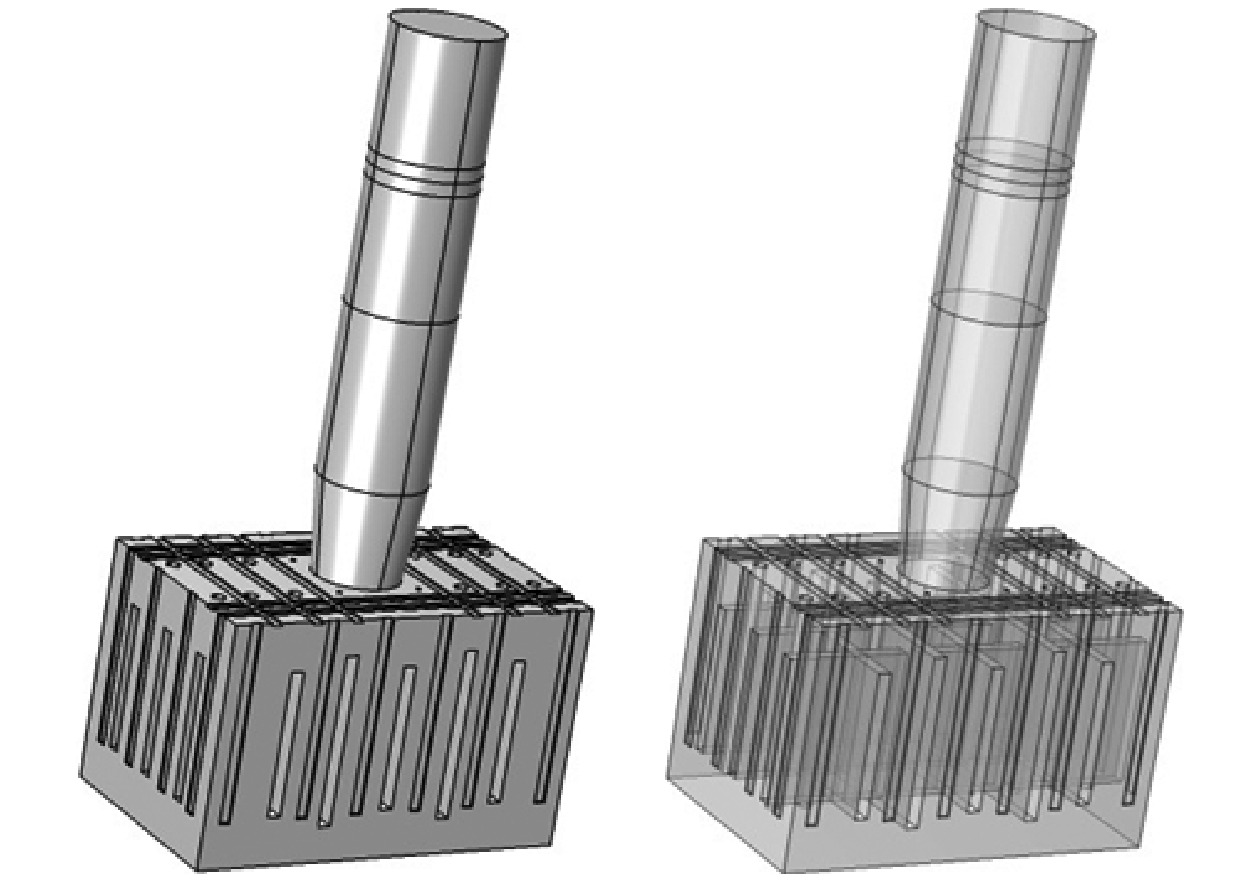

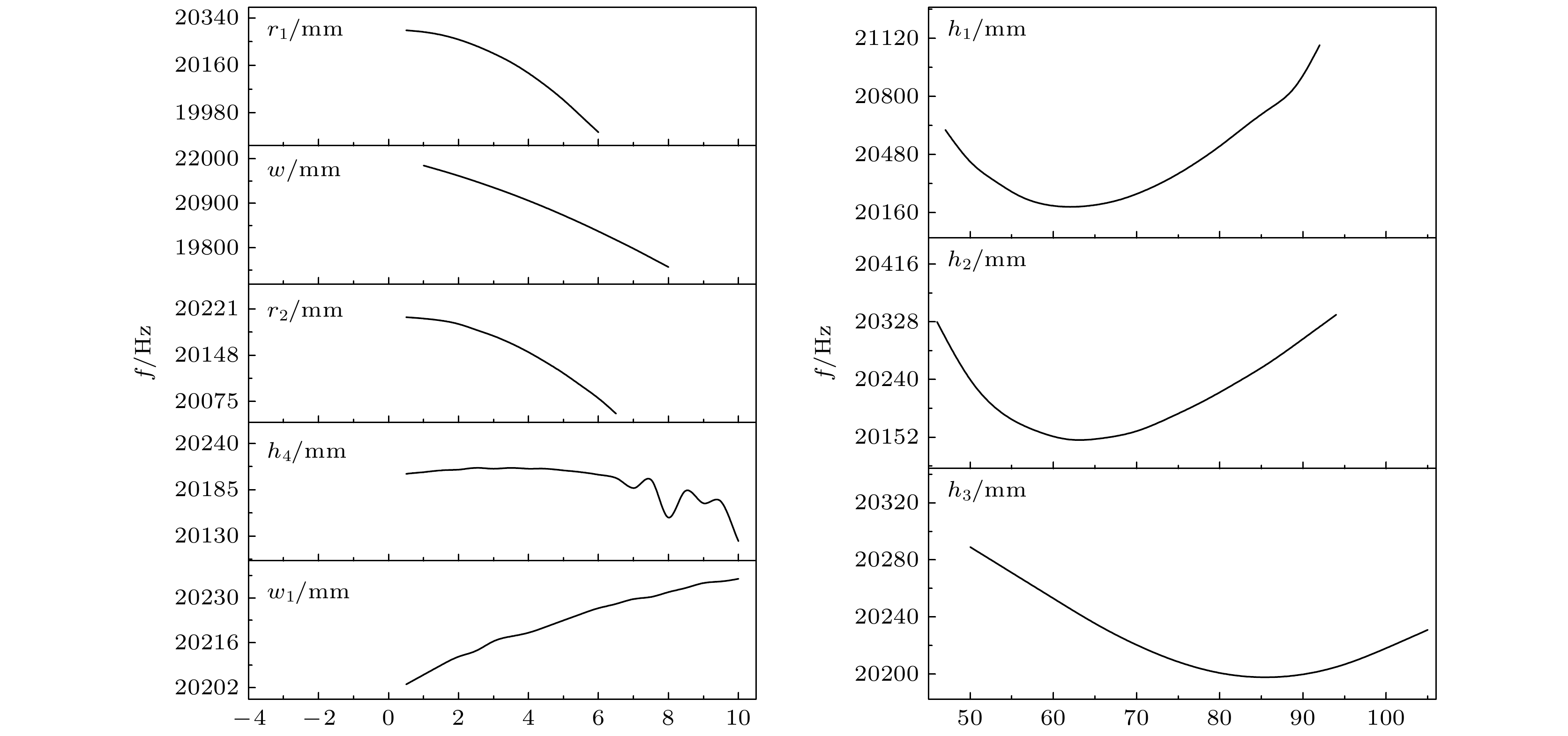

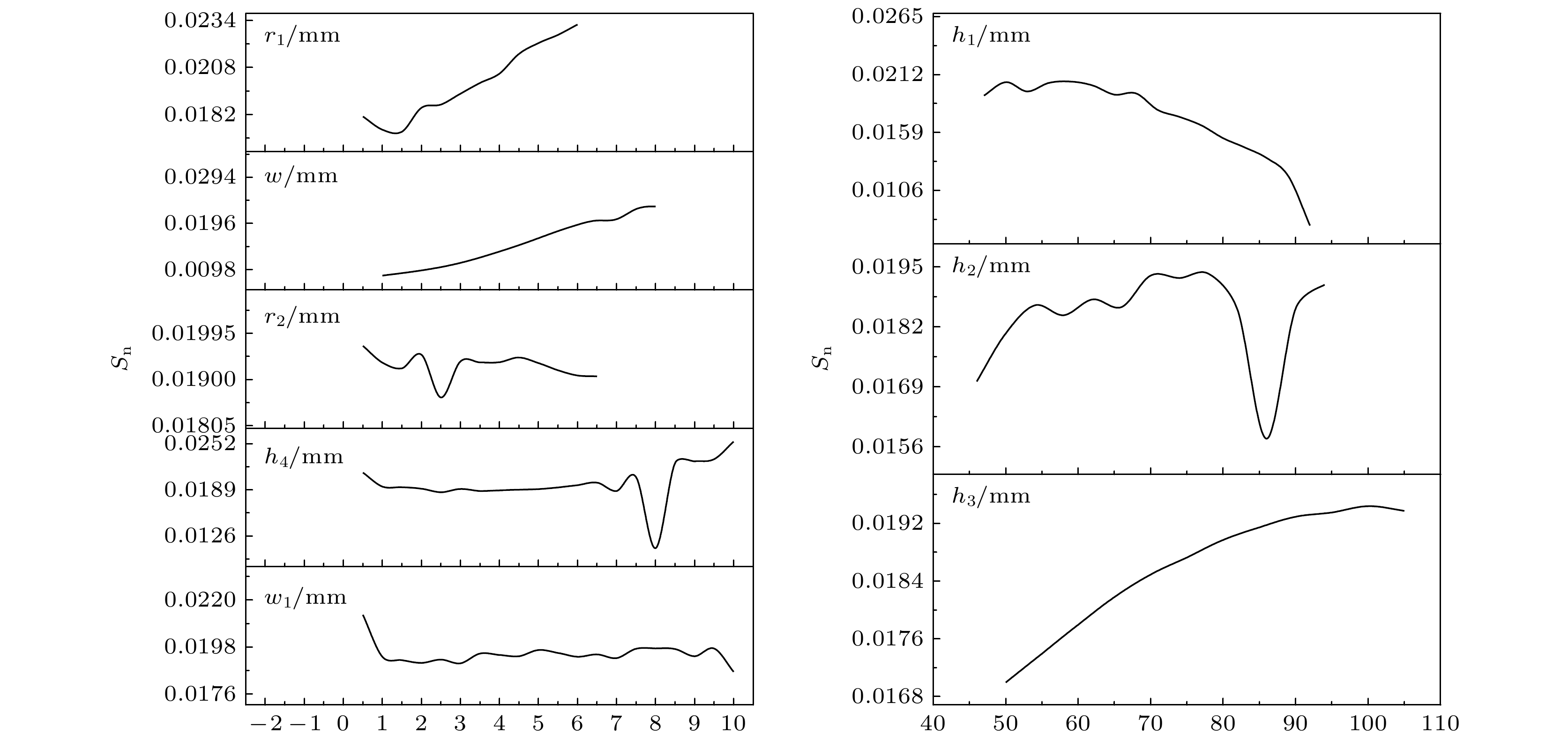

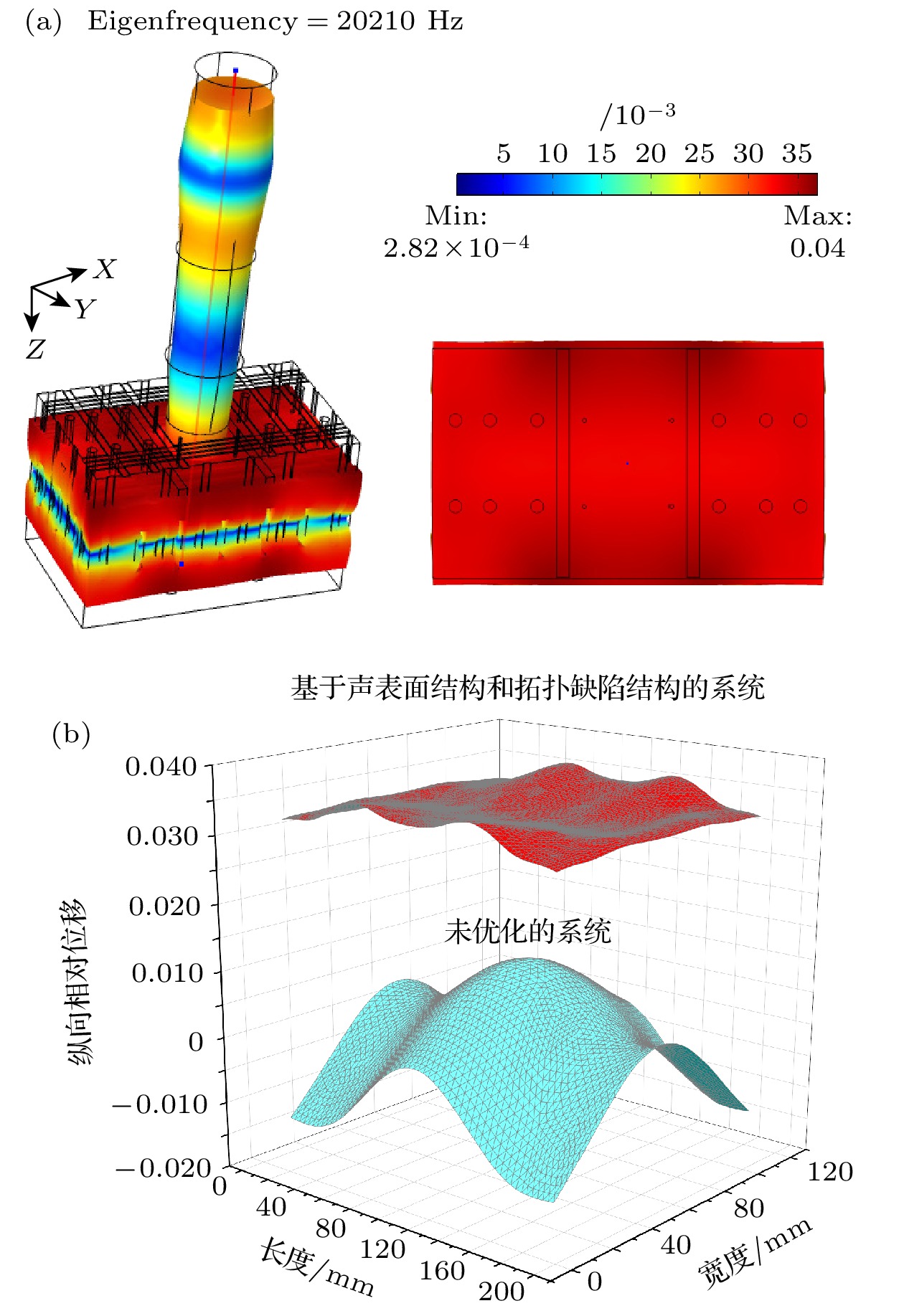

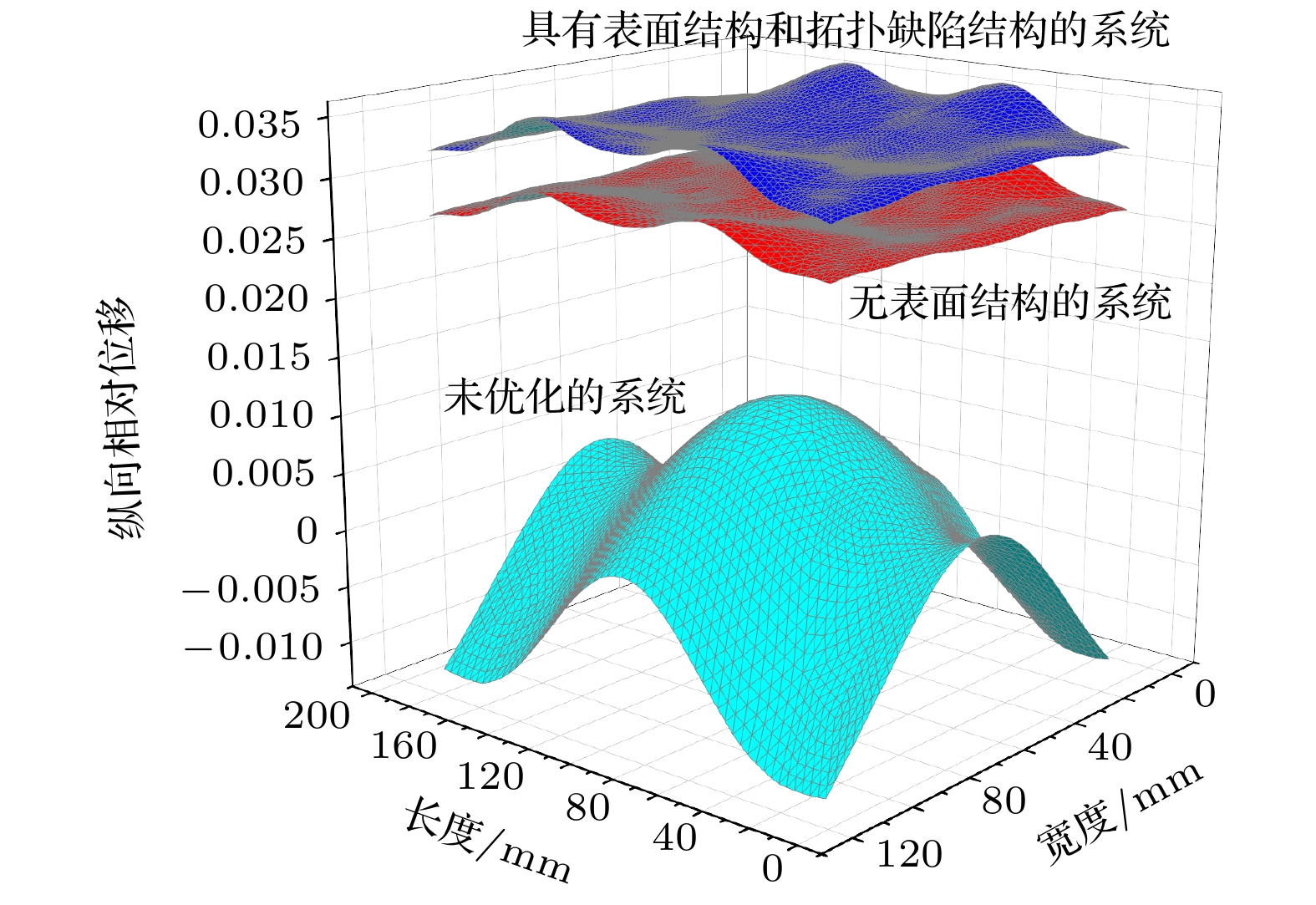

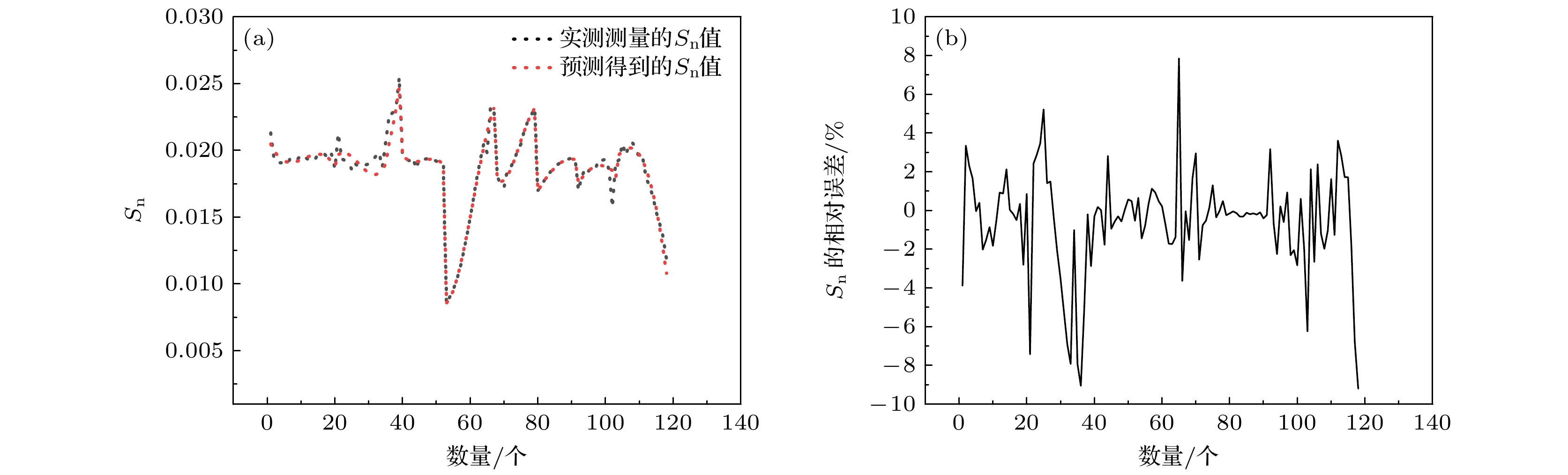

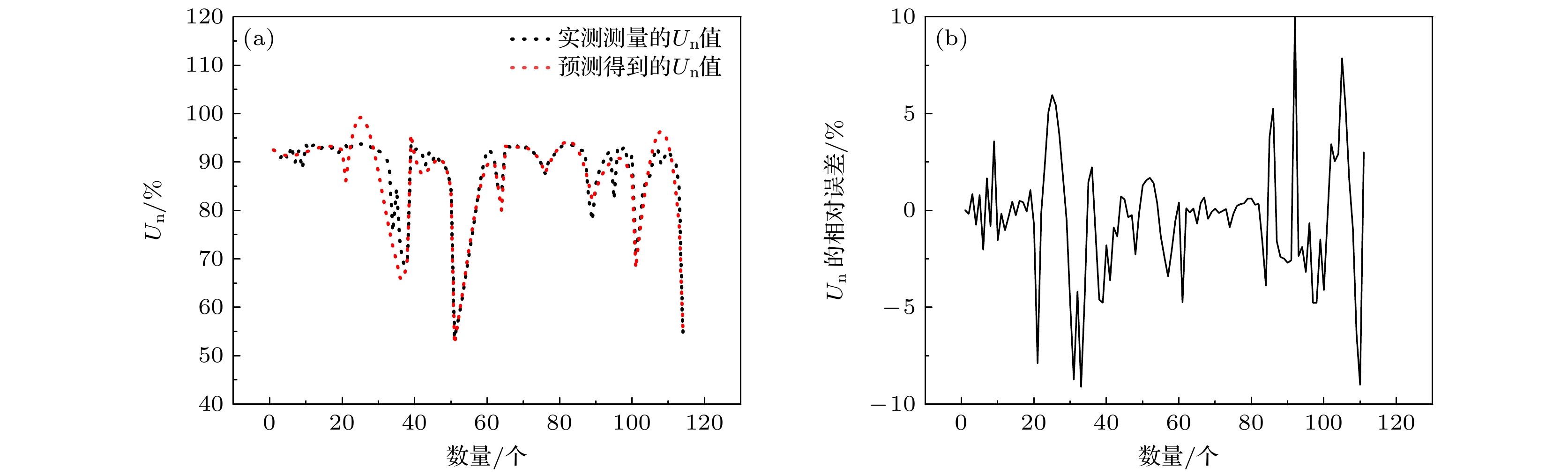

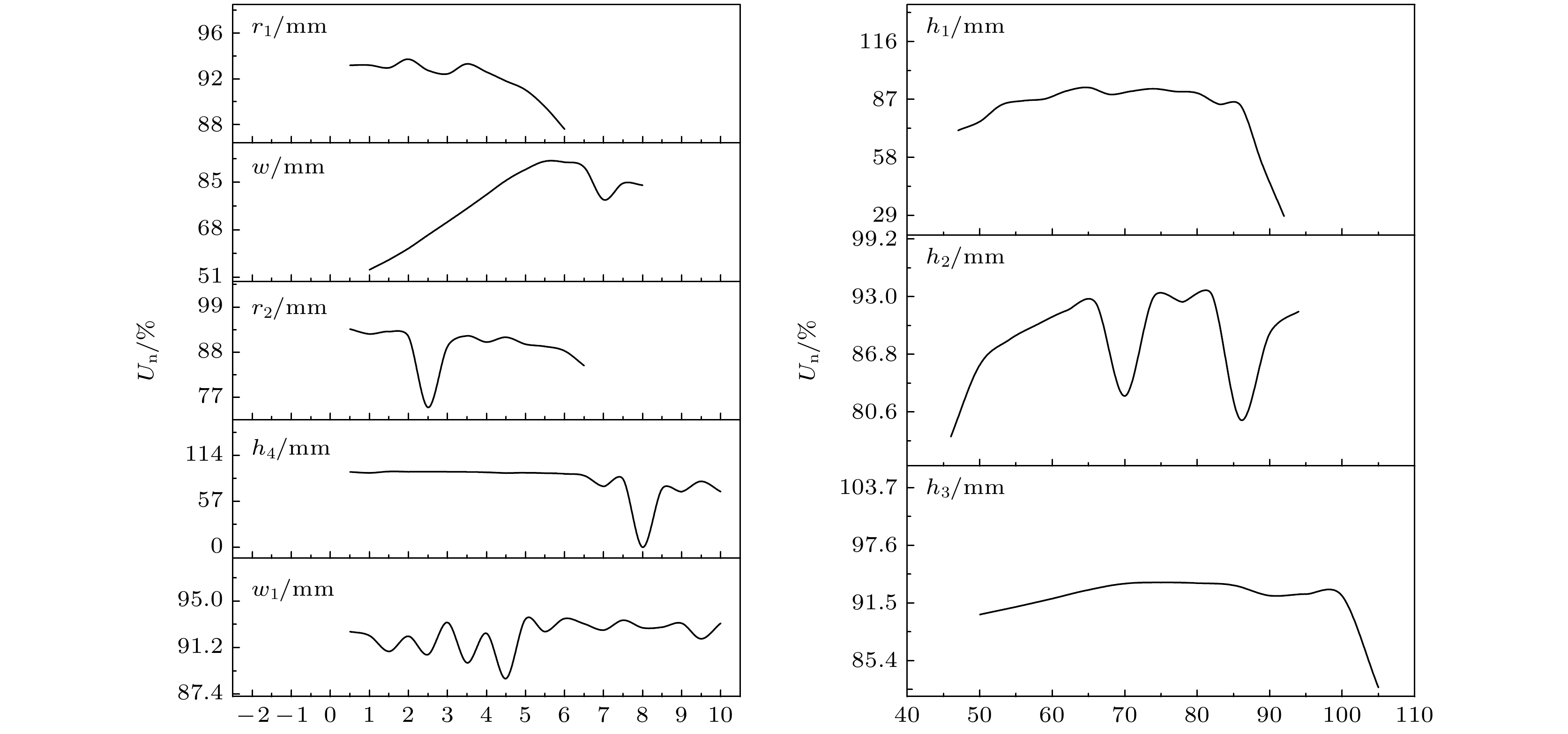

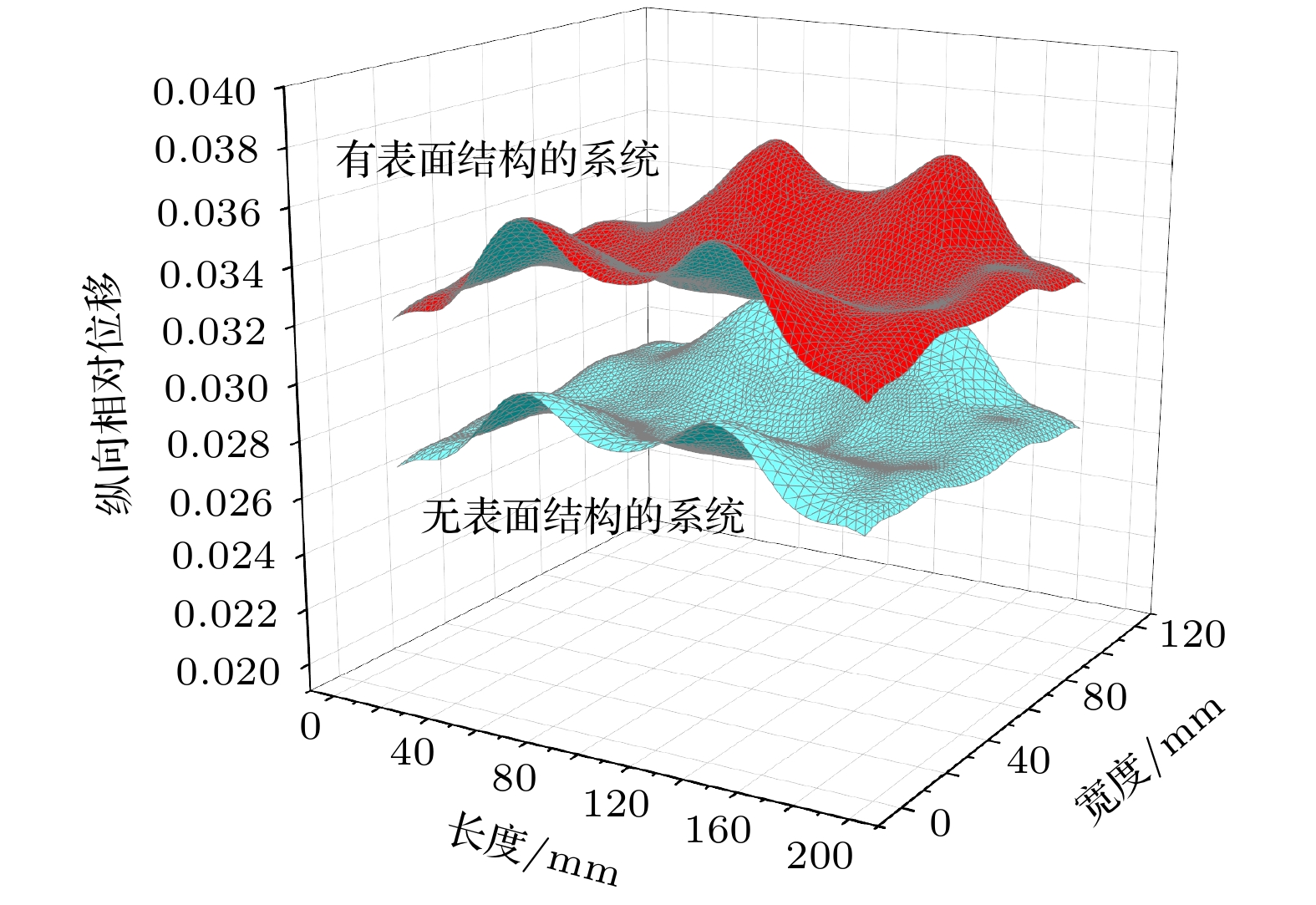

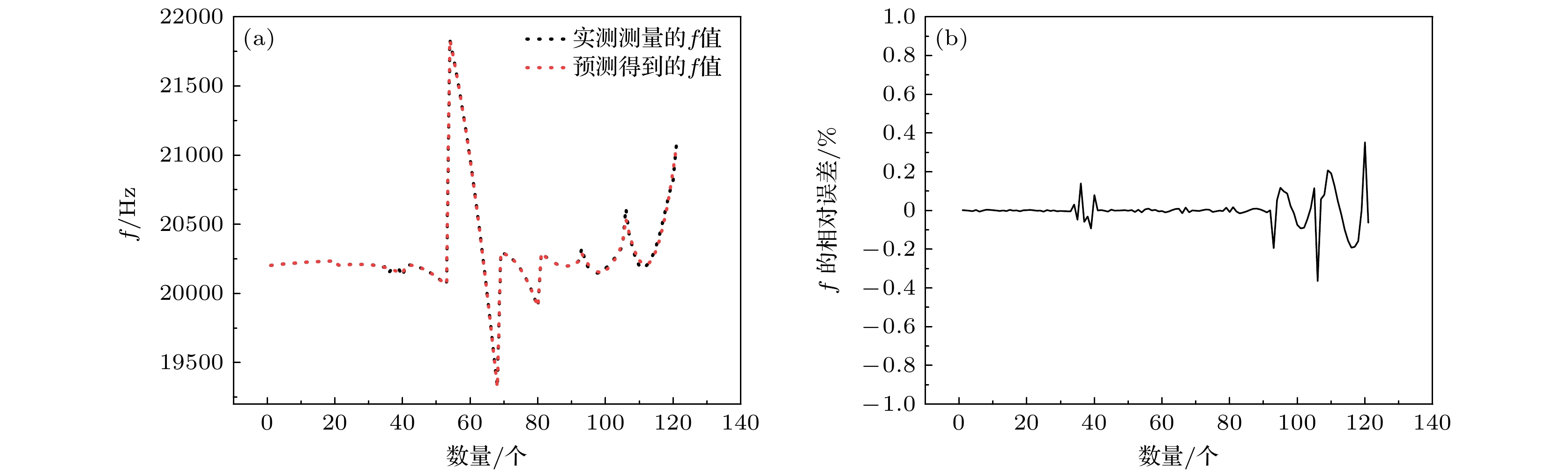

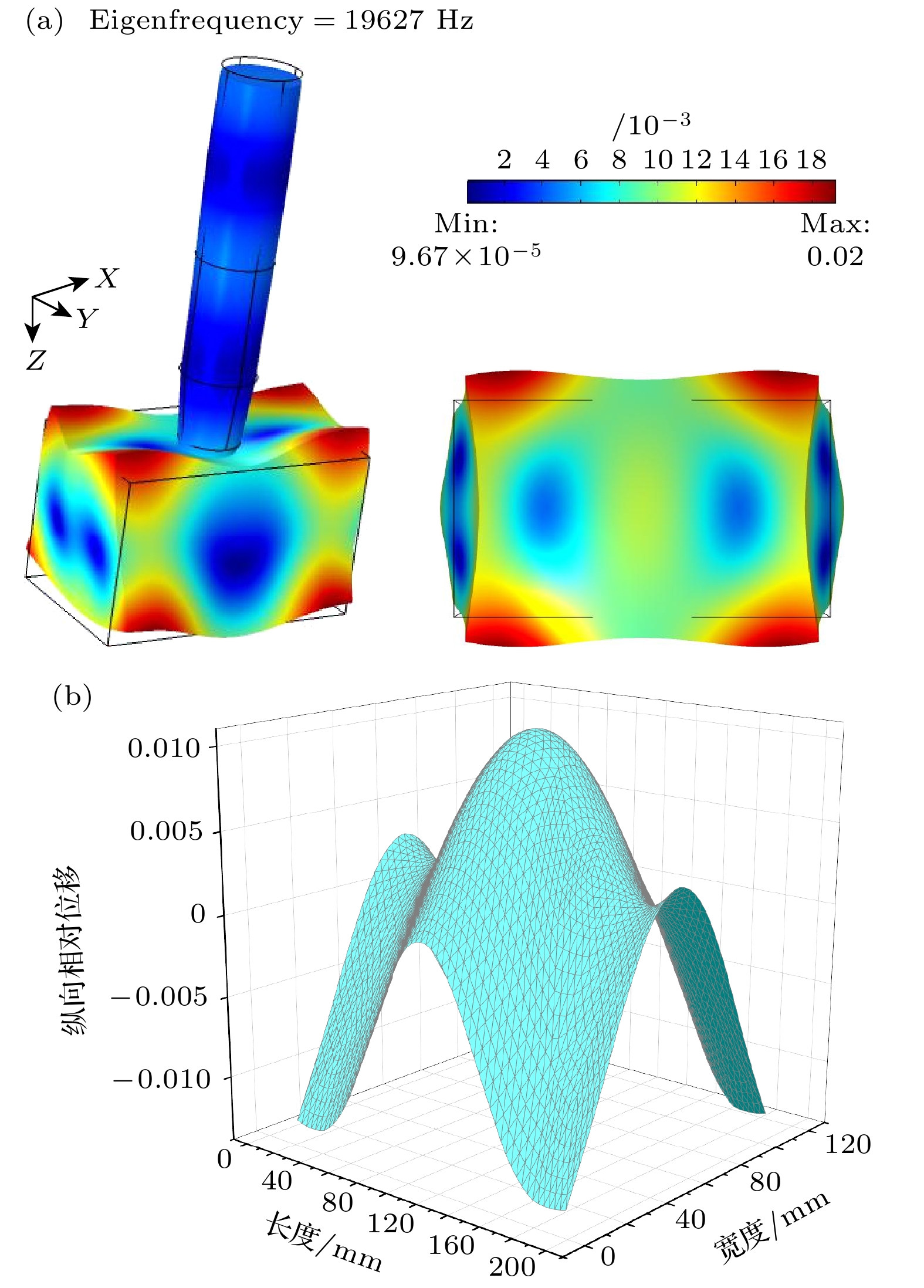

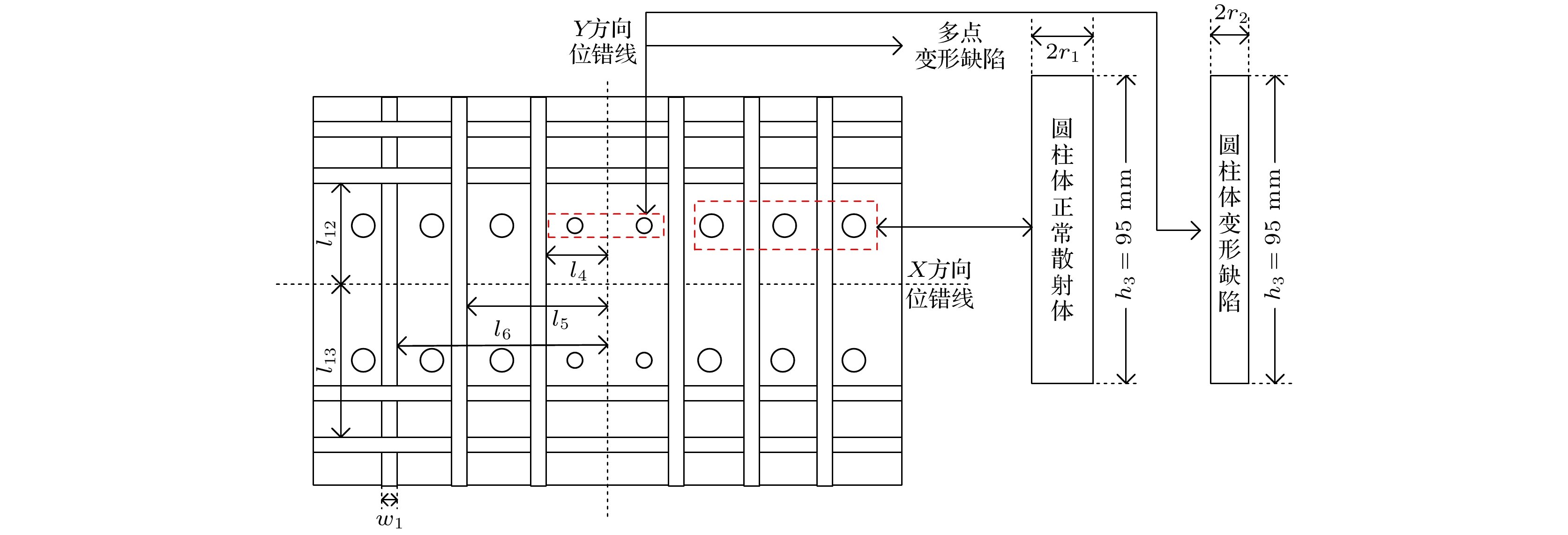

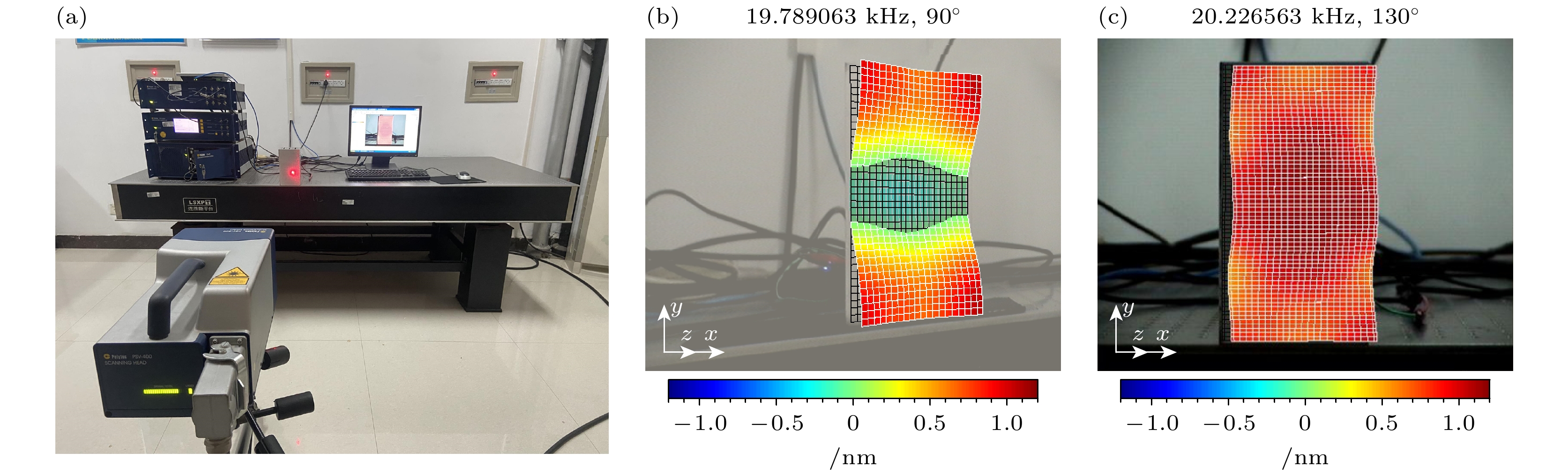

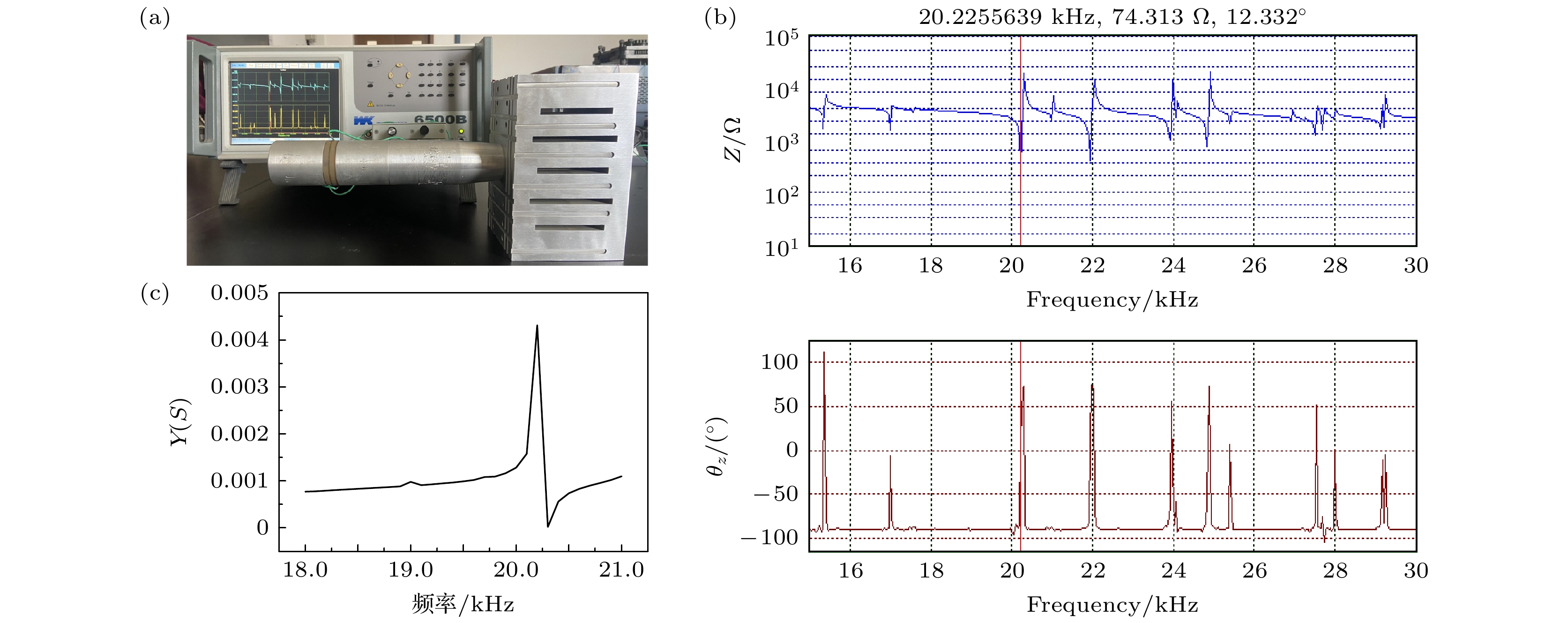

系统 辐射面振幅分布均匀度Un/% 辐射面纵向相对位移振幅平均值Sn 未经过优化的耦合振动系统 0.0427 0.00467 无表面结构的系统 93.747 0.0278 基于声表面和拓扑缺陷结构的换能器耦合振动系统 93.341 0.0333 比值(基于声表面和拓扑缺陷结构的系统/未优化系统) 2185.972 7.131 频率f/Hz A B C D 穿透性长方体槽高度h1/mm 24827.063 –143.789 1.119 0.000 异质长方体槽高度h 2/mm 21488.704 –39.616 0.294 0.000 穿透性长方体槽宽度w/mm 22041.812 –190.343 –20.797 0.262 凹槽厚度h 4/mm 20202.994 3.392 –0.0207 –0.0947 凹槽宽度w1/mm 20200.399 6.0766 –0.342 0.00934 圆柱体孔的半径r1/mm 20292.384 7.339 –11.913 –0.0145 圆柱体孔的高度h 3/mm 20612.845 –7.218 0.000 0.000325 多点变形缺陷空气圆柱体半径r2/mm 20207.287 3.703 –4.601 0.0723 纵向相对位移振幅平均值Sn A B C D 穿透性长方体槽高度h 1/mm 1.34×10–2 0 6.4×10–6 –7.561×10–8 异质长方体槽高度h 2/mm 8.73×10–3 2.82×10–4 –1.96×10–6 0 穿透性长方体槽宽度w/mm 8.79×10–3 –8.8×10–4 7.18×10–4 –4.79×10–5 凹槽厚度h 4/mm 1.94×10–2 7.45×10–4 –3.63×10–4 3.42×10–5 凹槽宽度w 1/mm 2.11×10–2 –1.38×10–3 2.93×10–4 –1.78×10–5 圆柱体孔的半径r1/mm 1.83×10–2 –1.33×10–3 7.42×10–4 –6.44×10–5 圆柱体孔的高度h 3/mm 1.17×10–2 1.15×10–4 0 –3.842×10–9 多点变形缺陷空气圆柱体半径r2/mm 0.02 –8.63×10–4 2.74×10–4 –2.55×10–5 纵向相对位移振幅分布均匀度Un/% A B C D 穿透性长方体槽高度h1/mm –0.265 0 7.91×10–4 –7.72×10–6 异质长方体槽高度h2/mm 0.323 0.0156 –1.04×10–4 0 穿透性长方体槽宽度w/mm 0.443 0.0694 0.0141 –2.15×10–3 凹槽厚度h4/mm 0.780 0.185 –0.0468 2.75×10–3 凹槽宽度w1/mm 0.932 –0.0155 3.83×10–3 –2.35×10–4 圆柱体孔的半径r1/mm 0.937 –0.0106 5.57×10–3 –9.13×10–4 圆柱体孔的高度h3/mm 0.772 0 8.68×10–5 –7.534×10–7 多点变形缺陷空气圆柱体半径r2/mm 1.021 –0.150 0.047 –4.32×10–3 -
