摘要

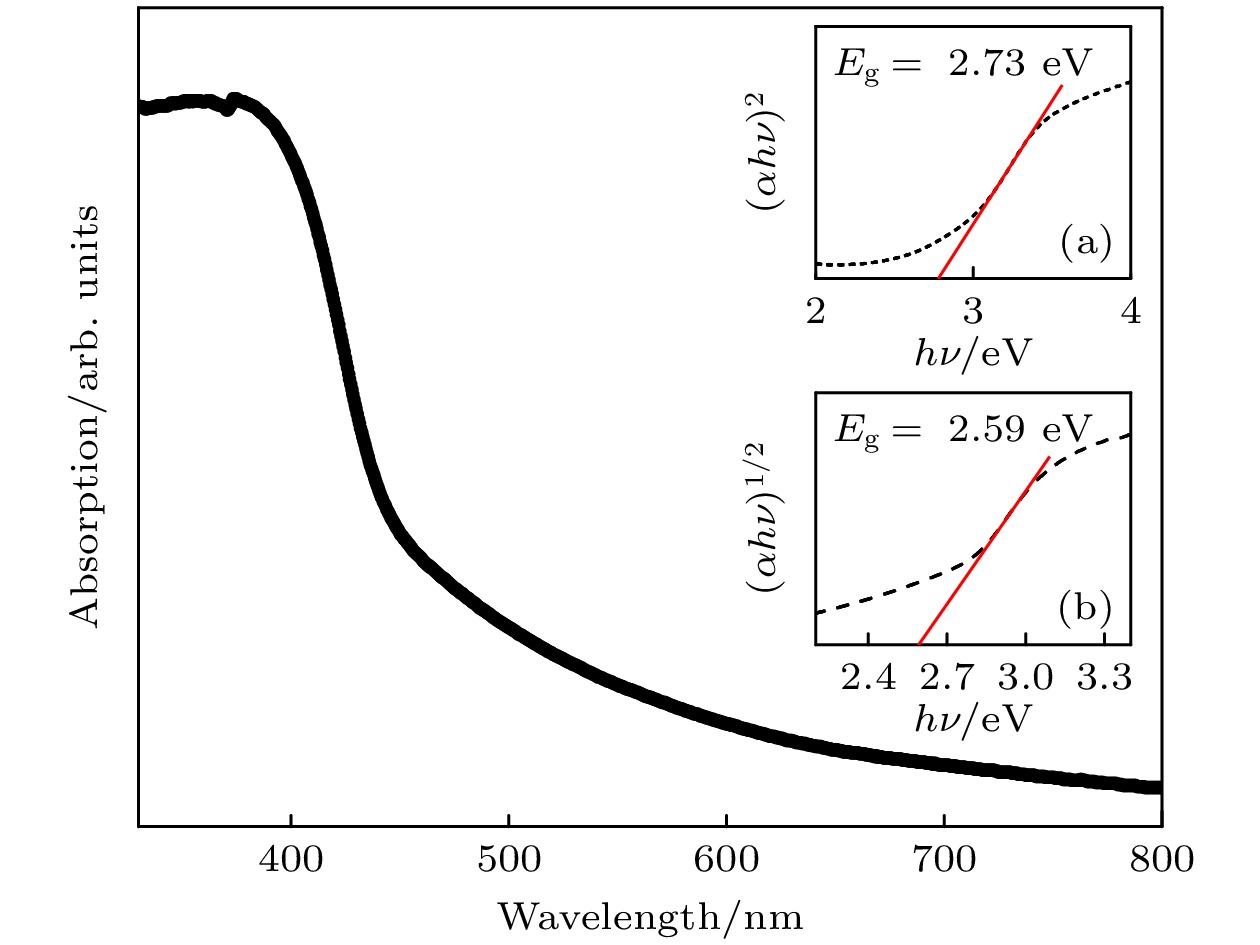

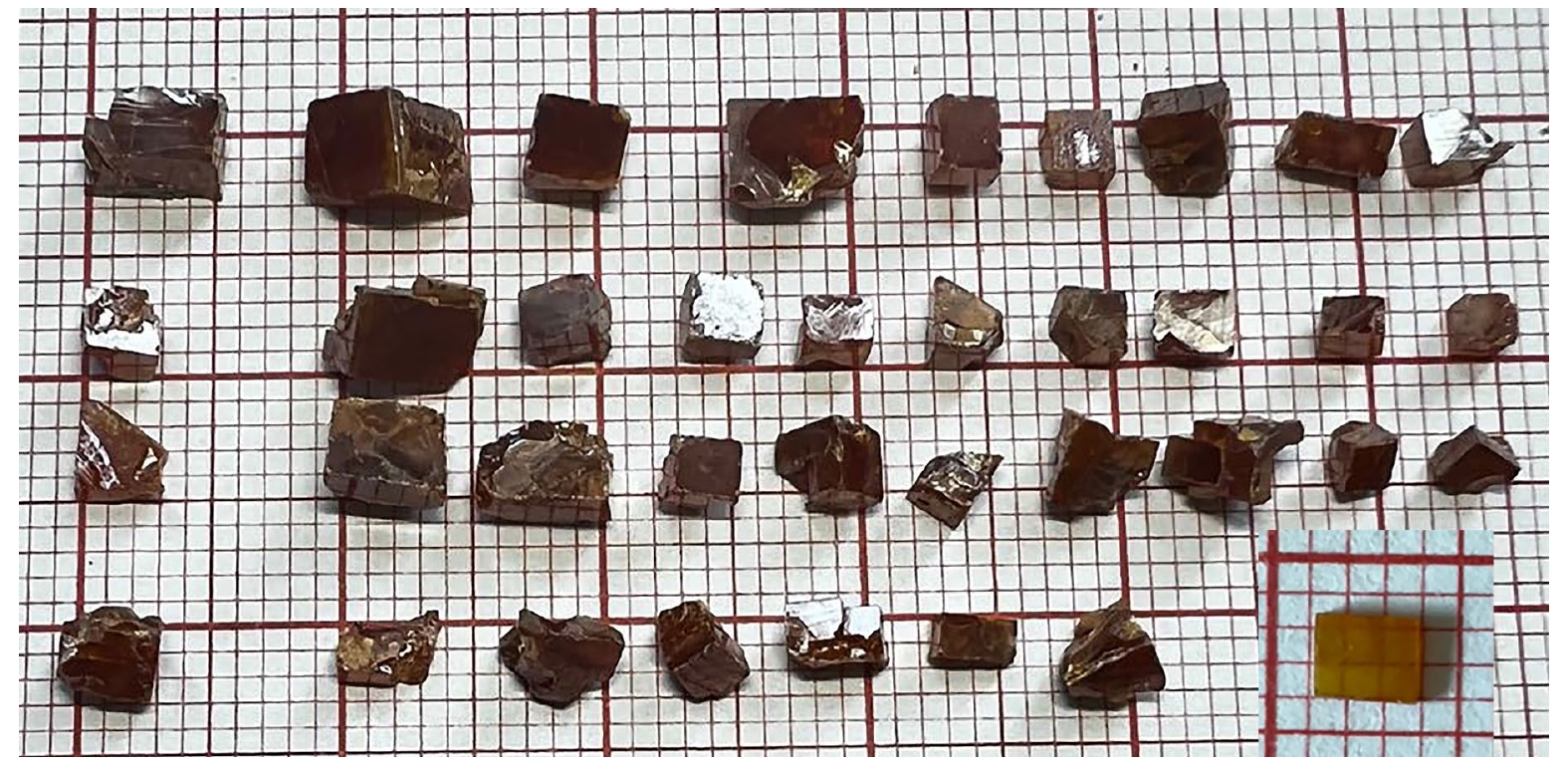

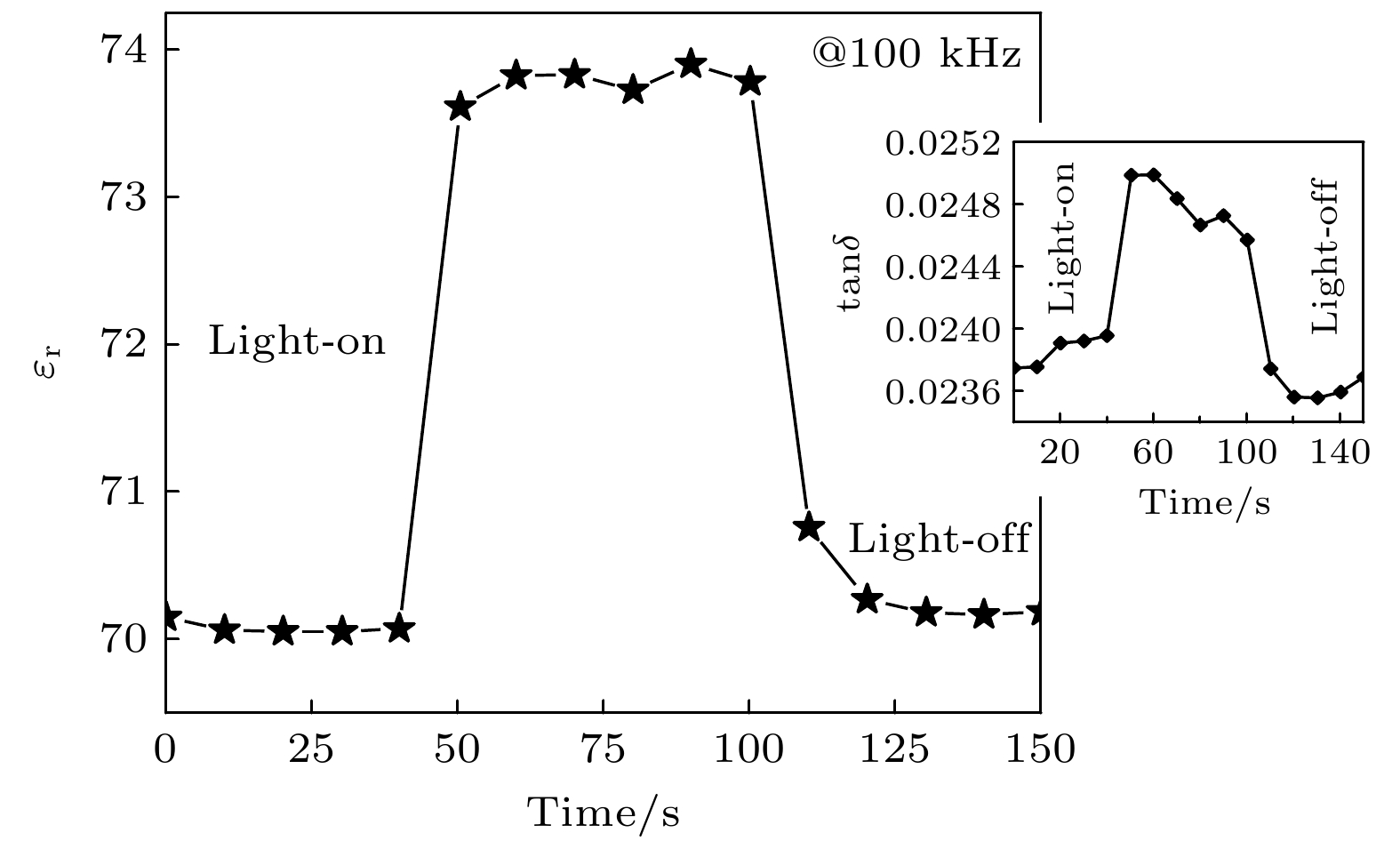

AgNbO ₃具有反铁电性及高的极化强度, 在智能器件领域有着重要的应用前景. 本文采用助溶剂法合成了高质量的AgNbO ₃单晶(最大尺寸5 mm×4 mm×4 mm), 系统研究了其相转变特征、光学和电学性能. 当AgNbO ₃晶体处于正交 M相时, 保持着相同的畴结构; 由 M ₂相转变至 M ₃相时, 偏光显微镜(PLM)照片衬度变暗, 同时电导率和介电损耗明显上升. 当AgNbO ₃单晶由 M ₃相到顺电 O相时, 畴结构消失; 同时, 表现出明显的热滞后现象, 属于第一类相变. 室温下, AgNbO ₃单晶的直接带隙拟合禁带宽度为2.73 eV, 略窄于AgNbO ₃陶瓷. 在临界电场以下, AgNbO ₃单晶表现出更高的电致应变(0.076%, E _m= 130 kV/cm). 在绿色激光照射下, 介电常数由70增至73, 表现出明显的光致介电效应.

关键词:

Abstract

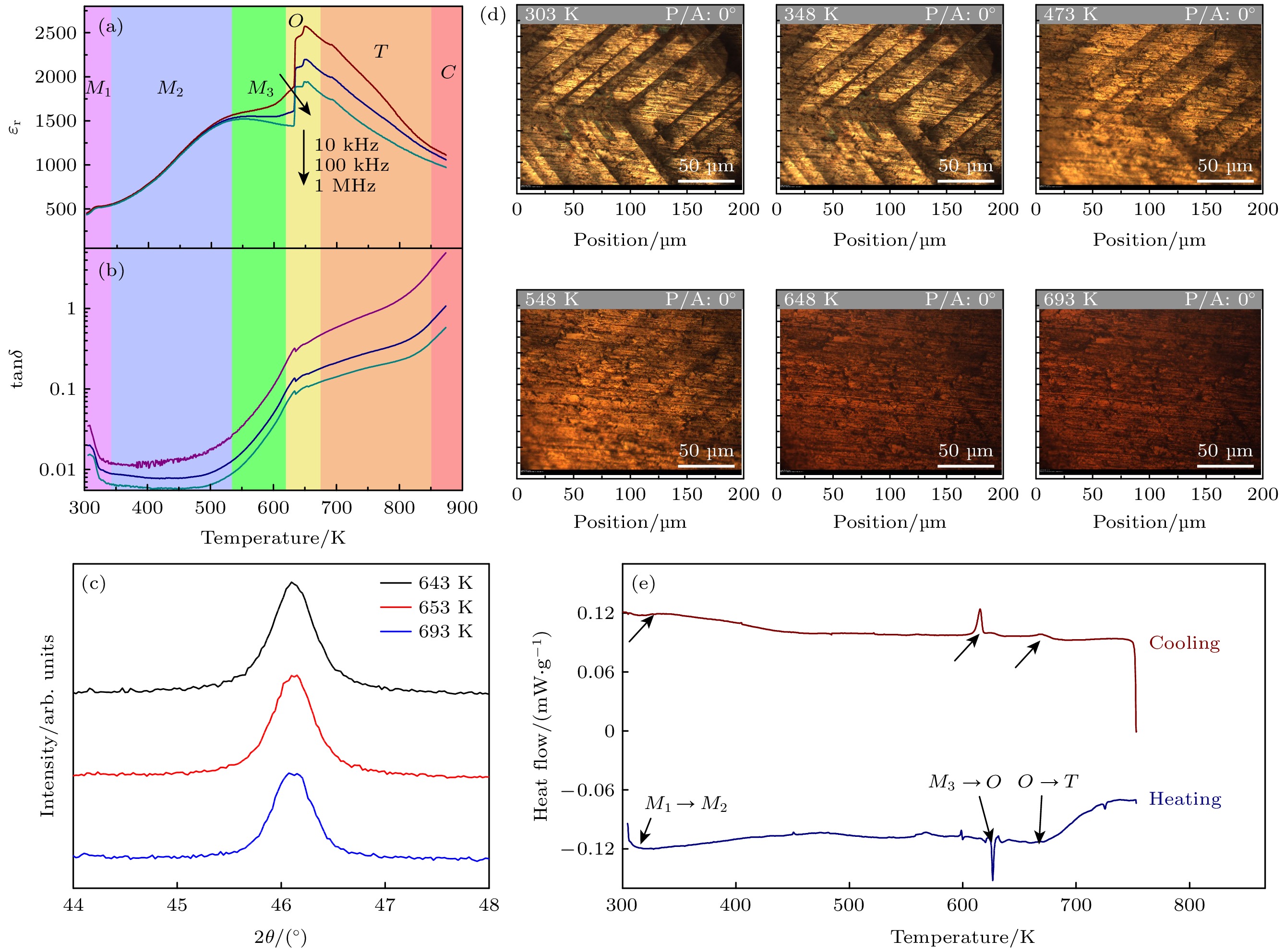

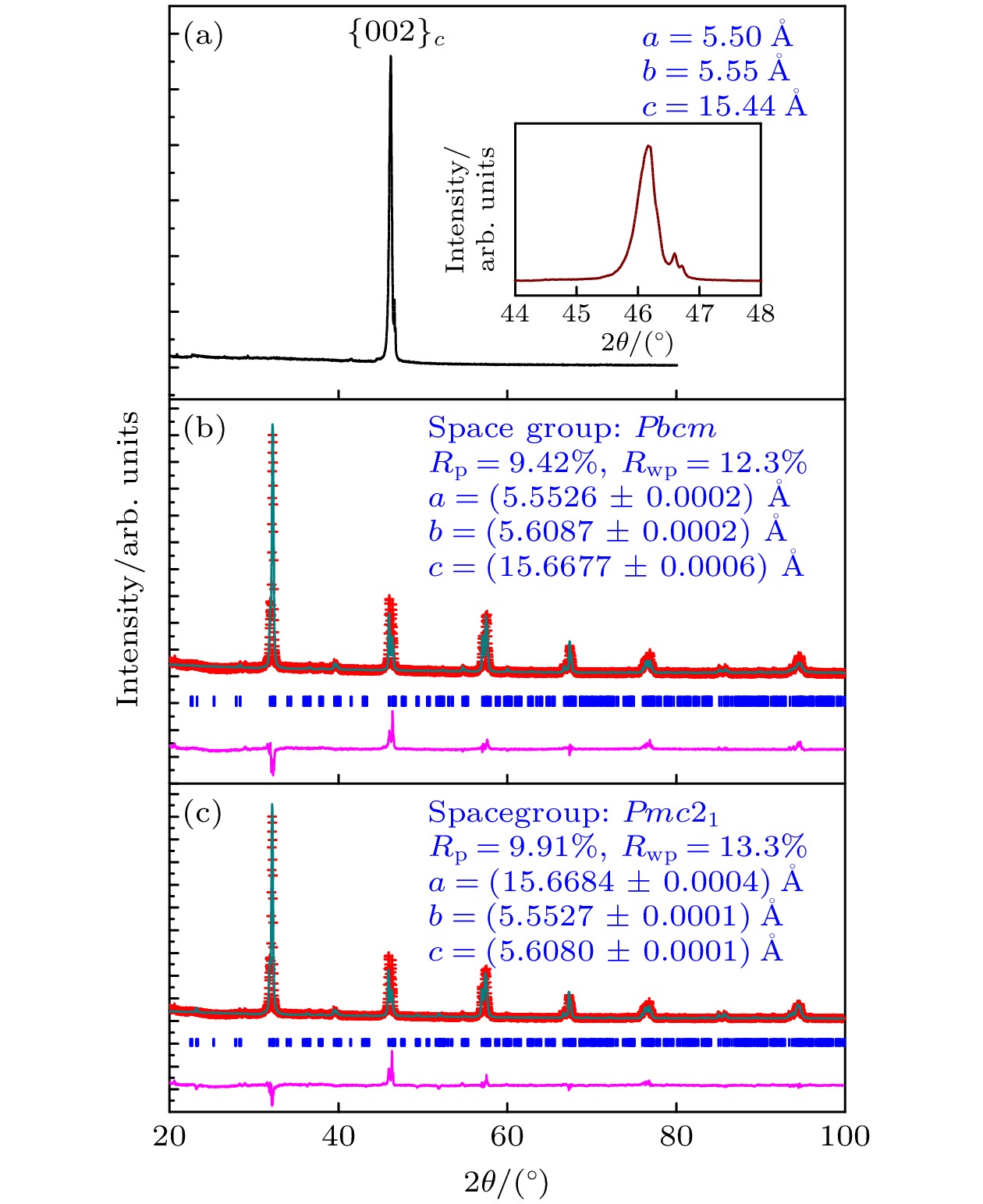

AgNbO ₃, with the antiferroelectric ordering and huge polarization (>50 μC/cm ²), has potential applications in smart electronic devices, such as energy storage dielectrics, large displacement actuators, and electrocaloric cooling device. Large electro-strain and excellent energy storage properties have been reported in AgNbO ₃-based ceramics. Nevertheless, the lack of systematic research on the AbNbO ₃single crystals increases the difficulty in further understanding their structure-property relationship. In this work, ${\left\langle {001} \right\rangle _c}$ oriented AgNbO ₃single crystals with a large size (maximum size 5 mm×4 mm×4 mm) and high quality are successfully grown by the flux method. The phase transition characteristics are studied by the X-ray diffraction, temperature dependence of dielectric data and AC impedance, polarized light microscope photos, and differential scanning calorimetry curves. The electrical and optical properties are studied by the ferroelectric response and electro-strain response, optical absorbance spectrum and photo-dielectric effect. The AgNbO ₃single crystals with the Mphase exhibit the same domain structure. When the structure changes from M ₂to M ₃, the contrast of the PLM image is darkened. Correspondingly, the conductivity and dielectric loss significantly increase, which relates to the dynamic behaviors of the carriers. Interestingly, neither exothermic peak nor endothermic peak relating to the M ₂- M ₃transition is observed. The active energy for the M ₃phase AgNbO ₃single crystal is ~1.24 eV. When the structure changes from orthogonal M ₃to paraelectric orthogonal O, the domain structure disappears and the contrast becomes darker. The finding indicates that the anisotropy of the crystals disappears. At the same time, an obvious thermal hysteresis observed in the DSC curve reveals that the M ₃- Otransition is first-order. At room temperature, the direct band gap of AgNbO ₃single crystal is ~2.73 eV, which is slightly narrower than that of AgNbO ₃ceramic. Below the critical electric field, AgNbO ₃single crystal shows an electro-strain of 0.076% under E _m= 130 kV/cm. The obtained electro-strain value is much higher than that of AgNbO ₃ceramic under the same electric field. The relative permittivity increases from 70 to 73 under the green laser irradiation, showing an apparent photo-dielectric effect. We believe that our study can assist in the further understanding of the phase transition characteristics and physical properties in AgNbO ₃single crystals.

Keywords:

作者及机构信息

1.
2.
3.

通信作者:魏永星,weiyx1985@gmail.com

基金项目:国家自然科学基金(批准号: 11704301)和陕西省自然科学基础研究计划(批准号: 2022JM212)资助的课题.

Authors and contacts

1.
2.
3.

Corresponding author:Wei Yong-Xing,weiyx1985@gmail.com

Funds:Project supported by the National Natural Science Foundation of China (Grant No.11704301) and the Natural Science Basic Research Program of Shaanxi Province, China (Grant No. 2022JM212).
