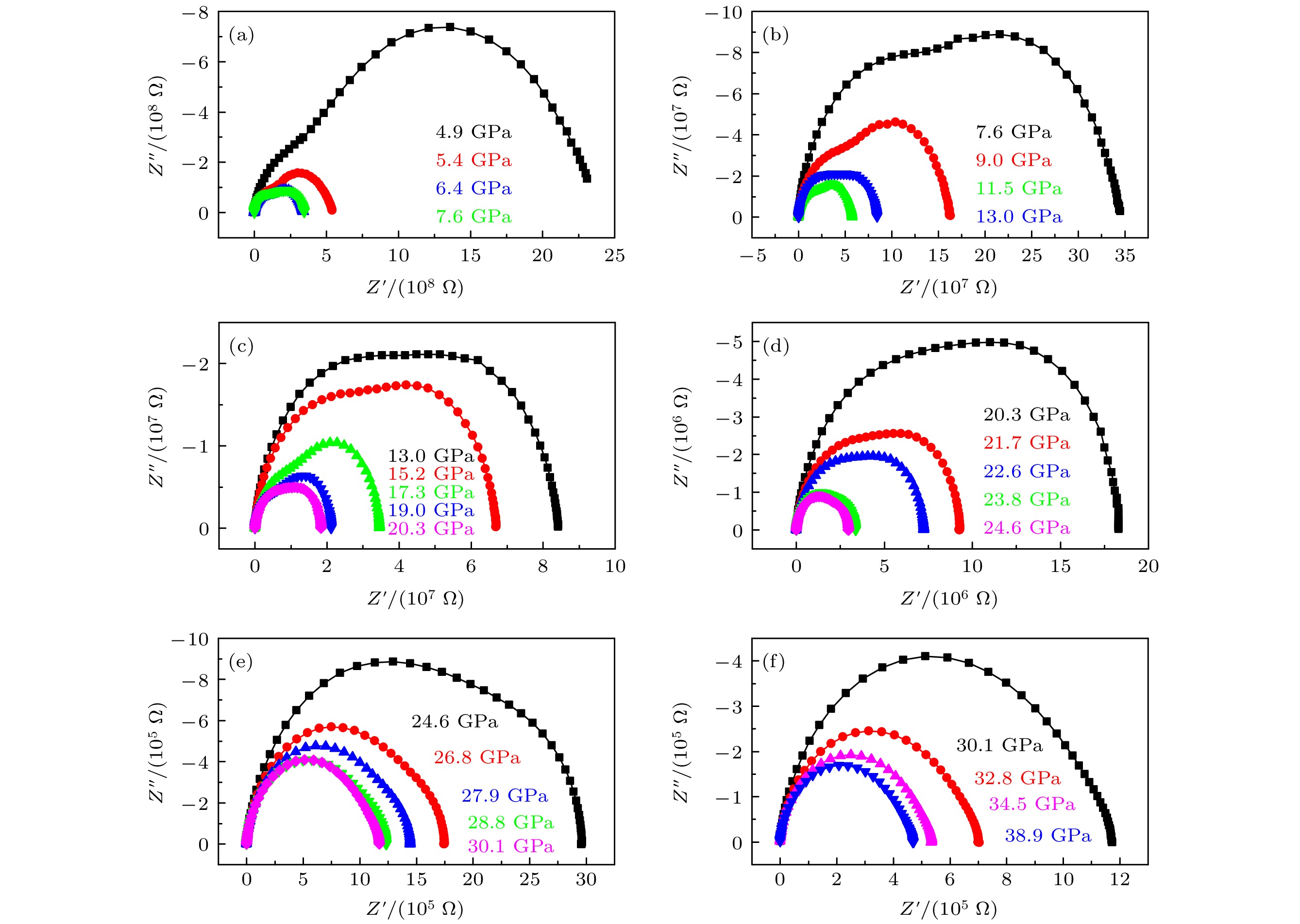

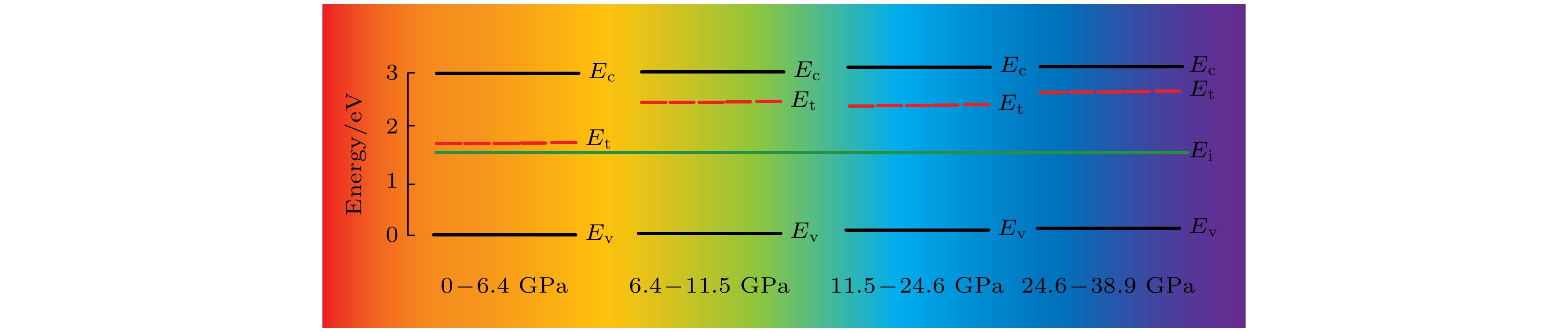

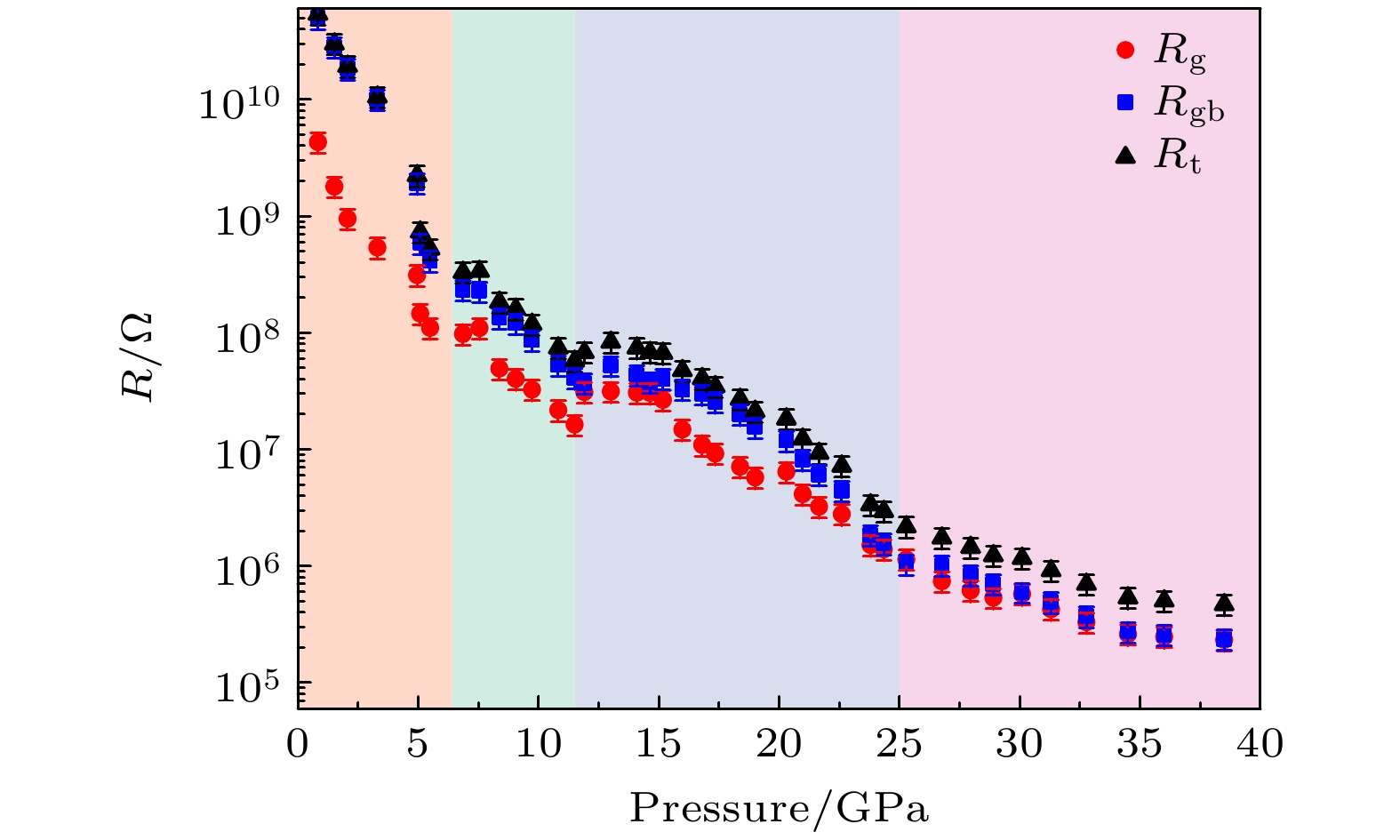

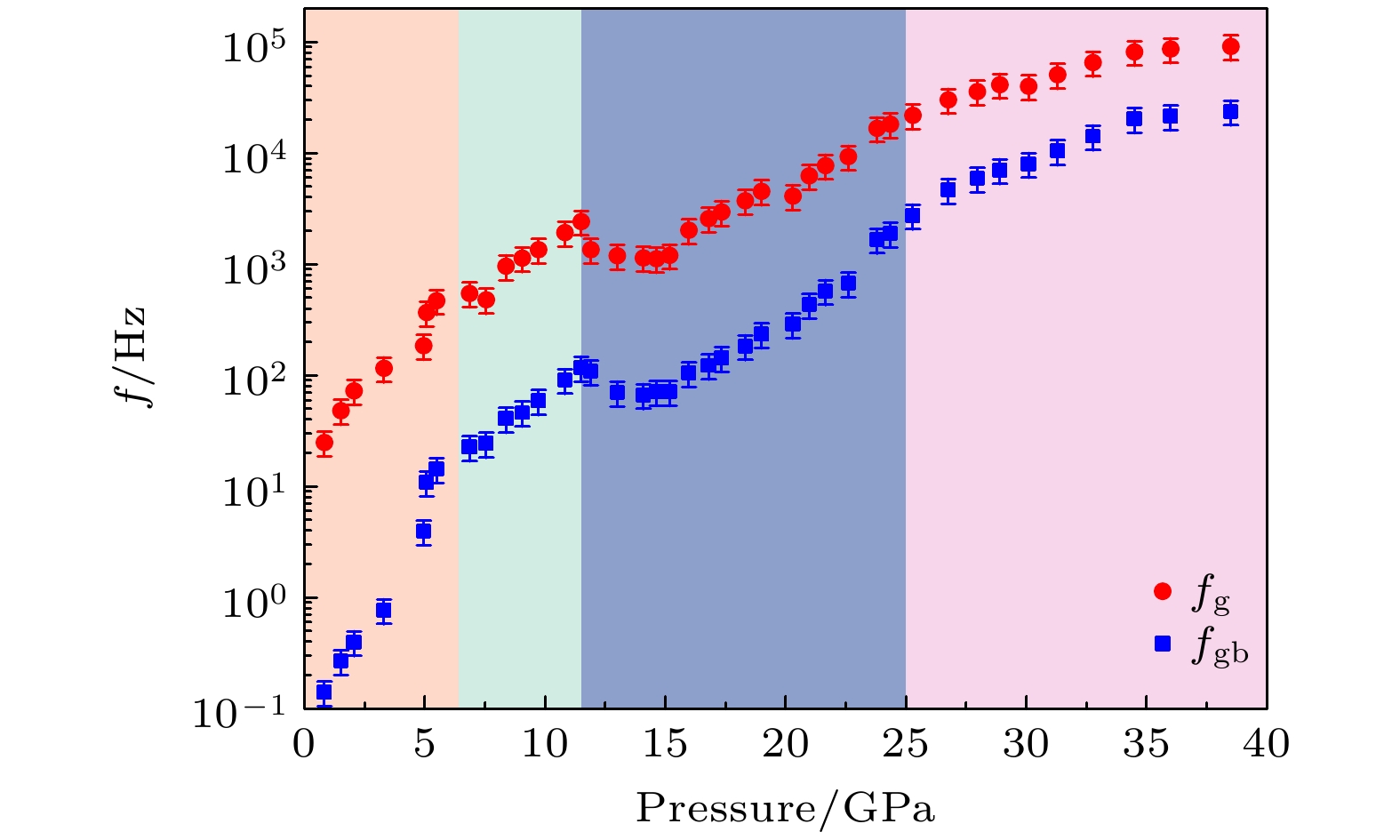

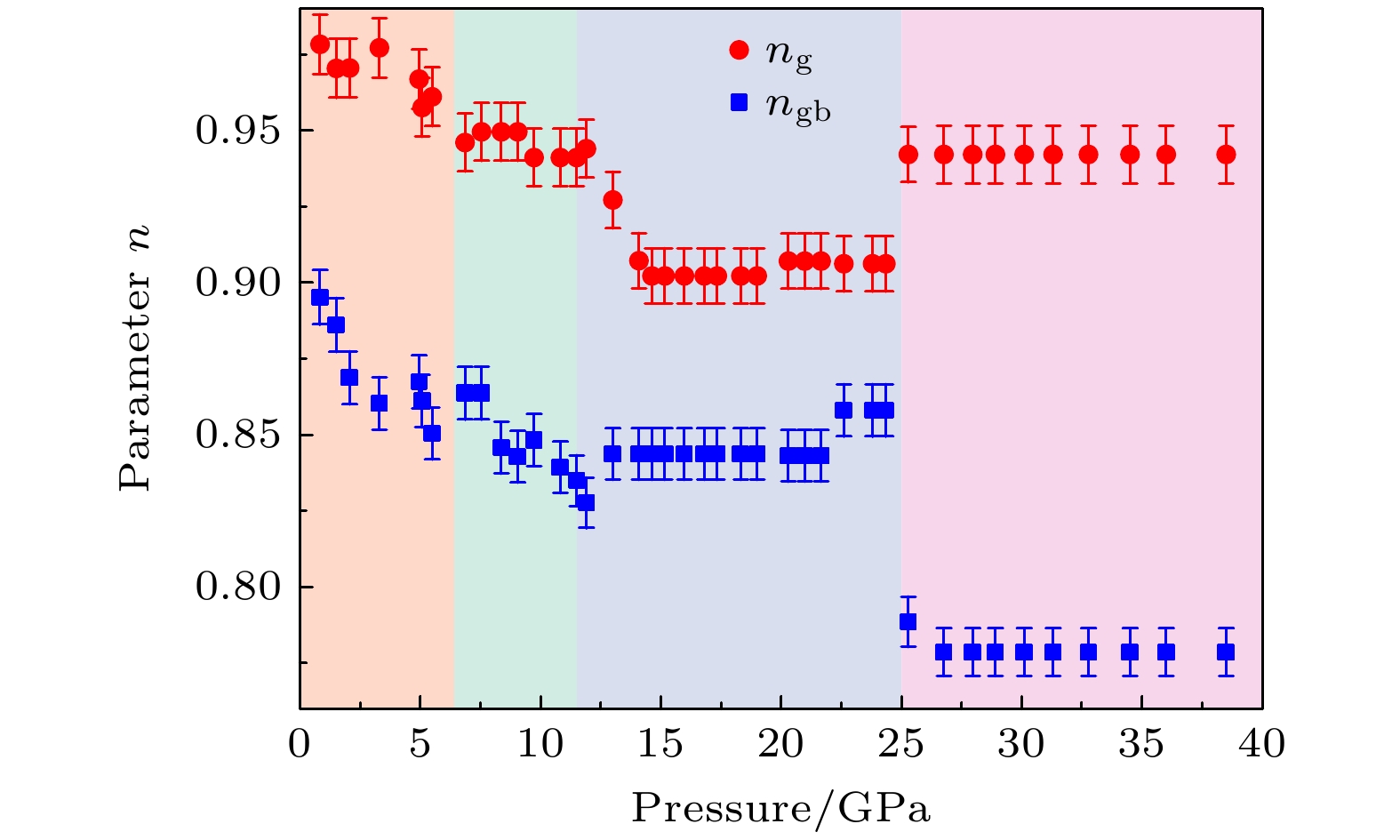

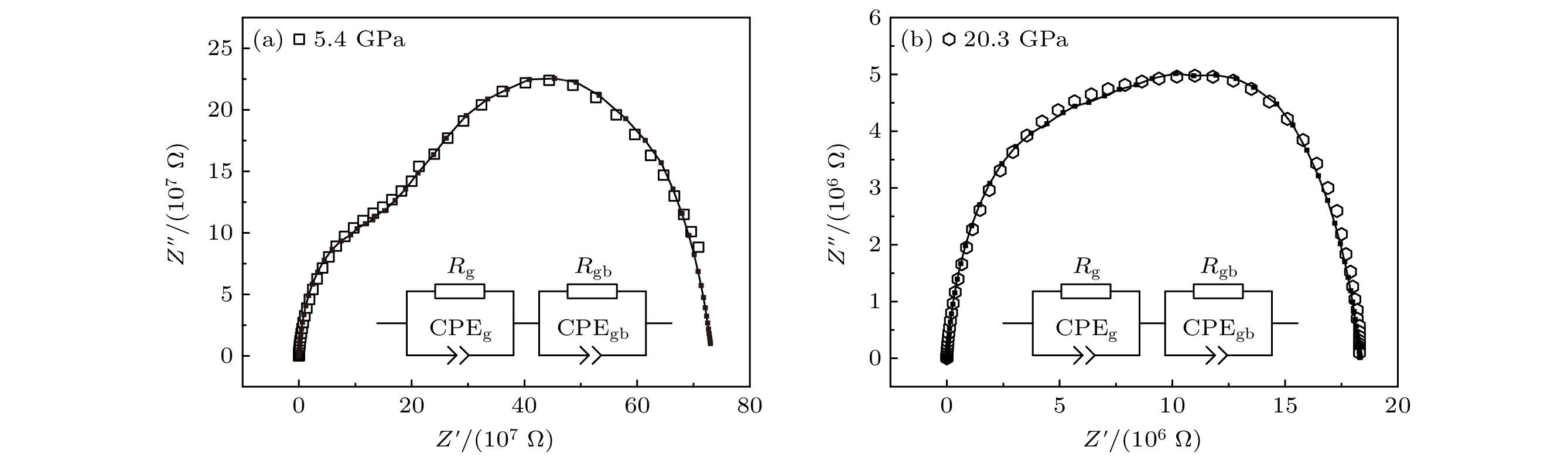

-
采用高压原位阻抗谱测量技术对锐钛矿TiO 2多晶的电输运性质进行了系统研究. 在6.4, 11.5和24.6 GPa压力处发现了晶粒和晶界的电阻、参数因子和弛豫频率的反常变化行为. 研究分析表明: 6.4和11.5 GPa压力点分别对应着TiO 2由锐钛矿转变为α-PbO 2, 再转变为斜锆石的结构相变, 当压力高于24.6 GPa时, TiO 2完全转变为斜锆石相. 通过分析晶粒和晶界电阻在压力作用下的变化行为可知, 本征缺陷的存在对TiO 2高压下电输运性质的变化起着关键的作用. 在6.4 GPa压力处, 相变的发生导致缺陷的作用发生了变化, 由作为复合中心的深能级缺陷转变为向导带和价带提供载流子的浅能级缺陷, 并且作为浅能级缺陷存在至实验最高压力点38.9 GPa, 浅能级缺陷在能带中的位置也随着相变发生而改变. 晶粒和晶界的激活能随着压力升高而降低, 表明高压下载流子在晶粒和晶界的输运变得更加容易. 此外, TiO 2晶粒和晶界的弛豫频率比值随压力的升高而不断减小, 高压下的晶界效应不明显.The electrical transport properties of anatase TiO 2polycrystalline have been systematically investigated by using high pressure in-situimpedance spectroscopy measurements. The anomalous behaviors of resistance, parameter factor and relaxation frequency of grain and grain boundary can be found at 6.4, 11.5 and 24.6 GPa. The results indicate that the first two discontinuous points (6.4 and 11.5 GPa) correspond to the phase transitions of TiO 2from anatase to α-PbO 2and then to baddeleyite, respectively. Above 24.6 GPa, TiO 2completely transforms into the baddeleyite phase. Based on the change of grain resistance and grain boundary resistance under pressure, intrinsic defects play a crucial effect in the electrical transport properties of TiO 2at high pressures. At 6.4 GPa, the occurrence of phase transition gives rise to the variation of defects’ role, from a deep energy level defect (as a recombination centre) changes into a shallow energy level defect (providing carriers for the conduction and valence bands). In addition, the position of defect in energy band changes with pressure increasing. The phase transition of TiO 2at 6.4 GPa is the rearrangement of TiO 6octahedron, while the other one at 11.5 GPa can be attributed to the migration of oxygen Schottky defects from inner to surface. Combining the packing factor and relaxation frequency, the electrical transport properties of TiO 2under pressure are revealed, the packing factor and the relaxation frequency are closely related to the mobility and the carrier concentration, respectively. The activation energy of grain and grain boundary decrease with the pressure elevating, indicating that the transport of carriers in grain and grain boundary become easier under pressure, and the former is smoother than the latter owing to the activation energy of grain being smaller than that of grain boundary in the same pressure range. Moreover, the relaxation frequency ratio of TiO 2grain and TiO 2grain boundary decreases with pressure increasing, and the grain boundary effect under high pressure is not obvious.
-
Keywords:
- high pressure/
- TiO2/
- defects/
- grain boundary
[1] [2] [3] [4] [5] [6] [7] [8] [9] [10] [11] [12] [13] [14] [15] [16] [17] [18] [19] [20] [21] [22] [23] [24] [25] [26] [27] [28] [29] [30] [31] [32] [33] [34] [35] [36] [37] [38] [39] [40] [41] [42] [43] [44] [45] [46] [47] [48] [49] [50] [51] [52] [53] [54] [55] -
Pressure region/GPa dE/dP/(meV·GPa–1) Grain Grain boundary 0—6.4 –11.51 –22.79 6.4—11.5 –7.59 –9.33 11.5—24.6 –6.16 –6.82 24.6—38.9 –3.54 –4.91
下载:
导出CSV
-
[1] [2] [3] [4] [5] [6] [7] [8] [9] [10] [11] [12] [13] [14] [15] [16] [17] [18] [19] [20] [21] [22] [23] [24] [25] [26] [27] [28] [29] [30] [31] [32] [33] [34] [35] [36] [37] [38] [39] [40] [41] [42] [43] [44] [45] [46] [47] [48] [49] [50] [51] [52] [53] [54] [55] -
[1] 陈贝, 邓永和, 祁青华, 高明, 文大东, 王小云, 彭平.高压下快凝Pd82Si18非晶合金中二十面体结构分析. 必威体育下载 , 2024, 73(2): 026101.doi:10.7498/aps.73.20231101 [2] 肖文悦, 董小硕, 买买提热夏提·买买提, 牛娜娜, 李国栋, 朱泽涛, 毕杰昊.Zn2+和TiO2合金化过程中不同成分占比对薄膜的物理结构，光学和光催化性能的影响. 必威体育下载 , 2024, 0(0): .doi:10.7498/aps.73.20240814 [3] 王飞, 李全军, 胡阔, 刘冰冰.高压导致纳米TiO2形变的电子显微研究. 必威体育下载 , 2023, 72(3): 036201.doi:10.7498/aps.72.20221656 [4] 李亚莎, 刘世冲, 刘清东, 夏宇, 胡豁然, 李光竹.外电场下含有缔合缺陷的ZnO/ ${\boldsymbol{\beta }}$ -Bi2O3界面电学性能. 必威体育下载 , 2022, 71(2): 026801.doi:10.7498/aps.71.20210635[5] 王月, 邵渤淮, 陈双龙, 王春杰, 高春晓.高压下TiO2纳米线晶粒和晶界性质及电输运行为. 必威体育下载 , 2022, 71(9): 096101.doi:10.7498/aps.71.20212276 [6] 李亚莎, 刘世冲, 刘清东, 夏宇, 胡豁然, 李光竹.外电场下含有缔合缺陷的ZnO/β-Bi2O3界面电学性能研究. 必威体育下载 , 2021, (): .doi:10.7498/aps.70.20210635 [7] 高旭东, 杨得草, 魏雯静, 李公平.电子束对ZnO和TiO2辐照损伤的模拟计算. 必威体育下载 , 2021, 70(23): 234101.doi:10.7498/aps.70.20211223 [8] 李鹏程, 唐重阳, 程亮, 胡永明, 肖湘衡, 陈万平.TiO2纳米粉在水中通过摩擦还原CO2. 必威体育下载 , 2021, 70(21): 214601.doi:10.7498/aps.70.20210210 [9] 姚盼盼, 王玲瑞, 王家祥, 郭海中.高压下非铅双钙钛矿Cs2TeCl6的结构和光学性质. 必威体育下载 , 2020, 69(21): 218801.doi:10.7498/aps.69.20200988 [10] 王春杰, 王月, 高春晓.高压下纳米晶ZnS晶粒和晶界性质及相变机理. 必威体育下载 , 2020, 69(14): 147202.doi:10.7498/aps.69.20200240 [11] 王少霞, 赵旭才, 潘多桥, 庞国旺, 刘晨曦, 史蕾倩, 刘桂安, 雷博程, 黄以能, 张丽丽.过渡金属(Cr, Mn, Fe, Co)掺杂对TiO2磁性影响的第一性原理研究. 必威体育下载 , 2020, 69(19): 197101.doi:10.7498/aps.69.20200644 [12] 王春杰, 王月, 高春晓.高压下金红石相TiO2的晶界电学性质. 必威体育下载 , 2019, 68(20): 206401.doi:10.7498/aps.68.20190630 [13] 颜小珍, 邝小渝, 毛爱杰, 匡芳光, 王振华, 盛晓伟.高压下ErNi2B2C弹性性质、电子结构和热力学性质的第一性原理研究. 必威体育下载 , 2013, 62(10): 107402.doi:10.7498/aps.62.107402 [14] 吴迪, 赵纪军, 田华.Fe2+取代对MgSiO3钙钛矿高温高压物性的影响. 必威体育下载 , 2013, 62(4): 049101.doi:10.7498/aps.62.049101 [15] 张品亮, 龚自正, 姬广富, 刘崧.α-Ti2Zr高压物性的第一性原理计算研究. 必威体育下载 , 2013, 62(4): 046202.doi:10.7498/aps.62.046202 [16] 吕晓静, 翁春生, 李宁.高压环境下1.58 μm波段CO2吸收光谱特性分析. 必威体育下载 , 2012, 61(23): 234205.doi:10.7498/aps.61.234205 [17] 邓杨, 王如志, 徐利春, 房慧, 严辉.立方(Ba0.5Sr0.5)TiO3高压诱导带隙变化的第一性原理研究. 必威体育下载 , 2011, 60(11): 117309.doi:10.7498/aps.60.117309 [18] 冯志芳, 刘荣鹃, 李志远.十二重准晶中的方向缺陷. 必威体育下载 , 2009, 58(3): 1948-1953.doi:10.7498/aps.58.1948 [19] 邵光杰, 秦秀娟, 刘日平, 王文魁, 姚玉书.氧化锌纳米晶高压下的晶粒演化和性能. 必威体育下载 , 2006, 55(1): 472-476.doi:10.7498/aps.55.472 [20] 王海燕, 刘日平, 马明臻, 高 明, 姚玉书, 王文魁.FeSi2合金在高压下的凝固. 必威体育下载 , 2004, 53(7): 2378-2383.doi:10.7498/aps.53.2378
下载:
计量
- 文章访问数:2472
- PDF下载量:95
- 被引次数:0
