摘要

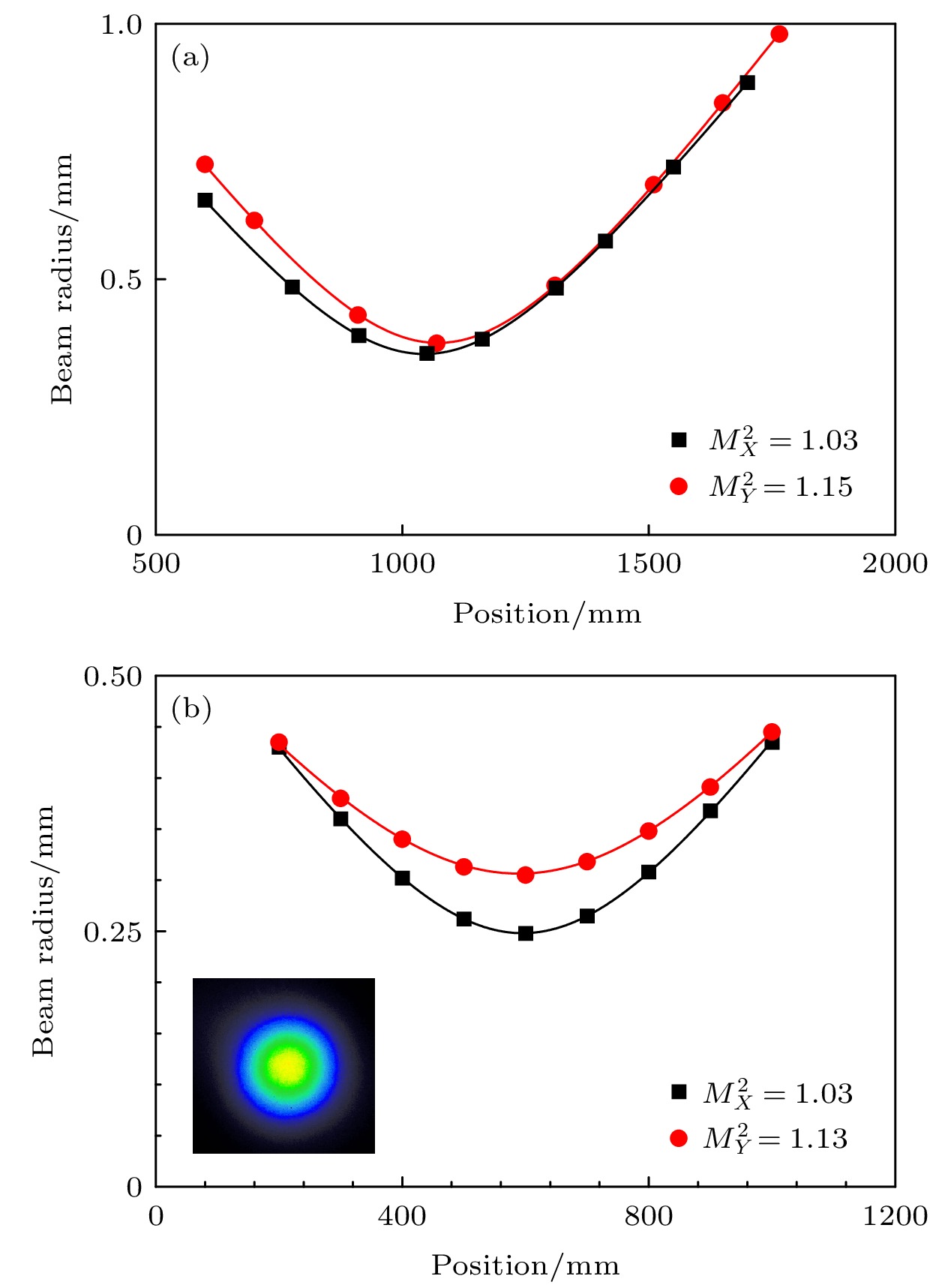

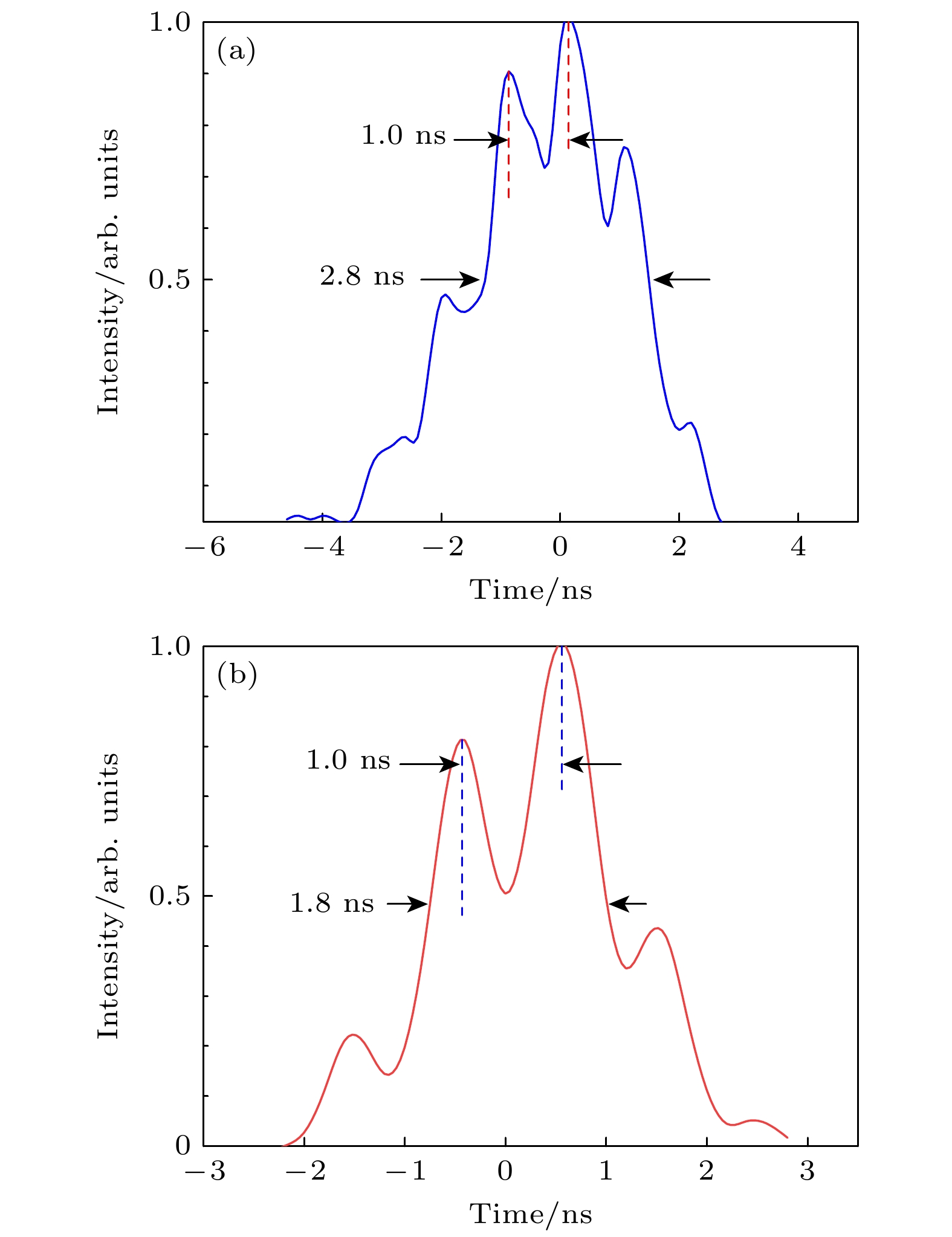

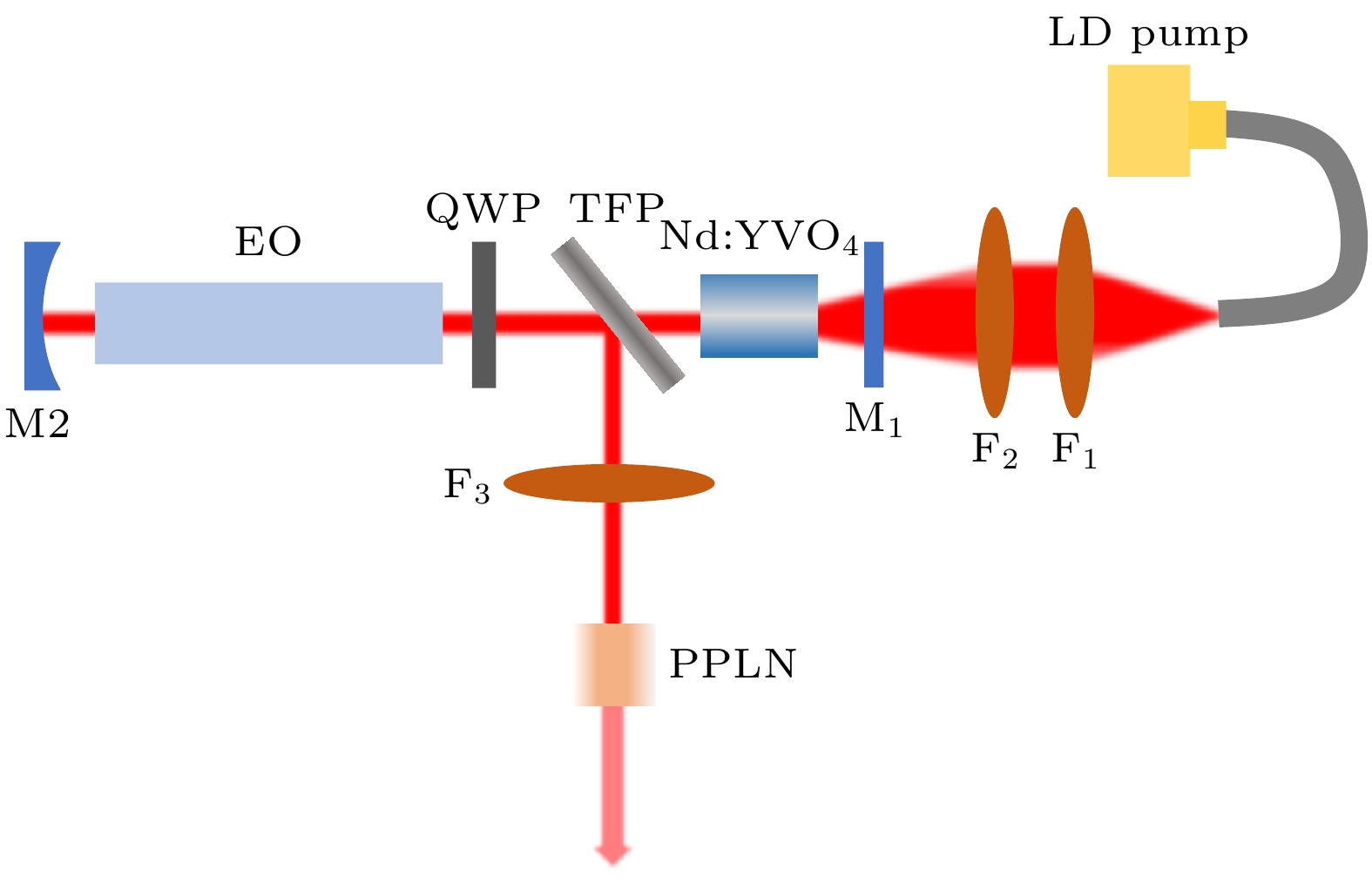

本文对1342 nm波长的电光腔倒空调 Q的Nd:YVO ₄激光器进行理论与实验研究. 理论计算了电光开关下降沿时间对腔倒空激光器输出脉宽的影响. 在实验中, 采用880 nm准连续激光二极管同带泵浦Nd:YVO ₄激光器, 在1 kHz重复频率下, 通过电光腔倒空方式, 得到最大平均功率210 mW (单脉冲能量0.21 mJ)、脉冲宽度2.8 ns的1342 nm激光输出, 光束质量因子 M ²优于1.2. 通过周期极化铌酸锂晶体(periodically poled lithium niobate, PPLN) 进行腔外倍频, 获得脉冲宽度1.8 ns的671 nm波长可见激光. 这是目前1.3 μm波长主动调 Q的Nd固体激光器产生的最窄脉冲宽度.

关键词:

Abstract

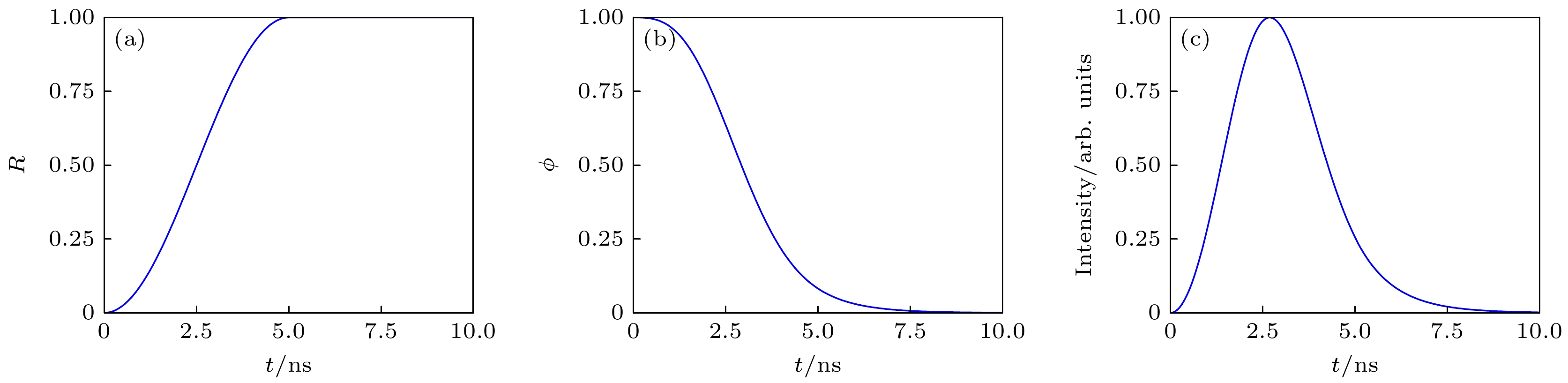

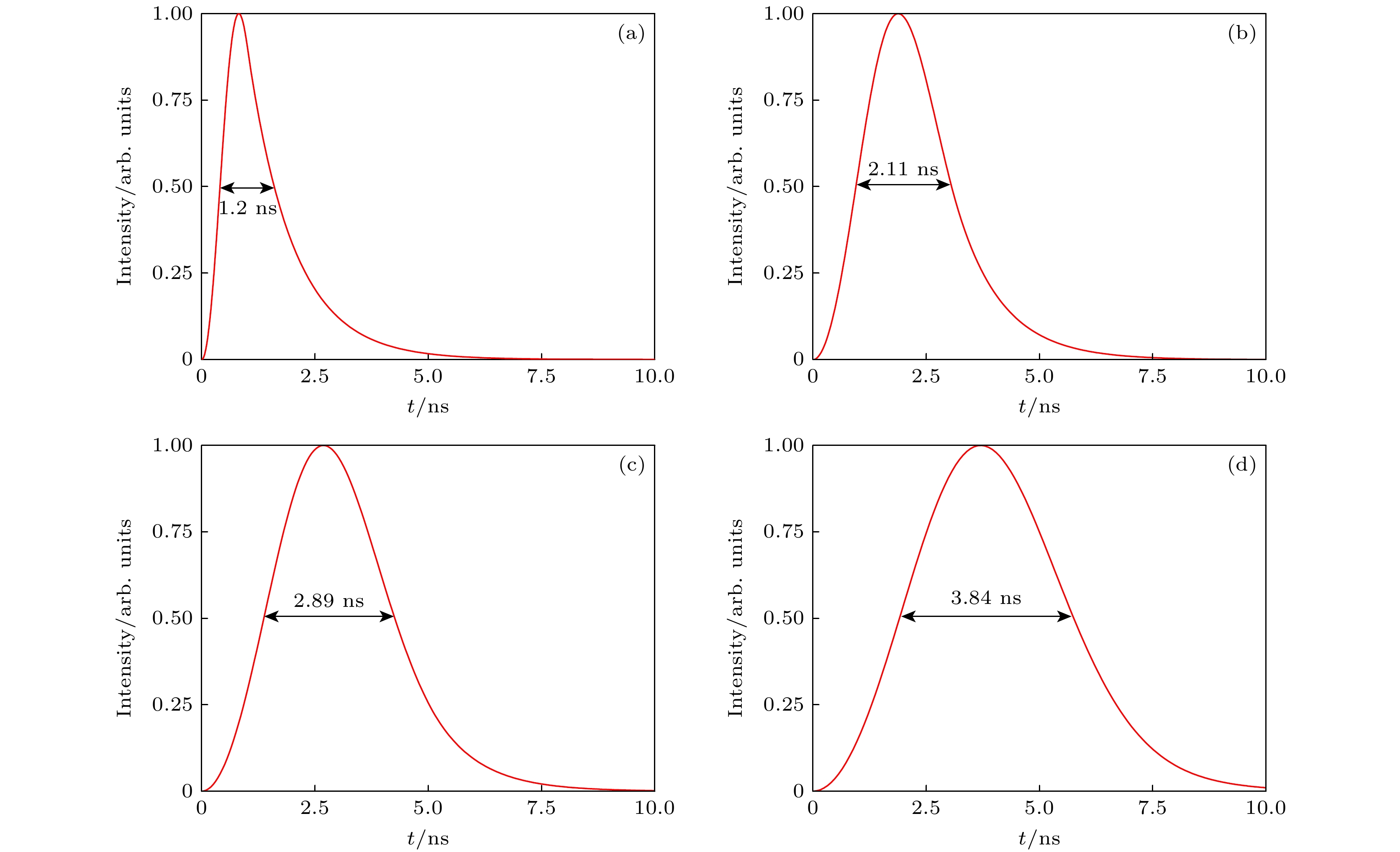

1.3-μm Nd laser has significant practical applications in various fields, such as fiber communication, medical treatment, frequency conversion, and scientific research. Many applications of a 1.3-μm laser, particularly frequency conversion, benefit greatly from a short pulse width with high peak power. In the paper, an electro-optical cavity dumping Nd:YVO ₄laser at 1342 nm wavelength is studied theoretically and experimentally. The pulse width for an electro-optical cavity dumping laser is determined by the optical length of the cavity. A narrower pulse width is obtained by reducing the length of the cavity and the round trip time of the laser in the cavity. However, when the round trip time in the cavity approaches to the falling edge time of the electro-optical switch, shortening the length of the cavity will not obtain a narrower pulse width, and the falling edge time of the electro-optical switch will influence the laser pulse width. The temporal characteristics of the laser pulse are simulated when the falling edge time of the electro-optical switch is close to the round trip time in the cavity. The influence of the falling edge time of the electro-optical switch on the laser pulse duration is analyzed theoretically. The modified rate equation is used to study the relationship between the falling edge time and the laser pulse width. We demonstrate an electro-optical cavity dumping Nd:YVO ₄laser. The atom percent of 0.3% Nd:YVO ₄placed in a short Plano-concave cavity is in-band pumped by an 880 nm quasi-continuous-wave diode. A fiber-coupled diode laser module ( NA= 0.22) with a power of 30 W is used. An LiNbO ₃electro-optical switch is employed for the cavity-dumping. The 1342-nm cavity-dumping laser operates at a repetition rate of 1 kHz, single-pulse energy of 0.21 mJ, and pulse width of 2.8 ns. Near-diffraction-limited beam quality with an $ M^2 $ value of < l.2 is achieved. The setup uses MgO:PPLN crystal to generate efficient second harmonic at 671 nm, with a pulse width of 1.8 ns. To the best of our knowledge, this is the shortest pulse duration ever obtained from 1.3 μm actively Q-switched Nd-doped laser.

Keywords:

作者及机构信息

1.
2.
3.

通信作者:葛文琦,gewq@aircas.ac.cn

基金项目:国家自然科学基金(批准号: 62075221, 61835014) 和国家重点研发计划(批准号: 2018YFB0504500)资助的课题

Authors and contacts

1.
2.
3.

Corresponding author:Ge Wen-Qi,gewq@aircas.ac.cn

Funds:Project supported by the National Natural Science Foundation of China (Grant Nos. 62075221, 61835014) and the National Key R&D Program of China (Grant No. 2018YFB0504500).
