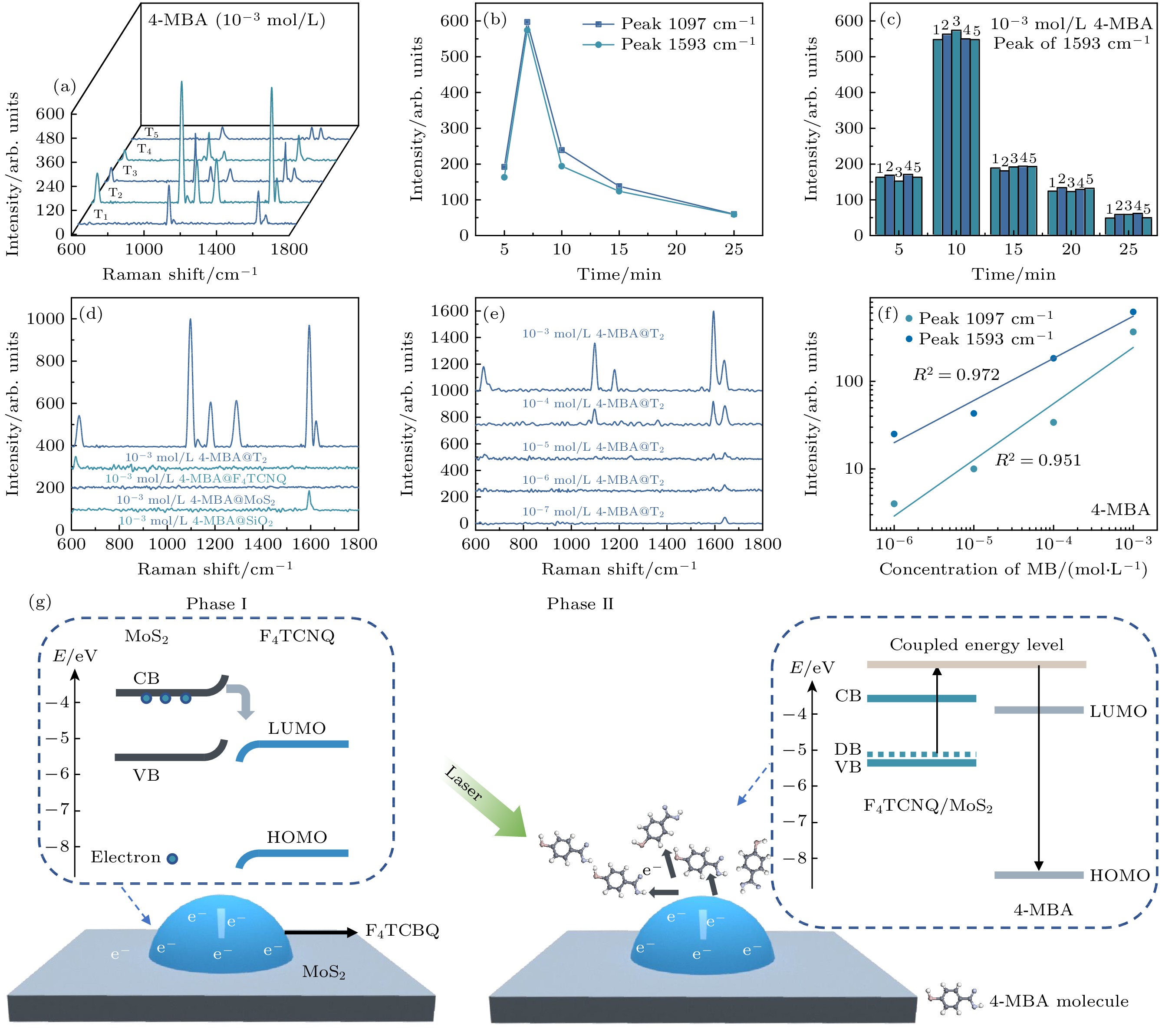

表面增强拉曼散射(surface-enhanced Raman scattering, SERS)已广泛应用于食品和药物检测、生物和医学传感等领域. 而非金属SERS基底的研究近年来逐渐成为SERS领域研究的热点. 本文研究了2,3,5,6-四氟-7,7,8,8-四氰基喹二甲烷(F 4TCNQ)对二硫化钼(MoS 2)薄膜SERS活性的调制作用. 不同纳米结构的F 4TCNQ可以影响从MoS 2表面转移的电子的束缚能力, 从而改变F 4TCNQ/MoS 2纳米复合材料表面局部功函数分布, 表现出不同的SERS敏感性. 在最优化的F 4TCNQ/MoS 2纳米复合基底上4-巯基苯甲酸(4-MBA)分子的增强因子可达
$ 6.9\times {10}^{4} $ , 检测极限浓度低至10 –6mol/L. 本文所研究的F 4TCNQ/MoS 2纳米复合材料不仅提供了一种良好的SERS活性基底, 而且为化学增强机理的基底研究提供了新的参考.-
关键词:
- F4TCNQ/MoS2/
- 表面增强拉曼散射/
- 化学增强/
- 能级调控
Surface-enhanced Raman scattering (SERS) has been widely used in food and drug detection, biological and medical sensing. In recent years, the study of non-metallic SERS substrates has gradually become a hot field of SERS. Here, we investigate the modulation effect on SERS activities of 2,3,5,6-tetrafluoro-7,7,8,8-tetrachyanoquindimethylene (F 4TCNQ) grown on molybdenum disulfide (MoS 2) films. The different nanostructures of F 4TCNQ can have an effect on the bound capability of charges transferred from the surface of MoS 2, which changes the electron density distribution on the surface of the F 4TCNQ/MoS 2nanocomposite material. Therefore, the interface exhibits different charge localizations in the F 4TCNQ/MoS 2nanocomposite. The charge transfer efficiency between the substrate and the adsorbed probe molecules leads the substrate to show a different SERS sensitivity. The enhancement factor of 4-mercaptobenzoic acid (4-MBA) molecules on the most optimized 7-min F 4TCNQ/MoS 2nanocomposite substrate can reach$ 6.9\times {10}^{4} $ , and the detection limit concentration is as low as 10 –6mol/L. The result of research on F 4TCNQ/MoS 2nanocomposite provides an effective optimization scheme of energy level regulation for SERS based on the chemical enhancement mechanism, and opens up a new way to further exploit its functional applications.-
Keywords:
- F4TCNQ/MoS2/
- surface-enhanced Raman scattering/
- chemical enhancement/
- energy level modulation
[1] [2] [3] [4] [5] [6] [7] [8] [9] [10] [11] [12] [13] [14] [15] [16] [17] [18] [19] [20] [21] [22] [23] [24] [25] [26] [27] [28] [29] [30] [31] [32] [33] [34] -

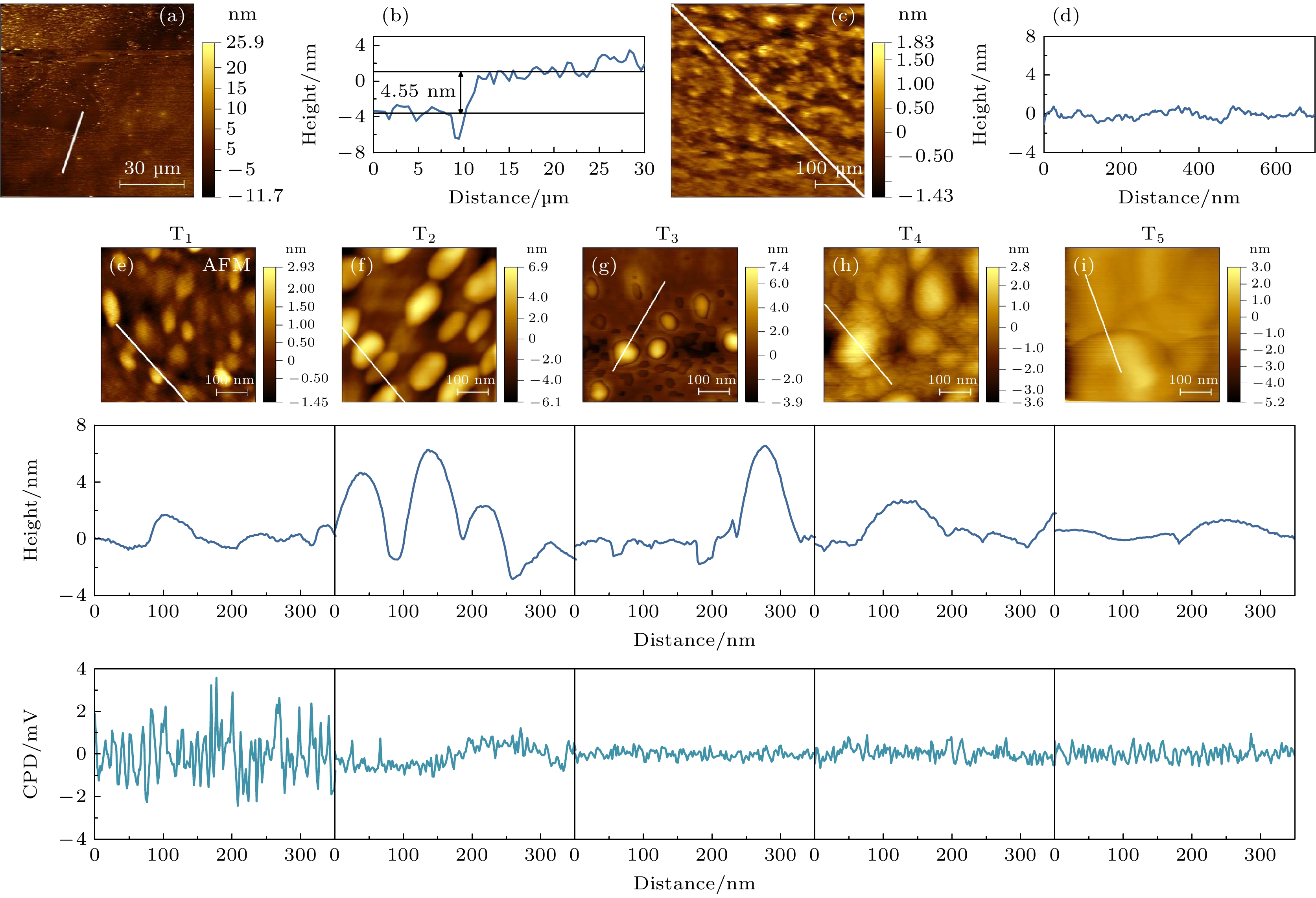

检测基底 角度/(°) CPD/$ \rm{V} $ 费米能级/$ \rm{e}\rm{V} $ MoS2 $ 47\pm 0.2 $ 0.048 –5.08 T1 $ 66.6\pm 1.1 $ –0.1 –5.23 T2 $ 68\pm 0.9 $ –0.043 –5.17 T3 $ 70.7\pm 1.6 $ –0.168 –5.3 T4 $ 71\pm 2.8 $ –0.083 –5.21 T5 $ 72.6\pm 2 $ –0.129 –5.26 -
