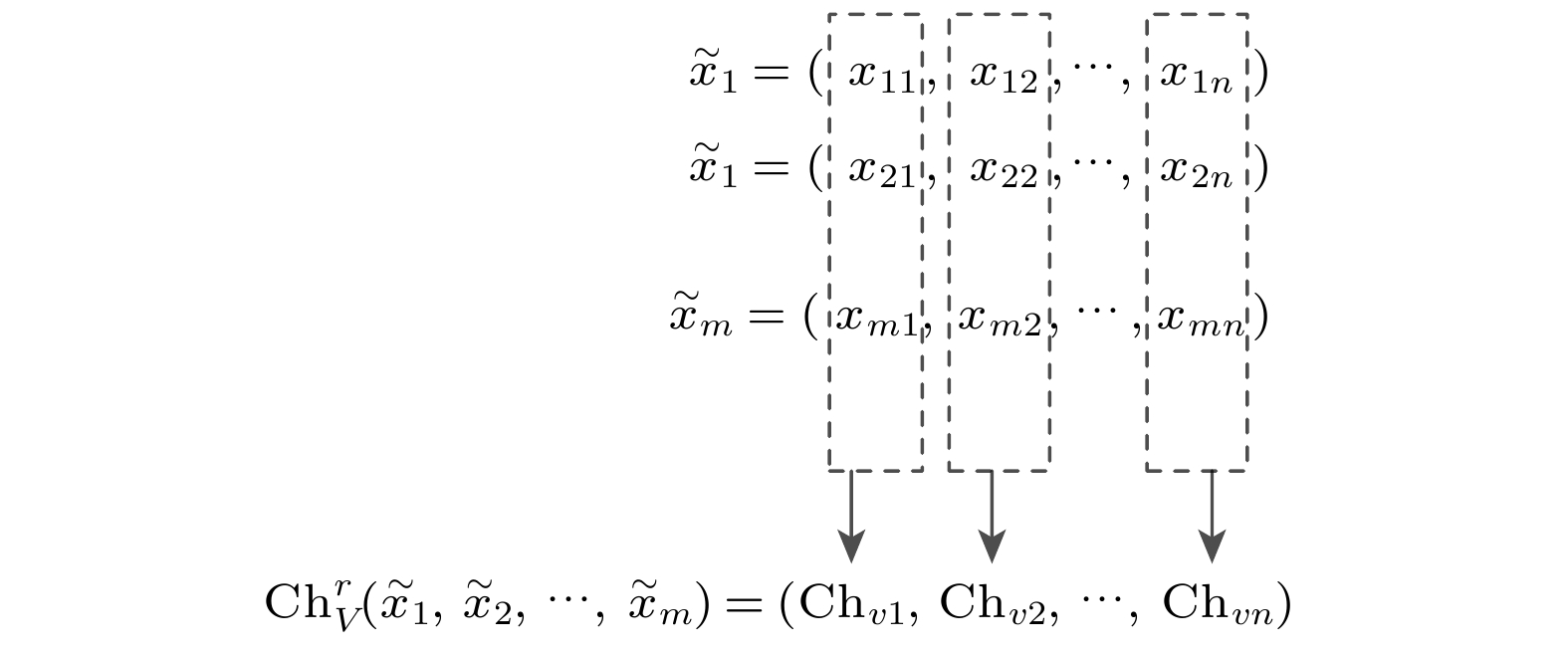

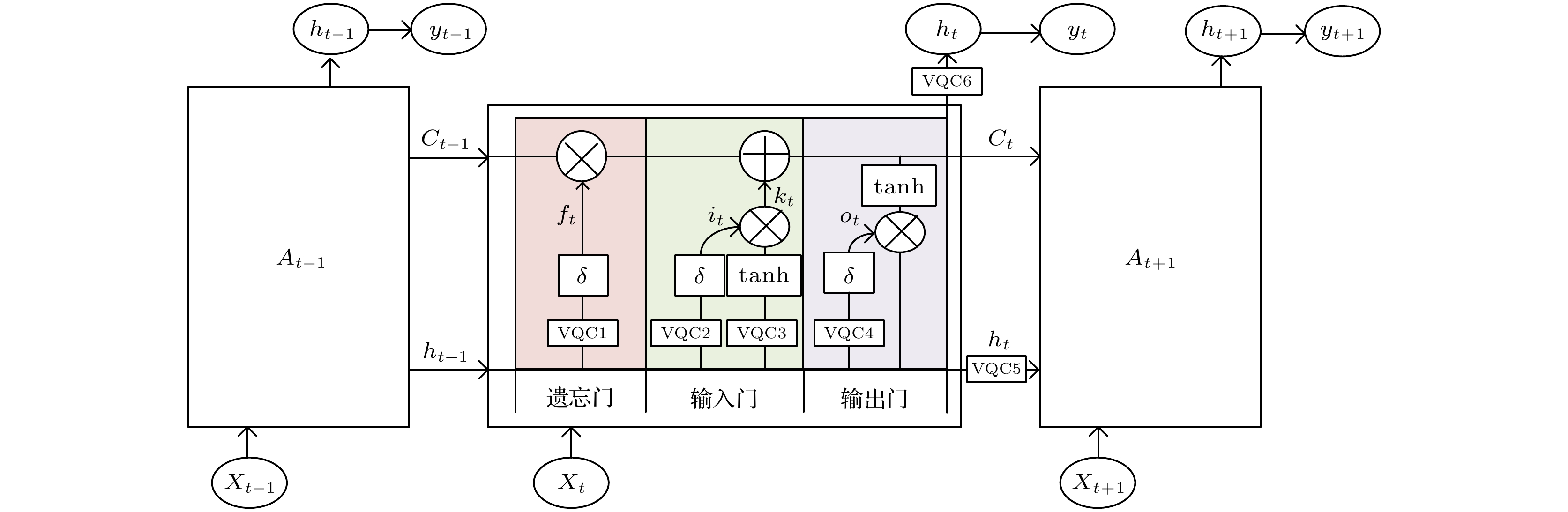

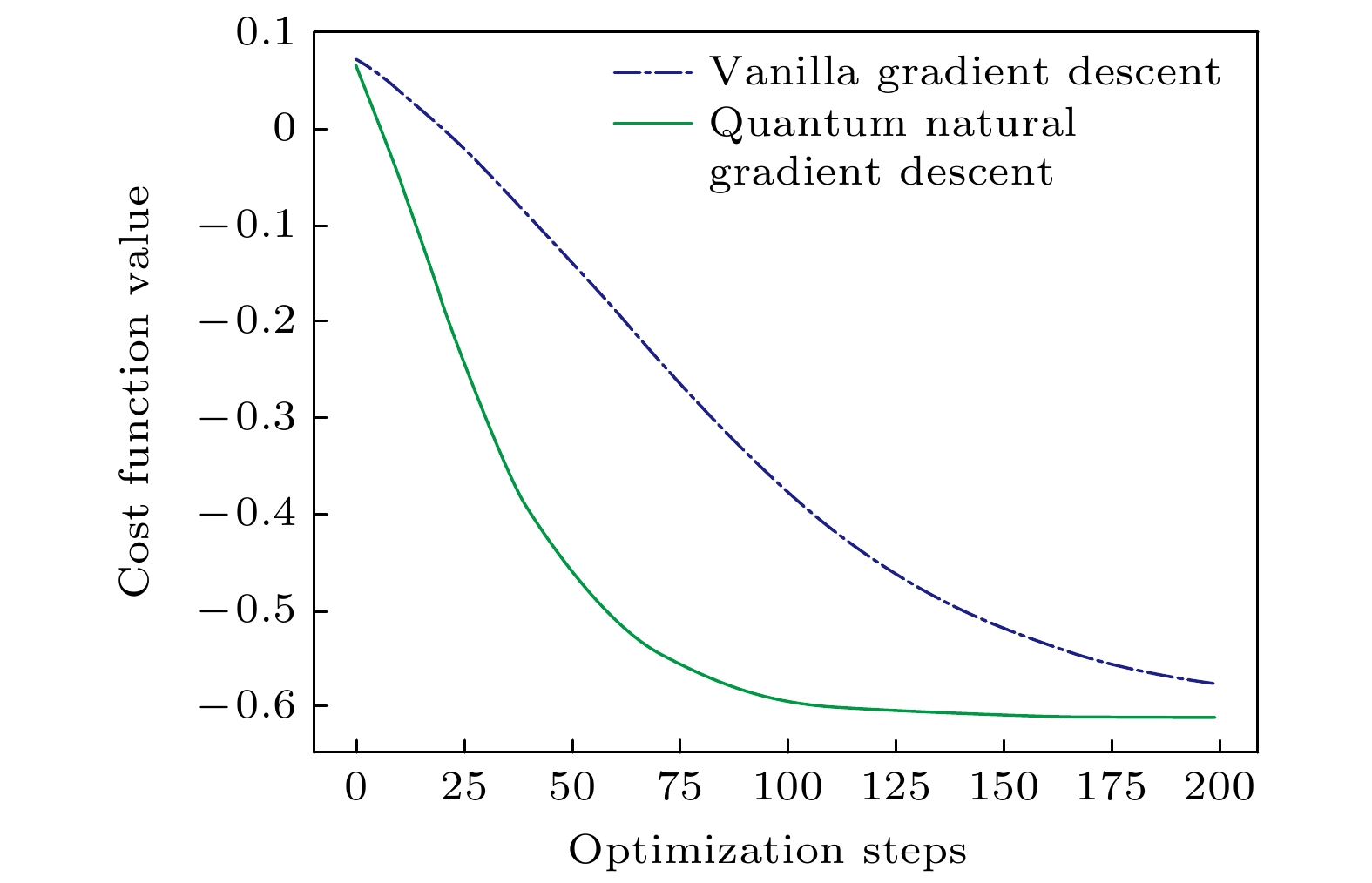

长短期记忆(long-short term memory, LSTM)神经网络通过引入记忆单元来解决长期依赖、梯度消失和梯度爆炸问题, 广泛应用于时间序列分析与预测. 将量子计算与LSTM神经网络结合将有助于提高其计算效率并降低模型参数个数, 从而显著改善传统LSTM神经网络的性能. 本文提出一种可用于图像分类的混合量子LSTM (hybrid quantum LSTM, HQLSTM)网络模型, 利用变分量子电路代替经典LSTM网络中的神经细胞, 以实现量子网络记忆功能, 同时引入Choquet离散积分算子来增强数据之间的聚合程度. HQLSTM网络中的记忆细胞由多个可实现不同功能的变分量子电路(variation quantum circuit, VQC)构成, 每个VQC由三部分组成: 编码层利用角度编码降低网络模型设计的复杂度; 变分层采用量子自然梯度优化算法进行设计, 使得梯度下降方向不以特定参数为目标, 从而优化参数更新过程, 提升网络模型的泛化性和收敛速度; 测量层利用泡利 Z门进行测量, 并将测量结果的期望值输入到下一层实现对量子电路中有用信息的提取. 在MNIST, FASHION-MNIST和CIFAR数据集上的图像分类实验结果表明, 与经典LSTM、量子LSTM相比, HQLSTM模型获得了较高的图片分类精度和较低的损失值. 同时, HQLSTM、量子LSTM网络空间复杂度相较于经典的LSTM网络实现了明显的降低.
-
关键词:
- 量子神经网络/
- 变分量子电路/
- 混合量子长短期记忆神经网络
Long-short term memory (LSTM) neural network solves the problems of long-term dependence, gradient disappearance and gradient explosion by introducing memory units, and is widely used in time series analysis and prediction. Combining quantum computing with LSTM neural network will help to improve its computational efficiency and reduce the number of model parameters, thus significantly improving the performance of traditional LSTM neural network. This paper proposes a hybrid quantum LSTM (hybrid quantum long-short term memory, HQLSTM) network model that can be used to realize the image classification. It uses variable quantum circuits to replace the nerve cells in the classical LSTM network to realize the memory function of the quantum network. At the same time, it introduces Choquet integral operator to enhance the degree of aggregation between data. The memory cells in the HQLSTM network are composed of multiple variation quantum circuits (VQC) that can realize different functions. Each VQC consists of three parts: the coding layer, which uses angle coding to reduce the complexity of network model design; the variation layer, which is designed with quantum natural gradient optimization algorithm, so that the gradient descent direction does not target specific parameters, thereby optimizing the parameter update process and improving the generalization and convergence speed of the network model; the measurement layer, which uses the Pauli Z gate to measure, and the expected value of the measurement result is input to the next layer to extract useful information from the quantum circuit. The experimental results on the MNIST, FASHION-MNIST and CIFAR datasets show that the HQLSTM model achieves higher image classification accuracy and lower loss value than the classical LSTM model and quantum LSTM model. At the same time, the network space complexity of HQLSTM and quantum LSTM are significantly reduced compared with the classical LSTM network.-
Keywords:
- quantum neural networks/
- variational quantum circuits/
- hybrid quantum long short-term memory neural networks
[1] [2] [3] [4] [5] [6] [7] [8] [9] [10] [11] [12] [13] [14] [15] [16] [17] [18] [19] [20] [21] [22] [23] [24] [25] [26] [27] [28] [29] [30] [31] [32] [33] [34] [35] [36] [37] [38] [39] [40] [41] [42] [43] [44] -
参数 数量 Input_size 4 Hidden_size 4 Time_step 49 Dropout比率 0.15 Batch 128 网络层数 2 输出节点数 10 学习率 0.001 参数 数量 输入量子比特数 4 Hidden_size 4 Time_step 49 Dropout比率 0.15 Batch 128 网络层数 2 输出节点数 10 学习率 0.001 网络模型 数据集 类别总数 分类精度/% Ref. [35] MNIST 10 97.894 FASHION-MNIST 10 96.865 CIFAR 10 96.334 HQLSTM MNIST 10 99.154 FASHION-MNIST 10 98.273 CIFAR 10 98.631 经典LSTM MNIST 10 97.306 FASHION-MNIST 10 96.829 CIFAR 10 92.671 -
