摘要

相位梯度超构光栅为自由操控光或者电磁波传播, 以及设计新型功能光子器件提供新的思路. 基于突变相位概念和梯度超构光栅中的异常衍射规律, 本文设计和研究了一种亚波长金属超构笼子. 通过数值模拟和严格的解析计算发现超构笼子囚禁光的能力与周期内单元个数 $m$ 的奇偶性有关. 当单元个数为奇数时, 放在超构笼子中的点源几乎可以无阻碍地辐射至笼子外面; 而当单元个数为偶数时, 放在超构笼子中的点源几乎无法辐射到笼子外面, 即所有能量都被局域在笼子中. 本研究可以为新型雷达天线罩和光子隔离器件提供新的思路和理论指导.

关键词:

Abstract

How to effectively control the refraction, reflection, propagation and wavefront of electromagnetic wave or light is always one of the advanced researches in the field of optics. In recent years, much effort has been devoted to both theoretical and experimental studies of optical phase gradient metagratings (PGMs) due to the fundamental interest and practical importance of PGMs, such as the generalized Snell’s law (GSL). Typically, the PGMs are constructed as periodic gratings consisting of a supercell spatially repeated along an interface, and each supercell consists of munit cells, with mbeing an integer. The key idea of PGMs is to introduce an abrupt phase shift covering the range from 0 to $2\pi $ discretely through munit cells to ensure the complete control of the outgoing waves. The phase gradient provides a new degree of freedom for the manipulation of light propagation, which has allowed a series of ultrathin devices to realize anomalous scattering, the photon spin Hall effect, and many other phenomena. Intuitively, the number of unit cells min a supercell does not influence the PGM diffraction characteristics, except that a small value of mwill lead to a reduced diffraction efficiency. However, some recent studies have shown that the integer mplays a fundamental role in determining the high-order PGM diffractions when the incident angle is beyond the critical angle predicted by the GSL. In particular, for high-order PGM diffractions, mleads to a new set of diffraction equations expressed as

$ \left\{ {\begin{aligned} &{{k_x} = k_x^t - nG,{\text{ for odd L,}}} \\ &{{k_x} = k_x^r - nG,{\text{ for even L}}{\text{. }}} \end{aligned}} \right. $

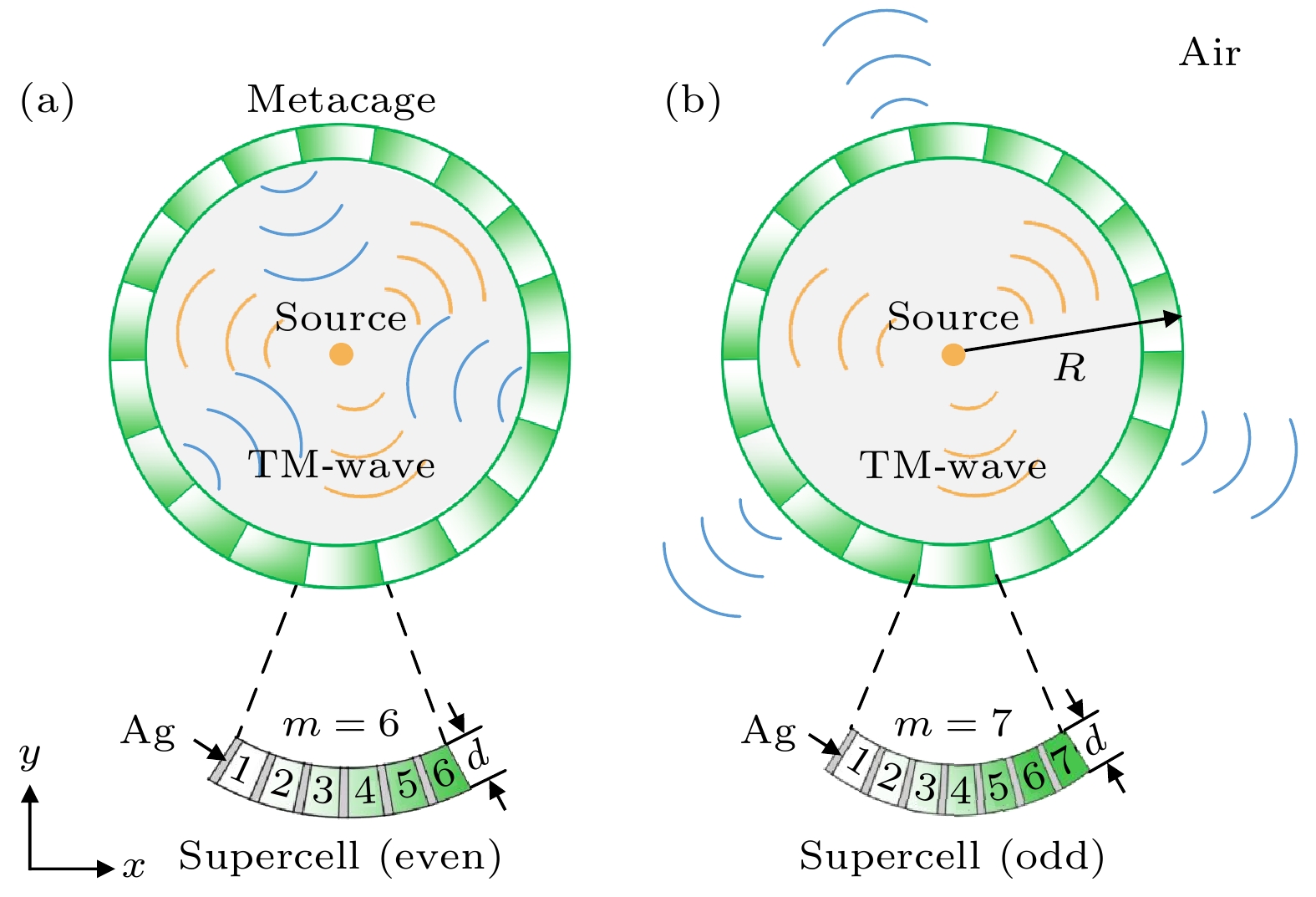

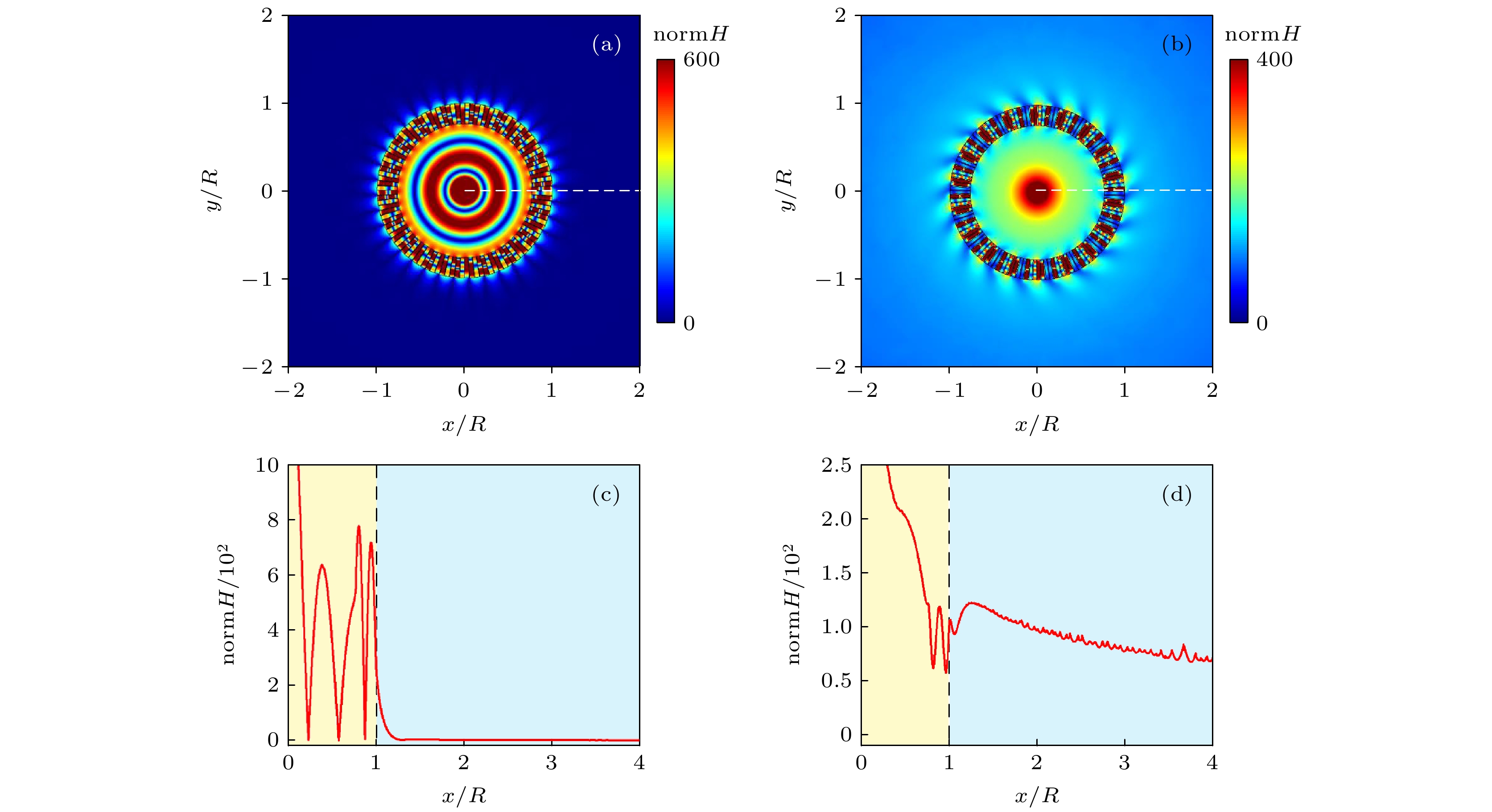

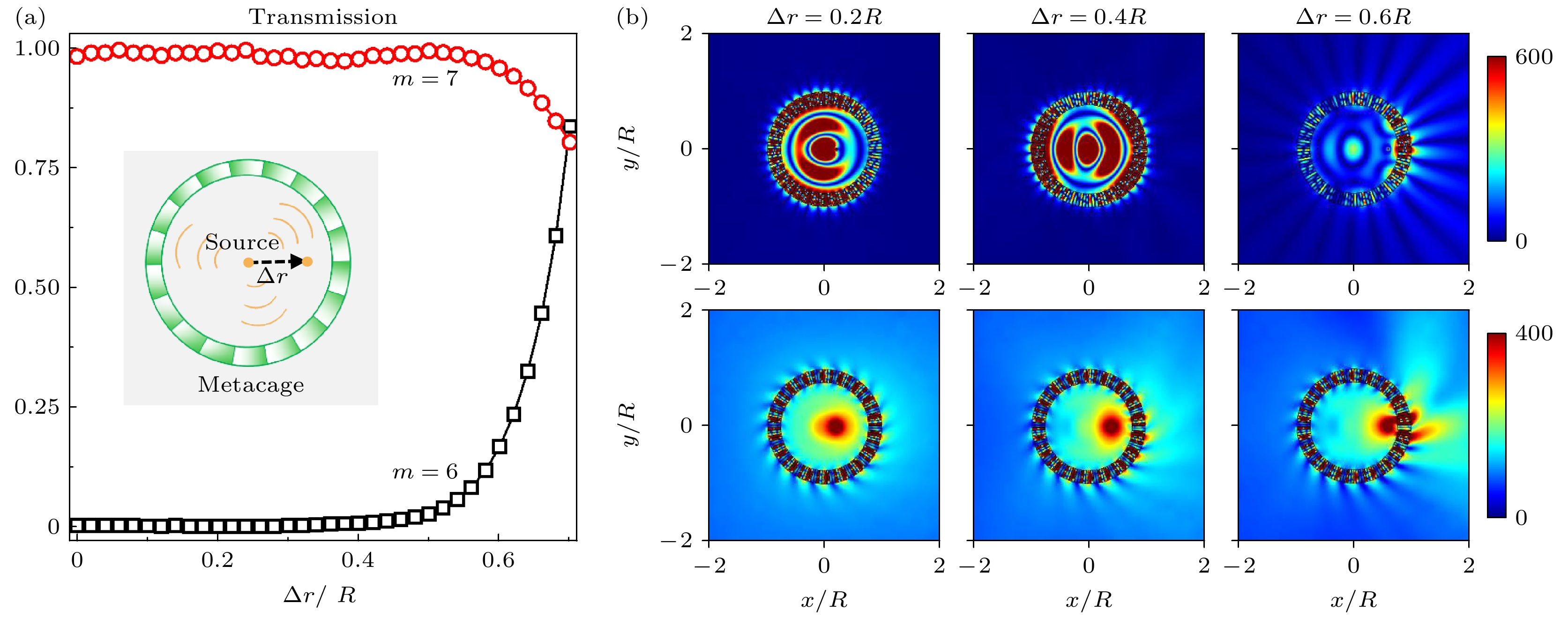

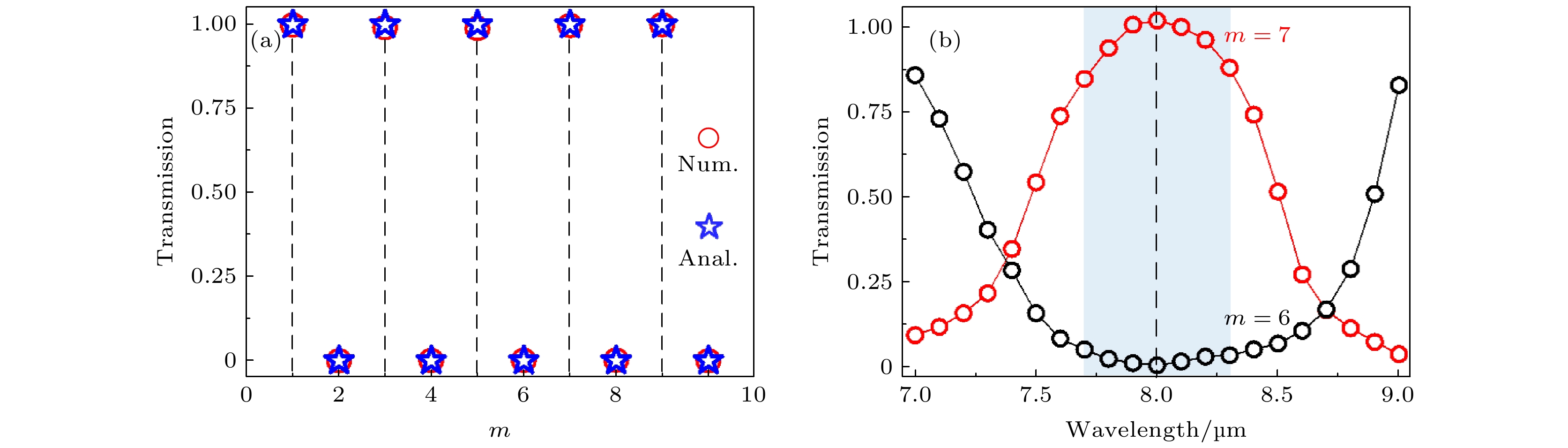

In addition to the phase gradient, the integer number of unit cells min a supercell is another degree of freedom that can be employed to control the light propagation. By the parity of m, the higher-order outgoing wave can be reversed between the anomalous transmission channel and the anomalous reflection channel. In this work, according to the concept of abrupt phase and the parity-dependent diffraction law in phase gradient metagrating, we theoretically design and study an optical meta-cage. The meta-cage is a periodic structure with one period that contains mdifferent unit cells. Through numerical simulations and rigorous analytical calculations, we find that the ability of meta-cage to trap light is related to the parity of the number of unit cells min a supercell. Specifically, when the number of unit cells is odd, the point source placed in the meta-cage can perfectly radiate out of the meta-cage without any reflection. On the contrary, when the number of unit cells is even, the point source can hardly radiate out of the meta-cage, and all the energy is localized within the meta-cage. Moreover, such a phenomenon is robust against the disorder. These results can provide new ideas and theoretical guidance for designing new radar radome and photonic isolation devices.

Keywords:

作者及机构信息

通信作者:曹燕燕,yycao@suda.edu.cn; 徐亚东,ydxu@stu.suda.edu.cn

基金项目:国家自然科学基金(批准号: 11974010, 12274313, 12104331)、中国博士后科学基金(批准号: 2020M681701, 2022T150459)、江苏省高校自然科学基金(批准号: 20KJB140014)和江苏省博士后科学基金(批准号: 2021K276B)资助的课题.

Authors and contacts

Corresponding author:Cao Yan-Yan,yycao@suda.edu.cn; Xu Ya-Dong,ydxu@stu.suda.edu.cn

Funds:Project supported by the National Natural Science Foundation of China (Grant Nos. 11974010, 12274313, 12104331), the China Postdoctoral Science Foundation (Grant Nos. 2020M681701, 2022T150459), the Natural Science Foundation of the Jiangsu Higher Education Institutions of China (Grant No. 20KJB140014), and the Postdoctoral Science Foundation of Jiangsu Province, China (Grant No. 2021K276B).
