摘要

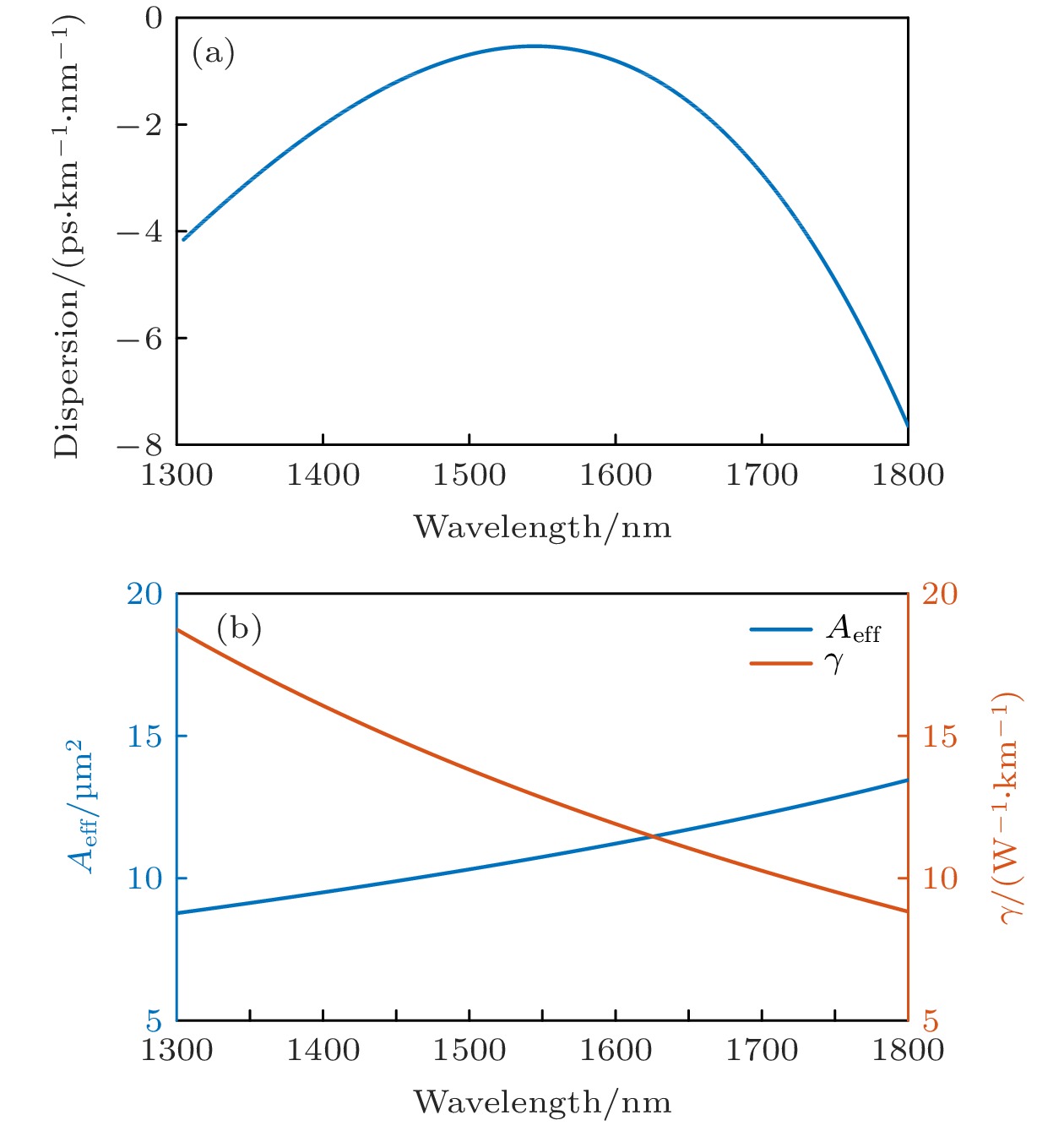

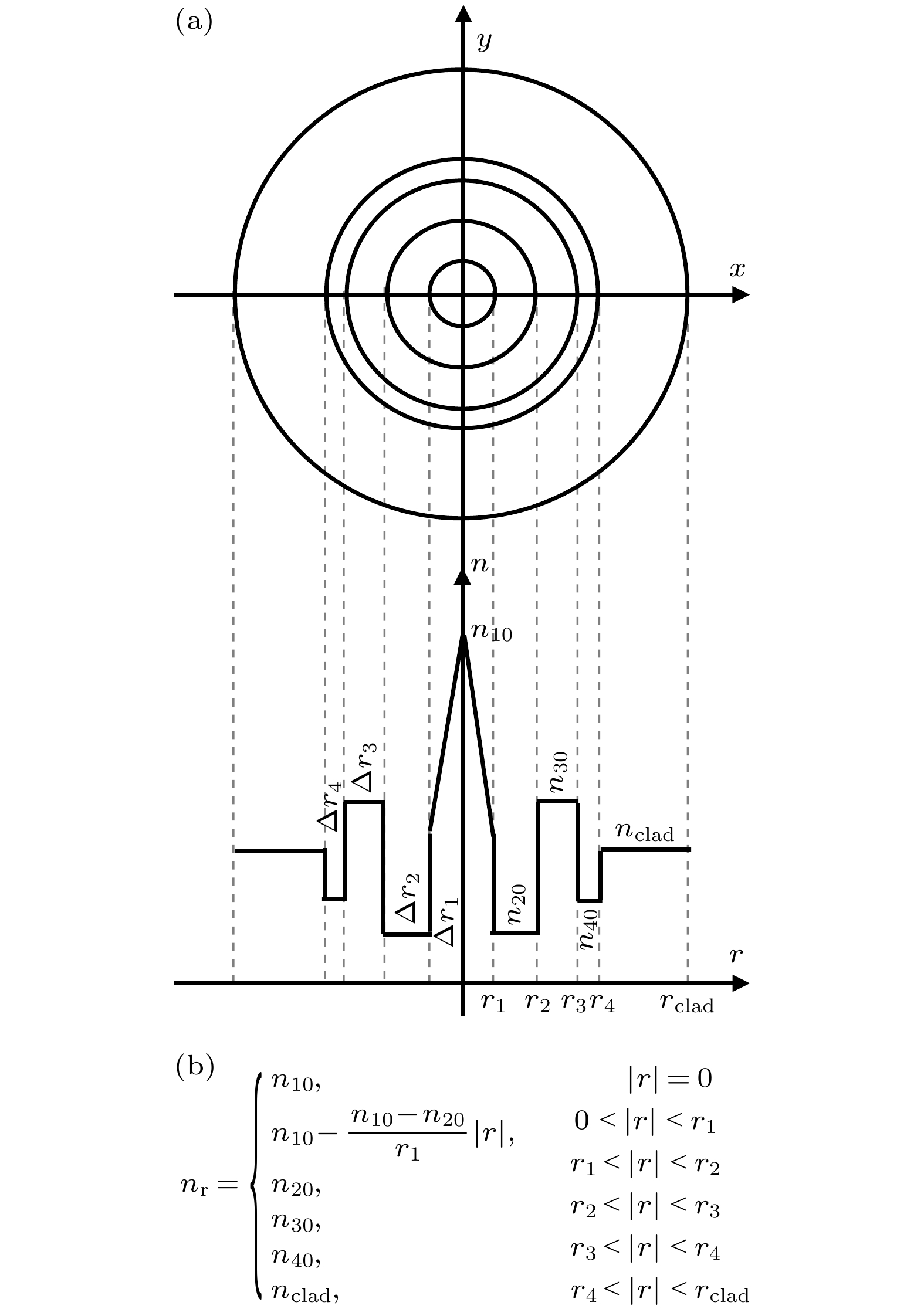

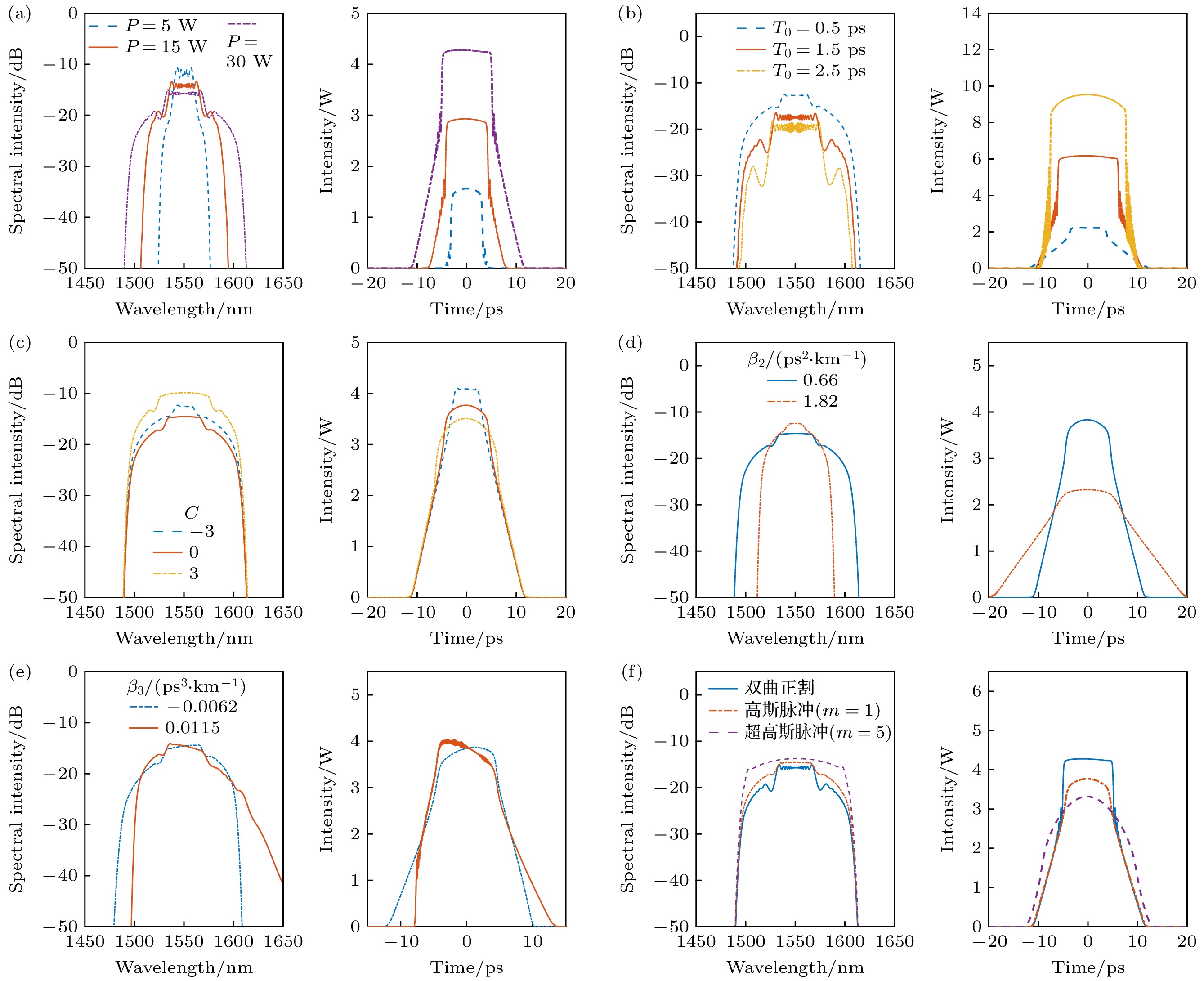

本文对一种纤芯折射率分布呈三角形的四包层结构正常色散平坦高非线性石英光纤进行优化设计, 用于平坦光频率梳产生. 研究了光纤各包层宽度和折射率大小对光纤色散特性、截止波长的影响. 经过优化设计的光纤在波长 $ 1400—1700\;{\rm{n}}{\rm{m}} $ 范围内可实现较为平坦的近零正常色散, 色散范围为 $ -3—0\;{\rm{p}}{\rm{s}}/(\rm{k}\rm{m}\cdot {\rm{n}}{\rm{m}}) $ . 光纤有效模场面积约为 $ 11\;{\text{μm}}^{2} $ , 非线性系数可达 $12.8\;{\rm{W}}^{-1}{\cdot} {\rm{k}\rm{m}}^{-1}$ . 基于电光调制脉冲泵浦正常色散平坦高非线性石英光纤, 进行平坦光频率梳产生仿真. 研究了光纤长度、二阶色散、三阶色散、脉冲峰值功率、脉冲宽度、脉冲初始啁啾、脉冲形状等参数对光频率梳产生的影响. 仿真结果有利于促进正常色散高非线性石英光纤的国产化及其在平坦光频率梳的应用.

关键词:

Abstract

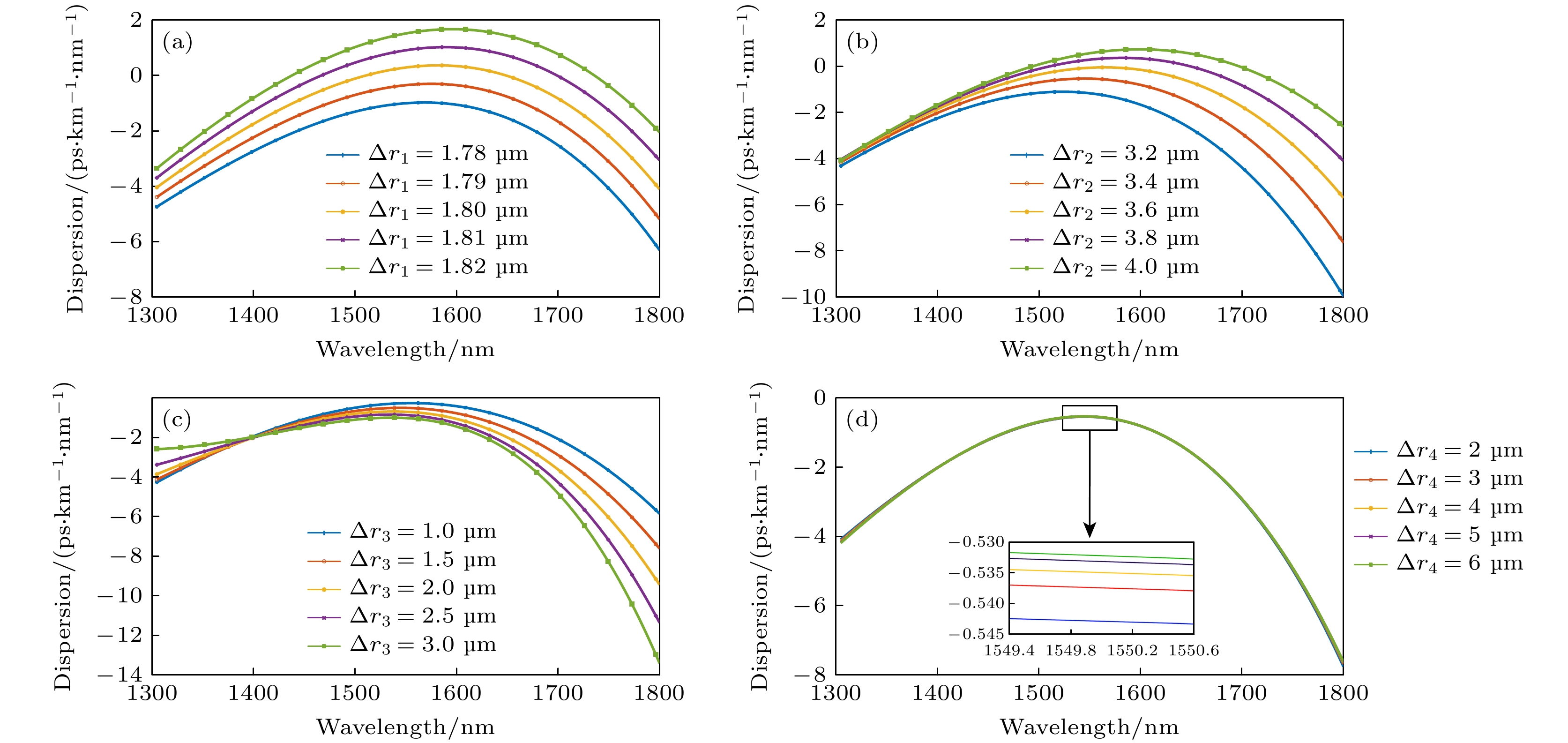

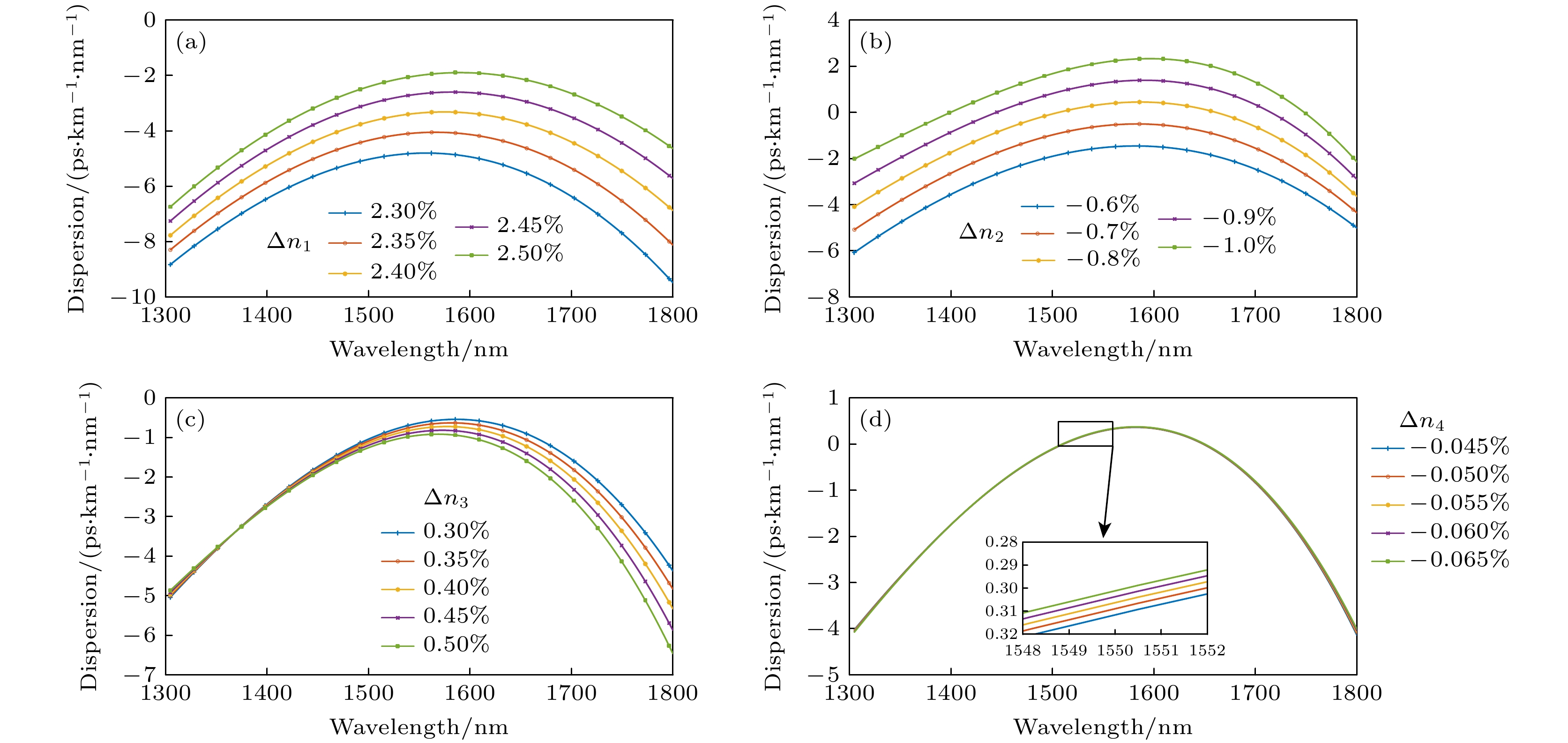

The scheme of generating optical frequency comb mainly includes mode-locked laser, electro-optic modulation comb, nonlinear Kerr micro-resonator comb, and nonlinear supercontinuum comb. For the nonlinear supercontinuum comb scheme, the silica-based high nonlinear fiber with near-zero flattened normal dispersion is required. However the fiber dispersion varies along the fiber due to the fabrication inaccuracy. Furthermore, nonlinear supercontinuum comb generation based on the nonlinear fiber has not been systematically studied. In this paper, an optimal design of four-clad flat normal dispersion high nonlinear silica fiber with a triangular core refractive index distribution for the flat optical frequency comb generation is carried out. The effects of the fiber cladding width and refractive index on the fiber dispersion characteristics and cut-off wavelength are studied through using the finite element method mode solver. The optimally designed fiber can obtain relatively flat near-zero normal dispersion in a wavelength range of 1400–1700 nm, the dispersion range is –3–0 $ \rm{p}\rm{s}/(\rm{k}\rm{m}\cdot \rm{n}\rm{m}) $ , and the dispersion slope is close to 0 at nearly 1550 nm. The effective mode field area of the nonlinear silica fiber is about 11 $ {\text{μm}}^{2} $ , and the nonlinear coefficient can reach 12.8 $ {\rm{W}}^{-1}{\cdot \rm{k}\rm{m}}^{-1} $ . Based on the electro-optic modulation pulse pumping the flat normal dispersion high nonlinear silica fiber, the flat optical frequency comb generation is systematically simulated with the generalized nonlinear Schrödinger equation. The time-frequency evolutions of a hyperbolic secant pulse, a Gaussian pulse and a super Gaussian pulse are simulated by using the X-Frog technology. The time-frequency spectrograms connect the time domain and the frequency domain of the pulse, clearly showing the change of pulse chirp during the propagation. The effects of various parameters on the optical frequency comb are studied, such as the fiber length, second-order dispersion, third-order dispersion, pulse peak power, pulse half width, pulse initial chirp, and pulse shape. An optical frequency comb with 3-dB flatness and about 40-nm bandwidth can be achieved based on hyperbolic secant pulse or Gaussian pulse pumping. Compared with the hyperbolic secant pulse and Gaussian pulse, the super Gaussian pulse can produce a flatter optical frequency comb. An optical frequency comb with 2-dB flatness and about 92-nm bandwidth can be achieved based on the super Gaussian pulse pumping. Therefore, based on the proposed high nonlinear fiber with normal dispersion , it is possible to realize an optical frequency comb with a repetition rate above 10 GHz, power flatness within 3 dB, and spectral bandwidth of about 40–90 nm. The simulation results are beneficial to promoting the localization of normal dispersion high nonlinear silica fiber and its application in flat optical frequency comb.

Keywords:

作者及机构信息

通信作者:冯素春,schfeng@bjtu.edu.cn

基金项目:中央高校基本科研业务费专项资金(批准号: 2021JBM002)和国家自然科学基金(批准号: 61827818, 62275012)资助的课题.

Authors and contacts

Corresponding author:Feng Su-Chun,schfeng@bjtu.edu.cn

Funds:Project supported by the Fundamental Research Funds for Central Universities of China (Grant No. 2021JBM002) and the National Natural Science Foundation of China (Grant Nos. 61827818, 62275012).

文章全文: translate this paragraph

参考文献

[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
[12]
[13]
[14]
[15]
[16]
[17]
[18]
[19]

施引文献

下载: 全尺寸图片幻灯片

Parameter	β₂/ (ps²·km^–1)	β₃/ (ps³·km^–1)	β₄/ (ps⁴·km^–1)	γ/ (W^–1·m^–1)	P/ W	T₀/ ps	α/ (dB·km^–1)
Value	0.66	–0.0062	0	0.0128	30	1	0.8
