随着深度学习处理问题的日益复杂, 神经网络的层数、神经元个数、和神经元之间的连接逐渐增加, 参数规模急剧膨胀, 优化超参数来提高神经网络的预测性能成为一个重要的任务. 文献中寻找最优参数的方法如灵敏度剪枝、网格搜索等, 算法复杂而且计算量庞大. 本文提出一种超参数优化的“删除垃圾神经元策略”. 权重矩阵中权重均值小的神经元, 在预测中的贡献可以忽略, 称为垃圾神经元. 该策略就是通过删除这些垃圾神经元得到精简的网络结构, 来有效缩短计算时间, 同时提高预测准确率和模型泛化能力. 采用这一策略, 长短期记忆网络模型对几种典型混沌动力系统的预测性能得到显著改善.With the complexity of problems in reality increasing, the sizes of deep learning neural networks, including the number of layers, neurons, and connections, are increasing in an explosive way. Optimizing hyperparameters to improve the prediction performance of neural networks has become an important task. In literatures, the methods of finding optimal parameters, such as sensitivity pruning and grid search, are complicated and cost a large amount of computation time. In this paper, a hyperparameter optimization strategy called junk neuron deletion is proposed. A neuron with small mean weight in the weight matrix can be ignored in the prediction, and is defined subsequently as a junk neuron. This strategy is to obtain a simplified network structure by deleting the junk neurons, to effectively shorten the computation time and improve the prediction accuracy and model the generalization capability. The LSTM model is used to train the time series data generated by Logistic, Henon and Rossler dynamical systems, and the relatively optimal parameter combination is obtained by grid search with a certain step length. The partial weight matrix that can influence the model output is extracted under this parameter combination, and the neurons with smaller mean weights are eliminated with different thresholds. It is found that using the weighted mean value of 0.1 as the threshold, the identification and deletion of junk neurons can significantly improve the prediction efficiency. Increasing the threshold accuracy will gradually fall back to the initial level, but with the same prediction effect, more operating costs will be saved. Further reduction will result in prediction ability lower than the initial level due to lack of fitting. Using this strategy, the prediction performance of LSTM model for several typical chaotic dynamical systems is improved significantly.
-
Keywords:
- LSTM/
- chaotic time series prediction/
- hyperparameter optimization/
- junk neuron deletion strategy
[1] [2] [3] [4] [5] [6] [7] [8] [9] [10] [11] [12] [13] [14] [15] [16] [17] [18] [19] [20] -
模型 train test win L1 L2 D1 D2 准确率 Logistic
(μ= 3.6)5000 15 22 16 4 4 1 82.90％ Logistic
(μ= 3.7)5000 15 22 16 4 4 1 70.70％ Logistic
(μ= 3.8)5000 15 2 20 4 4 1 68.60％ Logistic
(μ= 3.9)5000 15 2 16 4 2 1 60.00％ Logistic
(μ= 3.99)5000 15 2 16 4 4 1 57.10％ Henon 5000 15 2 22 2 2 1 67.10％ Rossler 5000 15 2 16 4 4 1 77.10％
下载:
导出CSV
结构 起始点 终点 input_gate 0 units forget_gate units 2×units cell 2×units 3×units output_gate 3×units 4×units 下载:
导出CSV

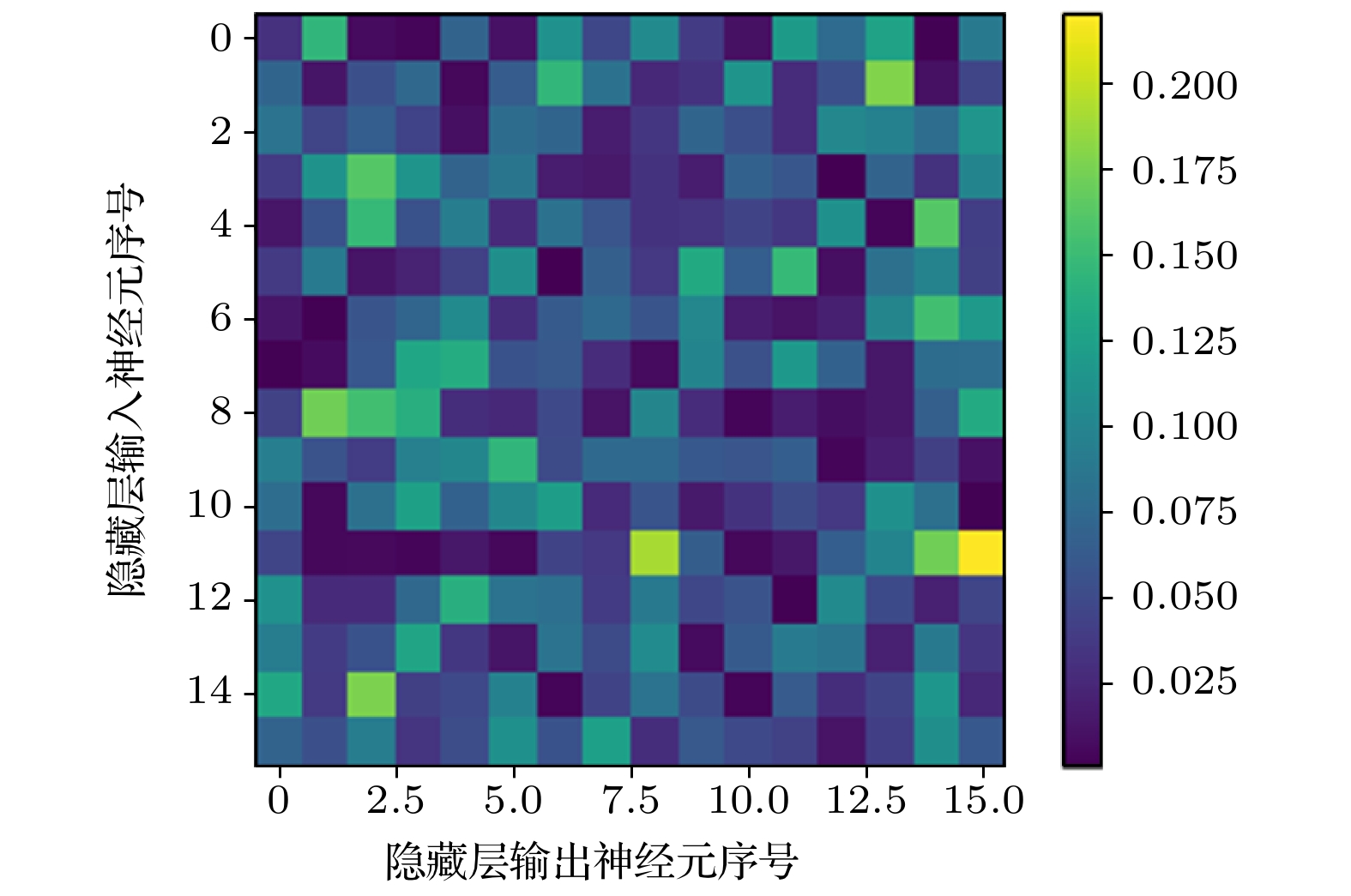

w1 w2 w3 w4 w5 w6 w7 w8 w9 w10 w11 w12 w13 w14 w15 w16 x1 0.032129 0.144328 0.007293 0.003557 0.070465 0.011652 0.11142 0.048287 0.105727 0.039649 0.010162 0.119949 0.0771 0.126937 0.001947 0.089396 x2 0.070867 0.013232 0.054503 0.073496 0.005734 0.064071 0.145835 0.083217 0.025553 0.033065 0.113584 0.028327 0.054085 0.177761 0.010123 0.046546 x3 0.083647 0.046366 0.066226 0.044534 0.010054 0.077919 0.071001 0.018548 0.035294 0.071642 0.053888 0.028448 0.102273 0.096744 0.078535 0.114879 x4 0.039123 0.113002 0.161581 0.113866 0.070651 0.085571 0.01836 0.015408 0.032978 0.018375 0.068342 0.059137 0.00701 0.070451 0.032602 0.099853 x5 0.013762 0.055823 0.147481 0.055493 0.093444 0.027264 0.082384 0.058674 0.032903 0.033342 0.045937 0.035937 0.110378 0.004487 0.161653 0.041037 x6 0.038079 0.089649 0.013102 0.021696 0.042833 0.109787 0.001024 0.0673 0.036916 0.134038 0.066291 0.146953 0.009803 0.081372 0.098701 0.042456 x7 0.013865 0.001702 0.057869 0.072264 0.104456 0.029761 0.062669 0.07539 0.05715 0.102282 0.017876 0.012626 0.020022 0.100243 0.153076 0.11875 x8 0.002042 0.006925 0.060008 0.13031 0.136406 0.056203 0.061606 0.028064 0.006926 0.099129 0.055122 0.117276 0.06846 0.014505 0.078184 0.078834 x9 0.044205 0.171724 0.153162 0.13818 0.029189 0.025947 0.049391 0.012338 0.100584 0.028133 0.004946 0.017914 0.008463 0.014741 0.066944 0.134139 x10 0.094619 0.0563 0.040223 0.096283 0.10152 0.145036 0.051991 0.075623 0.075216 0.061209 0.057986 0.066076 0.004787 0.01945 0.042341 0.011339 x11 0.078909 0.005603 0.08149 0.125202 0.069081 0.10143 0.122451 0.027058 0.057647 0.016226 0.03275 0.050667 0.036795 0.11072 0.081767 0.002204 x12 0.046159 0.005688 0.006237 0.004618 0.014815 0.005272 0.04598 0.037005 0.190933 0.065535 0.005131 0.015155 0.065812 0.099804 0.172294 0.21956 x13 0.111226 0.027026 0.027497 0.074868 0.139154 0.084413 0.080342 0.038769 0.088824 0.047083 0.056548 0.002081 0.10549 0.049929 0.020529 0.04622 x14 0.092772 0.03999 0.055938 0.128114 0.036386 0.013061 0.083943 0.051033 0.106374 0.007257 0.063049 0.091929 0.084821 0.020458 0.089496 0.035379 x15 0.131586 0.038161 0.176303 0.041758 0.049173 0.096633 0.0033 0.045529 0.084262 0.050839 0.003322 0.063406 0.029601 0.045323 0.116047 0.024757 x16 0.070289 0.05378 0.092472 0.03372 0.052087 0.110236 0.055639 0.124221 0.029371 0.06142 0.04904 0.043376 0.012261 0.041226 0.109564 0.061299 均

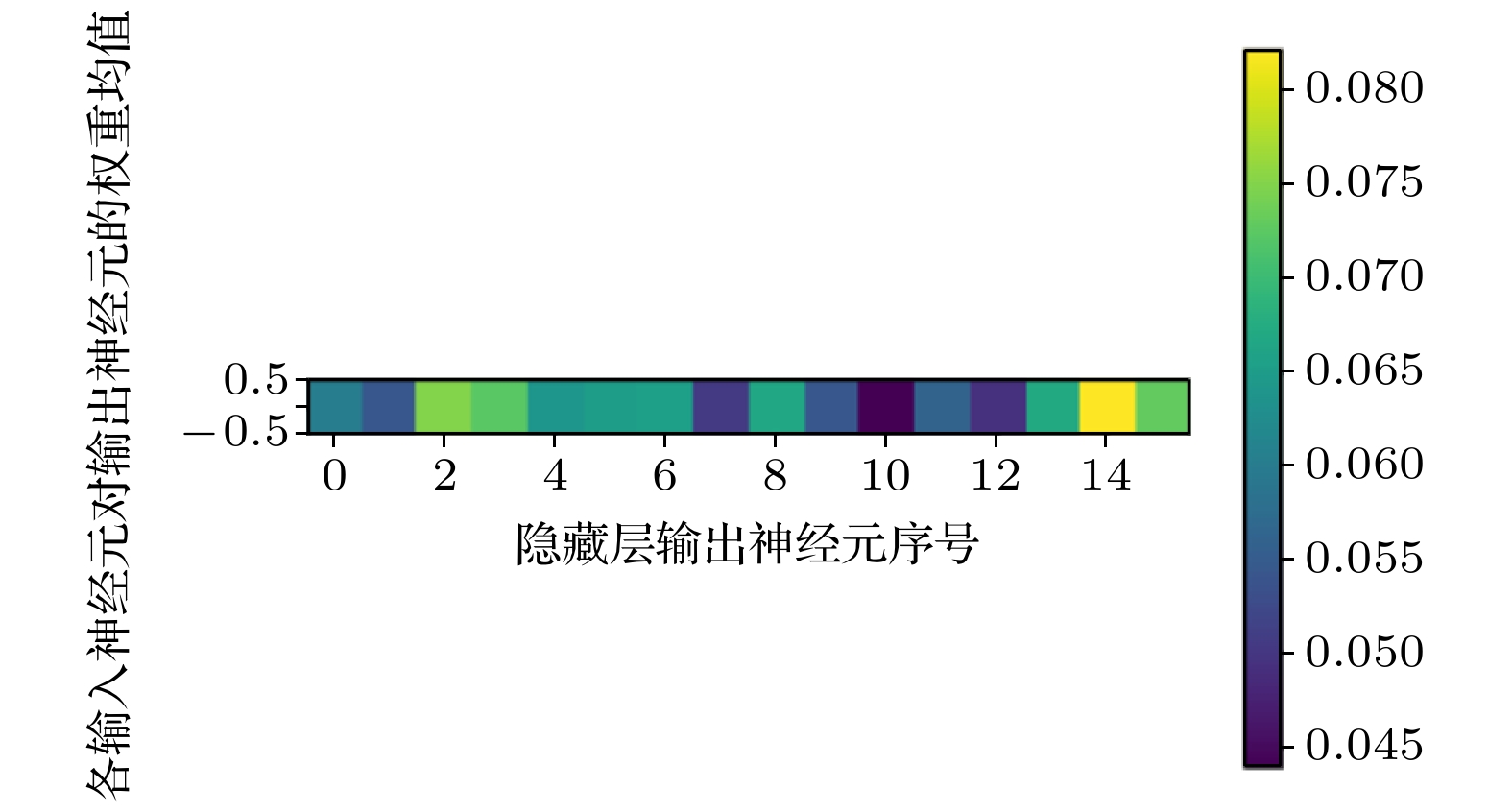

值0.060205 0.054331 0.075087 0.072372 0.064091 0.065266 0.065459 0.050404 0.066666 0.054326 0.043998 0.056204 0.049428 0.067134 0.082113 0.072915 下载:
导出CSV

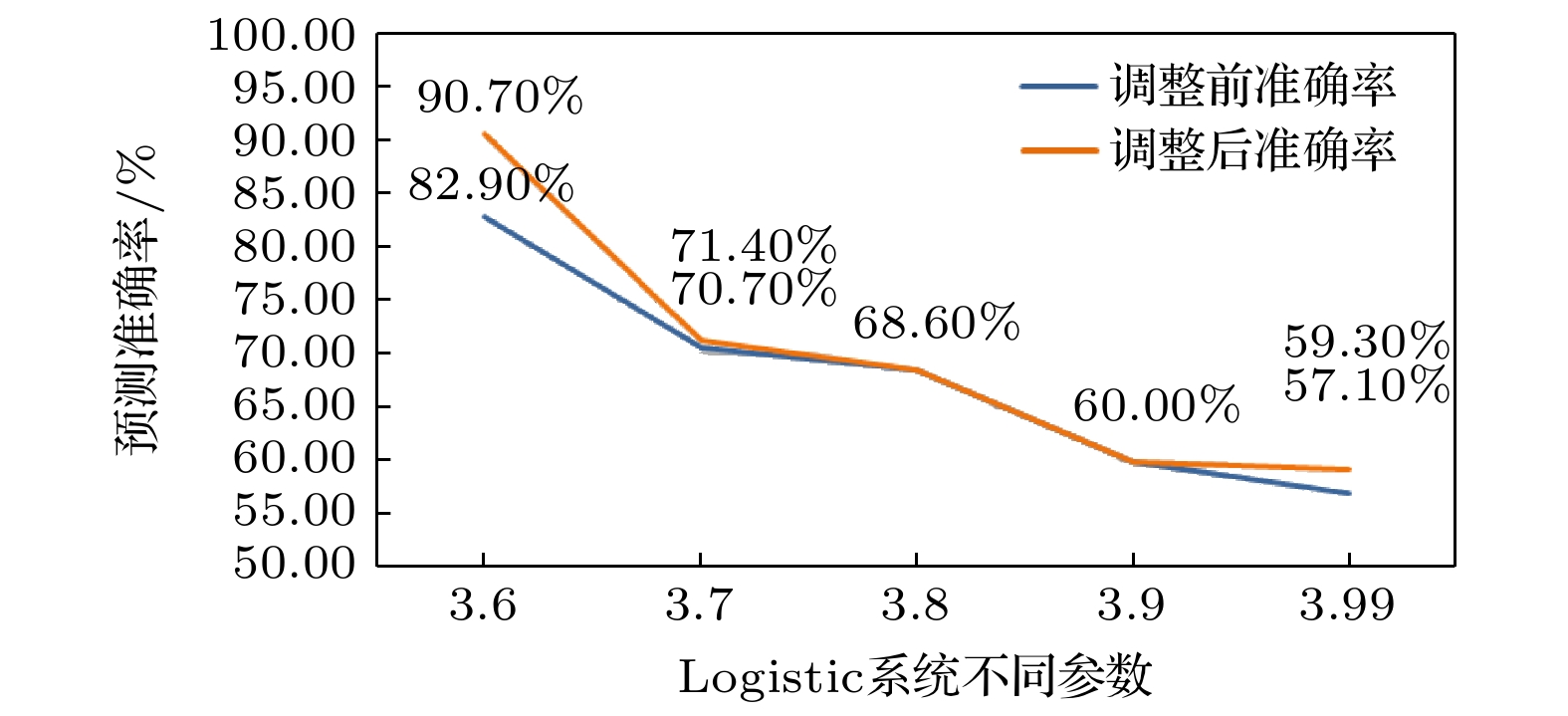

模型 调整前L1 调整后L1 调整前准确率 调整后准确率 神经元数调整 准确率变化趋势 Logistic
(μ= 3.6)16 15 82.90％ 90.70％ –1
Logistic
(μ= 3.7)16 13 70.70％ 71.40％ –3
Logistic
(μ= 3.8)20 16 68.60％ 68.60％ –4
Logistic
(μ= 3.9)16 12 60.00％ 60.00％ –4
Logistic
(μ= 3.99)16 15 57.10％ 59.30％ –1
Henon 22 21 67.10％ 70.00％ –1
Rossler 16 14 77.10％ 83.60％ –2
下载:
导出CSV
指标 调整前 以各权重阀值调整后 变化趋势 0.1 0.11 0.12 0.14 L1 22 21 19 16 14
准确率 67.10％ 70.00％ 66.40％ 65.70％ 65.00％
下载:
导出CSV
指标 调整前 以各权重阀值调整后 变化趋势 0.085 0.095 0.105 0.115 L1 16 14 12 11 8
准确率 77.10％ 83.60％ 81.40％ 80.70％ 71.40％
下载:
导出CSV
-
