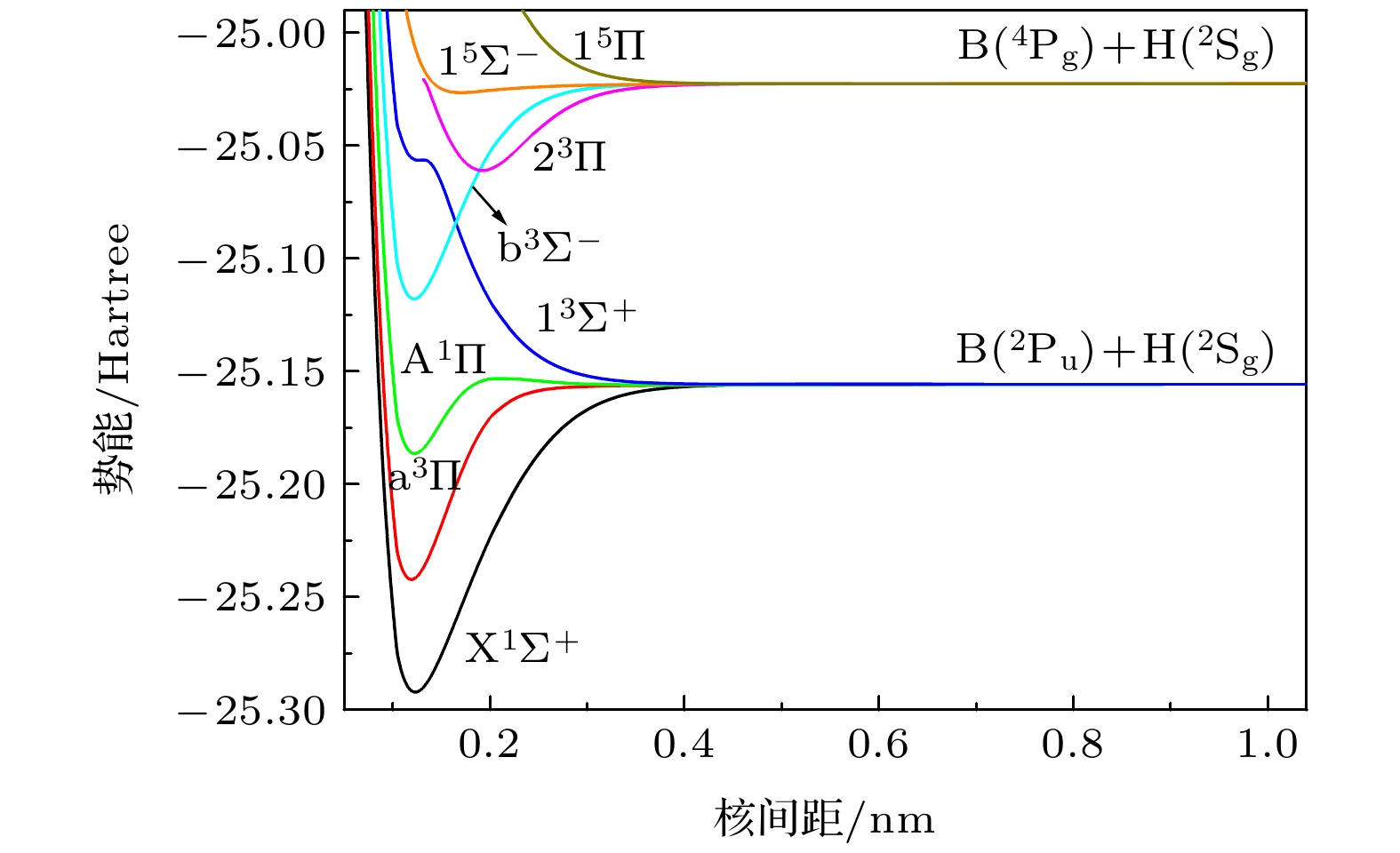

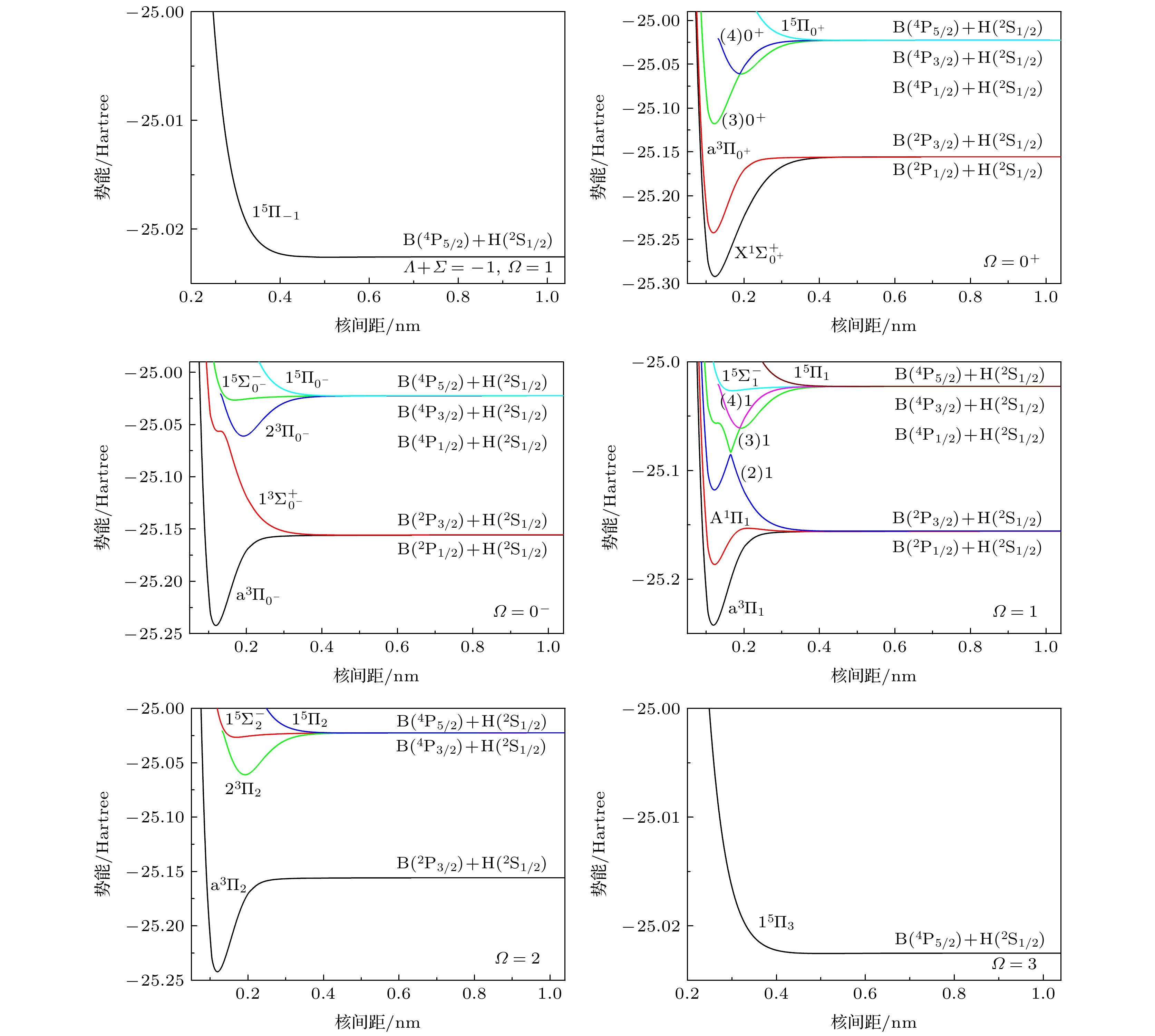

本文利用内收缩多参考组态相互作用方法计算了BH分子8个低电子态(X 1Σ +, a 3Π, A 1Π, b 3Σ –, 2 3Π, 1 3Σ +, 1 5Σ –和1 5Π)和在自旋-轨道耦合效应下所产生的23个Ω态的势能曲线、以及

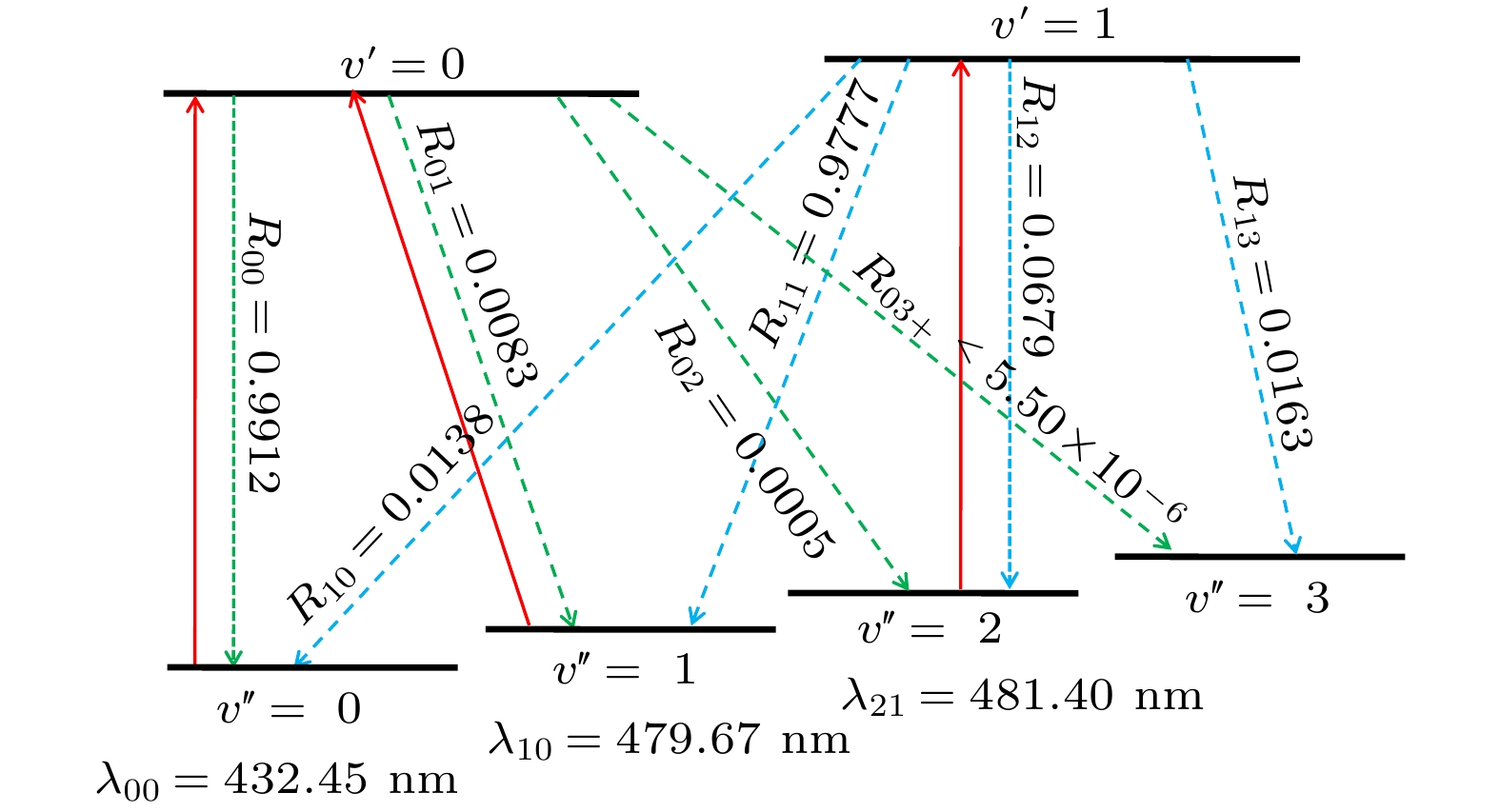

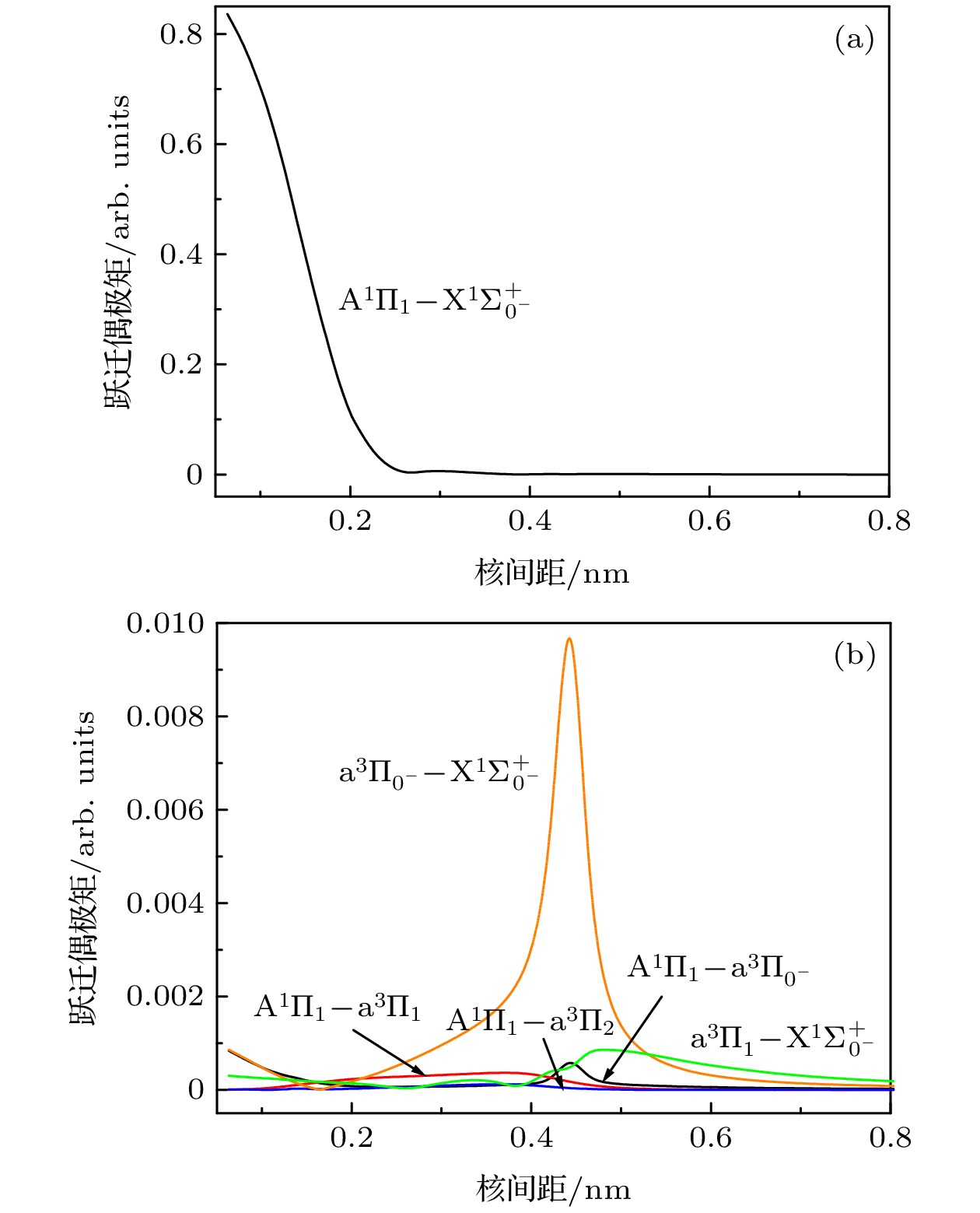

${\rm{X}}{}^1\Sigma _{{0^ + }}^ +$ ,${{\rm{a}}^3}{\Pi _{{0^ + }}}$ ,${{\rm{a}}^3}{\Pi _1}$ ,${{\rm{a}}^3}{\Pi _2}$ 和${{\rm{A}}^1}{\Pi _1}$ 态之间6对跃迁的跃迁偶极矩. 为了获得精确的势能曲线, 计算中修正了单双电子激发、核价相关效应、相对论效应和基组截断带来的误差. 获得的BH分子的光谱和跃迁数据与现有的理论值和实验值符合得很好. 计算结果表明: BH分子的A 1Π 1( υ'= 0 – 2, J'= 1, +) →$ {\text{X}}{}^1\Sigma _{{0^ + }}^ + $ ( υ′′ = 0 – 2, J′′ = 1, –)跃迁具有较大的爱因斯坦 A系数和加权的吸收振子强度、高度对角化分布的振动分支比, A 1Π 1态具有较短的辐射寿命. 另外,${{\rm{a}}^3}{\Pi _{{0^ + }}}$ 和a 3Π 1态对A 1Π 1( υ'= 0) ↔$ {\rm X}^1\Sigma _{{0^ + }}^ + $ ( υ′′ = 0)循环跃迁的影响可以忽略. 因此, 基于A 1Π 1( υ'= 0—1, J′ = 1, +) ↔$ {\rm X}^1\Sigma _{{0^ + }}^ + $ ( υ′′ = 0—3, J′′= 1, –)循环跃迁, 我们提出了用一束主冷却激光( λ 00= 432.45 nm)和两束再泵浦激光( λ 10= 479.67 nm和 λ 21= 481.40 nm)冷却BH分子的方案, 并评价了冷却效果.In this work, the potential energy curves of eight low electronic states (X 1Σ +, a 3Π, A 1Π, b 3Σ -, 2 3Π, 1 3Σ +, 1 5Σ -, and 1 5Π) and twenty-three Ω states of BH molecule, and the transition dipole moments among the$ {\text{X}}{}^{\text{1}}{\Sigma}_{{{\text{0}}^ + }}^ + $ ,$ {{\text{a}}^{\text{3}}}{\Pi_{{{\text{0}}^ + }}} $ , a 3Π 1, a 3Π 2, and A 1Π 1states are calculated by using the internally contracted multireference configuration interaction (icMRCI) method. In order to obtain the accurate potential energy curve, the errors caused by single and double electron excitation, core-valence correlation effects, relativistic effects and basis set truncation are corrected. The spectral and transition data of BH molecule are in good agreement with the available theoretical and experimental data. The calculation results show that the A 1Π 1( υ′= 0-2, J′= 1, +) →$ {\text{X}}{}^{\text{1}}{\Sigma}_{{{\text{0}}^ + }}^ + $ ( υ′′= 0-2, J′′= 1, –) transition has large Einstein A-coefficient, weighted absorption oscillator strength, and highly diagonal vibrational branching ratio R υ′υ′′, and the excited state A 1Π 1( υ′= 0, 1) have short spontaneous radiation lifetimes. Moreover, the effects of$ {{\text{a}}^{\text{3}}}{\Pi_{{{\text{0}}^ + }}} $ and a 3Π 1states on A 1Π 1( υ′= 0) ↔$ {\text{X}}{}^{\text{1}}{\Sigma}_{{{\text{0}}^ + }}^ + $ ( υ′′= 0) cycle transition can be ignored. Therefore, according to the A 1Π 1( υ′ = 0-1, J′= 1, +) ↔$ {\text{X}}{}^{\text{1}}{\Sigma}_{{{\text{0}}^ + }}^ + $ ( υ′′ = 0-3, J′′ = 1, –) cycle transition, we propose to apply one main cooling laser ( λ 00= 432.45 nm) and two repumping lasers ( λ 10= 479.67 nm and λ 21= 481.40 nm) to laser cooling BH molecules, and evaluation of the cooling effect.-
Keywords:
- potential energy curves/
- spectroscopic parameters/
- spin-orbit coupling/
- transition dipole moments
[1] [2] [3] [4] [5] [6] [7] [8] [9] [10] [11] [12] [13] [14] [15] [16] [17] [18] [19] [20] [21] [22] [23] [24] [25] [26] [27] [28] [29] [30] [31] [32] [33] -
Λ-S态 来源 Te/cm–1 Re/nm ωe/cm–1 ωexe/cm–1 Be/cm–1 αe/(102cm–1) De/eV X1Σ+ 本文 0 0.12295 2367.28 48.7782 12.0395 37.0985 3.7137 实验[8] 0 0.12322 2366.73 49.3384 12.0255 42.1516 实验[10] 0 — 2366.73 49.3398 12.0258 42.1565 实验[12] 0 — 2364.66 47.7098 12.0257 42.1591 3.6476±0.0037a 实验[13] 0 0.12322 2366.73 49.3405 12.0255 42.1450 理论[5] 0 0.12290 2352.0 44.0 12.086 — 3.6863 理论[15] 0 0.12301 2379 46.79 12.07 — 3.70 理论[16] 0 0.12312 2378 12.055 3.578b 理论[17] 0 0.1230 2359 48.8 — 41.8 3.6773 理论[18] 0 0.12327 2368.48 50.6957 12.110 43.05 3.6580 理论[19] 0 0.12300 — — — — 3.6751 理论[20] 0 0.12293 2365.69 47.2310 12.0801 41.6 3.6851 a3Π 本文 10944.32 0.11899 2625.97 59.4177 12.8919 41.6404 2.3507 实验[14] xc 0.11900 2625.14 55.7840 12.8931 41.5610 2.3867 理论[5] 10645.0 0.11900 2961.0 109.6 12.904 — 2.3806 理论[15] 0.11913 2653 62.70 12.87 — 2.38 理论[17] 10583 0.11900 2625 60.4 — 45.5 2.3677 理论[18] 9557.67 0.11925 2598.98 46.6300 12.9400 42.53 2.3135 A1Π 本文 23203.52 0.12223 2253.28 36.8310 11.8343 11.6254 0.8368 实验[10] 23135.44 0.12195d 2251.46 56.5725 12.20035 53.7670 0.697d 实验[12] 23105.10 — 2342.41 127.7618 12.19986 53.6736 0.7786±0.0037a 理论[5] 22997.90 0.12210 2404.60 147.3 12.2795 — 0.9098 理论[15] 0.12213 2320 136.5 12.24 — 0.71 理论[16] 23061 0.12235 2290 — 12.20 — 0.73b 理论[17] 23144 0.1222 2341 129.6 — 85.1 0.8109 理论[18] 22260.89 0.12267 2280.26 93.6233 12.229 60.83 0.7536 理论[19] 23099.84 0.12212 2343.96 128.178 12.2836 74.0 0.8938 b3Σ– 本文 38238.63 0.12164 2440.89 54.4477 12.2508 33.6712 2.5959 实验[14] xc+27152.75 0.121625 2438.10 55.562 12.3426 43.087 2.5987 理论[15] 0.12256 2345 48.45 12.16 — 2.54 理论[17] 37708 0.1217 2430 57.3 — 45.9 2.5845 理论[18] 36859.52 0.12199 2428.33 55.409 12.284 44.31 2.5403 23Π 本文 50730.46 0.19215 1273.89 20.7896 4.94471 3.0957 1.0467 理论[15] 0.19338 1425 57.04 4.88 — 1.04 理论[17] 50216 0.1931 1295 38.6 — 9.9 1.0321 13Σ+ 本文 51738.07 0.12592 — — — — 0.0031 理论[17] 51688 0.123 15Σ– 本文 58295.54 0.16981 634.868 167.676 6.51936 192.641 0.1093 理论[17] 57674 0.1701 528 87.3 — 153.2 0.1084 a, 文献[11]中的值; b,D0值; c,x表示a3Π态相对于X1Σ+态的Te值; d, 文献[7]中的值.
下载:
导出CSV
原子态(B + H) Ω态 能级/cm–1 本文 实验[30] B(2P1/2) + H(2S1/2) 0–, 0+, 1 0.00 0.00 B(2P3/2) + H(2S1/2) 2, 1(2), 0+, 0– 14.572 15.287 B(4P1/2) + H(2S1/2) 0–, 0+, 1 28910.63 28647.43+xa B(4P3/2) + H(2S1/2) 2, 1(2), 0+, 0– 28914.67 28652.07+xa B(4P5/2) + H(2S1/2) 3, 2(2), 1(2), 0+, 0– 28921.41 28658.40+xa a,4P5/2能级外推值的不确定度. 下载:
导出CSV
Ω态 Te/cm–1 Re/nm ωe/cm–1 ωexe/cm–1 Be/cm–1 102αe/cm–1 De/eV 在Re附近主要的Λ–S态/% $ {\text{X}}{}^{\text{1}}{\Sigma}_{{{\text{0}}^ + }}^ + $ 0 0.12295 2367.28 48.7783 12.0395 37.0985 3.7138 X1Σ+(100.00) ${\text{a} }{}^{\text{3} }{\Pi_{ { {\text{0} }^{{ - } } } }}$ 10940.36 0.11899 2625.93 59.4165 12.8918 41.6426 2.3506 a3Π (100.00) $ {\text{a}}{}^{\text{3}}{\Pi_{{{\text{0}}^ + }}} $ 10940.37 0.11899 2625.93 59.4192 12.8918 41.6424 2.3506 a3Π (100.00) a3Π1 10944.32 0.11899 2625.97 59.4140 12.8919 41.6403 2.3513 a3Π (100.00) a3Π2 10948.49 0.11899 2626.01 59.4131 12.8919 41.6384 2.3509 a3Π (100.00) A1Π1 23203.52 0.12223 2253.28 36.8317 11.8338 11.7034 0.9051 A1Π (100.00) (3)0+第一势阱 38244.33 0.12163 2438.08 44.7281 12.2925 38.3041 1.5501 b3Σ–(100.00) (3)0+第二势阱 50725.86 0.19213 — — — — 0.0026 23Π (100.00) (3)1 38244.35 0.12163 2447.69 54.2934 12.3167 37.6149 0.8995 b3Σ–(100.00) (4)1 45758.49 0.16496 4850.09 1293.00 6.73952 4.02168 1.6629 13Σ+(100.00) ${\text{2} }{}^{\text{3} }{\Pi_{ { {\text{0} }^{ { - } } } } }$ 50726.07 0.19214 1274.00 20.8450 4.94470 3.09611 1.0466 23Π (100.00) (4)0+ 50726.51 0.18860 2344.54 77.7976 16.5616 29.6976 1.0478 b3Σ–(99.82), 23Π (0.18) (5)1 50728.05 0.18863 2531.33 412.671 5.20415 61.4752 1.0476 b3Σ–(99.92), 23Π (0.08) 23Π2 50734.85 0.19215 1273.86 20.7903 4.94471 3.09520 1.0467 23Π (100.00) ${\text{1} }{}^{\text{3} }{\Sigma}_{ { {\text{0} }^{{ - } } } }^ +$ 51738.08 0.12592 — — — — 0.0031 13Σ+(100.00) ${\text{1} }{}^{\text{5} }{\Sigma}_{ { {\text{0} }^{{ - } } } }^{{ - } }$ 58295.53 0.16981 634.857 167.653 6.51872 192.471 0.1096 15Σ–(100.00) ${\text{1} }{}^{\text{5} }{\Sigma}_{\text{2} }^{{ - } }$ 58295.55 0.16981 634.862 167.660 6.51884 192.502 0.1096 15Σ–(100.00) ${\text{1} }{}^{\text{5} }{\Sigma}_{\text{2} }^{{ - } }$ 58295.57 0.16981 634.867 167.669 6.51902 192.550 0.1095 15Σ–(100.00) 下载:
导出CSV
υ′–υ″ ${\tilde v}/$cm–1 Aυ′υ′′/s Rυ′υ′′ λυ′υ′′/nm gfυ′υ′′ υ′–υ″ ${\tilde v} $/cm–1 Aυ′υ′′/s Rυ′υ′′ λυ′υ′′/nm gfυ′υ′′ 0-0 23140.44 7.98×106 0.9912 432.45 0.0067 1-0 25243.77 9.61×104 0.0138 396.42 6.78×10–4 0-1 20862.55 6.67×104 0.0083 479.67 6.89×10–4 1-1 22965.88 6.80×106 0.9777 435.74 0.0580 0-2 18684.36 3.86×103 4.79×10–4 535.59 4.97×10–5 1-2 20787.69 4.72×104 0.0068 481.40 4.91×10–4 0-3 16602.97 4.43×101 5.50×10–6 602.73 7.22×10–7 1-3 18706.30 1.13×104 0.0016 534.96 1.45×10–4 0-4 14612.08 1.75 2.17×10–7 684.85 3.69×10–8 1-4 16715.40 7.15×101 1.03×10–5 598.68 1.15×10–6 2-0 27090.98 1.76×103 3.10×10–4 369.39 1.08×10–5 3-0 28588.60 1.08×103 2.66×10–4 350.04 5.95×10–6 2-1 24813.09 4.31×105 0.0759 403.30 0.0032 3-1 26310.72 1.89×103 4.66×10–4 380.34 1.23×10–5 2-2 22634.90 5.22×106 0.9192 442.11 0.0458 3-2 24132.53 1.16×106 0.2858 414.67 0.0090 2-3 20553.51 1.38×103 2.43×10–4 486.88 1.47×10–5 3-3 22051.13 2.80×106 0.6887 453.81 0.0259 2-4 18562.62 2.46×104 0.0043 539.10 3.21×10–4 3-4 20060.24 4.31×104 0.0106 498.85 4.82×10–4 2-5 16658.64 1.50×101 2.64×10–6 600.72 2.43×10–7 3-5 18156.26 5.40×104 0.1330 551.17 7.37×10–4 下载:
导出CSV
υ′–υ″ ${\tilde v} $/cm–1 Aυ′υ′′/s Rυ′υ′′ λυ′υ′′/nm gfυ′υ′′ υ′–υ″ ${\tilde v} $/cm–1 Aυ′υ′′/s Rυ′υ′′ λυ′υ′′/nm gfυ′υ′′ 0-0 11039.58 0.1278 0.9615 906.48 4.72×10–9 1-0 13546.43 0.0081 0.0607 738.73 1.98×10–10 0-1 8761.69 0.0050 0.0374 1142.14 2.91×10–10 1-1 11268.54 0.1148 0.8613 888.06 4.07×10–9 0-2 6583.50 1.48×10–4 0.0011 1520.03 1.54×10–11 1-2 9090.35 0.0099 0.0739 1100.85 5.36×10–10 0-3 4502.11 3.00×10–6 2.25×10–5 2222.76 6.65×10–13 1-3 7008.96 5.33×10–4 0.0040 1427.76 4.88×10–11 0-4 2511.21 3.32×10–8 2.50×10–7 3984.98 2.37×10–14 1-4 5018.07 1.86×10–5 1.39×10–4 1994.22 3.32×10–12 2-0 15928.88 2.81×10–5 2.12×10–4 628.24 4.98×10–13 3-0 18182.60 1.94×10–6 1.47×10–5 550.37 2.63×10–14 2-1 13651.00 0.0152 0.1142 733.07 3.66×10–10 3-1 15904.71 5.54×10–5 4.22×10–4 629.19 9.84×10–13 2-2 11472.81 0.1023 0.7703 872.25 3.49×10–9 3-2 13726.52 0.0211 0.1607 729.04 5.04×10–10 2-3 9391.41 0.0141 0.1059 1065.56 7.17×10–10 3-3 11645.13 0.0912 0.6945 859.34 3.03×10–9 2-4 7400.52 0.0012 0.0089 1352.22 9.71×10–11 3-4 9654.23 0.0168 0.1277 1036.55 8.09×10–10 下载:
导出CSV
υ′–υ″ ${\tilde v} $/cm–1 Aυ′υ′′/s Rυ′υ′′ λυ′υ′′/nm gfυ′υ′′ υ′–υ″ ${\tilde v} $/cm–1 Aυ′υ′′/s Rυ′υ′′ λυ′υ′′/nm gfυ′υ′′ 0-0 11039.10 0.1878 0.8913 906.52 2.31×10–9 1-0 13546.35 5.67×10–4 0.0030 738.73 4.63×10–12 0-1 8761.22 0.0216 0.1027 1142.21 4.22×10–10 1-1 11268.46 0.1441 0.7666 888.06 1.70×10–9 0-2 6583.03 0.0012 0.0058 1520.14 4.24×10–11 1-2 9090.27 0.0391 0.2082 1100.86 7.10×10–10 0-3 4501.63 4.60×10–5 2.18×10–4 2223.00 3.40×10–12 1-3 7008.88 0.0039 0.0209 1427.78 1.20×10–10 0-4 2510.74 9.71×10–7 4.61×10–6 3985.72 2.31×10–13 1-4 5017.98 2.33×10–4 0.0012 1994.25 1.39×10–11 2-0 15929.21 3.36×10–4 0.0020 628.22 1.98×10–12 3-0 18183.37 1.76×10–6 1.12×10–5 550.34 7.97×10–15 2-1 13651.32 0.0023 0.0142 733.05 1.84×10–11 3-1 15905.48 9.50×10–4 0.0061 629.16 5.63×10–12 2-2 11473.13 0.1081 0.6354 872.22 1.23×10–9 3-2 13727.29 0.0050 0.0320 728.99 3.99×10–11 2-3 9391.74 0.0507 0.2982 1065.52 8.62×10–10 3-3 11645.90 0.0817 0.5216 859.28 9.03×10–10 2-4 7400.84 0.0080 0.0468 1352.16 2.18×10–10 3-4 9655.01 0.0542 0.3464 1036.47 8.72×10–10 下载:
导出CSV
υ′ $ {\text{a}}{}^{\text{3}}{\Pi_{{{\text{0}}^ + }}} $/s a3Π1/s A1Π1/ns 总和/ns $ {\text{A}}{}^{\text{1}}{\Pi_{\text{1}}}{\text{ - }}{{\text{X}}^{\text{1}}}{\Sigma}_{{{\text{0}}^ + }}^ + $/ns $ {\text{A}}{}^{\text{1}}{\Pi_{\text{1}}} $-$ {\text{a}}{}^{\text{3}}{\Pi_{{{\text{0}}^ + }}} $/s A1Π1– a3Π1/s A1Π1– a3Π2/s 0 4.75 7.52 124.18 124.18 2.71 111.48 177.04 1 5.32 7.50 143.86 143.86 3.03 90.08 116.30 2 5.88 7.53 176.12 176.12 3.58 83.05 192.36 3 6.39 7.61 246.20 246.20 4.77 93.55 255.19 4 6.85 7.78 5 7.27 8.09 下载:
导出CSV
-
