摘要

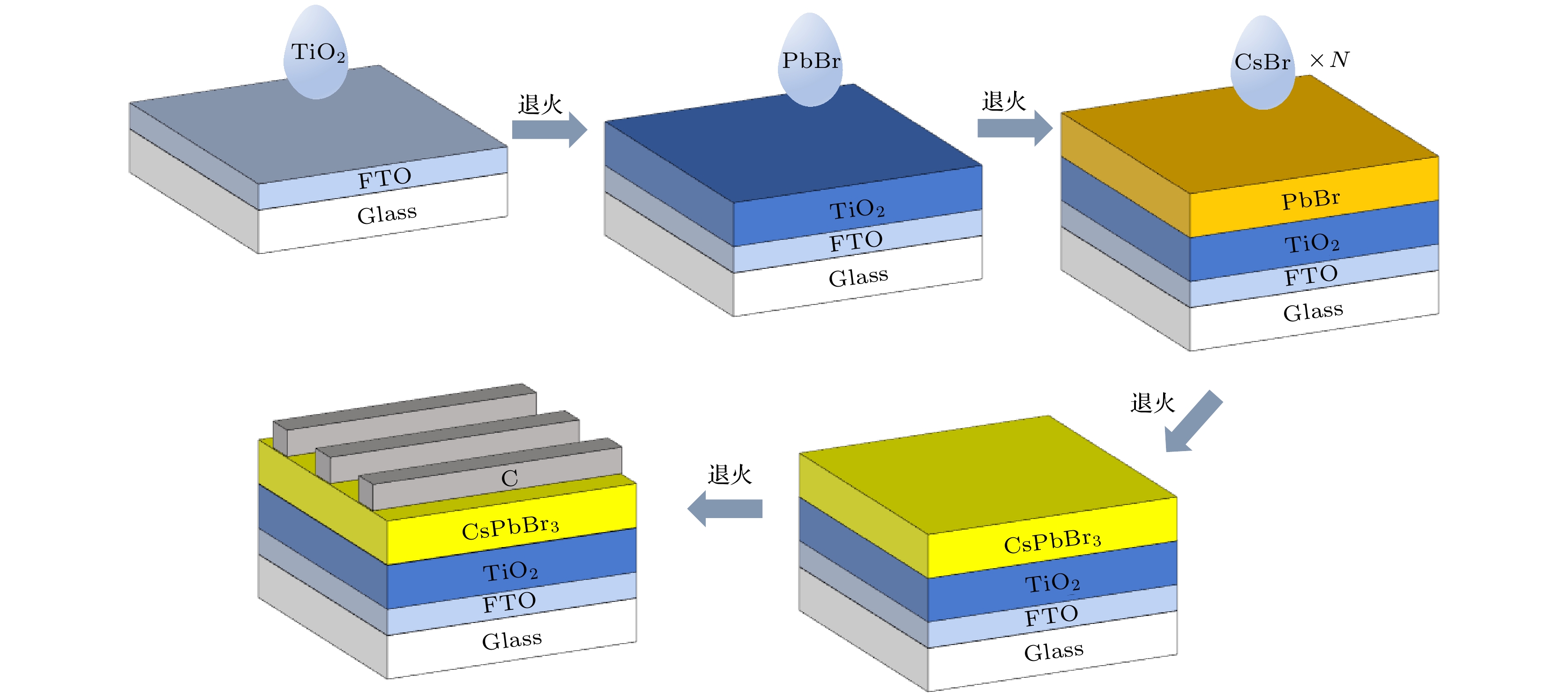

全无机CsPbBr ₃钙钛矿材料因其本征稳定性好、成本低廉从而在光伏领域展现出巨大的应用潜力, 但目前CsPbBr ₃太阳能电池的光电转换效率仍远低于其他体系的钙钛矿太阳能电池. 本文以无空穴传输层结构的碳基CsPbBr ₃全无机钙钛矿电池作为研究对象, 以多步旋涂法为基础, 通过在PbBr ₂(DMF)溶液中添加2-苯乙胺溴盐(PEABr)来调控CsPbBr ₃薄膜的结晶质量, 降低薄膜缺陷态密度, 钝化晶粒间界, 并对其中的关键工艺参数包括CsBr的用量(旋涂次数)、旋涂PbBr ₂薄膜时的衬底预热温度以及退火温度进行了优化. 最终在大气环境下获得了兼具稳定和高效的无空穴传输层结构的碳基CsPbBr ₃太阳能电池, 器件的光电转换效率达到8.25%, 并在无封装条件下保存1500 h仍可保持90%以上的效率, 对于进一步拓展CsPbBr ₃钙钛矿电池的优化设计思路具有重要意义.

关键词:

Abstract

In recent years, organic-inorganic hybrid perovskite solar cells have become a research hotspot in the photovoltaic field because of their excellent power conversion efficiency. However, this hybrid perovskite material's intrinsic instability and the harsh preparation environment limit its further commercial application. All-inorganic CsPbBr ₃perovskite materials have attracted much attention because of their good stability, low cost and can be prepared in an atmospheric environment, showing great application potential. The controllable preparation and growth kinetics of CsPbBr ₃materials need to be further studied, and the conversion efficiency of photovoltaic devices is still low. Considering the instability caused by traditional organic hole transport materials and their high preparation cost, this work focuses on the systematical studies of CsPbBr ₃all-inorganic perovskite cells without a hole transport layer. Growth kinetics material of CsPbBr ₃is controlled by adding 2-phenylethylamine bromide to precursor solution _.The main research contents and results are described as follows. Based on multi-step spin-coating preparation of CsPbBr ₃perovskite films, the perovskite cell preparation method is studied, and the critical process parameters including the spin-coating PbBr ₂, amount and number of spin-coating of CsBr, substrate preheating temperature, and the annealing temperature, are optimized. The optimization tests show that the optimal spin-coating of CsBr is obtained by being optimized five times and the spin-coating PbBr ₂is conducted in the atmospheric environment. The optimal preheating temperature of the substrate is 80 ℃, and the optimal annealing temperature is 100 ℃. The perovskite films prepared under this condition are compact, each with a continuous high phase purity and good crystallization performance. The PbBr ₂in DMF is first adopted and the 2-phenylethylamine bromide (PEABr) solution is added to regulate the CsPbBr ₃crystalline quality of the film. The effects of PEABr on the perovskite crystallization process and device performance are systematically investigated. The results show that the introduction of PEABr can effectively optimize the CsPbBr ₃. The crystalline properties of the two-dimensional perovskite materials can improve the grain boundaries and improve their transport properties. The prepared perovskite solar cell with PEABr shows the highest power conversion efficiency of 8.25%, and it can maintain the efficiency of more than 90% when being stored for 1500 h under the condition of no encapsulation. Finally, stable, efficient and low-cost all-inorganic CsPbBr ₃solar cells without a hole layer are obtained.

Keywords:

作者及机构信息

通信作者:郝会颖,huiyinghaoL@cugb.edu.cn; 董敬敬,jjdong@cugb.edu.cn;

基金项目:中国科学院半导体研究所半导体材料科学重点实验室开放基金(批准号: KLSMS-1901)和国家自然科学基金(批准号: 21875223)资助的课题

Authors and contacts

Corresponding author:Hao Hui-Ying,huiyinghaoL@cugb.edu.cn; Dong Jing-Jing,jjdong@cugb.edu.cn;

Funds:Project supported by the Open Fund Project of Key Laboratory of Semiconductor Materials Science, Institute of Semiconductors, Chinese Academy of Sciences (Grant No. KLSMS-1901) and the National Natural Science Foundation of China (Grant No. 21875223)

文章全文: translate this paragraph

参考文献

[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
[12]
[13]
[14]
[15]
[16]
[17]
[18]
[19]
[20]
[21]
[22]
[23]
[24]
[25]
[26]
[27]
[28]

施引文献

下载: 全尺寸图片幻灯片

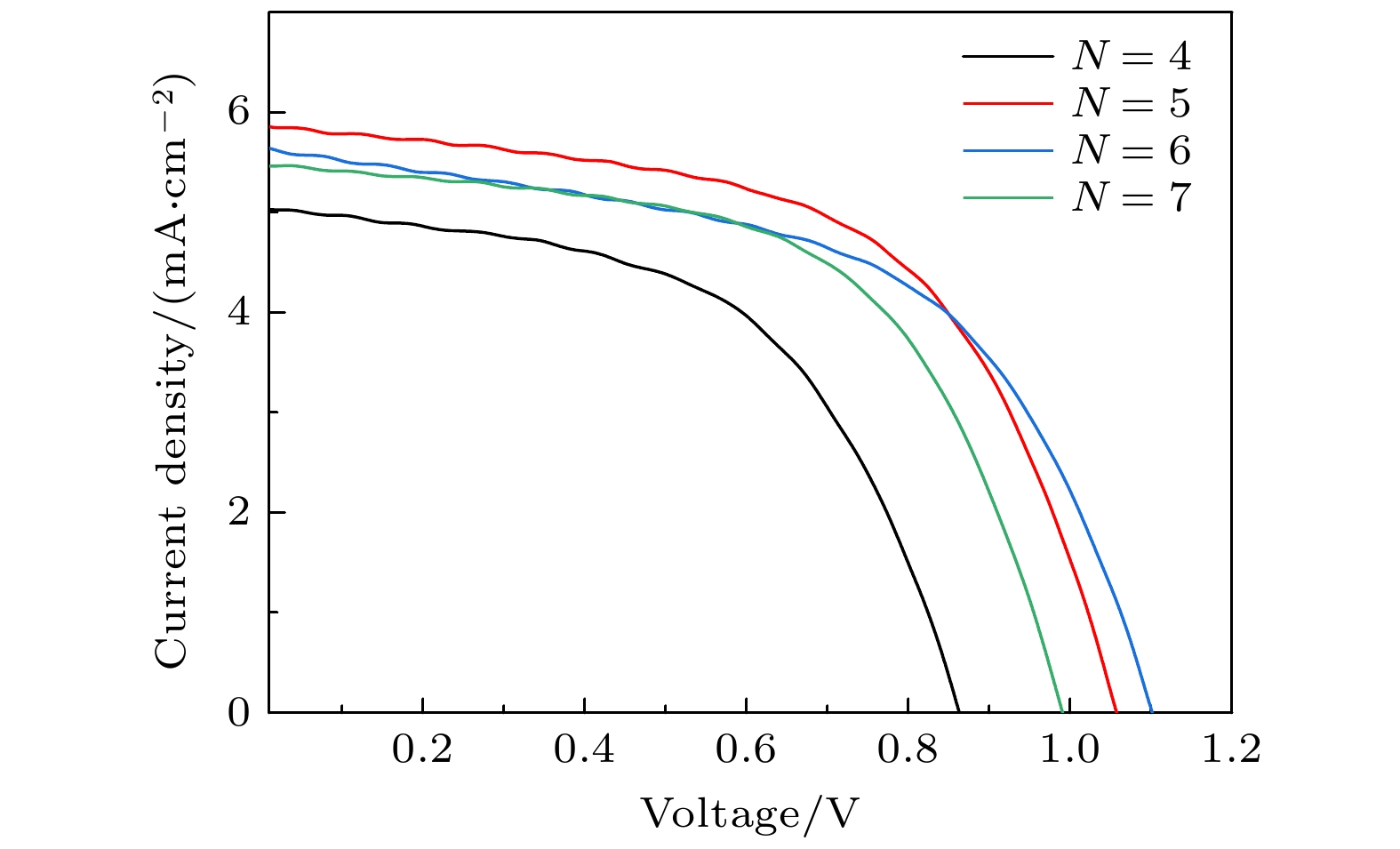

旋涂次数	V_OC /V	J_SC /(mA·cm^–2)	PCE /%	FF /%
4	0.85	5.0	2.37	55
5	1.06	5.8	3.58	58
6	1.10	5.6	3.41	55
7	0.99	5.4	3.16	59

下载: 导出CSV

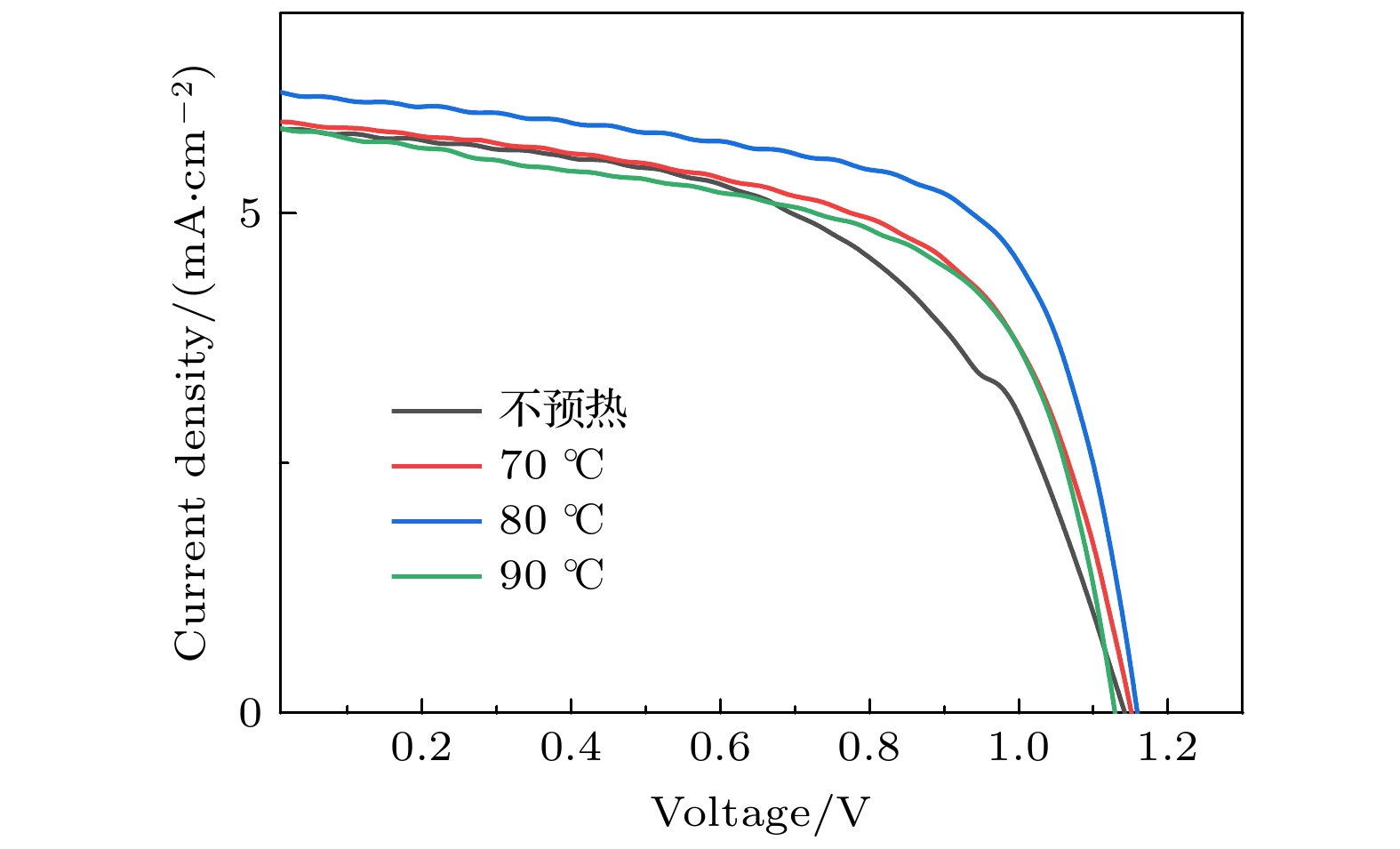

衬底温度	V_OC /V	J_SC /(mA·cm^–2)	PCE /%	FF /%
不预热	1.13	5.6	3.6	56
70 ℃	1.15	5.9	4.1	60
80 ℃	1.15	6.2	4.7	65
90 ℃	1.13	5.8	4.0	61

下载: 导出CSV

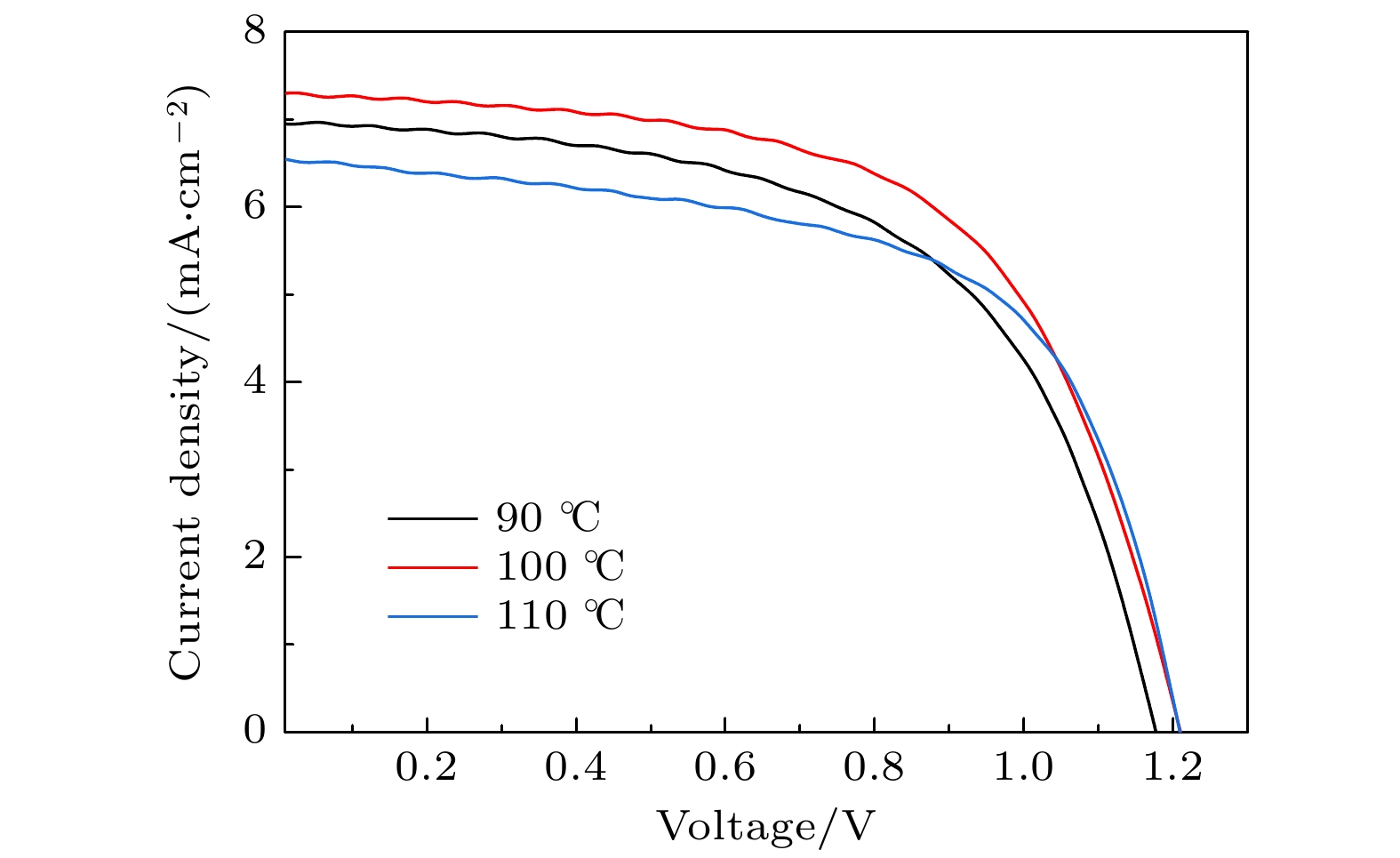

退火温度/℃	V_OC /V	J_SC /(mA·cm^–2)	PCE /%	FF /%
90	1.17	6.9	4.74	58
100	1.20	7.3	5.25	60
110	1.19	6.5	4.82	62

下载: 导出CSV

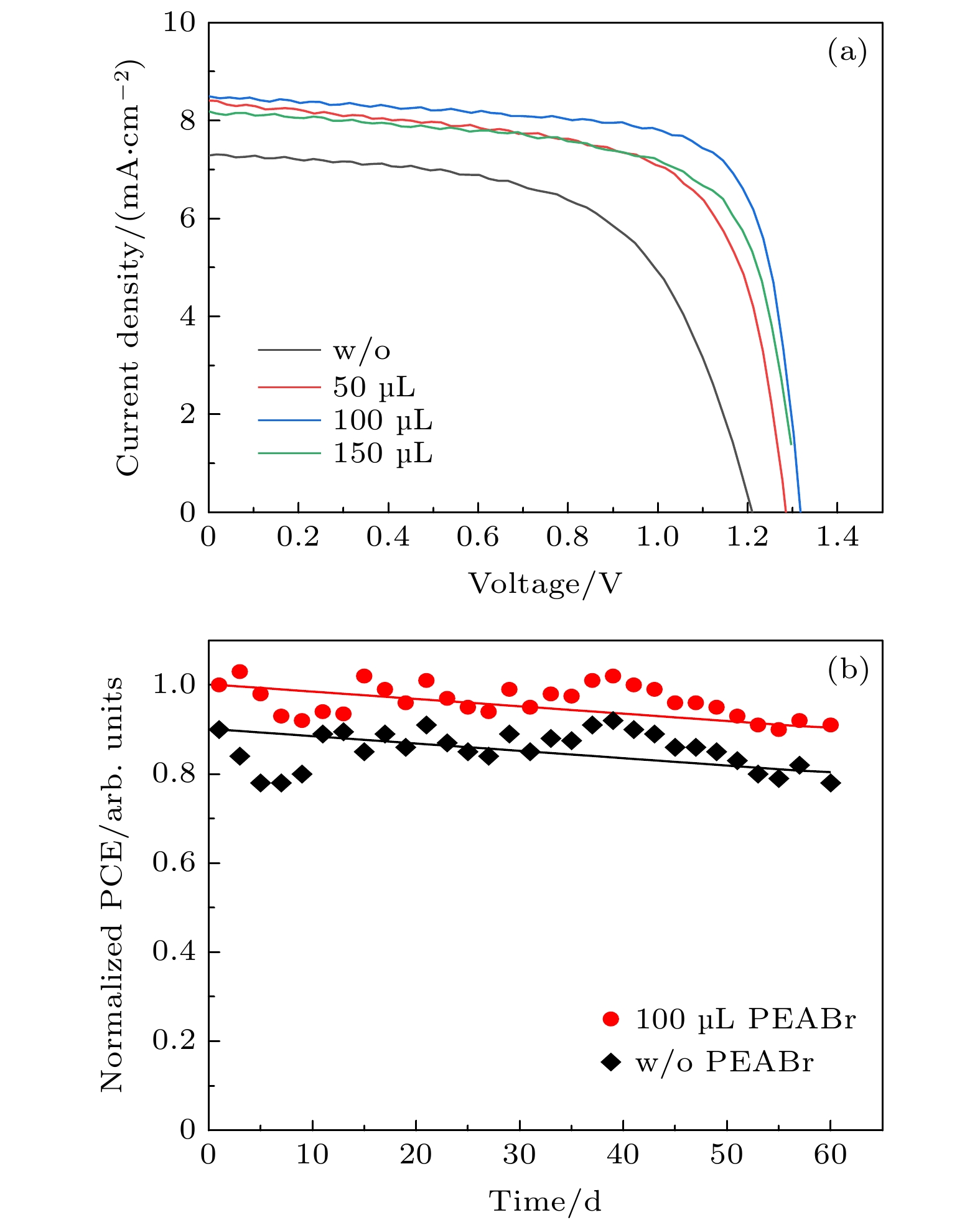

引入量 /(mg·mL^–1)	V_OC /V	J_SC /(mA·cm^–2)	PCE /%	FF /%
w/o	1.20	7.30	5.25	60
5	1.28	8.40	7.16	66
10	1.31	8.51	8.25	73
15	1.30	8.16	7.37	69

下载: 导出CSV
