摘要

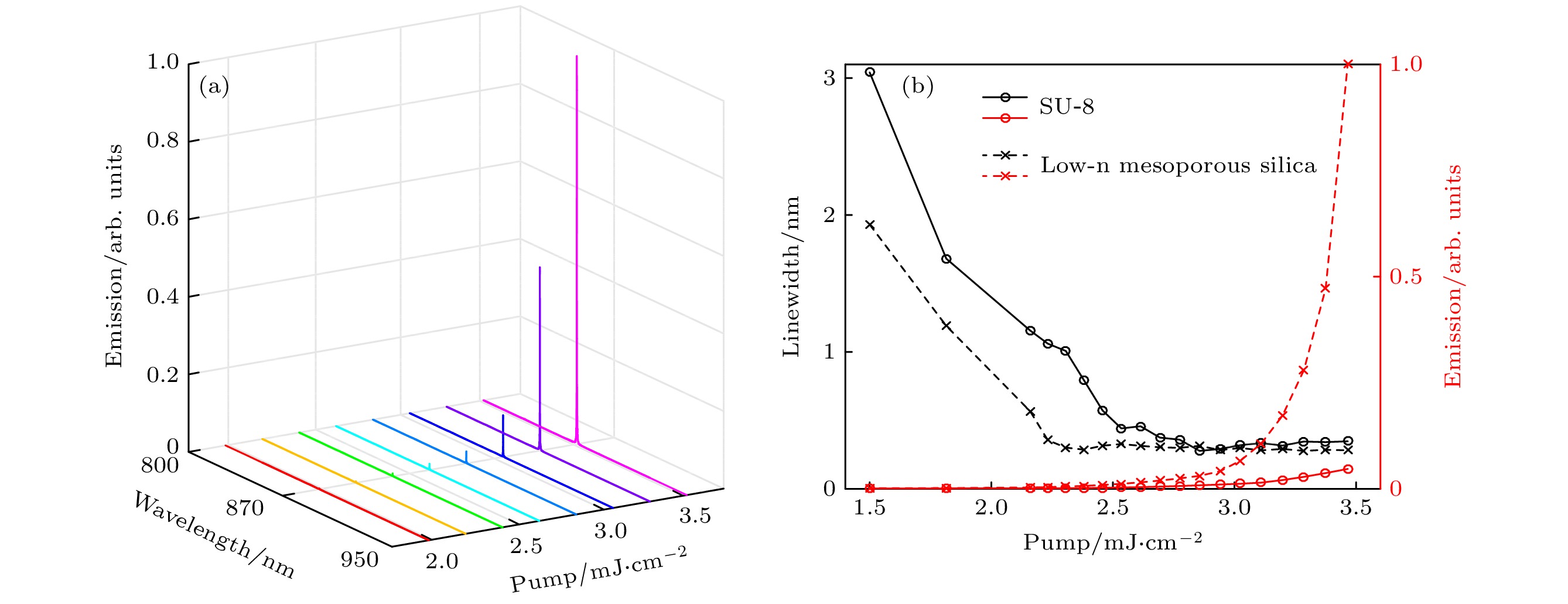

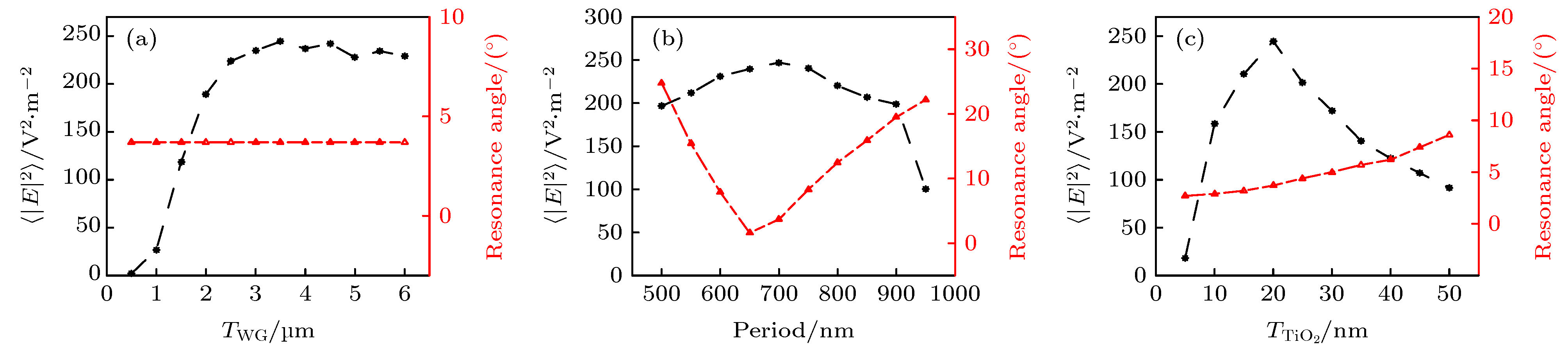

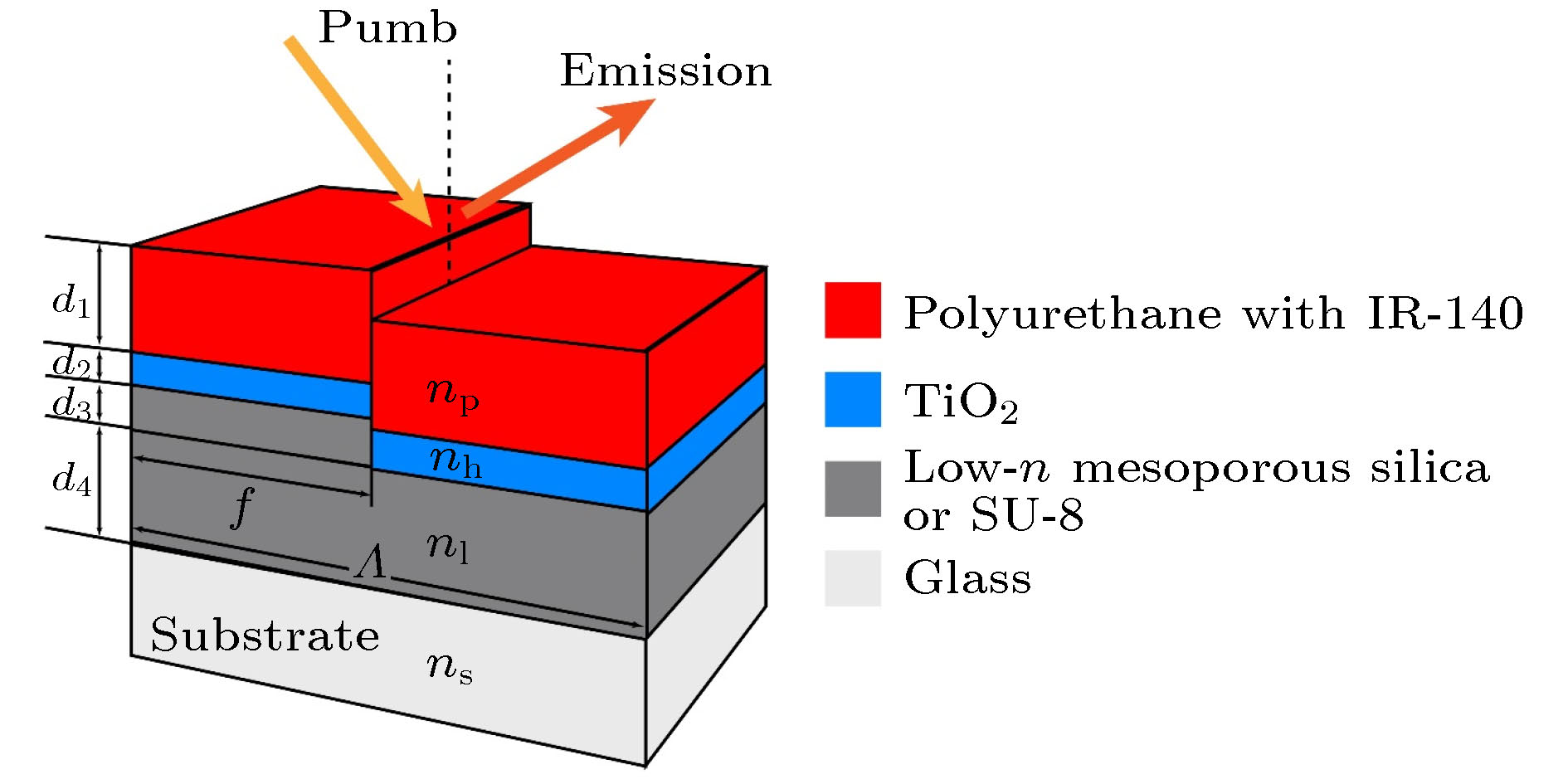

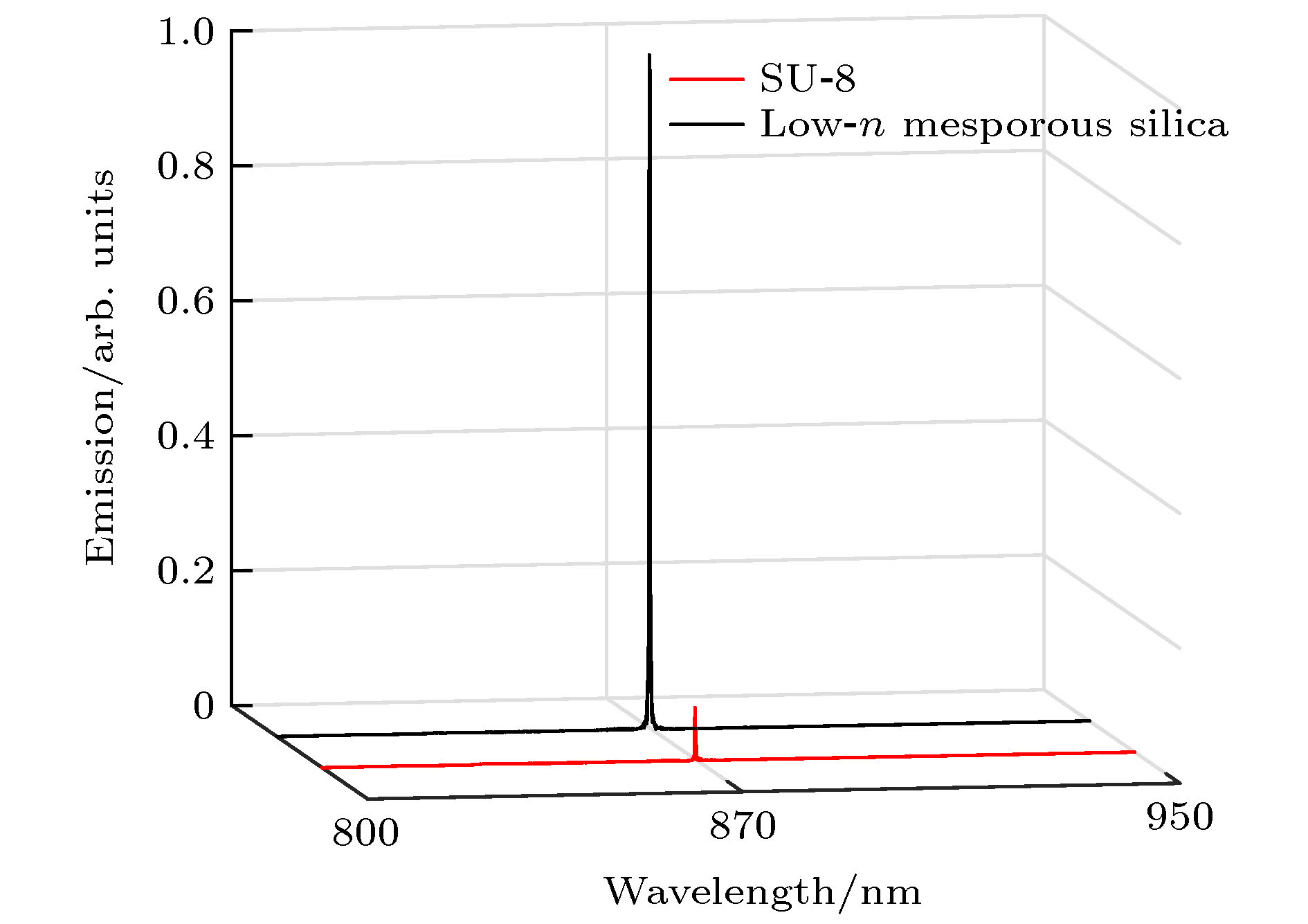

导模共振光栅是一种典型的平面波导共振结构, 可在光栅表面或波导层内形成较强的局域电场, 能增强光与物质的相互作用. 本文在导模共振结构的光栅层和基底层之间, 引入低折射率的多孔二氧化硅间隔层, 显著增强了局域电场与增益介质的接触度. 结果表明, 引入多孔二氧化硅后, 共振产生的电场增强区域上移至激光染料层, 增加了激光染料与电场的相互作用, 实现了激光出射增强. 本文基于时域有限差分法, 对结构参数进行分析优化, 研究了820 nm共振波长激发下的出射激光特性, 得到了连续的激光出射, 其能量阈值约为2.5 mJ/cm ², 线宽约为0.3 nm. 本文提出的结构实现了对表面局域电场的有效调控, 增强了激发光与增益介质的相互作用, 不但可应用于激光器, 还为其它发光器件的设计提供了参考.

关键词:

Abstract

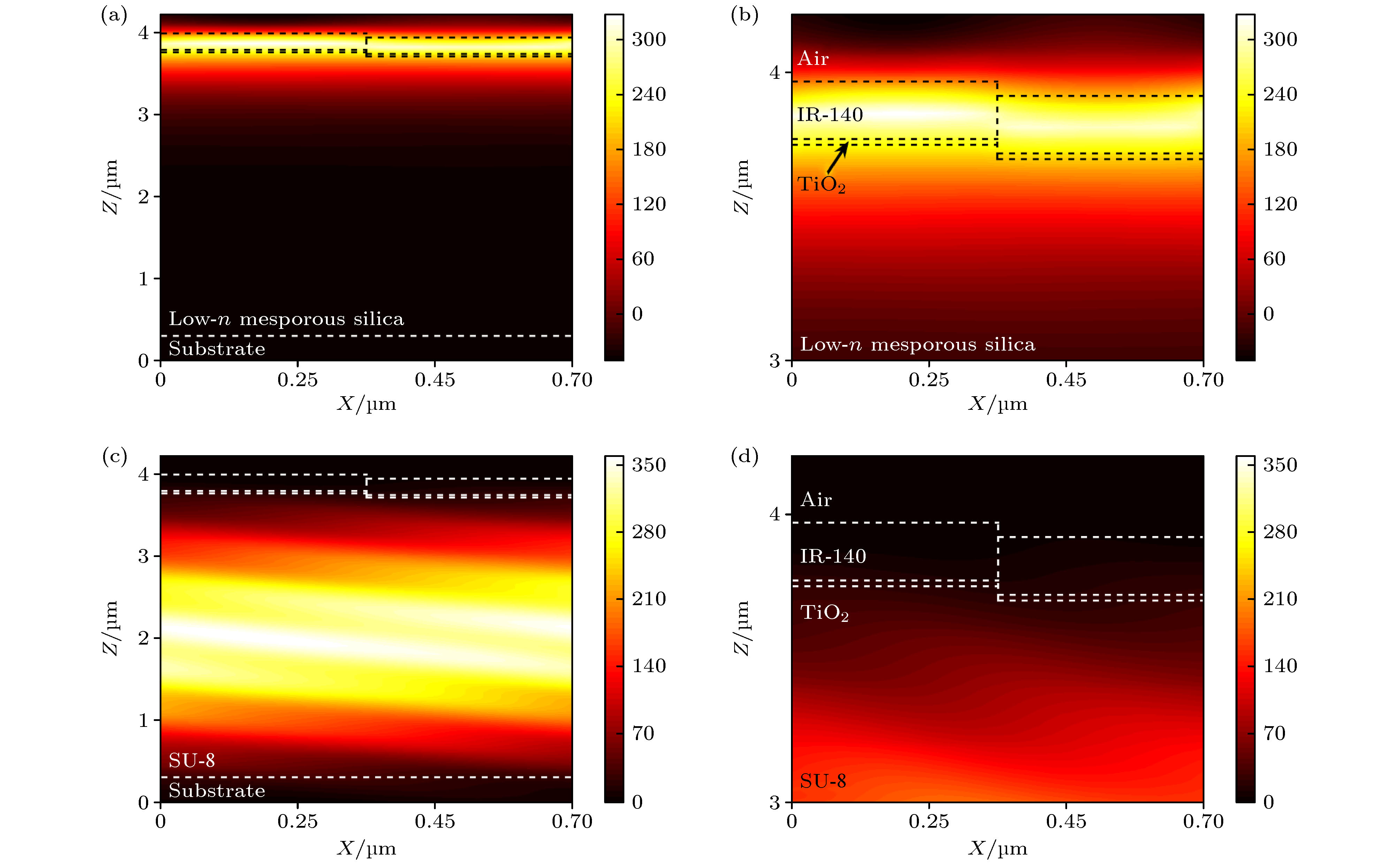

The enhancement of lasing emission intensity of dye laser is particularly important and urgently required due to a broad range of optical and electrical applications. The guided-mode resonance (GMR) effect occurs in a periodic waveguide structure where an incident wave is coupled to a leaky waveguide mode, and yields a resonance peak. The resonance wavelength can be easily controlled by adjusting the period of the grating, thickness of the waveguide layer, and refractive index of the covering materials. By using band edge states, one may be able to excite optical resonances extended over the entire structure surface, thereby achieving field enhancement over a large area. In this study, mesoporous silica with low refractive index is introduced between the grating layer and the substrate layer of the GMR structure to significantly enhance the contact between local electric field and gain medium. For comparison, another structure using SU-8 with high refractive index as the spacing layer is also proposed. It is clearly observed that the maximum of the electric field intensity is highly localized inside the SU-8 waveguide grating layer. However, it is shifted upward to the gain medium layer in the mesoporous silica structure due to the reverse symmetry waveguide structure design. Therefore, the interaction between laser dye and electric field is increased to further enhance the lasing emission. Besides the refractive index, the waveguide layer, other structural parameters such as thickness of each layer and grating period also affect the electric field distribution in the GMR structure. Based on the finite-difference time-domain method, the structural parameters are analyzed and optimized. According to the simulation results, the structure parameters T _WG= 3.5 μm, Λ= 700 nm, and $ T_{\rm TiO_2} = 20 $ nm are chosen as the guideline for designing the dye laser, which generates the resonance wavelength of 820 nm the same as the absorption wavelength of dye molecules. Additionally, the laser characteristics excited by pump light with the wavelength of 820 nm are studied. The continuous laser output is obtained. The energy threshold is about 2.5 mJ/cm ², and the linewidth is about 0.3 nm. The proposed structure can effectively regulate the surface local electric field and enhance the interaction between pump light and gain medium. It can not only be used in lasers, but also provide reference for designing other light-emitting devices.

Keywords:

作者及机构信息

1.
2.

通信作者:王康妮,yishuihetian@126.com; 钱林勇,leonqly@126.com

基金项目:国家自然科学基金青年科学基金(批准号: 61805210, 11704162)、江苏省高校自然科学研究基金(批准号: 18KJB510048)、江苏省自然科学基金青年基金 (批准号: BK20170482)资助的课题

Authors and contacts

1.
2.

Corresponding author:Wang Kang-Ni,yishuihetian@126.com; Qian Lin-Yong,leonqly@126.com

Funds:Project supported by the Young Scientists Fund of the National Natural Science Foundation of China (Grant Nos. 61805210, 11704162), the Natural Science Foundation of the Jiangsu Higher Education Institutions of China (Grant No. 18KJB510048), and the Natural Science Foundation of Jiangsu, China (Grant No. BK20170482)
