摘要

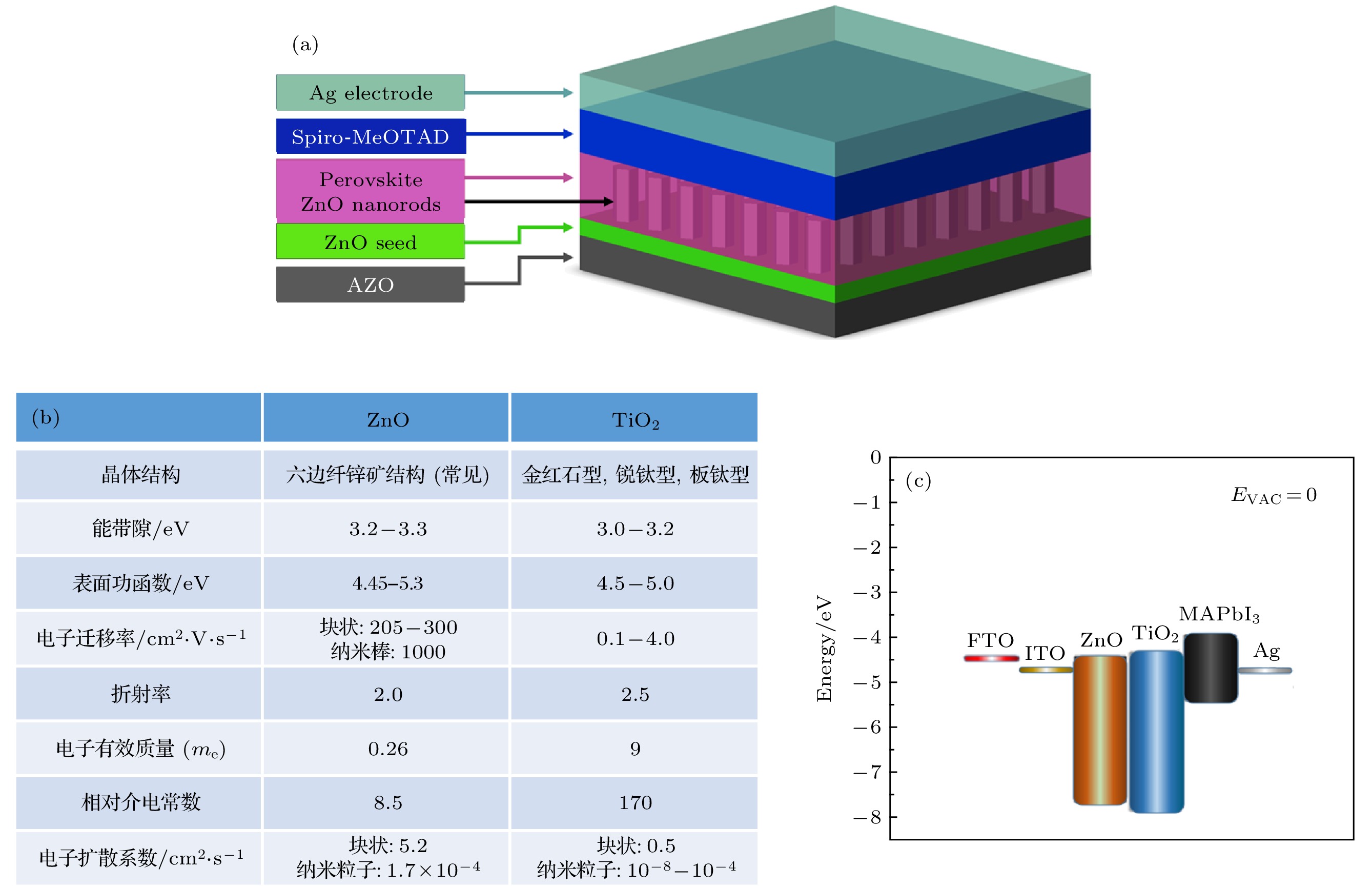

在钙钛矿电池中, ZnO纳米棒的垂直性是影响器件效率的关键因素. AZO(ZnO:Al)玻璃作为一种廉价的透明导电衬底, 由于与ZnO纳米棒无晶格失配, 有望获得最佳垂直性. 然而目前在大气环境下, 以AZO为衬底、ZnO纳米棒为电子传输层的钙钛矿太阳能电池还鲜有报道. 本文通过水热法制备ZnO纳米棒作为电子传输层, 系统研究不同条件对ZnO纳米棒的形貌及结晶性能的调控规律, 分析其微观生长机理. 并在此基础上于大气环境下制备太阳能电池, 将以AZO为衬底在大气条件下制备的钙钛矿光伏器件的最佳效率从目前文献报道的7.0%提高到9.63%. 这对丰富钙钛矿电池的设计思路及进一步降低成本具有重要意义.

关键词:

Abstract

ZnO is a promising electron transport material. It has not only similar energy level position and physical properties to traditional TiO ₂, but also excellent light transmittance, conductivity, stability, low cost and low temperature preparation. Studies have shown that the one-dimensional nanostructured electron transport layer has a higher electron transport rate, provides a direct electron transport channel and avoids its being recombined at the grain boundaries, thereby improving carrier collection efficiency. It has also been reported that the electron transport rate of ZnO nanorods is significantly better than that of TiO ₂, showing their great potential applications. In perovskite solar cells, the verticality of ZnO nanorods is a key factor affecting device efficiency. The AZO (ZnO∶Al) glass, as an inexpensive transparent conductive substrate, is expected to obtain the best verticality because it has no lattice mismatch with ZnO nanorods. And in the field of perovskite solar cells, the light absorbing layer is usually prepared in a glove box and it has obviously not been industralized. However, there are few reports about perovskite solar cells prepared in atmospheric environment with AZO as substrate and ZnO nanorods as electron transport layer. And it is still much less efficient than the current perovskite solar cells with TiO ₂as the electronic transport layer. It can be seen that further improving the efficiency of the structural battery prepared in the atmospheric environment is an urgent problem to be solved. In this paper, ZnO nanorods are prepared as an electron transport layer by the hydrothermal method. The effects of hydrothermal temperature, the number of seed layer, the precursor concentration, the substrate type, the hydrothermal time, and the other process parameters on the morphology and crystalline properties of ZnO nanorods are systematically studied, and the growth mechanism is analyzed. The results show that the length of the nanorods is mainly controlled by the hydrothermal time and hydrothermal temperature, and that the radial size is mainly determined by the number of seed layers and the concentration of the precursor solution. And the results also indicate that the verticality of ZnO nanorods’ growth is closely related to the substrate, and that the ZnO nanorods on the AZO substrate have the best growth verticality. On this basis, the perovskite solar cell is prepared in the atmospheric environment, and the optimal efficiency of the photovoltaic device prepared with AZO substrate increases from 7.0% reported in the literature to 9.63%. This is of great significance for enriching the design ideas of perovskite solar cells and further reducing costs.

Keywords:

作者及机构信息

通信作者:郝会颖,huiyinghaoL@cugb.edu.cn

Authors and contacts

Corresponding author:Hao Hui-Ying,huiyinghaoL@cugb.edu.cn

文章全文: translate this paragraph

参考文献

[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
[12]
[13]
[14]
[15]
[16]
[17]
[18]
[19]
[20]

施引文献

下载: 全尺寸图片幻灯片

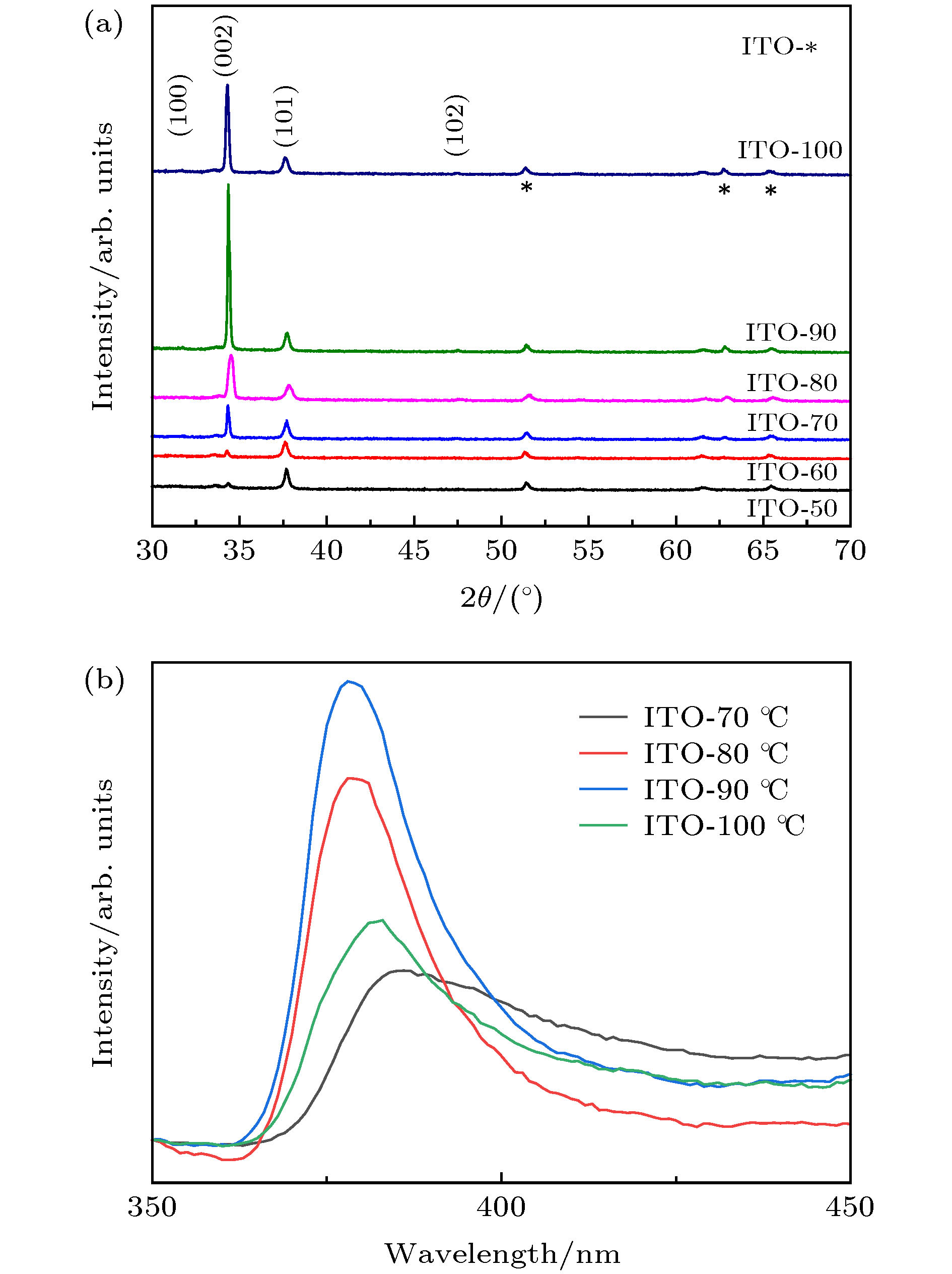

条件	温度/℃	平均直径/nm	平均长度/nm
1	50	28	47
2	60	33	245
3	70	30	550
4	80	31	740
5	90	34	948
6	100	32	871

下载: 导出CSV

条件	衬底	保温时间/h	平均长度/nm	平均直径/nm
1	AZO	1.5	132	76
2	AZO	2.5	244	92
3	AZO	3.5	503	139
4	AZO	5.0	620	121
5	AZO	6.0	722	189
6	AZO	7.0	701	136
7	AZO	8.0	866	204
8	AZO	9.0	470	135
9	AZO	10.0	255	94

下载: 导出CSV

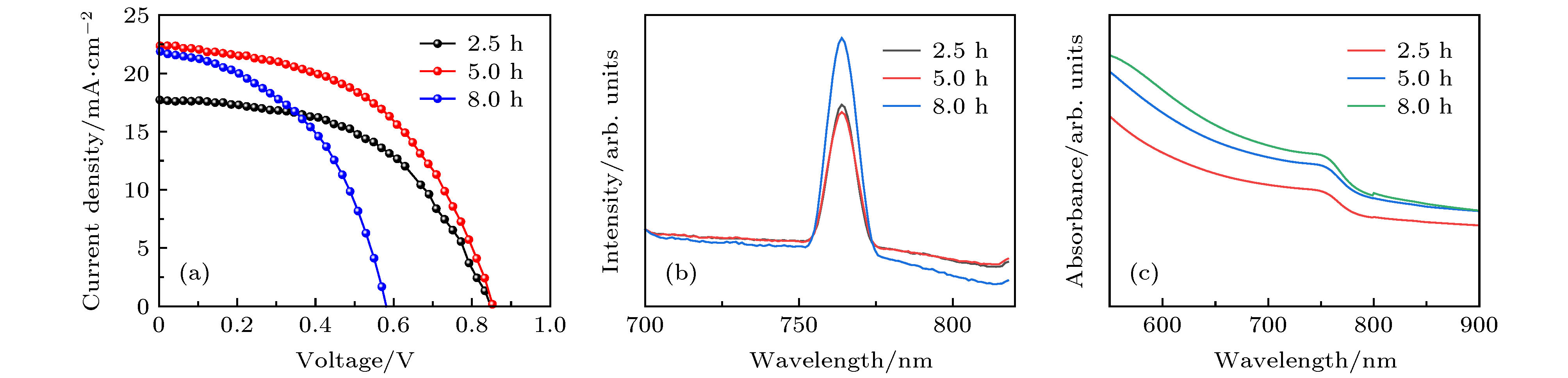

水热条件/h	Scan directions	V_oc/V	J_sc/mA·cm^–2	FF	平均PCE/%	最佳PCE/%
2.5	Reverse	0.77	18.51	0.47	6.71	7.96
5.0	Reverse	0.84	20.99	0.48	8.47	9.63
8.0	Reverse	0.52	17.15	0.43	3.85	6.00

下载: 导出CSV
