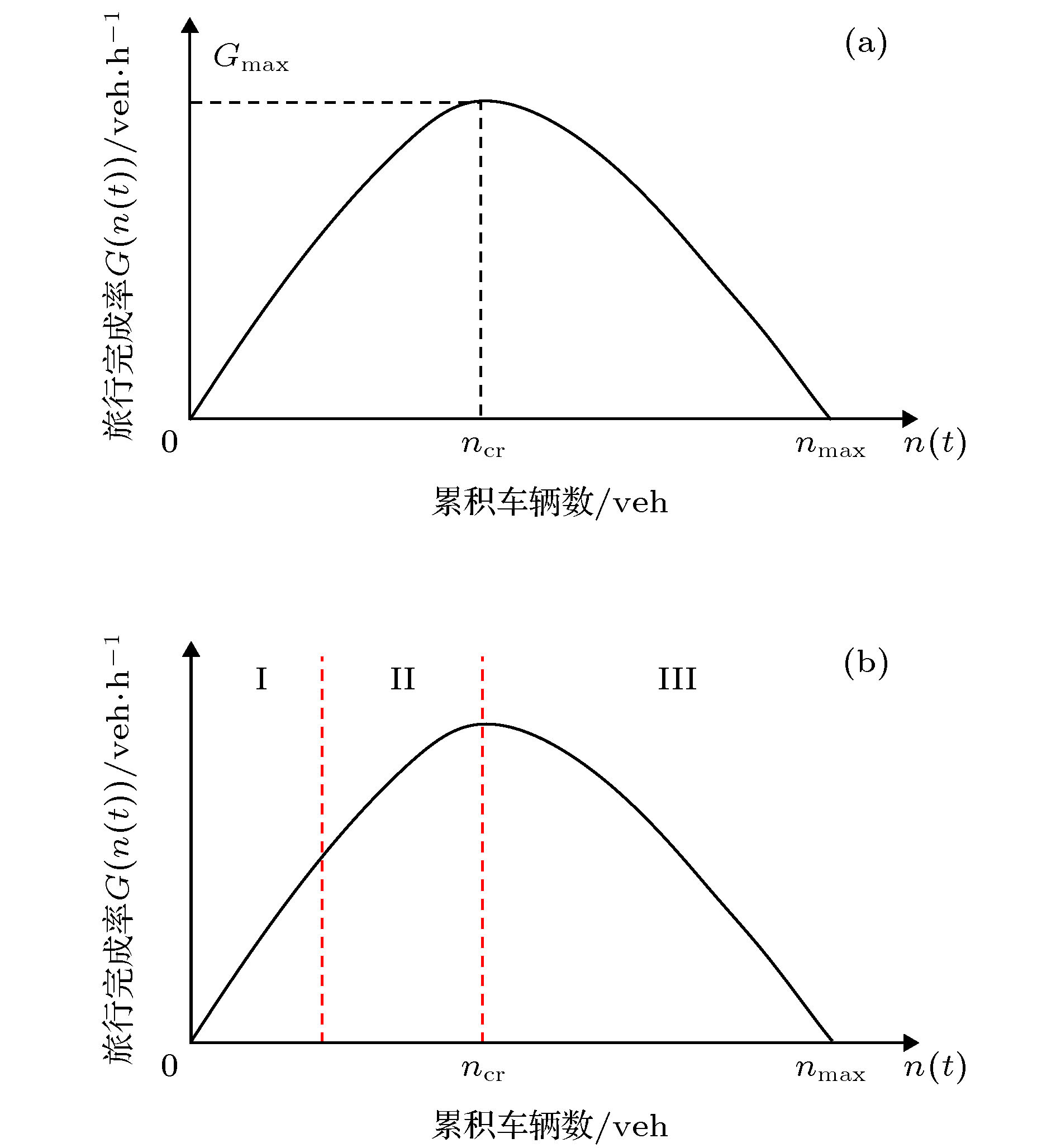

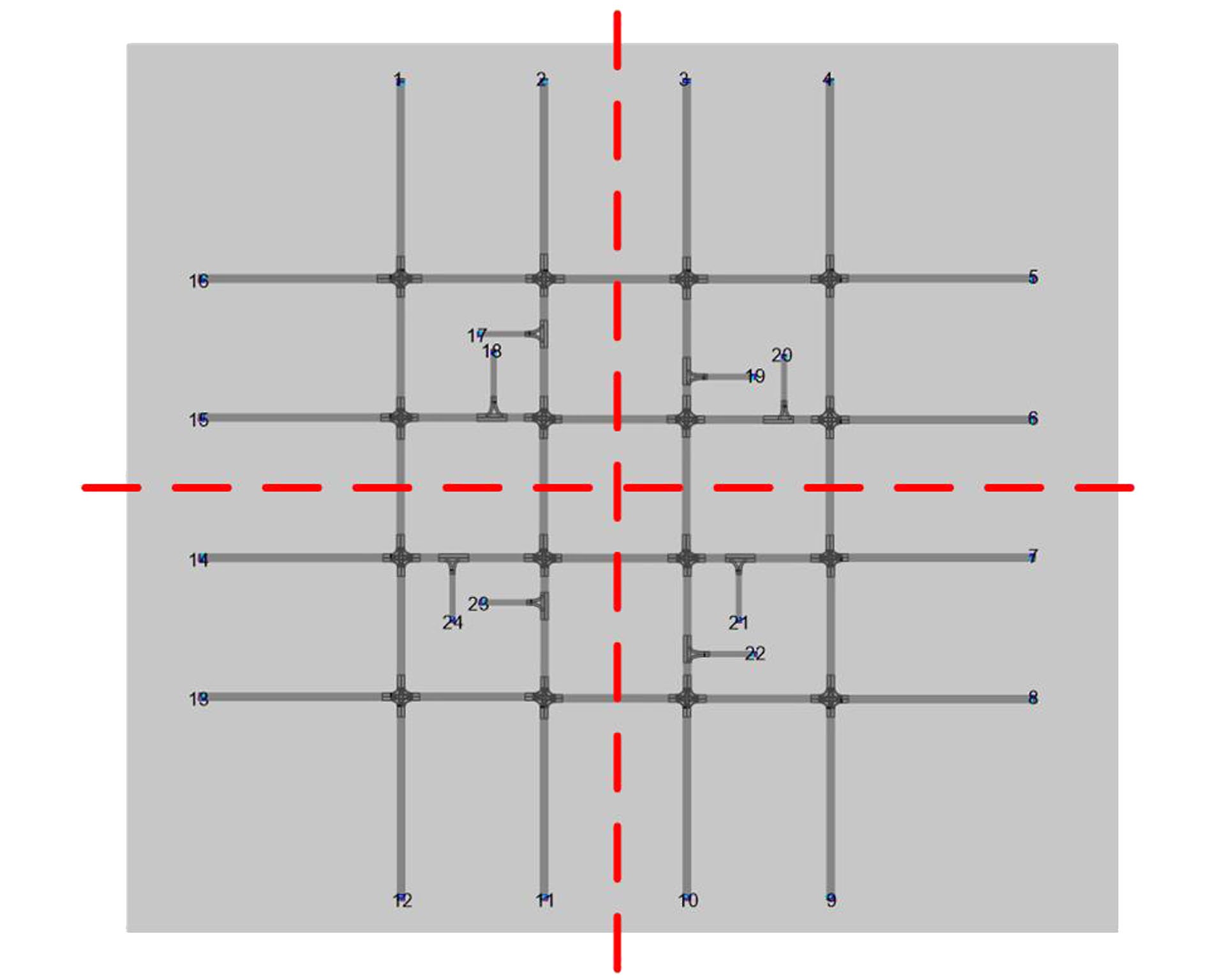

宏观基本图不受路网外部交通发生吸引源的影响, 描述了匀质性路网内累积车辆数与路网旅行完成率之间的关系, 可直观表达路网宏观基本特性. 然而, 当路网内交通发生吸引源发生变化时, 会影响路网交通密度, 从而对宏观基本特性产生影响. 为了分析交通发生吸引源不同集聚状态对宏观基本图的影响规律, 以交通发生吸引源发生吸引量和路段阻抗为参数, 建立交通发生吸引源聚集度模型. 以方格式路网为分析对象, 设计9组不同交通发生吸引源方案, 通过对比交通发生吸引源聚集度与路网宏观基本图曲线, 发现只有当路网处于拥挤流状态时, 交通发生吸引源聚集现象才会对宏观基本图产生影响, 并且路网中交通发生吸引源聚集度越低(交通发生吸引量分布越均衡), 路网旅行完成率就会越高.The macroscopic fundamental diagram (MFD), which can describe the macroscopic state of a regional network intuitively, describes a unimodal, statistical and reproducible relationship between accumulation and the trip completion flow of a region. Existing researches have proved that using MFD characteristics can ‘metering’ the boundary flow and relieve the traffic congestion problem effectively. As the foundation of traffic control, existing studies on the characteristic of MFD have proved that external origin to destination demand does not influence the MFD distribution. However, the traffic generation and attraction sources in the regional road networkwill changes the distribution of traffic density of the road network, thus affecting the characteristic of MFD. However, to date, no related analysis explored the influence of the traffic generation and attraction sourcesin the regional road network. To solve this problem, according to the spatial and temporal distribution of traffic generation and attraction sources in the regional road network, this paper puts forward an aggregation degree index analysis model of traffic generation and attraction sources, based on the dynamic parameters of traffic generation and attraction sources, and section traffic impedance. Taking a square-format road network as the target, nine groups of schemes for different traffic generation and attraction sources are designed. Two conclusions can be drawn after comparing the MFD curve of the road network under different aggregation degree index of traffic generation and attraction sources: (1) when the traffic flow of the road network is in the state of free flow or critical flow, the aggregation effect of traffic generation and attraction sources has no effect on MFD distribution; (2) when the traffic flow of the road network is in the congestion flow state, the aggregation effect of traffic generation and attraction sources influences MFD distribution. Moreover, under the same road network flow conditions, the aggregation degree of traffic generation and attraction sources is lower in the road network (the distribution of traffic generation and attraction volume is more balanced), the trip completion flow of road network will be higher. Otherwise, the aggregation degree of traffic generation and attraction sources is higher in the road network (the distribution of traffic generation and attraction volume is more unbalanced), the trip completion flow of road network will be lower.
-
Keywords:
- macroscopic fundamental diagram/
- traffic generation and attraction source/
- aggregation degree/
- traffic simulation
[1] [2] [3] [4] [5] [6] [7] [8] [9] [10] [11] [12] [13] [14] [15] [16] [17] [18] [19] [20] [21] [22] [23] [24] [25] [26] [27] [28] [29] [30] [31] [32] [33] [34] -

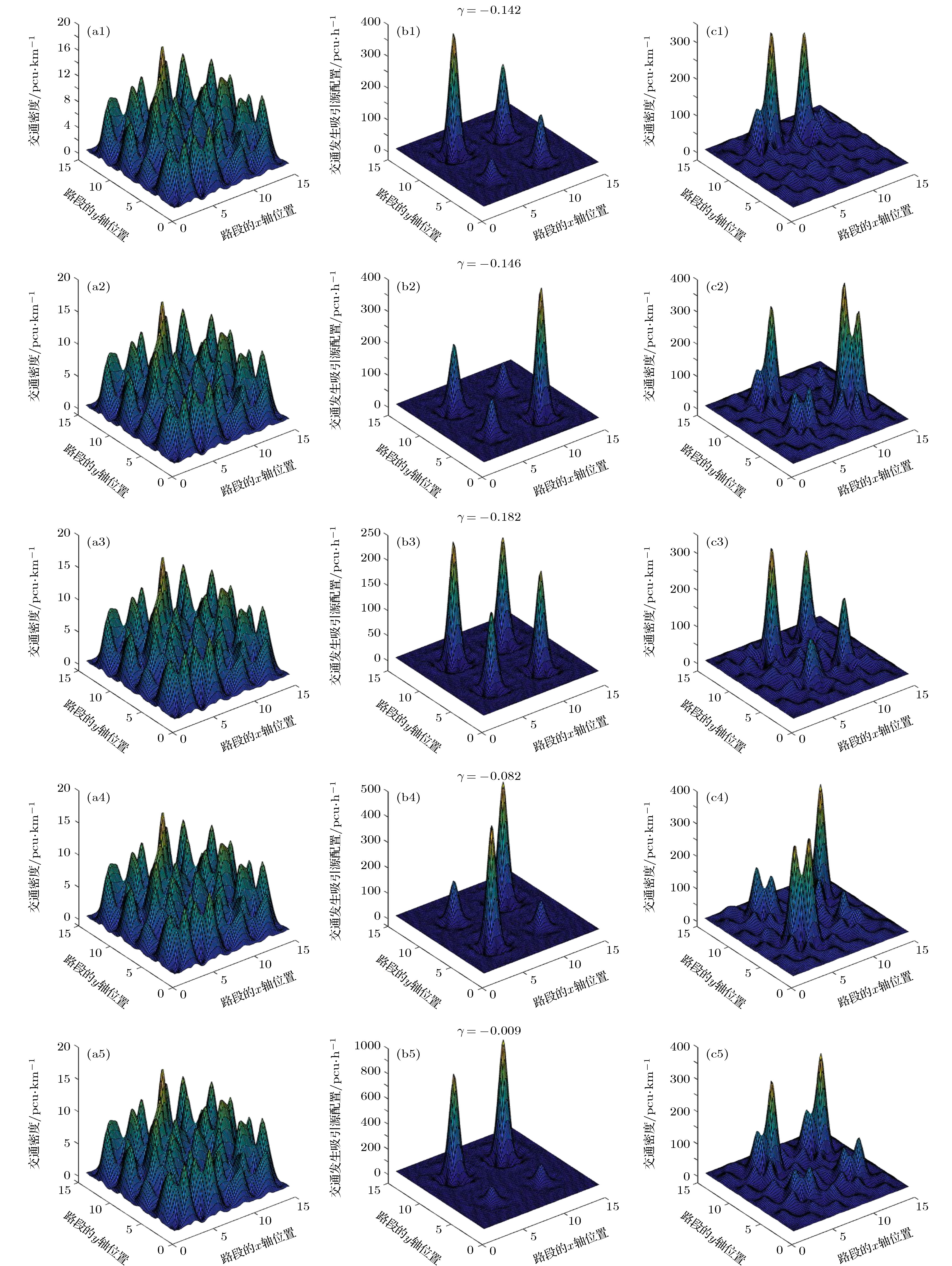

交通发生吸引源配置方案 1 2 3 4 5 初始聚集度 –0.142 –0.146 –0.182 –0.082 –0.009 停车场规模配置情况/pcu·h–1 20 38 93 272 38 40 72 58 203 71 60 279 121 50 50 80 123 74 49 86 100 46 80 322 408 120 38 132 150 530 140 108 147 49 389 240 96 95 105 428
下载:
导出CSV

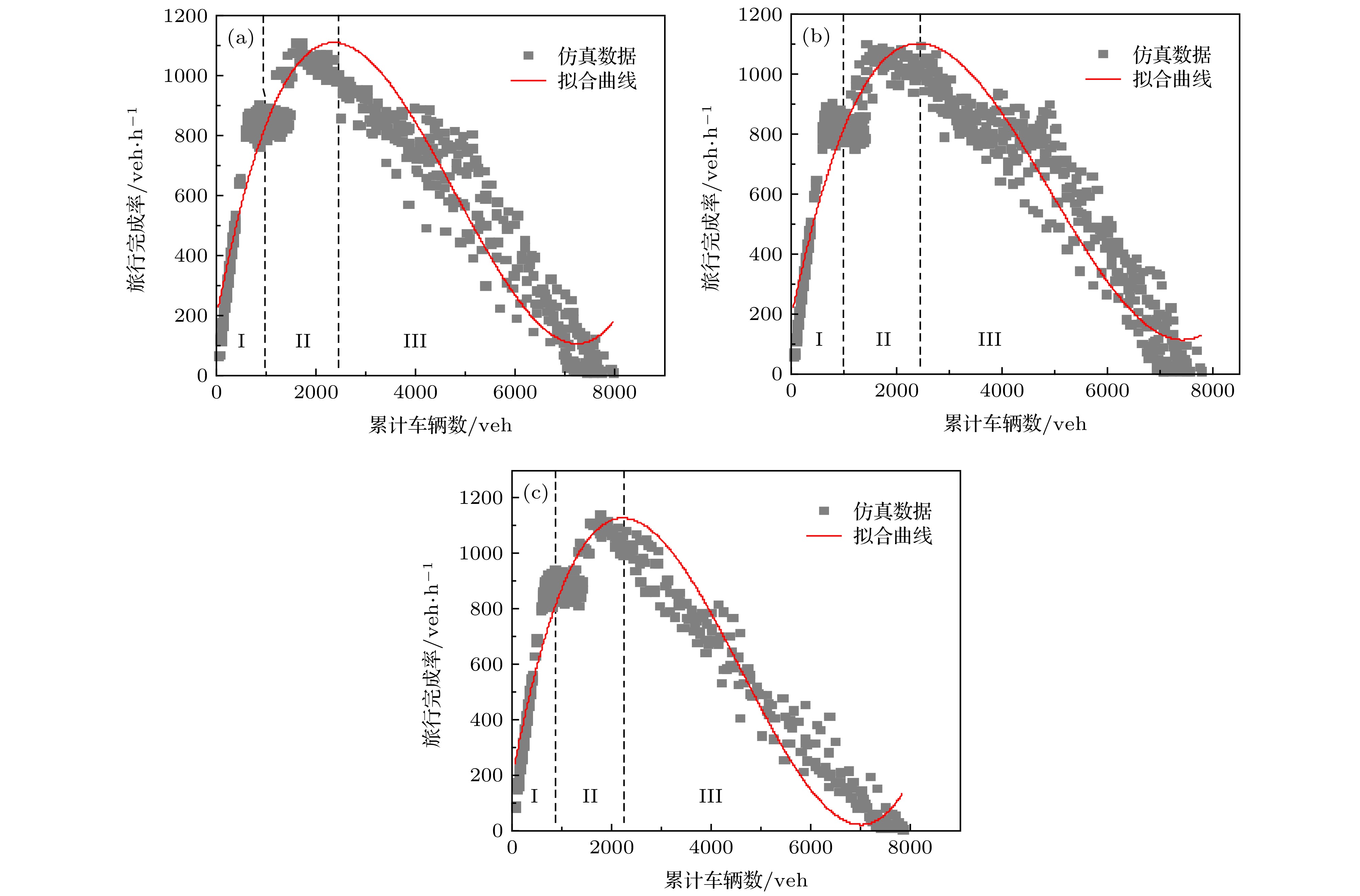

吸引源规模/pcu·h–1 MFD拟合参数 ${R^2}$ ${a_i}$ ${b_i}$ ${c_i}$ ${d_i}$ 800 2 × 10–8 –0.0002 0.8434 192.34 0.876 1200 2 × 10–8 –0.0002 0.8742 190.75 0.888 2000 2 × 10–8 –0.0003 0.9424 188.86 0.901 下载:
导出CSV
实验编号 A B C 停车场总规模/pcu·h–1 800 1200 2000 实验组数 1 2 3 1 2 3 1 2 3 初始聚集度 –0.142 –0.146 –0.182 –0.082 –0.144 –0.171 –0.009 –0.104 –0.151 停车场规模/pcu·h–1 20 38 93 272 138 70 38 100 268 40 72 58 203 245 300 71 170 189 60 279 121 50 367 210 50 140 99 80 123 74 49 103 65 86 200 304 100 46 80 322 179 70 408 260 341 120 38 132 150 48 130 530 290 107 140 108 147 49 37 220 389 350 402 240 96 95 105 83 135 428 490 290 下载:
导出CSV

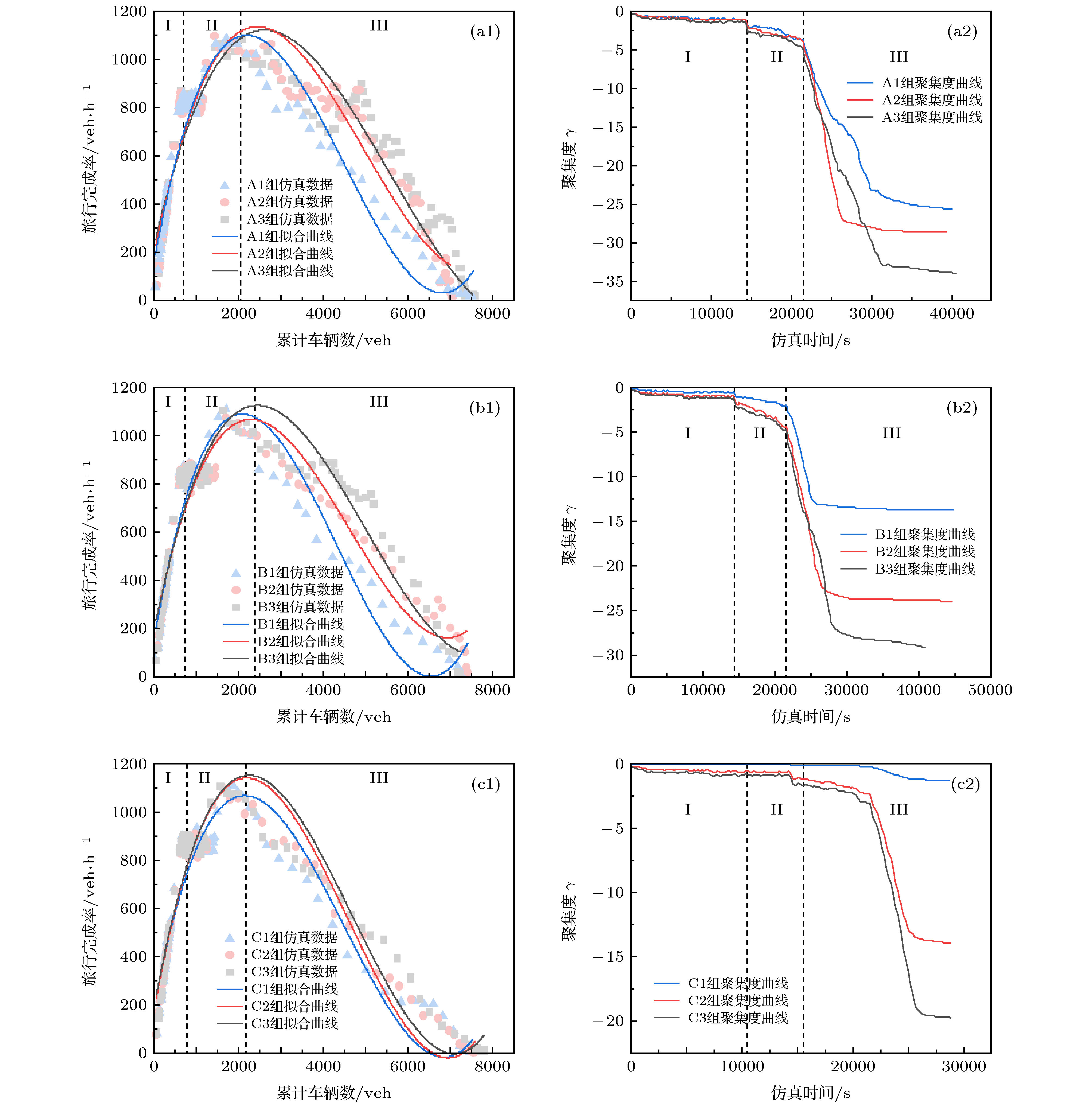

实验组 MFD拟合参数 ${R^2}$ ${a_i}$ ${b_i}$ ${c_i}$ ${d_i}$ A1组 3 × 10–8 –0.0003 1.0743 111.66 0.951 A2组 3 × 10–8 –0.0004 1.0819 111.44 0.960 A3组 3 × 10–8 –0.0003 1.0588 116.9 0.953 B1组 5 × 10–8 –0.0005 1.3327 61.38 0.982 B2组 3 × 10–8 –0.0004 1.0518 125.81 0.967 B3组 2 × 10–8 –0.0003 0.9445 152.79 0.934 C1组 5 × 10–8 –0.0005 1.3081 84.82 0.942 C2组 4 × 10–8 –0.0005 1.2132 110 0.929 C3组 4 × 10–8 –0.0005 1.2579 100.65 0.927 下载:
导出CSV
实验编号 平均旅行完成率
变化率/%交通流状态 Ⅰ Ⅱ Ⅲ A (A3–A1)/A1 0.77 3.13 30.96 (A3–A2)/A2 0.61 1.14 3.29 (A2–A1)/A1 0.16 1.96 26.79 B (B3–B1)/B1 –0.11 –0.51 34.36 (B3–B2)/B2 –0.02 0.24 7.45 (B2–B1)/B1 –0.09 –0.74 25.05 C (C3–C1)/C1 0.10 1.52 14.87 (C3–C2)/C2 0.41 1.17 6.01 (C2–C1)/C1 –0.31 0.34 8.36 下载:
导出CSV
-
