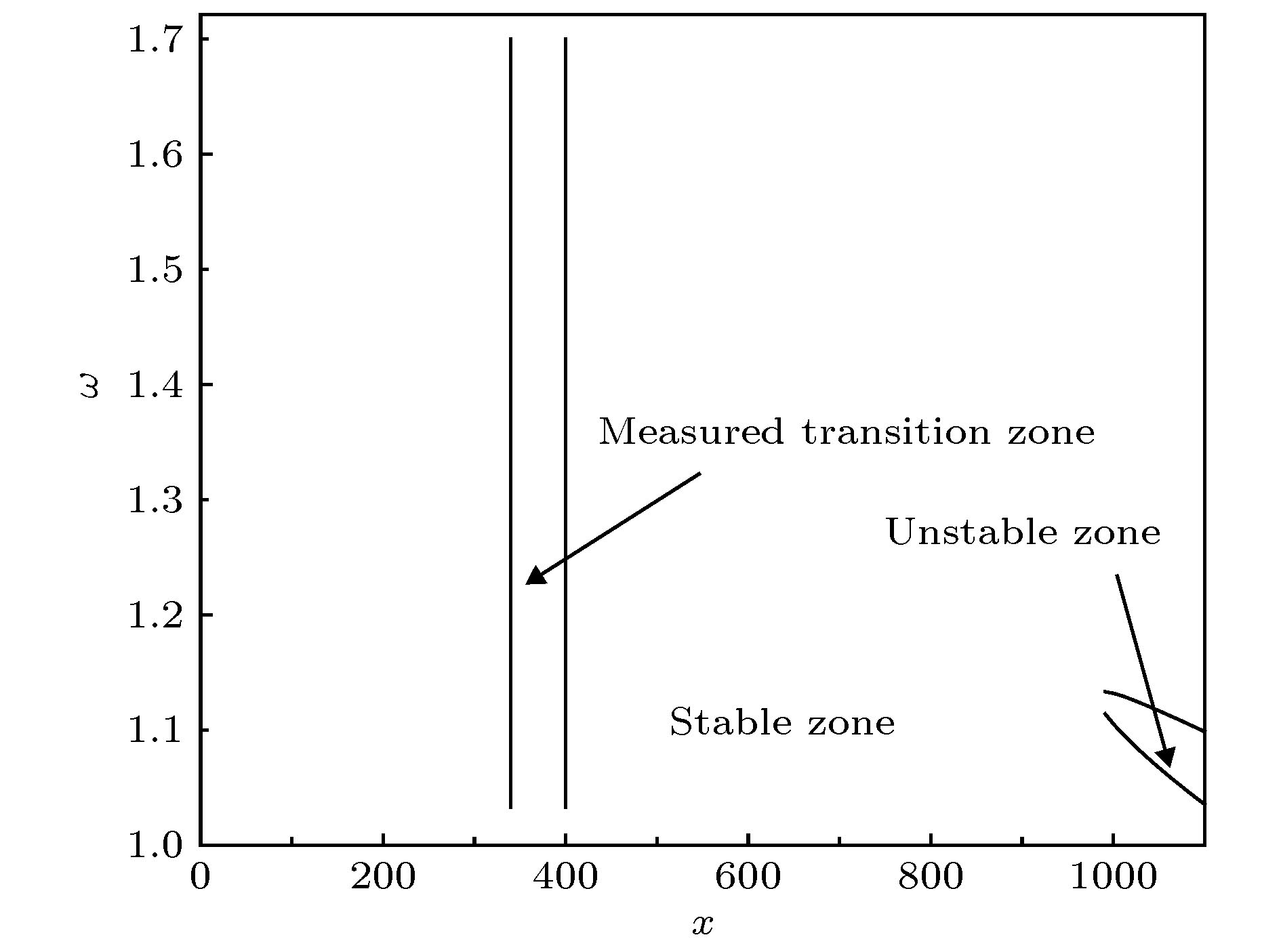

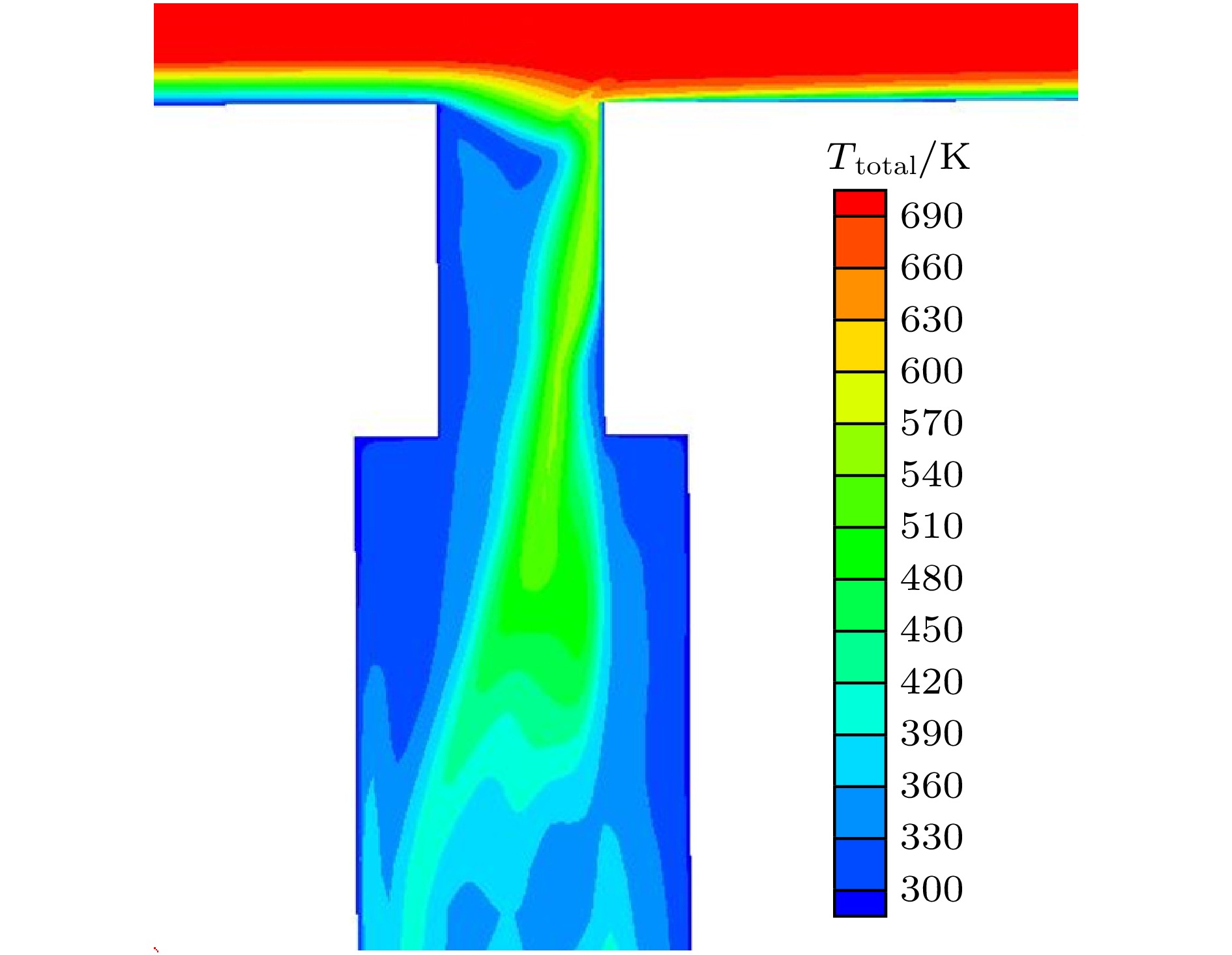

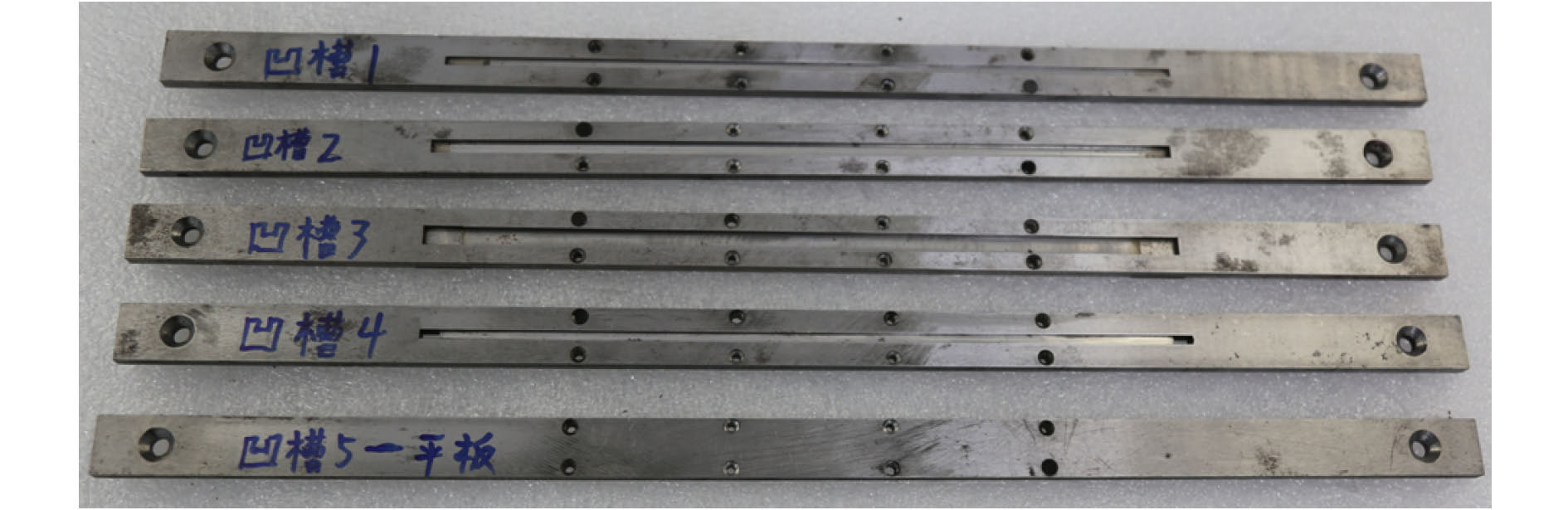

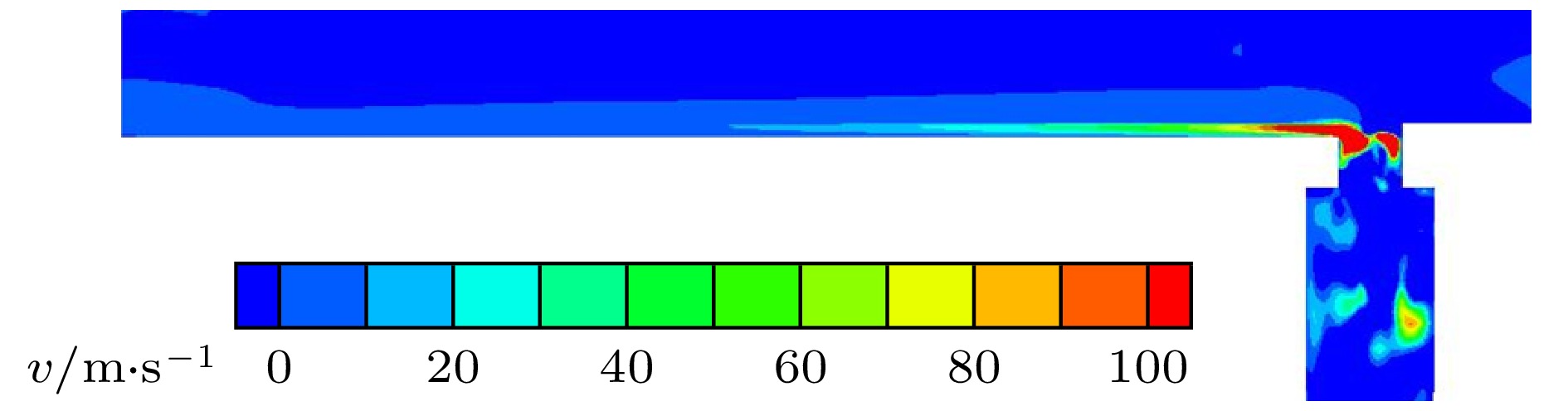

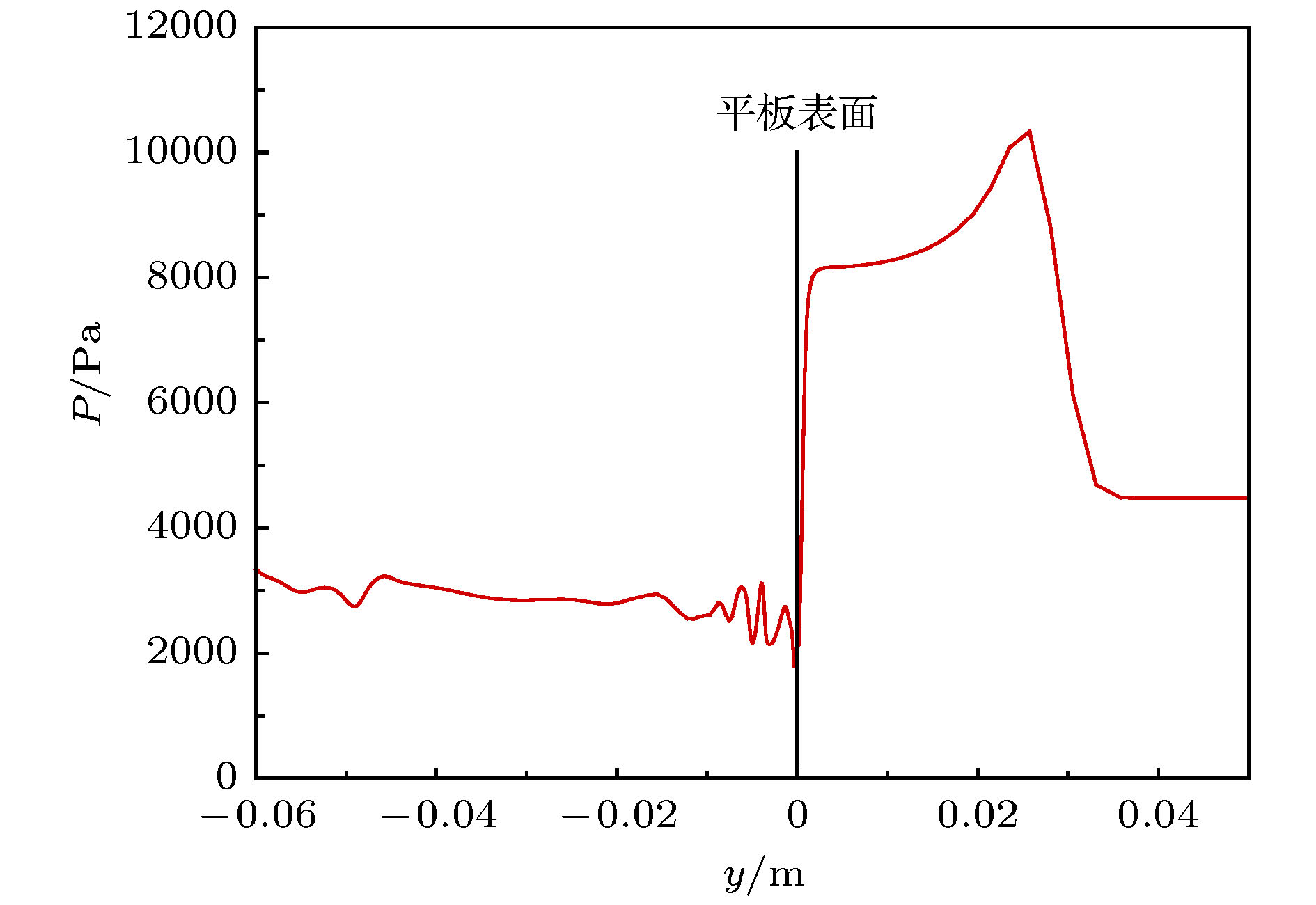

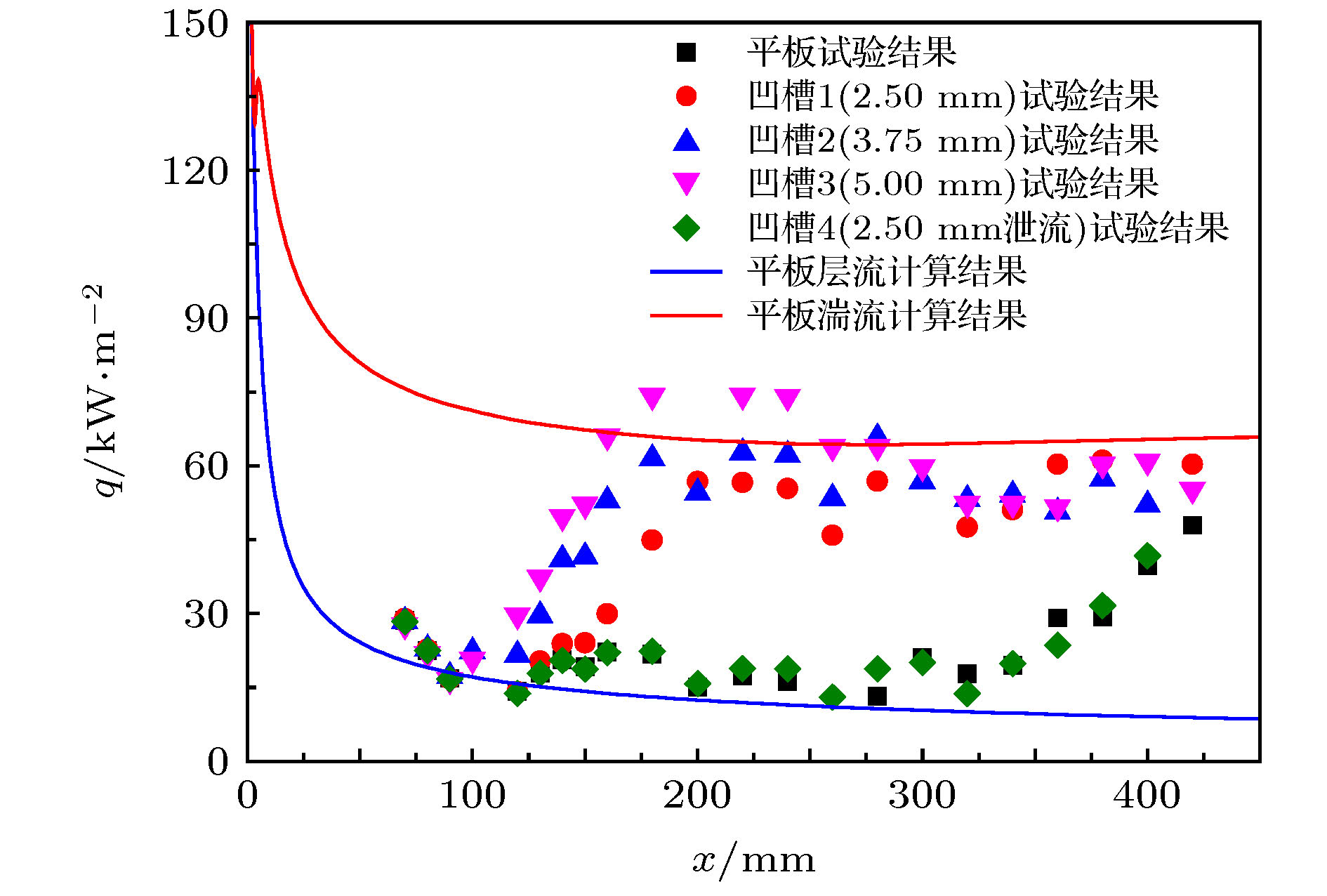

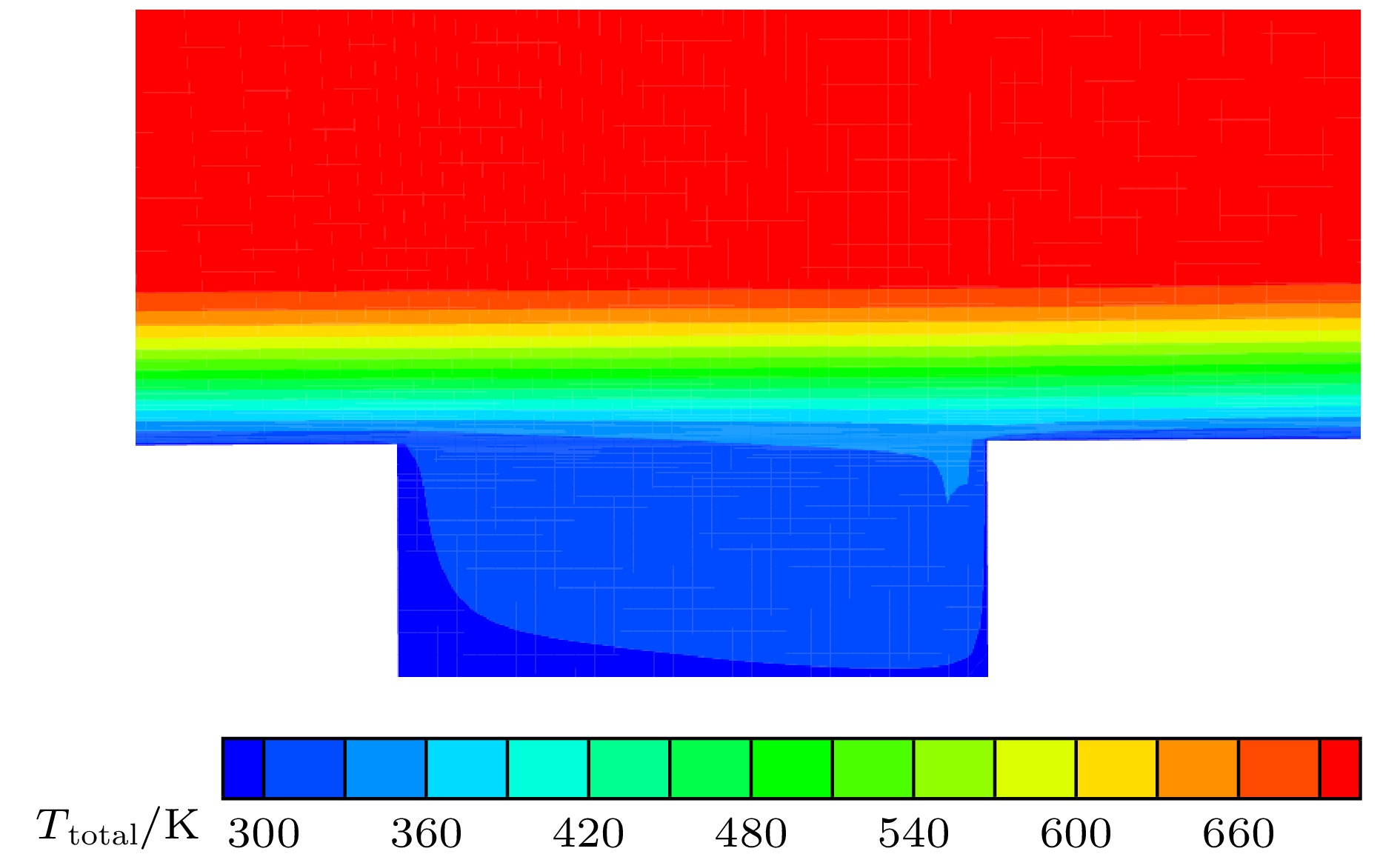

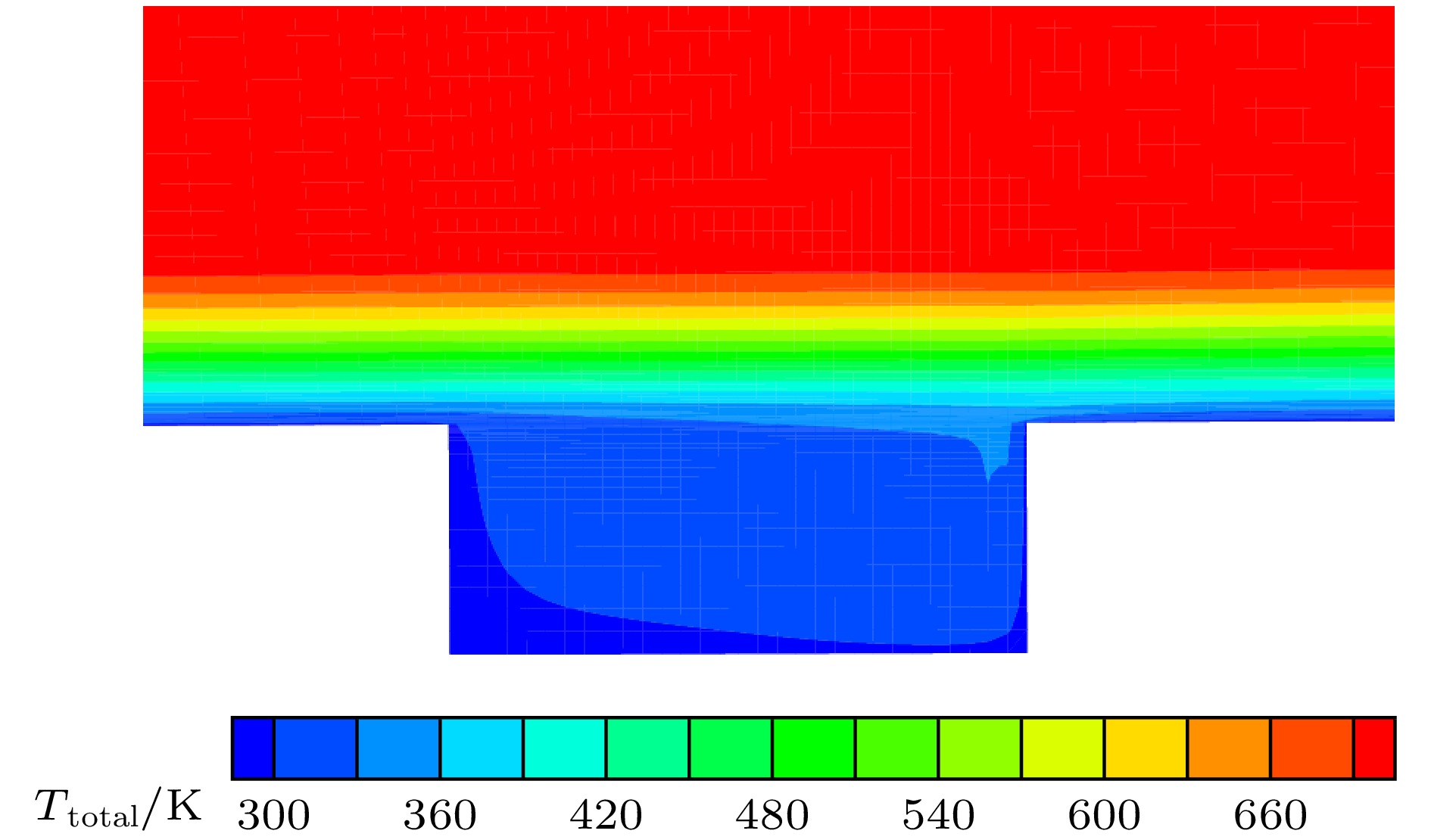

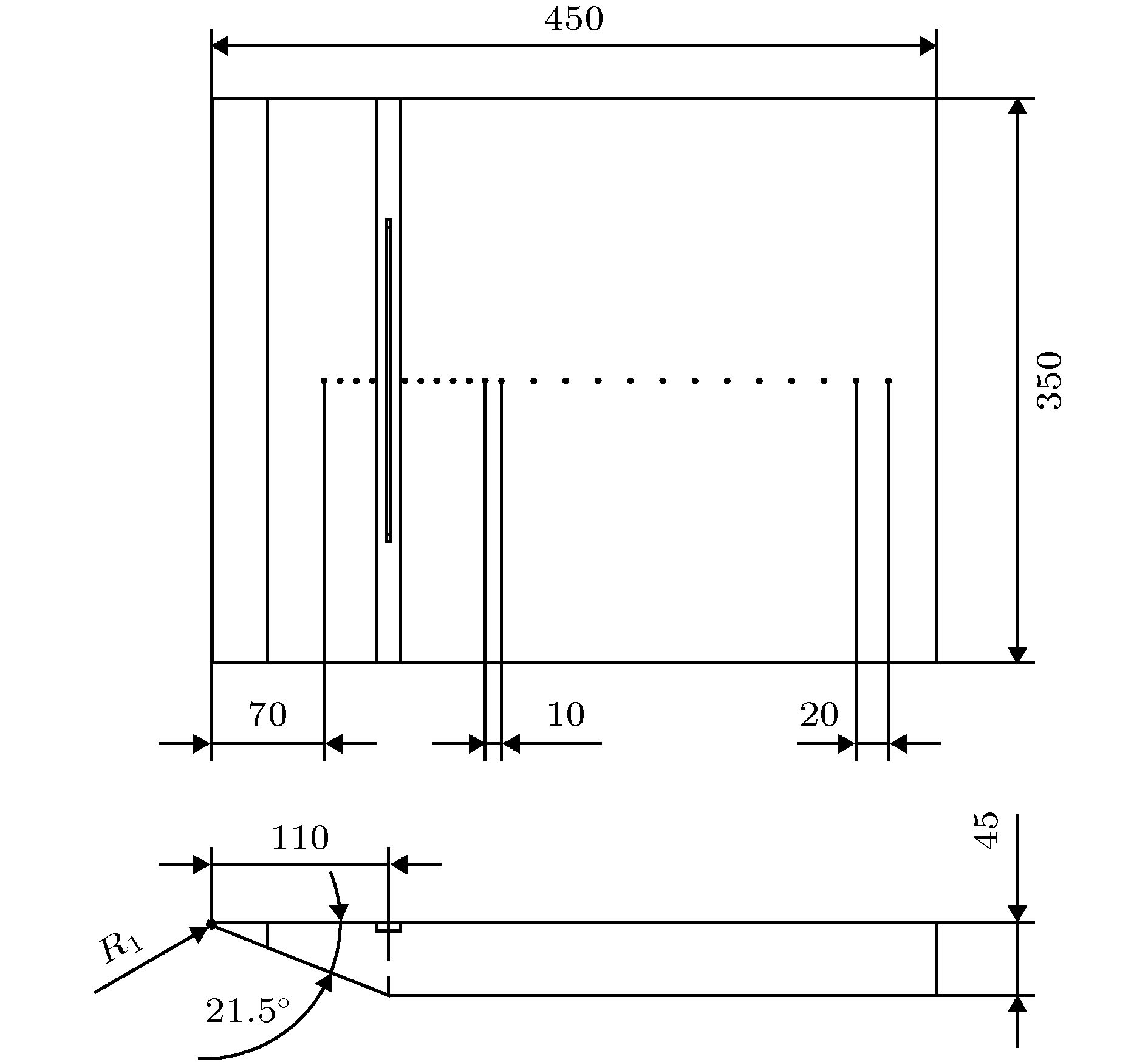

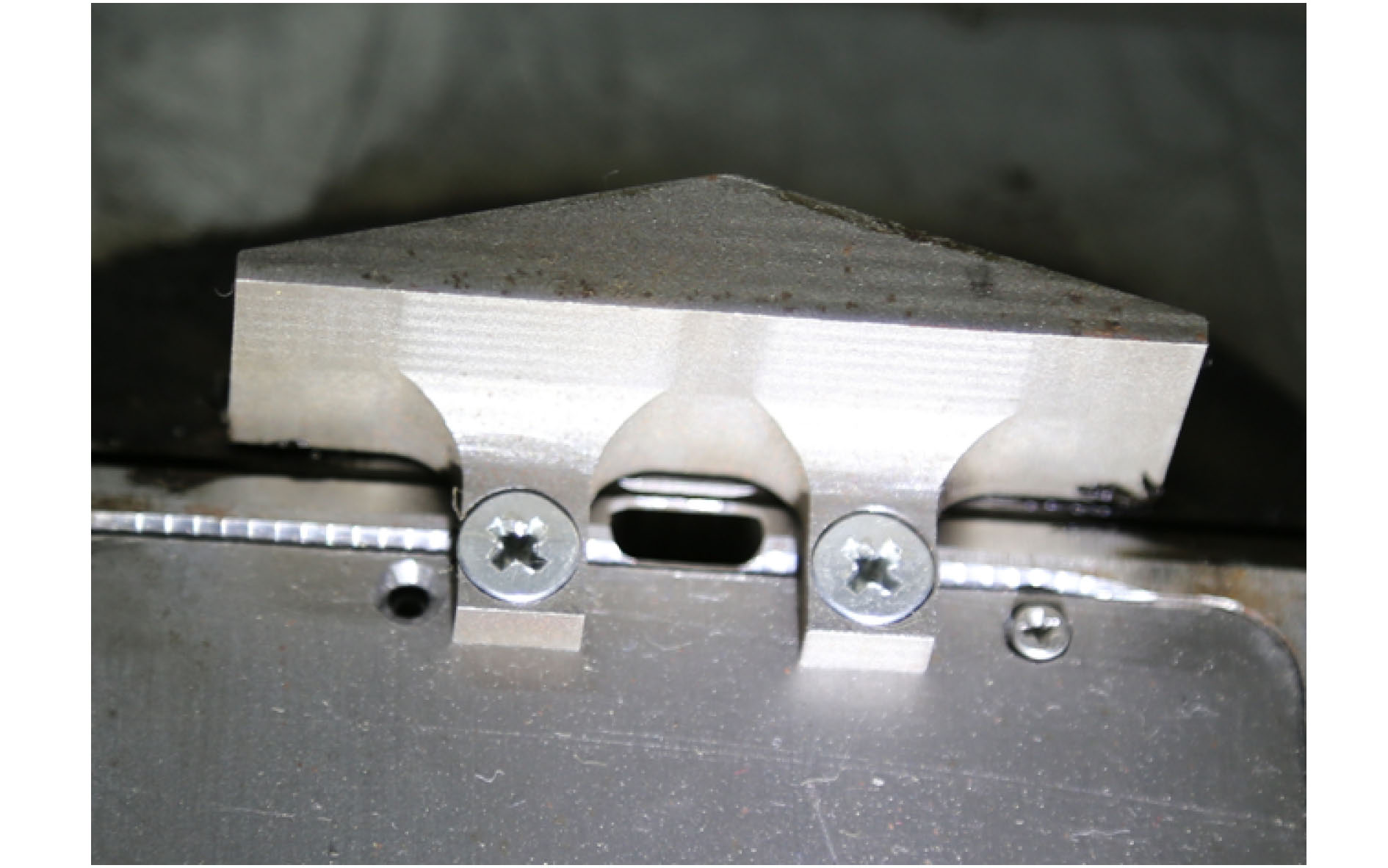

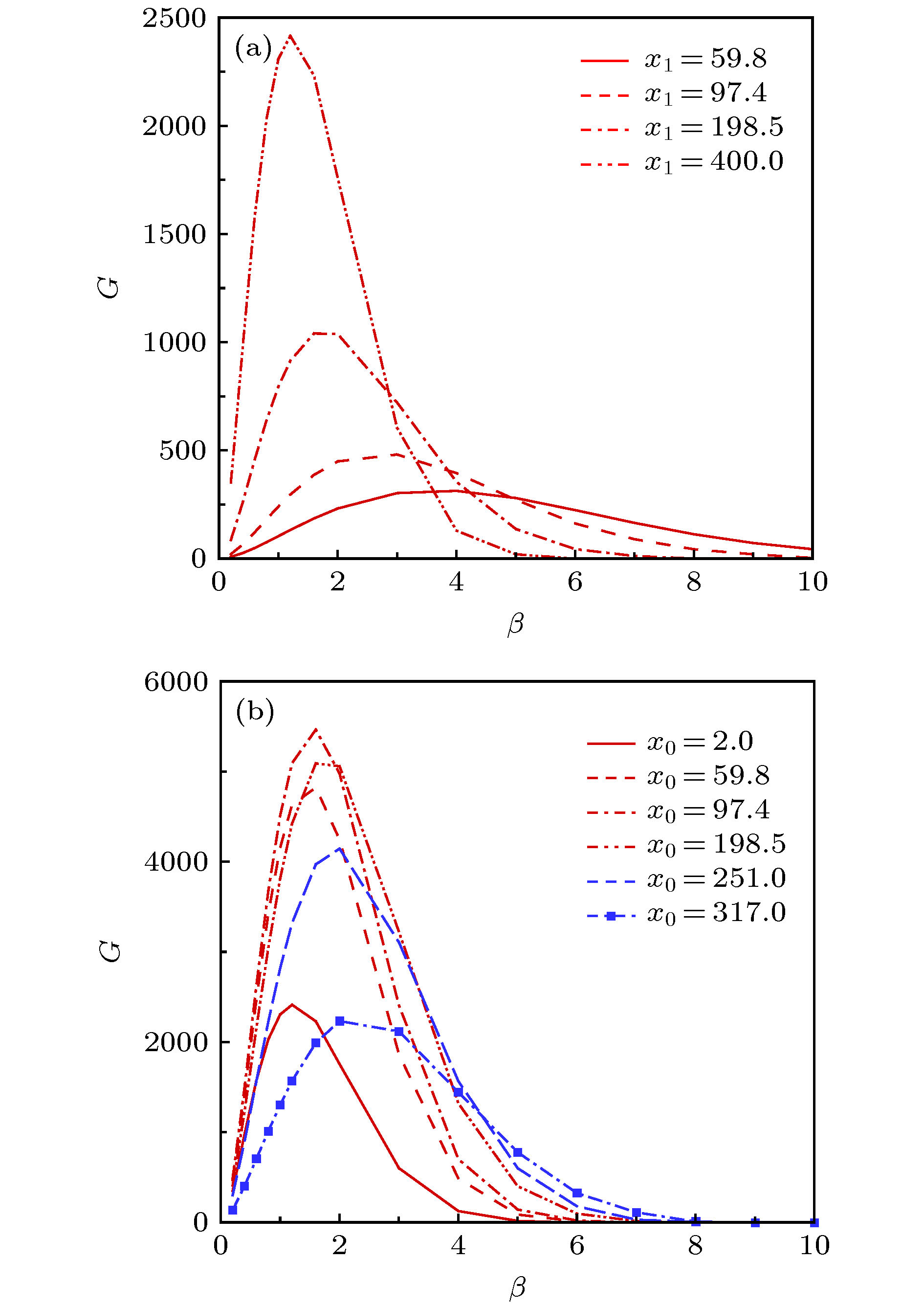

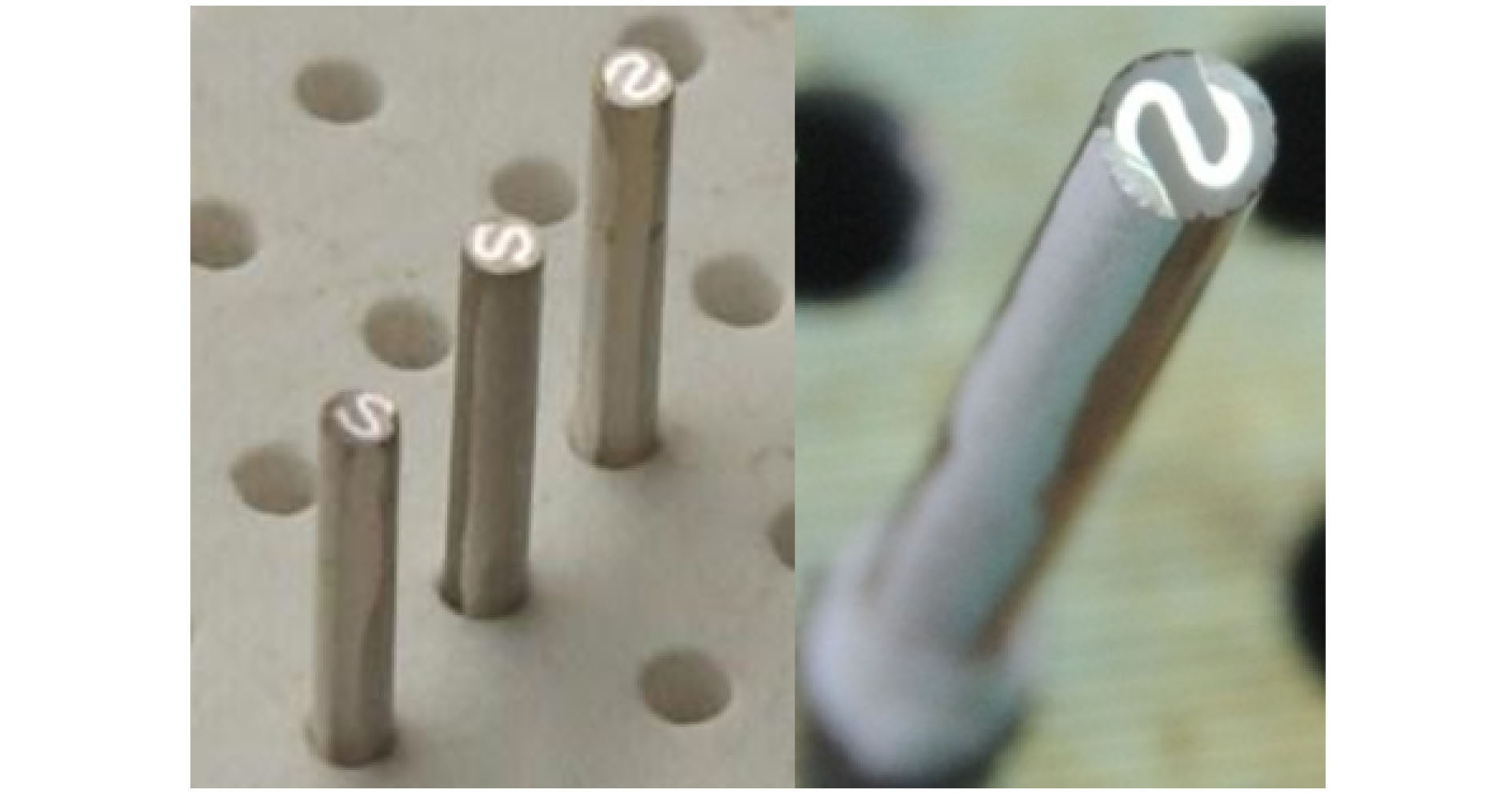

针对展向凹槽和泄流孔对高超声速钝平板边界层转捩的影响, 在中国空气动力研究与发展中心 Φ2 m激波风洞(FD-14A)开展了试验及初步的计算与理论研究. 试验的来流马赫数为6、单位雷诺数为3.3 × 10 7/m, 平板的前缘半径为1 mm, 攻角为–4°. 在距平板前缘110 mm处布置三组不同的二维展向凹槽, 凹槽的宽度与深度分别为凹槽1 (2.5 mm, 1 mm)、凹槽2 (3.75 mm, 1.5 mm)、凹槽3 (5 mm, 2 mm), 同时凹槽1的两端可以打开泄流孔, 记为凹槽4, 不含凹槽时的光滑平板情况记为凹槽5或平板. 采用热流传感器测量了不同情况下平板中心线的热流分布, 测量结果显示, 光滑平板情况在 x≈ 340 mm处开始转捩, 在 x≈ 425 mm处转捩接近完成. 凹槽导致平板边界层的转捩位置提前, 且随着凹槽宽度及深度的增加, 对转捩的促进作用增强, 转捩位置向上游移动. 凹槽1增加泄流孔后(凹槽4)其热流分布及转捩位置与光滑平板情况基本一致. 边界层流动完全转捩为湍流后, 各情况下的热流差别较小, 表明不同规格的凹槽只影响转捩过程中的热流分布, 对转捩完成后的湍流壁面热流影响较小. 数值计算 (CFD)结果显示, 泄流孔导致了被动抽吸, 试验结果显示凹槽两端的泄流孔抽吸效应抵消了凹槽对平板中心线边界层转捩的促进作用. 采用线性稳定性理论(LST)及最优扰动方法分析了光滑钝平板情况的流动失稳机制. LST结果显示, 本文平板流动不存在Mack第一模态、第二模态失稳, 因此传统的模态失稳机制无法解释试验中观测到的转捩现象. 最优扰动计算显示, 平板流动存在较强的非模态失稳, 可以定性解释观测到的转捩现象.Experiments are carried out on the Φ2 m Shock Tunnel (FD-14A) at the China Aerodynamics Research and Development Center to study the effect of the transverse groove with/without discharge hole on the hypersonic blunt flat-plate boundary layer transition, and the preliminary computational and theoretical research are carried out. The inflow Mach number of the test is 6, the unit Reynolds number is 3.3 × 10 7/m, the leading edge radius of the flat-plate is 1 mm, and the angle of attack is –4°. Three different sets of two-dimensional transverse grooves are arranged at 110 mm away from the leading edge of the flat-plate. The width and depth of the grooves are, respectively, 2.5 mm and 1 mm for groove 1, 3.75 mm and 1.5 mm for groove 2, and 5 mm and 2 mm for groove 3, at the same time, both ends of the groove 1 can open the discharge hole (the discharge hole has a size of 2.5 mm × 5.0 mm and a width the same as that of groove 1). The discharge hole is denoted as the groove 4, and the smooth flat-plate when the groove is not included is denoted as groove 5 or the flat. The Φ2-mm-diameter cylindrical heat flux sensor is used to measure the heat flux distributions of the center line of the flat-plate under different conditions, and thus we can judge the transition of the boundary layer. The measurement results show that the smooth plate starts to transit at x≈ 340 mm, and the transition is nearly completed at x≈ 425 mm. The groove causes the transition position of the boundary layer of the plate to advance, and as the width and depth of the groove increase, the promoting effect on the transition is enhanced, and the transition position moves upstream. After the groove 1 is added to the discharge hole (groove 4), the heat flux distribution and the transition position are substantially the same as those of the smooth plate. After the boundary layer flow completely transits into turbulent flow, the difference in heat flux for each case is small, which indicates that the grooves of different specifications affect only the heat flux distribution in the transition process, but have little effect on the heat flux of the turbulent wall after the transition. The computational fluid dynamic results show that the discharge holes cause passive suction, and the test results show that the suction effect of the discharge holes at both ends of the groove counteracts the effect of the groove on the transition of the center line boundary layer, but it may be just a coincidence, and further research is needed. The linear stability theory (LST) and the optimal perturbation method are used to analyze the flow instability mechanism of the smooth blunt plate. The LST results show that there is no first mode instability nor second mode instability in the blunt plate flow. The modal instability mechanism cannot explain the observed transition in the test. The optimal disturbance calculation shows that the blunt plate flow suffers strong non-modal instability, which can qualitatively explain the observed transition phenomenon.
