    李东阳, 张远宪, 欧永雄, 普小云

    Optofluidic fluorescence resonance energy transfer lasing in a polydimethylsiloxane microfluidic channel

    Li Dong-Yang, Zhang Yuan-Xian, Ou Yong-Xiong, Pu Xiao-Yun
    PDF
    HTML
    导出引用
    • 将单一折射率的石英裸光纤植入由聚二甲基硅氧烷构成的基片微流道中, 以低折射率的罗丹明B (RhB)和吡啶821 (LDS821)乙醇溶液构成的供体和受体对作为激光增益介质. 采用沿光纤轴向消逝波抽运方式, 首先以波长为532 nm的连续波激光器作为激励光, 对荧光共振能量转移特性参数进行了研究. 然后以波长为532 nm的脉冲激光器作为抽运光, 通过直接激励供体分子RhB, 并将其能量转移给临近的受体分子LDS821, 在不改变抽运光波长的条件下, 实现了较低阈值(1.26 ${\text{μ}}{\rm J}$ /mm 2)的受体LDS821激光辐射.

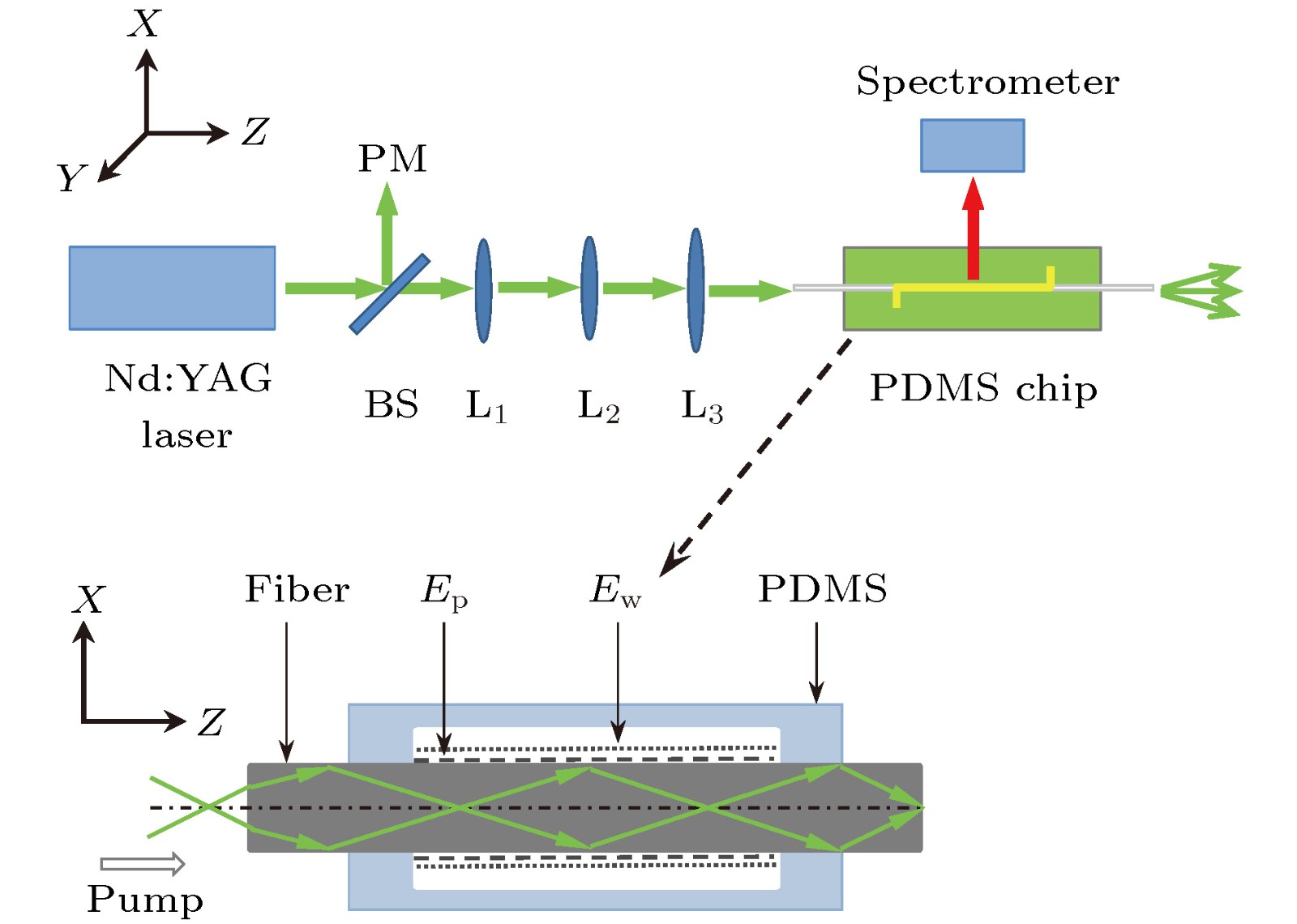

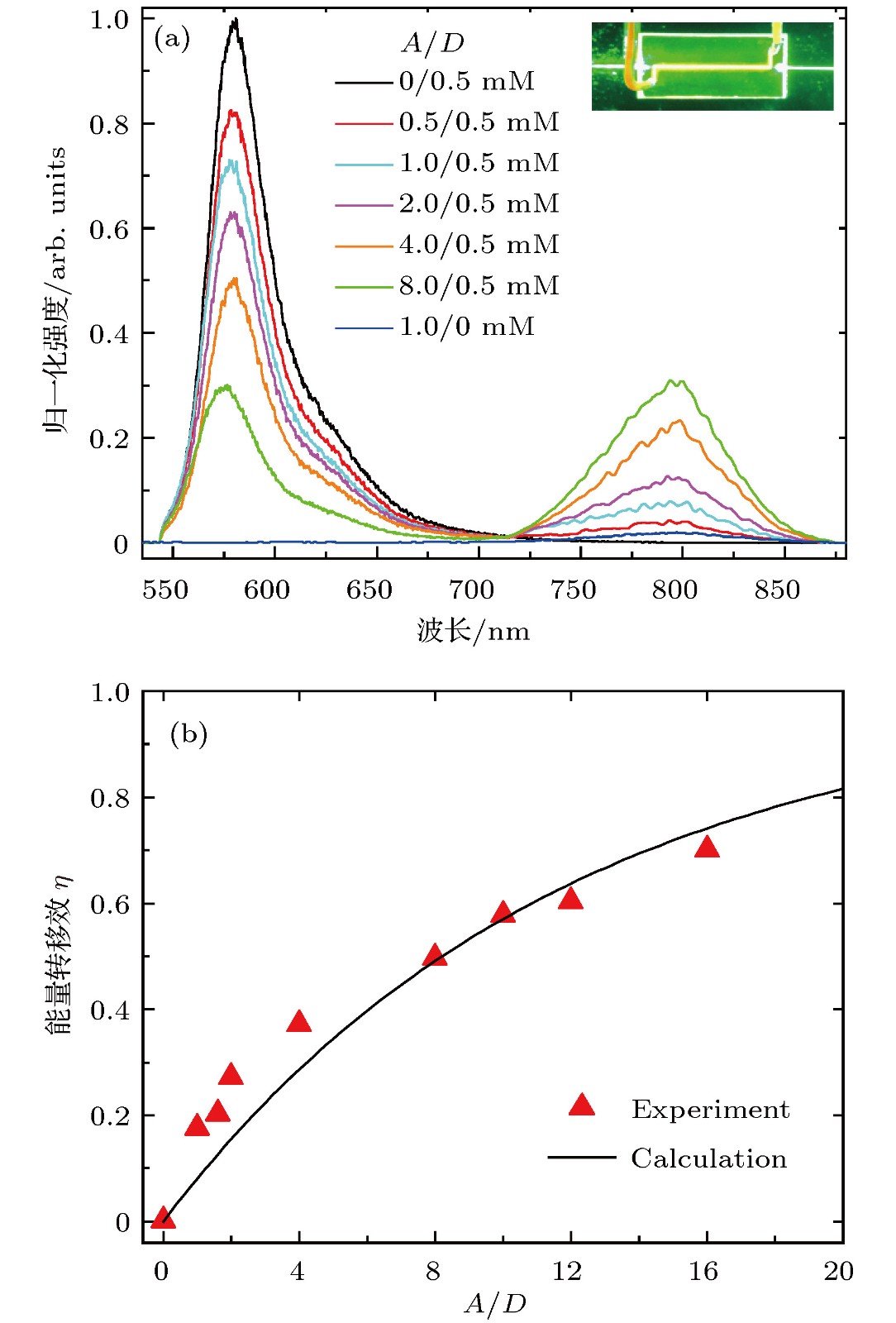

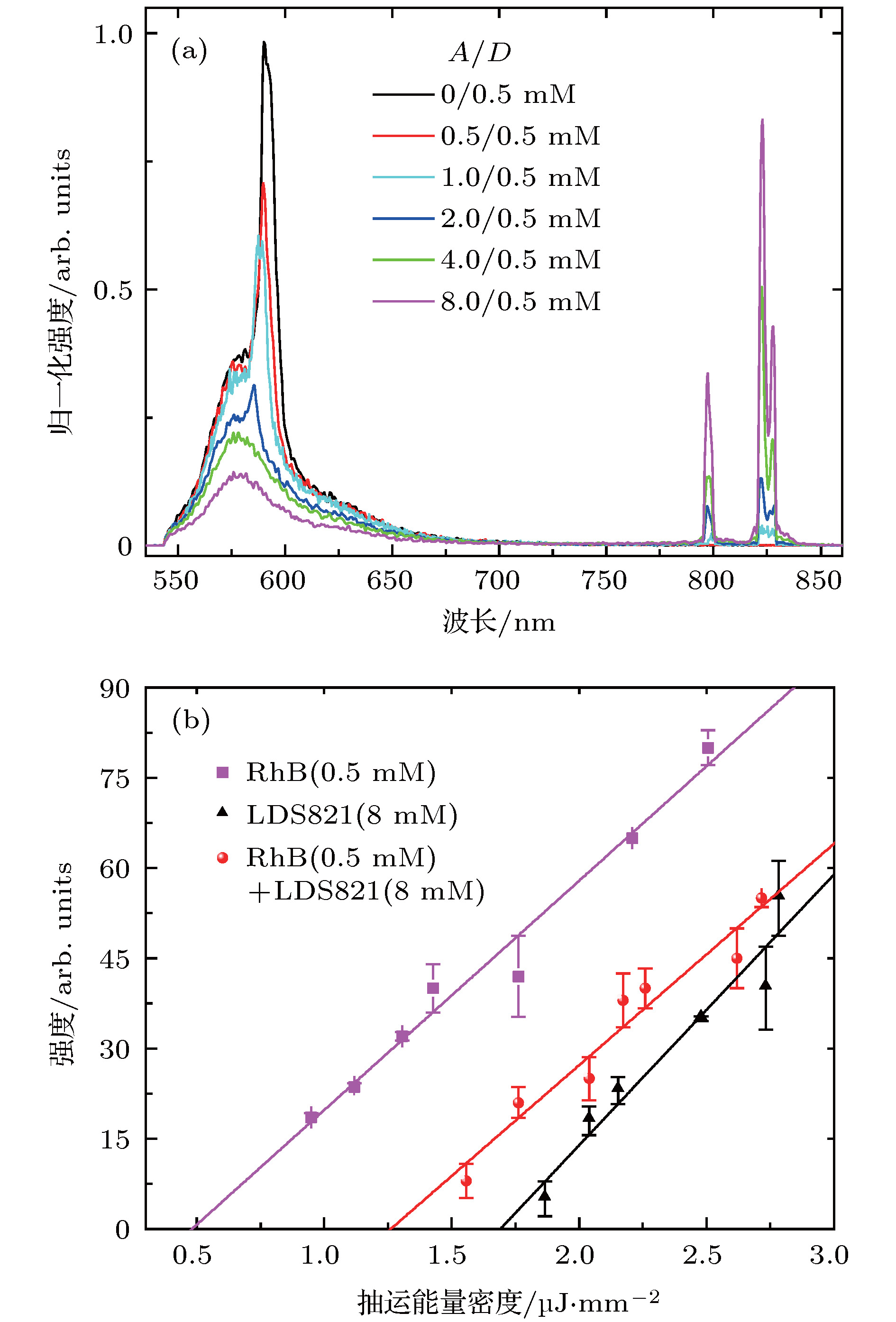

      A bare quartz fiber with single refractive index is implanted into a polydimethylsiloxane (PDMS) microfluidic channel. The lasing gain medium consists of fluorescence resonance energy transfer (FRET) donor-acceptor dye pair Rhodamine B (RhB)-LDS821 mixture solution, which has a lower refractive index than that of the optical fiber and flows in the PDMS microfluidic channel. The circular cross section of the optical fiber forms a ring resonator and hosts high-quality ( Q) whispering gallery modes (WGMs). Pumping along the optical fiber axis, the FRET characteristic parameters, i.e., the FRET efficiency $\eta $ and the Förster distance R 0of donor-acceptor dye pair, are firstly studied by using a continuous wave laser as a pump light source with a wavelength of 532 nm. The excited states are thencreated in the donor (RhB) by using a pulse laser with a wavelength of 532 nm and whose energy is transferred into the adjacent acceptor (LDS821) through the non-radiative FRET mechanism. Finaly, the emission of LDS821 iscoupled into the WGM of the ring resonator to lase. Due to the high energy transfer efficiency and high Q-factor, the acceptor shows a lasing threshold as low as 1.26 ${\text{μ}}{\rm J}$ /mm 2.
          通信作者:普小云,xypu@163.com
        • 基金项目:国家自然科学基金(批准号: 11864045, 11404282, 61465014, 61465015)、云南省中青年学术和技术带头人(后备人才)(批准号: 2018HB029)和国家留学基金资助的课题.
          Corresponding author:Pu Xiao-Yun,xypu@163.com
        • Funds:Project supported by the National Natural Science Foundation of China (Grant Nos. 11864045, 11404282, 61465014, 61465015), the Young and Middle-aged Academic and Technical Leaders (Reserve Talent) in Yunnan Province, China (Grant No. 2018HB029), and the China Scholarship Council (CSC) Foundation.
